La Nuova Era Cuadra HX Espresso Machine
Our version of the La Nuova Era Cuadra includes a no-burn steam wand, no-burn hot water wand, and an upgraded brain unit. Heat exchanger (HX) system with an E61 grouphead. Boiler pressure gauge. There is even a refill spout so you do not need to pull your machine forward to fill the reservoir. Brain unit, pump, and solenoid valve are near the bottom to avoid boiler heat which rises, and these same items are protected with stainless steel covering to prevent water from splashing on them. Need we say more? Looking for another heat exchange espresso machine? Take a look at the Bellezza Inizo R Leva HX Espresso Machine
Videos



Features

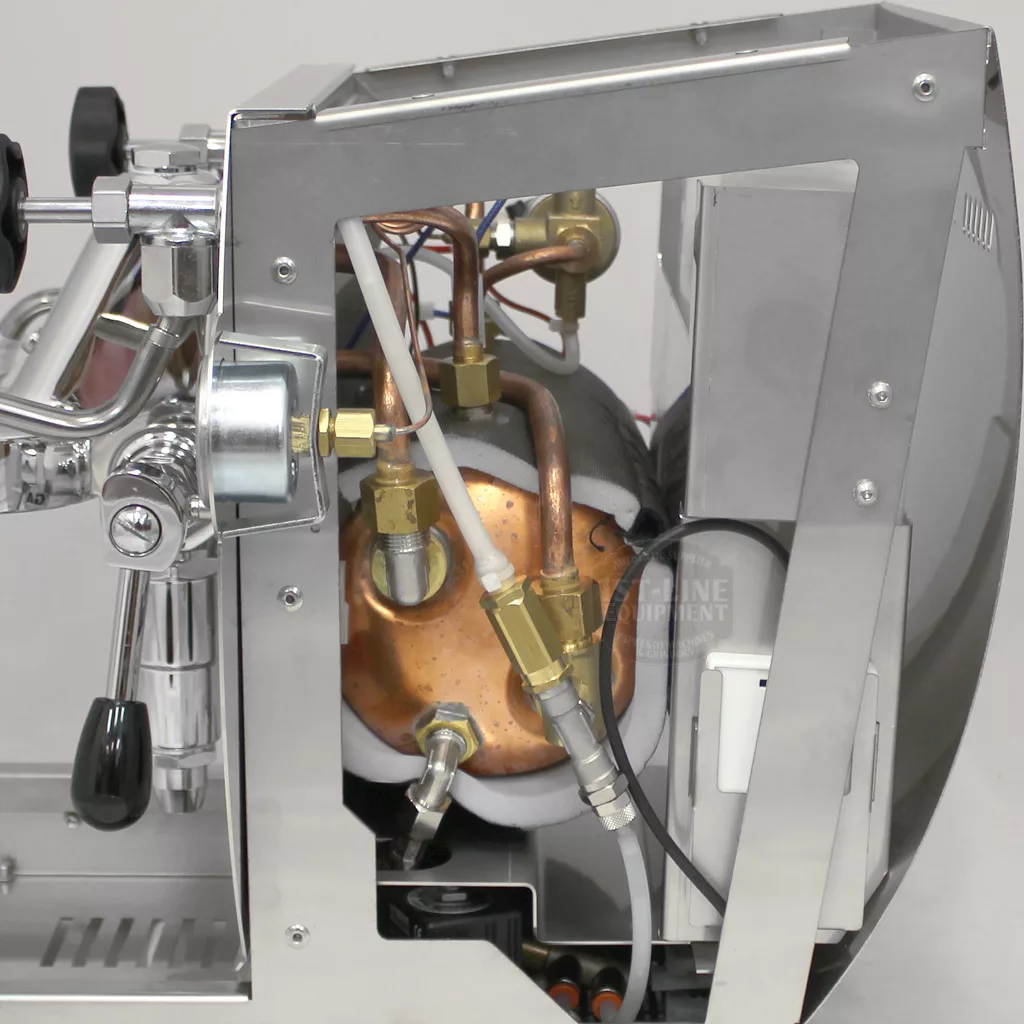

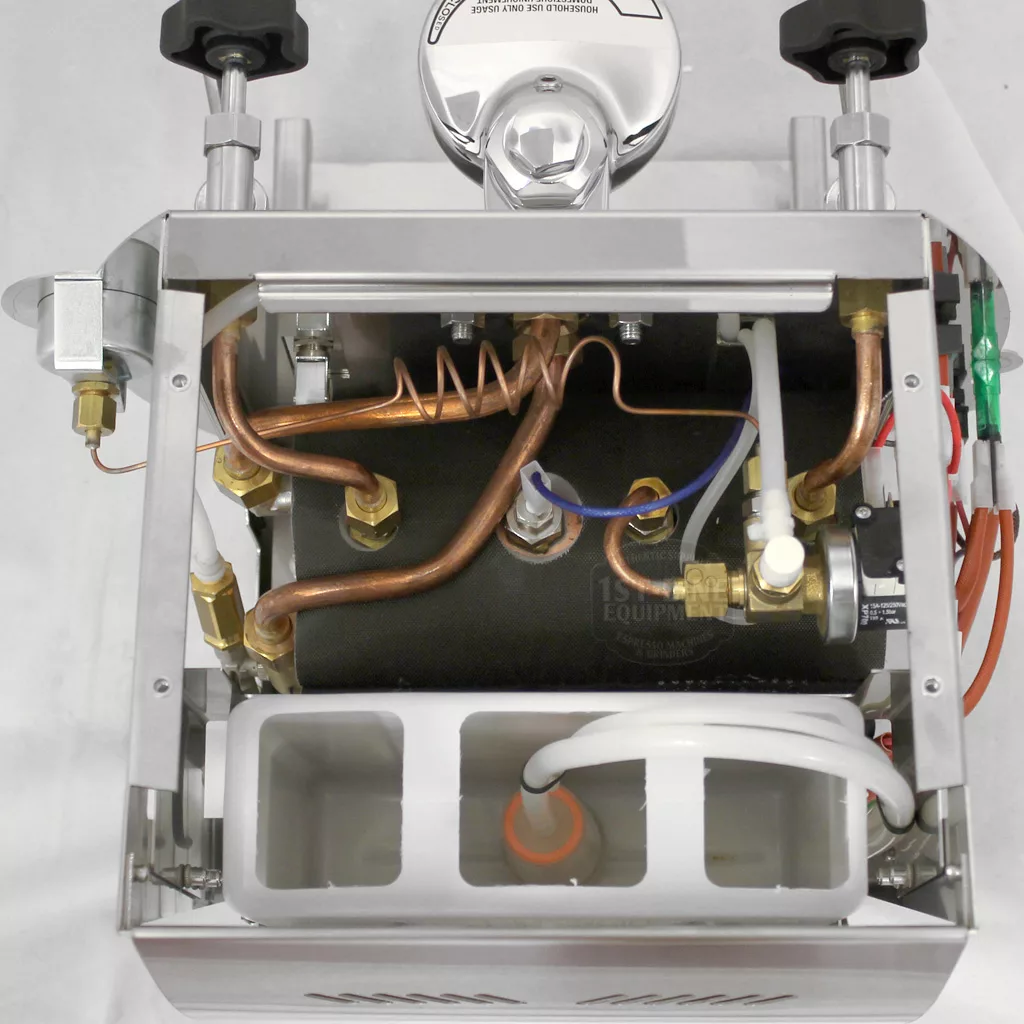

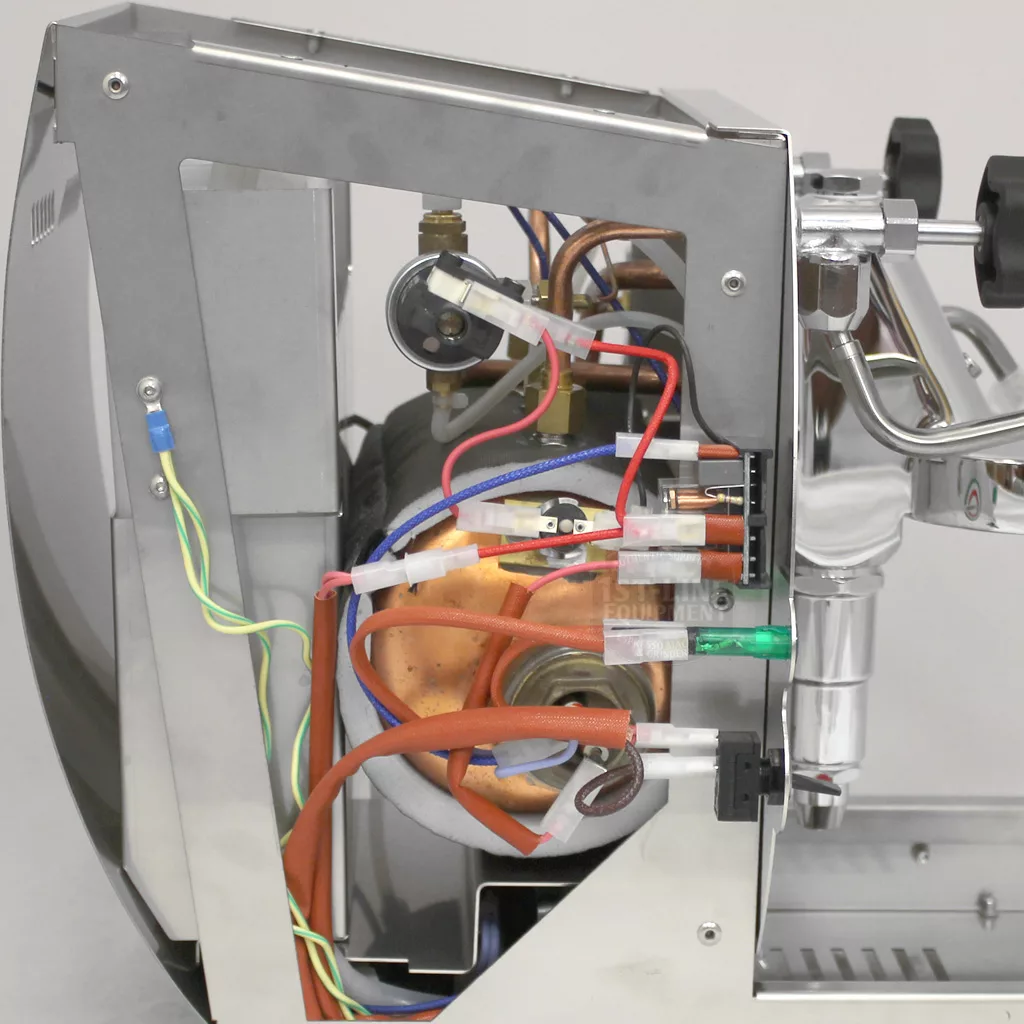

Heat exchange system
- Copper, insulation: The boiler is made of copper which retains heat better than stainless steel. Typically copper boilers are more susceptible to limescale when you compare to stainless steel boilers. Therefore, we highly recommend utilizing the water softener that comes with this machine. The manufacturer wraps the boiler with insulation for maximum heat retention.
- Pull a shot & steam milk at the same time: Steam is always readily available. Hence, there is no wait time going from coffee to steam mode.
E-61 grouphead
- Constantly heated: Hot water circulates from the heat exchanger through the grouphead and back to keep the grouphead and your portafilter nice and hot. As a result, the grouphead temperature constant and stable when you compare to other groupheads that have a built-in heating element.
- Pre-infusion: Lever next to the grouphead activates a microswitch which turns on the pump to pump water through the coffee grinds. Pulling the lever half way up will open the valve to allow water into the grouphead without activating the pump. Please note that true pre-infusion requires the direct water connection whereby the water pressure from the water line creates true pre-infusion.
Tank/reservoir system
- Water softener: The best protection from any limescale buildup in your machine. The water softener must be charged before use. Please follow our instructions on how to do so. This water softener also acts as a particle filter to protect the machine from any unseen particles entering the boiler.
- Auto-shut off: Prevents burning out the heating element. The water tank sits on a spring activated plate. Once the water is low, the plate depresses the tank microswitch which turns off the heating element.
Vibratory pump
- Efficient: 41 watts, rated up to 15 bar with air valve bypass. You only need 9 bar to extract perfect espresso, and wattage has no correlation to longevity.
- Cost effective: Pumps will degrade in performance over time. Replacing a vibration pump will cost less than a rotary vane pump.
Steam/water wand
- Multi-directional: Allows for more movement and flexibility. The wands connect to the valves at an angle to the side for even more flexibility. As a result, there is less risk of burning oneself from the exposed grouphead.
- No burn: Normally the Cuadra comes with regular wands, but requested no-burn wands. Both wands have insulation, which allows you to touch any part of the stem. Please note after very long periods of use, the wands will eventually be hot.
- 2-hole steam tip: Allows for a slow gradual build-up of microfoam.
- Rotational knobs: Allows for easier control of the intensity.
Construction
- Frame: Made of stainless steel (not polished).
- Body panels: Sides panels are made of plastic with a polished chrome color coat. The back panel is made of stainless steel satin with a satin finish. The front panel is made of stainless steel with a polished finish.
- Drip tray: Made of stainless steel. Slides out from the machine for easy cleaning. Plastic insert and stainless steel drip tray cover add a really nice touch.
- Cup warmer tray: Made of stainless steel. Must be removed to refill the water reservoir. As with any machine, cups can take up to 2 hours to preheat using a cup warmer tray. You can use the water wand to flash heat your cups.
Accessories included
- Portafilters: Single spout portafilter & dual spout portafilter. Both are 58 mm. The filter heads have “La Nuova Era” imprint on them.
- Filter baskets: 1-cup filter basket which holds approximately 7 grams. 2-cup filter basket which holds approximately 14 grams. 58 mm in diameter.
- Tamper: A cheap plastic tamper. Manufacturers will normally include a tamper like this to keep the overall selling price of the machine low. We recommend upgrading to a better tamper.
- Cleaning brush: Used for cleaning the grouphead. Ergonomically designed with an angle for easier usage.
- Coffee scoop: A simple plastic scoop if you are using pre-ground coffee.
- Cleaning brush: Specifically for cleaning the grouphead.
- Funnel: Helps fill your water tank without the need to remove it. Useful if your machine doesn’t have the height clearance to allow you to fully remove the water tank from your machine.
- Water softener: Already attached to the intake hose.
- Instruction manual: Available in English and Italian.
Specifications
| Brand | La Nuova Era |
|---|---|
| Height (inches) | 15, approximate |
| Width (inches) | 14.5, approximate |
| Depth (inches) | 17, approximate |
| Weight (pounds) | 38 |
| Wattage (watts) | 1200 |
| Voltage (volts) | 110 – 120 |
| Boiler capacity (liters) | 1.8 |
| Tank capacity (liters) | 3 |
| Country of manufacture | Italy |
| Approvals | CE |
Notes
General Espresso Machine Notes/Warnings:
- Upon first use (tank/reservoir models): On the initial start-up (or after a long period of non-use), it is important to make sure the pump is removing water from the tank. When the machine is powered on, you will hear the pump running. After 5 seconds, squeeze the in-line hose in the tank (usually the longest hose, has a particle filter attached). if you hear a different sound, this means the pump is working correctly. If not, immediately power down the machine and contact us. For more information, visit this page General Manual Pump Priming.
- Electrical: To avoid electrical damage to this espresso machine which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. Without the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat, or the wiring inside. For more information, visit this page Power Protection.
- Water: To increase the useful life and not damage your espresso machine, please use softened water. Softened water is water without calcium and magnesium, but still has other minerals for espresso extraction. Do not use distilled, purified, or reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale. For more information, visit this page Water Choice.
- Descaling: We do not recommend descaling unless there is an issue with the espresso machine. Too much descaling can eat away at the metals and gaskets inside an espresso machine. As a preventative measure, we recommend using softened water as explained in the bullet point above.
- Backflushing: This procedure of cleaning the grouphead will need to be performed from time to time. For more information, visit this page Espresso Machine Backflush – Why 50?
Support
Parts Diagram
No block ID is set
Reviews
Q & A
Ask a question
Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.
-
I have a 10 year unit that I've repaired with parts form 1st-line over the years. I'm noticing that it is now switching cycling on the heating element about every 20-30 seconds. I've searched for steam leaks but am not finding anything (at least nothing obvious). Perhaps it always did this and I didn't notice previously? Can you note how often the heating element should be switching on? I thought it was every few mins when I got the machine? Any tips on which components are most likely to develop leaks?
-
Q I have a 10 year unit that I've repaired with parts form 1st-line over the years. I'm noticing th...... Read more answer nowAsked by on November 21, 2024 3:23 pmAnswered by the admin
Sorry, different environments have different heating cycles. Every 20-30 seconds is faster than usual, so you may have a steam leak somewhere. Since the unit is 10 years old, we suggest a professional evaluate it.
I had a short from a small piece of metal touching an electrical component inside. The fuse blew. I replaced the fuse, but not working. What would you suggest I try next to troubleshoot?
-
Q I had a short from a small piece of metal touching an electrical component inside. The fuse blew....... Read more answer nowAsked by on June 6, 2024 10:22 pmAnswered by the admin
We suggest having a professional evaluate the machine. Sorry, we do not want any liabilities when this type of incident occurs, and the numerous possibilities of diagnosis are beyond the scope of our free Q&A service. Again, we are very sorry about this.
I need a replacement fuse for my machine. You guys are the only place I have been able to find one, but all I am seeing is 15 amp and my cord is rated at 13 amp. Do you have 13 amp fuses? Or will the 15 amp work?
-
Q I need a replacement fuse for my machine. You guys are the only place I have been able to find on...... Read more answer nowAsked by on April 4, 2024 1:35 pmAnswered by the admin Sorry, we only have the 15 amp. You can also try your local hardware or electrical supply store as well.
Hello, I have a La Nuova Era Cuadra Espresso machine and just noticed a small leak in the fitting that attaches to the pressure stat. I've tried to do some research online to find this fitting but am not having much luck. I did find this link (https://www.home-barista.com/repairs/nuova-era-cuadra-pressurestat-leak-t46227.html) where someone posted a link to your website with the replacement part however the link seems to be old. The reference is #6 by homeburrero on March 2th, 2017. I'm assuming this part is discontinued but was hoping you could help point me in the right direction for a new part. I think the leak is caused by an Oring that isn't sealing anymore. From the picture at the top, the pStat is on the right and the leak is the brass fitting just to the left. To the left of that brass fitting (where it says 1.8 bar) is a small clip. I've removed that and slid the square brass fitting (with the safety valve and vacuum breaker on) off of the shaft and it seems that it is a banjo style fitting with two orings (I think Viton) Maybe I can just replaced those Orings? Anyway this is my first espresso machine so not sure if this is feasible or if there is another solution you recommend but would be happy to hear any advice you have. Thank you in advance!
-
Q Hello, I have a La Nuova Era Cuadra Espresso machine and just noticed a small leak in the fitting...... Read more answer nowAsked by on December 28, 2023 12:59 pmAnswered by the admin
We are sorry that some parts have been discontinued. In addition, we apologize as the research work is beyond the scope of our free service on Q&A. Our recommendation is that a professional is hired to evaluate and determine the best solution. Again, we are sorry that this is not as simple in terms of time that needs to be invested.
I purchased my Cuadra second hand and it looks like the machine is from 2013. My machine is not working, I went through your troubleshooting guide and I am still having issues. The machine powers on, the green indicator light illuminates and i hear the relay in the control unit click on(usually i hear the pump turn on for a second to top up the tank, but it does not currently). The unit does not heat up after that and when i try to turn on the pump manually with the switch, i hear the relay contact close, I checked it and its getting continuity. I checked the heating element resistance/continuity and it seems fine. There does not seem to be a relay near the gauge or on the pressure switch. all the relays seem to be in the control box(which is the Pro.El.Ind. unit) or the one above the on off switch which i assume controls the heating element. Does this seem like its a problem with the controller or autofill relay? the instructions say that there is not a way to test these, is there not a way to trick the sensor just to see if its the culprit? thanks
-
Q I purchased my Cuadra second hand and it looks like the machine is from 2013. My machine is not w...... Read more answer nowAsked by on January 30, 2023 4:17 pmAnswered by the admin
Sorry, considering the age of the machine and being out of warranty, there may be multiple issues which is beyond the scope of our free support services in Q&A. There is no way to trick the autofill relay/board. Although we appreciate your efforts, it is best to contact a local service professional who is willing to evaluate the machine.
Hello, I purchased the machine from you in 2011, could I adjust the brew pressure down to 9 bars via the opv valve or is it not possible?
-
Q Hello, I purchased the machine from you in 2011, could I adjust the brew pressure down to 9 bars ...... Read more answer nowAsked by on January 25, 2023 1:09 pmAnswered by the admin
You can, but it may get damaged.
I have 1st-Line La Nueva Era Quadra from 2013. Great machine! However, it has started acting "weird" and produces bad coffee. It comes to pressure as always, but when the lever is thrown, it waits 15 or more sec to start the coffee going. Then it comes out in large tails (not mouse tails) until I shut it off. (I haven't changed coffees, grind, or anything.) Any idea what could cause this?? Thanks!
-
Q I have 1st-Line La Nueva Era Quadra from 2013. Great machine! However, it has started acting "wei...... Read more answer nowAsked by on October 29, 2022 2:13 pmAnswered by the admin Most likely, the issue is the grinder and inconsistent grind fineness. Otherwise, our guess is a bad pump. However, this is only a guess and due to the age of the machine, a local repair expert should evaluate the machine as shipping right now to us may be very expensive.
Looking for Part Number NE458 according to the diagram. I believe it is a MA-TER XP700 with anti-vacuum -Combo valve C111P. Version 1
-
Q Looking for Part Number NE458 according to the diagram. I believe it is a MA-TER XP700 with anti-...... Read more answer nowAsked by on June 17, 2022 12:30 pmAnswered by the admin
Sorry, this part is no longer available.
How do you adjust the OPV? I added a V111K E61 Grouphead Gauge/Manometer 0-16 BAR and keep getting 16 bar at the grouphead. I have adjusted grind, tamp and dosing to no help. The pressure is too much at 16bar.
-
Q How do you adjust the OPV? I added a V111K E61 Grouphead Gauge/Manometer 0-16 BAR and keep gettin...... Read more answer nowAsked by on April 8, 2022 7:05 pmAnswered by the admin
Sorry, this detailed information is beyond the scope of our free service. In addition, we do not want to be responsible for any damages that can occur.
Hello, I recently took the E61 apart for a quick cleaning. Everything was fine, but now my machine turns on normally, heats up to normal temp, then as it sits, it looses pressure and nothing happens when I pull up the lever-gauge will go to zero even when turned on. If I time it just right after turning it on, I am allowed to pour a single shot, and barely steam milk before it looses pressure. So, it functions correctly, but only for maybe 20 minutes before it looses pressure. Did I assemble the E61 wrong?
-
Q Hello, I recently took the E61 apart for a quick cleaning. Everything was fine, but now my machin...... Read more answer nowAsked by on March 4, 2022 10:15 pmAnswered by the admin
Probably coincidental, but it sounds like a brain unit issue, especially if the machine does not starting heating again after opening the steam and hot water valve.
Once turned on my machine starts smelling of a distinct burning rubber/plastic and within a couple minutes starts smoking. We have taken the sides off and don’t see anything clearly burnt. The plugs don’t look burnt, the wires look fine. Is there a common cause we should be looking for?
-
Q Once turned on my machine starts smelling of a distinct burning rubber/plastic and within a coupl...... Read more answer nowAsked by on February 26, 2022 11:54 amAnswered by the admin
We strongly suggest the machine is taken to a professional repair company for evalaution, and the espresso machine should not be used until it is evaluated and repaired.
Hello, I need a new brew valve for this machine. Do you sell one that would work?
-
Q Hello, I need a new brew valve for this machine. Do you sell one that would work? answer nowAsked by on February 23, 2022 12:57 pmAnswered by the admin
Please look at the Cuadra diagram in the support section of our web site and search for the part number for availability.
I took the sensor out of the bracket in my machine and apparently it's fickle because I can't seems to get it back to where it senses the tank is full and start warming. Do you have particular installation instructions? Thus is the white controller on the side of the water tank bracket that is wired to the main controller.
-
Q I took the sensor out of the bracket in my machine and apparently it's fickle because I can't see...... Read more answer nowAsked by on January 31, 2022 3:46 pmAnswered by the admin
Sorry there are no instructions for re-installation by the manufacturer, nor 1st-line.
just a quick question, is it possible to adjust the brew pressure on this machine? I’m getting confused about the pressure stat and the opv and adjustability?
-
Q just a quick question, is it possible to adjust the brew pressure on this machine? I’m getting co...... Read more answer nowAsked by on September 17, 2021 12:05 pmAnswered by the admin OPV can be adjusted to open for the maximum brew pressure. The actual brew pressure is regulated by the resistance of the grinds in the filter basket. We have an article about this. The pressurstat is for regulating maximum steam pressure in the boiler.
My machine is making a faint sizzling noise separate from heating element cycles.. It almost sounds like leaking water boiling off on the hot boiler but I can not find a leak anywhere. Am I being paranoid and this is just a normal sound during operation that I have never noticed before?
-
Q My machine is making a faint sizzling noise separate from heating element cycles.. It almost soun...... Read more answer nowAsked by on June 5, 2021 1:53 pmAnswered by the admin
You will need to check the bleeder and safety valves for leakage. Then check all fittings.
Can I bring pump pressure down from 12bar to 9bar? Does this machine come with adjustable opv? If not, any recommended opv to replace?
-
Q Can I bring pump pressure down from 12bar to 9bar? Does this machine come with adjustable opv? If...... Read more answer nowAsked by on June 5, 2021 9:30 amAnswered by the admin
Yes, you can change the OPV at your own risk of damaging it.
Hello, I have a La Nouva Era Cuadra coffee machine that has no pressure in the brew unit. When I prepare my coffee it barely reaches 2-3 bars, however when I put a blind filter the pressure reaches 12 bars. At all times, when I activate the brew unit E61, water comes out of the thinner tube that is in the water tank. I would like your advice to repair the coffee maker. Do you think it is due to a defect in the expansion valve or could it be another cause? Thank you, have a good day.
-
Q Hello, I have a La Nouva Era Cuadra coffee machine that has no pressure in the brew unit. When I ...... Read more answer nowAsked by on June 1, 2021 12:18 pmAnswered by the admin
If the blind reaches 12 bar, then this is a grinder or preparation issue.
Our machine is down and need your help to get ahold of this socket connector. The website indicates it is out of stock.
Can you provide an ETA on when you expect it to be available? If not, can you suggest an alternative approach to get the hose reconnected? Any assistance is appreciated!
La Nuova Era Straight Snap-On Socket/Connector
https://www.1st-line.com/buy/la-nuova-era-straight-snap-on-socketconnector/
SKU: NE466
-
Q Our machine is down and need your help to get ahold of this socket connector. The website indicat...... Read more answer nowAsked by on March 17, 2021 3:40 pmAnswered by the admin
We are very sorry for the delays. These parts are on their way to us. Unfortunately, many people do not realize the difficulty of our suppliers getting parts from their suppliers in Europe. COVID-19 is more of a mess than people think.
What is the amperage of the fuse in the rear of the machine. (Fuse in the electrical socket.
-
Q What is the amperage of the fuse in the rear of the machine. (Fuse in the electrical socket. answer nowAsked by on March 8, 2021 10:04 pmAnswered by the admin
Please check the one on your machine as different batches came with different fuses.
A Mine is 10A. I have V1 machine.
I have the first version of this that got released by you. Mine has started to have issues. The steam wand seems to be spitting out a bit of water which i think is more than usual. When i turn it on, the unit gets hot. The psi says 15, i open the steam wand valve and nothing comes out, psi drops to zero. Then it will go back up to 15 i open vale some steam comes out back to zero. If i do this 2 or 3 times it will then finally function, however i have doubts as to if its producing the amount of steam it should.
Long story short, why is this happening?
-
Q I have the first version of this that got released by you. Mine has started to have issues. The s...... Read more answer nowAsked by on March 6, 2021 8:39 pmAnswered by the admin
Sorry, you may have multiple issues causing multiple issues. Considering this version is over 9 years old, the machine should be evaluated by a professional repair shop as it could be the brain unit, the refill probe, the vacuum breaker valve, the safety valve, and/or the pressurstat.
I bought this machine from you, a little over 8 years ago. I recently de-scaled it and am having problems with heat and pressure. I’d like to know if parts (in general) are available.
-
Q I bought this machine from you, a little over 8 years ago. I recently de-scaled it and am having ...... Read more answer nowAsked by on February 25, 2021 8:56 pmAnswered by the admin Most, but not all parts, are available are on our web site.
My 8 yr. old Cuadra is overheating - installed temp gauge reads up to 239 sometimes. Bar pressure seems normal. It sounds like the heating element is continually clicking on. After pulling a shot, water continues coming out of the pressure release exhaust for several minutes.
Any ideas?
-
Q My 8 yr. old Cuadra is overheating - installed temp gauge reads up to 239 sometimes. Bar pressure...... Read more answer nowAsked by on February 8, 2021 6:49 pmAnswered by the admin
Please read. Sounds like the pressurstat or relay for pressurestat (check your threading size before order as some may be 1/8) is sticking. There are multiple versions of this part so a reconfiguration may be needed.
I need a new plug and fuse - NE479 SPINA PANNELLO CON FUSIBILE (PANEL PLUG WITH FUSE)
Can you sell me one?
-
Q I need a new plug and fuse - NE479 SPINA PANNELLO CON FUSIBILE (PANEL PLUG WITH FUSE) Can you sel...... Read more answer nowAsked by on February 3, 2021 6:43 pmAnswered by the admin
Sure, please follow the process in our parts self-help section.
A Been waiting since I first posted this and still no parts. Very disappointing
I have a la Nuova Era Cudra. I bought From 1st Line yrs ago, have replaced the pressure state twice after long waits for parts from Italy to arrive it’s been working fine for years now, the only problem I recently have us a pressure hose rupture and I can’t seem to find the part in for sale. In the diagram for older machine it’s listed as H1 hose and connects to brass fitting #12 found on page #5 of the machine diagram. Can you supply these parts .?
Please contact me and let me know as this is the only source of the leak and would like to repair ASAP
-
Q I have a la Nuova Era Cudra. I bought From 1st Line yrs ago, have replaced the pressure state twi...... Read more answer nowAsked by on December 23, 2020 7:38 pmAnswered by the admin
Here is a link to the H1 hose. Please double-check the size of your hose before ordering.
The Panel Plug on my La Nuova Era Cuadra melted about two months ago after ~10 years of use and I ordered a replacement part for it. After inspecting the panel plug, it indicates that it's rated for 10a, yet the fuse is 15a and the cord is rated for 13a. When plugged in to a meter, the machine shows that it's pulling 9.6a. The original panel plug was also rated for 10a. Why would a 10a panel plug be protected by a 15a fuse? This sounds like the reason this part failed and is an unsafe design from La Nuova. Are they providing an updated plug to correct this problem?
-
Q The Panel Plug on my La Nuova Era Cuadra melted about two months ago after ~10 years of use and I...... Read more answer nowAsked by on September 18, 2020 5:16 pmAnswered by the admin
If the panel plug part was incorrectly rated, we do not believe it would have lasted 7 years. In fact, it would have melted within the first few weeks and hundreds of customers would have been complaining. After 7 years of use, the replacement was needed from wear and tear. In other causes, this receptacle can damage from an electrical surge or water landing inside on the part as it is below the reservoir. Hence, fill the reservoir on the outside of any espresso machine.
Did you see the voltage rating on the panel plug? Did it say either 110, 220, 230, 240, or even 250 volts?
A The plug is rated at 10 or maybe 15? From factory. Based on heater watts it should have been 5 more. Mine melted too, i soldered in a new one rated 5 more(what it should have been)
My La Nuova Era Cuadra that I purchased from you around 2013 has begun exhibiting electrical problems. The left prong (when looking at the back of the machine) is melting the housing and the cord... and making a very un-coffee-like smell. All of the wiring and electronics that are tucked under the boiler look almost brand new. Do you know what could be causing this problem and what part I should replace?
-
Q My La Nuova Era Cuadra that I purchased from you around 2013 has begun exhibiting electrical prob...... Read more answer nowAsked by on July 24, 2020 3:55 pmAnswered by the admin
The fuse box and fuse probably need replacement. However, we are uncertain if any other parts are needed that caused this part to get damaged.
I noticed that there is a plate on the boiler that appears to be a location for a high limit thermostat but there isn't one present. Do these machines typically have a high limit thermostat (the model is A006 but it appears someone crossed out the six and made it A007). Also, would you happen to have a wiring diagram for this machine?
-
Q I noticed that there is a plate on the boiler that appears to be a location for a high limit ther...... Read more answer nowAsked by on April 28, 2020 4:11 pmAnswered by the admin
Sorry, the manufacturer has not provided wiring diagrams. There have been several different versions of this machine, so the plate maybe present without the safety. It could also be possible someone removed the safety thermostat and bypassed it.
What pump does my version one need?
-
Answered by the admin
Either the 41 watt or 52 watt ULKA pump on our website will work.
We currently have La Nuova Era Cuadra espresso machine in our office and the water and steam valve have been leaking massively, so we were asked by a technician to get the replacement parts for that machine. Is there any possibility you have replacement water valve and steam valve for this machine / can order them for us? I found the steam valve but wasn't able to find the water valve.
-
Q We currently have La Nuova Era Cuadra espresso machine in our office and the water and steam valv...... Read more answer nowAsked by on March 27, 2020 5:17 pmAnswered by the admin
It is the same valve for both. The only thing that changes is the wands.
I am replacing the original pump with a Ulka pump. the electrical connectors face in opposite directions. Does it matter which wires go to which electrical connectors ?
-
Q I am replacing the original pump with a Ulka pump. the electrical connectors face in opposite dir...... Read more answer nowAsked by on March 12, 2020 3:28 pmAnswered by the admin
It usually does not matter when there are only 2 wires to attach to the pump on this machine.
I am looking for a vibration pump for my machine, you list the part as # NE040006 ( 120 volt ). Is it available and what is the cost. Thanks.
-
Q I am looking for a vibration pump for my machine, you list the part as # NE040006 ( 120 volt ). I...... Read more answer nowAsked by on March 5, 2020 6:05 pmAnswered by the admin
This ULKA pump can be used as a replacement.
When I activate the cam lever on my machine, the pump sounds like it wants to start, but then there is no sound. Any suggestions. Thanks
-
Q When I activate the cam lever on my machine, the pump sounds like it wants to start, but then the...... Read more answer nowAsked by on February 27, 2020 5:35 pmAnswered by the admin
It could be a bad pump, a clogged water softener, a clogged grouphead, and/or blocked tubing inside.
I have my La Nuova Era Cuadra machine for about 7 years now and started experiencing some water leakage (I think between the grouphead and the gasket) and the coffee is not coming out as tasty especially after cleaning the dispersion screen. I'm getting replacement dispersion screen (F277) and grouphead gasket (F15). Should I also change the underlying screen holder and diffuser? If yes, what are the item numbers?
-
Q I have my La Nuova Era Cuadra machine for about 7 years now and started experiencing some water l...... Read more answer nowAsked by on February 8, 2020 2:04 amAnswered by the admin
Yes, change the portafilter gasket and dispersion screen as noted. The jet breaker or dispersion disk behind the screen should be cleaned with a blacfklush detergent and/or lightly with a wire brush.
I just purchased a La Nuava Cuadra and have 2 questions.
1, which water softener that you sell is recommended for this machine?
2, the directions are quite vague and I’m too new. What is best practice as far as shutting down a machine like this for the day? (It gets light home use every day) Should I bleed my dif steam pressure? I’ve ready on the internet you want to do this but need to refill the boiler to protect the element. I’m not entirely sure how to go about that. Or should I leave the pressure alone in the boiler for daily use? What is your recommendations here?
-
Q I just purchased a La Nuava Cuadra and have 2 questions. 1, which water softener that you sell i...... Read more answer nowAsked by on January 7, 2020 8:34 pmAnswered by the admin
The recommended water softener is on the bottom of the page, click on it, then click on the link for the instructions on how to recharge.
Our recommendation is to power down the machine if not being used within 2 hours. You can leave the pressure alone or deplete.
Which water softener replacement on your website is the one to be used for the Cuadra V3? There are several but none say for the Cuadro--only other machines. The Lelit looks similar but the stem does not have the ridges like the original.
-
Q Which water softener replacement on your website is the one to be used for the Cuadra V3? There a...... Read more answer nowAsked by on January 6, 2020 4:52 pmAnswered by the admin
The V725 on our web site is for this machine.
Do you have a bottomless portafilter that will fit the La Nuova Era Cuadra. My machine is 7 years old.
-
Q Do you have a bottomless portafilter that will fit the La Nuova Era Cuadra. My machine is 7 years...... Read more answer nowAsked by on December 16, 2019 11:27 pmAnswered by the admin
Yes, our Wega bottomless portafilter will fit.
Answered by the adminYes, our Wega bottomless portafilter will fit.
What bottomless portafilter will fit the La Nuova Era Cuadra? Mine is 7 years old and came with a no burn steam wand which I believe was the version 2 model.
-
Q What bottomless portafilter will fit the La Nuova Era Cuadra? Mine is 7 years old and came with a...... Read more answer nowAsked by on December 16, 2019 10:52 pmAnswered by the admin
Hi,
We have a universal one that fits E61 groupheads, SKU 50890.
Hello, I bought the machine a few months ago. I only make two shots of espresso in the morning and in the afternoon. Today I wanted to try steaming milk but the machine doesn’t seem to have steaming power or something is obscuring the wand. Any advice? Thank you!
-
Q Hello, I bought the machine a few months ago. I only make two shots of espresso in the morning an...... Read more answer nowAsked by on December 2, 2019 5:44 pmAnswered by the admin
Please check the steam hole tip. It is probably clogged. If the boiler pressure gauge reads zero, then it may be the vacuum breaker valve on top of the boiler is sticking from limescale.
I purchased a La Nuova Cuadra espresso machine from 1st line in 2013. The machine no longer turns on, and I suspect that the fuse may be blown. I have ordered a replacement fuse. Could you advise on how to replace the fuse, or how to check if the fuse is indeed the problem? I live in Atlanta and according to your search function I have no repair dealers anywhere nearby. Thank you!
-
Q I purchased a La Nuova Cuadra espresso machine from 1st line in 2013. The machine no longer turns...... Read more answer nowAsked by on October 23, 2019 7:23 pmAnswered by the adminThe fuse is located in the compartment next to where the electrical cord plugs into the machine. Please remove the power supply, open cover, and replace it.Other than this, a multimeter and the knowledge to use it are required to determine wherein the electrical circuit is the issue.
Does this machine have any plastic pieces which are heated and come in contact with water?
-
Q Does this machine have any plastic pieces which are heated and come in contact with water? answer nowAsked by on October 14, 2019 9:29 pmAnswered by the admin
Yes, there are high temperature PTFE tubes that feed cold water to the boiler. The insides of espresso machines do get hot, so all tubes can get warm to hot. Most water tank espresso machines do have silicone hoses that allow water to travel from the reservoir to the internal pump.
I bought a "La Nuova Era Cuadra" from you about 6 years ago - love it.
Recently, however, it shorted out at the plug/receptacle (on the unit, not the wall), melting the rubber of the cord and receptacle.
I replaced both the cord and the receptacle, but after leaving it on for 20min to get ready to make another espresso, it shorted out again.
Can you please advise if there is something else I should look at replacing?
-
Q I bought a "La Nuova Era Cuadra" from you about 6 years ago - love it. Recently, however, it sho...... Read more answer nowAsked by on August 27, 2019 5:44 pmAnswered by the admin
Unfortunately, an electrical issue of this nature is beyond the scope of our free services via Q&A. In addition, considering the age of the machine and the electrical issue, it is best to have a professional evaluate it. On the top menu on our web site, please click on the support link, then repairs either searching our database for a close by repair center or sending it in to 1st-line.
La Nuova Era Cuadra Espresso Machine – V are you able to order it in red.
-
Q La Nuova Era Cuadra Espresso Machine – V are you able to order it in red. answer nowAsked by on June 21, 2019 2:34 pmAnswered by the admin
Yes, but since it will only be one unit in red, we would not have the multi-unit discount which would increase the selling price by $250.00 This would be a special order requiring prepayment by wire transfer or certified bank check.
With no plumb-in option, what exactly does the “pre-infusion” function do? Thanks!
-
Q With no plumb-in option, what exactly does the “pre-infusion” function do? Thanks! answer nowAsked by on March 28, 2019 3:59 pmAnswered by the admin
Pre-infusion is the pre-soaking of the ground coffee with hot water under low pressure. The low pressure is from the direct water line or the steam pressure built in the heat exchanger, or the pump pressure by the vibration pump that takes up to 8 seconds to get up to full pressure, or the grouphead chamber.
Can this machine be plumbed in directly or is it only usable with a water reservoir?
-
Q Can this machine be plumbed in directly or is it only usable with a water reservoir? answer nowAsked by on March 27, 2019 10:29 pmAnswered by the admin
Hi,
This model is only usable with a water tank / reservoir.
My Cuadra (La Nuova Era) is slowly dripping from the bottom (very annoying). I found the area where the leak is coming from. It is coming out of the part called "La Nuova Era Straight Snap-On Socket/Connector". Unfortunately, your site says "out of stock" on this item and I cannot seem to find this part anywhere else. Do you have a remedy for this part without replacing it?
-
Q My Cuadra (La Nuova Era) is slowly dripping from the bottom (very annoying). I found the area whe...... Read more answer nowAsked by on March 13, 2019 3:35 pmAnswered by the admin
Sorry, you will need to ask an additional question as we go by part numbers and not by descriptions. Please note that the manufacturer, at this time, has made things more difficult with parts as they made ALL NEW part numbers and they have not provided any relational table showing the old part number to the new part number.
I asked a follow up question about the no burn Cuadra wand alternative Please see my question as it appears under "answer". Basically since you say "May" work--are the fittings the same so at least it is compatible that it will install safely and properly? Why do you say "May" work? Any alternative suppliers for the previous Cuadra wand?
-
Q I asked a follow up question about the no burn Cuadra wand alternative Please see my question as ...... Read more answer nowAsked by on March 1, 2019 8:12 pmAnswered by the admin
We do say 'may' work because La Nuova Era machines had 2 different valves over the years. There was also previous importer who brought them in who may have sold to other customers. If we say 'will' work, then customers will assume we are responsible for machines purchased elsewhere or have a variation of the valve. In essence, we need to be careful as we do not have the machine in front of us, and this is why many companies will not sell parts due to variations by espresso machine manuacturers. Thank you in advance for understanding.
I purchased from you the Version 3 with the non burn wand (I understand there is insulation inside the metal which dampens the steam). I find that the steam volume does not do an acceptable job of frothing compared to the the earlier models without the burn protection that my friends have. Can I purchase an earlier version wand without burn protection and replace the current one--that is, would it be compatible?
-
Q I purchased from you the Version 3 with the non burn wand (I understand there is insulation insid...... Read more answer nowAsked by on February 27, 2019 5:04 pmAnswered by the admin
Correct. The insulated wand has a smaller diameter and less power. Sorry, we do not have the original wands any more. We do have an alternative that MAY work.
A You replied it "MAY" work. Will it fit the Cuadra fitting for the wand? Would not buy if it would not have compatible fitting. Otherwise, why do you say "MAY"? Is there another source to buy the earlier wand--I do not see anybody selling the Cuadra on line anymore?
You answered my initial question about mold in the water hoses saying to take off the side panels to access them. I have already done that though and am not able to get to the connections for the hoses which is what lead me to my question. Any other suggestions that might help? My water tubes all have some black or pink mold but I have no way to disconnect them. I'm nervous to take apart the entire unit.
-
Q You answered my initial question about mold in the water hoses saying to take off the side panels...... Read more answer nowAsked by on January 8, 2019 9:01 pmAnswered by the admin
Please note our free support is for simple issues.
We are sorry many manufacturers, including dealers, do not offer repair instructions for every type of issue - especially issues that become very detailed or complex.
This is why service companies exist, and their technicians are trained through apprenticeships (hands on learning of usually 2 or more years).
Based on the age of your machine and uneasiness of taking the machine further apart, a professional should be hired or the machine should be shipped in for evaluation and service.
I purchased my Cuadra back in 2013 from you guys. My 2 water line hoses are starting to get some black and pink (mold?) on the inside of them. I can't reach either connection to replace the hoses. Any suggestions as to how to clean these or keep them from getting this on the inside? It looks like to replace the hose, I literally have to take the entire machine apart?
-
Q I purchased my Cuadra back in 2013 from you guys. My 2 water line hoses are starting to get some ...... Read more answer nowAsked by on January 7, 2019 4:30 pmAnswered by the admin
The hoses would need to be removed, then soaked in bleach overnight, then rinsed for 10 minutes. The boses can be removed after the 2 side panels are removed.
Is descaling recommend maintenance or only when the machine is not functioning properly and product recommendations as needed?
-
Q Is descaling recommend maintenance or only when the machine is not functioning properly and produ...... Read more answer nowAsked by on December 29, 2018 11:56 pmAnswered by the admin
Only descale if a pump is failing or there is a clog on a non-new machine. Do this after removing the water softener.
Otherwise, recharge the water softener 1-4x per month.
Would you be able to provide Back-flush directions/frequency and product recommendations?
-
Q Would you be able to provide Back-flush directions/frequency and product recommendations? answer nowAsked by on December 29, 2018 11:41 pmA I have a Cuadra V3 would you be able to advise for E61 Grouphead gasket replacement frequency and product recommendations?Answered by the admin
Please short backflush once every 50 extractions with detergent
and one every 10extractions without detergent. Any of the bacflush detergents on our web site will work as most have been carefully selected by our staff.
I purchased the Caudra V2 machine from you a little more than 2 years ago and I had to replace the relay switch which now went bad a 2nd time. Your price has now jumped from $49 to $69 for this part. Is it normal for this part to be replaced this often? Also when the machine was new and up until recently the bar pressure would always be about 15 or 1psi but now it will reach a pressure of 18 or 19 bar pressure. Is this normal for the pressure to increase on it's own over time and should I lower the pressure back down to 15 by adjusting the pressurestat in the machine? Thanks and I love this machine.
-
Q I purchased the Caudra V2 machine from you a little more than 2 years ago and I had to replace th...... Read more answer nowAsked by on September 11, 2018 2:41 amAnswered by the admin
Sorry, prices are based on euro exchange rates, themanufacturer's cost, shipping and duties. All these costs have been increasing over the past year.
Sorry, we are unsure where there is 15-19 bars of pressure. The gauge needle usually does not exceed 2 bar.
I have a La Cuadra machine which was purchased from you on 8/27/2013. The machine is able to heat the water but unable to build up pressure. Once in while the pressure builds up to 1 bar at start up, but is unable to maintain the pressure after making one shot. I'm unable to steam milk. I've already descaled the machine with the Ascaso cleaning powder. The unit powers on and the green light stays on. I can feel the portafilter heating up. Please advise. Thanks, Dennis
-
Q I have a La Cuadra machine which was purchased from you on 8/27/2013. The machine is able to heat...... Read more answer nowAsked by on April 2, 2018 8:38 pmAnswered by the admin
This could be a shorted heating element, or a bad relay, or a bad brain unit.
We purchased the original Cuadra espresso machine and think the screen on the group head should be replaced. Do you sell that part and if not, do you know what size we need to buy?
-
Q We purchased the original Cuadra espresso machine and think the screen on the group head should b...... Read more answer nowAsked by on March 6, 2018 4:16 pmAnswered by the admin
The grouphead dispersion screen and portafilter gasket should be replaced every 6-12 months.
Answered by the adminPlease search for and purchase the following part numbers:
F15 - 8mm Grouphead gasket
F277 - Dispersion screen
Instructions for removing and recharging the water softener.
Also, instructions on descaling the machine.
-
Q Instructions for removing and recharging the water softener. Also, instructions on descaling the...... Read more answer nowAsked by on December 18, 2017 5:37 pmAnswered by the admin
The water softener is held on to the intake hose by friction. Holding the hose, the softener can be pulled off.
The instructions require a salt water bath and water rinse.
We prefer prevention with a water softener as descaling should only be performed when an issue arises. The reason is that descaling starts premature wear and tear on the metal components as well as any gasket/o-ring seals inside the machine.
I am attempting to remove, for replacement, the Panel Plug for Power Cord.
So far I have removed: side panels, back panel, top plate.
The screws on the Panel Plug spin when turn, not coming out.
In the last email I sent to you I includes a photo.
My question: What is the best way to access the Panel Plug for removal and replacement?
Thank you,
Lyle
-
Q I am attempting to remove, for replacement, the Panel Plug for Power Cord. So far I have removed...... Read more answer nowAsked by on November 15, 2017 6:16 pmAnswered by the admin
Please look inside behind the switch. You should see holding tabs (usually 2 on two sides) that need to be depressed while trying to pry out the panel plug with a flat-head screwdriver.
A My Cuadra won't start up, no green light, no sound, nothing. YAnswered by the admin There is a little fuse inside the black connector for the electrical cord. Please remove and test the fuse. Replace if needed. Please make sure the water reservoir is full and seated correctly.A My La Cuadra machine will raise the pressure at initial start up then slowly looses pressure. I am unable to steam milk. The green light is powering on and the portafilter is heating up. Please advise. The unit was purchased from you on 8/27/2013. Thank you, DennisAnswered by the adminThe losing pressure issue is related to a failing brain unit (there are three versions now on Cuadra as of this writing), a bad heating element, or a bad relay. Lastly, it could be faulty wiring or a switch. For the future, please ask additional questions as a new question to keep the threads related to each other.
