Parts Diagram – Lelit PL162Tcb Bianca
Finding your part
- Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website. If no results come up, more than likely we do not stock the part.
- If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
- Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
- Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
- Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
- Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
- Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.
1
3
5
7
8

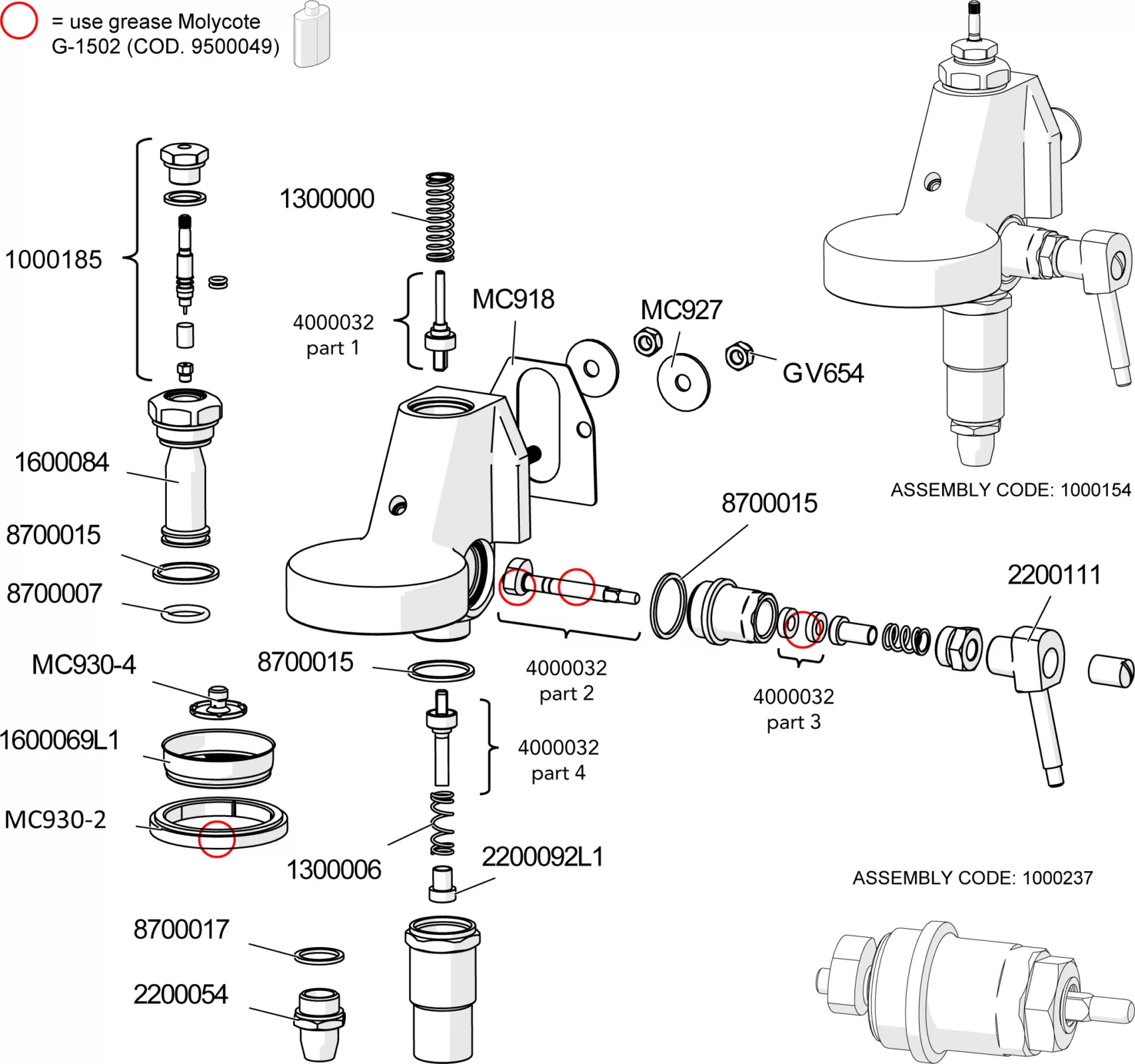

ATTENTION! The components enclosed in brackets are part of a reset kit for L58E (code 4000032). They cannot be ordered individually like the other components, but you must buy the entire kit (part1 + part2 + part3 + part4).
9
10
11

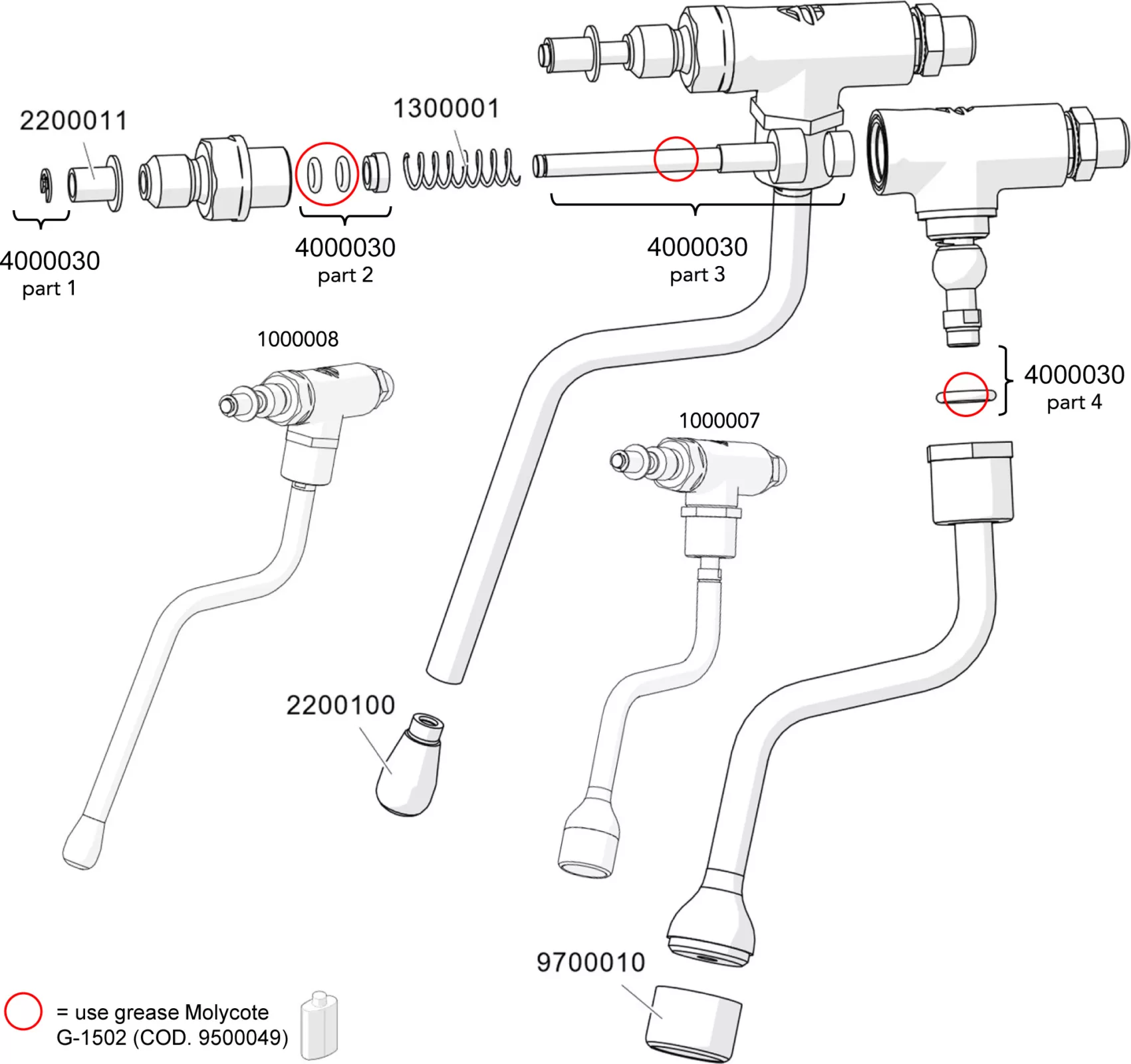

ATTENTION! The components enclosed in brackets are part of a reset kit for wand (code 4000030). They cannot be ordered individually like the other components, but you must buy the entire kit must (part1 + part2 + part3 + part4). 1 kit contains the spare parts for 1 wand reset.
12
13
14
16

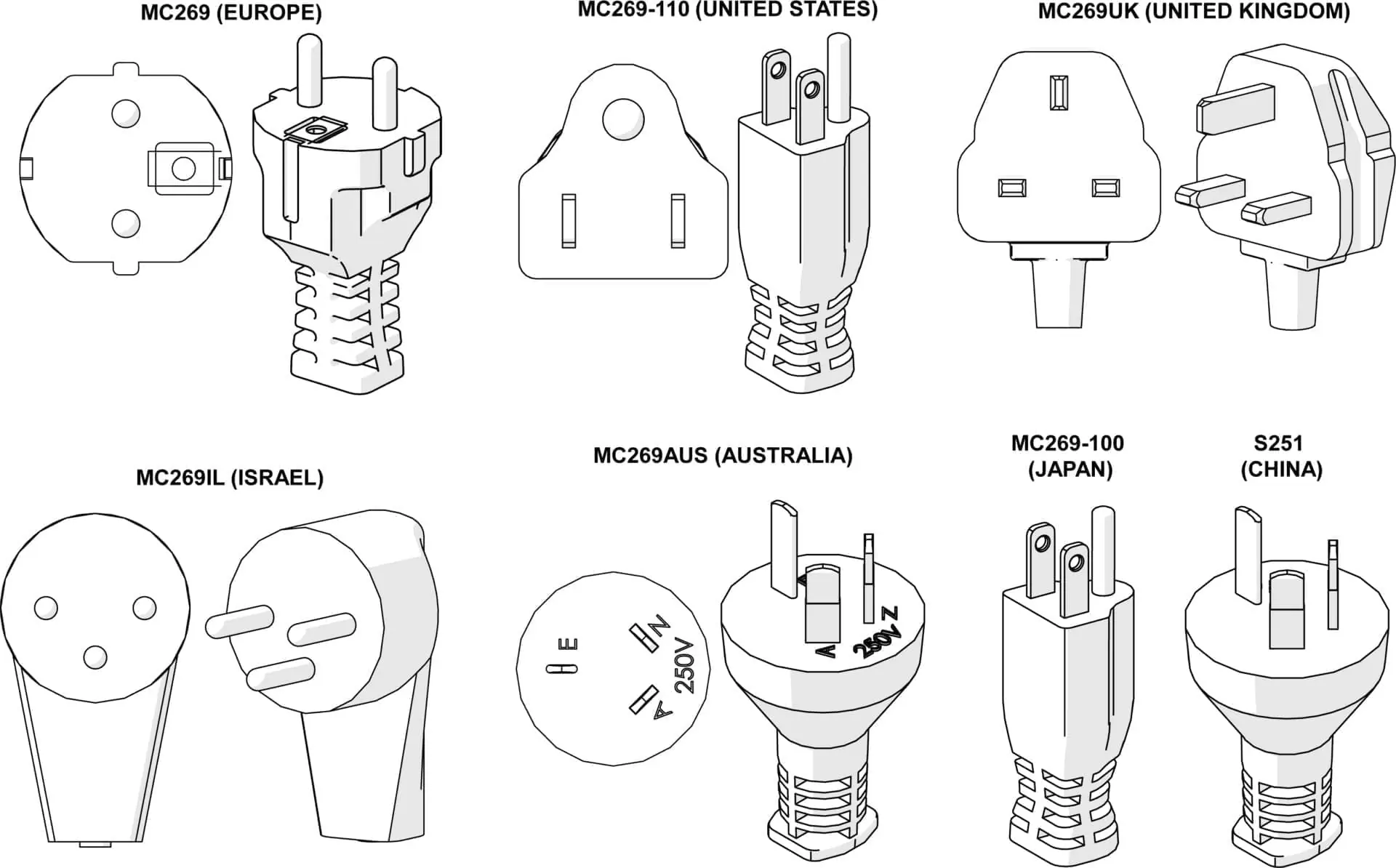

| SKU |
| MC269 (EUROPE) |
| MC269-110 (UNITED STATES) |
| MC269UK (UNITED KINGDOM) |
| MC269IL (ISRAEL) |
| MC269AUS (AUSTRALIA) |
| MC269-100 (JAPAN) |
| S251 (CHINA) |

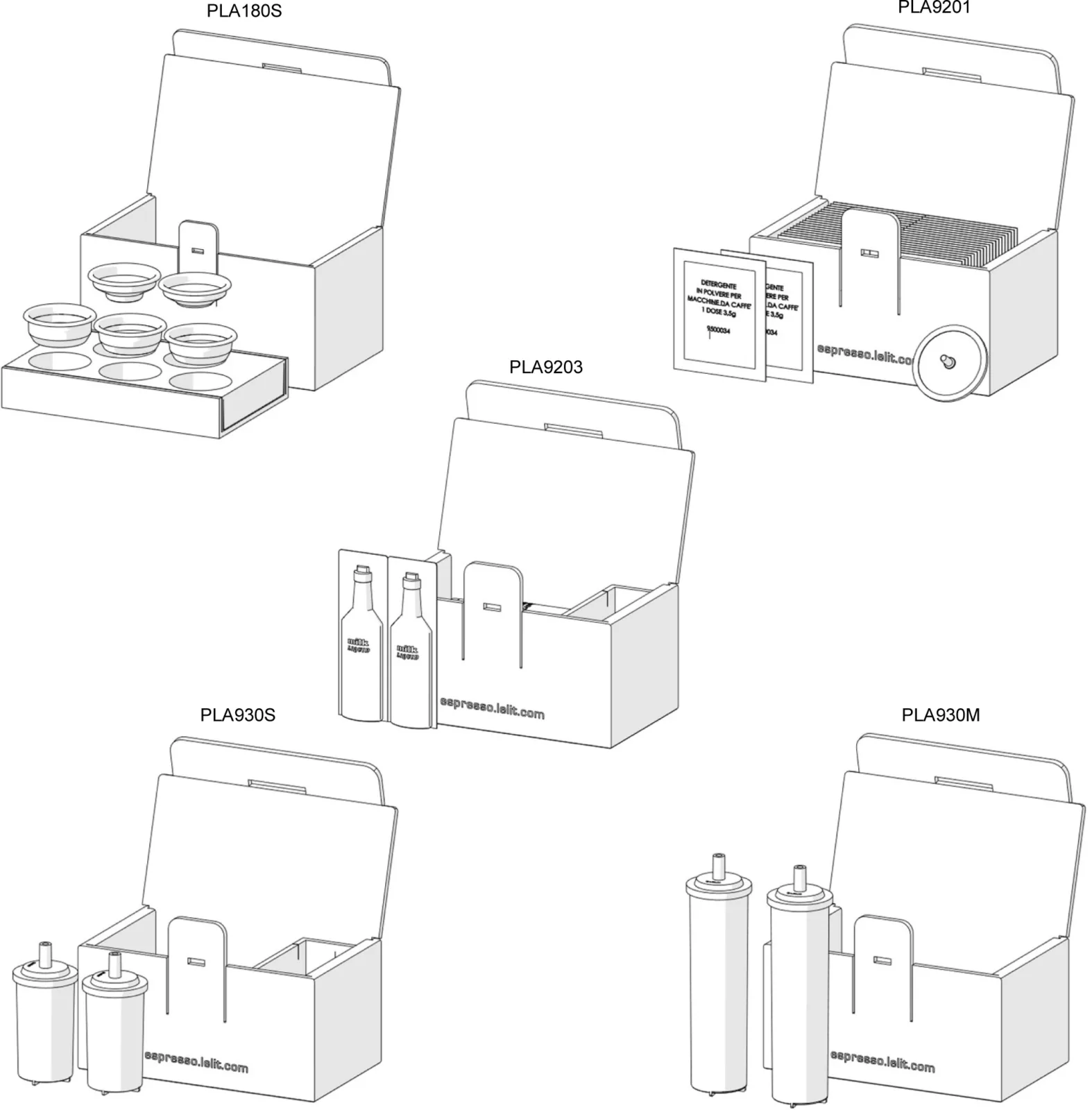

17
| SKU |
| PLA180S |
| PLA9201 |
| PLA9203 |
| PLA930S |
| PLA930M |

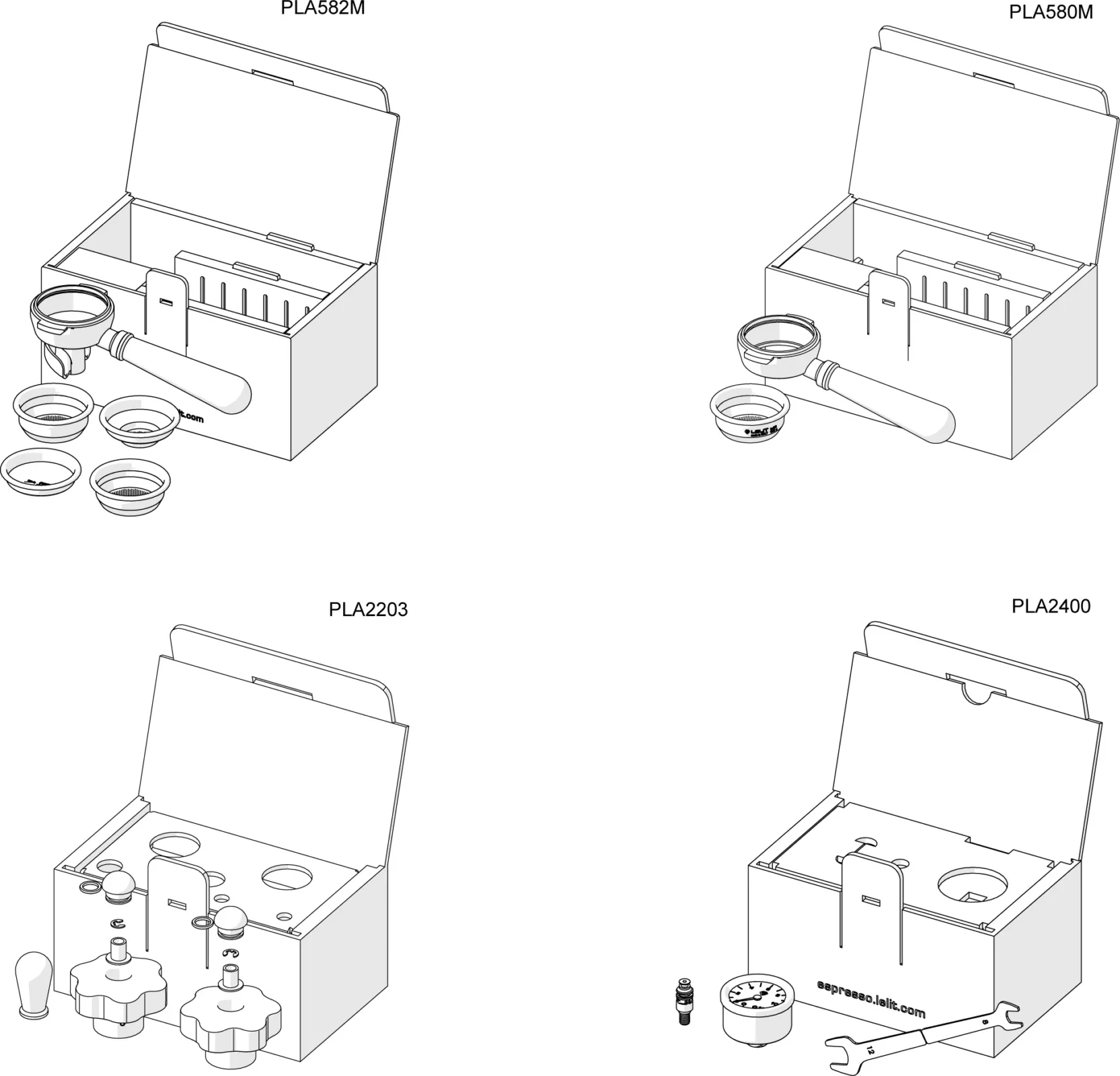

18
| SKU |
| PLA580M |
| PLA582M |

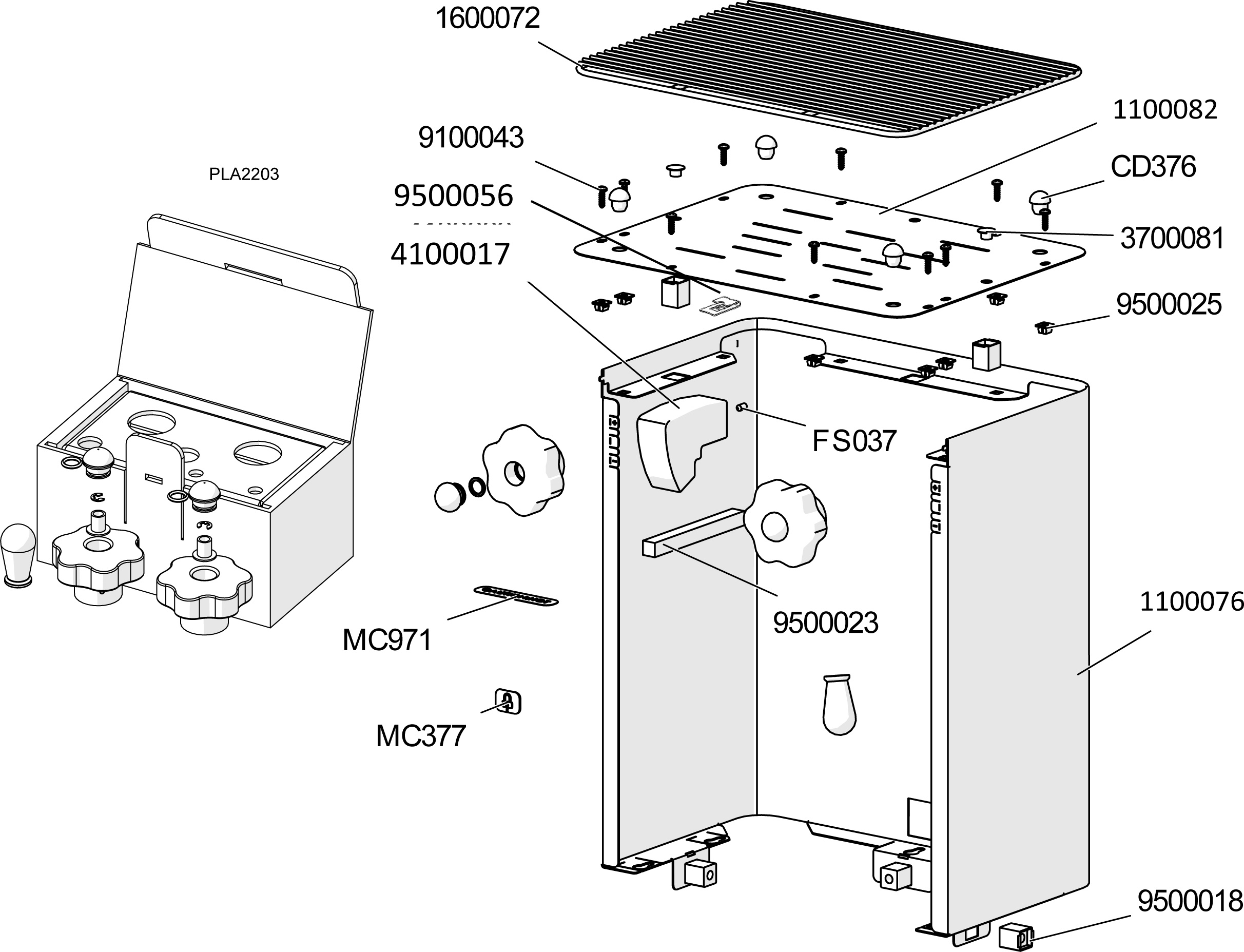

| PLA2203 |
| PLA2400 |
