Lelit PLA2400 E61 Grouphead Pump Pressure Gauge

5 out of 5 based on 2 customer ratings
(2 customer reviews)

$110.89

Request a price match.
Parts Terms & Conditions of Sale
  • Parts are non-returnable and non-refundable unless damaged in transit.
  • Parts do not include any over the phone technical support or instructions other than what is provided on the website.
  • Parts do not come with any warranty.
  • For more information, please see Terms & Conditions.
Earn 110 EspressoPoints worth $2.97! (Learn about EspressoPoints)
Earn 110 EspressoPoints worth $2.97! (Learn about EspressoPoints)

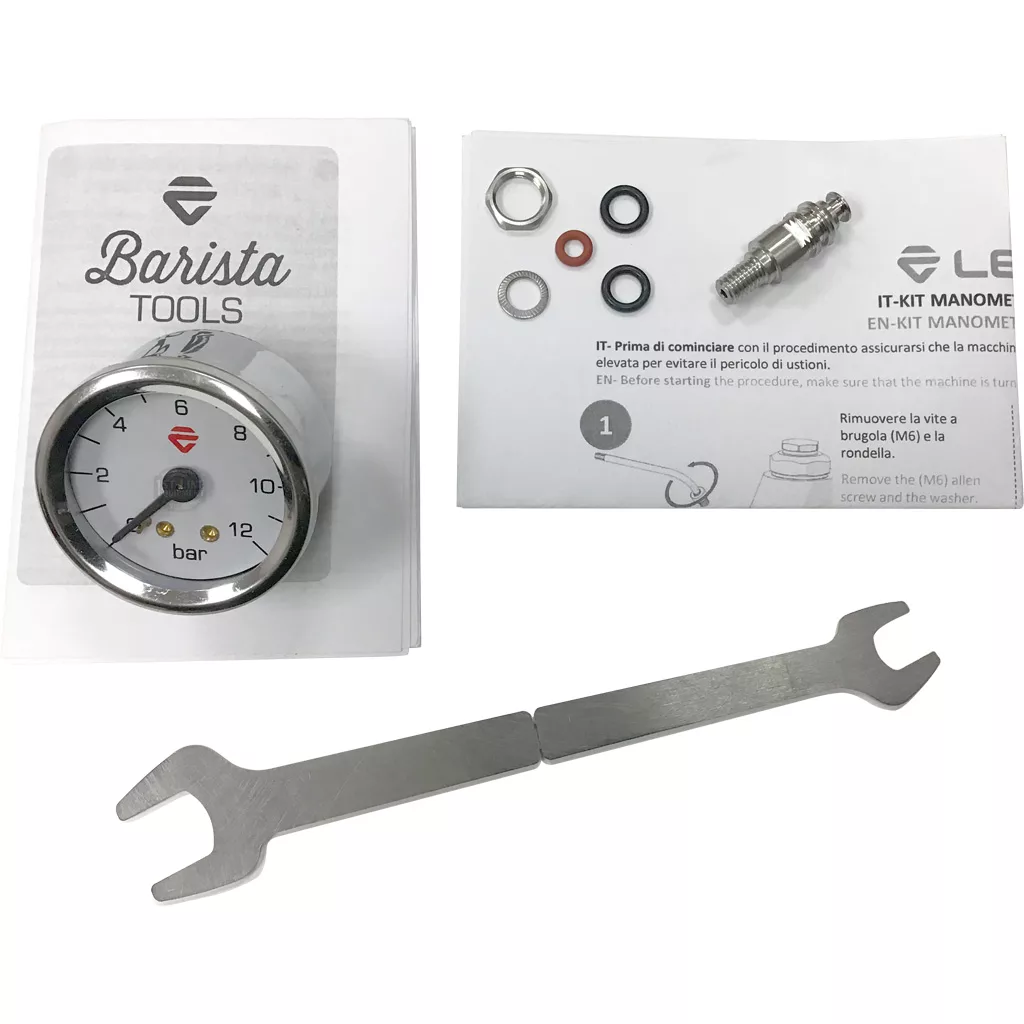

Lelit PLA2400 E61 Grouphead Pump Pressure Gauge

This gauge (PLA2400) is for the PL162T Bianca espresso machine models. It mounts to the E61 grouphead.

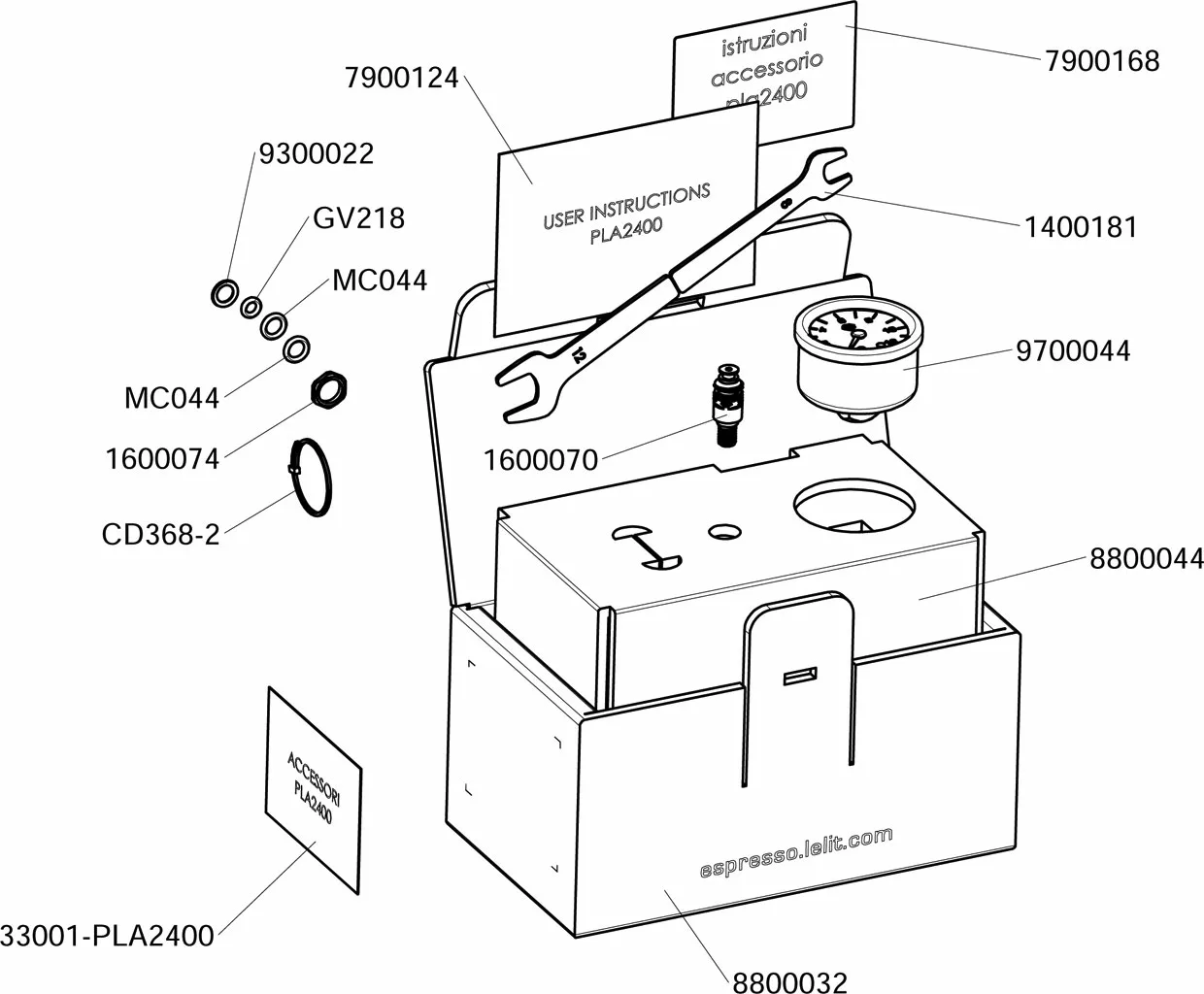

Lelit PLA2400 E61 Grouphead Pump Pressure Gauge
  • 1400181 – E61 Pressure Gauge Assembly Key
  • 1600070 – E61 Group Pressure Gauge Fixing Pin
  • 1600074 – Nut M10x1 for R61 Pressure Gauge
  • 33001-PLA2400 – Label
  • 7900124 – Instructions for Accessories PLA301S, PLA301M, PLA301L
  • 7900168 – Instructions for Accessories PLA2400
  • 8800032 – Small “PLA” Accessory Box (cardboard dim.int.150X90X80)
  • 8800044 – Internal Packing “D” Small PLA Box (cardboard)
  • 9300022 – Knurled Washer X M12
  • 9700044 – Pressure Gauge M6
  • CD368-2 – Clamp X Spring Reg CIP 1–/25 TRASP. 311541
  • GV218 – OR 102 Engine Drive System PKSB300 3.69×1.78 (usually red)
  • MC044 – OR 2025 Øi6,07 t1,78 Peroxide EPDM (usually black)
For more Lelit parts & diagrams, please visit our Lelit parts page. If you have any questions, please reference the Q&A tab on each product page.

Please read the Terms & Conditions before ordering this part or any other part on our website.

Brand

Lelit

Customer reviews

Rated 5 out of 5 stars
2 reviews
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

2 reviews for Lelit PLA2400 E61 Grouphead Pump Pressure Gauge

Add a review

Use one of the allowed file type: jpg,png. The max size allowed is : 3 MB.

    This site uses Akismet to reduce spam. Learn how your comment data is processed.

    Ask a question

    Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

      I currently have this manometer installed but am in need of a new metal crush washer as I developed a leak. Would you be able to post the I.D. and O.D. and thickness of the original washer as I see you only sell the o-ring portion of the kit which I should probably get also as they are not far behind. Thank you
    1. 0 votes
      Q I currently have this manometer installed but am in need of a new metal crush washer as I develop...... Read more answer now
      Asked by Greg on December 23, 2023 12:19 pm
      Answered by the admin

      These approximate measurements provided can change from OEM. Thickness is ~0.9mm, ID 6.7mm, and OD 9.88mm. Please note we normally do not take measurements as they are subject to change and we are not responsible for any errors.

    2. My grouphead pressure gauge reads .75 bar when idle and reads about that same amount higher than the pump pressure gauge when brewing or using a blind filter basket. Is there any way to recalibrate the grouphead pressure gauage back to zero or can I just purchase a replacement gauge?
    3. 0 votes
      Q My grouphead pressure gauge reads .75 bar when idle and reads about that same amount higher than ...... Read more answer now
      Asked by CascadeChicken on December 17, 2022 8:11 pm
      Answered by the admin

      Sorry, there is no adjustment as far as we are aware of. We suggest maybe descaling the grouphead. The gauge pressure will always read up to 1 bar difference than the pump pressure gauge. This is a known fact with Lelit.

      A Jim, thanks for the response! I pulled the gauge apart and found no adjustments as you suspected. I removed the needle and reattached it at 0 bar. The grouphead gauge now matches the pump pressure gauge when I use the blind filter. This is how it used to work so it seems all is good again!
      A Jim, thanks for the response! I pulled the gauge apart and found no adjustments as you suspected. I removed the needle and reattached it at 0 bar. The grouphead gauge now matches the pump pressure gauge when I use the blind filter. This is how it used to work so it seems all is good again!
    4. I was going to order another one of these gauges as a back up and would like to know if additional sets of o-rings are available for purchase along with it? Thank you
    5. 0 votes
      Q I was going to order another one of these gauges as a back up and would like to know if additiona...... Read more answer now
      Asked by Greg Roddy on February 28, 2022 2:46 pm
      Answered by the admin

      Hi,

      We only have the MC044 O-rings available separately.

    6. Have MaraX does this fit ? Any problems ?
    7. 0 votes
      Q Have MaraX does this fit ? Any problems ? answer now
      Asked by Bob on August 2, 2021 3:57 pm
      Answered by the admin So far, none of our customers have come across any issues with the Mara X.
    8. will this work on Rocket Appartamento?
    9. 0 votes
      Q will this work on Rocket Appartamento? answer now
      Asked by Bill Jones on February 10, 2021 9:41 pm
      Answered by the admin

      Sorry, we can not confirm nor guarantee a fit as we do not sell Rocket espresso machines at this time.

    10. Ordered and recieved manometer. Installed as directed. Continue to have small leak at group head side of connection. Reinstalled and insured ribbed washer and o-ring installed per instructions. Retightened. Still have leak. Any suggestions
    11. 0 votes
      Q Ordered and recieved manometer. Installed as directed. Continue to have small leak at group head ...... Read more answer now
      Asked by Howie on June 30, 2020 5:05 pm
      Answered by the admin

      A little plumber's tape.

    12. I made a mistake whining installing the pressure gauge support. I put on the D1 o-ring first instead of putting the nut on at steps number 5. I couldn't remove the D1 o ring. Do you have extra D1 o ring for sales?What size is the o ring?
    13. 0 votes
      Q I made a mistake whining installing the pressure gauge support. I put on the D1 o-ring first inst...... Read more answer now
      Asked by Charlie Van on June 9, 2020 4:37 pm
      Answered by the admin Please review the updated parts diagram which we just received from Lelit (reason for our delay). Complete the contact us or need help link at the top of our web site. Let Customer Service know what happened and your order number, and they can offer additional assistance.
    14. I am interested in retrofitting my Quickmill Rubino's E61 grouphead with a pressure gauge. I saw that you are offering two different models, the Lelit PLA2400 and the V111K manometer. Any differences in terms of fit/installation that are noteworthy? Would the Lelit model also require additional copper gaskets? Thank you!
    15. 0 votes
      Q I am interested in retrofitting my Quickmill Rubino's E61 grouphead with a pressure gauge. I saw ...... Read more answer now
      Asked by Phil on April 30, 2020 7:55 pm
      Answered by the admin

      Sorry, we are unable to confirm as we do not sell Quickmill espresso machines. Hence, we could not tell if additional copper gaskets are needed.
