VBM Super Analogic HX Espresso Machine w/ Flow Control

4 out of 5 based on 1 customer rating
(1 customer review)

$2,099.00

Request a price match.
HX machine with customizable side color panels, dual pressure gauge display, and built-in flow control (picture coming soon).

┌ Special Deals ┐

Save $200 before it's too late!
For a limited time, purchase the VBM Domobar Super HX and save $200!

Simply add this machine to your cart. Then look for the coupon in the cart/checkout screen.

Cannot be combined with any other offer. Not applicable on previous purchases. While current supplies last.
Earn 2099 EspressoPoints worth $62.97! (Learn about EspressoPoints)
Earn 2099 EspressoPoints worth $62.97! (Learn about EspressoPoints)

VBM Super Analogic HX Espresso Machine w/ Flow Control

Overview

The VBM Domobar Super Analogic got a fabulous new upgrade to the previous VBM Domobar Super HX model! After all, this new version now has LED lights that appear on the interface when there is a low water level in the tank. Also, the LED lights indicate the power light on the top right. The light never turns off unless the machine is completely off. Moreover, unlike the previous VBM Domobar Super HX that has a vibratory pump, this new version has a rotary vane pump, which makes the espresso machine much quieter in use.

Additionally, the VBM Domobar Super Analogic can operate using a water tank/reservoir or direct plumbing to a water line. The espresso machine comes with a stainless steel braided hose to plumb your machine into your water line. Read more about water treatment options and basic plumbing installation requirements!

Finally, VBM has the classic and best E61 grouphead in the industry thanks to its robustness and structure!

Features

Heat Exchange System

  • Copper, insulation – The boiler is copper, which retains heat better than stainless steel. Typically copper boilers are more susceptible to limescale when you compare to stainless steel boilers. Therefore, we highly recommend using a water softener. The manufacturer wraps the boiler with insulation for maximum heat retention.
  • Pull a shot & steam milk at the same time – Steam is always readily available. Hence, there is no wait time going from coffee to steam mode.

Classic VBM E61 Grouphead

  • True VBM E61 – A thermosiphonic circulation 58mm grouphead in chromed brass. Has a manual lever to the right for coffee dispensing.
  • Constantly heated – Hot water circulates from the heat exchanger through the grouphead and back to keep the grouphead and your portafilter nice and hot. As a result the grouphead temperature constant and stable when you compare to other groupheads that have a built-in heating element.
  • Pre-infusion – Lever next to the grouphead activates a microswitch that turns on the pump to pump water through the coffee grinds. Pulling the lever halfway up will open the valve to allow water into the grouphead without activating the pump. Please note that true pre-infusion requires the direct water connection whereby the water pressure from the waterline creates true pre-infusion.

Rotary Pump

  • Quiet operation – Rotary pumps are necessary for direct connect capable machines since vibration pumps cannot handle the incoming water pressure. The main benefit that you will experience is that they are a lot quieter.

Tank/Reservoir System

  • NEW: Water tank level sensor – An empty tank symbol and red LED light shows up on the top left side of the Digital Interface when it is time to refill your tank.

Steam Wand/Hot Water Wand

  • Multi-directional – Allows for more movement and flexibility. The wands connect to the valves on an angle to the side for even more flexibility. As a result, there is less risk of burning oneself from the exposed grouphead. Furthermore, the steam performance is very efficient, which will result in making excellent espresso!
  • 2-hole steam tip – Allows for a slow gradual build-up of microfoam.
  • Rotational knobs – Allows for easier control of the intensity.

Quality Design

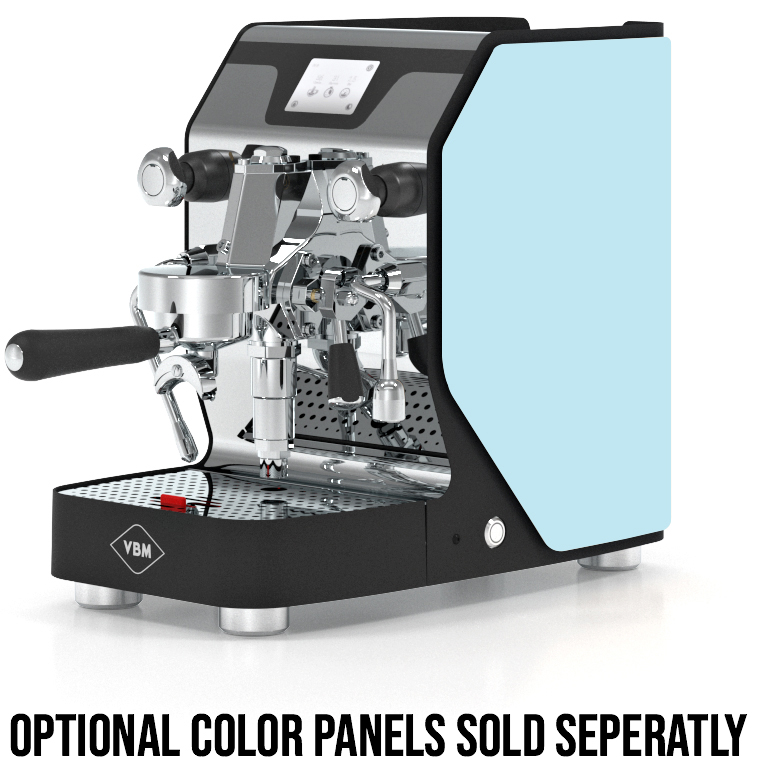

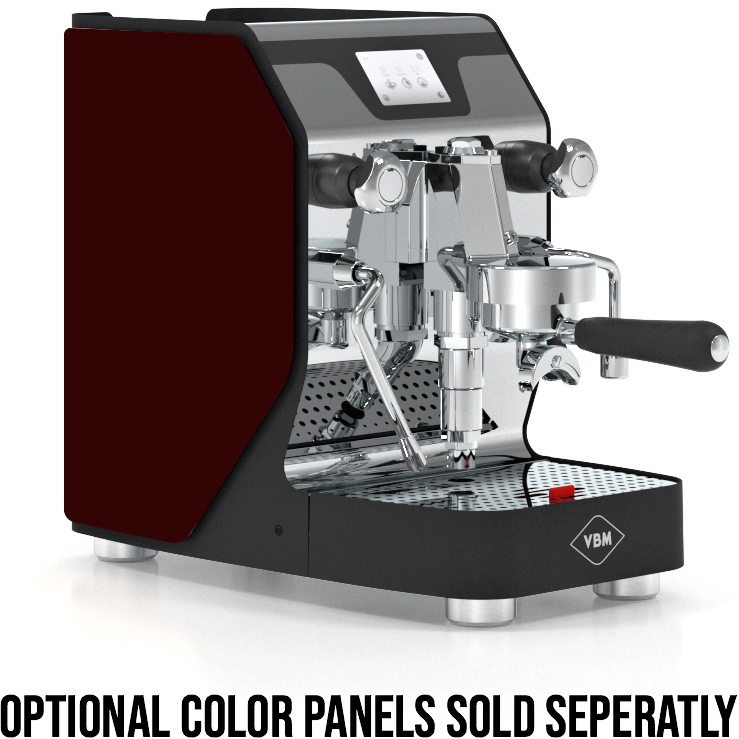

  • NEW OPTIONAL Colored side panels – The VBM Domobar Super NOW has a variety of side panel designs that you can stylize your machine with. Check out the different colored side panels we have to offer to purchase separately!  Panels are not attached to the machine during shipping.
  • Synthetic drip tray – The drip tray on this espresso machine is glowing! Less risk of scratches on this material, unlike on metal drip trays. Additionally, the drip tray has a float that tracks the water levels. Dishwasher-safe.
  • Ergonomic knobs and levers – Contributes to accurate water dispersion and adds some personality to the VBM Domobar Super!
  • Front and feet – Stainless steel and polished to a mirror finish.

Pressure Gauge

  • Double scale – indicating the pump operating pressure (bottom half) and steam pressure (top half). Grouphead is warm and ready when the steam pressure on top shows 1.25.

Accessories Included

  • Instruction manual – Available in Spanish, Dutch, English, French, and Italian.
  • Plastic tamper – Manufacturers will normally include a tamper like this to keep the overall selling price of the machine low. We recommend upgrading to a better 58mm tamper.
  • Coffee scoop – A simple plastic scoop if you are using pre-ground coffee.
  • Cleaning brush –A simple brush for cleaning the grouphead. Ergonomically designed with an angle for easier usage.
  • Single filter holder – Holds approximately 7 grams.
  • Blind filter basket – For backflushing. 58mm in diameter.
  • Double filter holder – Holds approximately 14 grams.
  • Stainless steel braided hose – For the option to direct plumb in your espresso machine.

Specifications

Brand

VBM (Vibiemme)

Height (inches)

16.75, approximate

Width (inches)

10.5, approximate

Depth (inches)

18.5, approximate

Weight (pounds)

73, approximate

Wattage (watts)

1800

Voltage (volts)

110

Country of manufacture

Milan, Italy

Boiler capacity (liters)

2

Water Connection

Direct Connection, Tank / Reservoir

Approvals

UL

Notes
  • Drip tray: Please note that the drip tray is not drainable.
  • Tank Mode: The lever on the bottom needs to be turned fully left when facing the front of the machine
  • Direct Plumb Mode: Water line pressure needs to be 35 psi and no higher than 40psi. Lever on bottom turned to the right fully when facing the front of the machine. The cap needs needs to be removed on the water inlet and the 1/8" BSPP included hose needs to be connected. The other side is 3/8" BSPP.

Espresso Machine Warning:

  • ELECTRICAL WARNING: To avoid electrical damage to this espresso machine which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. the lack of the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat or the wiring inside.
  • WATER WARNING: To increase the useful life of and not damage your espresso machine, please use softened water. Softened water is water without calcium and without magnesium, but still has other minerals for espresso extraction. Do not use distilled water, purified water, nor reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale.
  • DESCALING WARNING: We do not recommend descaling unless there is an issue with the espresso machine. The reason is that too much descaling can eat away at the metals and gaskets inside an espresso machine.

Please visit one of the links below for more VBM products & information.
Equipment & Accessories

Parts & Diagrams

Technical Support


  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.

Boiler

SupManAna-parts-diagram-boiler
# SKU
1 CALDDOMSUP
2 ELETRESSM1822 (230V)
3 ELETRESSM1811 (110V)
4
5 GUARRESPICTEF
6 RACCP429
7 ELETGLDOMM165
8 RACCCURIRD6
9 VALVSFMEAMERI
10 RACCP428
11 RACCDOM18BIS1
12 VALVMO38NW
13 RACCP433
14 ELETSON
15 RACCP428
16 RACCP430L
17 RACCP226C
18 VITERONTFP189
19 RACCP738

Waterworks

SupManAna-parts-diagram-waterworks
# SKU
1 ELETELE2VAU22NW
2 ELETELE2V11UL
3 RACCURIR18D6
4 ASSBYPASSNEW
5 MATECSIGS
6 RACCTPLASTICA
7 TUBIP939BIS
8 MATECSIGS
9 RACCCILIRD6
10 RACCP226C
11 MATECSIGS
12 TUBIPPTFE6X4
13 TUBIP992
14 RACCCURIRD6
15 TUBIPPTFE6X4
16 RACCCILIRD6
17 RACCTFFF461
18 TUBIDOMPART6
19 TUBIP736
20 TUBIRITGRDOSU
21 RACCP738
22 TUBIP988
23 RACCDOM18BIS1
24 TUBIP992
25 TUBIP988
26 TUBIP849
27 TUBIP990
28 RACCRUB3VDSAV
29 RACCCILIR14D6
30 RACCPOPODOARV
31 RACCPOPODO
32 RACCPOSCARBYP
33 RACCGOMF458
34 TUBICU18X18
35 RACCP200ES131
36 TUBIFLINDOSAR


Filterholder

SupManAna-parts-diagram-filterholder
# SKU
1 ASPORTN1TAMON
2 ASPORTN2TAMON
3 FILTCI
4 PRESSINO
5 MISURINO
6 SPAZZOLINO
7 PORTTN
8 PORTIMPPFNEW
9 FILTBEC1T
10 FILTMOLPTFL
11 FILT1TA
12 FILTBEC2T
13 FILTMOLPTFL
14 FILT2TA


Bodywork

SupManAna-parts-diagram-bodywork
# SKU
1 TELADOMSUPARVNW
2 FRONDOMSANGNW
3 CARRCASDJDSNW
4 CARRCASGADMDJDNW
5 GRIGCSDOMSARNW
6 MANVAACDJDSNW2
7 MANVAACDJDSNW1
8 MANVAACDJDSNW4
9 MANVAACDJDSNW3
10 STAFFAMANDSDJNW
11 SUPVASCDOSARVNW
12 TELADOMSCONEWNW
13 TELADOMSRNE43NW
14 CARRFIANCODXSUPER
15 CARRFIANDXSUPERBE
16 CARRFIANDXSUPERBG
17 CARRFIANDXSUPERBX
18 CARRFIANDXSUPERGR
19 CARRFIANDXSUPERLB
20 CARRFIANDXSUPERRD
21 CARRFIANCOSXSUPER
22 CARRFIANSXSUPERBE
23 CARRFIANSXSUPERBG
24 CARRFIANSXSUPERBX
25 CARRFIANSXSUPERGR
26 CARRFIANSXSUPERLB
27 CARRFIANSXSUPERRD
28 PIEDDSUPCROMATO
29 PIEDDOMANTINW
30 PANNDISDSANNW
31 BOCCOLANYLON
32 VITETCTCAM4X8
33 MAGNDMNW
34 MANDO602SCALA
35 SQUASUPCEJUCON

Electronics

SupManAna-parts-diagram-electronics
# SKU
1 ELETREGLIVDOMSJANA
2 ELETREGLIVDOMSJUL
3 COPERELESTDOP
4 RELESTATICODS
5 ELETINTDOMOBARNEW
6 ELETMICRE
7 ELETCAVDM
8 FERMCAVPGD11
9 DADOPG11
10 ELETELE2VAU22NW
11 ELETELE2V11UL
12 ELETPREDSUVAL
13 ELETCAVAL20DO
14 ELETCAVALAUS
15 ELETCAVALING
16 ELETCAVALISR
17 ELETCAVALSVIZ
18 ELETCAVAUL
20 ELETCOMCABDSANW
21 ELETLEDROSSO
22 ELETLEDGIALLO

Motor Pump

SupManAna-parts-diagram-motor-pump
# SKU
1 ELETMOTFLUANNW
2 POMPPRONOGA
3 RACCCURIRD6
4 TUBIPPTFE6X4
5 VALVNORITDOM
6 RACCTMMF18G
7 RACCFINR18D6
8
9 ANTIAMMMOTNW
10 RACCRIDMFRU3V
11 ELETMOTFLUANUL

Steam Tap

SupManAna-parts-diagram-steam-tap
# SKU
1 RACCRUBDOMSUP
2 TUBIP988
3 RACCP867
4 RACCCORUDOSU
5 GUARSILRUDOSU
6 GUAROR113
7 RACCASRUDOSU
8 RACCPRGOCR
9 GUARSILRUDOST
10 GUARSILRUDOSR
11 GUARTEF151154
12 TUBILADOMSUNW
13 GOMMALANCIAVAPORE
14 TUBIP727NW

Customer reviews

Rated 4 out of 5 stars
1 review
5 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

1 review for VBM Super Analogic HX Espresso Machine w/ Flow Control

Add a review

Use one of the allowed file type: jpg,png. The max size allowed is : 3 MB.

    This site uses Akismet to reduce spam. Learn how your comment data is processed.

    Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

      May you recommend a water filtration solution for the VBM Super Analogic in reservoir use? I intend to direct connect it eventually but need a stand-in/by solution. Thank you for your time
    1. 0 votes
      Q May you recommend a water filtration solution for the VBM Super Analogic in reservoir use? I inte...... Read more answer now
      Asked by Marco on June 22, 2022 11:20 am
      Answered by the admin

      Osmotic pak. We sell them made by BILT.

    2. Can you clarify whether the dimensions listed on the site, especially the depth measurement, refer only to the body of the machine (i.e. from the front of the drip tray to the back) or include extended wands or maybe the mounted portafilter handle? I ask because the numbers make it seem substantially deeper than other machines, while in the images it looks relatively compact.
    3. 0 votes
      Q Can you clarify whether the dimensions listed on the site, especially the depth measurement, refe...... Read more answer now
      Asked by Dan Frost on December 19, 2021 8:49 pm
      Answered by the admin

      It is a long machine, and the measurements we take usually do not include the wands, nor the portafilter.
