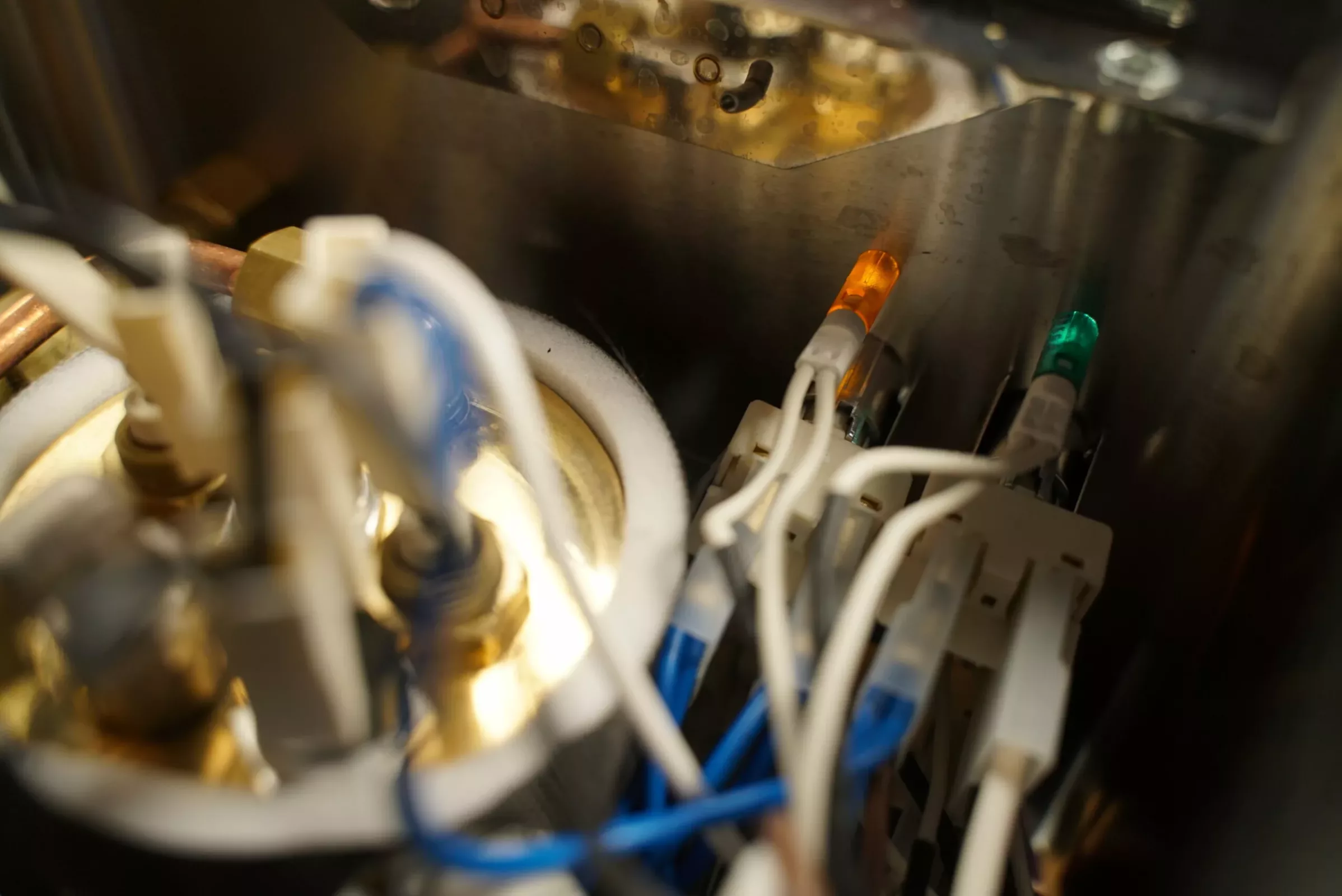

Close-up of the internal components in the DISCONTINUED ECM Casa V Espresso Machine, featuring wiring, connectors, copper tubing, and a brass boiler part with attached electrical terminals. © 2025 1st-line.com

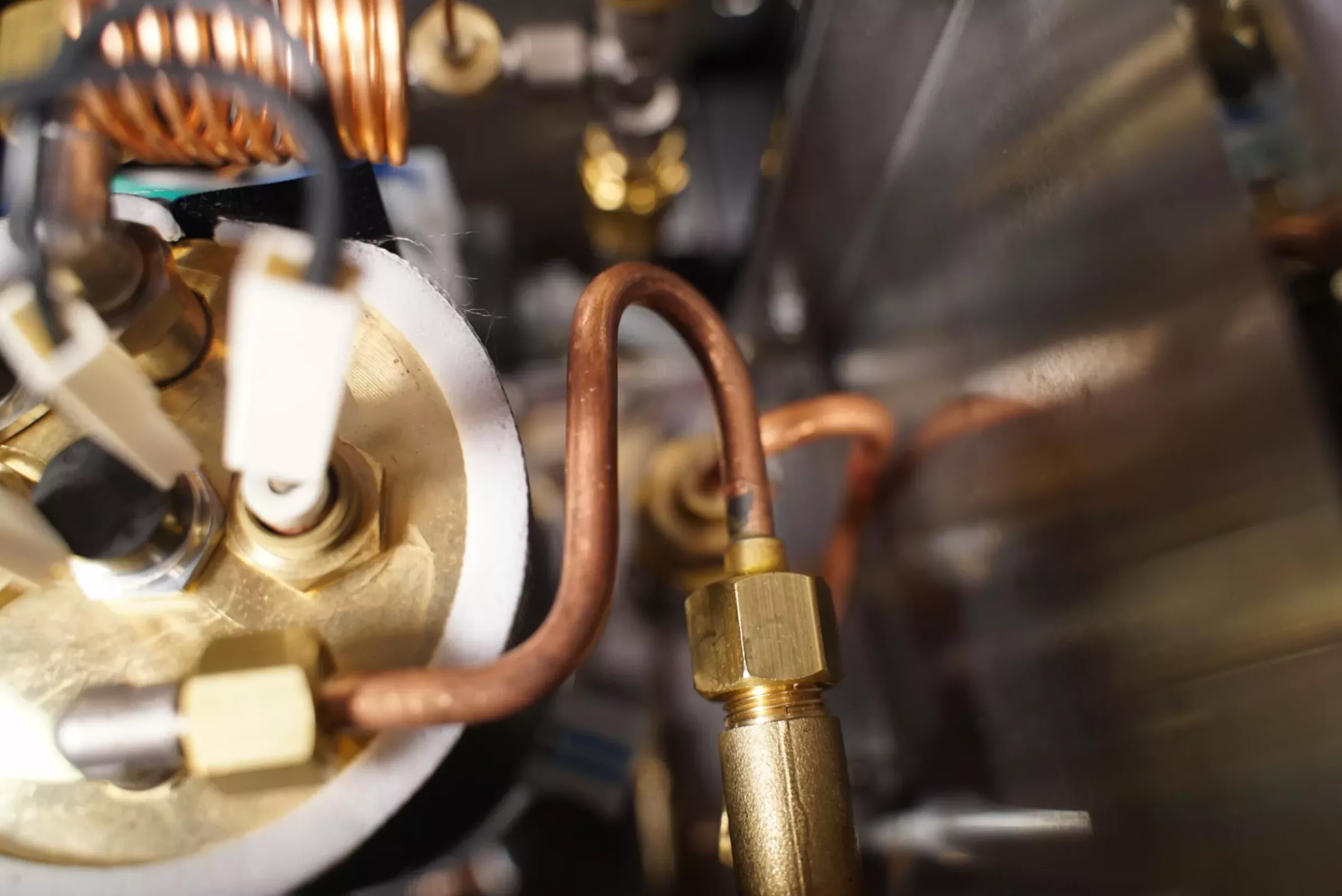

Close-up of brass and copper pipes and fittings inside the DISCONTINUED ECM Casa V Espresso Machine, showcasing detailed craftsmanship, intricate components, and wiring with a shallow depth of field. © 2025 1st-line.com
Close-up of electronic components with white wires, blue connectors, and glowing orange and green lights inside the DISCONTINUED ECM Casa V Espresso Machine. © 2025 1st-line.com

DISCONTINUED ECM Casa V Espresso Machine

1 review

This product has been discontinued at 1st-line Equipment.
Please visit one of the links below for more comparable products.

.

Request a Quote for Custom Package Builds
SKU: ECMG80045 Categories: , , , Tag:

Overview

ECM Casa V Espresso Machine

The ECM Casa V espresso machine from 1st-line Equipment. Single boiler technology, combining German engineering & Italian craftsmanship.

If you are looking for a compatible grinder that pairs well with the ECM Casa V Espresso Machine check out the Eureka Perfetto Espresso Coffee Grinder.

Videos

2 videos found
Quickview: ECM Casa V Espresso Machine
Quickview: ECM Casa V Espresso Machine
ECM Espresso Machines: Not Working?
ECM Espresso Machines: Not Working?

Features

Single boiler, dual purpose system

  • Brass, insulated: The ECM Casa V boiler is made of brass which retains heat better than stainless steel. In general, copper boilers are more susceptible to limescale when you compare to stainless steel boilers. Therefore, we highly recommend using a water softener. The manufacturer wraps the boiler with insulation for maximum heat retention.
  • Boiler volume: With a 0.4 liter capacity, this machine has one of the largest boilers on the market under $1,000.
  • High wattage heating element: The heating element rates at a very high 1200 watts. This allows for quicker reaction time when cold water enters the boiler, shorter heat up times, and quick transition from coffee to steam mode.
  • Over pressure valve (O.P.V.): Easy access on the top of the machine, underneath the cup warming tray. To point out this adjusts the brew pressure. Turn clockwise to increase and counter-clockwise to decrease.

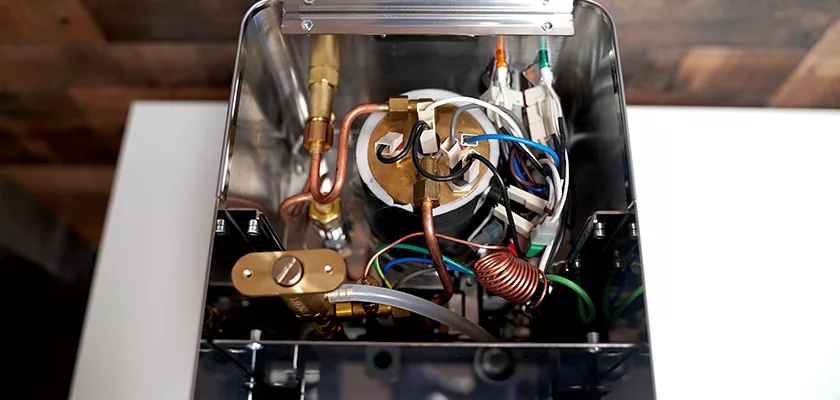

Top-down view of the internal components of the DISCONTINUED ECM Casa V Espresso Machine, featuring wires, copper tubes, brass fittings, and a central boiler within a metallic casing. © 2025 1st-line.com
Close-up of the SIDEWALK SALE-VBM White Junior with a white drip tray, grill, and water tank cover (E209), showing its stainless steel front panel, four buttons with indicator lights, a black rotary knob on the right, and ECM badge at the top center. © 2025 1st-line.com

Controls

  • Push button controls: Simple to use. All controls are on the front face of the machine. The main controls are on the left side in a 2×2 grid.
  • Coffee switch: Located in the front upper right. The light above indicates the pump is on running water through the grouphead.
  • Steam switch: Located in the front lower left. The light above indicates the heating element is active.
  • Hot water switch: Located in the front lower right. The light above indicates the wand is active for hot water.

Pressure gauge

  • Pressure gauge: In brief the gauge displays in real time the pressure during coffee extraction. Only 9-10 bar is needed to make espresso. This gauge will help perfect your espresso shot.
  • Display: To clarify, our current stock has the newer display that reads every 4 bar.
Close-up of a circular pressure gauge on the VBM White Junior WHITE Drip Tray, Grill & Water Tank Cover E209, labeled pompa and ECM, showing 0–16 bar with the needle just above 1 bar. © 2025 1st-line.com
Close-up of the SIDEWALK SALE-VBM White Junior WHITE Drip Tray, Grill & Water Tank Cover E209, featuring a stainless steel steam wand with a curved, ribbed design and control knob, set against a wood-patterned background. © 2025 1st-line.com

Steam / water wand

  • Multi-purpose: Used for both steam or hot water depending on the current mode.
  • Multi-directional: Allows for flexibility to steam on the side of the machine. Enables you to prepare creamy cappuccinos.
  • Very short wait time: The small boiler and very high wattage heating element. As a result, it cuts the wait time from coffee to steam.

Vibration Pump

  • Efficient: 41 watts (manufacturer can change), rated up to 15 bar with air valve bypass. You only need 9 bar to extract perfect espresso, and wattage has no correlation to longevity.
  • Cost-effective: To point out, pumps will degrade in performance over time and usually average useful life is 5 years. Easy area to self-replace. In the long run, replacing a vibration pump will cost less than a rotary vane pump.

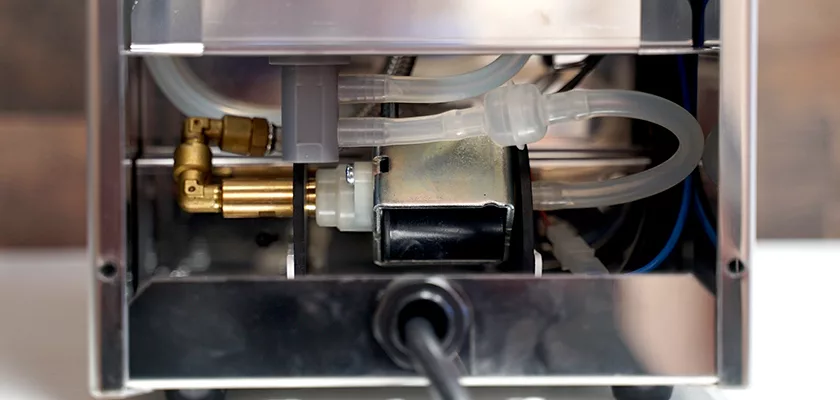

Close-up view of the internal components of the DISCONTINUED ECM Casa V Espresso Machine, showing tubes, wiring, and metal parts inside a sleek metal casing. © 2025 1st-line.com
Close-up of the SIDEWALK SALE-VBM White Junior WHITE Drip Tray, Grill & Water Tank Cover E209, featuring a silver metal surface with grater-like holes, set against a wooden background. © 2025 1st-line.com

Tank / Reservoir

  • Open top: Easy to fill. Easy to clean.

Parts & accessories included

  • Portafilters: Dual spout portafilter. 58 mm in diameter. Commercial grade quality similar to the other ECM machines.
  • Filter baskets: 1-cup filter basket which holds approximately 7 grams. 2-cup filter basket which holds approximately 14 grams. Blind filter basket which you use for backflushing. 58 mm in diameter.
  • Tamper: A solid 58mm tamper. In short, you don’t need to upgrade.
  • Cleaning brush: A brush specifically for cleaning the grouphead. There are ridges on the neck of the brush to help prevent scalding water from reaching your hand.
  • Silicon hose: This attaches to the water tank adapter if you are going to use an in line water softener.
    Instructional manual: Written in 3 languages: German, English, and Dutch.
A portafilter, three metal filter baskets, a plastic straw, a metal tamper, a cleaning brush, and the SIDEWALK SALE-VBM White Junior WHITE Drip Tray, Grill & Water Tank Cover E209 are neatly arranged on a white surface. © 2025 1st-line.com

Specifications

Brand

ECM Manufacture
Height (inches)

15, approximate
Width (inches)

8.5, approximate
Depth (inches)

14, approximate
Weight (pounds)

31
Wattage (watts)

1200
Voltage (volts)

110 – 120
Boiler capacity (liters)

0.4
Portafilter size (mm)

58
Tank capacity (liters)

2.8
Country of manufacture

Assembled in Milan, Italy, Designed in Germany

Notes

  • Shopping for best price: First thing to remember, when shopping for this espresso machine, please keep in mind that 1st-line Equipment stocks many spare parts for this machine so 1st-line’s customers can be serviced if there are any problems. Please keep in mind the selling dealer is responsible dealer in the selling country is for providing the service and warranty. ECM Germany does not have a worldwide labor warranty and will not ship parts directly to customers worldwide. Hence, it is best to check the dealer’s web site for spare parts.
  • Direct water connection: This model can only operate using the water tank. It cannot be hooked up to a water line.
  • Steam nozzle: As of July 5, 2013, ECM Germany has confirmed the steam nozzle has 1/8″ inner thread. Please note that ECM, like most manufacturers, can make changes without prior notification. Therefore, please check your machine before ordering any steam tips.
  • Manufacturer Report: on lead content
    Rolls Royce: Rolls Royce is a trademark of its respective owner.
  • E61 Flow Control: Please note that the Casa V is not compatible with the E61 Flow Control.

General Espresso Machine Notes/Warnings:

  • Upon first use (tank/reservoir models): On the initial start-up (or after a long period of non-use), it is important to make sure the pump is removing water from the tank. When the machine is powered on, you will hear the pump running. After 5 seconds, squeeze the in-line hose in the tank (usually the longest hose, has a particle filter attached). if you hear a different sound, this means the pump is working correctly. If not, immediately power down the machine and contact us. For more information, visit this page General Manual Pump Priming.
  • Electrical: To avoid electrical damage to this espresso machine which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. Without the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat, or the wiring inside. For more information, visit this page Power Protection.
  • Water: To increase the useful life and not damage your espresso machine, please use softened water. Softened water is water without calcium and magnesium, but still has other minerals for espresso extraction. Do not use distilled, purified, or reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale. For more information, visit this page Water Choice.
  • Descaling: We do not recommend descaling unless there is an issue with the espresso machine. Too much descaling can eat away at the metals and gaskets inside an espresso machine. As a preventative measure, we recommend using softened water as explained in the bullet point above.
  • Backflushing: This procedure of cleaning the grouphead will need to be performed from time to time. For more information, visit this page Espresso Machine Backflush – Why 50?

Support

Parts Diagram

Finding your part
  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website.
    Note: These parts diagrams are provided by the manufacturers. We list them on our site for informational purposes only. We do not stock every single part listed nor can we guarantee that every part is available to order.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
  • Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.
Exploded diagram of a metal box assembly with labeled parts, showing plates, panels, trays, screws, and a knob arranged in layers to illustrate how the components fit together. © 2025 1st-line.com
# SKU
1 81200
2 B7819901
3 C439901215
4 P1998
5 P2006
6 P2009
7 P2022
8 P9050
9 P9051
10 P9052
11 P9053
12 P9054
13 P9055
14 P9056
15 P9057
16 P9058
17 P9059
18 P9060
19 P9061
20 P9062
21 P9063
Exploded diagram of a toilet cistern assembly, showing individual numbered parts such as pipes, screws, valves, flush mechanism, tank, and flush handle, with connecting lines indicating assembly positions. © 2025 1st-line.com
# SKU
1 B5471509
2 B7496076
3 C199900280 (230V, 50Hz)
US1001 (120V, 60Hz)
US1025 (100V)
4 C199900969
5 C229900548
6 C229900644
7 C229900703
8 C249900770
9 C439900695
10 C449900709
11 C499900769
12 P2009
13 P2026
14 P2047
15 P2055
16 P3006.K
17 P3019
18 P6017.N
19 P6020.3
20 P6020.K3
21 P6020.K4
22 P6020.N
23 P6020.NK
24 P6023
25 P6025
26 P6051
27 P6055
28 P6114
29 P7000
30 P8012
31 P9010
32 P9010.K2
33 P9014
Exploded diagram of a mechanical device showing individual components such as pipes, bolts, springs, washers, and a cylindrical unit, all labeled with numbers for assembly reference. © 2025 1st-line.com
# SKU
1 C100001815
2 C199900226 (230V)
US1014 (110V)
3 C199901549
4 C199901550
5 C229900579
6 C309900127
7 C309900131
8 C319900134
9 C329900682
10 C449900230
11 C449900790
12 C499900769
13 C519900102
14 C529900550
15 P2006
16 P2010
17 P2011
18 P2026
19 P2042.1
20 P2042.2
21 P2042.4
22 P2042.5
23 P2042.9 (230V)
US1011 (110V)
24 P2067
25 P2550
26 P2551
27 P6010
28 P6012
29 P6015
30 P6057
31 P6114
32 P7060
33 P9015
34 P9047
35 P9048
36 P9049
37 P9064
38 P9115
39 P9115.2 (2-hole)
P6002.7 (3-hole)
P6002.6 (4-hole)
P6002.3 (5-hole)
40 P9115.3
41 P9115.5
42 P9115.6
Line drawing of a coffee machine’s exploded parts, including the main body, portafilter, baskets, tamper, group head, screws, and electrical components, all numbered for reference. © 2025 1st-line.com
# SKU
1 89423
2 C199900957 (DE)
P2034 (US)
P2035 (UK)
P2036 (AU)
3 C619900098
4 C619900104
5 C619900105
6 C619900106
7 C639900764
8 P2001
9 P2002
10 P2004
11 P2070
12 P9108
13 P9109
14 P9110
15 P9111
16 P9112
17 P9113
18 R210

Reviews

Leave your review
Rating
Publish review

Q & A

Ask a question

Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

    I have an ECM CASA V that I received from a family member. I have been making lattes and have been noticing the following. Are these normal temps ? -- Temp. of coffee alone from brewhead. = 110 F. ( 50 C) -- Milk after steaming for lattes = 118 F. ( 48 C) could go higher on this but want microfoam for making latte art -- Coffee + milk = 100 F (40 C) We like to drink lattes at about 135 F ( 55 C) which means we have to microwave the drinks for a minute to reach 135 F (55 C) ! It would be nice to not have to microwave. Should the brew temp be higher ? If yes is this adjustable ? Thank you
  1. 0 votes
    Q I have an ECM CASA V that I received from a family member. I have been making lattes and have bee...... Read more answer now
    Asked by Earl on September 28, 2023 10:52 am
    Answered by the admin

    Please purchase a SCACE device to get the proper read of temperature with respected water flow. Unfortunately, without this tool, your measurements are completely flawed in testing.
    2. My machine is about 2 1/2 years old. It started pushing water around the portafilter instead of through the bed, so I’m getting clear water coming into the drip tray around the portafilter. I’m hoping this is a simple problem like a gasket that I can replace myself, but please let me know what you recommend.
  2. 0 votes
    Q My machine is about 2 1/2 years old. It started pushing water around the portafilter instead of t...... Read more answer now
    Asked by Joe on July 14, 2023 12:19 pm
    Answered by the admin

    Yes, you need a new portafilter gasket. The diagrams are on our web site to get the part number and check pricing and availability.
    3. Hi! Just wondering if you have a replacement boiler for ECM’s Casa V in stock. Thanks!
  3. 0 votes
    Q Hi! Just wondering if you have a replacement boiler for ECM’s Casa V in stock. Thanks! answer now
    Asked by brian on July 26, 2021 12:44 pm
    Answered by the admin Sorry, we do not have any in stock.
    4. I purchased two thermostats one from you (135C) and the other from (competitor name removed)  (104C). Oddly you only sold one and they only sold the other. The Casa V has two thermostats and I plan to attach them with thermal glue (since the old ones were corroded and broke off easily). I have drilled out the old holes in the top of the boiled and the new thermostats will easily fit in. I purchased a thermal adhesive and plan to glue them in. Are the correct thermostats pre set to 104C for the brew and 135C for the steam? Is the center thermostat the steam or the brew?
  4. 0 votes
    Q I purchased two thermostats one from you (135C) and the other from (competitor name removed)  (10...... Read more answer now
    Asked by Ted on February 22, 2021 6:46 pm
    Answered by the admin

    There is thermal paste used, not thermal glue.

    Please review the diagrams for further assistance, or even better, as you remove the thermostats, check the old one's temperature rating and place in the new one. Sorry, we will not advise on placement as this can change in the future and the diagrams on our web site should always be referenced.
    5. I was told that ECM now has a kit to add a water softener to the Casa V water reservoir? Can you tell me the part #
  5. 0 votes
    Q I was told that ECM now has a kit to add a water softener to the Casa V water reservoir? Can you ...... Read more answer now
    Asked by eric.w.w on February 19, 2021 2:22 am
    Answered by the admin

    Sorry for the delay as we had been trying to get these ECM filters/water softeners up on our web site.
    6. I would like to order Group Gasket Part # C449900230. Please advise price. Also may I ask you to confirm what country the above part is made? Country of Origin?
  6. 0 votes
    Q I would like to order Group Gasket Part # C449900230. Please advise price. Also may I ask you to ...... Read more answer now
    Asked by Bernardete on May 21, 2020 3:36 pm
    Answered by the admin

    Sorry, the manufacturer does not indicate country of origin for the grouphead gaskets.

    In addition, we apologize for the delays for parts shipments leaving Europe. We may not get these gaskets for quite some time.
    7. I have an ECM Casa V and when I pull a shot, water comes through the portafilter. Do I need Part # C449900790 or Part # C449900230 or Both? Would like to order ? Secondly is the above parts made in Germany or Italy ? what is the country of origin? Thank you for your help. I hope you and your family are well. Italy ? What is the country of origin? Thank you so much your help. Hope you and your family are well.
  7. 0 votes
    Q I have an ECM Casa V and when I pull a shot, water comes through the portafilter. Do I need Part ...... Read more answer now
    Asked by Bernadete on May 20, 2020 7:07 pm
    Answered by the admin

    Please always review the parts diagrams for correct parts numbers.

    C449900790 is the thin, smaller oring above the shower plate.

    C449900230 is the portafilter gasket that needs replacement when water leaks around the outside of the portafilter.
    8. Hi. Could you please research the ECM Casa V to find out if their brass boiler uses eco brass which is supposed to lead free? Thanks and be safe.
  8. 0 votes
    Q Hi. Could you please research the ECM Casa V to find out if their brass boiler uses eco brass whi...... Read more answer now
    Asked by Steve on April 7, 2020 8:00 pm
    Answered by the admin

    At the time of this writing, ECM has confirmed the boiler and grouphead are manufactured with eco brass.
    9. I bought a Casa V from 1st-Line late June of 2019. At the moment, the welds that hold the top border of the drip tray to the bottom portion of the tray have failed, so the drip tray now comes apart completely. This is annoying, because it takes some dexterity to fit the parts back together. I am sure this is still under warranty. Can you help me replace the drip tray?
  9. 0 votes
    Q I bought a Casa V from 1st-Line late June of 2019. At the moment, the welds that hold the top bor...... Read more answer now
    Asked by John Larvie on March 31, 2020 9:00 pm
    Answered by the admin

    We are sorry to hear this. Please note this can happen when placing the drip tray in the dishwasher. Please email a picture to us with the serial number of the machine as well as the order number.
    10. Hi. Does the Casa V have a lead-free brass boiler? Thanks.
  10. 0 votes
    Q Hi. Does the Casa V have a lead-free brass boiler? Thanks. answer now
    Asked by Steve Bauer on March 29, 2020 6:39 pm
    Answered by the admin Only our opinion as others may disagree... Although European manufacturers make every effort to remove most lead from their brass boilers, all brass boilers have some lead in it. In addition, there are brass fittings which have some lead. Most manufacturers do place a coating on the inside to lessen the risk of lead. However, this coating is usually removed upon descaling. This is why we ask that customers prevent limescale with water treatment. On the flip side, most waters will add a coating back to the brass after several months of use. The same applies to commercial espresso machines used in cafes.
    11. Hello, I have the same question as someone else from April of 2018 as I do not see these parts shown on your website: "I understand that the group head gaskets need periodic replacement. The manual for this fine machine indicates that the gaskets are : the shower plate gasket, item. no. C449900790 and the group gasket, item no. C449900230. Are these gaskets (and a replacement shower screen) available?" Thank you.
  11. 0 votes
    Q Hello, I have the same question as someone else from April of 2018 as I do not see these parts sh...... Read more answer now
    Asked by dsimays on February 17, 2020 7:03 pm
    Answered by the admin Sorry, we are out of stock again. They are due in by the end of March, 2020.
    12. The drip tray on my brand new Casa V does not lift out of the base easily. It is a very tight fit and is difficult to even insert into the base. I have seen online where the tray lifts out easily for rinsing and cleaning. What can be done to solve this problem?
  12. 0 votes
    Q The drip tray on my brand new Casa V does not lift out of the base easily. It is a very tight fit...... Read more answer now
    Asked by Diane Simays on December 12, 2018 4:12 pm
    Answered by the admin

    These are usually a tight fit in the beginning. After several months, they can loosen up. Too loose makes more rattling down the road.
    13. Can the sticker on the brew group that says "Caution: Hot Surface" be removed easily? The sticker isn't on the photo of the Casa v espresso machine shown.
  13. 0 votes
    Q Can the sticker on the brew group that says "Caution: Hot Surface" be removed easily? The sticker...... Read more answer now
    Asked by dsimays on November 20, 2018 7:36 pm
    Answered by the admin

    Yes, it can be peeled off. A little rubbing alcohol may be used to remove the adhesive.
    14. Should the ECM Casa V be descaled? If so, how often do you recommend? My water supply is soft according to test strips.
  14. 0 votes
    Q Should the ECM Casa V be descaled? If so, how often do you recommend? My water supply is soft acc...... Read more answer now
    Asked by Steve Pitt on April 15, 2018 9:50 pm
    Answered by the admin

    Descale only if there is an issue. Otherwise, preventative measures like an in tank water softener help safeguard the machine. This is why ECM includes the extra little hose to attach inside the reservoir.
    15. I understand that the group head gaskets need periodic replacement. The manual for this fine machine indicates that the gaskets are : the shower plate gasket, item. no. C449900790 and the group gasket, item no. C449900230. Are these gaskets (and a replacement shower screen) available?
  15. 0 votes
    Q I understand that the group head gaskets need periodic replacement. The manual for this fine mach...... Read more answer now
    Asked by davidpauldyer on April 14, 2018 7:05 am
    Answered by the admin

    Sorry, we are currently out of stock. They should be here in about 4-8 weeks.

Maxim F. from United States (US) purchased

Middle Infusion Spring for E61 Grouphead

8 hours, 30 minutes ago

;
Secret Link
