Power off your machine and unplug it from the outlet. Remove the water tank.

Accessing-the-inside-ECM-Casa-V-02

Underneath the cup warming tray is the OPV. This adjusts the brew pressure. Turn clockwise to increase and counter-clockwise to decrease.

Accessing-the-inside-ECM-Casa-V-03b

The top panel is held in with 6 Allen key screws.

Accessing-the-inside-ECM-Casa-V-06

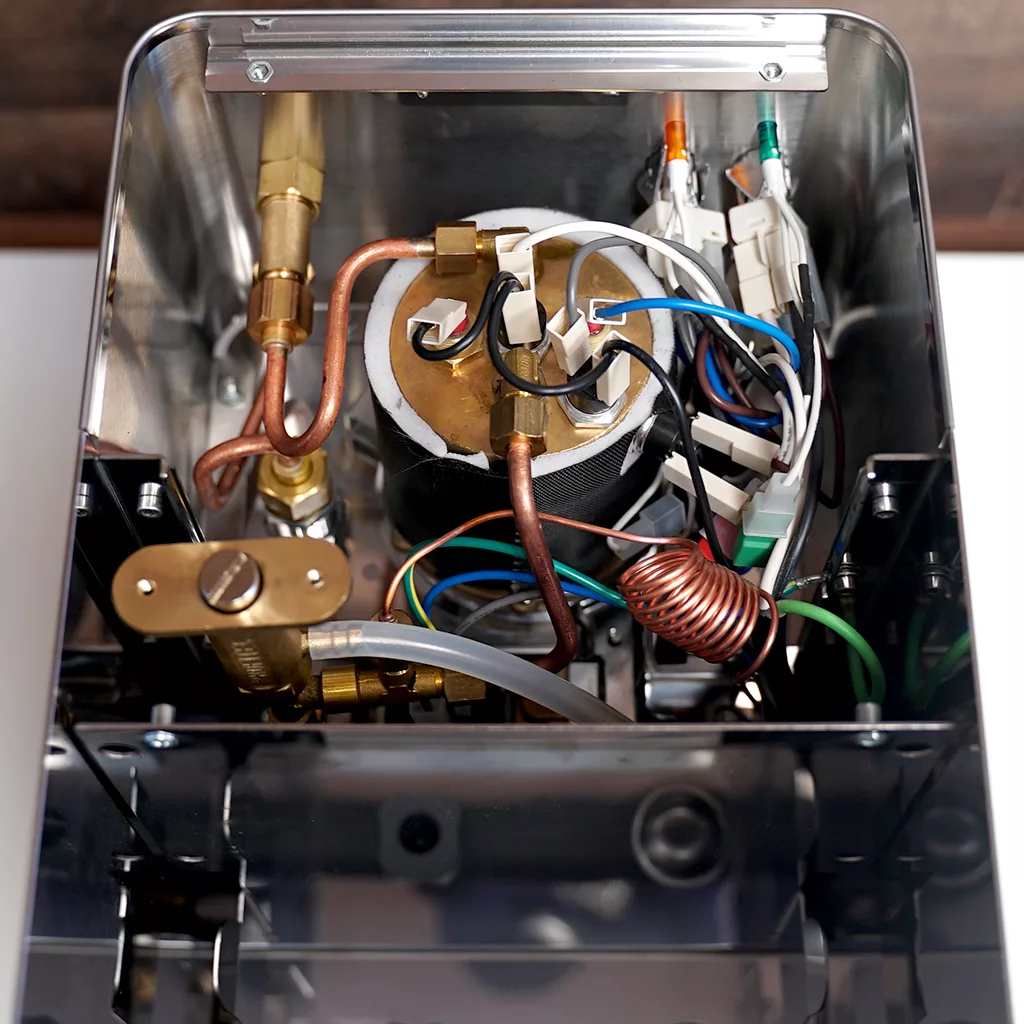

You now have top access to the boiler.

Accessing-the-inside-ECM-Casa-V-05

The back panel is held in with 6 Allen key screws. Once they are removed, the back panel slides up.

Accessing-the-inside-ECM-Casa-V-07

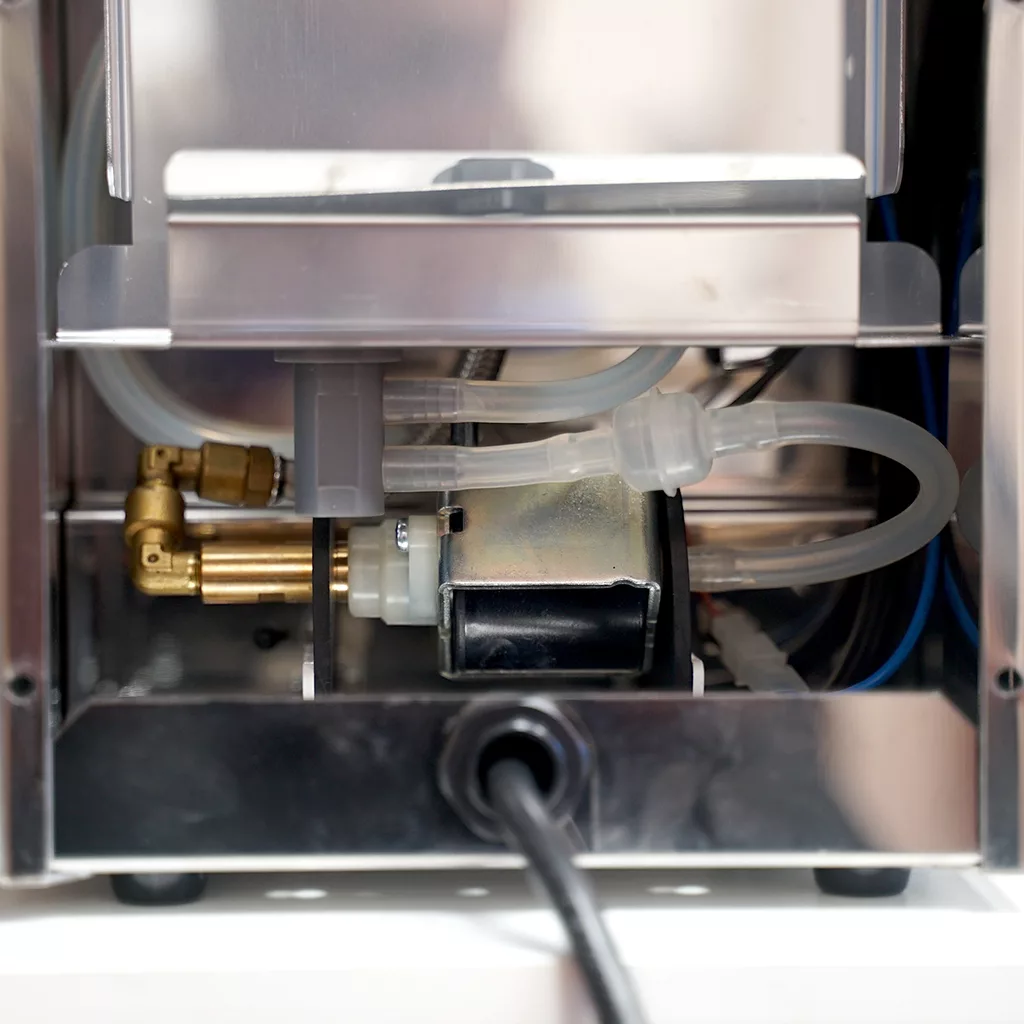

You now have access to the vibration pump and water tank adapter.
