Question 1

Q So after a whole bunch of poking around, and testing components; protection circuits, the heating...... Read more answer now

Asked by David on August 24, 2025 7:06 pm

Answer

Thanks for the insight, but your circuit board repair is probably over the top, in our opinion, for many looking to repair their machine.

Part numbers do change, and more than likely, there is a new number to replace he old board.

Quite the contrary, many customers do NOT know about the sensors for the water. Hence, the salt trick is advised to rule out the water being too pure.

Question 2

Q Our Mitica, purchased in 2020, now intermittently shows "1.04" on the PID display on start up, an...... Read more answer now

Asked by David on August 18, 2025 1:52 pm

Answer

Sorry to read this. If your water is too pure, this may happen. Please add some minerals i.e. salt to the water in the reservoir and test.Please review this video.

Otherwise, the safety probe inside the boiler or the contacts on the water tank are corroded or faulty.

Question 3

Q I am reaching out regarding an issue with my Bezzera Mitica TOP espresso machine (gifted to my by...... Read more answer now

Asked by Emilio on August 4, 2025 11:46 am

Answer

At first, we would suggest running a descaling solution through the machine. Test the pump pressure with the gauge. If the issue persists, a new pump would be the next step to check. The pump can be acquired through these steps. If you prefer to send it in for service, please use the contact form on our web site and please submit full name of the purchaser so we can verify the purchase as we normally do not service machines purchased elsewhere.

Question 4

Q 2019 Bezzera Mitica Top MN Manual Doser 120V SN: NP014787xxx Problem: 1.04 is showing on the PID ...... Read more answer now

Asked by Todd Fontechia on October 10, 2024 11:28 am

Answer

Sorry, we emailed Bezzera, but we did not get a response.Probably because this does not sound like a simple question and simple solution. It can range from a damaged brain unit, burnt or fried wiring,damaged sensors, etc - usually from electrical spikes and surges as we have seen on different makes and mdoels of machines.

If you purchased from 1st-line, the machine can be sent in for repair after requesting a repair authorization. If you purchased from another dealer, we suggest you contact them for assistance.

Question 5

Q My 2015 Mitica has been direct plumbed into home soft water supply. It has never been descaled. S...... Read more answer now

Asked by Bill on October 31, 2023 12:24 pm

Answer

This can be a boiler refill valve that is leaking from the direct water connection - too much water pressure or corrosion from water that affected the seal inside the stem. It would only be the boiler refill probe being contaminated or ruined from water corrosion if the machine was powered on and overfilled the boiler.

Question 6

Q In my recent email regarding water flow from the suppression valve drain in to the drip tray: I r...... Read more answer now

Asked by Robert Schestak on November 19, 2022 4:19 pm

Answer

No worries. Sorry for the delay as we are in busy season and staff members getting the flu.

Question 7

Q Greetings again. You helped me with a sticky solenoid back in April 2022 that was solved after de...... Read more answer now

Asked by Robert Schestak on November 19, 2022 2:28 pm

Answer

It is usually better to replace the entire valve.

Question 8

Q I have the Mitica PID machine but am confused about which group head gasket I need to order. I lo...... Read more answer now

Asked by Randy Sprenkle on September 11, 2022 1:28 pm

Answer

If you want OEM, please search and select for the Bezzera gasket number. Otherwise, most 8mm E61 portafilter gaskets will fit.

Question 9

Q I bought a Bezzera Mitica from you in June 2014 (serial #0090xxxxx). It has performed flawlessly....... Read more answer now

Asked by Robert Schestak on April 15, 2022 3:19 pm

Answer

good to hear that the machine worked so good for so long. Screeching sounds like a solenoid valve. Sorry, we no longer recommend companies publicly as we do not want to be blamed when things go awry. Prolly a good idea to try a descaling first, then contact a local repair company.

Answer

I took your advice and decalcified my machine (Ascaso washer = needs 2 liters to do the job). Works fine now. Must have been a solenoid sticking. I use filtered water and an OPSCAR 90 in the tank to reduce the amount of minerals deposited but will now consider decalcifying the unit annually or so. Thanks for your great service, I just wish you had coffee on the same site. RS

Question 10

Q Hi-I think my bezzera Mitica(non PID model) is in need of a new pressurestat, is this the part I ...... Read more answer now

Asked by jennifer Medlin-Lloyd on April 1, 2022 11:40 am

Answer

Sorry, there can be multiple versions based on when made and for which dealer. Please check inside the machine.

Question 11

Q Thank you. Are you able to provide electrical schematics by any chance? Trying to isolate cause o...... Read more answer now

Asked by Carl on March 8, 2021 5:29 pm

Answer

Sorry, manufacturers typically do not share this information publicly. If they do, it is on their web site or ours. If not there, then they usually will not disclose.

Question 12

Q How long are you able to leave the machine on so you have hot water immediately ? I want to make ...... Read more answer now

Asked by Sandy Howell on February 28, 2021 2:03 pm

Answer

One can leave the machine powered on all day, but it just uses more cycles. Also, any espresso machine that has less than 4 liter boiler size should only have 4 ounces of water extracted at a time from the hot water spigot UNTIL the boiler stops refilling.

Question 13

Q I need legs for a 2020 bezzera mitica pid v2 dip coffee machine at 1” high (not 2") because I hav...... Read more answer now

Asked by Salvatore Bellofiore on January 14, 2021 10:33 pm

Answer

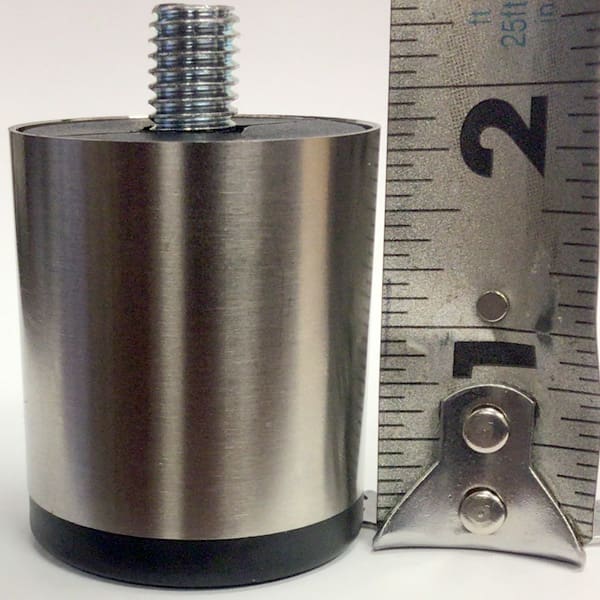

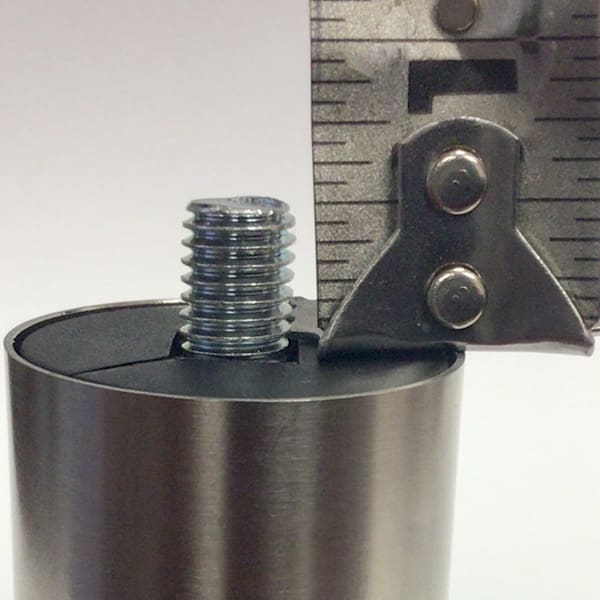

Here are pictures we took of measurements. Not sure if it was the length of the foot or screw you needed.

Question 14

Q i need the reservoir tank completed with bottom fittings and toggle switch on and off too but i s...... Read more answer now

Asked by Coffee Equipment on November 6, 2020 8:38 pm

Answer

Please review the diagrams on our web site and search for the part number for availability and pricing.

Question 15

Q Good afternoon 1st-Line Team! I'm looking at the ECM Technica and the Bezzera Mitica. The exact c...... Read more answer now

Asked by Rick Ross on May 14, 2020 6:54 pm

Answer

We just measured one Bezzera Mitica espresso machine that measured ~15 7/8th". However, we did find optional feet that would lower it to a maximum height of about 14 3/4" with a very tight fit on the underside. This will be considered a customization option done behind the scenes.

Question 16

Q Hello, I have 1 1/2 year old PID Mitica and recently the PID started shutting off after the machi...... Read more answer now

Asked by Lisa Menelly on December 6, 2019 4:53 pm

Answer

Either the machine has purified water or limescale. We suggest adding a pinch of salt to your water and test.

Otherwise, the machine may need a professional descaling. It can be shipped into us following our instructions or you can search for a local repair center.

Question 17

Q Hello, Pump pressure on my machine goes to 14psi and leaks a lot of water in to the drip pan. Do...... Read more answer now

Asked by Bane on April 5, 2019 2:23 am

Answer

It can be a blockage in the system, or a faulty overpressure valve (OPV), or both. The inside of the spout will need to be investigated to confirm where the water is coming from.

Question 18

Q Hello. I have a 4yr old Mitica which serves me well. As of a few months ago, the steam pressure i...... Read more answer now

Asked by DavidR on March 29, 2018 5:23 pm

Answer

High steam pressure indicates a 'sticky' pressurstat which a descaling does not cover since the pressurstat is much higher than the water level in the boiler. Typically, after a descaling, change this presurstat. Please look at the diagrams on our web site for the correct one.

One can not go by feeling on the water level in the boiler. The areas of concern can be a faulty pump to refill; a faulty solenoid valve for the boiler refill; the water level sensor can be scaled up, oxidized, or have a bad teflon protector; and/or, faulty wiring or faulty brain unit.

Answer 1

So after a whole bunch of poking around, and testing components; protection circuits, the heating element, the relay, I finally tore down the PID and found the electrolytic capacitor on the circuit board with a measured value of 14uF, replaced it with a new 220uF 36V, that measured 260uF. As soon as I put it back together, plugged her into a GFCI, she fired right up and started heating the boiler. This "flashing 1.04" symptom, at least in this case, was the PID voltage dropping below 6V, and being unable to trigger the relay that powers the heating element. This PID on the Mitica appears to be discontinued, it would be helpful to know if the Magica uses the same circuit board. What is this fixation on salt water? Most owners who have had one of these are aware of the water reservoir, high-low limit switches, and that the PID shuts off in these situations. It does not continue to display anything. Other owners who experience the same symptom, its likely the relay or the PID malfunctioning. Good luck.

Answer 3

Our Mitica, purchased in 2020, now intermittently shows "1.04" on the PID display on start up, and will not heat the boiler. I reset the PID to default, but it still has the same error. Any guidance as to what circuit or sensor is malfunctioning? Pump still works.

Answer 5

I am reaching out regarding an issue with my Bezzera Mitica TOP espresso machine (gifted to my by my father, who originally acquired it from 1st Line around 2015). The machine is currently unable to reach proper brewing pressure. Even when using a blind portafilter, the pressure gauge only registers around 4–5 bar, which is significantly below the expected 9 bar during backflushing or brewing. I have confirmed that the portafilter is sealed properly, and have tried the test multiple times to rule out a gauge misreading. The issue persists and is affecting the machine’s performance. Could you please advise on potential causes or recommend next steps for troubleshooting or repair? If service is required, I’d appreciate guidance on how to proceed. Thank you in advance for your assistance.

Answer 7

2019 Bezzera Mitica Top MN Manual Doser 120V SN: NP014787xxx Problem: 1.04 is showing on the PID display. It blinks every 5 seconds or so. Boiler does not heat. Note: the pump works. It runs for about 15 seconds when turned on and shuts off. Tank is full and contacts have been cleaned.

Answer 9

My 2015 Mitica has been direct plumbed into home soft water supply. It has never been descaled. Small puddles of water would intermittently appear under machine. Thought it was from me not emptying the tray in time.. Had a larger leak and machine would not turn on. Found shorted power line to boiler at spade jack. Looked ok, wrapped with electrical tape. Pressed red reset button and powered on. Unit heated, but hot water was spraying from boiler anti-vacuum valve which would not seal. Ordered and replaced anti-vacuum valve, thinking that was my leak issue. All seemed to work after powering up and anti-vacuum valve closed. Turned off machine. Next morning found lots of water leaking from new anti-vacuum valve without machine powered on, all over our floor as well. Assume home water supply provided the water pressure, but not enough to close the anti-vacuum valve? Shut off water supply valve and leaking stopped. Drained boiler. Diagnosis? I’m assuming the boiler fill solenoid valve doesn’t close completely. And that it shouldn’t be a high level sensor problem during refill, as the leakage occurred overnight while the machine was powered off.

Answer 11

In my recent email regarding water flow from the suppression valve drain in to the drip tray: I realized that the pump pressure was at 12 bar. I adjusted it to 9 and all seems ok so far. Sorry to bother you. Thanks, RS

Answer 13

Greetings again. You helped me with a sticky solenoid back in April 2022 that was solved after descaling my Bezzera Mitica (model purchased from 1st Line in 2014). I recently noticed more water than usual in the drip tray and observed a light stream of water exiting from the suppression valve drain fitting when pulling a shot of espresso. The machine is clean. I suspect it has something to do with the suppression valve. Should I replace the suppression valve spring (listed in your parts) or the whole valve assembly or is it another problem. Machine functions perfectly otherwise. I make 3 to 4 coffees/day. Thanks, RS

Answer 15

I have the Mitica PID machine but am confused about which group head gasket I need to order. I looked at the parts diagram and it lists part#5493039 when doing a search it lists that gasket (58mm) but I was thinking it was an Faema E-61 Grouphead Gasket – 8 mm, soft. Could i please get clarification on gasket? Thanks.

Answer 17

I bought a Bezzera Mitica from you in June 2014 (serial #0090xxxxx). It has performed flawlessly. I maintain it making 3 to 5 espressos a day. Last night it started to make a screeching sound (like...errrrrrr) into the pull. Do I have a vibration pump or a solenoid going out? I am pretty handy and probably could change it out. Or who do you recommend in the Minneapolis/St Paul area? Thanks, RS

Answer 20

Hi-I think my bezzera Mitica(non PID model) is in need of a new pressurestat, is this the part I need?ttps://www.1st-line.com/buy/elektra-01344035/

Answer 22

Thank you. Are you able to provide electrical schematics by any chance? Trying to isolate cause of a problem with my machine which was purchased through 1st line.

Answer 24

How long are you able to leave the machine on so you have hot water immediately ? I want to make sure there are no implecations in leaving the machine on all day.

Answer 26

I need legs for a 2020 bezzera mitica pid v2 dip coffee machine at 1” high (not 2") because I have 2” high so let me know if you have that has same screws.

Answer 28

i need the reservoir tank completed with bottom fittings and toggle switch on and off too but i see in your web. some parts and my tank has screws on the sides of the tank we nee that or just need to replace the old wants and install in new want

Answer 30

Good afternoon 1st-Line Team! I'm looking at the ECM Technica and the Bezzera Mitica. The exact cabinet height above the counter is 15 15/16." The Spec Mitica ht is 17." How much of the Mitca height is "foot" above the height necessary for the waterline connection? With a shorter foot, can the Bezzera Mitica fit under 15-15/16" cabinet?

Answer 32

Hello, I have 1 1/2 year old PID Mitica and recently the PID started shutting off after the machine has been on for a few hours. The red power light stays on but the PID goes off and the pump doesn't work so no espresso, steam or water. I have to shut the machine off and let it totally cool down before the PID will come back on again. Is it possible to bypass the PID so the machine still works? Other options? I'm guessing something needs to be replaced but frankly I'd prefer not to keep replacing a PID that seems to control everything. Thanks

Answer 34

Hello, Pump pressure on my machine goes to 14psi and leaks a lot of water in to the drip pan. Does pump pressure meds to be adjusted or could be something else. Thanks for help!

Answer 36

Hello. I have a 4yr old Mitica which serves me well. As of a few months ago, the steam pressure in the boiler goes to high and pops the valve. It seems to me there may be a problem with the low water sensor as sometimes I feel like the boiler water level is low and then after a small amount of water is expelled it fills up with a lot of water. Also I have noticed sometimes the machine doesn't shut off when the water level is too low in the reservoir (not plumbed). I descale once or twice annually as the water in NY is pretty good and I do use an OSCAR water treatment. Any help would be greatly appreciated thanks.

Brand	Bezzera
Height (inches)	17, approximate
Width (inches)	13, approximate
Depth (inches)	18, approximate
Weight (pounds)	66
Wattage (watts)	1450
Voltage (volts)	110
Boiler capacity (liters)	2
Portafilter size (mm)	58
Tank capacity (liters)	4
Country of manufacture	Milan, Italy
Approvals	CE

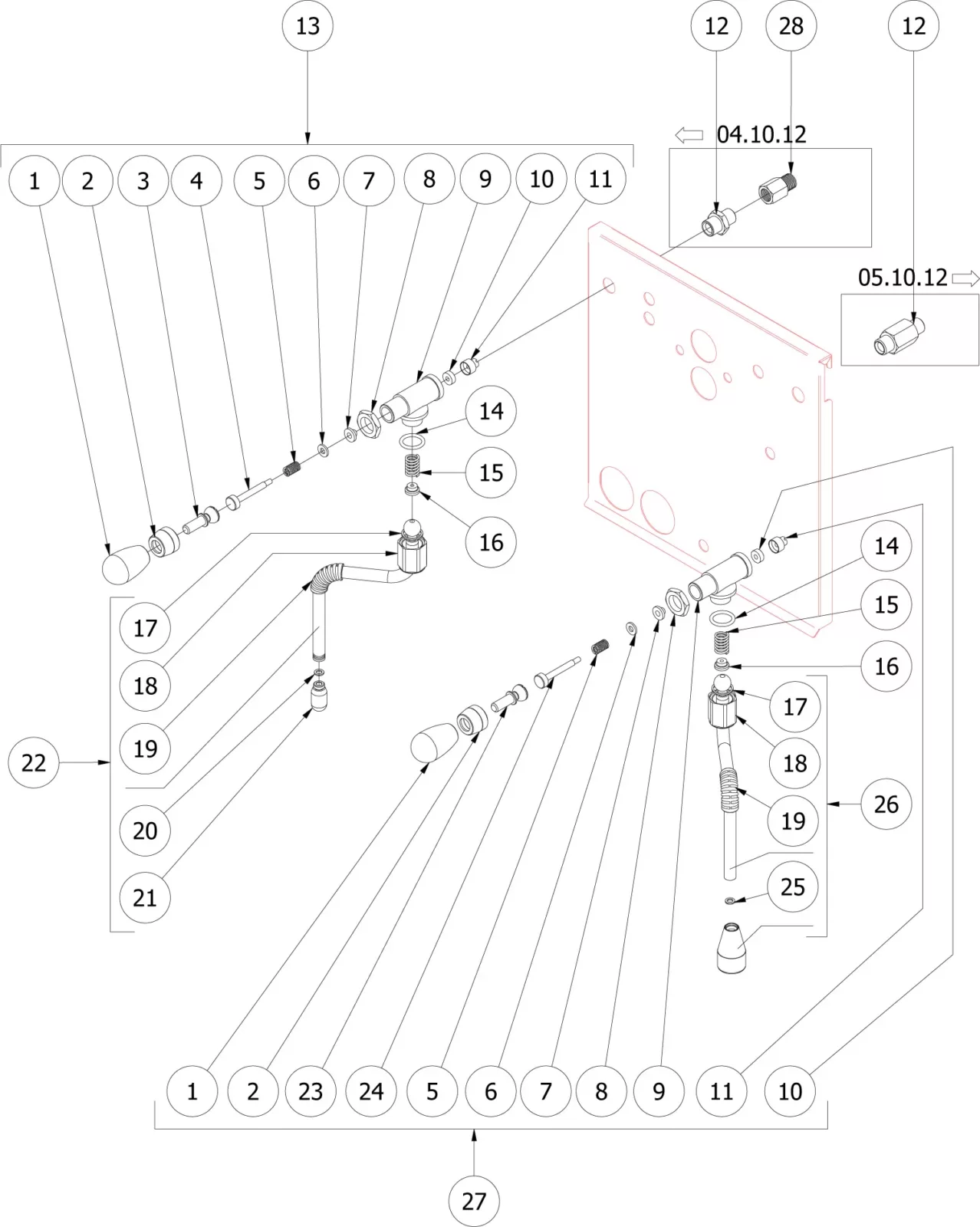

#	SKU
1	5074469SG (up to 23.02.16)
	5074469.01SG (from 24.02.16)
	5074470SG (up to 23.02.16)
	5074470.01SG (from 24.02.16)
2	7816002
3	7474217
4	5074616LW
5	5961602.01
6	5344025.01
7	7809804
8	7474218
9	5340003.05LL (tank version)
9	5340011LL (TOP version)
10	5074617LW
11	5340503DL

#	SKU
1	5074470SG (up to 23.02.16)
1	5074470.01SG (from 24.02.16)
2	7819901
3	5056330LW
4	5074620LW
5	7819911
6	5344025.01
7	7809804
8	7816002
9	7474218
10	5340003.05LL
11	5074617LW
12	5340503LL
13	7611502
14	7303502
15	5224403.01
16	5492022
17	5225230

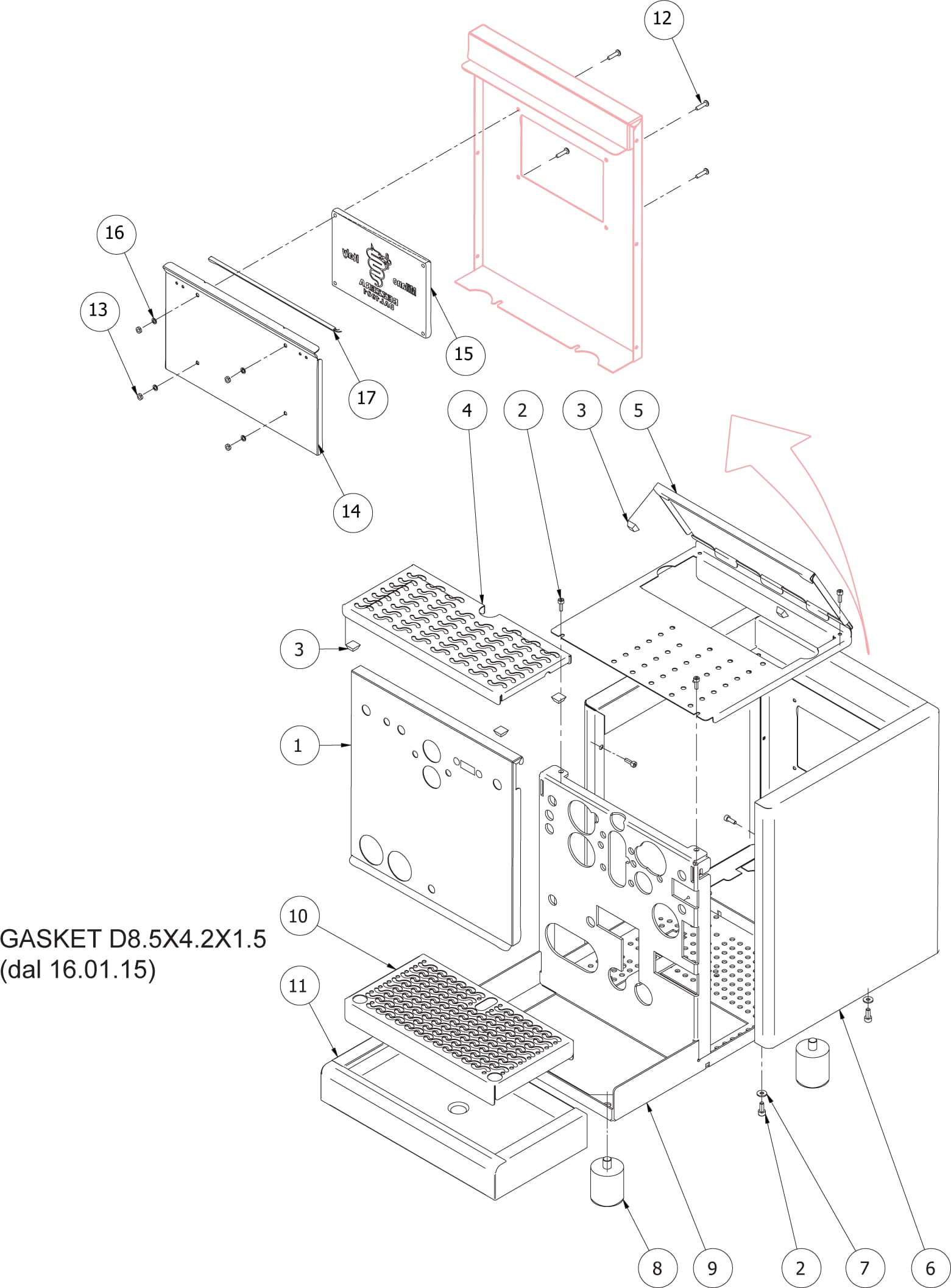

#	SKU
1	5074905SG
2	7816002
3	7474217
4	5074616LW
5	5961602.01
6	5344042
7	7809804
8	7474218
9	5340011LL
10	5074617LW
11	5340503DL
12	7819919
13	7812601
14	5058453LW
15	5370012
16	7804401
17	7663625LL

#	SKU
1	7373006.03
2	7496073.01
3	5471509
4	5302065
5	7374002
6	5471521.01
7	7812601
8	7374004
9	7819908
10	5224617
11	7496076
12	5224414
13	5194540
14	5221830
15	5225228
16	7826206
17	5225246
18	5471535
19	7400902
20	7432523
21	5162237.01LL
22	5194590
23	5301504TR
24	7701111 (115V)
	7702310 (230V)
	7702409 (240V)
25	7630327 (110V)
	7630328 (220/230V)
	7630329 (240V)
26	5221844
27	7304001TR
28	7303034TR
29	7303036TR
30	7731018 (100V C/OR)
	7731019 (120V WITH OR)
	7731022 (220V 60HZ WITH OR)
	7731020 (230V WITH OR)
	7731021 (240V WITH OR)
31	7470602
32	7303006
33	5194592
34	5162236.01LL
35	7611512
36	5194529
37	7809806
38	5963009.03
39	7805009
40	7816004
41	7816009
42	7634816
43	5963070.03
44	5963071.03

Bezzera Mitica V2 HX Espresso Machine

┌- Espresso Maker Deals -┐

┌- Terms & Conditions -┐

Frequently Bought Together

Overview

Discover the Bezzera Mitica: The Ultimate Espresso Experience

Videos

Features

Additional Features:

Specifications

Notes

Support

Parts Diagram

Reviews

Q & A

Ask a question

Add-ons

Common

Essential

Barista

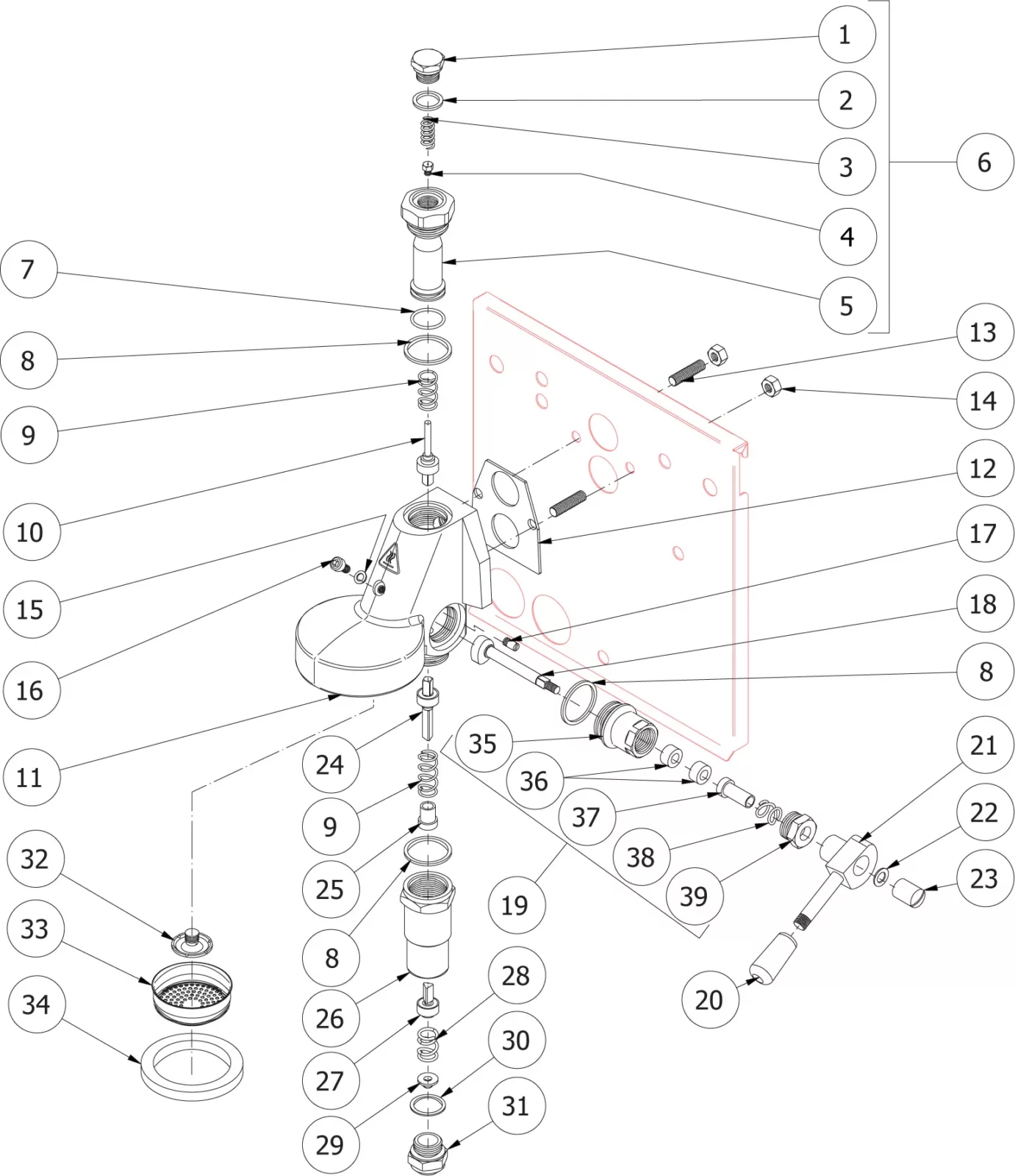

#	SKU
1	5162237.01LL
2	5301504TR
3	7701111 (115V)
	7702310 (230V)
	7702409 (240V)
4	7630327 (110V)
	7630328 (220/230V)
	7630329 (240V)
5	5194508.01LL
6	5221844
7	7815001
8	5283018CM
9	5162236.01LL
10	5194597LL
11	7809806
12	7304502TR
13	5301519 (3/8" G, up to 15.01.15)
13	7304507TR (1/8" G, from 16.01.15)
14	7200512 (3/8"G, up to 15.01.15)
14	7200514 (3/8" G x 1/8" G, from 15.01.15)
15	7432523
16	7304001TR
17	7303034TR
18	5037842LL
19	5194601LL
20	7303001TR
21	7304505TR
22	5194617LL
23	7304502TR
24	5225228
25	7826206
26	5302057
27	5057859LW
28	7816002
29	5471535
30	5037837.01LL
31	5963009.03
32	5221830
33	7496076

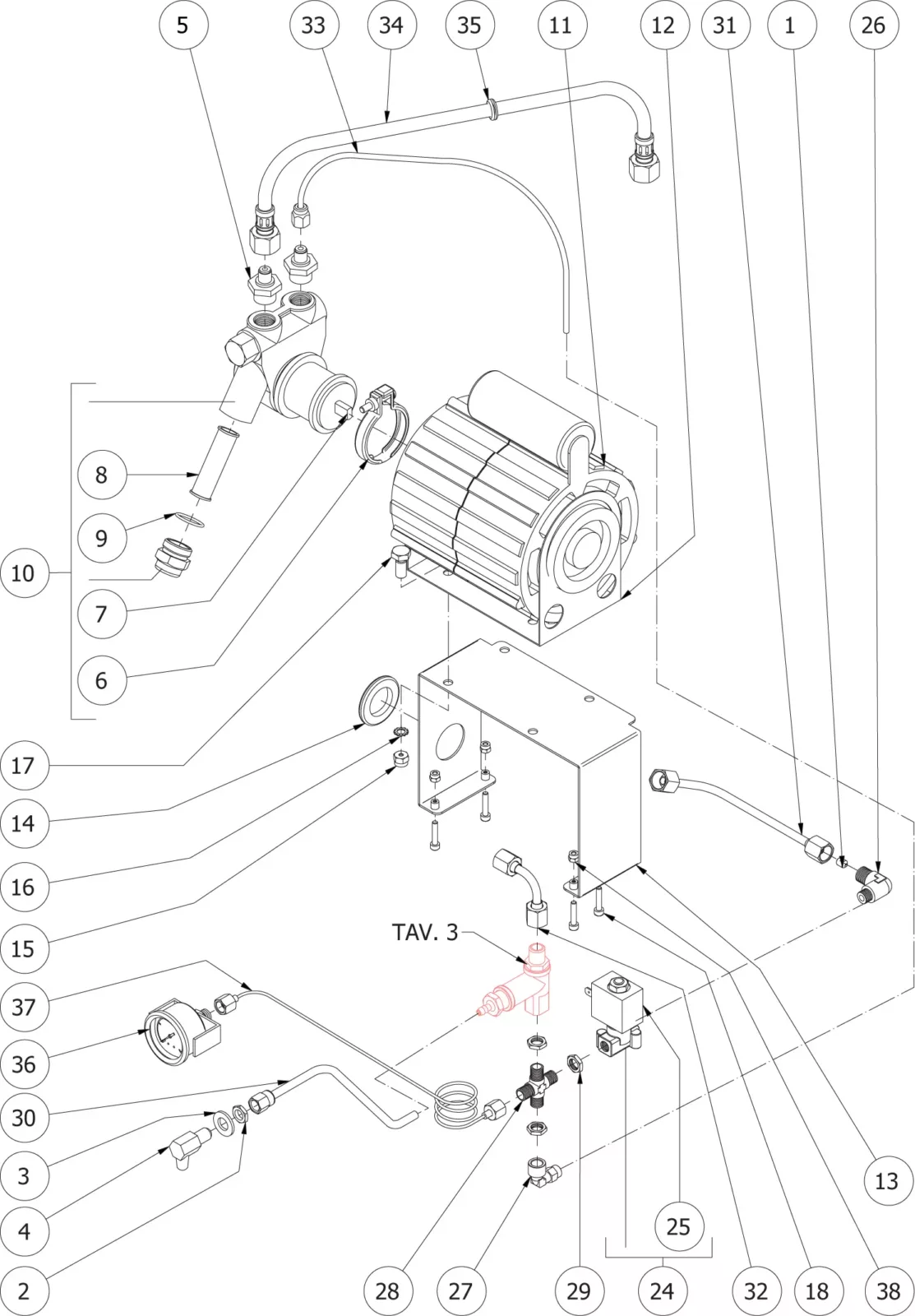

#	SKU
1	5223003
2	5221844
3	7815001
4	5283018CM
5	5302032
6	7611508
7	7472401
8	7374005
9	7496048
10	7730506
11	7741102 (110V 18MF)
11	7742206 (220/240V 10MF)
12	7479976
13	5038420LL
14	7613001
15	7802403
16	7804002
17	7816422
18	7816005
24	7701111 (115V)
	7702310 (230V)
	7702409 (240V)
25	7630327 (110V)
	7630328 (220/230V)
	7630329 (240V)
26	5301504TR
27	7303034TR
28	7304001TR
29	5221844
30	5194592
31	5162237.01LL
32	5162236.01LL
33	5194574.01LL
34	7200514
35	7613004
36	7432523
37	7400902
38	7802402

#	SKU
1	5302017TP
2	5471505
3	5224615TP
4	7496018
5	5283049
6	5493001
7	5224619TP
8	5471506.01
9	7496052
10	5302072
11	5965165

#	SKU
1	5302077TP
2	5471539
3	7496052
4	5224620TP
5	7496018
6	5283053TP
7	5224615TP
8	5471505
9	5302017TP
10	5965212.01AL
11	5493042
12	5471019
