Overview

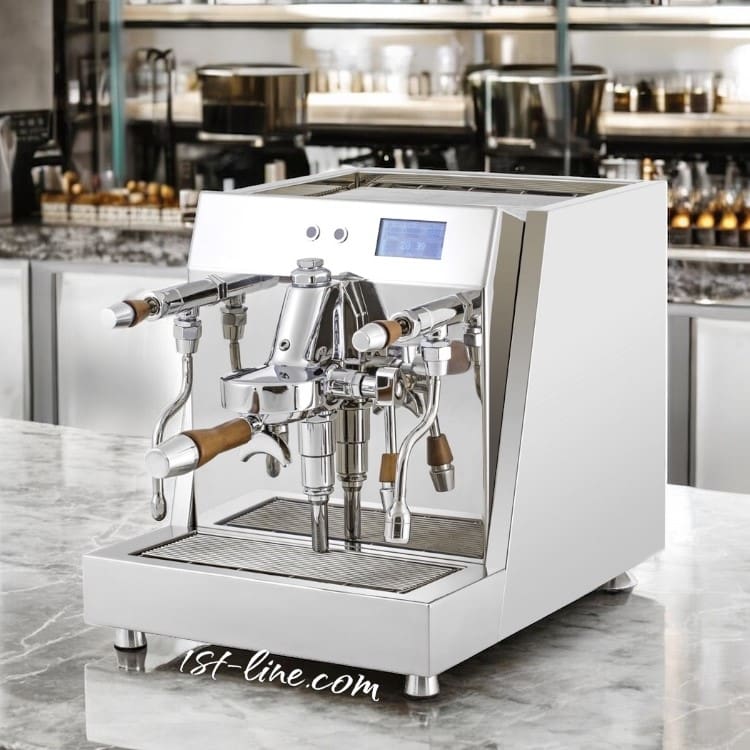

ACS Vesuvius V2 Dual Boiler Espresso Machine
Unleash Your Inner Barista with the ACS Vesuvius Espresso Machine
Elevate your coffee-making experience to an art form with the ACS Vesuvius Espresso Machine—where innovation meets elegance. This remarkable dual-boiler machine is designed for true coffee enthusiasts, giving you the precision and control you crave. With its cutting-edge pump pressure profiling feature, you can fine-tune every shot, unlocking the full potential of your favorite beans.
Imagine selecting from five customizable presets, each tailored to your unique taste. Whether you prefer a rich, bold espresso or a delicate, creamy latte, the Vesuvius adapts effortlessly to bring your coffee dreams to life. Say goodbye to one-size-fits-all brewing—this machine empowers you to craft each cup to perfection.
At the heart of the Vesuvius is the iconic E61 group head, renowned for its thermal stability and consistency. Coupled with exquisite wood accents, this machine isn’t just a kitchen appliance; it’s a stunning centerpiece that will inspire admiration from guests and loved ones alike.
Navigating your coffee creations is a breeze on the sleek touchscreen display, making it easier than ever to explore new flavors and techniques. The intuitive interface puts the power of barista-level brewing right at your fingertips.
Indulge in a coffee experience that’s not just about caffeine, but about artistry and connection. The ACS Vesuvius Espresso Machine is more than a tool; it’s a gateway to a world of rich aromas, robust flavors, and exquisite craftsmanship. Bring the café experience home and transform your daily brew into a moment of pure delight. Are you ready to elevate your coffee ritual? The Vesuvius is waiting for you!
Videos
Coming soon…
Features
- HX on/off option: Allows you to choose whether you want your coffee boiler be connected to the HX’s steam boiler or get water directly from pump. Helps with temperature stability.
- E61 commercial grouphead: With lever action activation of the espresso extraction.
- Dot matrix touch display: For programming the PID temperature as well as the pump pressure profiles.
- Celsius or Fahrenheit programming: Through the touchpad.
- Dual stainless steel boilers: Insulated for power preservation and heat retention.
- LED heating lights: For the brew and steam boilers.
- Power management system: To control 110-120 voltage regulation to each boiler.
- Built in programmable timer:
- Five pre-set 7 step pressure profiles: You can change the pump pressure profile up to 7 times within the espresso extraction.
- Low water alarm:
- Steam and hot water wands: Multi-directional, No burn.
- Large 1.7 liter pull-out drip tray: Can be removed for easy cleaning.
- 3 liter water reservoir: Accessed through the left side panel.
- Electronic switch: Makes it easy to change from reservoir to plumbed mode or vice-versa.
- Adjustable feet: To lower or raise the machine.
- Easy access to drain the boilers.
- FG304 gear pump and speed-controllable motor unit:
- PID temperature controller: For both coffee and steam boilers.
- Accessories included: Single spout portafilter with single cup basket, Double spout portafilter with two cup basket, blank basket for backflushing, braided hose for connection to water line (in plumbed in mode), and drain hose for draining drip tray.
Specifications
| Brand | ACS |
|---|---|
| Height (inches) | 16.5, approximate |
| Width (inches) | 14.5, approximate |
| Depth (inches) | 20.5, approximate |
| Weight (pounds) | 53 |
| Wattage (watts) | Coffee – 1000, Steam – 1400 |
| Voltage (volts) | 110 |
| Boiler capacity (liters) | Coffee – 0.8, Steam – 1.5 |
| Portafilter size (mm) | 58 |
| Tank capacity (liters) | 3 |
Notes
- Please note that expedited shipping is not possible with online ordering as this machine can not be shipped UPS, FedEx, nor USPS as it is to heavy. It needs to be tested and shipping on a wooden pallet crate to you for safe transport.
- Please note that tools will be required to remove the crating from the pallet.
General Espresso Machine Notes/Warnings:
- Upon first use (tank/reservoir models): On the initial start-up (or after a long period of non-use), it is important to make sure the pump is removing water from the tank. When the machine is powered on, you will hear the pump running. After 5 seconds, squeeze the in-line hose in the tank (usually the longest hose, has a particle filter attached). if you hear a different sound, this means the pump is working correctly. If not, immediately power down the machine and contact us. For more information, visit this page General Manual Pump Priming.
- Electrical: To avoid electrical damage to this espresso machine which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. Without the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat, or the wiring inside. For more information, visit this page Power Protection.
- Water: To increase the useful life and not damage your espresso machine, please use softened water. Softened water is water without calcium and magnesium, but still has other minerals for espresso extraction. Do not use distilled, purified, or reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale. For more information, visit this page Water Choice.
- Descaling: We do not recommend descaling unless there is an issue with the espresso machine. Too much descaling can eat away at the metals and gaskets inside an espresso machine. As a preventative measure, we recommend using softened water as explained in the bullet point above.
- Backflushing: This procedure of cleaning the grouphead will need to be performed from time to time. For more information, visit this page Espresso Machine Backflush – Why 50?
Support
Parts Diagram
Reviews
Q & A
Ask a question
Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.
-
Machine is unable to go above 6 bar despite profile settings higher than this, indicating a mechanical issue rather than one with programing. All wiring and connections checked. No leaks, venting, or waste drainage is observed from the machine, indicating that the issue is not that of an opv or otherwise. The pump is running well without noise and has already had the motor magnet replaced. When HX is turned off within the eco settings, no water flow occurs at all, despite pressure building to the same 6 bar, indicating that the issue is a mechanical one, which is related to the HX water loop. Therefore, my diagnosis leads me to believe that there is an issue with one or both of the solenoids which have exclusive control of water flow within this loop. Of note, the machine is 9 years old and running original solenoids. Additionally, of note, the machine had recently been drained and packaged dry for over a week during a cross country move before issue presented. Therefore, the issue is presumed to be related to a clogged, seized, dried, or otherwise faulty seal or piston movement within one or both of the solenoids. Given the age of the machine, my plan is simply to replace both solenoids with new units at this time. Unfortunately, neither part is indicated on the parts diagram available on your site (or anywhere that I can find). One solenoid is easily accessible and resides parallel to the steam boiler. The other is located deeper within the machine and sits on the main water distribution block. There is only one solenoid available on your site as referenced to the Vesuvius machine. The photo of it looks like the solenoid on the distribution block. In an effort to minimize downtime, I would like to replace both at the same time and once parts are in hand. Please advise, thank you!
-
Q Machine is unable to go above 6 bar despite profile settings higher than this, indicating a mecha...... Read more answer nowAsked by on April 10, 2025 12:55 pmAnswered by the admin
Manufacturers will change parts, and we need to base the solenoid valve replacement based on the label within the machine. But, before taking it apart, we suggest descaling the machine as it may be a particle or particles holding the valve partially open. When solenoid valves fail, they usually do not open at all. When a particle holds a solenoid valve open, then the water pressure is relieved to a lower bar pressure.
Hello, I am looking for replacement for a 2016 Vesuvius steam boiler (1300W 120V) heating element. Any suggestions?
-
Q Hello, I am looking for replacement for a 2016 Vesuvius steam boiler (1300W 120V) heating element...... Read more answer nowAsked by on January 23, 2025 12:17 pmAnswered by the admin
Please utilize our self service parts portal for instructions and procedures. We are currently out of stock on the heating element for the steam and coffee boilers. We hope to have them in within one month (best case scenario at time of this writing).
Pump water intake issue. The machine was in storage for a while. Now it does not take in water to the boilers. I hear the motor humming but it times out. When I direct plumbed it the water filled the reservoir but did not continue to the boilers. I was looking for a way to jump start the pump but could not see it. Do you have suggestions?
-
Q Pump water intake issue. The machine was in storage for a while. Now it does not take in water to...... Read more answer nowAsked by on March 18, 2024 3:28 pmAnswered by the admin
Sorry, this is the beyond the scope of our free services on Q&A as there can be a multitude of issues from electrical, to valves, and the pump. We suggest having a local professional evaluate the issues.
Turned on my Vesuvius this morning and the temperature really is staggeringly unstable. Mostly to high and even reaching over temp alarm screen. It was 203-235 so quickly I'm sure it's wrong. I'm guessing back T/C. If you concur, could you please tell me price and delivery time/cost? If you disagree, what are your alternate thoughts?
-
Q Turned on my Vesuvius this morning and the temperature really is staggeringly unstable. Mostly to...... Read more answer nowAsked by on September 30, 2022 12:33 pmAnswered by the admin
Check the bleeder valve to make sure the steam boiler is releasing vacuum pressure on the steam boiler. We suggest cleaning the inside portion of the sensor (both boilers) with a brass or stainless wire brush. Be careful to not twist the wires when removing or installing the sensor.
Machine is displaying a scrolling "Service" banner on the main display in lieu of the current profile. Machine has been serviced however unsure how to reset this service interval. Please advise, thank you.
-
Q Machine is displaying a scrolling "Service" banner on the main display in lieu of the current pro...... Read more answer nowAsked by on February 18, 2022 3:20 pmAnswered by the admin
Please contact the manufacturer for advice as we have discontinued this model and we apologize we no longer support/service this model at this time(can change in the future). We only leave this page up for reference.
I'm interested in buying the kit but don't see the valve assembly on your site. Can you share a link to order it? Any feedback from Vesuvius customers?
-
Q I'm interested in buying the kit but don't see the valve assembly on your site. Can you share a l...... Read more answer nowAsked by on March 16, 2020 4:26 pmAnswered by the admin
Which kit?
