VBM Domobar Junior Digital Heat Exchange Espresso Machine – 110 V

$1,799.00

Found a better offer? Let us meet or beat it!

Learn about our other heat exchange espresso machines!


Earn 1799 EspressoPoints worth $35.98! (Learn about EspressoPoints)

Earn 1799 EspressoPoints worth $35.98! (Learn about EspressoPoints)
Clear

Frequently Bought Together

VBM Domobar Junior Digital Heat Exchange Espresso Machine - 110 V + Colored Side Panel for the VBM Domobar Junior Digitala
Price: $1,799.00

VBM Domobar Junior Digital Heat Exchange Espresso Machine - 110 V

The VBM Domobar Junior Digital NOW has an upgrade from the 2010 VBM Domobar Junior. Thanks to its previous success as a small home heat exchange espresso machine for customers looking to entertain and do a lot of steaming, VBM made some improvements on that original version. First of all, its new design allows you to customize the side panels with different colors, which are available for separate purchase. After all, you can add some unique personality to your espresso machine! Next comes its technological aspect: a new OLED digital display where you can program all your settings and give more simplicity to your machine.  The VBM Domobar Junior Digital is overall an excellent home espresso machine for you latte and cappuccino lovers who want an ultra-modern feel to it! Finally, VBM espresso machines are known to have such an incredible E61 grouphead! Customers who see E61 espresso machines absolutely love the structure and robustness.

NEW Digital Interface

  • OLED Digital Display – Adjust all your settings on the digital touchpad. After turning the main switch to the ON position, the display shows the selected function (coffee delivery), and the temperature and time of coffee delivery. 128×64 px.
  • Button Settings – Shows machine warm-up status. Green means the machine is ready, orange means the machine is loading, and red means the machine is in alarm. Additionally, there is an LED mode for temperature increase and decrease.
  • Shows ECO Mode – Use this to increase the espresso machine’s temperature when idle to save energy. After 2 hours of not using the machine, the shutdown symbol will show up on the display.
  • Alarm Codes – If there is little to no water inside the boiler, then code E01 shows on the display and an LED light appears in red. Moreover, if there is a probe malfunction, then code E02 appears on the display and an LED light appears in red.

Classic VBM E61 Grouphead

  • 58mm– Thermosiphonic circulation group in cromed-brass, available with manual controls (lever) or electronic.
  • Constantly heated – Hot water circulates from the heat exchanger through the grouphead and back to keep the grouphead and your portafilter nice and hot. As a result the grouphead temperature constant and stable when you compare to other groupheads that have a built-in heating element.
  • Pre-infusion – Lever next to the grouphead activates a microswitch that turns on the pump to pump water through the coffee grinds. Pulling the lever halfway up will open the valve to allow water into the grouphead without activating the pump. Please note that true pre-infusion requires the direct water connection whereby the water pressure from the waterline creates true pre-infusion.

Tank/Reservoir System

  • NEW: Water tank level sensor – An empty tank symbol and red LED light shows up on the Digital Interace when it is time to refill your tank.
  • Particle filter – Protects the machine from any unseen particles from entering the boiler. You can remove this filter if you are installing an inline water softener.
  • Auto-shutoff – Prevents burning out the heating element. The water tank sits on a spring-activated plate. Once the water is low, the plate depresses the tank microswitch which turns off the heating element.

Heat Exchange System

  • Copper, insulation – The boiler is copper, which retains heat better than stainless steel. Typically copper boilers are more susceptible to limescale when you compare to stainless steel boilers. Therefore, we highly recommend using a water softener. The manufacturer wraps the boiler with insulation for maximum heat retention.
  • Pull a shot & steam milk at the same time – Steam is always readily available. Hence, there is no wait time going from coffee to steam mode. Works well if entertaining a small group of people.

Quality Design

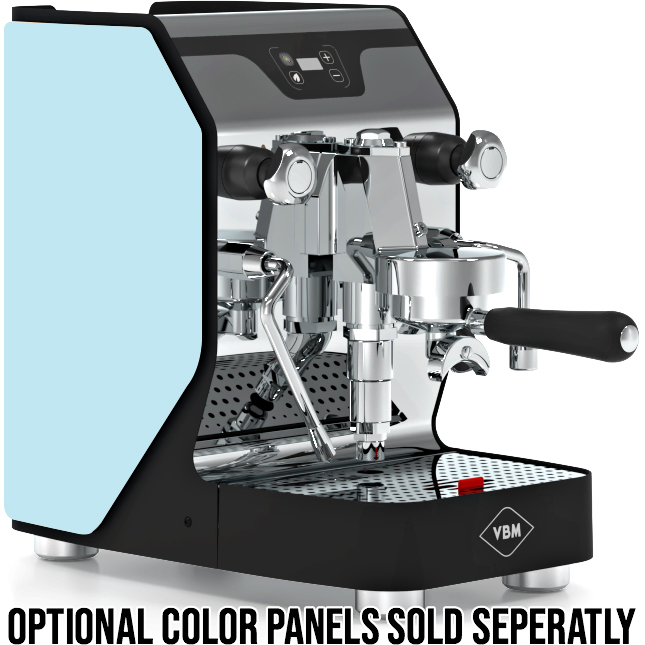

  • NEW OPTIONAL Customizable side panels – The VBM Domobar Junior Digital NOW has a variety of side panel designs that you can stylize your machine with. Check out the different customizable side panels we have to offer to purchase separately!
  • Ergonomic knobs and levers – Contributes to accurate water dispersion and adds some personality to the VBM Domobar Junior Digital!
  • Synthetic drip tray – The drip tray on this espresso machine is glowing! Less risk of scratches on this material, unlike on metal drip trays. Additionally, the drip tray has a float that tracks the water levels. Dishwasher-safe.
  • Front and feet – Stainless steel and polished to a mirror finish.

Vibratory Pump

  • Efficient – 41 watts, rated up to 15 bar with air valve bypass. You only need 9 bar to extract perfect espresso, and wattage has no correlation to longevity.
  • Cost-effective – Pumps will degrade in performance over time. Replacing a vibration pump will cost less than a rotary vane pump.

Separate Wands for Steam & Hot Water

  • Multi-directional – Allows for more movement and flexibility. The wands connect to the valves on an angle to the side for even more flexibility. As a result, there is less risk of burning oneself from the exposed grouphead. Furthermore, the steam performance is very efficient, which will result in making excellent espresso!
  • 2-hole steam tip – Allows for a slow gradual build-up of microfoam.
  • Rotational knobs – Allows for easier control of the intensity.

Accessories Included

  • Instruction manual – Available in Spanish, Dutch, English, French, and Italian.
  • Plastic tamper – Manufacturers will normally include a tamper like this to keep the overall selling price of the machine low. We recommend upgrading to a better 58mm tamper.
  • Coffee scoop – A simple plastic scoop if you are using pre-ground coffee.
  • Cleaning brush –A simple brush for cleaning the grouphead. Ergonomically designed with an angle for easier usage.
  • Single filter holder – Holds approximately 7 grams.
  • Blind filter basket – For backflushing. 58mm in diameter.
  • Double filter holder – Holds approximately 14 grams.
Height (inches)

16.5, approximate

Width (inches)

10, approximate

Depth (inches)

17, approximate

Weight (pounds)

57

Wattage (watts)

1600

Voltage (volts)

110

Country of manufacture

Milan, Italy

Boiler Type

Heat Exchanger

Boiler capacity (liters)

1.1

E61 Grouphead

Yes

Water Connection

Tank / Reservoir

Approvals

UL

Espresso Machine Warning:

  • ELECTRICAL WARNING: To avoid electrical damage to this espresso machine which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. the lack of the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat or the wiring inside.
  • WATER WARNING: To increase the useful life of and not damage your espresso machine, please use softened water. Softened water is water without calcium and without magnesium, but still has other minerals for espresso extraction. Do not use distilled water, purified water, nor reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale.
  • DESCALING WARNING: We do not recommend descaling unless there is an issue with the espresso machine. The reason is that too much descaling can eat away at the metals and gaskets inside an espresso machine.

Please use the diagrams below to help find the exact part you are looking for. After you find the part, copy the SKU #. Then use the search bar at the top of our website. If there are no results in the search, we most likely do not have the part. We only special order parts if the specific model was purchased through 1st-line Equipment. For general questions, please use our parts inquiry page.

Boiler

VBM-Domobar-Junior-Digital-HX-parts-diagram-boiler
# SKU
1 CALDDOMSUPJUN
2 COPEISOLCAJUN
3 PRIG6MA100
4 RACCP430L
5 ELETRESD1625
6 ELETRESD1611
7 ELETRESD16100
8 RACCP428
9 GUARRESPICTEF
10 RACCCURIRD6
11 RACCRIDMF449
12 RACCP732BIS
13 RACCP427
14 ELETSONTEMTEC
15 ELETGLDOMM165
16 RACCP735
17 RACCDOM18BIS1
18 ELETSON
19 VALVMOAIRTK
20 VALVSFMEAMERI

Waterworks

VBM-Domobar-Junior-Digital-HX-parts-diagram-waterworks
# SKU
1 RACCURIR18D6
2 TUBIPPTFE6X4
3 ELETELE2VAU22NW
4 ELETELE2VAU100
5 TUBIDOMPART3
6 TUBIP874
7 TUBICU18X18
8 VALVNORITDOM
9 ASSBYPASSNEW
10 TUBIP989
11 TUBIP730BIS
12 TUBIP941
13 TUBIP930
14 RACCPOSCARBYP
15 RACCPOPODO

Grouphead

VBM-Domobar-Junior-Digital-HX-parts-diagram-grouphead
# SKU
2 ASSVALVEROG
3 MOLLVAER
4 GUARCASUTEPI
5 GUARCAINGRTE
6 RACCCASUTEPI
7 RACCGIES7
8 VITEBR6MACO
9 FILTRGIGLEUR
10 GUARTACHGR
11 RACCTACHCASU
12 MOLLVAIN
13 GUARCAINGRTE
14 ASSVALVINF
15 RACCCAIN
16 ASSVALVSCAR
17 MOLLSC
18 GUARTE
19 ASSTASCAUTDMA
20 GUARGR
21 VITETEM8X14
22 VITERON6TEFLO
23 RACCSPGR
24 FILTDCREGR
25 GUARSOT
26 RACCPEFECA
27 GUARCAINGRTE
28 RACCALCAGR
29 RACCCACOGR
30 VITEBR6MA
31 GUARPICA
32 RACCBUPRGO
33 MOLLPRGO
34 RACCTAPRGO
35 TUBICAMMERC
36 VITEDACE6MAIN
37 TUBIP715
38 MANPPOLENW
39 CAPMANPPOLENW
40 ASSCOMGRCAMME
41 GRUPMANREP291

Filterholder

VBM-Domobar-Junior-Digital-HX-parts-diagram-filterholder
# SKU
1 ASPORTN1TAMON
2 ASPORTN2TAMON
3 FILTCI
4 PRESSINO
5 MISURINO
6 SPAZZOLINO
7 PORTTN
8 PORTIMPPFNEW
9 FILTBEC1T
10 FILTMOLPTFL
11 FILT1TA
12 FILTBEC2T
13 FILTMOLPTFL
14 FILT2TA

Tank

VBM-Domobar-Junior-Digital-HX-parts-diagram-tank
# SKU
1 ASSMATECVAACDONW
2 MATECVAASENSORENW
3 RACCMATECVAACDONW

Bodywork

VBM-Domobar-Junior-Digital-HX-parts-diagram-bodywork
# SKU
1 TELADOMBJUNW
2 FRONDOMDJDGNW
3 CARRCASDJDSNW
4 CARRCASGADMDJDNW
5 GRIGCSDOMSARNW
6 MANVAACDJDSNW4
7 MANVAACDJDSNW1
8 MANVAACDJDSNW2
9 MANVAACDJDSNW3
10 STAFFADISPDJNW
11 SUPVASCDJNW
12 TELADOMCOJUNW
13 TELADOMRJUNNW
14 CARRFIANCODXJUNIOR
15 CARRFIANDXJUNIORBE
16 CARRFIANDXJUNIORBG
17 CARRFIANDXJUNIORBX
18 CARRFIANDXJUNIORGR
19 CARRFIANDXJUNIORLB
20 CARRFIANDXJUNIORRD
21 CARRFIANCOSXJUNIOR
22 CARRFIANSXJUNIORBE
23 CARRFIANSXJUNIORBG
24 CARRFIANSXJUNIORBX
25 CARRFIANSXJUNIORGR
26 CARRFIANSXJUNIORLB
27 CARRFIANSXJUNIORRD
28 PIEDDOMCR
29 PIEDDOMANTINW
30 PANNDISDJDGNW
31 BOCCOLANYLON
32 VITETCTCAM4X8
33 MAGNDMNW
34 VITENYLON3MA
35 SQUASUPCEJUCON
36 COPINFTELDJNW

Electronics

VBM-Domobar-Junior-Digital-HX-parts-diagram-electronics
# SKU
1 ELETREGLIVDJDGNW
2 ELETREGLIVDJDGUL
3 COPERELESTDOP
4 RELESTATICODS
5 ELETINTDOMOBARNEW
6 ELETMICRE
7 ELETCAVDM
8 FERMCAVPGD11
9 DADOPG11
10 ELETELE2VAU22NW
11 ELETELE2V11UL
12 ELETPULDISDJDG1NW
13 ELETCAVAL20DO
14 ELETCAVALAUS
15 ELETCAVALING
16 ELETCAVALISR
17 ELETCAVALSVIZ
18 ELETCAVAUL
20 ELETCOMCABDJDGW

Pump

VBM-Domobar-Junior-Digital-HX-parts-diagram-pump
# SKU
1 POMPVIBDOM
2 POMPVIBDOM100
3 POMPVIBDOM120
4 ANTISUPGOPODO
5 TERMPROTDOMSU
6 RACCSILTTUBEDJ
7 ASSBYPASSNEW
8 TUBICU18X18
9 TUBIFLINDO
10 MATECSIGS
11 VALVCONTRPROT
12 RACCTPLASTICA

Taps

VBM-Domobar-Junior-Digital-HX-parts-diagram-tap
# SKU
1 RACCRUBDOMSUP
2 TUBIP988
3 RACCP867
4 RACCCORUDOSU
5 GUARSILRUDOSU
6 GUAROR113
7 RACCASRUDOSU
8 RACCPRGOCR
9 GUARSILRUDOST
10 GUARSILRUDOSR
11 GUARTEF151154
12 TUBILADOMSUNW
13 GOMMALANCIAVAPORE
14 TUBIP727NW
