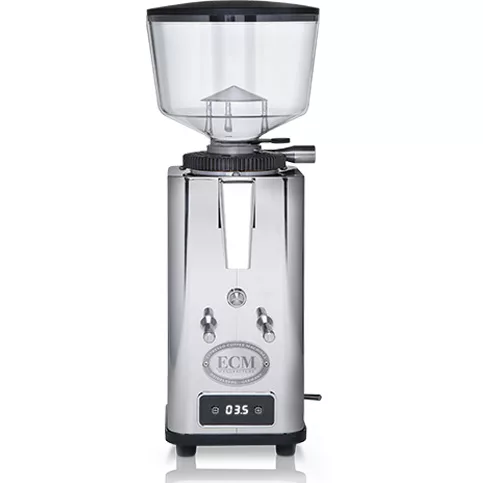

ECM S-Automatik 64 Espresso Grinder

3 out of 5 based on 1 customer rating
(1 customer review)

From: $999.00 From: $939.00

Request a price match.
Earn 939-1039 EspressoPoints worth $28.17-$31.17! (Learn about EspressoPoints)
Earn 939-1039 EspressoPoints worth $28.17-$31.17! (Learn about EspressoPoints)

Frequently Bought Together

ECM S-Automatik 64 Espresso Grinder Stainless Steel + ECM G1146 Stainless Steel Bean Hopper Lid
Price for both: $1,023.99

ECM S-Automatik 64 Espresso Grinder

The ECM S-Automatik 64 is one of ECM's high end espresso grinders. The stepless wormgear adjustment allows for very fine grind tuning. This allows for easy compatibility with any espresso machine and espresso blend. On demand grinding ensures your coffee is ground fresh every time. The electronic controls adjust the grinding time for single & double dosing.

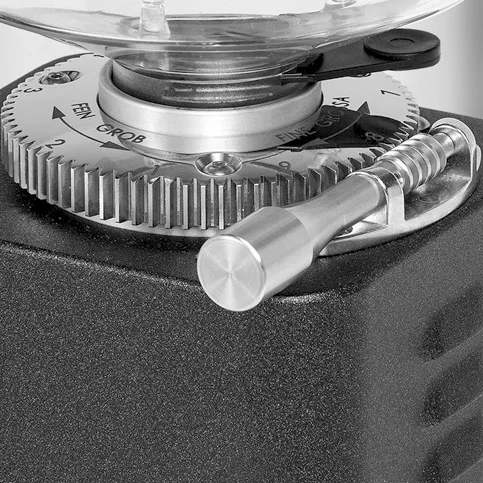

Grinding adjustment
  • Stepless - Gives you access to an "infinite" number of grind settings. This allows you really fine tune your grind fineness of your coffee beans. The numbered dial underneath the hopper helps you remember your current grind setting easier.
  • Stainless steel adjustment knob - BOTH the stainless steel and anthracite-colored model have this. Located in the rear of the machine just below the hopper. Turning the knob clockwise will make the grind finer. Turning counterclockwise will make the grind coarser.
  • Round worm gear - Stainless steel model has a black, plastic worm gear. The anthracite-colored model has a stainless steel worm gear.

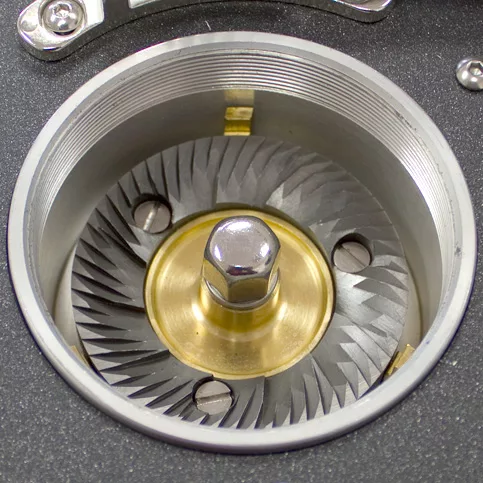

Grinding burrs
  • Flat burrs - Large size at 64 mm. The larger the size, the more of a grinding surface, resulting in faster production.
  • High rpm - Faster spinning rate at 1400 rpm. The higher the speed, the faster the production, which can increase efficiency and reduce wait times.
  • Easy access - Remove the bean hopper & the set screw. There are 3 Allen key screws (~2.3 mm) that hold the upper holder in place. After removing the screws, turn the upper burr holder counter clockwise until the top assembly comes off. This will give you access to the burrs and the grinding chamber. The burrs themselves are held in with 3 flat head screws.

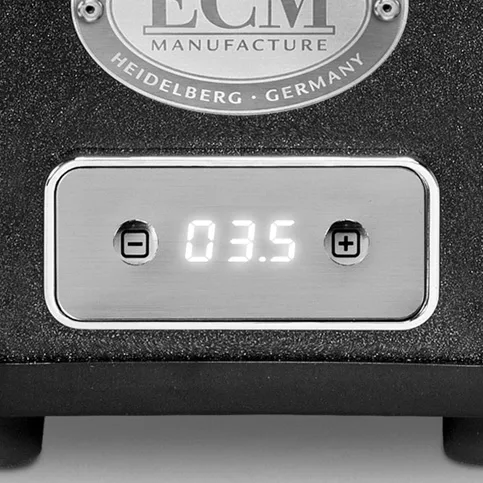

Electronic controls / On demand grinding
  • Multiple dosing options - Press the dosing button once for a single dose. Press the dosing button quickly twice for a double dose. Hold the dosing button for a manual dose.
  • Time based grinding - You can adjust the the time for each automatic dose. You can make tiny adjustments by 0.1 second increments.
  • Dosing count - This helps keep track of usage. Displays the total count of automatic doses, not manual doses. Single doses will add 1 to the tonal count. Double doses will add 2 to the total count.
Bean hopper
  • Low profile - There are 2 hoppers available for the ECM S-Automatik 64. We include the shorter hopper with our grinders. The total height of the grinder is approximately 16.5." It should easily fit under standard 18" overhead cabinets.
  • Set screw - Secures the hopper to the grinder. Serves as a reminder for users from quickly removing the hopper if it is full of beans.
  • Finger guard - Prevents users from "accidentally" putting their fingers in the grinding burrs.
  • Stopper - A door near the bottom of the hopper can be pushed in to close the opening. This allows you to remove the hopper with beans inside so you can easily change the beans. There will be some beans already passed in the burrs which you will have to grind out first before removing the hopper.
Portafilter fork
  • Ease of use - Accommodates most portafilters. The clearance from the fork to the funnel is approximately 2.25."
  • Container grinding - The forks are not easily removable. However the coffee funnel and fork sit high on the grinder. You can fit any small container (under 4.25") underneath the fork.
Grinds catch tray
  • Easy to "install" - There are no screws The tray has 2 holes that hook to the front legs of the grinder. This ensures that the tray won't slide away from the grinder.
  • Convenient - As easy as it is to install, it’s just as easy to remove to discard any excess grinds. There are other comparable models that do not have a tray at all.
Accessories included
Notes

Espresso Coffee Grinder Warnings:

  • Changing grind settings: It is very important to only change grind settings when the unit is powered on and the burrs are in motion. If you do not do this, the burrs will ‘gunk’ up and render the grinder to only produce very coarse grinds or no grinds at all. To remedy this, you will have to open up the grinder to get access to the grinding burrs. This issue will be considered operator error for lack of following directions, and not be classified as a defective grinder.
  • Electrical cord: For most grinders, the cord is placed between the packaging (foam or cardboard) and the underside body of the grinder. During shipping, it is normal for a bend or insignificant blemish/slice to damage the cord.
  • Finding coffee grinds in a new grinder: Most manufacturers test their grinders with coffee beans before they leave their facility. Unfortunately, they are not always able to get every trace of coffee out of the grinders after testing. As a result, you may find coffee beans or grinds inside your grinder, or there may be grinds in the packaging.
  • Static issues: There are static issues with all grinders, even the highest-quality models. We firmly believe that the static comes from the coffee beans. If you are having static problems with your coffee grinder, try using a different blend of beans.
  • Electrical: To avoid electrical damage (which is not considered a manufacturer’s defect), please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. A surge without protection can damage a grinder at the power switch, the capacitor, the motor, or the wiring.
  • Burr cleaning: For routine maintenance of the grinding burrs, we recommend using grinder cleaning agents. We do not recommend any removal of the burrs or the burr carrier for cleaning (unless necessary) as re-assembly can cause damage.
  • Replacing burrs: NEVER use a flathead screwdriver and hammer to wedge under the burrs for removal. This could badly damage your grinder.

Specifications

Brand

ECM Manufacture

Height (inches)

16.5, approximate

Width (inches)

6, approximate

Depth (inches)

8, approximate

Weight (pounds)

16

Wattage (watts)

450

Voltage (volts)

110 – 120

Burr size (mm), Type

64, flat

Grinding speed (RPM)

1400

Hopper capacity (grams)

500

Country of manufacture

Germany

Approvals

CE

Finding your part
  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website. If no results come up, more than likely we do not stock the part.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
  • Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.

S-Automatik 64

ECM-S-Automatik-64-S-Manuale-64-parts-diagram-01
# SKU
1 G1009
2 G1000
3 G1014
4 G1017
5 G1110
6 G1002
7 G1030
8 G1011
9 G1012
10 C199900957 (DE)
P2034 (US)
P2035 (UK)
P2036 (AU)
11 P2006
12 G1031
13 G1015
14 G1250
15 P6033 (220V-240V)
US1021(110V-120V)
16 P1998
17 81200
18 G1020
19 P4013
20 G1115
21 G1122
22 P2026
23 P6031
24 C199900087
25 G1008
26 G1000.K
27 G1007
28 G1005
29 G1008.1
30 G1129

S-Manuale 64

ECM-S-Automatik-64-S-Manuale-64-parts-diagram-02
# SKU
1 G1009
2 G1000
3 G1014
4 G1017
5 G1111
6 G1002
7 G1030
8 G1011
9 G1012
10 C199900957 (DE)
P2034 (US)
P2035 (UK)
P2036 (AU)
11 P2006
12 G1031
13 G1015
14 G1021
15 G1251
16 G1129
17 G1113
18 G1034
19 G1121
20 P1995
21 G1018
22 G1000.K
23 C199900306
24 P6031
25 G1008
26 81200
27 P1998

ECM-S-Automatik-64-S-Manuale-64-parts-diagram-03
# SKU
1 P6111
2 G1100
3 P6112
4 G1101
5 G1102
6 P2022
7 G1103
8 G1053
9 G1029
10 G1033
11 P2011
12 G1054
13 G1016
14 P6110
15 G1040
16 G1055
17 P6109
18 G1057
19 G1240 (220V-240V)
G1241 (110V-120V)
20 P2064
21 G1192
22 G1199
23 G1220 (220V-240V, 50Hz)
G1221 (110V-120V, 60Hz)
