Bezzera Matrix MN V2 Dual Boiler Espresso Machine

5 out of 5 based on 3 customer ratings
(3 customer reviews)


Request a price match.
Dual PID controls for the coffee & steam boiler. E61 grouphead. Plus glass side panels with customizable color light illumination.

┌  Special Deals ┐

Walnut Tamping Station for only $0.99!
1st-line Italian Walnut Tamping Station
Purchase this espresso machine and get this walnut tamping station for only $0.99! Simply add this machine to your cart. Then look for the coupon in the cart/checkout screen.
Cannot be combined with any other offer.
Not applicable on previous purchases.
While current supplies last.
Earn 2869 EspressoPoints worth $86.07! (Learn about EspressoPoints)
Earn 2869 EspressoPoints worth $86.07! (Learn about EspressoPoints)

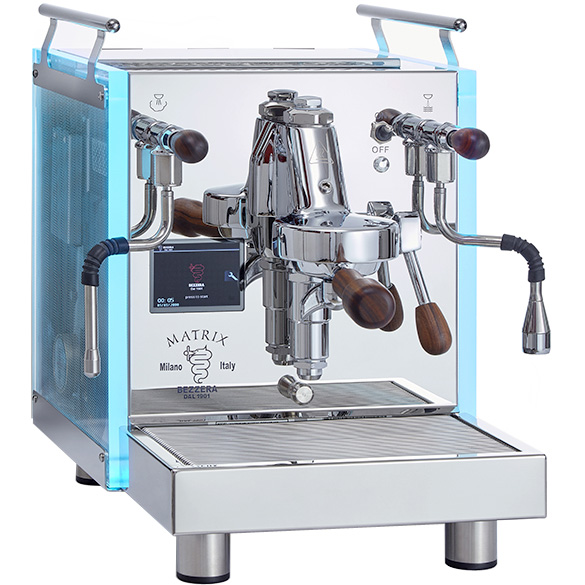

Bezzera Matrix MN V2 Dual Boiler Espresso Machine


The Bezzera Matrix MN illuminated (quite literally) at HOST Milan 2017.  Every attendee, including us, were drawn to this glowing beginner dual boiler espresso machine. We very quickly realized upon talking directly with Bezzera that there is more than meets the eye with this dual boiler machine. In addition, with durability that is inherent in Bezzera machines, the Matrix has been thoughtfully developed with user functionality as a key focus as well as its attractive design. If you need a machine to entertain with two different PID's, look no further!


PID Touch Display

Bezzera equips the Matrix with a beautiful 3.5″ LED touch display that allows the user to program a number of functions with ease. Adjusting the temperature between the two boilers is crystal clear, as well as checking the water levels. Also, you can also adjust the color of the signature LED body panels on the Matrix in the settings of the touch display. Other programmable features on the touchpad include:

  • pre-infusion, priority heat up between boilers
  • auto on/off settings
  • switch between direct plumb and reservoir
  • automatic backflush program
  • maintenance reminders
  • selection of language

Illuminated LED Body Panels

Made from durable plexiglass, these LED body panels provide eye-catching illumination for the home. Further, you can customize the colors on the touch display to fit any mood. The glow beautifully reflects off the polished mirror finish stainless steel body.

Independently Controlled Boilers

Two separate PID’s control the thermostats for the .45 L coffee boiler and 1L water/steam boiler. Also, you can even program through the touch display which boiler you’d prefer to heat up first! All controlled by its 3.5″ touch display.

E61 Grouphead

The E61 grouphead ensures consistent water stability. Hot water circulates from the boiler through the grouphead and back. The result?  The grouphead and your portafilter stay nice and hot, especially important to get a nice shot of espresso. A lever next to the grouphead easily activates the pump to draw water through the coffee grinds.

Multi-Directional Steam and Hot Water Wand

Allows for more flexibility. Joystick controls for steam and hot water wands give instant on/off operation as opposed to knobs that you must turn clockwise / counter-clockwise. In addition, each has a rubber cover to prevent fingers from burning.

Wooden Elements

Less plastic is always a bonus in our eyes. The Matrix is designed with wooden handles on not only the portafilter but the joysticks and lever as well.

Three Way Solenoid Valve

Allows quick removal of portafilter after espresso extraction by relieving the pressure built up in the grouphead. The result is a dry puck of coffee you can easily knock out of the portafilter.

Rotary Vane Pump and Motor

Produces a quieter extraction than a vibratory vane pump. Situated underneath tank/reservoir, so adjustments can be made from underneath the espresso machine.

Very Large Water Tank

A 4 L water reservoir means fewer refills for higher volume use. Electronic sensors detect low water levels and indicate it on the touch display. Refilling occurs from the top of the machine by lifting up the lid on hinges.

Passive Cup Warmer

Able to hold up to six cappuccino cups and passively warm them to ensure coffee remains hot.

Automatic Water Refill to Boiler

In addition to automatic refilling of the boiler, the Matrix also has a safety cutout to prevent machine damage.

Accessories included:

  • Single and Double spout portafilter w/ wood handles
  • 1-cup & 2-cup filter baskets
  • Blind filter basket
  • Plastic tamper
  • Plastic scoop
  • Grouphead cleaning brush
  • Reservoir plug
  • 1.5-meter stainless steel braided hose
  • Instruction manual.

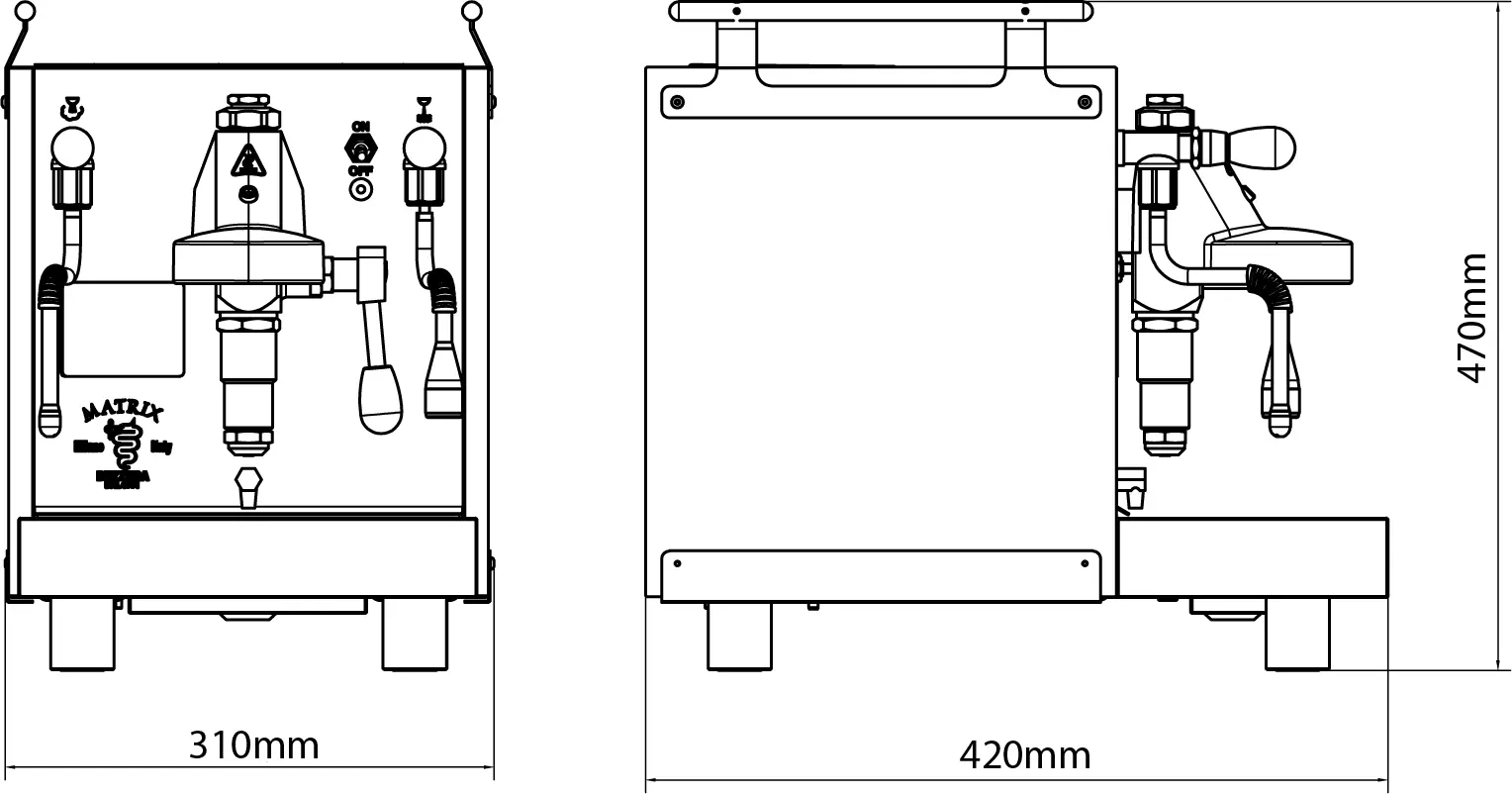

Height (inches)

17, approximate

Width (inches)

12, approximate

Depth (inches)

18.5, approximate

Weight (pounds)


Wattage (watts)

Coffee – 800, Steam – 1200

Voltage (volts)

110 – 120

Boiler capacity (liters)

Coffee – 0.45, Steam – 1.05

Portafilter size (mm)


Tank capacity (liters)


Country of manufacture

Milan, Italy



  • Since this is a new model, every Bezzera Matrix/Duo model gets inspected, bench tested, and calibrated with 'water only' prior to shipping. Upon arrival, please use the machine within 5 business days.
  • Do not move or lift the machine from the top rails as damage may occur to the rails or body of the machine.
  • The Bezzera Matrix DE comes from Bezzera on a mini pallet, which is why we will ship this machine out to you, the customer, on a pallet. Additionally, it is less likely that your machine will arrive damaged with this shipping method.
  • 15 AMP plug and cable are designed to be used with 15 AMP in a continuous way and they admit pick of current until around 20 AMP. During our tests, we recorded 17,76 AMP (as maximum current) only in the 3:20 minutes of the warm-up time (when both boiler heat up together).
  • During the coffee brewing the service boiler heating element is disabled and when the machine is not used, thanks to the PID controls, only current impulses are given to the heating elements.
  • Note from Bezzera dated 03/25/2021
    • 20 AMP plug will continue to be used on Matrix and Duo 110 Volt versions because the safety standards do not allow the use of an undersized plug compared with the power consumption reported in the machine data label.
    • We will add advice into the machine box where we explain to the final user that it is possible to use the machine with a 15 Amp plug adapter only setting a boiler priority.
    • We would like to inform you that, according to our tests, the major difference in the machine performance, setting or not the boiler priority, is in the warm-up period.
    • We faced no big performance differences in the coffee thermostability and water/steam services, in the regular machine use, giving priority to a coffee or steam boiler.
  • WARM-UP TIME (no priority)
    Coffee service: 3:20 min
    Hot water / steam service: 6:45 min
  • WARM-UP TIME (coffee boiler/service boiler priority)
    Coffee service: 7:10 min
    Hot water / steam service: 10:10 min
    Power supply: 110V
    Frequency: 60 Hz
    Room temperature: 22°C
    Coffee boiler set point: 92°C
    Service boiler set point: 125°C

General Espresso Machine Notes/Warnings:

  • Upon first use: On the initial start-up (or after a long period of non-use), it is important to make sure the pump is actually removing water from the tank. When the machine is powered on, you will hear the pump running. After 5 seconds, squeeze the in-line hose in the tank (usually the longest hose, has a particle filter attached). if you hear a different sound, this means the pump is working correctly. If not, immediately power down the machine and contact us. For more information, visit this page General Manual Pump Priming.
  • Electrical: To avoid electrical damage to this espresso machine which is not considered a manufacturer’s defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. the lack of the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat, or the wiring inside. For more information, visit this page Power Protection.
  • Water: To increase the useful life of and not damage your espresso machine, please use softened water. Softened water is water without calcium and magnesium, but still has other minerals for espresso extraction. Do not use distilled water, purified water, or reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale. For more information, visit this page Water Choice.
  • Descaling: We do not recommend descaling unless there is an issue with the espresso machine. The reason is that too much descaling can eat away at the metals and gaskets inside an espresso machine. As a preventative measure, we recommend using softened water as explained in the bullet point above.
  • Backflushing: This procedure of cleaning the grouphead will need to be performed from time to time. For more information, visit this page Espresso Machine Backflush – Why 50?

Please visit one of the links below for more Bezzera products & information.
Equipment & Accessories
Parts & Diagrams
Technical Support

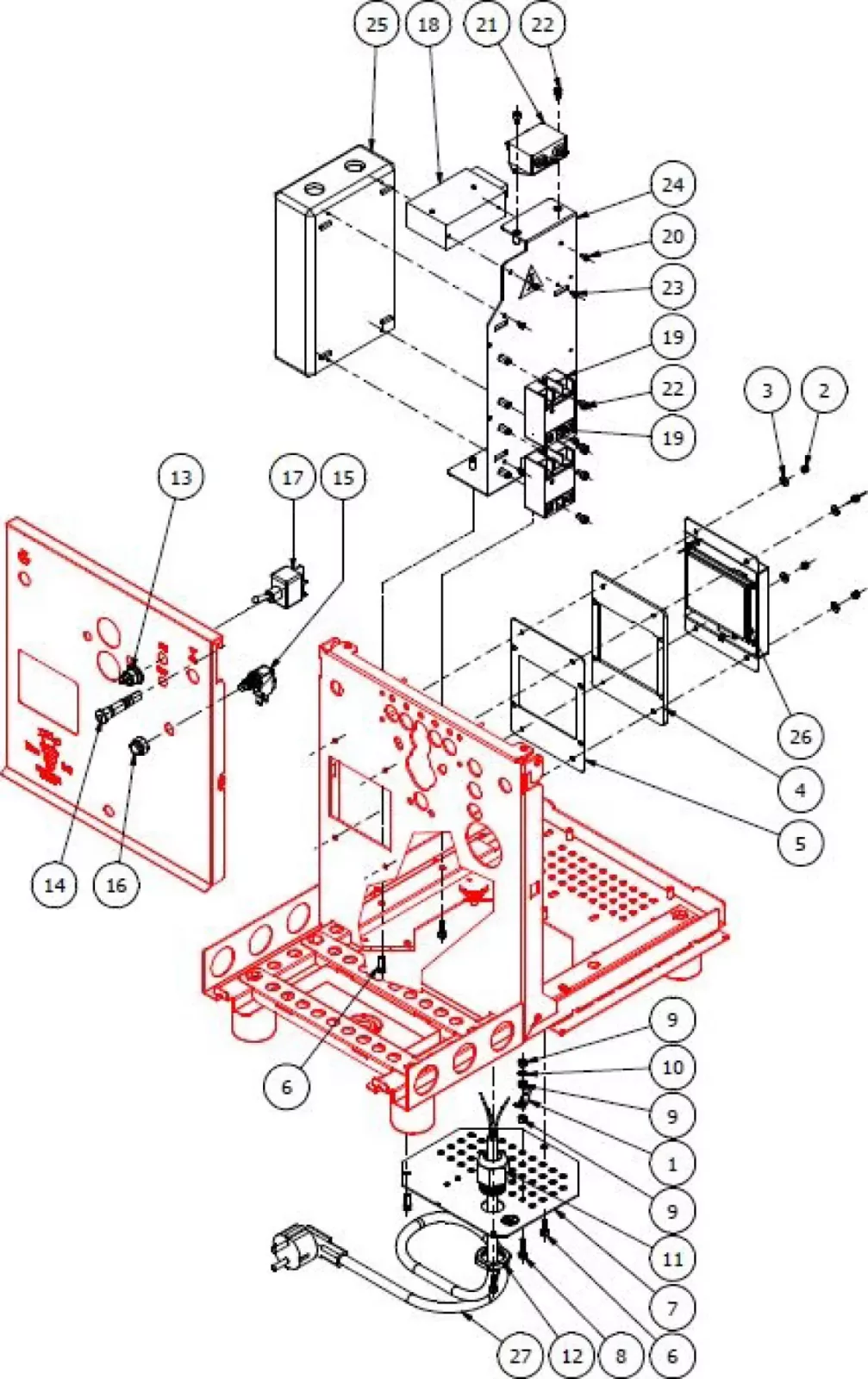

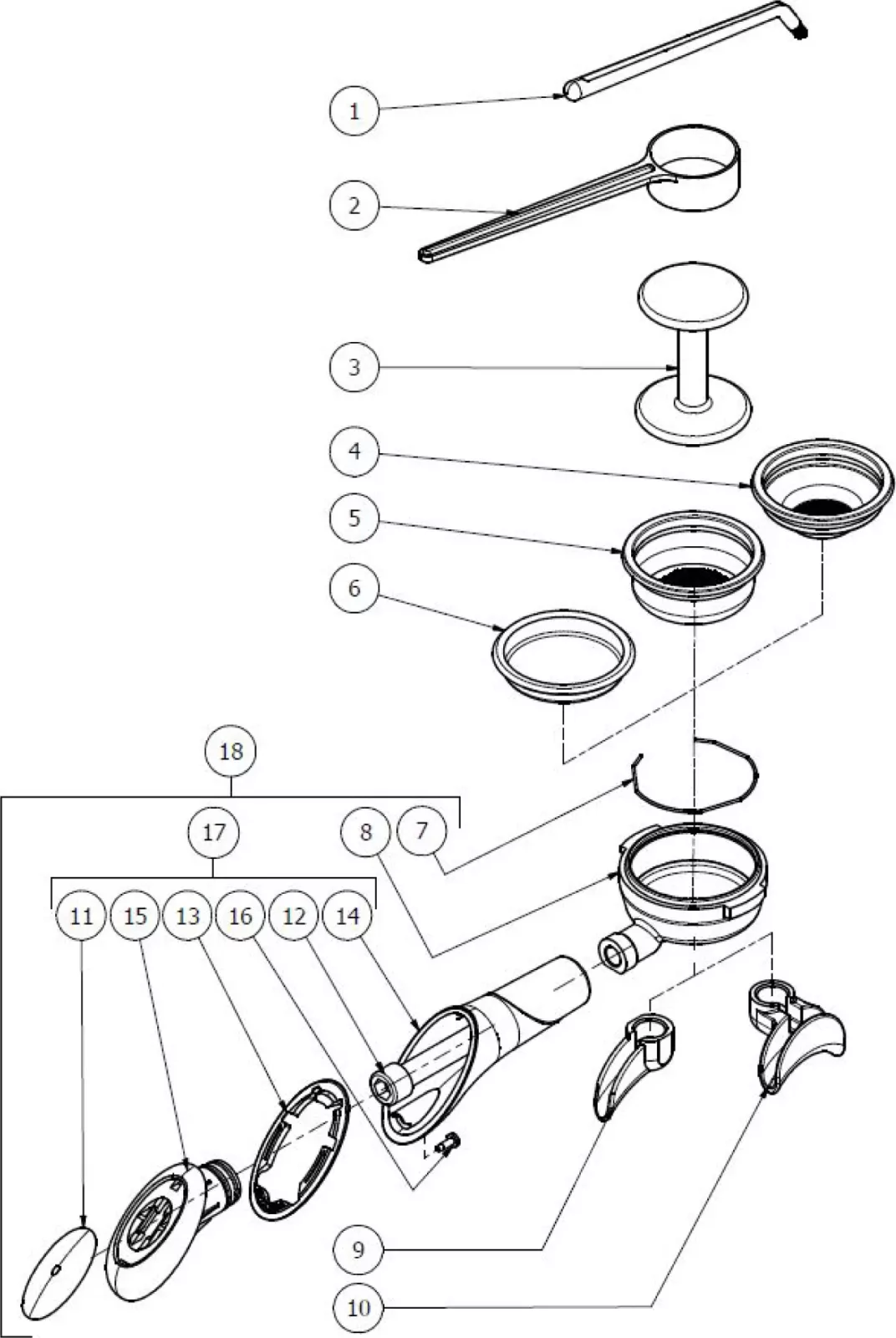

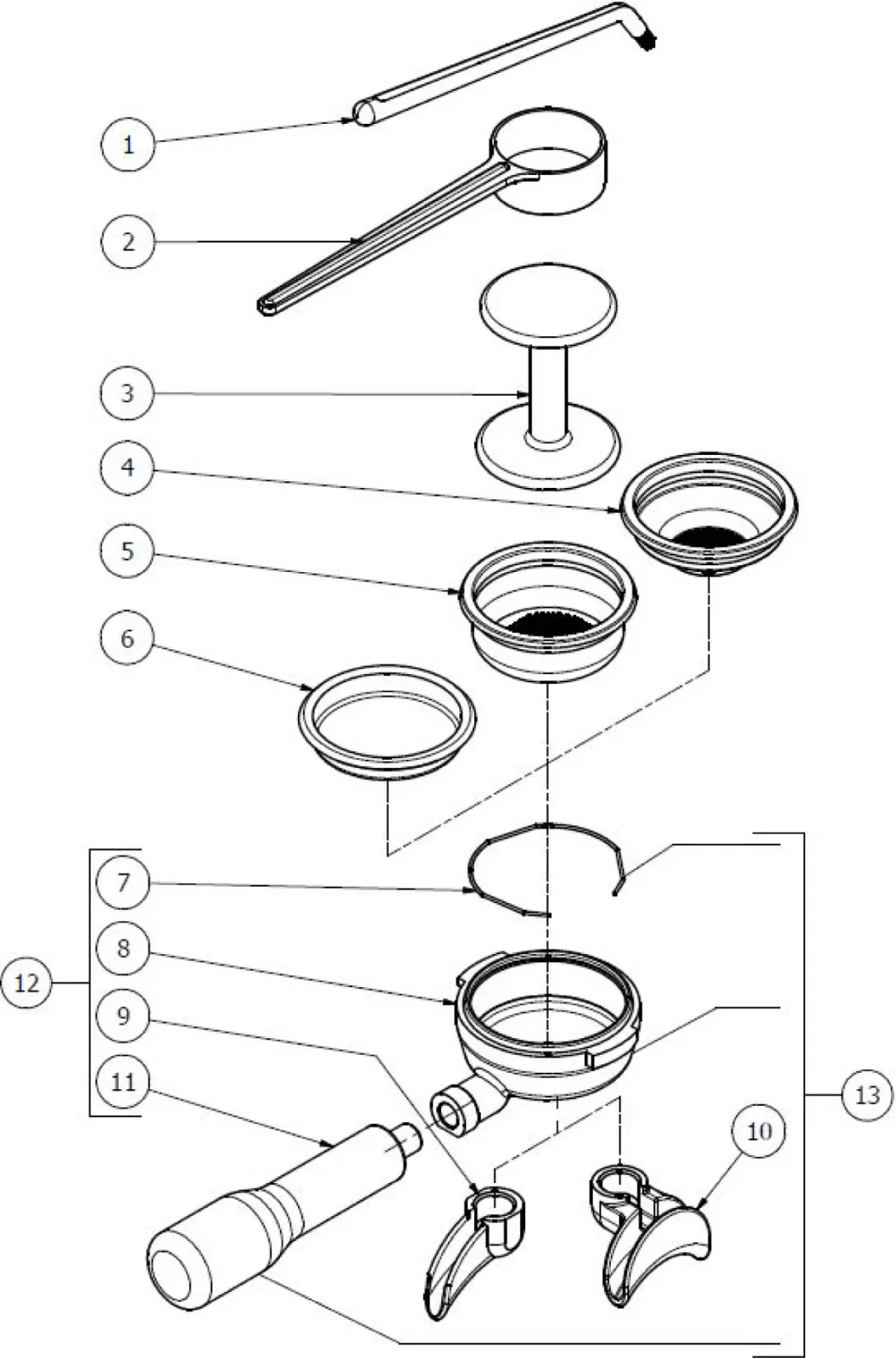

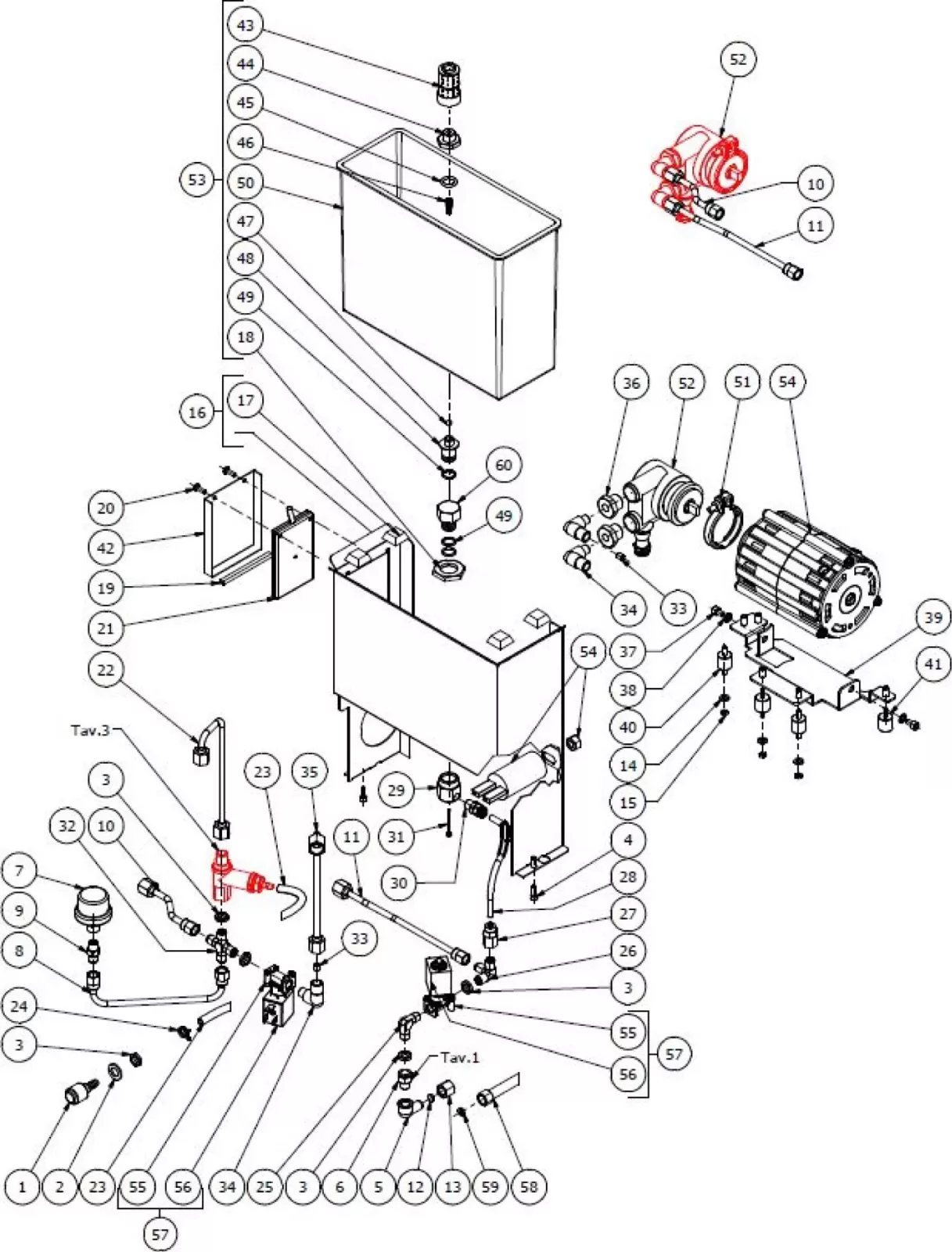

  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.

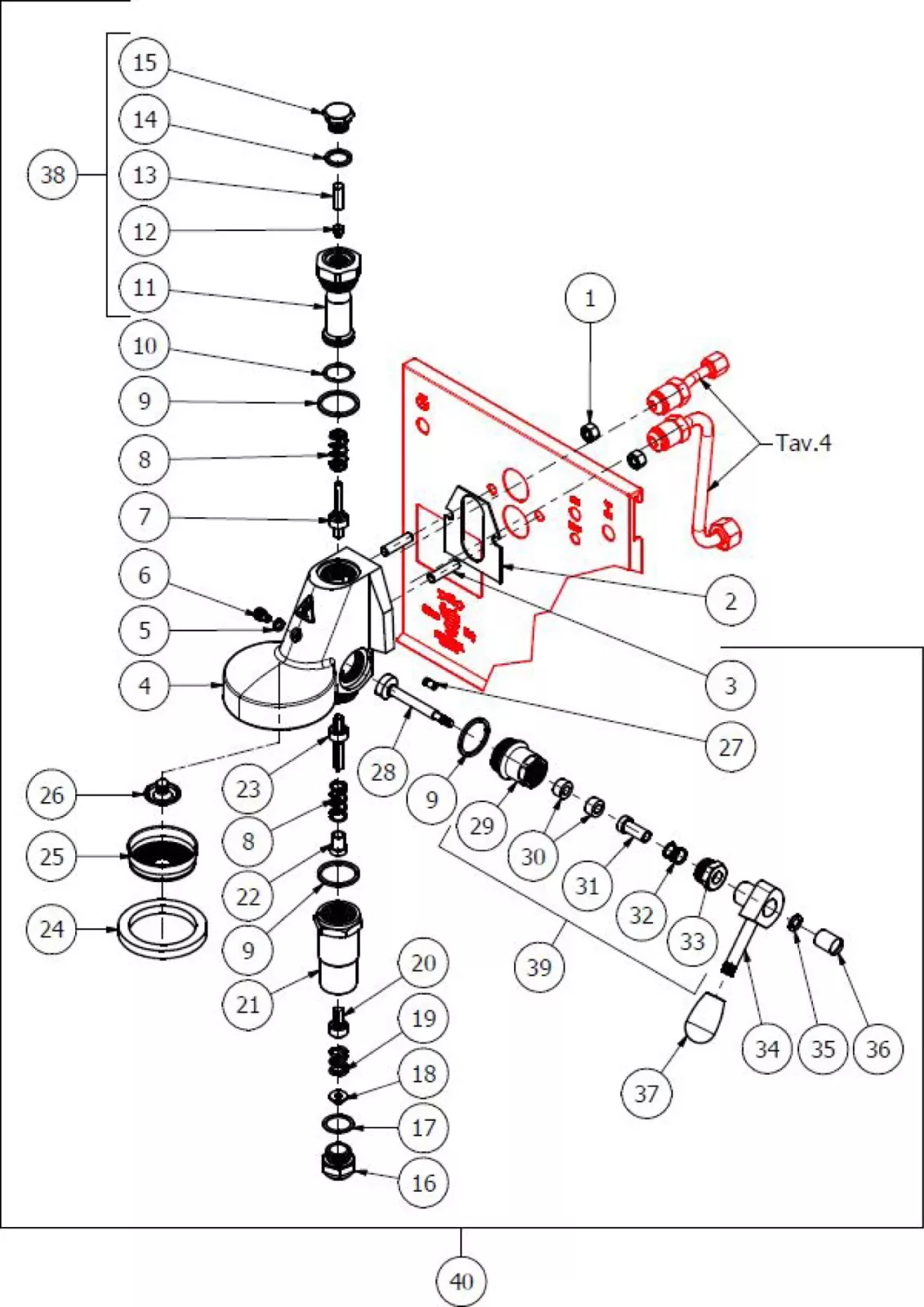

Cod. 9942068 REV. 04

previous / next


1 7474218
2 5964676
3 5225230
4 5492022
5 5224403.01
6 7816002
7 5370920
8 5073642LL
9 7663626.01
10 5074924SG
10A 5074923SG1
11 5340531DL
12 5968124
13 7497009
14 7823001
15 5221826
16 5074672LW
17 5073643LW
18 5073644LW
19 7819902
20 5260206
21 7812805
22 5961602.01
23 7474217
24 5074673LW
25 5194654
26 7611502
27 5521512
28 5968127R


1 5283062 34 5301504TR
2 7815001 35 5162412LL
3 5221844 36 5302057AL
4 7816002 37 7816027
5 7304507TR 38 7814002
6 7304517 39 5058411LL
7 7666005 40 7470604
8 5162421LL 41 7474219
9 7304502TR 42 5055752LW
10 5162415LL 43 7374002
11 5162414LL 44 5302065.01AL
12 5492019 45 7496073.01
13 5221835 46 5471521.01
14 7815003 47 5471509
15 7812601 48 5224617
16 5058463LL 49 7496076
17 7474212 50 7373012
18 5221830 51 7611508
19 7633012 52 7730509
20 7819901 53 5963171
21 7666006.01 54 7741005.01 (110V)
22 5162413LL 7742404.01 (220/240V)
23 5194554 55 7703018
24 7611516 56 7630339 (110V)
25 7303001TR 7630341 (220/230V)
26 7304505TR 7630343 (240V)
27 7304538TR 57 7701123 (110V)
28 5194617 7702322 (220/230V)
29 5225228.01 7702415 (240V)
30 7304534TR 58 7200514
31 7826206 59 7492004
32 7304001TR 60 5226416AL
33 5223003


1 5493042
2 5471539
3 7496018
4 5471505
5 7496052
6 5471019
7 5283053TP
8 5224615TP
9 5302017TP
10 5302077TP
11 5224620TP
12 5965212.01AL


1 5163374LL
2 5164092LL
3 5320527BL
4 5494016
5 5302006TP
6 5192320
7 7666008
8 7814001
9 7663573
10 5722312TP (230V)
5722313TP (115V)
11 5301507TR
12 7826212
13 7434009
14 5164091R
15 5302011
16 7303044TR
17 5495008


1 7615002
2 5225416TP
3 7816002
4 7814001
5 5162420LL
6 5162419LL
7 5320528BL
8 5302006TP
9 5302009
10 5225209TP
11 5192321
12 5301506TR
13 7666008
14 7452509.02
15 7452511.01
16 7434009
17 7496040
18 7816422
19 7816017
20 5058125LW
21 5225205
22 5192001
23 5265807
24 5722239.01AL (220/240V 1100/1300W)
5721128.01AL (120V 1200W)


1 7811402
2 7493011
3 5267013
4 7479940
5 7479938
6 7479939
7 7479937
8 7479936
9 7479935
10 7479934
11 7479956
12 7479955
13 7479954
14 7479953
15 7479952
16 7479961
17 7479960
18 7479945
19 7479944
20 7479943
21 7479957
22 7479942
23 7479946
24 5493039
25 5471022
26 7479941
27 7479951
28 7479950
29 7479967
30 7479968
31 7479969
32 7479970
33 7479971
34 7479931
35 7479947
36 7479948
37 7372004
38 7479933
39 7479949
40 5963576AL


1 7496052
2 5283055TW
3 5494004
4 5496042
5 5225610
6 5222823CM
7 5221826CM
8 5260204DL
9 5471513
10 7372004 (wood)
7371511.01 (black)
11 5261801
12 5224603TP
13 7496072
14 5471532
15 5190501
16 7496073
17 7371004
19 7496095
20 5471037
21 7305019
22 5221872TW
23 5226621DL
24 5226622DL
25 5493046
26 7479990.02TW
27 7479985.02TW
28 5964101 (wood)
5964085.01AL (plastic)


1 7615002
2 7812402
3 5057012
4 5493047.01
5 5493049
6 7816002
7 5053044
8 7826402
9 7822603
10 7814001
11 7614007
12 7614006
13 7372507
14 7633628
15 7633906
16 5221875CM
17 7633326
18 7637209
19 7635424.01
20 7816203
21 7663007
22 7816017
23 7818009
24 5058124.01LL
25 7661047.01PR
26 5963187R (SW V1.1)
5963169.03R (SW V2.0)
27 7551001 (USA 125V 15A)
7551003 (USA 250V 20A)
7555001 (SCHUKO)
7554001 (UK)
7552001 (AUS)
7555003 (Switzerland)


1 7990603
2 5372101
3 5373001
4 5471031.01
5 5471035
6 5471003
7 5471527
8 7479972.01TW
9 7305006TW
10 7305007TW
11 5371205
12 7816026
13 7493021
14 5371203
15 5371204.01
16 7809810
17 5978508.02
18 5965588.02R
18 5965590.02R

previous / next


1 7990603
2 5372101
3 5373001
4 5471031.01
5 5471035
6 5471003
7 5471527
8 7479972.01TW
9 7305006TW
10 7305007TW
11 7371520
12 5965630R
13 5965629R

Customer reviews

Rated 5 out of 5 stars
3 reviews
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

3 reviews for Bezzera Matrix MN V2 Dual Boiler Espresso Machine

Add a review

Use one of the allowed file type: jpg,png. The max size allowed is : 3 MB.

    This site uses Akismet to reduce spam. Learn how your comment data is processed.

    Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

      I would like to order the Group gasket part #5493039 which is listed on your website. I also want the shower filter part #5471022 which I don't see on the website. Can you check it out for me, thanks. Our unit is 4 years old on August 28th It's been awesome!!!
    1. 0 votes
      Q I would like to order the Group gasket part #5493039 which is listed on your website. I also want...... Read more answer now
      Asked by Alphonse on August 28, 2023 12:42 pm
      Answered by the admin

      We are asking customers to acquire the better dispersion/shower screen for the Matrix MN espresso machines. Funny, the new screen is also called Matrix.

    2. I have a Bezzera Matrix MN purchased back in mid 2020, and it has been working great so far. However, I have noticed it starts to make high pitch noise and more water coming out from the pressure release valve during brewing with high pressure. I don't know how to open this machine up and find the root cause of this noise, would you be able to advise what should i look at? Thank you!
    3. 0 votes
      Q I have a Bezzera Matrix MN purchased back in mid 2020, and it has been working great so far. Howe...... Read more answer now
      Asked by Paul on March 14, 2022 3:18 pm
      Answered by the admin

      Your grind may be too fine, and the pumped water needs to escape through the over-pressure valve. It could be a partial blockage in the grouphead or other parts. We would suggest descaling through the grouphead first. After this, a professional may need to evaluate the machine.

    4. My steam boiler is not heating up and I tried to reset the high limit it still not heating. So what could be the problems and what are the parts that I might need, I bought my Bezzera Matrix MN  in 2018 when it first came out
    5. 0 votes
      Q My steam boiler is not heating up and I tried to reset the high limit it still not heating. So wh...... Read more answer now
      Asked by Silvester on November 3, 2021 12:56 pm
      Answered by the admin

      Potential areas are a damaged heating element, bad control board, bad relays, burnt wiring or a safety thermostat reset is needed.

    6. Is this NSF certified? Can it be used in a light commercial setting?
    7. 0 votes
      Q Is this NSF certified? Can it be used in a light commercial setting? answer now
      Asked by Kent A Scipione on June 30, 2021 1:27 am
      Answered by the admin

      We just checked a shipment that just arrived and they are NOT NSF.

    8. The water level meter on my touch screen doesn’t really show the water level other than constantly showing 3/4 full (please refer to picture and video which I took when tank was almost empty) Is that something wrong with the machine? Also, I noticed there are opening into the internal mechanism on the top cup heating area. Would it affect machine operation when water dripping into the machine?
    9. 0 votes
      Q The water level meter on my touch screen doesn’t really show the water level other than constantl...... Read more answer now
      Asked by Po on August 4, 2020 4:57 pm
      Answered by the admin

      Please read the instructions. The water level on the touch screen is not for the water reservoir. It is for the water level in the steam boiler. This is indicated in the instructional manual.

      As for the spacing on the top sides, we indicated this in our videos. We always recommend refilling the water reservoir with the water reservoir outside of the espresso machine.




    10. The hose that comes with it. I take it that 1 end is the G1/8 fitting on the machine. What is the fitting on the other side?
    11. 0 votes
      Q The hose that comes with it. I take it that 1 end is the G1/8 fitting on the machine. What is the...... Read more answer now
      Asked by Don Kelly on April 28, 2020 7:26 pm
      A 3/8" BSPP/BSPT. I recently plumbed mine and ended up using this adapter and 3/8" flex tube:
      Answered by the admin As mentioned, we confirm 3/8" BSPP/BSPT and the adapter works great!
    12. Hello, I am interested in the Matrix. I am curious about a rotary pump machine not being plumbed. I thought this was not good for this type of pump. Will you explain why it would be ok to use this machine with a reservoir and if you would recommend using a rotary pump machine this way? If I were to plumb the machine, what filtration system is recommended? Will the water filter also soften the water or would that have to be accomplished specifically with a water softener? I would not be able to plumb in the drip tray, would not be a problem? Thank you, Carol
    13. 0 votes
      Q Hello, I am interested in the Matrix. I am curious about a rotary pump machine not being plumbed...... Read more answer now
      Asked by Carol Olson on July 8, 2018 11:09 pm
      Answered by the admin

      Hi Carol, great questions!

      Years ago, it was not good to have a rotary vane pump pull water from a reservoir because they were not designed for double duty.  However, they have improved many of these pumps to withstand pulling water from a reservoir.

      The nice part of the Bezzera double boilers is that the water is gravity fed from the bottom of the reservoir to the pump. The downside is in tank water softening. If going this route, the Oscar150 is the best solution for bottom gravity feed from the water reservoir to the pump. It takes magnesium and calcium and turns it into low grade salt. The nice part is that Bezzera machines with a gravity feed reservoir are very finicky to have some minerals to allow 5 volts to pass from one sensor to the other. Therefore, very pure or distilled water will not allow the machine to heat because the 5 volts of electricity can not pass through. Hence, the Oscar150 does good. The downside to the Oscar150 is that it needs 15 hours to make the ion exchange. Therefore, it should be placed in a pitcher with water for 15 hours. The refrig is ok!

      As for direct plumbing, BWT is the way to go. We were the first to test and carry the systems in the USA, and everyone else followed our suit. Make sure to get the meter so you can program the meter to measure the volume of water going through. The flush valve is important to clear 3 gallons of rinsing the filter before it enters the machine. Many do not know that many high quality filters will have some paper sediment from manufacturing, and this sediment can clog the tiny openings in the valves of the machine. If one clogs the boielr refill valve to the boiler, the heating element can be damaged for a costly repair. Check out this BWT kit where you can package deal some of the items together for a discount!
