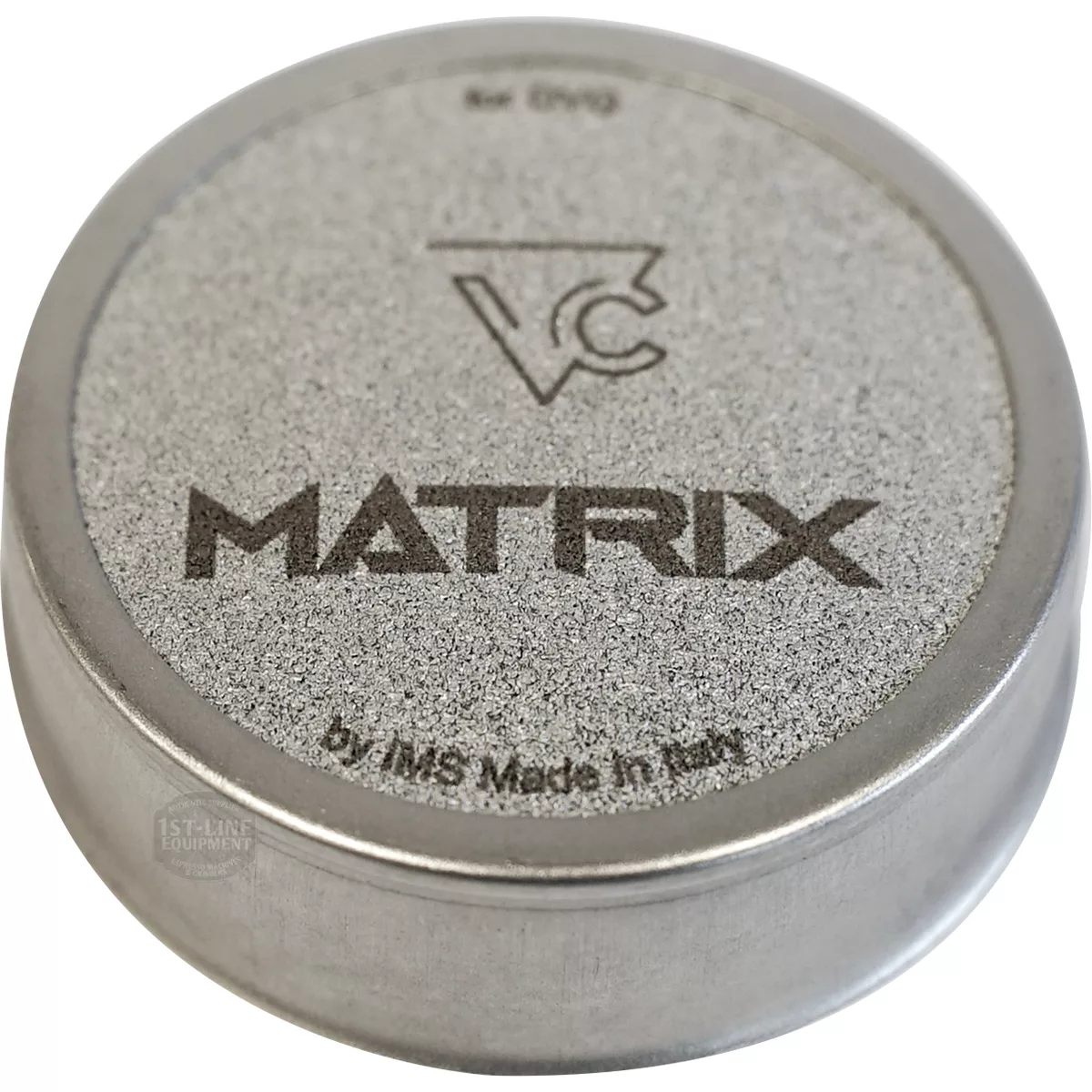

The IMS/DVG MATRIX Dispersion Screen is a round, metallic screen with a textured surface and engraved IMS Made in Italy, designed for espresso machines. © 2025 1st-line.com

IMS/DVG MATRIX Dispersion Screen

1 review

$45.62

  • Standard ground shipping within the contiguous 48 states. Alaska & Hawaii shipping costs extra.
  • Total order must be over $99 after all discounts.
  • For more information, please see Shipping Included.
  • Parts are non-returnable and non-refundable unless damaged in transit.
  • Parts do not include any over the phone technical support or instructions other than what is provided on the website.
  • Parts do not come with any warranty.
  • For more information, please see Terms & Conditions.
Request a Quote for Custom Package Builds


SKU: V298K Categories: , ,
Earn 45 EspressoPoints worth $1.35! (Learn about EspressoPoints)
Earn 45 EspressoPoints worth $1.35! (Learn about EspressoPoints)

Frequently Bought Together

The IMS/DVG MATRIX Dispersion Screen is a round, metallic screen with a textured surface and engraved IMS Made in Italy, designed for espresso machines. © 2025 1st-line.com + The 1st-Line Group Gasket Removal Tool features a pointed metal tip and rounded wooden handle, ideal for piercing holes in leather or wood and removing gaskets. © 2025 1st-line.com + A 4 oz tube of McGlaughlin Oil Co Petrol-Gel NSF Food Safe Lubricant features a blue and white label and an intact cap, displaying product details clearly. © 2025 1st-line.com + The Minimo E61 Portafilter Gasket is a black, circular plastic ring with a smooth surface and a small inner notch, commonly used in espresso machines and shown against a white background. © 2025 1st-line.com
Price for all: Original price was: $107.27.Current price is: $87.27.

Upgrade Your Espresso: IMS/DVG MATRIX E61 Dispersion Screen

Upgrade your espresso brewing consistency with the revolutionary IMS/DVG MATRIX E61 Dispersion Screen. Engineered for elite water distribution, this premium upgrade fits most standard E61 group heads to help eliminate channeling and maximize extraction yields.

Advanced Matrix Microsphere Technology

Developed through a joint collaboration by Del Creatives S.R.L, DVG, and IMS, this high-performance shower screen replaces traditional wire mesh. It features a unique matrix microsphere design made up of 50 layers of stainless steel. This construction creates thousands of micro-routes as small as 4 to 5 microns. Water distributes with uniformity across your coffee puck for sweet, perfectly balanced espresso shots.

Premium Benefits

    • Uniform Extraction: Replaces uneven water streams with a mist-like saturation.
    • Channels Eliminated: Ultra-fine 4-5 micron pathways prevent high-pressure water spurts.
    • Cleaner Group Head: Micro-porous design helps keep coffee grounds from vacuuming back into your 3-way valve.
    • E61 Fit: Direct drop-in E61 dispersion screen replacement for most standard 57mm–58mm group gaskets.

Technical Specifications

    • Product Type: E61 Dispersion Screen / Shower Screen
    • Brand: IMS / DVG / Del Creatives S.R.L
    • Technology: Matrix Microsphere Layers
    • Pore Size: 4–5 Microns
    • Layers: 50 Layers
    • Primary Compatibility: E61 Group Heads

Cross-Reference Part Numbers

This matrix microsphere shower screen may be a suitable replacement for the following manufacturer part numbers:
  • Ascaso: EX..48, F..228
  • ACS: Minima
  • Bezzera: 5470512, 5471002
  • BFC: 0520080
  • Brasilia: 04214.0.40.01, 0421404001
  • Casadio: 457560000, 457-560-000, 4771026100, 4771-026-100
  • ECM: C519900103
  • Expobar: 75000010
  • Faema: 457560000, 4771026100
  • Fiorenzato CS: A2200031
  • Futurmat-Ariete: 02610004
  • Gaggia Spagna: 02610004
  • Grimac: 1070100007, F277, FS173, GR761, VBM050, W558
  • I.M.S.: CFDR070
  • Italcrem: 02610004
  • Lelit: MC930-3
  • Mairali: 02610004
  • Nuova Simonelli: 17010003
  • Pavoni: 330677
  • Promac: 80230310
  • Rancilio: 80230310
  • Vibiemme: FILTDCREGR
  • Victoria Arduino: 17010003
  • Visacrem: 02610004
  • Wega: W10324, WY27104





Brand

1st-line
Leave your review
Rating
Publish review

Ask a question

Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

    I realize I'm asking a subjective question here, but I currently have a "1st-line's E61 Competition Style Precision Shower Screen" on my Lelit Mara (which doesn't appear to be available anymore) and I'm wondering if I would expect to see a big difference with this screen, or if they are comparable? I was considering the current special combining this and the Minimo gasket if it would in fact be an upgrade.
  1. 0 votes
    Q I realize I'm asking a subjective question here, but I currently have a "1st-line's E61 Competiti...... Read more answer now
    Asked by RobertM75002 on December 13, 2023 6:13 pm
    Answered by the admin

    With this screen, we believe you will see less backflow of superfine particles towards the backside of the screen. The Minimo gasket has been developed for making it easier to lock in the portafilter. We believe both items are incremental improvements for espresso machines, but some people just desire cheap gaskets and cheap screens.
    2. WIll this fit a Lelit Mara PL62S? That has the E61 grouphead, but the description says "most".
  2. 0 votes
    Q WIll this fit a Lelit Mara PL62S? That has the E61 grouphead, but the description says "most". answer now
    Asked by RobertM75002 on December 12, 2023 7:36 pm
    Answered by the admin

    Lelit has now called their grouphead the E58 or E58E because they feel it is different. The Matrix should work fine on their grouphead. Just make sure to install a new portafilter gasket.
    3. can this be used with this the lelit Victoria ?
  3. 0 votes
    Q can this be used with this the lelit Victoria ? answer now
    Asked by Luis A Carvajal on September 11, 2023 4:58 pm
    Answered by the admin Sorry, this dispersion screen can not be used on the Lelit Victoria.
