Overview

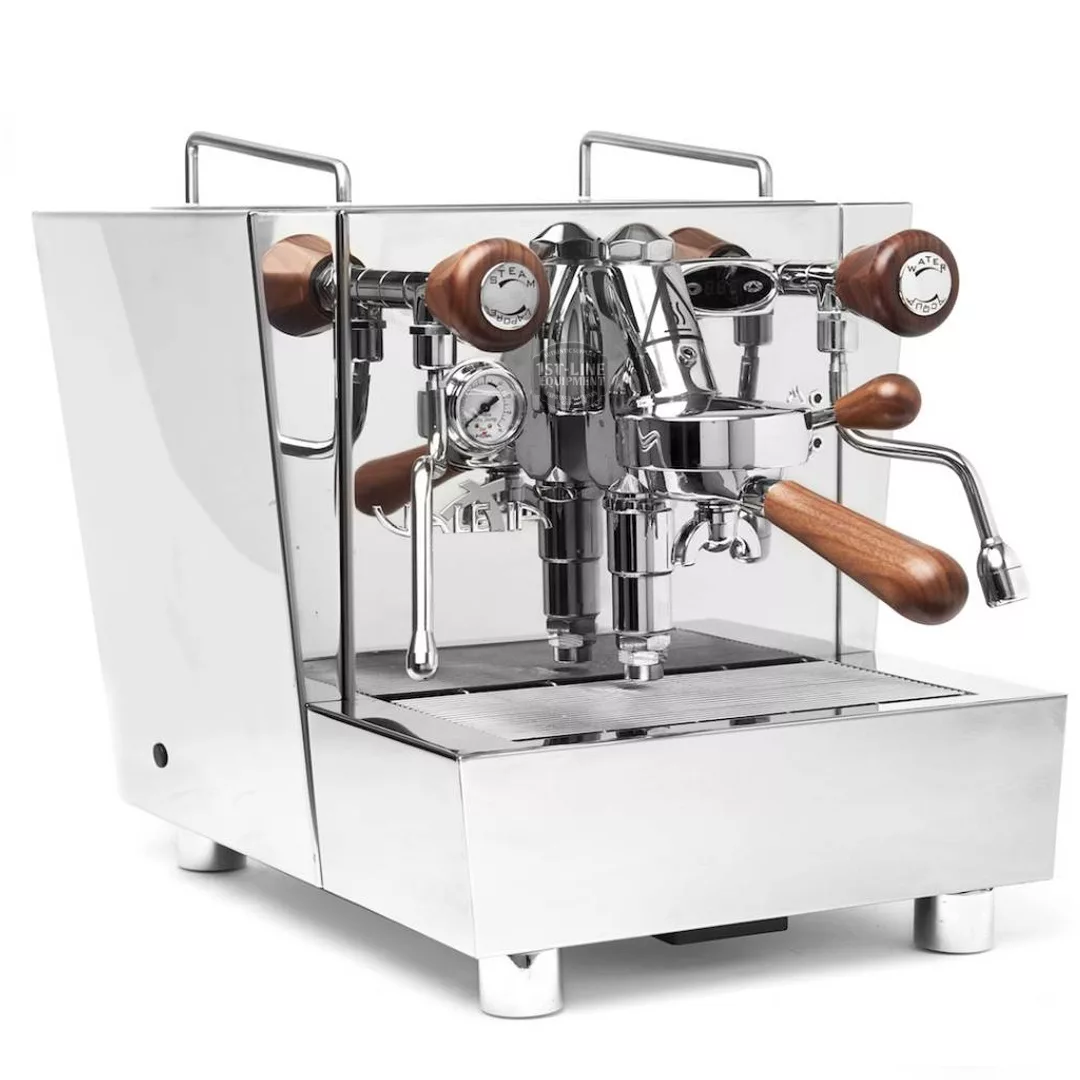

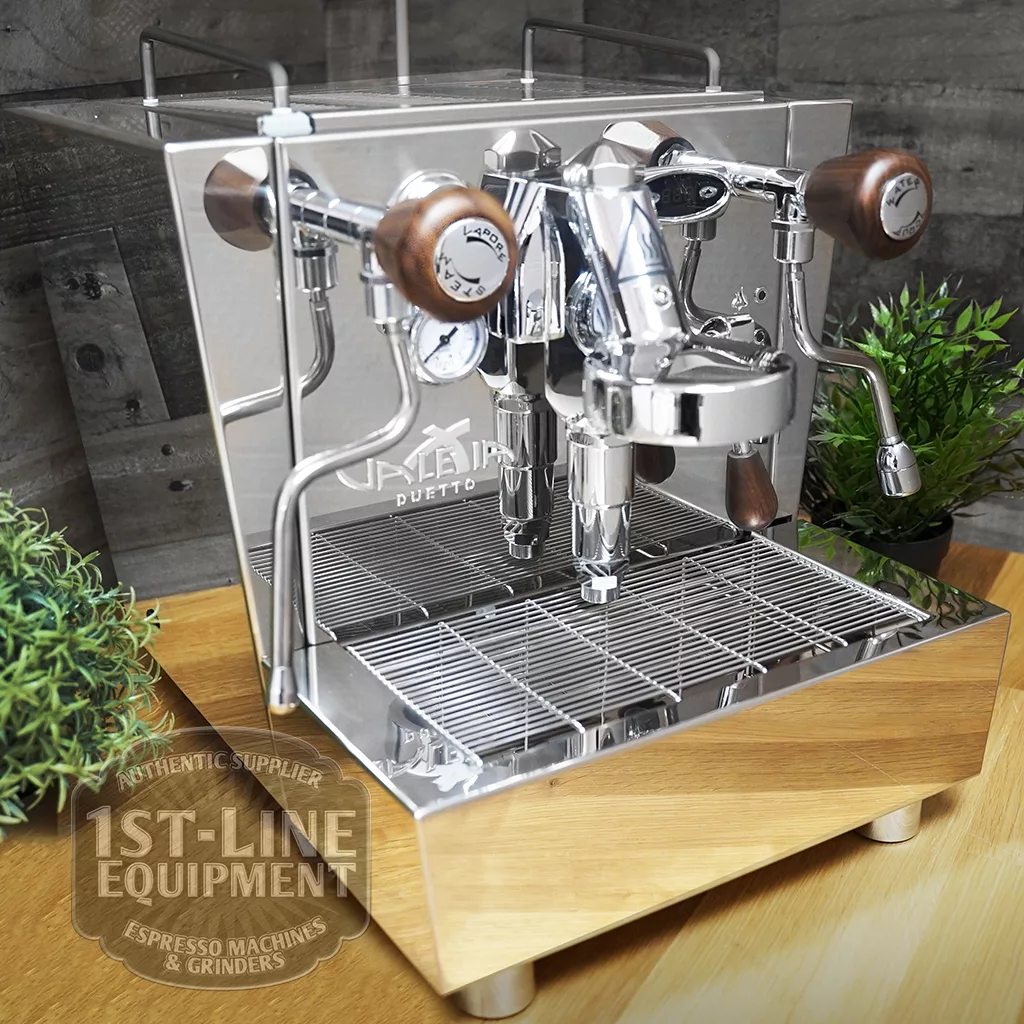

Valexia Duetto II PID Dual Boiler Espresso Machine with Wood Handles
The Valexia Duetto II by Gruppo Izzo, originally located in Naples, but now near Rome, is the newest dual boiler espresso machine at 1st-line, as of November 2019! Furthermore, this machine is excellent to use in a home kitchen, small office, or for light commercial use. Moreover, top-notch materials contribute to the espresso machine’s beautiful view on the outside with the use of advanced functions on the inside.
Additionally, the name “Duetto” comes into use due to the unit’s incredible dual boiler system, where one boiler produces the steam coming out and the other boiler produces temperature stable water for the espresso coffee coming out. Also, its phenomenal PID system controls the temperature of both boilers. Finally, you will enjoy its silent vertical positioned rotary pump, a quiet SSR Power Relay, and its switchable lever from water tank to direct plumb.
The E61 brass grouphead is incredible for its espresso-making capabilities! The small lever and portafilters offer a fantastic look in wood.
The Valexia is a beast! The Izzo drip tray gives off character of brute force! Thus, once you own the Izzo Valexia dual boiler espresso machine, you will know why!
Videos




Features
Dual boiler system
- Ability to power on and off the steam boiler for energy efficiency.
Insulated stainless steel boilers. - The steam boiler integrated with a certified safety valve and vacuum bleeder valve.
- Boiler drain plug located on the bottom of the machine.
- Power switch and independent steam boiler switch located on the bottom right-hand side under drip tray.
- Red lights on the right side to display which boilers are energized.
- Watts: Coffee is 800, Steam is 1350. 20 Amps. (machine label says 2000 watts)
Construction
- A highly desirable stainless steel body with mirrored finish offers a phenomenal attraction of proud ownership.
- Rigid stainless steel frame.
- Gorgeous styled footing.
- Substantial drip tray holding approximately 32 ounces of water. The drip tray is portable for manual drainage or can be drained with the enclosed drain hose.
- Transportable top grill to simply access the unit’s internals.
PID Controls
- PID controls the temperature of coffee and steam boilers.
Rotary vane pump
- Access port on the left-hand panel allows adjustment of the rotary vane pump.
Switchable from tank to direct water connection
- Removable 2.5 liter water reservoir for easy filling and cleaning.
- SWITCHABLE capability from tank mode to plumbed in mode.
- Lever on the bottom right inside behind drip tray converts machines back and forth between the tank and plumbed in mode.
Steam / hot water wands
- Wood knobs on both steam and hot water valves rotate to control throughout of steam and hot water.
No burn steam wand and no burn water wand allows cool touch quick multi-directional movements.
Hot water wand dispenses hot water and steam from the steam boiler.
E61 Grouphead
Pump / Steam Pressure Gauge
- Pump pressure gauge indicated pump pressure or water line pressure when plumbed.
- The steam pressure gauge indicates steam pressure in the steam boiler.
Parts & Accessories Included
- Stainless steel blind filter basket for backflushing.
- Single portafilter with single spout with wood handle with single-cup 58mm filter basket holding up to 7 grams.
- Dual spouted portafilter with wood handle with double cup 58mm filter basket holding up to 14 grams.
- 2-hole steam tip (installed on the machine) with three additional steam tips (two 4-hole and one 3-hole).
- Cleaning brush.
- Izzo cleaning cloth for wiping down the machine.
- Stainless steel braided hose with 3/8″ BSPP fitting for plumbing to the water line.
- Drain hose and drain hose clasp to attach to the plastic drain basin under drip tray.
- Fabric cover placed on top of the machine when first opening the box and can be utilized when not using the machine.
- Cup warmer tray with integrated rails to be placed on top.
- Beautiful stainless steel 58mm Duetto tamper.
- Izzo Valexia Leva Duetto II instruction manual.
Specifications
| Brand | Izzo |
|---|---|
| Height (inches) | 16, approximate |
| Width (inches) | 15, approximate |
| Depth (inches) | 18, approximate |
| Weight (pounds) | 79 |
| Wattage (watts) | Coffee – 800, Steam – 1350 |
| Voltage (volts) | 110 |
| Boiler capacity (liters) | Coffee – 0.8, Steam – 1.8 |
| Tank capacity (liters) | 2.4 |
| Country of manufacture | Italy |
| E61 Grouphead | Yes |
| PID Control | Yes |
| Water Connection | Switchable |
| Portafilter size (mm) | 58 |
Notes
General Espresso Machine Notes/Warnings:
- Upon first use (tank/reservoir models): On the initial start-up (or after a long period of non-use), it is important to make sure the pump is removing water from the tank. When the machine is powered on, you will hear the pump running. After 5 seconds, squeeze the in-line hose in the tank (usually the longest hose, has a particle filter attached). if you hear a different sound, this means the pump is working correctly. If not, immediately power down the machine and contact us. For more information, visit this page General Manual Pump Priming.
- Electrical: To avoid electrical damage to this espresso machine which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. Without the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat, or the wiring inside. For more information, visit this page Power Protection.
- Water: To increase the useful life and not damage your espresso machine, please use softened water. Softened water is water without calcium and magnesium, but still has other minerals for espresso extraction. Do not use distilled, purified, or reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale. For more information, visit this page Water Choice.
- Descaling: We do not recommend descaling unless there is an issue with the espresso machine. Too much descaling can eat away at the metals and gaskets inside an espresso machine. As a preventative measure, we recommend using softened water as explained in the bullet point above.
- Backflushing: This procedure of cleaning the grouphead will need to be performed from time to time. For more information, visit this page Espresso Machine Backflush – Why 50?
Parts Diagram
No block ID is set
Support
Reviews
Q & A
Ask a question
Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.
-
Hi - What revision is this Valexia / Model year?
-
Answered by the admin
Sorry for the delay as we just sold about 5 units in the last 30 days. These are 2019 leftovers. However, there are only 2 left and these will be sold soon.
Hi - what is the distance between base drip tray and grouphead and/or spouted portafilter?
-
Q Hi - what is the distance between base drip tray and grouphead and/or spouted portafilter? answer nowAsked by on December 26, 2023 2:21 pmAnswered by the admin
Distance between the base drip tray and grouphead: ~3.75"
Distance between the base drip tray and spouted portafilter: ~2.75"
Would you have a brew element and gasket in stock for the valexia?
-
Q Would you have a brew element and gasket in stock for the valexia? answer nowAsked by on October 18, 2023 11:11 amAnswered by the admin
Please review the instructions we provide on our self-service parts page. Parts can vary even on the same make and model from a manufacturer.
Do you have rebuilt kits for Group Valves and steam/water valves?
-
Q Do you have rebuilt kits for Group Valves and steam/water valves? answer nowAsked by on August 27, 2022 12:45 amAnswered by the admin
Sorry, we do not at this time.
Can you please advise if the valexia duetto 20 amp has a setting for 15amps as well?
I am not sure we have wiring for 20 amps which I will need to check. We are in NJ but in an older house.
-
Q Can you please advise if the valexia duetto 20 amp has a setting for 15amps as well? I am not sur...... Read more answer nowAsked by on October 26, 2020 5:27 pmAnswered by the admin
Sorry, machine is 20 amps only as the powerful 1400 watts on the steam boiler will be too close to the maximum 15 amp rating when the steam boiler powers on.
Is this able to switch between 15 & 20 Amp modes like the Alex Duetto IV?
-
Q Is this able to switch between 15 & 20 Amp modes like the Alex Duetto IV? answer nowAsked by on July 22, 2020 3:55 pmAnswered by the admin
Sorry, it is not. Power goes to one boiler's heating element at a time. Both boilers will never be both powered at the same time. 20 amp is optimal for the Valexia Leva Duetto dual boiler espresso machine.
