DISCONTINUED Lelit PL2SVH2 Giulietta Espresso Machine for Commercial Use – 2 Group, 220v, NON UL, ETL, & NSF

This product has been discontinued at 1st-line. Please visit one of the categories below for more comparable products.

.

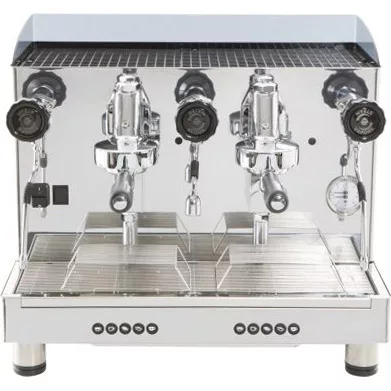

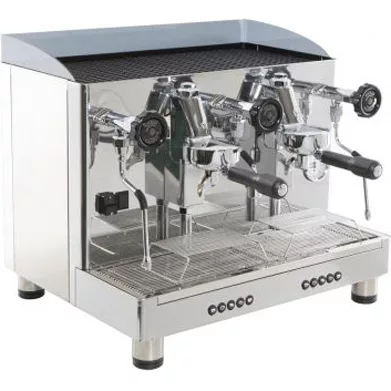

Lelit PL2SVH2 Giulietta 2 Group Commercial Espresso Machine

Features

  • Stainless steel front and back body polished to a mirror finish. Brushed stainless steel side panels.
  • 2 E61 groupheads with programmable electronic dosage controls. Programmable preinfusion.
  • 2 multidirectional no-burn steam wands on the left and right side.
  • 1 multidirectional hot water wand in the middle.
  • Dual pressure gauge for coffee and steam pressure.

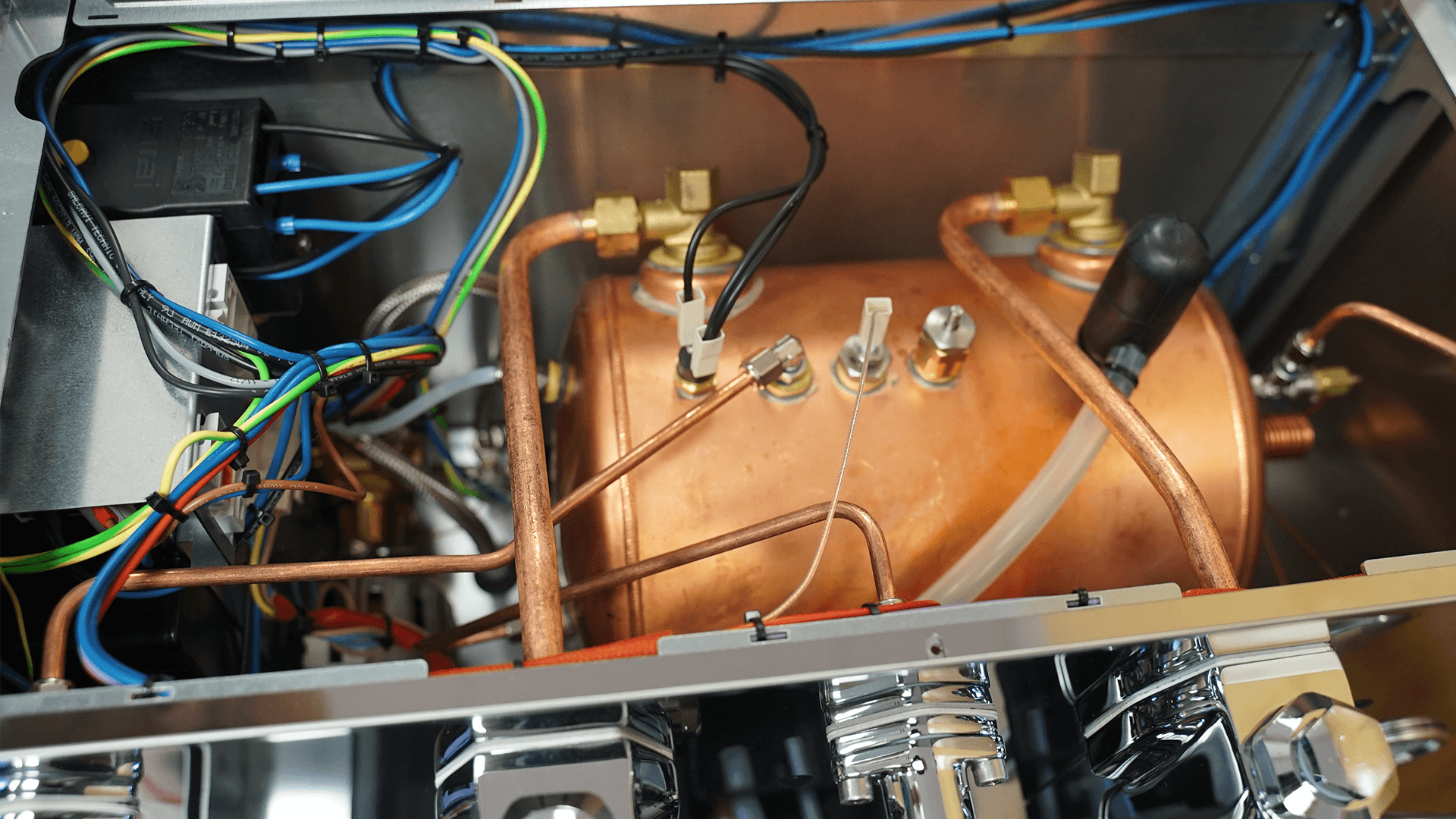

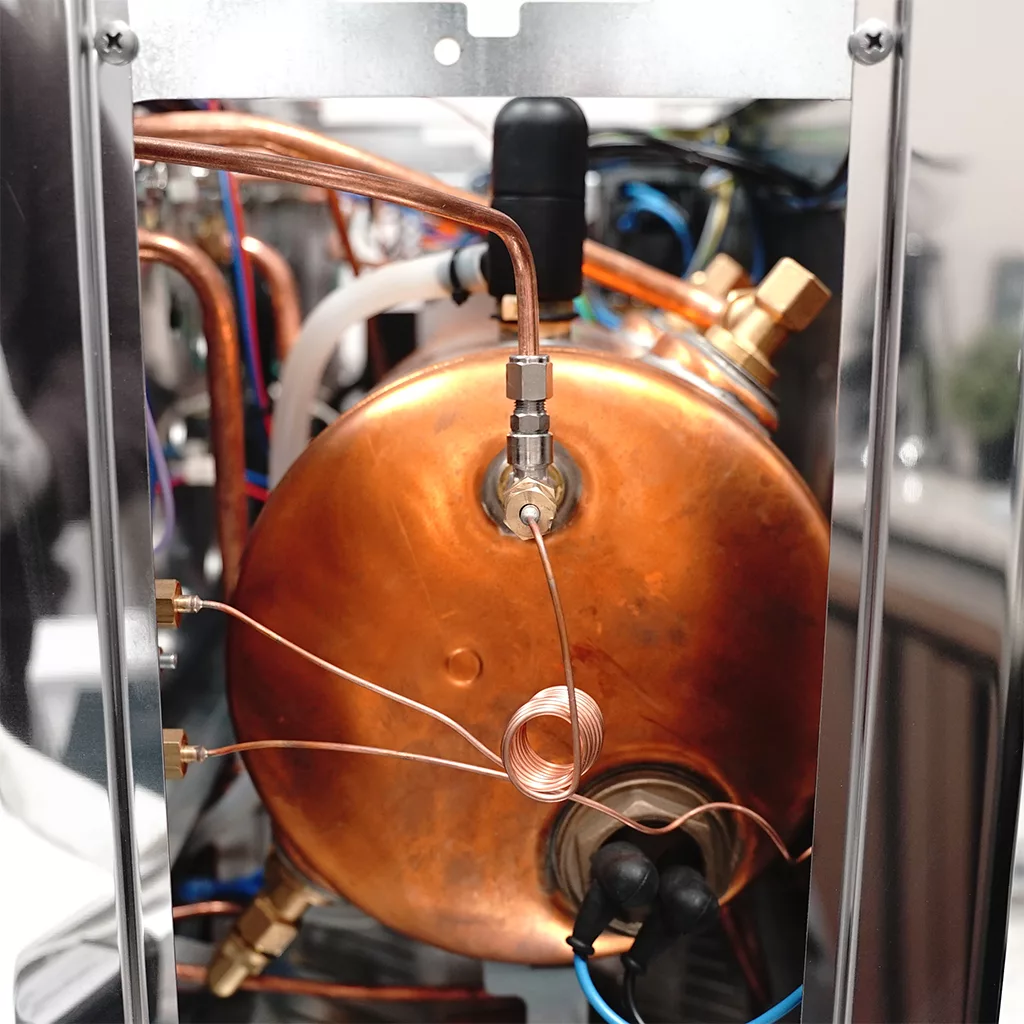

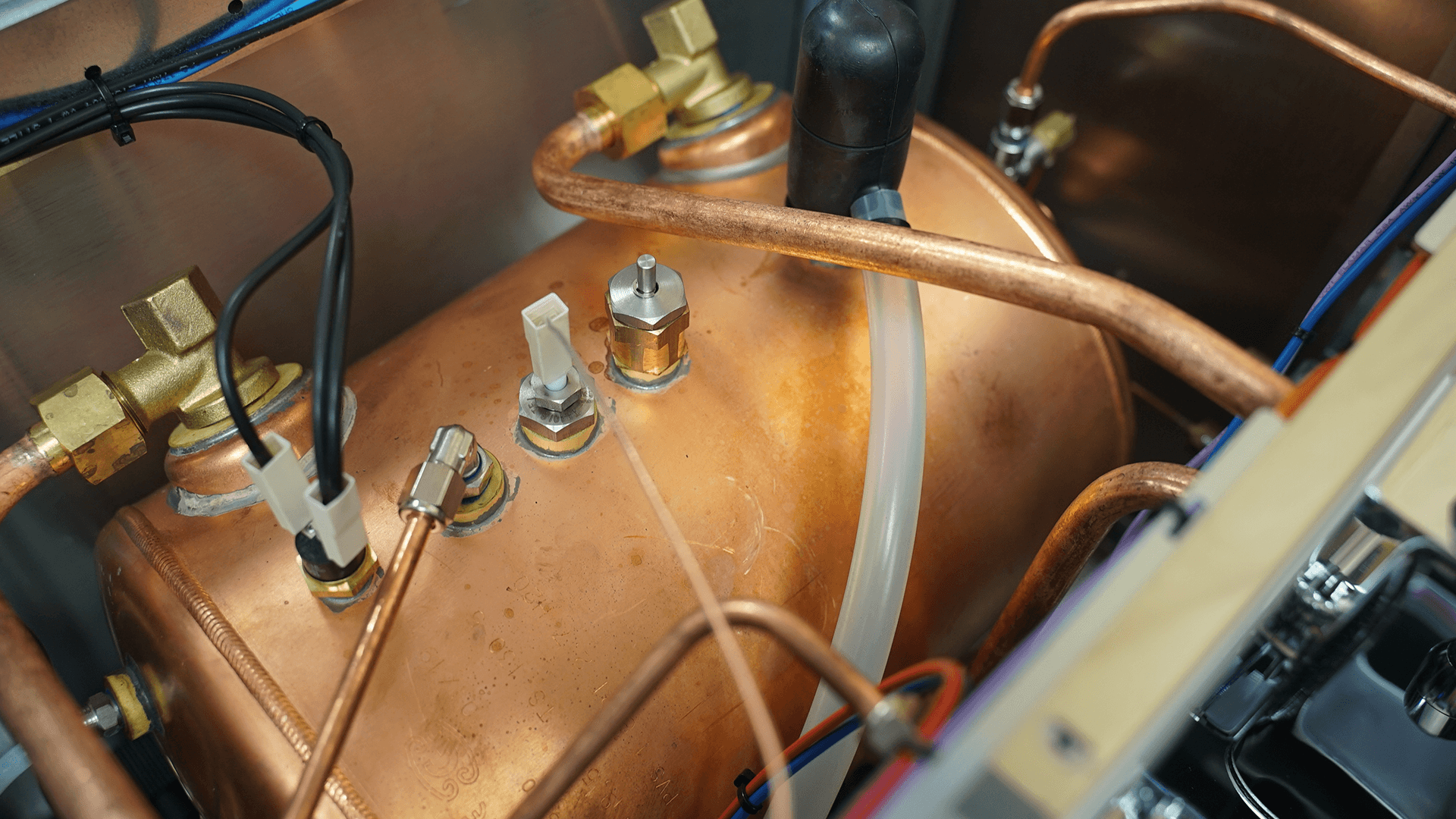

  • Large 10 liter copper boiler.
  • Rotary vane pump.
  • Adjustable feet.
  • Cup warming tray.
  • Direct water line connection only.
  • Drip tray extension for smaller espresso cups.
  • The Lelit PL2SVH2 Giulietta espresso machine is NOT approved for UL, ETL, nor NSF. If you are using it for a commercial establishment selling beverages, please check with your local health department and local building department if these approvals are required of the equipment you are using.
  • Accessories included: 1 single spout portafilter. 1 dual spout portafilter. Both measure 58mm.

For more Lelit equipment, please visit our Lelit brands page. If you have any questions, please reference the Q&A tab on each product page.

Brand

Lelit

Height (inches)

19.5, approximate

Width (inches)

23.5, approximate

Depth (inches)

18, approximate

Weight (pounds)

98

Wattage (watts)

2950

Voltage (volts)

208 – 240

Boiler capacity (liters)

10

Country of manufacture

Italy

Espresso Machine Warning:

  • ELECTRICAL WARNING: To avoid electrical damage to this espresso machine which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. the lack of the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat or the wiring inside.
  • WATER WARNING: To increase the useful life of and not damage your espresso machine, please use softened water. Softened water is water without calcium and without magnesium, but still has other minerals for espresso extraction. Do not use distilled water, purified water, nor reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale.
  • DESCALING WARNING: We do not recommend descaling unless there is an issue with the espresso machine. The reason is that too much descaling can eat away at the metals and gaskets inside an espresso machine.

Finding your part
  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website. If no results come up, more than likely we do not stock the part.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
  • Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.
Lelit-PL2SVH2-parts-diagram-01
1000034 7800014
1400033 7900121
1400037 8900028
1400038 9500004
1400040 9500010L1
1600021 CD377
1600027 CD458
2400003 CD553INOX
2400005 FS017
3300006 MC268
3300007 MC591
5100037 MC971

Lelit-PL2SVH2-parts-diagram-02
1100001
9400004
9500002
9700002
9700018
CD348-1
GV025-27
GV026-8
MC268

Lelit-PL2SVH2-parts-diagram-03
1000074
3700008
4000005

Lelit-PL2SVH2-parts-diagram-04
3700008
4000008
4000011

Lelit-PL2SVH2-parts-diagram-05
1100002 9200003
1100002-2 9300015
1100003 9400042
1100004 9500009
1100005 CD366-1
1100009 CD458-1 EQUIPOTENZIALE
1100011 CD458-1 TERRA
1100018 CD623
1400079 CP070
1400095 FS080
2200028 GV025-23
3700020L1 GV025-27
8600009 MC268

Lelit-PL2SVH2-parts-diagram-06
1100019
9700003
9700026
9700040
CD024-442
CD024-462
CD024-466
CD505I
G8
GV025-31
GV028-63
MC005
MC017
MC931

Lelit-PL2SVH2-parts-diagram-07
2000001 9700023
2100009 CD024-442
2200021 CD024-466
2200061 CD368-2
2200062 CD505I
3700065L1 CD505IL1
8700010 CD506
8700012 GV028-30
8700013 MC032
9600030 MC101
9600051 MC917
9700015 MC919
9700019

Lelit-PL2SVH2-parts-diagram-08
1000014 3700016L1 9600007 GV025-55
1000032 3700016L2 9600029 GV026-20
1000033 3700021 9600049 GV026-23
1000053 3700024 9700004 GV028-30
1000073 8600004 9700022 GV028-43
1000162 8600005 9700025 GV028-75
1100021 8700014 9700032 GV028-86
1400094 8800004 CD024-444 gv105
2100005 8800005 CD338-2 GV569
2100008 9100023 CD348-1 MC005
2100010 9200001 CD368-2 MC070
2100011 9200002 CD489 MC268
2100012 9300004 CD623 MC290
2100013 9400043 CP029 MC526
2100014 9500001 CV103 MC593
2100015 9500023 FS080 MC918
2100017 9600002 GV025-23 MC919-1
2200070 9600003 GV025-27 MC927
3000009 9600005 GV025-48 MC930V

Customer reviews

Reviews

There are no reviews yet.

Be the first to review “DISCONTINUED Lelit PL2SVH2 Giulietta Espresso Machine for Commercial Use – 2 Group, 220v, NON UL, ETL, & NSF”

Use one of the allowed file type: jpg,png. The max size allowed is : 3 MB.

    This site uses Akismet to reduce spam. Learn how your comment data is processed.

    Ask a question

    Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

      Is it possible to program an auto-on time? Also is the manual available as a pdf?
    1. 0 votes
      Q Is it possible to program an auto-on time? Also is the manual available as a pdf? answer now
      Asked by Christian Persad on March 14, 2021 6:32 am
      Answered by the admin

      Sorry, the timing can not be programmed. Sorry, the manual is not yet available online.
