Bezzera Crema PM HX Espresso Machine

$1,699.00

Request a price match.
Compact HX machine with white side panels, a simple semi-automatic dosing button, & PID controls.

┌ Special Deals ┐

"Build Your Espresso Bar"

"Build Your Espresso Bar" with accessory discounts!

Get This Deal

Earn 1699 EspressoPoints worth $50.97! (Learn about EspressoPoints)
Earn 1699 EspressoPoints worth $50.97! (Learn about EspressoPoints)

Bezzera Crema PM HX Espresso Machine

Overview

The Bezzera Crema PM PID features the classic Bezzera stainless steel body enameled with a beautiful white paint. The wooden knobs add a nice complimentary touch to the white panel, which will enhance your home espresso bar with some flair and beauty. Furthermore, if you plan on entertaining a small group with espressos, cappuccinos, coffee, and tea, then this might be the perfect espresso machine for you! The Bezzera Crema PM PID houses a powerful and dependable vibration pump and a PID controller for thermal stability and programming of the temperature as great as some of Bezzera's professional espresso machines.

Features
BZCREMSPM1BI2N-MN0-HX

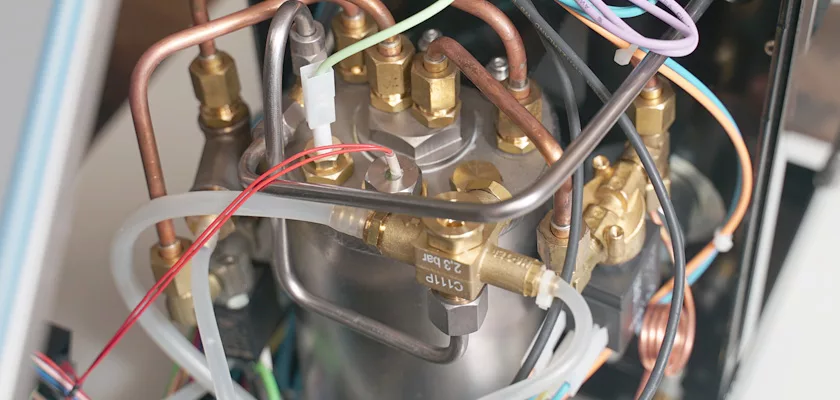

Heat exchange boiler system:

  • Nickel-plated copper & brass – The boiler is made of solid copper and brass which retains heat better than stainless steel. Typically, copper boilers are more susceptible to limescale when compared to stainless steel boilers. The nickel plating helps reduce limescale buildup. We highly recommend using a water softener like the V725.
  • Pull a shot & steam milk at the same time – Because of the heat exchange design, espresso making, and on-demand steam is always readily available after a 20-30 minute warm up. Hence, there is no wait time going from coffee to steam mode.
  • Boiler sensor low water auto-shutoff – Prevents burning out the heating element when the water level in the boiler or the reservoir is low. The boiler has both a low water and high water level sensor. Distilled, purified, NOR reverse osmosis water can be used in this machine because of these sensors will not pick up the water level, and the machine will pump water and overfill the internal boiler (creating a massive leak).
BZCREMSPM1BI2N-MN0-tank

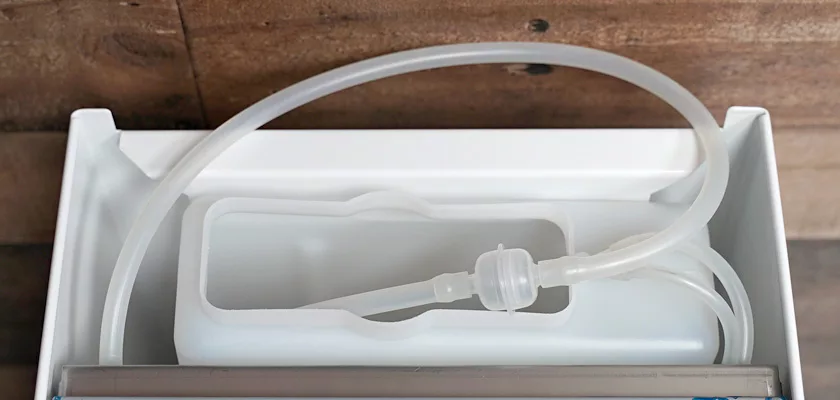

Tank/reservoir system:

  • Particle filter – Protects the machine from any large particles from entering the pump, valves, and the boiler. You can remove this filter if you are installing an inline water softener.
  • Automatic boiler refill circuitry makes sure when the water level drops in the copper boiler, the pump is activated along with the opening of the boiler refill valve to refill the boiler with water from the tank/reservoir.
  • Water reservoir’s low water shutoff – The water tank sits on a spring-activated plate which depresses the switch under the plate. Once the water is low in the reservoir, the springs raise the reservoir and plate, and the tank micro-switch turns off power to the heating element in the boiler, as well as turn on the low water indicator on the front panel.
BZcream-03

Semi-Automatic push button settings:

  • Simple operation: Only 1 button to press to start coffee extraction. Press again to stop extraction. The button also illuminates when you press in.
BZCREMSPM1BI2N-MN0-pump

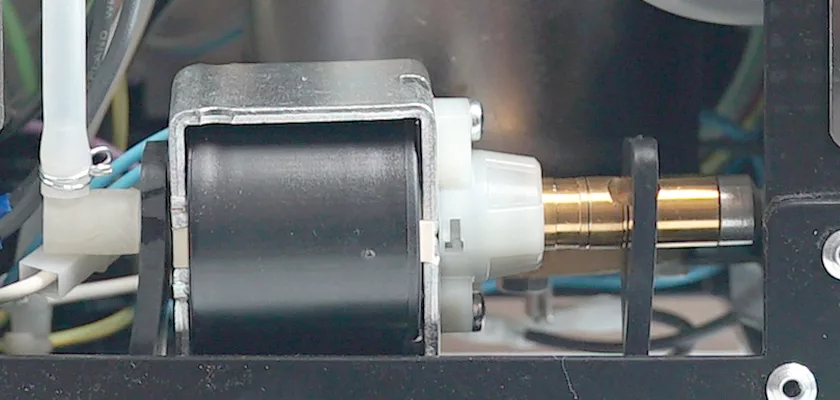

Vibratory pump:

  • Efficient – 41 watts (manufacturer can change), rated up to 15 bar with air valve bypass. You only need 9 bar to extract perfect espresso, and wattage has no correlation to longevity.
  • Cost-effective – Pumps will degrade in performance over time and usually average useful life is 5 years. Easy area to self-replace. Replacing a vibration pump will cost less than a rotary vane pump.
BZCrema

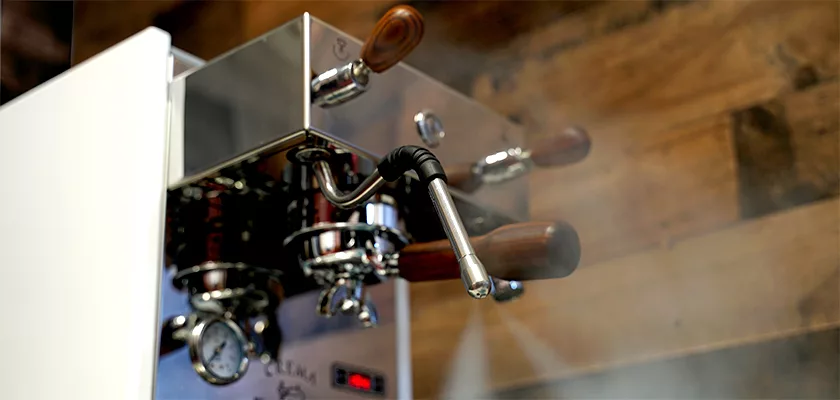

Steam wand:

  • Multi-directional – Allows for more movement and flexibility.
  • Protection: Steam wand has an external rubber grip that protects your fingers when handling the steam wand.
  • Non-burn steam wand: Steam wand designed for no-burn for quick handling and movement. If the and needs to be held for more than a few seconds while steaming, then use the protective grip.
  • Steam handle can be locked in the up position to free up hands.
  • Joystick valves for steam and hot water.
BZcream-04

PID display:

  • PID temperature programming – Allows you to easily program the boiler temperature for different coffee blends. Moreover, the PID replaces the normal pressure switch. You can adjust the boiler temperature from 80 C ° to 100 C °.
BZCREMSPM1BI2N-MN0-parts

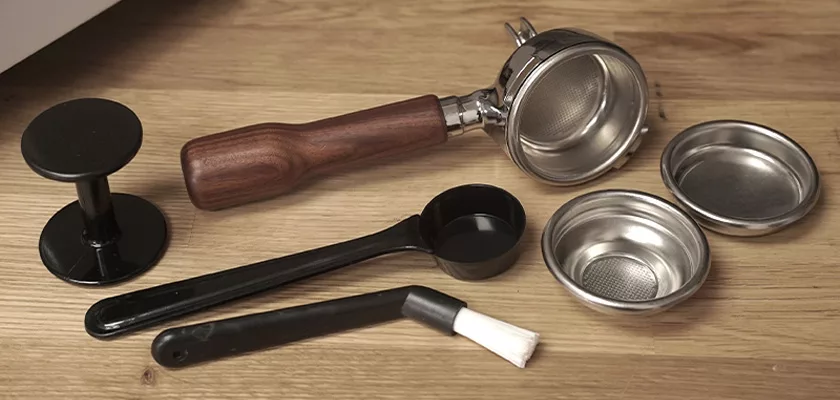

Accessories included:

  • Dual spout filter handle – 58mm in diameter with a wooden handle.
  • 1-cup filter basket –  Holds ~7g of coffee grounds.
  • 2-cup filter basket – Holds ~14g of coffee grounds.
  • Blind filter basket – Meant for backflushing at 58mm in diameter.
  • Plastic tamper – Common for most espresso machines to keep the overall selling price of the machine low. We recommend upgrading to a better 58mm tamper.
  • Plastic scoop – Utilized for using pre-ground coffee.
  • Cleaning brush – For cleaning the grouphead.
  • Instructional manual in English.
BZcream-02

Construction:

  • Front Body Panel – Stainless steel polished to a mirror finish.
  • Side/Back Panel – Stainless steel painted white. Includes a Bezzera emblem on the back.
  • Solid brass grouphead with chrome plating for a lasting finish.

Specifications
Brand

Bezzera

Height (inches)

15, approximate

Width (inches)

10, approximate

Depth (inches)

18, approximate

Weight (pounds)

41

Wattage (watts)

1200

Voltage (volts)

110 – 120

Boiler capacity (liters)

1.5

Tank capacity (liters)

3

Portafilter size (mm)

58

Country of manufacture

Milan, Italy

Notes

General Espresso Machine Notes/Warnings:

  • Upon first use (tank/reservoir models): On the initial start-up (or after a long period of non-use), it is important to make sure the pump is removing water from the tank. When the machine is powered on, you will hear the pump running. After 5 seconds, squeeze the in-line hose in the tank (usually the longest hose, has a particle filter attached). if you hear a different sound, this means the pump is working correctly. If not, immediately power down the machine and contact us. For more information, visit this page General Manual Pump Priming.
  • Electrical: To avoid electrical damage to this espresso machine which is not considered a manufacturer’s defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. Without the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat, or the wiring inside. For more information, visit this page Power Protection.
  • Water: To increase the useful life and not damage your espresso machine, please use softened water. Softened water is water without calcium and magnesium, but still has other minerals for espresso extraction. Do not use distilled, purified, or reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale. For more information, visit this page Water Choice.
  • Descaling: We do not recommend descaling unless there is an issue with the espresso machine. Too much descaling can eat away at the metals and gaskets inside an espresso machine. As a preventative measure, we recommend using softened water as explained in the bullet point above.
  • Backflushing: This procedure of cleaning the grouphead will need to be performed from time to time. For more information, visit this page Espresso Machine Backflush – Why 50?
Please visit one of the links below for more Bezzera products & information.
Equipment & Accessories

Parts & Diagrams

Technical Support


Finding your part
  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website. If no results come up, more than likely we do not stock the part.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
  • Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.

COD. 9942072 REV. 00 ed.08/21

TABLE 1 CREMA

Bezzera Crema parts diagram TABLE 1 CREMA
# SKU
1 7816002
2 5056354
3 5074478.01SG2
4 5074677LW
5 7474217
6 5074621LW (BZ07 BA)
5074682LW (BZ13 BA UL)
7 5073020.01LW
8 5125705
9 7373009.01
10 5071733LL (Stainless Steel)
5054202LL1 (White)
5054202LL2 (Red)
5054202LL3 (Black)
11 5521512
12 5963068.03LL (T.PID)
5963086.03 (BZ07 T.PID)
5963179 (BZ13/LIVIA)
5963180 (BZ13/LIVIA w/ PID)
13 5964633.01 (BZ13 DE/PM PID)
5964634.01 (BZ13 DE/PM)
14 7474218
15 5373102.01
16 5340510
17 5074622.01LW
18 5094905SG
19 5074477.01SG2
20 5094909SG
21 5071733LLR (Stainless Steel)
5054202LL1R (White)
5054202LL2R (Red)
5054202LL3R (Black)
22 7817801
23 5262001
24 7999904
25 7372511
26 7816004
27 7816211
28 7816009
29 7819908

TABLE 2 CREMA

Bezzera Crema parts diagram TABLE 2 CREMA
# SKU
1 5162304LL
2 5162303.01LL
3 7303033
4 5194610
5 5194571
6 5301504AL
7 5194635
8 7702322.01 (220/230V)
7701123.01 (110V)
7702415.01 (240V)
10 7304543TR
11 5225411AL
12 7496085.01
13 7303006
14 7452516
15 7496018
16 7303034TR
19 5965212.01AL
20 5302077AL
21 7496052
22 5302017AL
23 5471539
24 5471505
25 5224620AL
26 5224615AL
27 5493042
28 7496018
29 5283053TP
30 5471019

TABLE 3 CREMA

Bezzera Crema parts diagram TABLE 3 CREMA

under construction


TABLE 3A CREMA

Bezzera-Crema-parts-diagram-TABLE-3A-CREMA

under construction


TABLE 4 CREMA DE PID

Bezzera Crema parts diagram TABLE 4 CREMA DE PID

under construction


TABLE 4A CREMA PM

Bezzera Crema parts diagram TABLE 4A CREMA PM

under construction


TABLE 4B CREMA PM PID

Bezzera Crema parts diagram TABLE 4B CREMA PM PID

under construction


TABLE 5 CREMA

Bezzera Crema parts diagram TABLE 5 CREMA

under construction


TABLE 6 CREMA DE PID

Bezzera Crema parts diagram TABLE 6 CREMA DE PID

under construction


TABLE 6A CREMA PM / PM PID

Bezzera Crema parts diagram TABLE 6A CREMA PM / PM PID

under construction


TABLE 7 CREMA PM

Bezzera Crema parts diagram TABLE 7 CREMA PM

under construction


TABLE 7A CREMA DE PID

Bezzera Crema parts diagram TABLE 7A CREMA DE PID

under construction


TABLE 7B CREMA PM PID

Bezzera Crema parts diagram TABLE 7B CREMA PM PID

under construction


TABLE 8 CREMA

Bezzera Crema parts diagram TABLE 8 CREMA

under construction


TABLE 9 CREMA

Bezzera Crema parts diagram TABLE 9 CREMA

under construction
