-29%

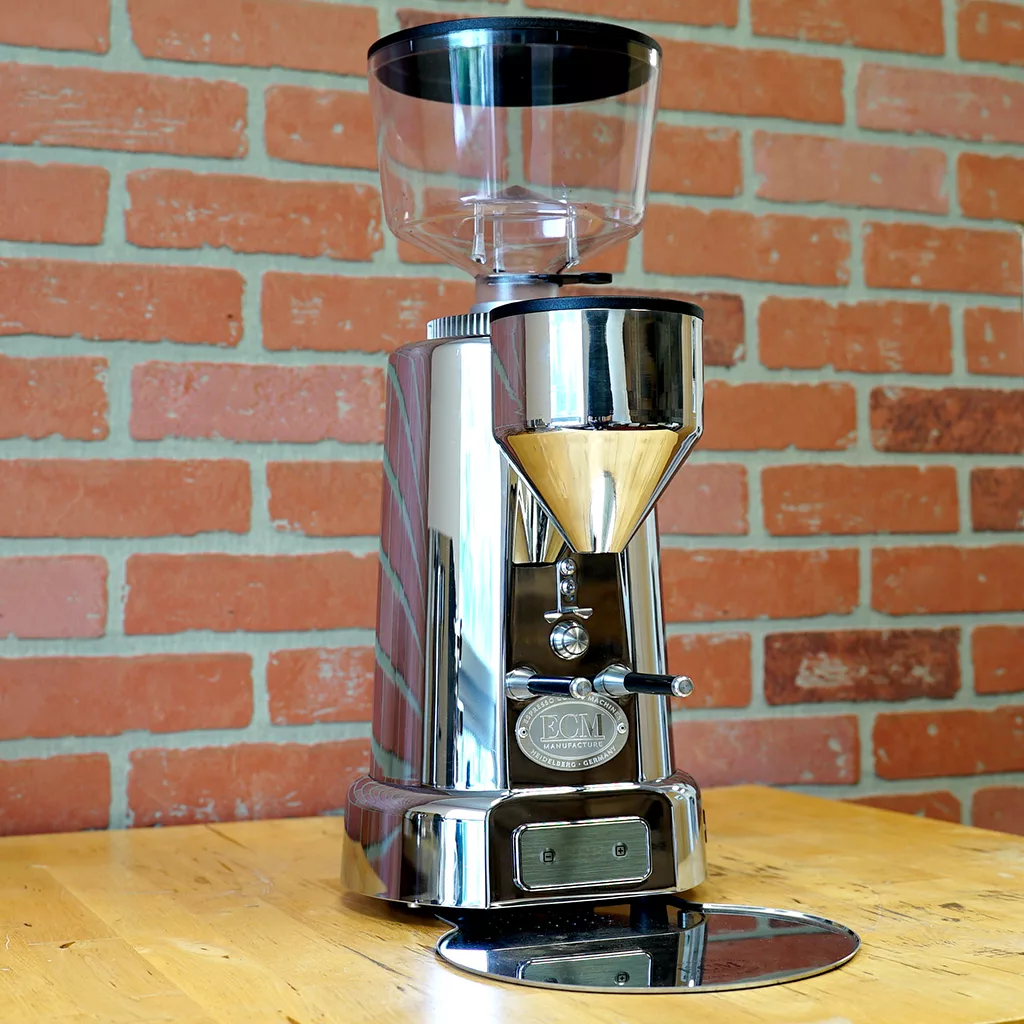

A used SIDEWALK SALE - ECM V-Titan 64 Espresso Grinder (USED E209) with a clear hopper and round drip tray sits on a wooden table before a red brick wall, showcasing ECM’s signature style and precision in stainless steel. © 2025 1st-line.com

SIDEWALK SALE – ECM V-Titan 64 Espresso Grinder USED E209

Original price was: $1,399.00.Current price is: $999.00.

This lightly used espresso grinder was in our showroom and is like new. Please note we no longer carry this ECM Grinder at 1st-line Equipment.

Warranty limited to manufacturer’s defect: 30-day parts and labor.

  • Cash-only sale. NO Payment by phone.
  • NJ Sales & Use Tax extra.
  • In-Store Purchase ONLY. No Shipping.
  • First come first serve.
  • For more info please read SIDEWALK SALES
SKU: rrECMG89250 Categories: , , , Tags: , , ,

Overview

ECM V-Titan 64 Espresso Grinder

The ECM V-Titan 64 is ECM’s top of the line grinder. This grinder features titanium coated 64 mm flat burrs for increased longevity & efficiency. The stepless wormgear adjustment allows for very fine grind tuning. This allows for easy compatibility with any espresso machine and espresso blend. On demand grinding ensures your coffee is ground fresh every time. The electronic controls adjust the grinding time for single & double dosing.

Videos

2 videos found
TechTip: V Titan 64 Espresso Grinder – Worm Gear/Burr Carrier Removal
TechTip: V Titan 64 Espresso Grinder – Worm Gear/Burr Carrier Removal
ECM V Titan 64 Grinder Overview
ECM V Titan 64 Grinder Overview

Features

Grinding adjustment

  • Stepless: Gives you access to an “infinite” number of grind settings. This allows you really fine tune your grind fineness of your coffee beans. The numbered dial underneath the hopper helps you remember your current grind setting easier.
  • Adjustment knob: Located in the rear of the machine just below the hopper. Turning the knob clockwise will make the grind finer. Turning counterclockwise will make the grind coarser.

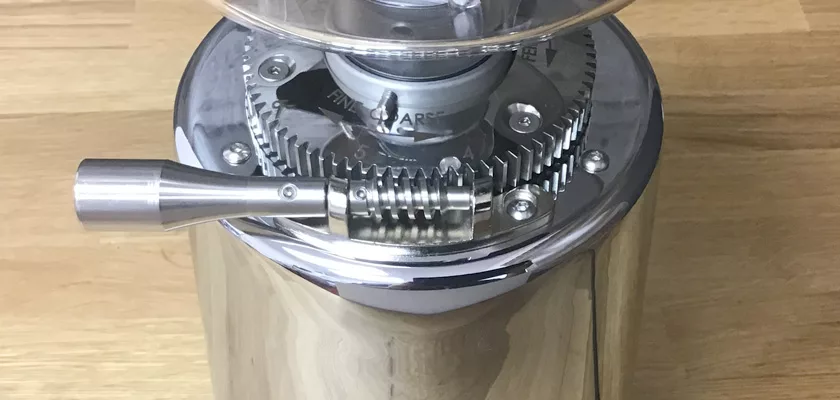

Close-up of the shiny metal DISCONTINUED ECM V-Titan 64 Espresso Grinder with hand crank and adjustable grind settings, resting on a wooden surface. This manual model is no longer available. © 2025 1st-line.com

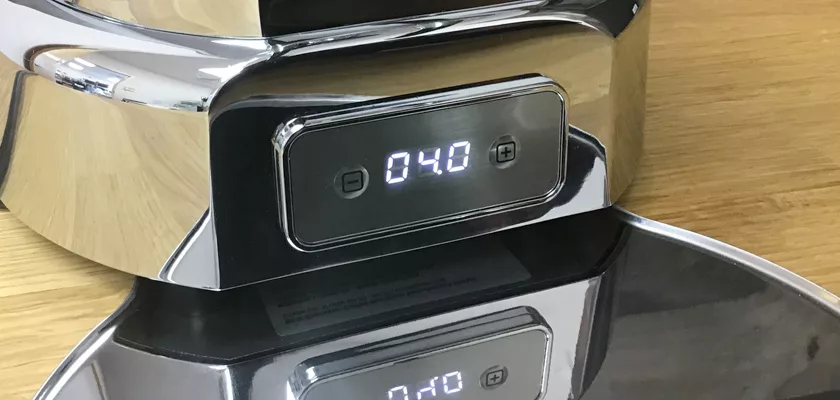

A close-up of a DISCONTINUED ECM V-Titan 64 Espresso Grinder with a metallic finish, screen displaying 040, on a wooden surface, with its display and part of the grinder reflected on the shiny surface below. © 2025 1st-line.com

Electronic controls / On demand grinding

  • Multiple dosing options: Press the dosing button once for a single dose. Press the dosing button quickly twice for a double dose. Hold the dosing button for a manual dose.
  • Time based grinding: You can adjust the the time for each automatic dose. You can make tiny adjustments by 0.1 second increments.
  • Dosing count: This helps keep track of usage. Displays the total count of automatic doses, not manual doses. Single doses will add 1 to the tonal count. Double doses will add 2 to the total count.

Grinding burrs

  • Flat burrs – Large size at 64 mm. The larger the size, the more of a grinding surface, resulting in faster production.
  • High rpm – Faster spinning rate at 1400 rpm. The higher the speed, the faster the production, which can increase efficiency and reduce wait times.
  • Sweeping fan – Helps push beans down to the burrs for a smooth operation.
  • Easy access – Remove the bean hopper & the set screw. There are 3 Allen key screws (~2.3 mm) that hold the upper holder in place. After removing the screws, turn the upper burr holder counter clockwise until the top assembly comes off. This will give you access to the burrs and the grinding chamber. The burrs themselves are held in with 3 flat head screws.
Close-up of the DISCONTINUED ECM V-Titan 64 Espresso Grinder with exposed conical burrs, highlighting gold and silver parts on a wooden surface. Two detached burr components sit beside the grinder. © 2025 1st-line.com

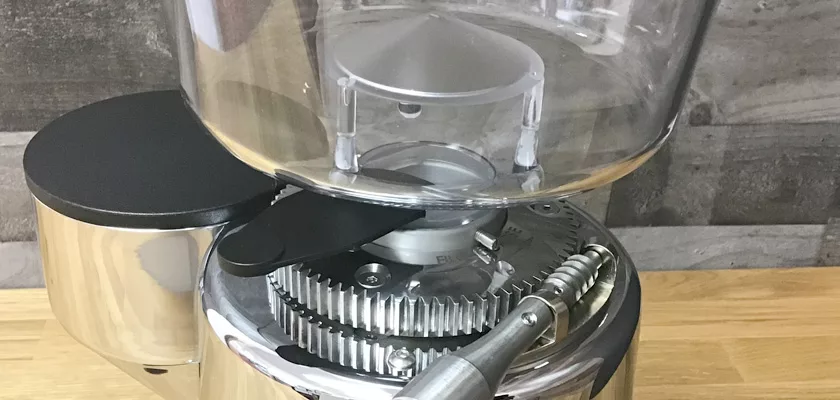

Close-up of the DISCONTINUED ECM V-Titan 64 Espresso Grinders top showcases its hopper and large exposed burrs featuring metallic and transparent parts, all set on a wooden countertop with a stone tile background. © 2025 1st-line.com

Bean hopper

  • Low profile: There are 2 hoppers available for the ECM V-Titan 64. We include the shorter hopper with our grinders. The total height of the grinder is approximately 17.75.” It will barely fit under standard 18″ overhead cabinets. Please keep in mind there will be no space to fill the hopper with beans.
  • Set screw: Secures the hopper to the grinder. Serves as a reminder for users from quickly removing the hopper if it is full of beans.
  • Finger guard: Prevents users from “accidentally” putting their fingers in the grinding burrs.
  • Stopper: A door near the bottom of the hopper can be pushed in to close the opening. This allows you to remove the hopper with beans inside so you can easily change the beans. There will be some beans already passed in the burrs which you will have to grind out first before removing the hopper.

Portafilter fork

  • Ease of use: There is a hook that allows you to rest your portafilter while grinding for a complete hands free operation. Accommodates most portafilters. The clearance from the fork to the funnel is approximately 2.375.”
  • Container grinding: The forks are not easily removable. However the coffee funnel and fork sit high on the grinder. You can fit any small container (under 4.5″) underneath the fork.

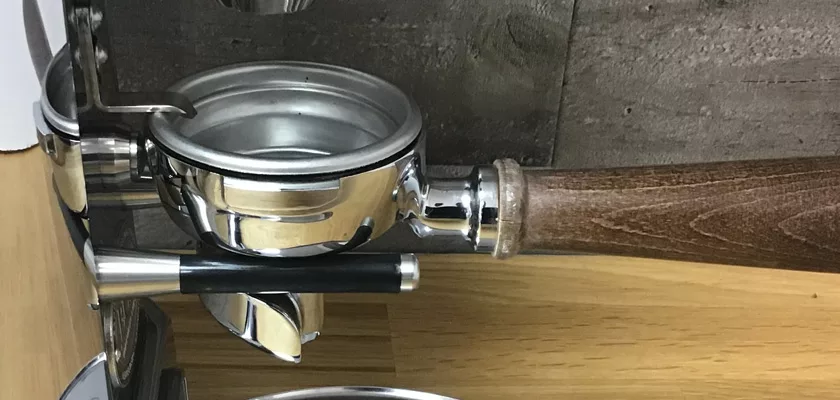

Close-up of a portafilter with a wooden handle on an espresso machine above a drip tray—perfectly matched with the discontinued ECM V-Titan 64 Espresso Grinder. © 2025 1st-line.com
Close-up of a shiny metallic tamper with the ECM Heidelberg logo on its base, resting on a wooden surface beside a DISCONTINUED ECM V-Titan 64 Espresso Grinder. © 2025 1st-line.com

Grinds catch tray

  • Easy to “install”: There are no screws. The tray has 2 holes which hook to the front legs of the grinder. This will help ensure that the tray won’t slide away from the grinder.
  • Convenient: As easy as it is to install, it’s just as easy to remove to discard any excess grinds. There are other comparable models that do not have a tray at all.

Specifications

Brand

ECM Manufacture
Height (inches)

17.75, approximate
Width (inches)

8, approximate
Depth (inches)

10.5
Weight (pounds)

22
Wattage (watts)

450
Voltage (volts)

110 – 120
Burr size (mm), Type

64, flat
Grinding speed (RPM)

1400
Hopper capacity (grams)

500
Country of manufacture

Germany
Approvals

CE

Notes

Espresso Coffee Grinder Warnings:

  • Roast Profiles: Espresso grinders sold by 1st-line Equipment, unless specifically indicated on the grinder page, are manufactured for coffee beans that have Italian or espresso roast profiles. Lighter roasted coffee beans may clog the grinder or not grind fine enough. Darker roasted coffee beans, such as French roasted or oily coffee beans, may clog the grinding chamber and/or the grinder chute where the ground coffee exits.
  • Changing grind settings: It is very important to only change grind settings when the unit is powered on and the burrs are in motion. If you do not do this, the burrs will ‘gunk’ up and render the grinder to only produce very coarse grinds or no grinds at all. To remedy this, you will have to open up the grinder to get access to the grinding burrs. This issue will be considered operator error for lack of following directions, and not be classified as a defective grinder.
  • Electrical cord: For most grinders, the cord is placed between the packaging (foam or cardboard) and the underside body of the grinder. During shipping, it is normal for a bend or insignificant blemish/slice to damage the cord.
  • Finding coffee grinds in a new grinder: Most manufacturers test their grinders with coffee beans before they leave their facility. Unfortunately, they are not always able to get every trace of coffee out of the grinders after testing. As a result, you may find coffee beans or grinds inside your grinder, or there may be grinds in the packaging.
  • Static issues: There are static issues with all grinders, even the highest-quality models. We firmly believe that the static comes from the coffee beans. If you are having static problems with your coffee grinder, try using a different blend of beans.
  • Electrical: To avoid electrical damage (which is not considered a manufacturer's defect), please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. A surge without protection can damage a grinder at the power switch, the capacitor, the motor, or the wiring.
  • Burr cleaning: For routine maintenance of the grinding burrs, we recommend using grinder cleaning agents. We do not recommend any removal of the burrs or the burr carrier for cleaning (unless necessary) as re-assembly can cause damage. If the grinder chamber is dis-assembled, the warranty is voided for any damages that result. It is important to always remove all coffee grinds from the threads of the burr carrier and the grinding chamber.
  • Replacing burrs: NEVER use a flat head screwdriver and hammer to wedge UNDER the burrs for removal. This could badly damage your grinder.

Support

Parts Diagram

Finding your part
  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website.
    Note: These parts diagrams are provided by the manufacturers. We list them on our site for informational purposes only. We do not stock every single part listed nor can we guarantee that every part is available to order.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
  • Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.

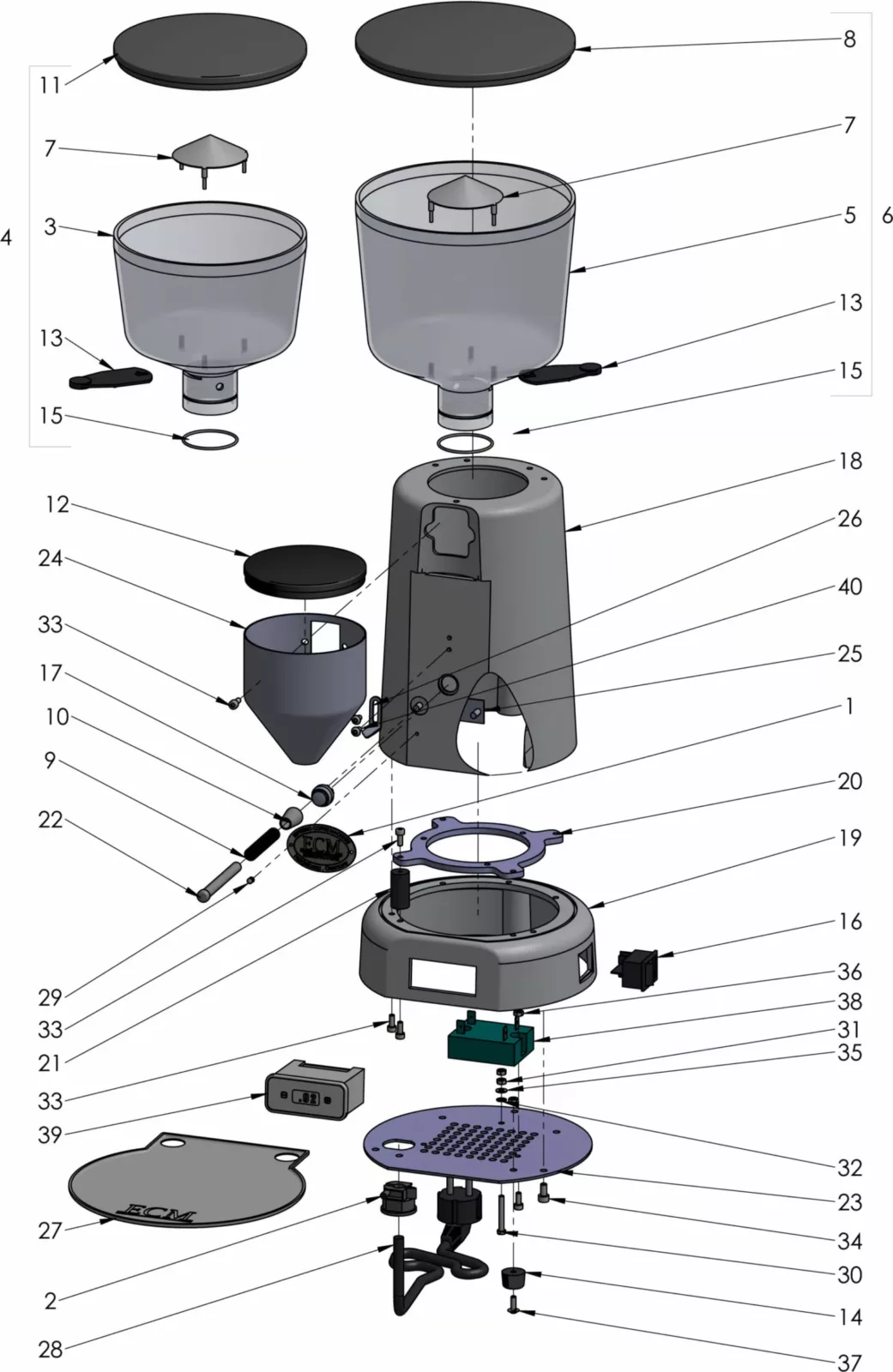

Exploded diagram of an electric appliance with labeled parts, showing components such as a lid, container, base, wiring, circuit board, display, buttons, and mounting hardware arranged in assembly order. © 2025 1st-line.com
# SKU
1 81200
2 C439900086
3 G1000
4 G1000.K
5 G1001
6 G1001.K
7 G1002
8 G1004
9 G1005
10 G1007
11 G1009
12 G1013
13 G1014
14 G1015
15 G1017
16 G1021
17 G1022
18 G1059
19 G1060
20 G1061
21 G1070
22 G1108
23 G1117
24 G1119
25 G1129
26 G1194
27 G1195
28 G1400 (US)
28 P2034 (UK)
28 P2035 (AU)
28 P2036
29 P1999
30 P2001
31 P2002
32 P2004
33 P2006
34 P2007
35 P2009
36 P2026
37 P2075
38 P6031
39 P6043 (230V)
39 US1049 (115V)
40 P6114

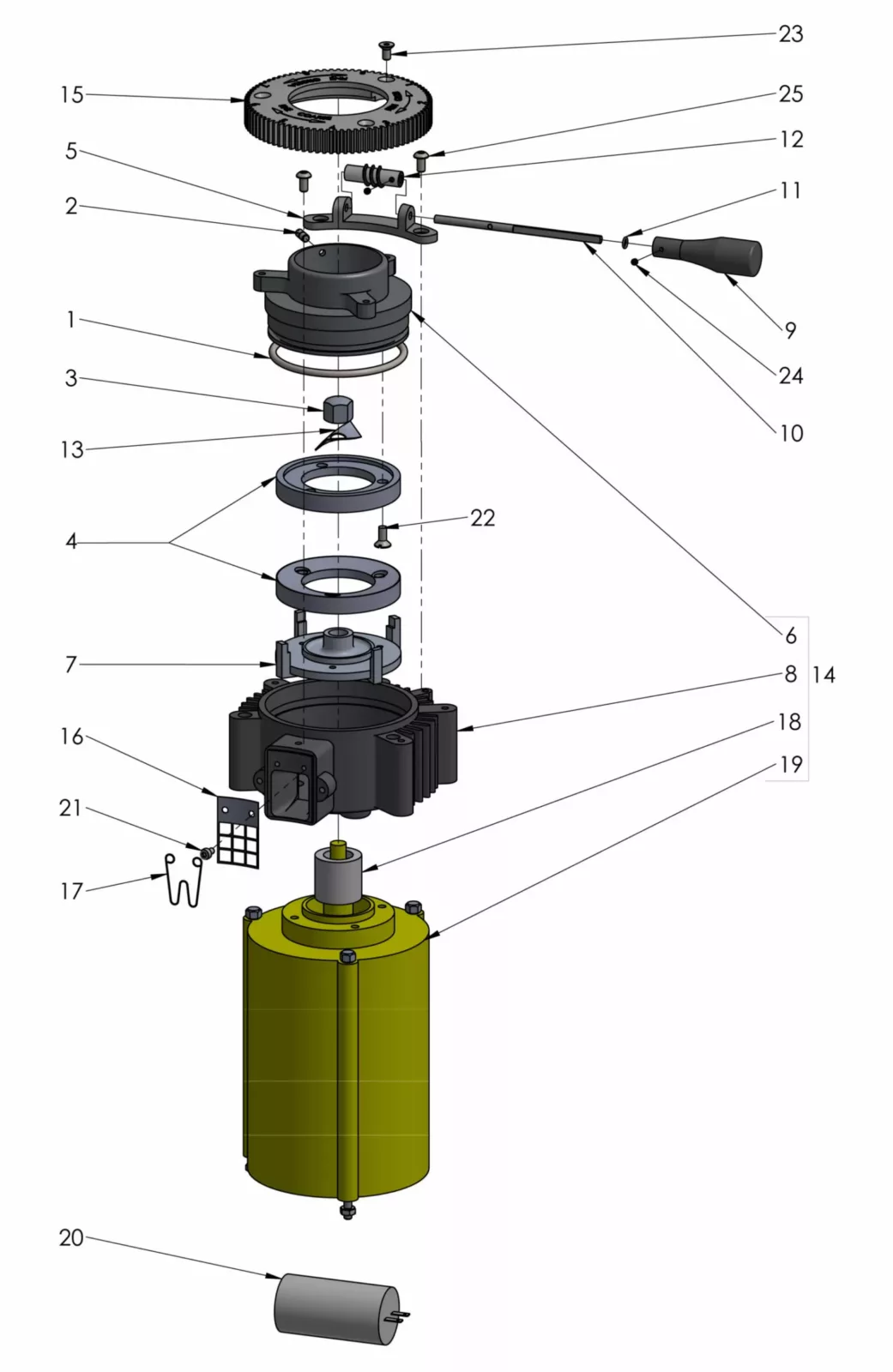

Exploded parts diagram of an ECM V-Titan 64 grinder, showing labeled gears, levers, rings, housing, a spring, mesh grid, cylindrical yellow component, and a separate small cylinder at the bottom right. © 2025 1st-line.com
# SKU
1 G1016
2 G1029
3 G1033
4 G1042
5 G1053
6 G1054
7 G1056
8 G1057
9 G1101
10 G1102
11 G1102.1
12 G1103
13 G1113
14 G1123 (230V)
14 G1124 (115V)
15 G1140
16 G1192
17 G1193
18 G1199
19 G1220 (220V-240V/50Hz)
19 G1221 (110V-120V/60Hz)
20 G1240 (220V-240V)
20 G1241 (110V-120V)
21 P1994
22 P6110
23 P6111
24 P6112
25 P6114
