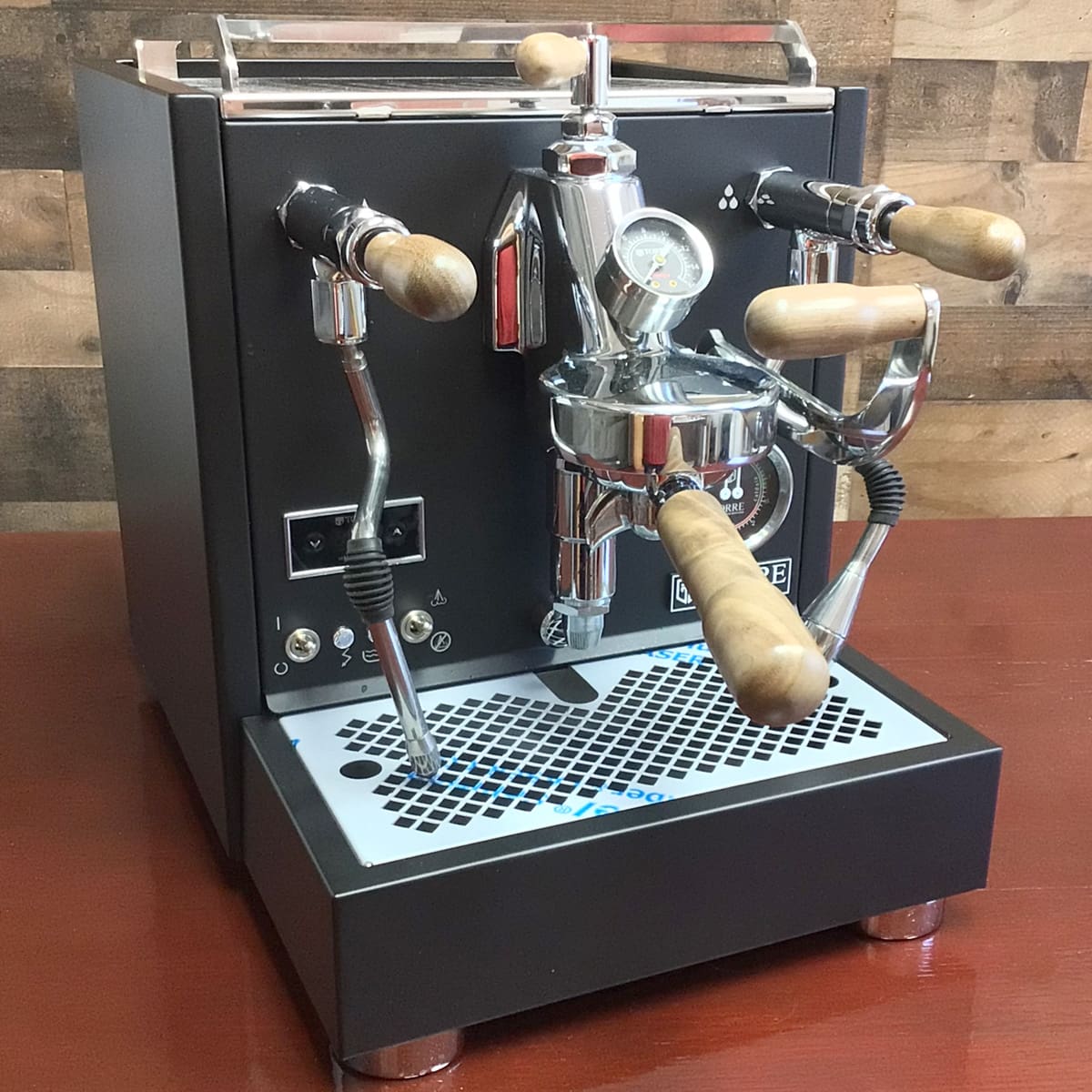

A Torre Mariuccia Dual Boiler Espresso Machine w/ Flow Control (demo) (E313) in chrome and black with wooden handles sits on a wooden surface, featuring flow control gauges, steam wands, and a drip tray against a rustic wood wall. © 2025 1st-line.com
A Torre Mariuccia Dual Boiler Espresso Machine w/ Flow Control (demo) (E313) in black sits on a reddish-brown wooden countertop, with a steam wand on the left and a textured wood wall backdrop. © 2025 1st-line.com

Torre Mariuccia Dual Boiler Espresso Machine w/ Flow Control (demo) (E313)

Original price was: $2,695.00.Current price is: $2,295.00.

This machine was shown at a few trade shows and espresso shots were made using this machine. It has been well kept and in very good shape. We left the white film on the drip tray. Missing original packaging so we cannot ship.

Warranty limited to manufacturer’s defect: 1 year parts & labor

SKU: rrT02RSP1WL1NO-TBFL1ST1 Categories: , , , , , , Tags: ,

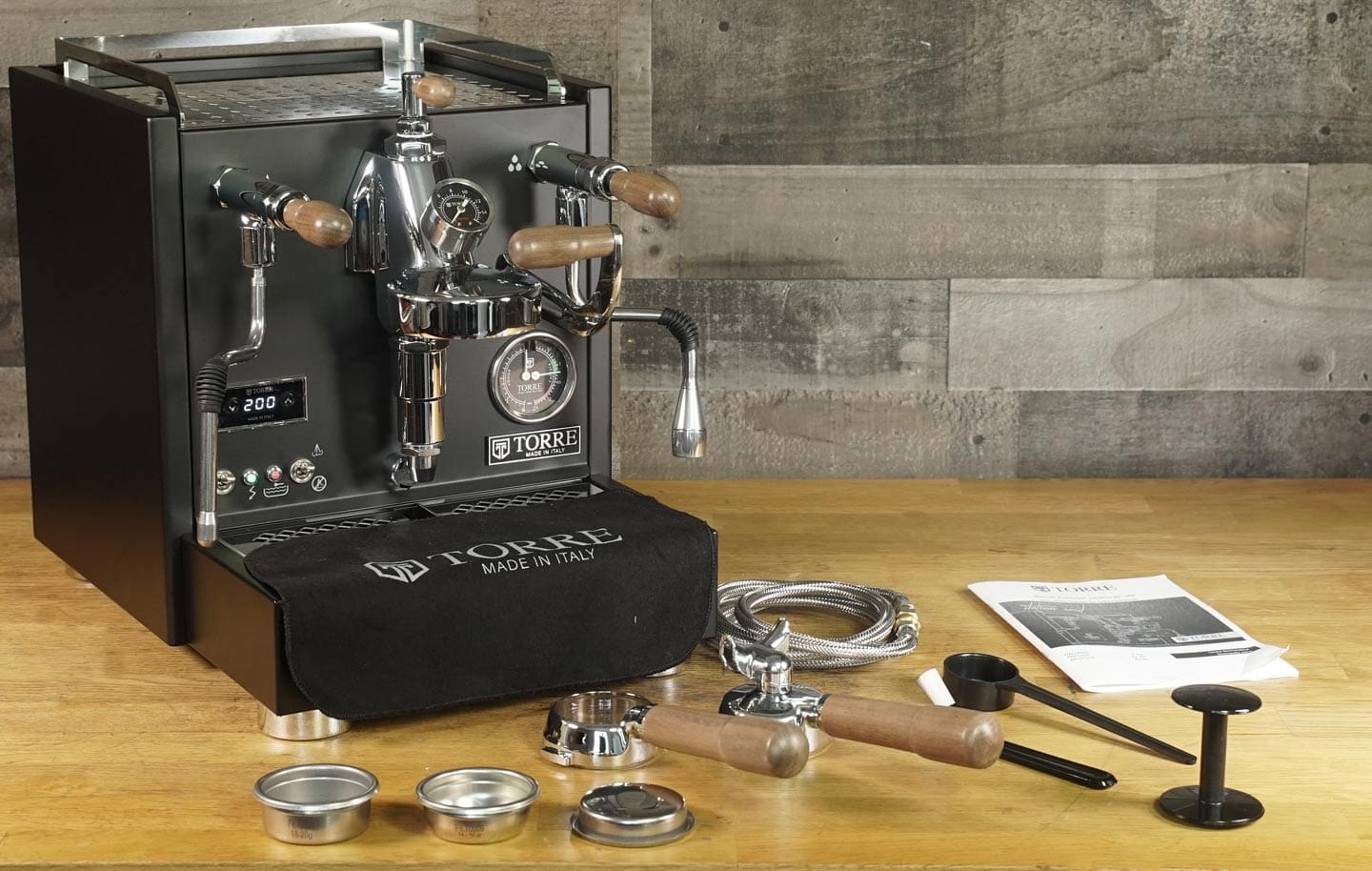

What’s Included

  • Torre Mariuccia Espresso Machine (black color shown)
  • Portafilters: 58mm dual spout, bottomless
  • Filter baskets: 2-cup (14-16 g), 3-cup (18-20 g), blind
  • Tamper: Standard plastic one
  • Coffee scoop: For use with ground coffee
  • Cleaning brush: For grouphead cleaning
  • Cleaning wipe: For overall cleaning of the machine
  • Instruction manual: In Italian, English, & German

Overview

The Torre Mariuccia offers incredible value for your money! This dual boiler espresso machine is plumbable and features flow control, a rotary vane pump, PID and much more!

Featuring quality craftsmanship and a stainless steel frame, the Mariuccia has walnut knobs and handles and is available in stainless steel, black and white.

Videos

7 videos found
Intro: Torre Mariuccia Dual Boiler Espresso Machine
Intro: Torre Mariuccia Dual Boiler Espresso Machine
Easy Programming Features: Torre Mariuccia Espresso Machine
Easy Programming Features: Torre Mariuccia Espresso Machine
Yummy Espresso & Cappuccino from Torre Mariuccia Espresso Machines
Yummy Espresso & Cappuccino from Torre Mariuccia Espresso Machines
How To: Remove Top Panel & Look Inside the Torre Mariuccia Espresso Machine
How To: Remove Top Panel & Look Inside the Torre Mariuccia Espresso Machine
Budget Minded Dual Boiler Rotary Pump Espresso Machine w/ Flow Control
Budget Minded Dual Boiler Rotary Pump Espresso Machine w/ Flow Control
Comparing Side-by-Side: Torre Peppina and Torre Mariuccia Espresso Machines
Comparing Side-by-Side: Torre Peppina and Torre Mariuccia Espresso Machines
Don’t miss this must-try Healthy Espresso Beverage Recipe!
Don’t miss this must-try Healthy Espresso Beverage Recipe!

Features

Dual Boiler System

  • Stainless steel, insulated: The boilers are made of stainless steel which is less susceptible to limescale. Typically stainless steel boilers do not retain their heat as well as copper or brass boilers. The insulation over the stainless steel boilers assists in retianing heat.
  • Pull a shot & steam milk at the same time: Steam is always readily available. Therefore there is no wait time going from coffee to steam mode. It works well if entertaining a small group of people.
  • Auto refill: A sensor in the boiler detects when the water in the boiler is low. This prevents burning out the heating element.

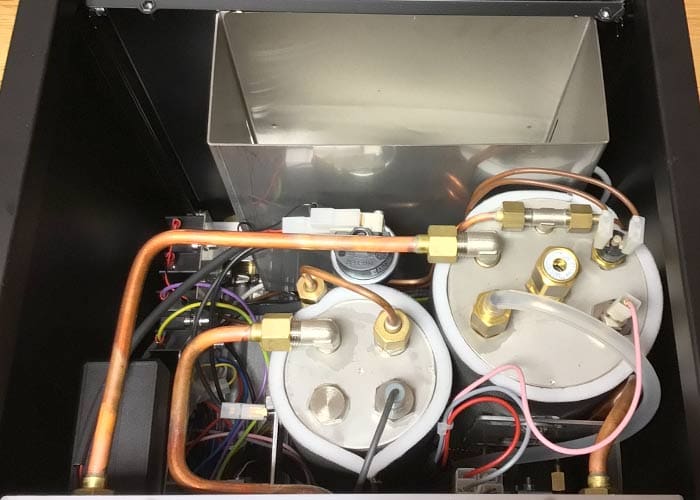

Inside view of the Torre Mariuccia Dual Boiler Espresso Machine w/ Flow Control, revealing two cylindrical metal boilers, copper pipes, wires, connectors, and valves that showcase its internal components and flow control system. © 2025 1st-line.com

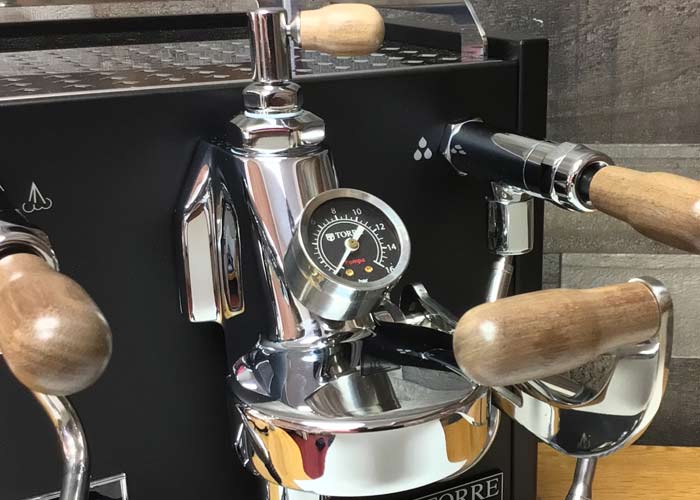

Close-up of the Torre Mariuccia Dual Boiler Espresso Machine w/ Flow Control, featuring shiny metal, wooden handles, and a central pressure gauge showcasing its flow control function against a dark background. © 2025 1st-line.com

E61 Grouphead

  • Constantly Heated: Hot water circulates from the boiler through the grouphead and back to keep the grouphead and your portafilter nice and hot. This keeps the grouphead at a constant, stable temperature compared to other groupheads that have a built-in heating element.
  • ERGOLIFT Lever: A new look on the activation lever of the grouphead.
  • Pressure Gauge: Measures the actual pressure readout at the grouphead level.

PID Controls

  • Coffee boiler temperature: Adjust the temperature of the water in the coffee boiler.
    Unit of measurement: Switch from Celsius to Faranheit.

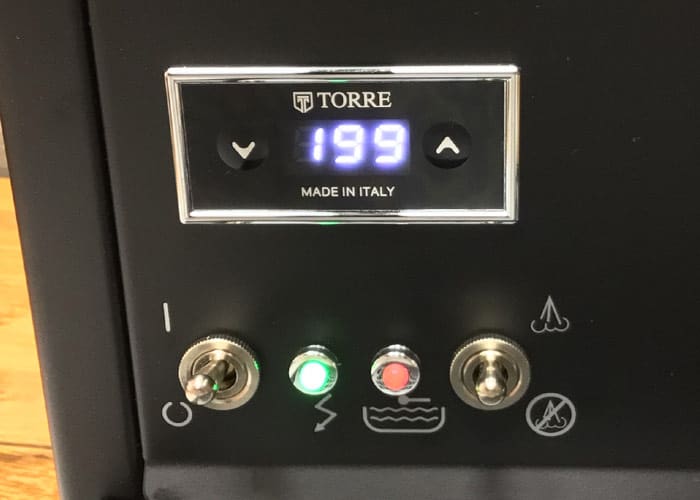

Close-up of a digital display showing 199 on the Torre Mariuccia Dual Boiler Espresso Machine w/ Flow Control, with Made in Italy beneath. Below are three switches and indicator lights for power, water, steam, and flow control. © 2025 1st-line.com

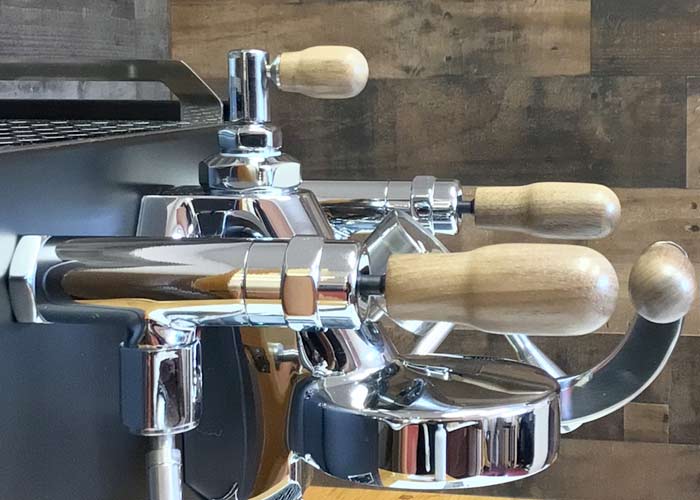

Close-up of the Torre Mariuccia Dual Boiler Espresso Machine w/ Flow Control, featuring shiny metal, wooden handles, portafilters, steam wand, and advanced flow control, set against a wood-patterned background. © 2025 1st-line.com

Steam / Hot Water Wand

  • Joystick knobs: Quick action controls. Each knob locks in any direction for hands-free operation.
  • Multi-directional wands: Allows for more movement and flexibility depending on the size of your pitcher or cup. 2-hole steam tip: Allows for a slow gradual build-up of microfoam. More steam tip holes mean faster frothing but also steam runs out quicker.

Switchable Tank / Direct Water Line Connection

  • Open top reservoir: Easy to clean. Easy to fill. However, to avoid spillage, we recommend removing the water tank when filling with water. Remember to use the OSCAR pack to soften your water (replacements available).
  • Easy transition: After hooking up the water line hose (included) to your machine, all you need to do is flip a switch behind the drip tray. For direct connect water softening we recommend BWT.
Close-up of the Torre Mariuccia Dual Boiler Espresso Machine w/ Flow Control shows its control panel with water tap symbol, water level indicator, and black power switch off. A wooden surface at Torre Mariuccia is visible in the background. © 2025 1st-line.com
Close-up of a round pressure gauge on a black Torre Mariuccia Dual Boiler Espresso Machine w/ Flow Control, labeled TORRE Italian Coffee Machines, with the needle in the green zone and a TORRE MADE IN ITALY logo below. © 2025 1st-line.com

Dual Pressure Gauge

  • Pump pressure: Located on the left side of the gauge. Measures the bar pressure in the grouphead during extraction. The optimal pressure is around 9-10 bar.
  • Steam pressure: Located on the right side of the gauge. Measure the amount of steam pressure built up. Optimal range is between 0.8 and 1.2 bar.

Rotary Vane Pump

  • Quiet operation: Rotary pumps are necessary for direct water line capable machines since vibration pumps cannot handle the incoming water pressure. The main benefit that you will experience is that they are a lot quieter.
  • Adjustable: The adjustment screw is located underneath the water tank. A more convenient spot compared to other machines where you have to remove the body panel to access.
Upload Image...

Specifications

Brand

Torre
Height (inches)

15.5, approximate
Width (inches)

13, approximate
Depth (inches)

17.5, approximate
Weight (pounds)

58
Wattage (watts)

Coffee – 1100, Steam – 1000
Voltage (volts)

110 – 120
Tank capacity (liters)

2.2
Boiler capacity (liters)

Coffee – 0.75, Steam – 1
Portafilter size (mm)

58

Notes

  • The Mariuccia uses lead free components.
    • Stainless Steel boilers with lead free brass fittings.
    • Lead free brass group.
    • Lead free brass taps.
    • Lead free brass filter holders.
  • Effective Dec 6, 2024, Torre espresso machines can come with SSR Relays either from Panasonic or Carlo Gavazzi.

General Espresso Machine Notes/Warnings:

  • Upon first use (tank/reservoir models): On the initial start-up (or after a long period of non-use), it is important to make sure the pump is removing water from the tank. When the machine is powered on, you will hear the pump running. After 5 seconds, squeeze the in-line hose in the tank (usually the longest hose, has a particle filter attached). if you hear a different sound, this means the pump is working correctly. If not, immediately power down the machine and contact us. For more information, visit this page General Manual Pump Priming.
  • Electrical: To avoid electrical damage to this espresso machine which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. Without the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat, or the wiring inside. For more information, visit this page Power Protection.
  • Water: To increase the useful life and not damage your espresso machine, please use softened water. Softened water is water without calcium and magnesium, but still has other minerals for espresso extraction. Do not use distilled, purified, or reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale. For more information, visit this page Water Choice.
  • Descaling: We do not recommend descaling unless there is an issue with the espresso machine. Too much descaling can eat away at the metals and gaskets inside an espresso machine. As a preventative measure, we recommend using softened water as explained in the bullet point above.
  • Backflushing: This procedure of cleaning the grouphead will need to be performed from time to time. For more information, visit this page Espresso Machine Backflush – Why 50?

Support

Parts Diagram

Finding your part
  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website.
    Note: These parts diagrams are provided by the manufacturers. We list them on our site for informational purposes only. We do not stock every single part listed nor can we guarantee that every part is available to order.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
  • Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.

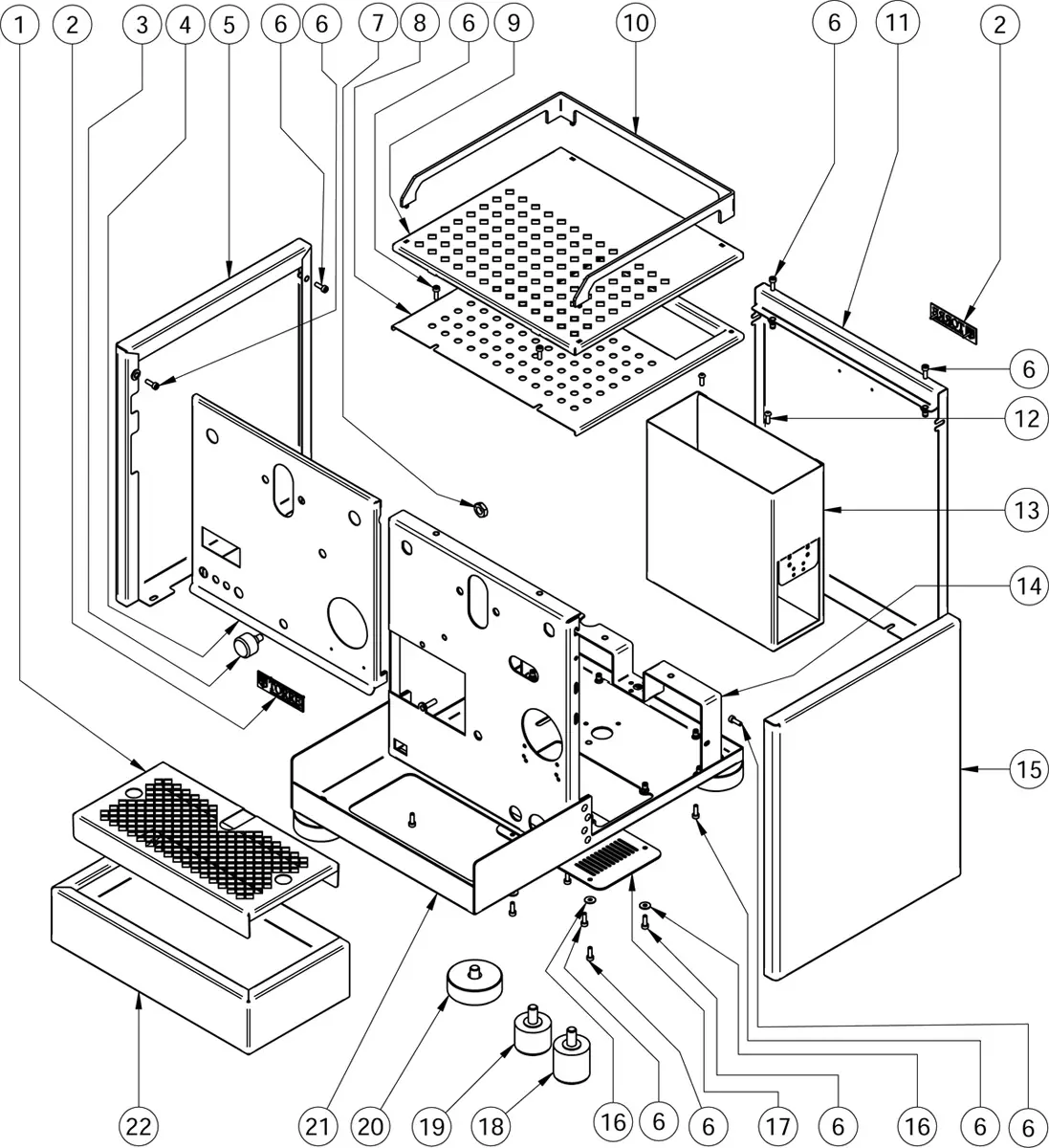

Exploded parts diagram of the Torre Mariuccia electronic device casing, featuring numbered panels, frames, screws, a fan, and a vented component, all shown without visible labels to illustrate assembly and fit. 2025 1st-line.com
# SKU
1 T02APP002
2 TARG0001
3 RACCS005
4 T02FRO005
5 T02FIA002
6 VITE4001
7 DADO1801
8 T02SUP003
9 T02SCA003
10 T02RAI001A
11 T02POS001
12 VITE4003
13 T02POR001
14 T02SUP004
15 T02FIA001
16 RONDP401
17 T02BAS001C
18 PIED0003
19 PIED0002
20 APIED001
21 ABAS0002
22 T02BAC001

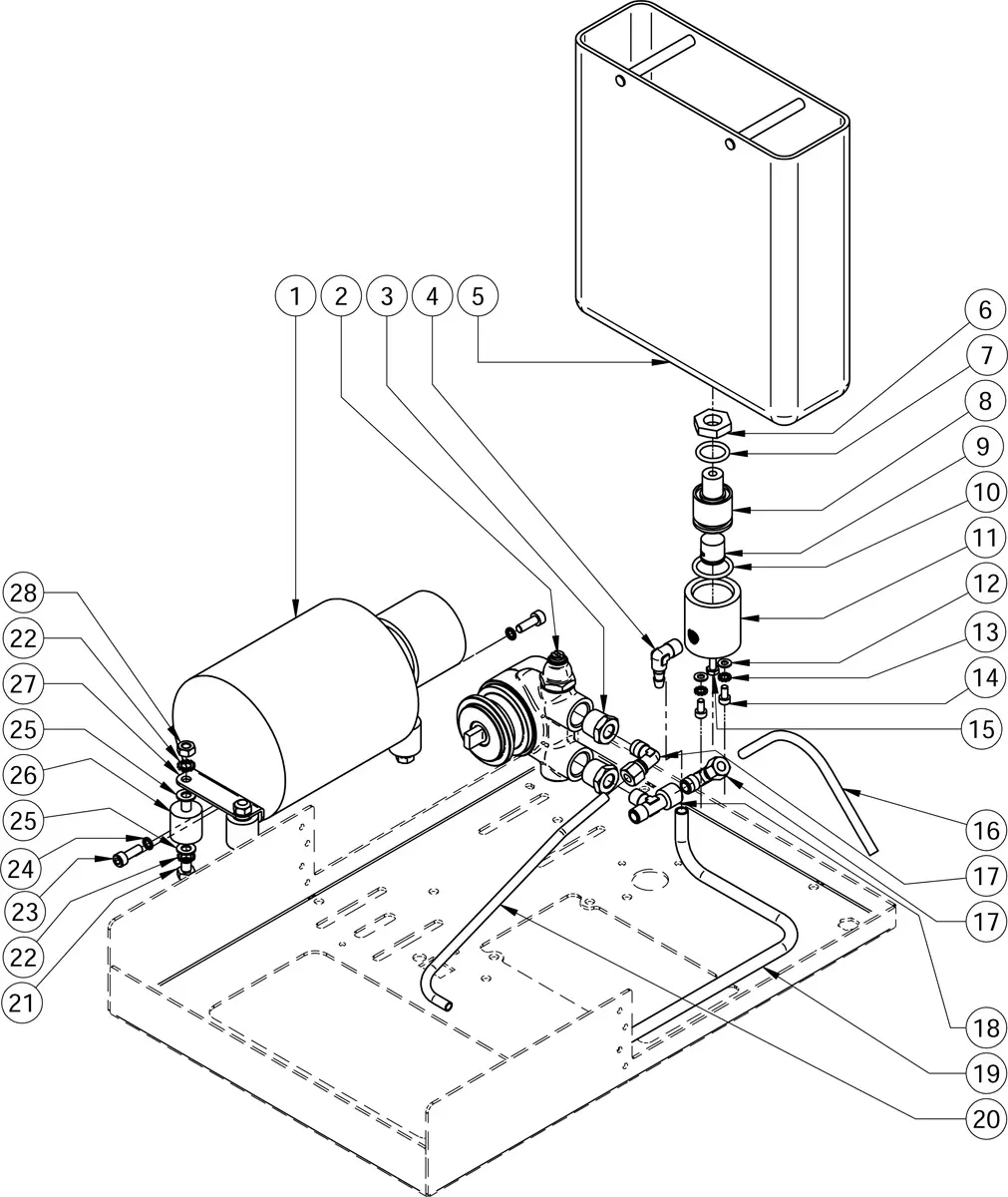

Exploded parts diagram of a mechanical assembly, including a tank, pipes, valves, and various numbered components—each part is labeled and connected by lines to a detailed parts list for Torre Mariuccia. 2025 1st-line.com
# SKU
1 MOTO0001 (220/230-240V)
MOTO0002 (110-120V)
2 POMP0002
3 RACCR001
4 RACCL009
5 TANI0002
6 DADO1401
7 GUAR0010
8 RACCS001
9 VALV0005
10 GUAR0011
11 RACCS004
12 RONDP402
13 RONDP401
14 VITE4008
15 VITE4002
16 TUBT0004
17 RACCL004
18 RACCT004
19 TUBS0011
20 TUBT0005
21 VITE6001
22 RONDD601
23 VITE5001
24 RONDD501
25 RONDP601
26 VIBR0001
27 T02SUP002
28 DADO6001

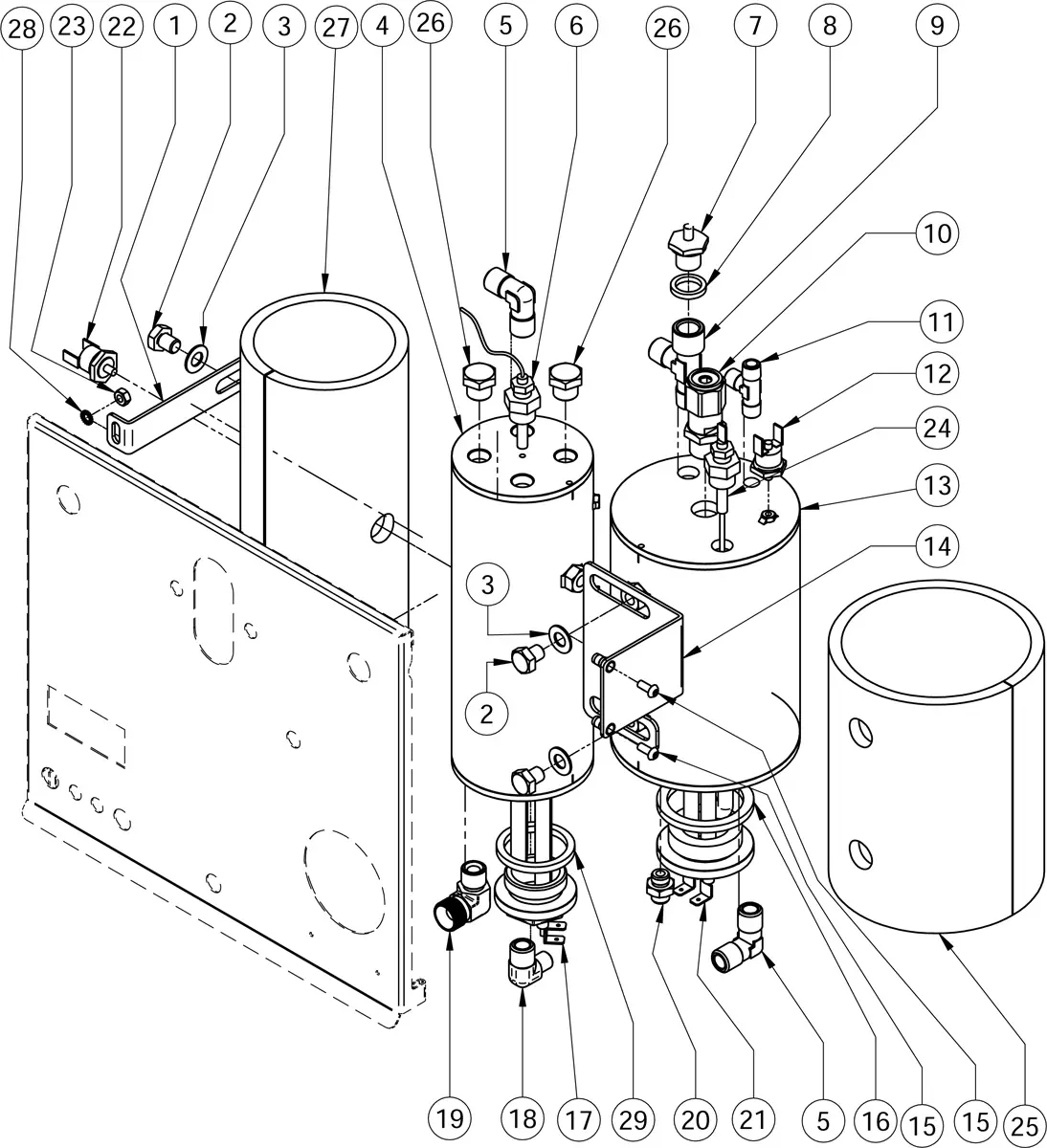

Exploded Parts Diagram of a mechanical device with numbered components, including tanks, pipes, valves, connectors, a control panel, and various fittings arranged in a labeled, technical illustration inspired by Torre Mariuccia. 2025 1st-line.com
# SKU
1 T02SUP008
2 VITE8001
3 RONDP802
4 CALD0005
5 RACCL001
6 SOND0004
7 VALV0004
8 GUAR0004
9 RACCT002
10 VALV0003
11 RACCT001
12 TERM0003
13 CALD0002
14 T02SUP006
15 VITE4003
16 GUAR0005
17 RESI0001 (230-240V)
RESI0005 (110-120V)
18 RACCL007
19 RACCL008
20 RACCD003
21 RESI0003 (230-240V)
RESI0007 (110-120V)
22 TERM0004
23 DADO5001
24 SOND0005
25 ISOL0004
26 RACC0002
27 ISOL0002
28 RONDD501
29 GUAR0002

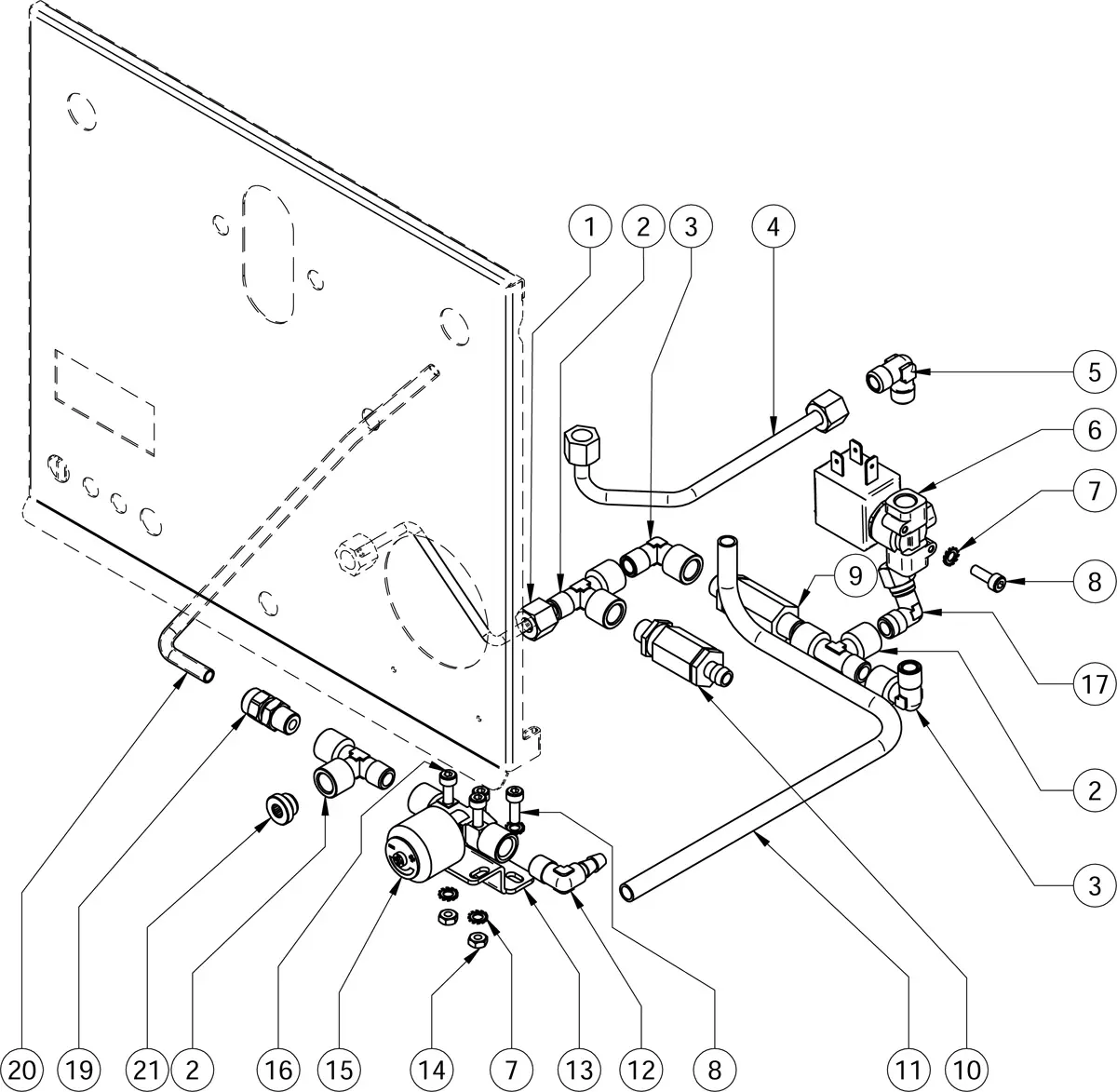

Exploded Parts Diagram of a mechanical assembly with multiple numbered components, pipes, fittings, and a panel. Each part is separated for clarity and labeled with reference numbers—ideal for referencing Torre Mariuccia equipment. 2025 1st-line.com
# SKU
1 T02TU005
2 RACCT005
3 RACCL005
4 T02TU004
5 RACCL002
6 EV223001
7 RONDP401
8 VITE4001
9 VALV0002
10 VALV0001
11 TUBS0011
12 RACCL009
13 T02SUP007
14 DADO4001
15 RUBIR001
16 VITE4004
17 RACCL004
19 RACCD006
20 TUBS0011
21 RACC0003

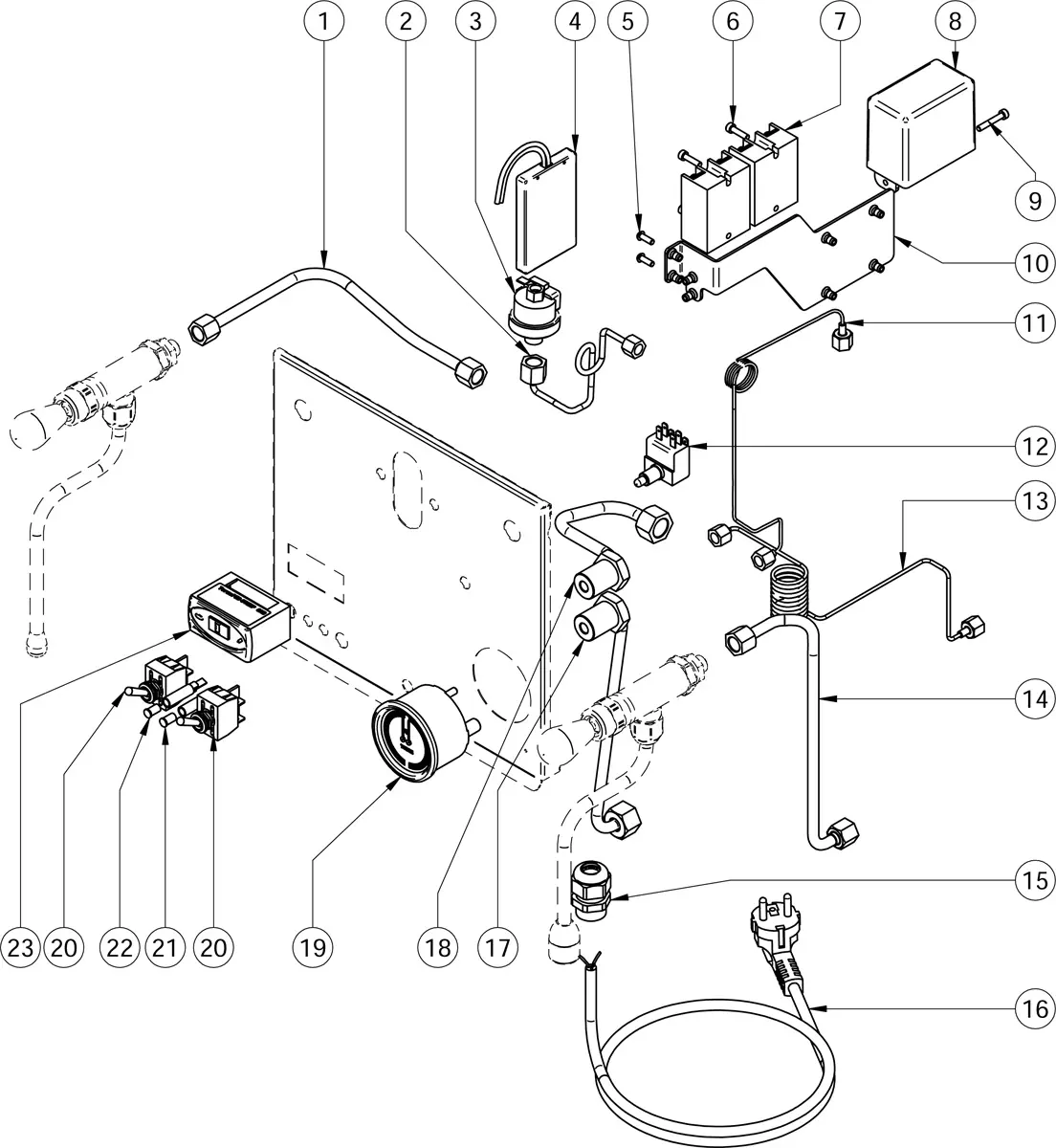

Exploded Parts Diagram of an electrical device showing labeled components, including wires, switches, a circuit board, connectors, power cord, valves, and mounting plate—each part numbered for easy identification. Inspired by Torre Mariuccia. 2025 1st-line.com
# SKU
1 T02TU003
2 T01TU002
3 PRES0001
4 SOND0002
5 VITE4003
6 VITE4004
7 RELA001
8 LIV23002 (230-240V)
LIV11502 (115V)
9 VITE4007
10 T02SUP010
11 TUBR0001
12 INTE0006
13 TUBR0002
14 T02TU006
15 PASS0001
16 CAVO0001
17 T02TU002
18 T02TU001
19 MANO0001
20 INTE0002
21 LAMP0001
22 LAMP0002
23 TERM23002 (230V)
TERM11002 (110V)

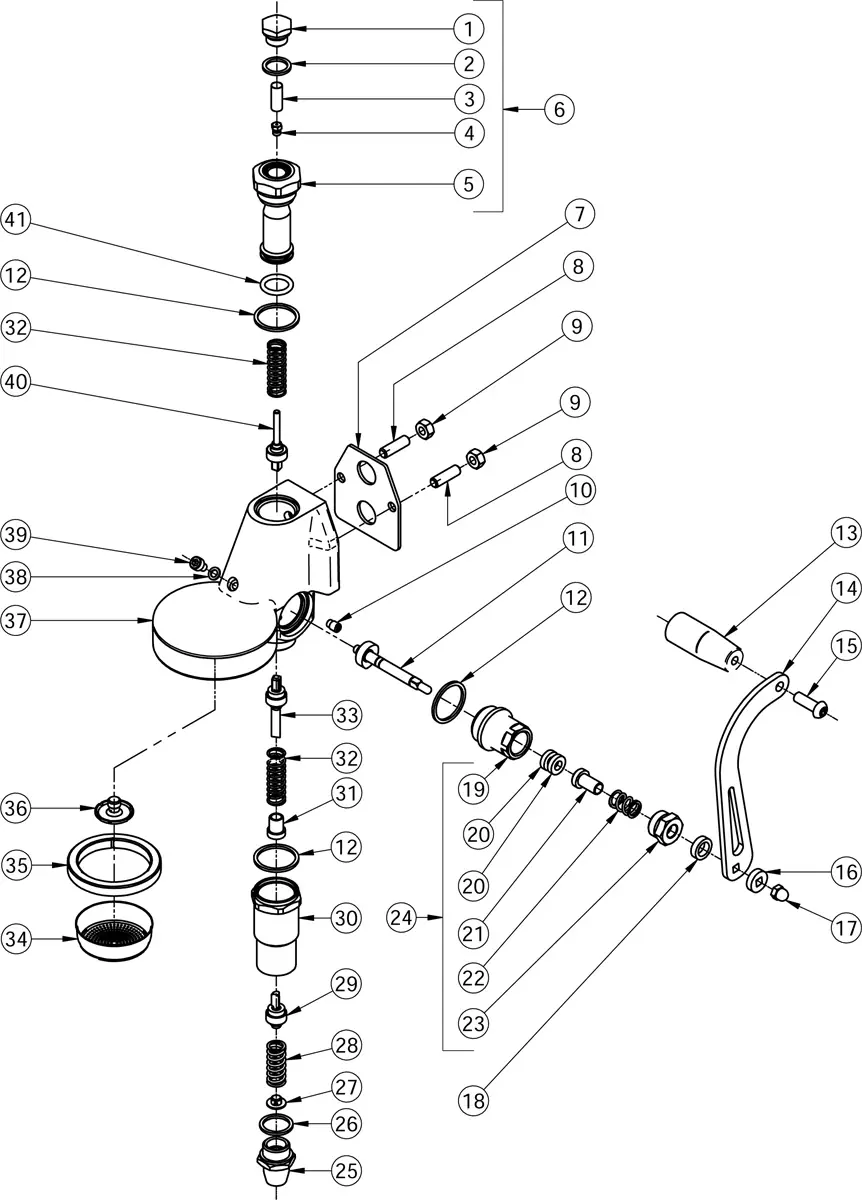

Exploded parts diagram of a mechanical device, showing numbered components like screws, washers, springs, a handle, and mounting hardware—perfect for assembly reference or detailing mechanisms such as those in Torre Mariuccia. 2025 1st-line.com
# SKU
1 RGRU0001
2 RGRU0002
3 RGRU0003
4 RGRU0004
5 RGRU0005
6 RGRU0006
7 GUAR0001
8 RGRU0007
9 DADO8001
10 RGRU0008
11 RGRU0009
12 RGRU0010
13 MANP0001
14 T01LEV001
15 VITE8004
16 T01R0N001
17 DADO6002
18 T01R0N002
19 RGRU0011
20 RGRU0012
21 RGRU0013
22 RGRU0014
23 RGRU0015
24 RGRU0016
25 RGRU0017
26 RGRU0018
27 RGRU0019
28 RGRU0020
29 RGRU0021
30 RGRU0022
31 RGRU0023
32 RGRU0024
33 RGRU0025
34 RGRU0026
35 RGRU0027
36 RGRU0028
37 RGRU0029
38 RGRU0030
39 RGRU0031
40 RGRU0032
41 RGRU0033

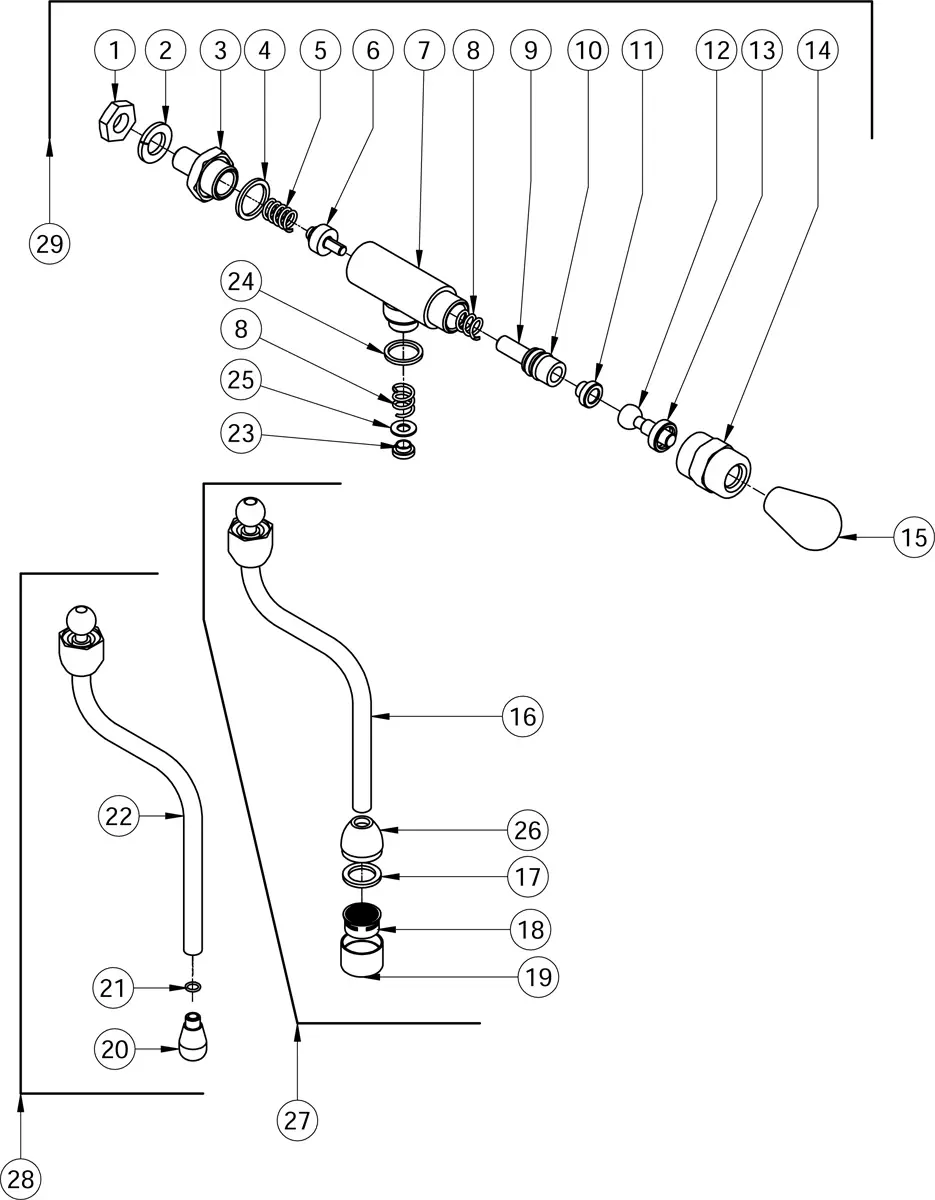

Exploded Parts Diagram of a faucet assembly with numbered components, including a handle, spout, connectors, washers, nuts, and other internal parts—all displayed separately for identification. Ideal for Torre Mariuccia fixtures. 2025 1st-line.com
# SKU
1 DADO1401
2 RONDG1401
3 RRUB0019
4 RRUB0020
5 MOLLA-V
6 RRUB0022
7 RRUB0023
8 RRUB0024
9 RRUB0025
10 RRUB0026
11 RRUB0027
12 RRUB0028
13 RRUB0029
14 RRUB0030
15 MANP0007
16 RRUB0031
17 RRUB0013
18 RRUB0012
19 RRUB0032
20 RRUB0033
21 RRUB0034
22 RRUB0035
23 23119005
24 RRUB0037
25 RRUB0038
26 RRUB0039
27 LANCA001
28 LANCV001
29 RUBIL0001

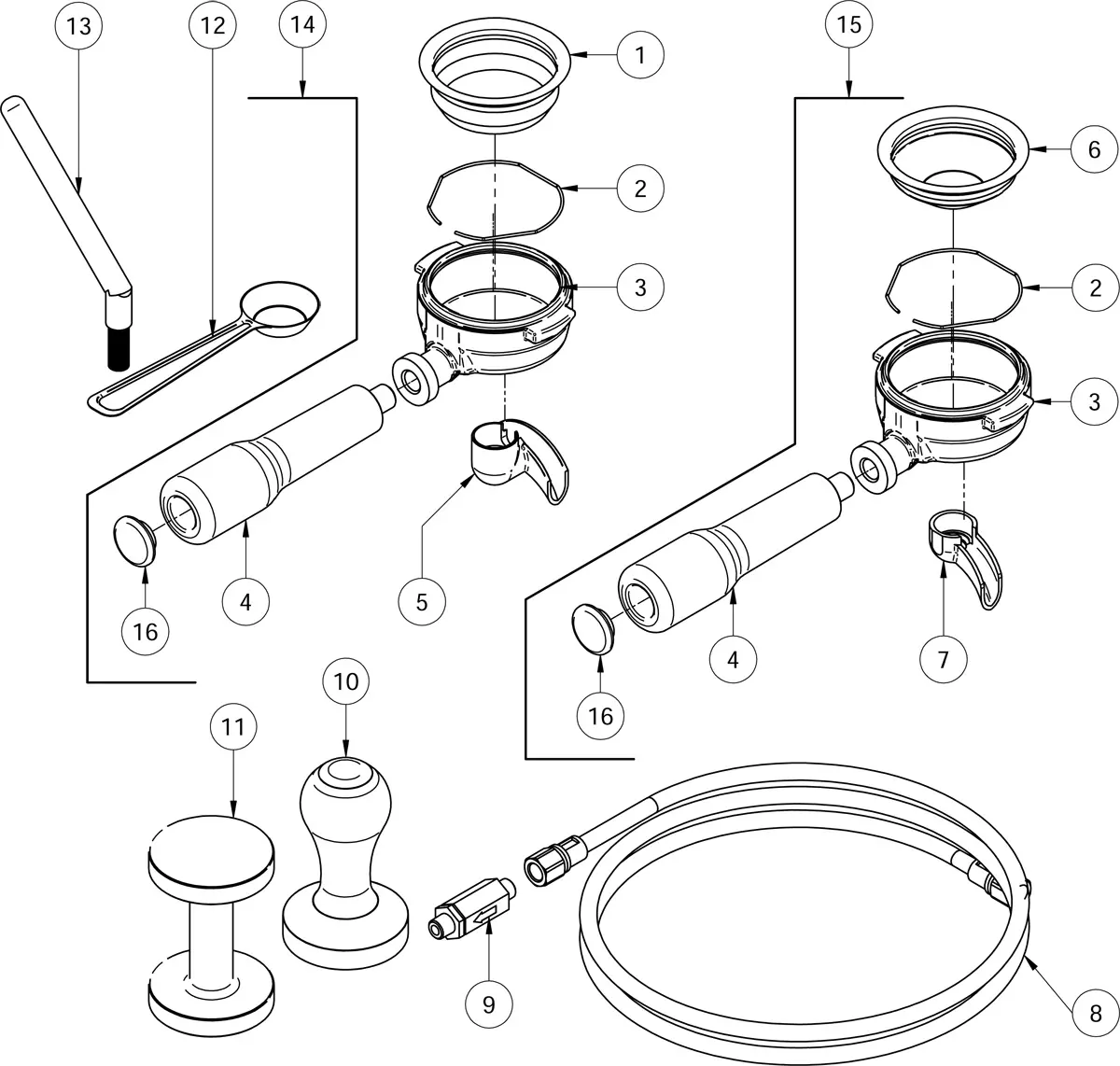

Black and white line drawing Parts Diagram of espresso machine portafilter assembly parts, including handles, baskets, rings, gaskets, filter, tamper, brush, spoon, hose, and small valve from Torre Mariuccia—each with numbered labels. 2025 1st-line.com
# SKU
1 FILT0003
2 ANEL0001
3 PTFL0001
4 MANP0005
5 BECC0002
6 FILT0002
7 BECC0001
8 FLEX0003
9 VALV0002
10 TAMP0002
11 TAMP0001
12 MISU0001
13 SPAZ0001
14 APTF2001
15 APTF1001
16 TAPP0001

Reviews

[yith_ywar_show_reviews_form product_id=318483]

Q & A

Ask a question

Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

    Hello , I find myself in the market again , for an espresso machine . I am very interested in the ; Torre Mauriccia you have on mark down. as well as the ACS Minima and the new Magister Stella. they all have copper plumbing which is important to me . $2300 is really my top . I had used a Salvatore one black machine for over a decade it was semi auto hx machine . I have some experience . double boiler rotary pump pid copper plumbing small footprint I dont know how to use flow control , I am looking for something to last a long time I am relatively local about an hour away. any input would be appreciated . I am looking to purchase soon. kind regards
  1. 0 votes
    Q Hello , I find myself in the market again , for an espresso machine . I am very interested in the...... Read more answer now
    Asked by kadu lennox on August 8, 2025 2:06 pm
    Answered by the admin

    Thank you for your inquiry. First, we are deeply sorry that the person setting up the Mariuccia page made an error. Both boilers are stainless steel.

    The Stella is a similar machine with a different body design and not built with flow control. Pump is rotary just like the Mariuccia. Boilers are in copper.

    Minima has stainless steel boilers with a vibration pump. Flow control is optional.

    Second, flow control takes practice, but can improve the quality of the espresso in the cup.

    Third, as for longevity, espresso machines do not last forever. It depends on the quality of the softened water, protection from electrical surges, and maintenance performed a well as usage patterns.
;
