-20%

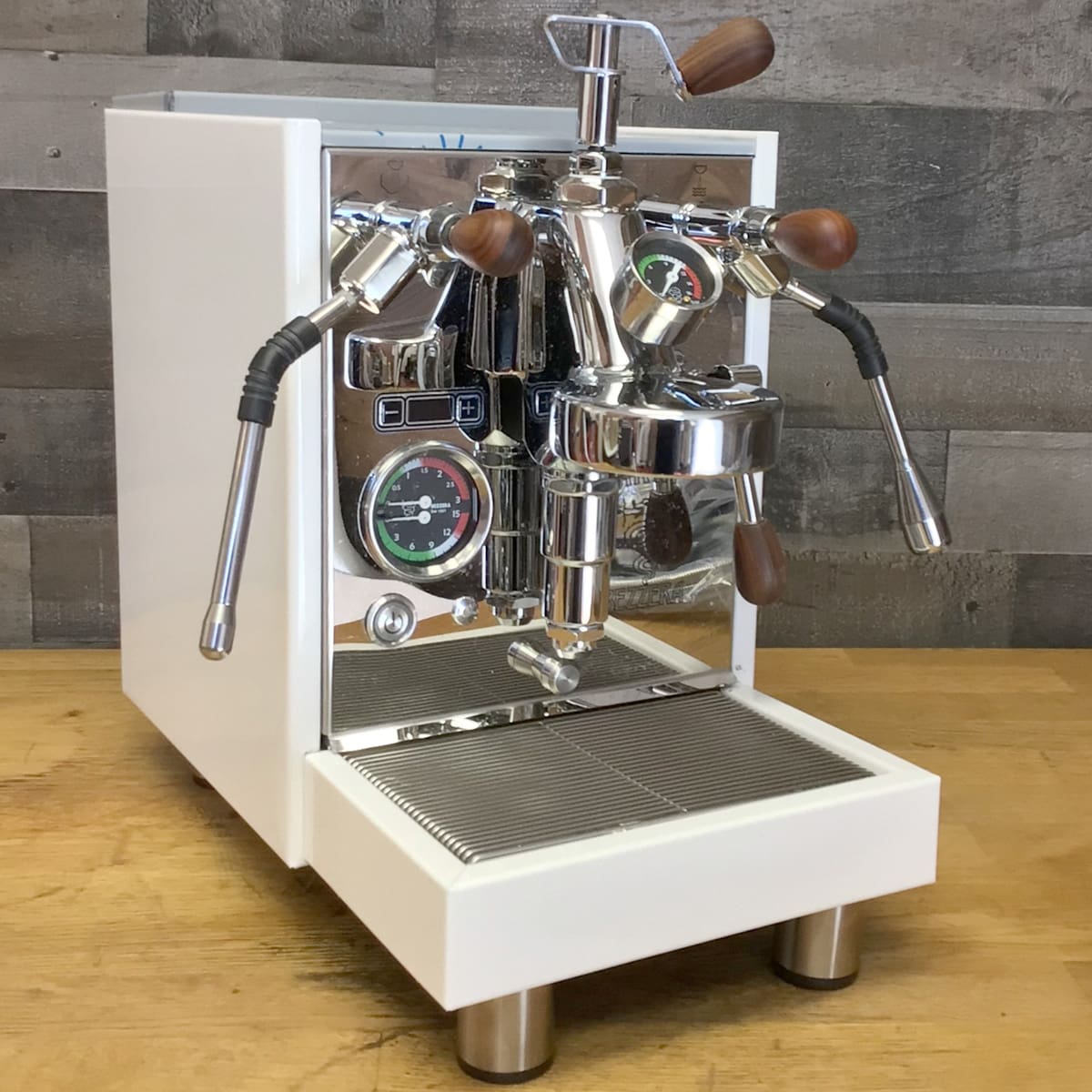

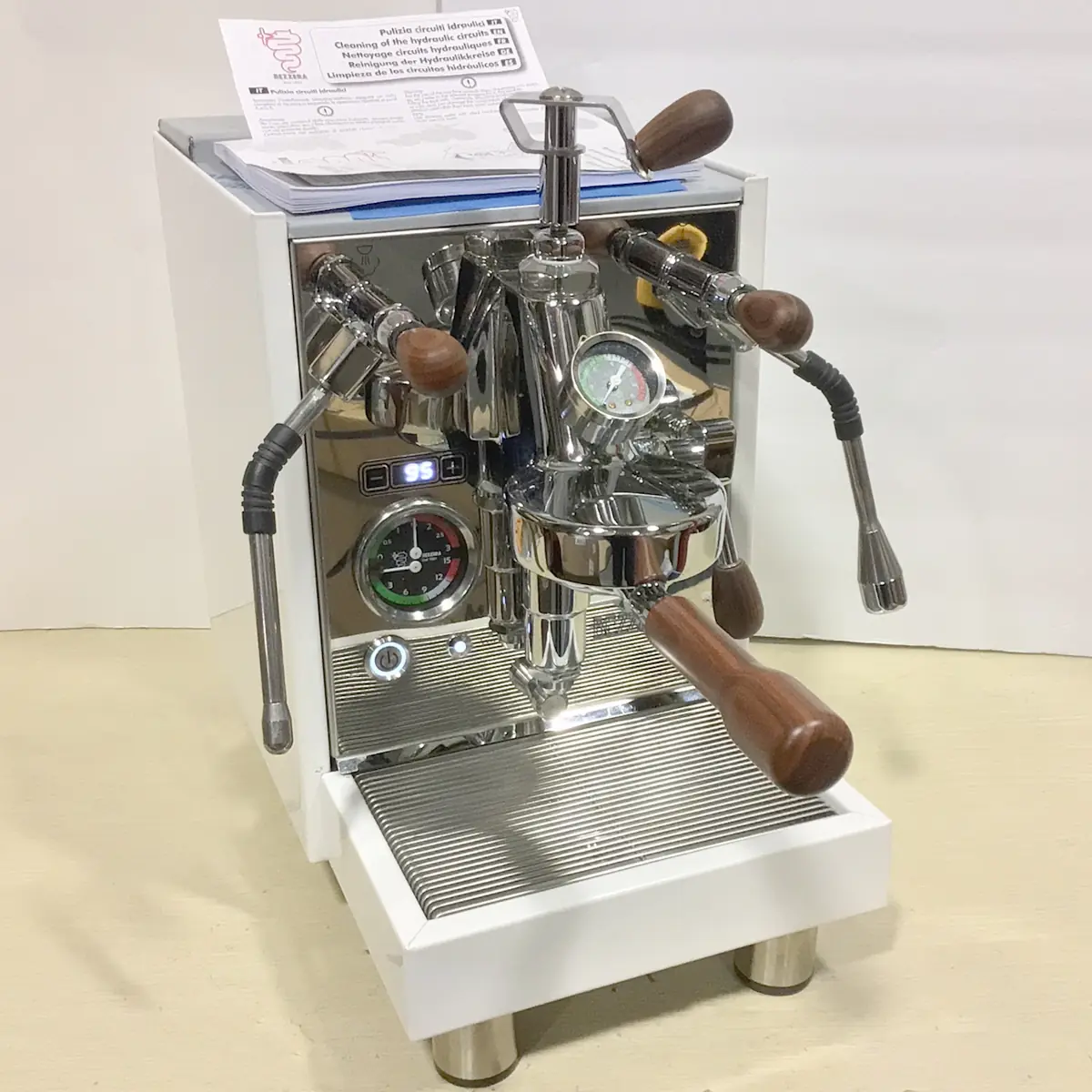

A RETURNED & REFURBISHED Bezzera Aria HX Special Edition Espresso Machine with flow control and chrome accents sits on a wooden countertop against a wood-paneled wall. © 2025 1st-line.com

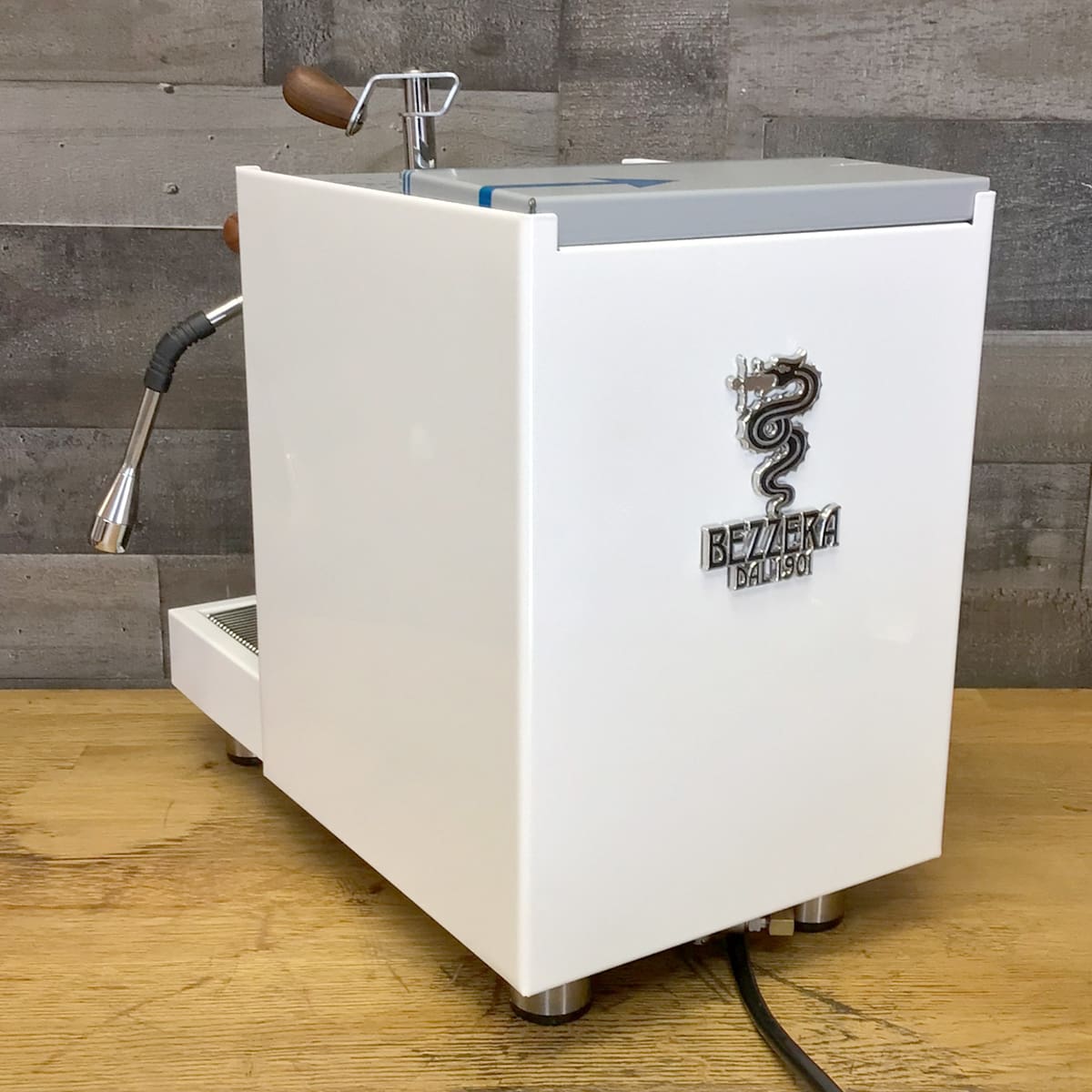

A RETURNED & REFURBISHED Bezzera Aria HX Special Edition Espresso Machine w/ Flow Control (C104) with a steam wand and wooden handles sits on a wooden countertop against a gray wall—ideal for flow control espresso fans. © 2025 1st-line.com

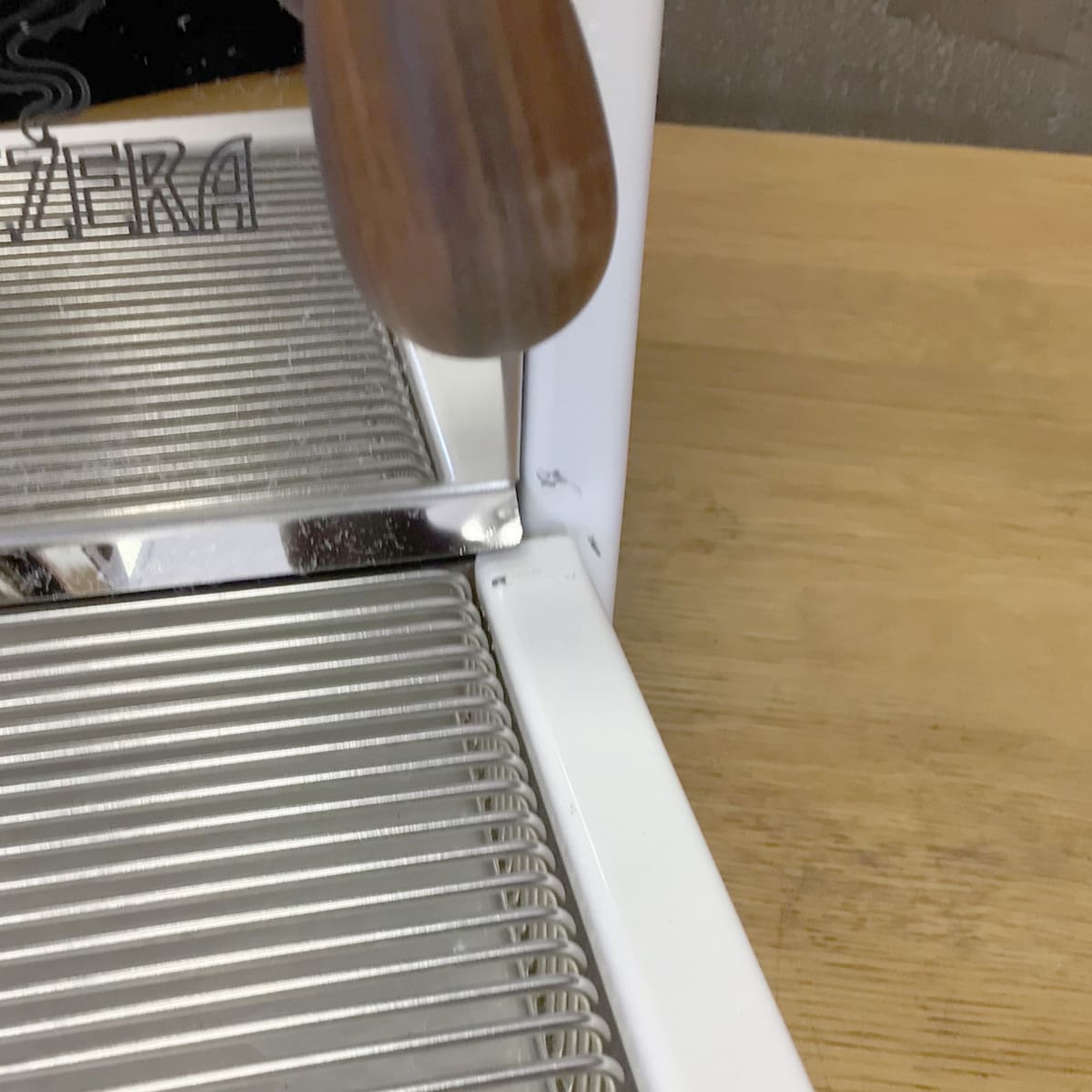

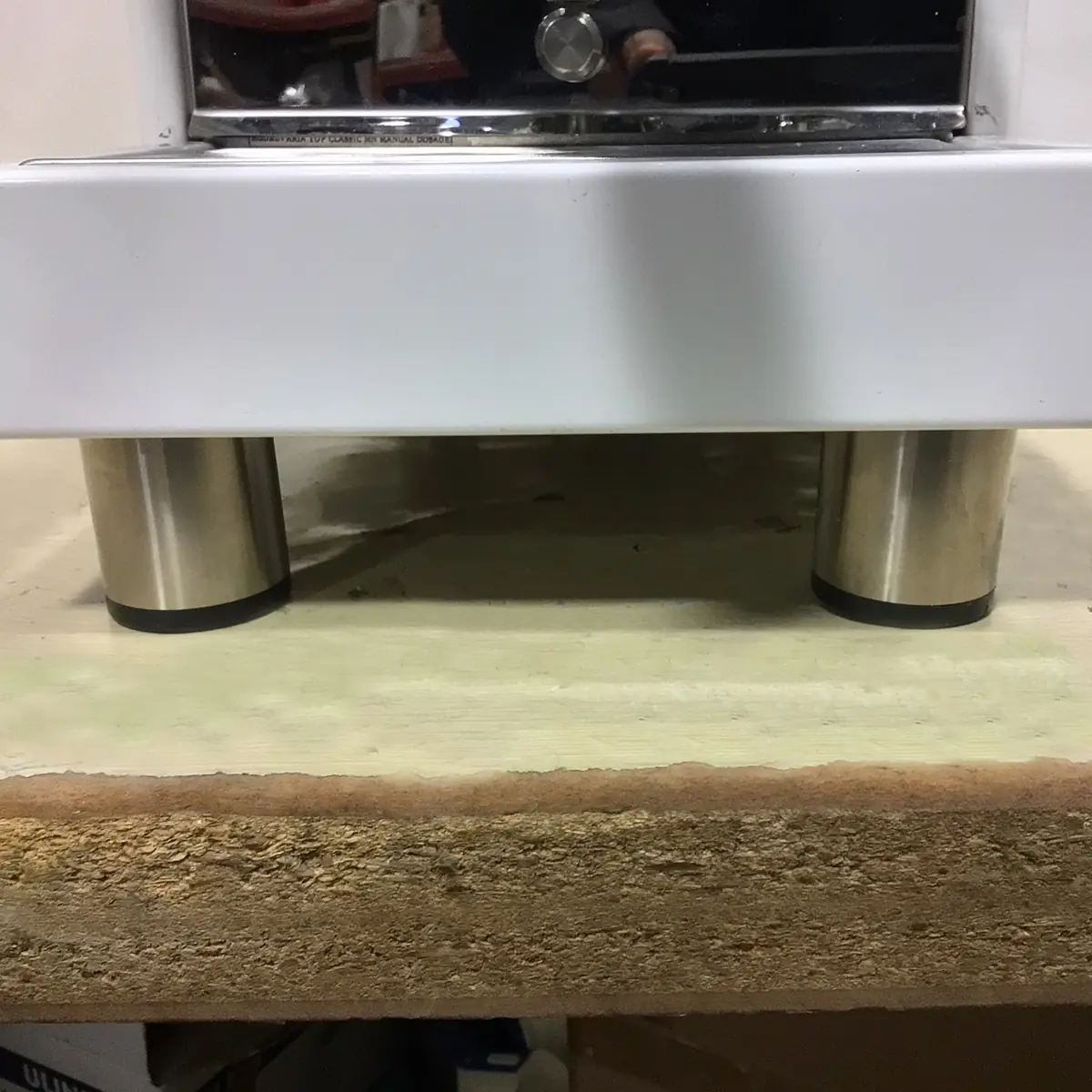

A close-up of the lower front of a RETURNED & REFURBISHED - Bezzera Aria HX Special Edition Espresso Machine w/ Flow Control (C104), highlighting its metallic legs and white drip tray on a wooden countertop. © 2025 1st-line.com

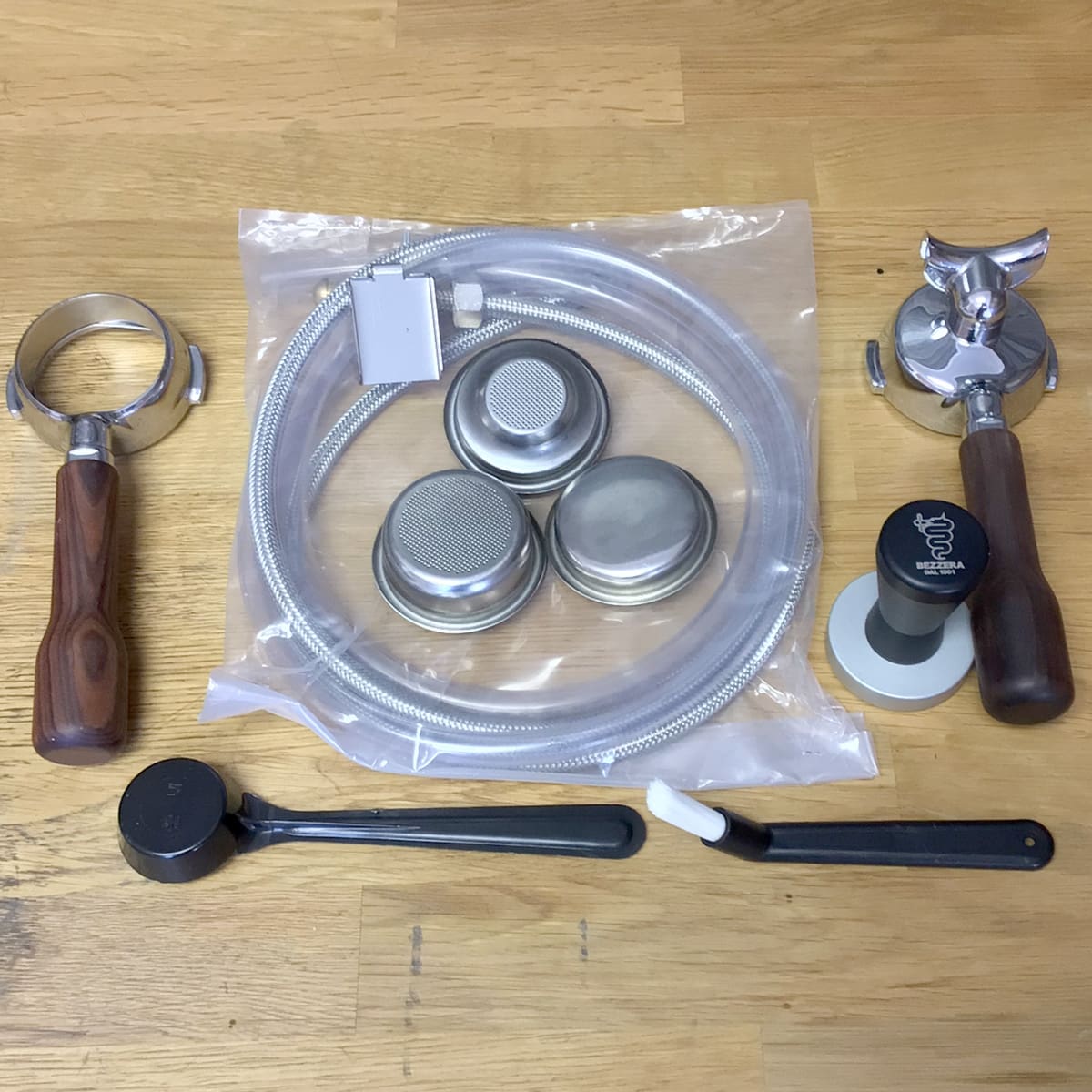

Assorted espresso accessories—portafilters, baskets, tamper, dosing tool, and brush—perfect for maintaining your RETURNED & REFURBISHED Bezzera Aria HX Special Edition Espresso Machine with Flow Control (C104). © 2025 1st-line.com

RETURNED & REFURBISHED – Bezzera Aria HX Special Edition Espresso Machine w/ Flow Control (C104)

~~$2,471.00~~ $1,976.00

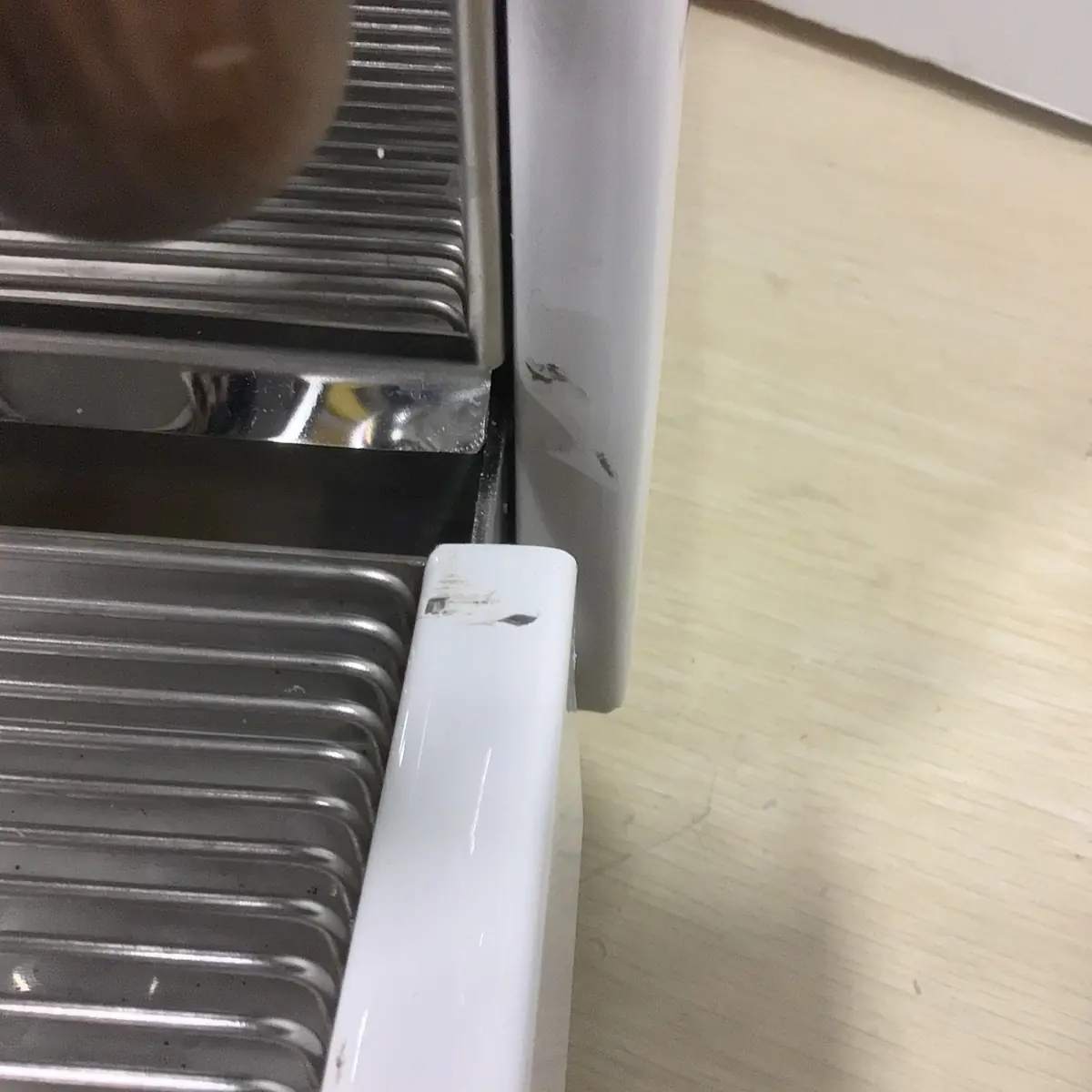

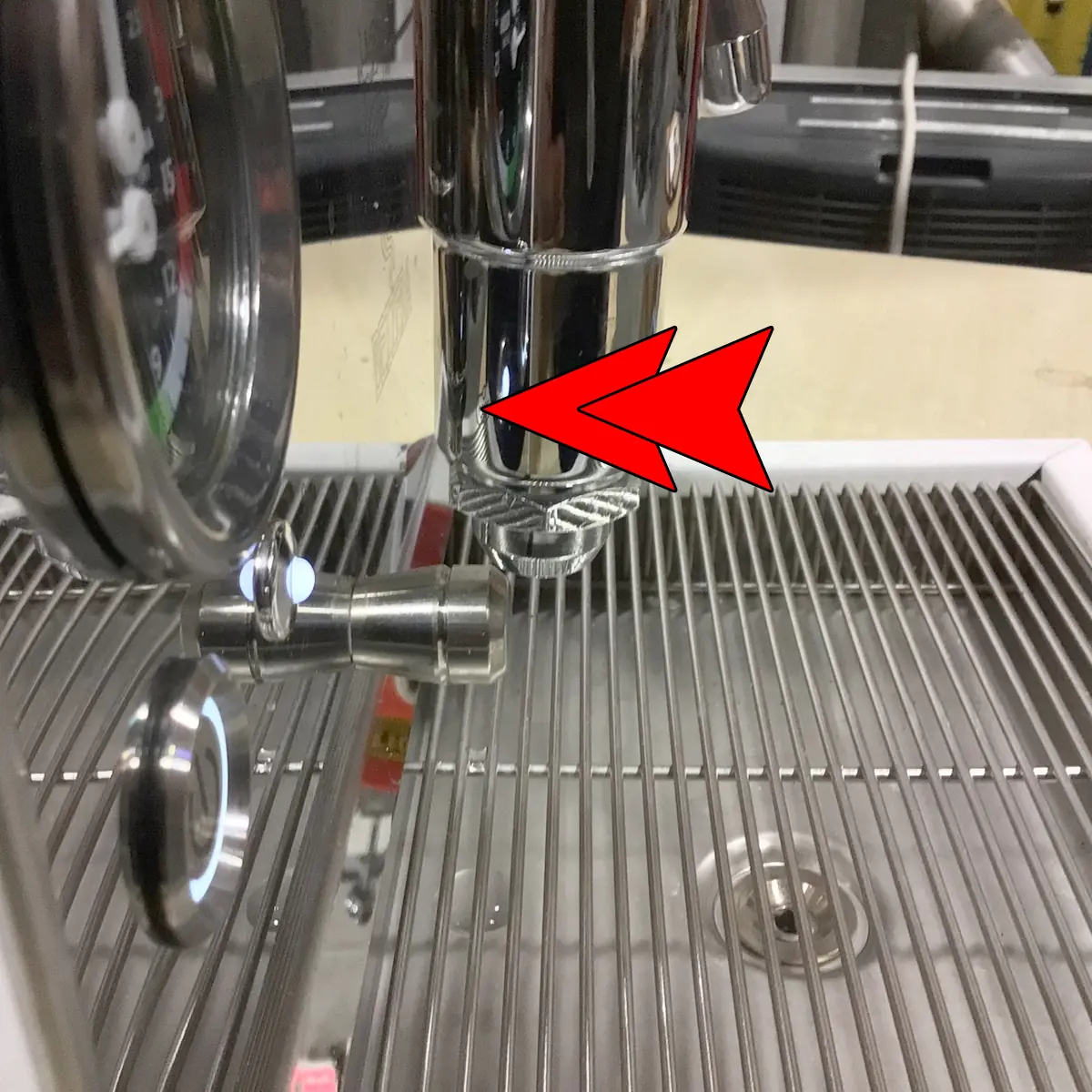

This unit was damaged in transit to a customer. The front frame was bent. Our technician straightened it as best as possible. One of the front feet is a little angled, but if you unscrew a little bit, the machine will be level. There is also some scratches where the tray touches the front panel.

Warranty limited to manufacturer’s defect: 6 month parts and labor.

Terms & Conditions of Sale

Warranty limited to manufacturer's defect

Select Color

Clear

SKU: rrARIAHXWT Categories: Bezzera Espresso Machines & Espresso Machine Parts, Coupon Excluded, Equipment, Refurbished Espresso Machines & Equipment, Shop All Espresso Machines Tag: Heat Exchange (HX) Espresso Machines

Overview

Introducing the Bezzera Aria, our latest heat exchanger and a special edition model custom made exclusively for 1st-line Equipment! What sets this machine apart? The Bezzera Aria Special Edition features plain clean side panels that offer a simple yet sleek look, with the added touch of stainless steel feet that come standard with every color option. But the real game changer? A built-in flow control system with elegant wood accents that allows you to fine-tune your espresso shot with precision. Experience the perfect blend of form and function with the Bezzera Aria Special Edition – the ultimate choice for coffee enthusiasts and professionals alike.

If you like the Bezzera Aria HX espresso machine and want to get a grinder that pairs well with it. Take a look at the Macap Leo 55 Espresso Coffee Grinder!

Videos

2 videos found

Quick Start-Up: Bezzera Aria Espresso Machine with Flow Control

Quick Start-Up: Bezzera Aria Espresso Machine with Flow Control

10 months ago

Quick Start-Up: Bezzera Aria Espresso Machine with Flow Control

Quick Start-Up: Bezzera Aria Espresso Machine with Flow Control

8 months ago

Features

E61 Grouphead w/ Flow Control

Constantly heated: Hot water circulates from the heat exchanger through the grouphead and back to keep the grouphead and your portafilter nice and hot. This keeps the grouphead at a constant, stable temperature compared to other groupheads that have a built-in heating element.
Flow control: Adjust the control of pressure while pulling an espresso shot. The Bezzera Aria flow control device comes 50% preinstalled. You only have to put the wooden knob on top, tighten it with a allen key screw that is already included and put on the grouphead gauge.
Gauge: Reads the actual pressure in the grouphead as you change the flow.

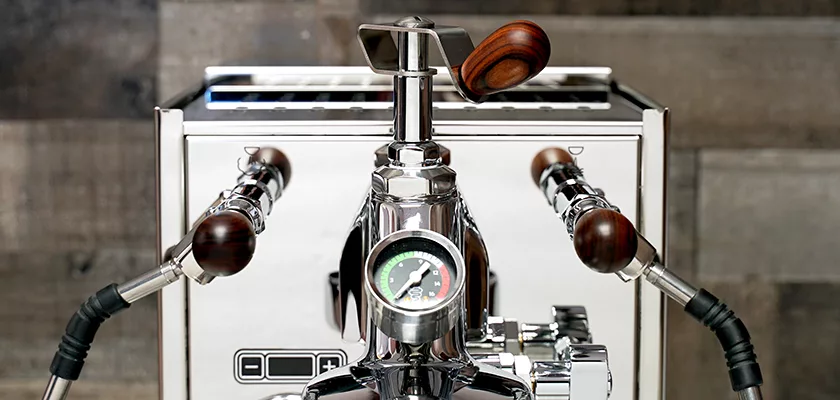

Close-up of the Bezzera Aria HX Special Edition Espresso Machine with flow control, wooden-handled levers, a central pressure gauge, and a metallic exterior, set against a wooden background. © 2025 1st-line.com

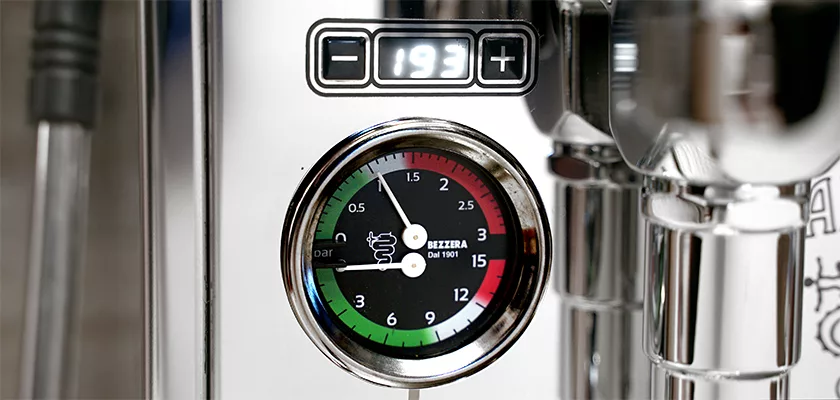

A close-up of the Bezzera Aria HX Special Edition Espresso Machine w/ Flow Control shows its pressure gauge with colored sections, a needle, and a digital temperature display reading 193°F above the reflective chrome surface. © 2025 1st-line.com

PID Controls & Dual Pressure Gauge

Boiler temperature: Easily adjust the temperature of the boiler from 176 – 212 °F (80 – 100 °C).
°C > °F: Easily switch from Celsius to Fahrenheit.
Boiler pressure: Located on the top half. Indicates how much-steaming power is available.
Pump pressure: Located on the bottom half. Indicates the amount of bar pressure during coffee extraction.

Heat Exchange System

Copper, insulation: The boiler is copper which retains heat better than stainless steel. Typically copper boilers are more susceptible to limescale when you compare to stainless steel boilers. Therefore, we highly recommend using a water softener. The manufacturer wraps the boiler with insulation for maximum heat retention. This helps with temperature stability for the espresso extraction and also helps save energy.
Pull a shot & steam milk at the same time: Steam is always readily available. Therefore there is no wait time going from coffee to steam mode.

Close-up of the Bezzera Aria HX Special Edition Espresso Machine w/ Flow Control, highlighting internal copper pipes, brass fittings, electrical wiring, and the cylindrical boiler with flow control mechanisms. © 2025 1st-line.com

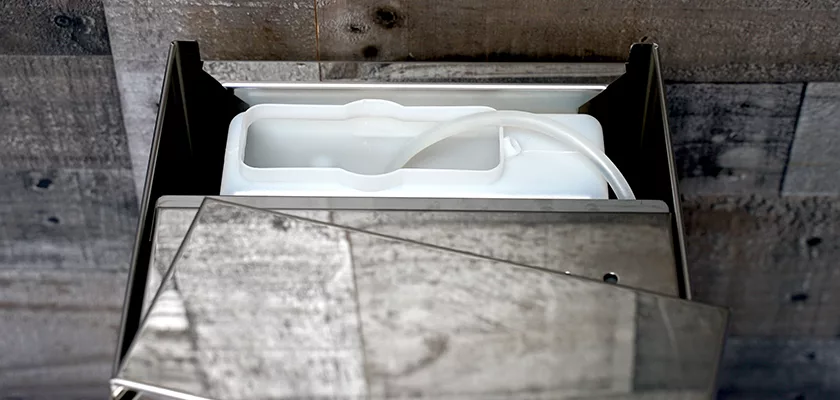

A close-up of an open metal dispenser, echoing the precision of the Bezzera Aria HX Special Edition Espresso Machine w/ Flow Control, shows a white plastic refill container with a tube against a wood-textured wall. © 2025 1st-line.com

Switchable Tank / Direct Water Connection

Easy to fill & clean tank: With the open top, it makes it very easy to refill the tank with water. However, the best practice is to remove the tank when filling. The open top also makes it easy to clean and rinse all the way to the inside bottom of the tank if necessary.
Easy to switch to direct water connection: After hooking up the water line hoses, there is a clip you install in front of the water sensor where the tank sits. Then there is a switch on the bottom near the back you change from “tank” to “net”.

Steam / Hot Water Wand

Joystick lever handles: Easily pull in any direction for quick activation. Both joysticks will lock in the “up” position for hands-free operation.
Multi-directional: Allows for more movement and flexibility.
Rubber grips: These allow you to adjust the wands without burning your fingers. Please note that after very long periods of steaming or pouring hot water, even these can get hot to the touch.
2-hole steam tip: Allows for a slow gradual build-up of microfoam.

Close-up of the Bezzera Aria HX Special Edition Espresso Machine w/ Flow Control’s steam wand emitting steam, with a pressure gauge and polished metal surfaces in the background, showcasing its precise flow control features. © 2025 1st-line.com

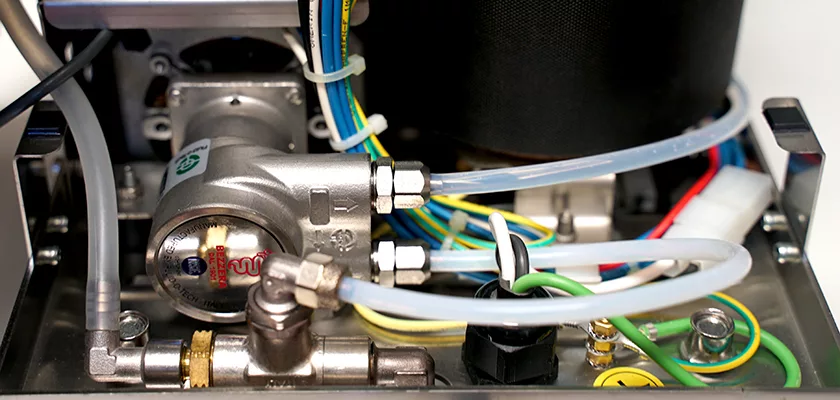

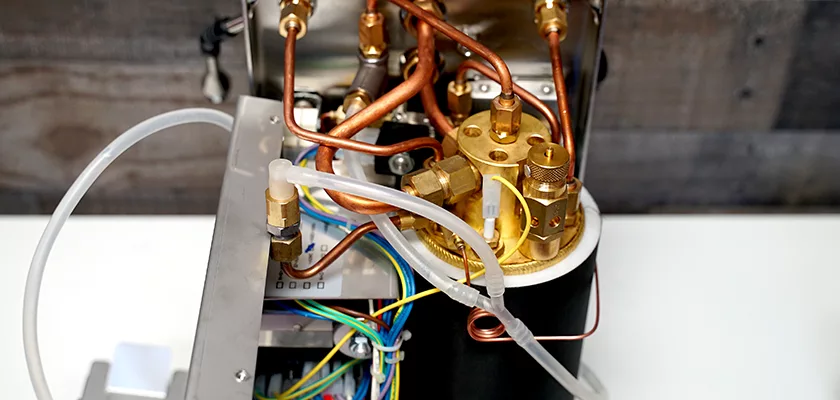

Close-up of internal components in the Bezzera Aria HX Special Edition Espresso Machine w/ Flow Control, including metal pipes, clear plastic tubes, electrical wires, a flow control pressure regulator, and various connectors. © 2025 1st-line.com

Rotary Pump

Quiet operation: Rotary pumps are necessary for direct connect capable machines since vibration pumps cannot handle the incoming water pressure. The main benefit that you will experience is that they are a lot quieter.

Parts & Accessories Included

Portafilters: 1 Dual spout & 1 bottomless. 58mm diameter. Wood accent handles.
Filter baskets: 1-cup, 2-cup, & blind for backflushing.
Tamper: Solid 58mm with Bezzera logo. No need to spend money on another one.
Cleaning brush: For cleaning the grouphead.
Scoop: If you are using ground coffee.
Metal clip: Needed for switching to direct water connect.
Flow control knob: The flow control is preinstalled, you only need to screw in the wooden knob on the top.
Grouphead gauge: In the bag, there are 2 extra gaskets to put inside when screwing the gauge in.

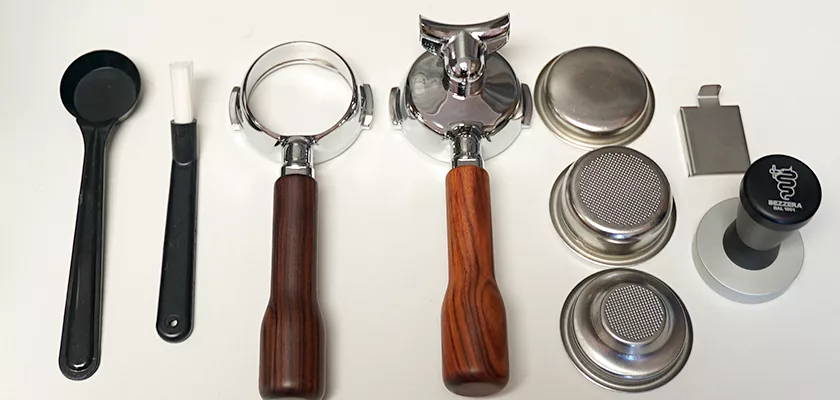

Accessories for the Bezzera Aria HX Special Edition Espresso Machine w/ Flow Control on a white surface, including a spoon, brush, two wooden-handled portafilters, filter baskets, tamper, and metal dosing tool for flow control. © 2025 1st-line.com

Specifications

Brand	Bezzera
Height (inches)	15, approximate, With Flow Control 16.75 ~
Width (inches)	8, approximate
Depth (inches)	17, approximate
Weight (pounds)	53
Wattage (watts)	1200
Voltage (volts)	110 – 120
Boiler capacity (liters)	1.5
Tank capacity (liters)	3

Notes

General Espresso Machine Notes/Warnings:

Upon first use (tank/reservoir models): On the initial start-up (or after a long period of non-use), it is important to make sure the pump is removing water from the tank. When the machine is powered on, you will hear the pump running. After 5 seconds, squeeze the in-line hose in the tank (usually the longest hose, has a particle filter attached). if you hear a different sound, this means the pump is working correctly. If not, immediately power down the machine and contact us. For more information, visit this page General Manual Pump Priming.
Electrical: To avoid electrical damage to this espresso machine which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. Without the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat, or the wiring inside. For more information, visit this page Power Protection.
Water: To increase the useful life and not damage your espresso machine, please use softened water. Softened water is water without calcium and magnesium, but still has other minerals for espresso extraction. Do not use distilled, purified, or reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale. For more information, visit this page Water Choice.
Descaling: We do not recommend descaling unless there is an issue with the espresso machine. Too much descaling can eat away at the metals and gaskets inside an espresso machine. As a preventative measure, we recommend using softened water as explained in the bullet point above.
Backflushing: This procedure of cleaning the grouphead will need to be performed from time to time. For more information, visit this page Espresso Machine Backflush – Why 50?

Support

Instruction manual (Cod.9941168.01 ed.09/22 rev.00)

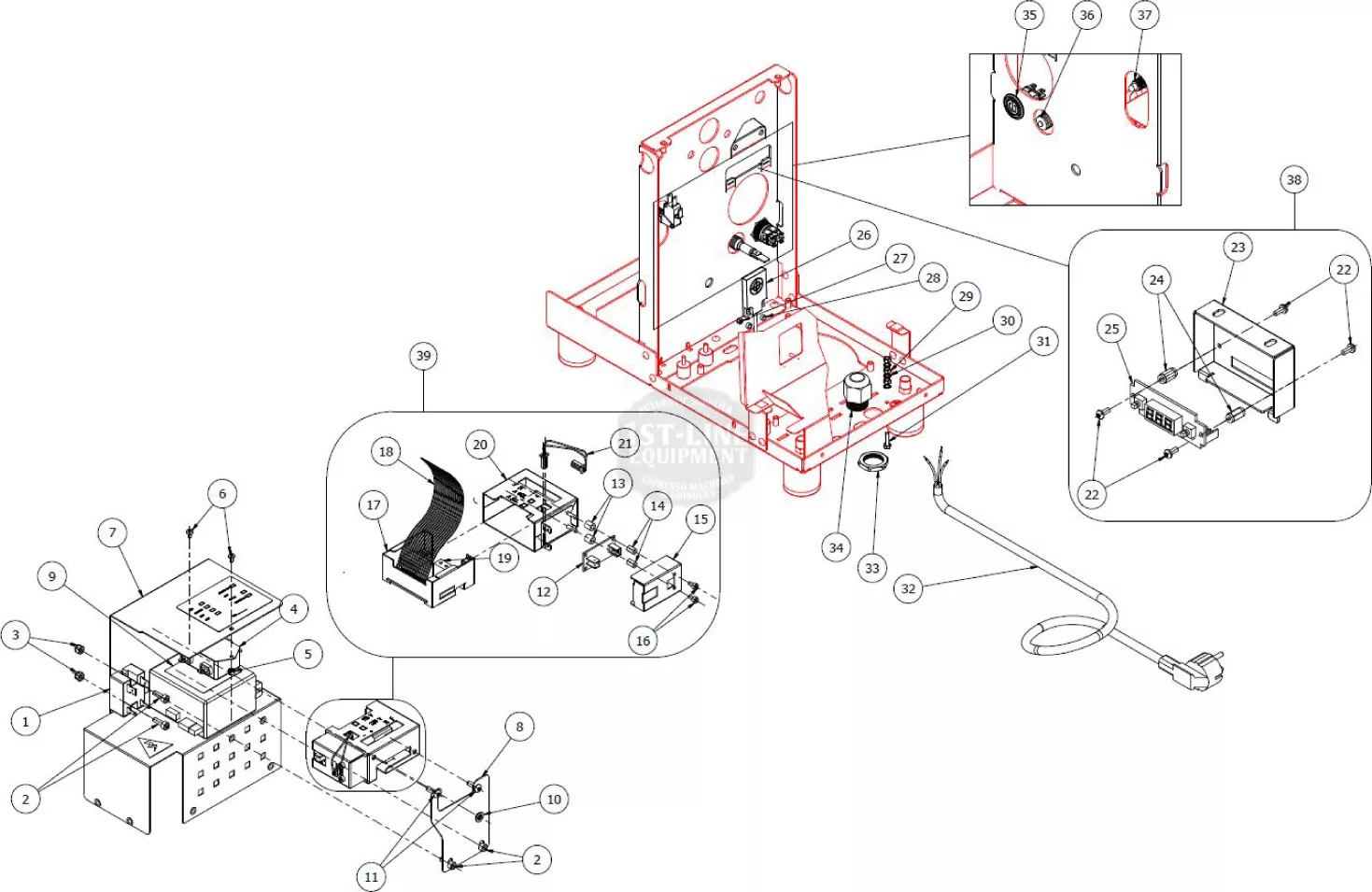

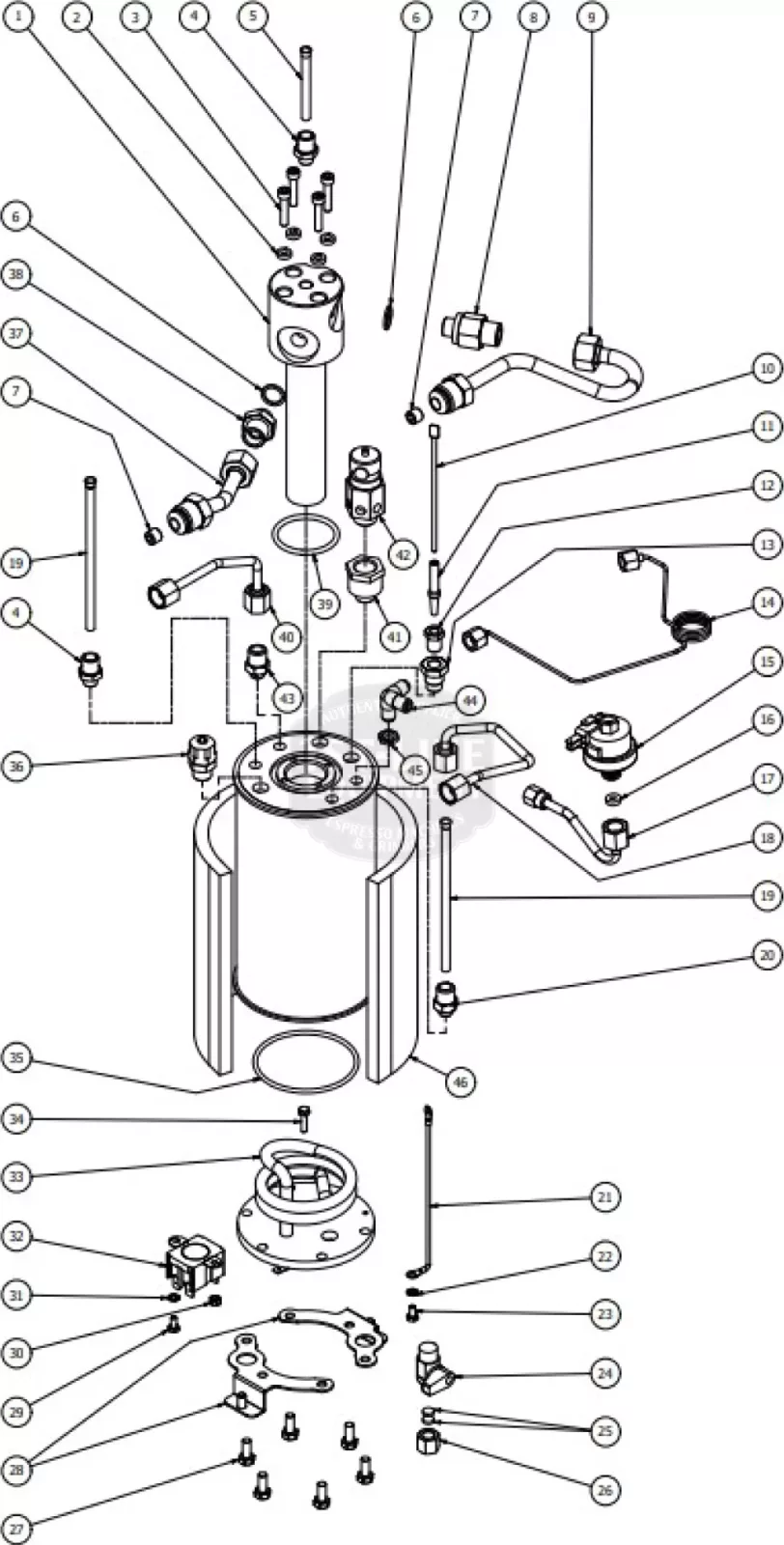

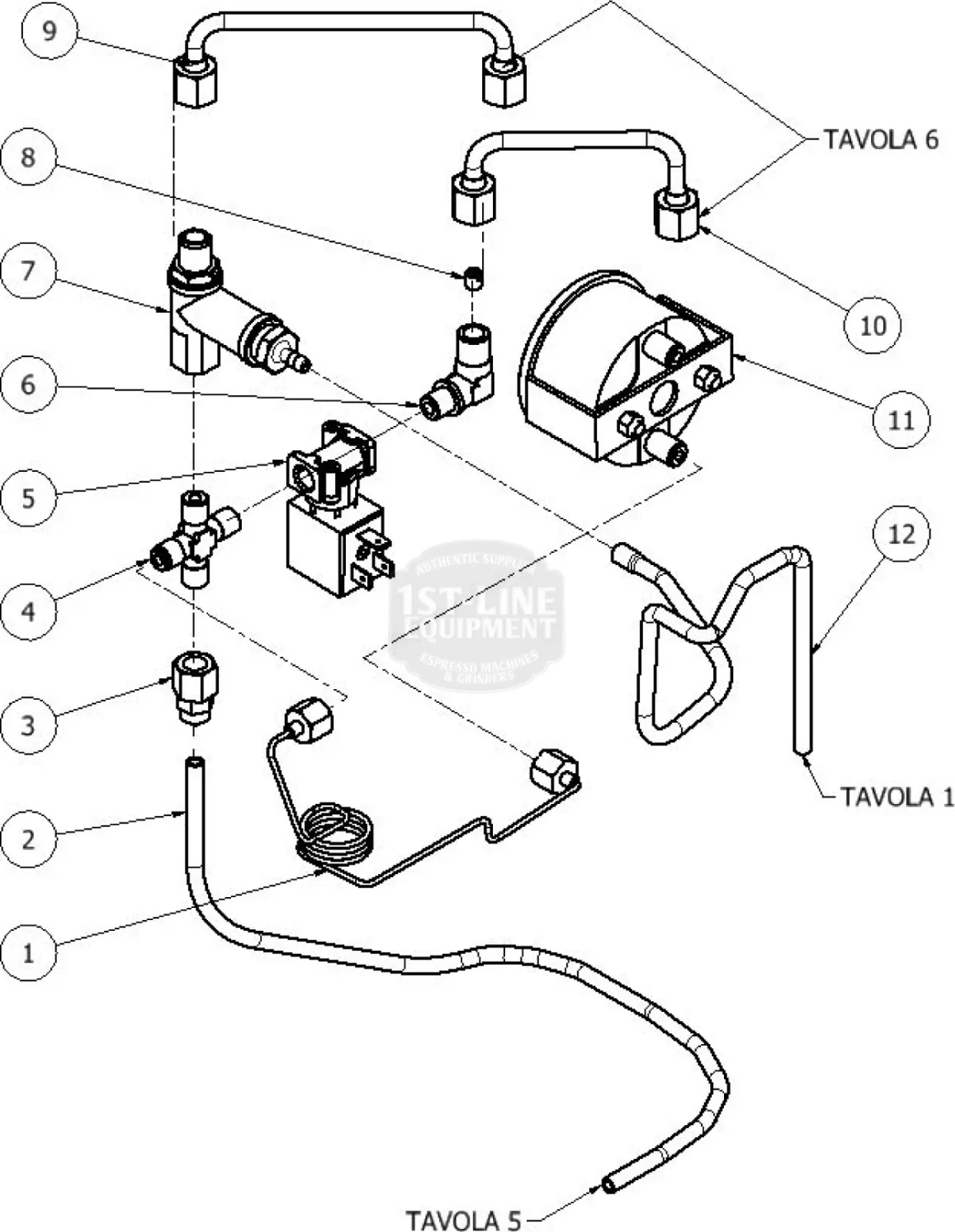

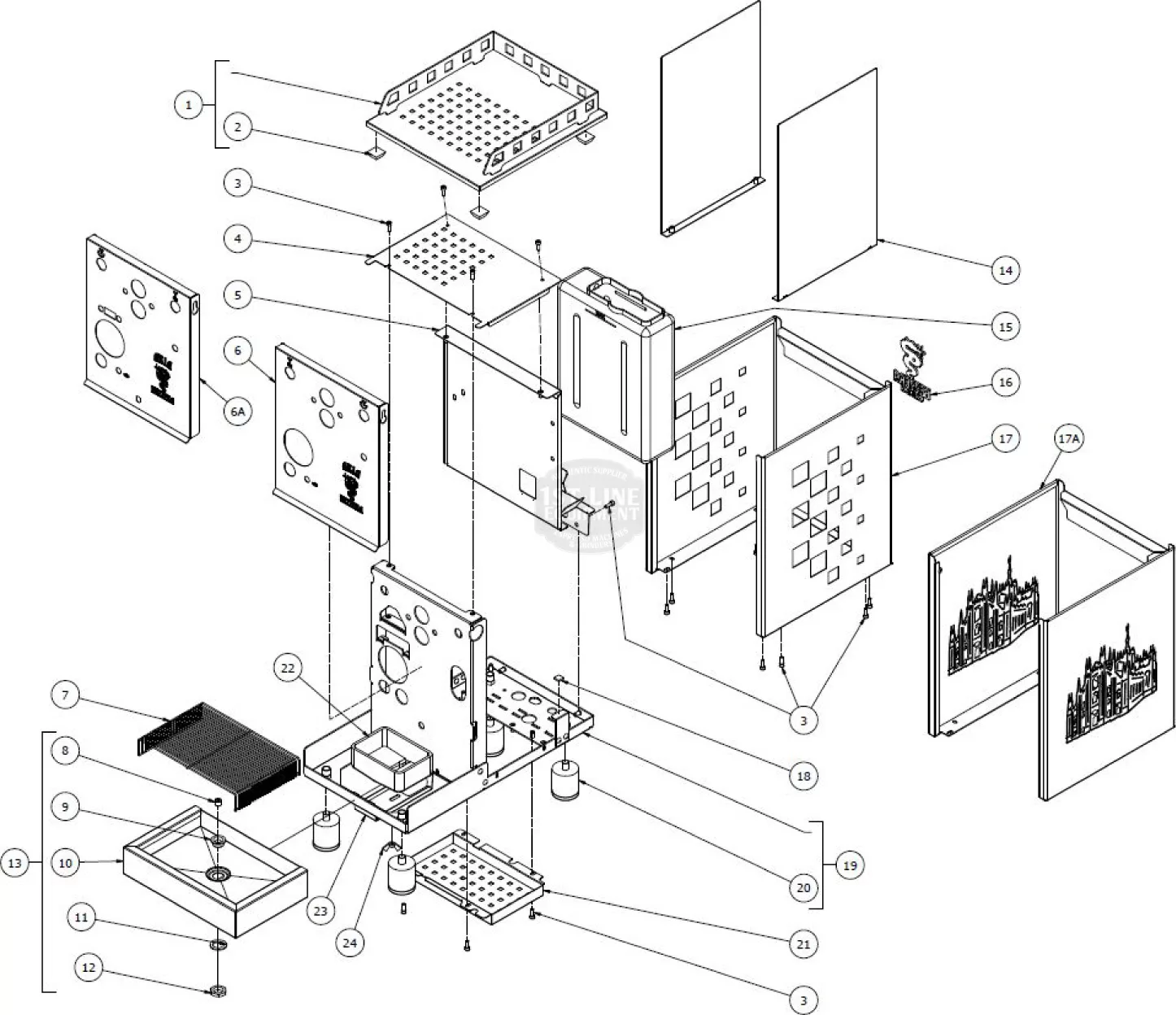

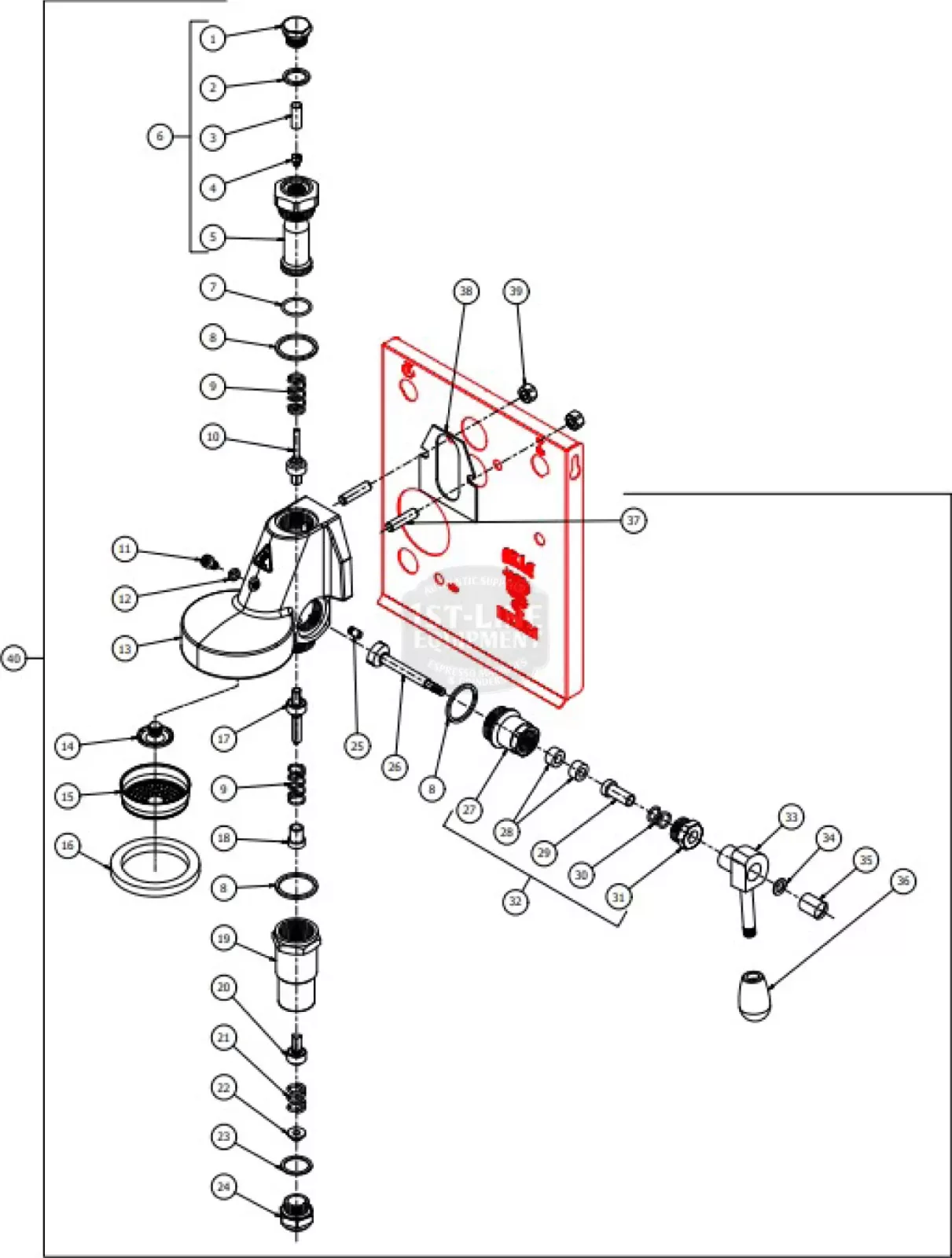

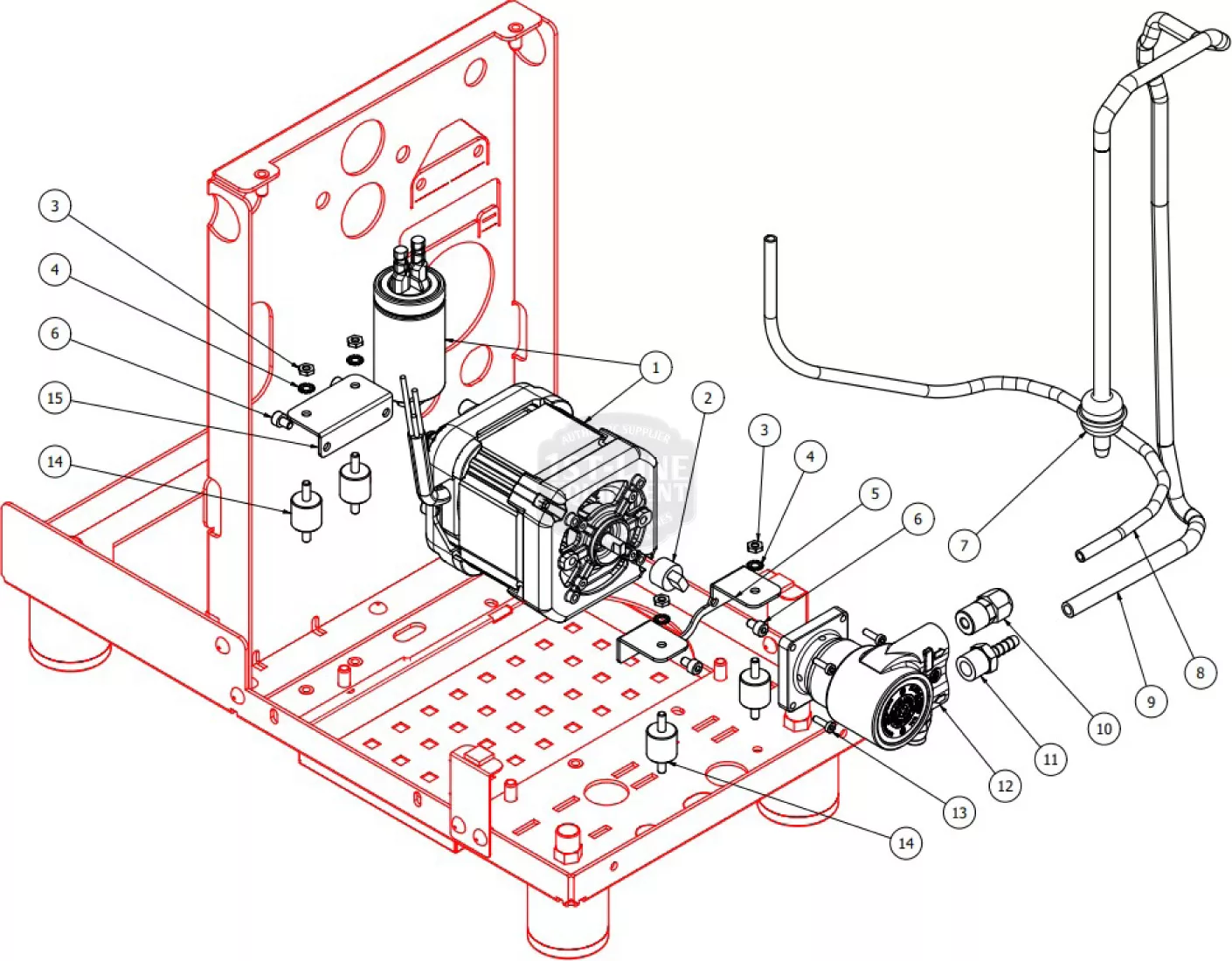

Parts Diagram

Finding your part

Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website.
Note: These parts diagrams are provided by the manufacturers. We list them on our site for informational purposes only. We do not stock every single part listed nor can we guarantee that every part is available to order.
If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.

COD. 9942075 REV. 01 ed

#	SKU
1	5961841
2	7474212
3	7816002
4	5056357LW
5	5058706.01LL
6	5074925SG1 (non PID)
6A	5074926SG (PID
7	5261018
8	7823001TP
9	5225230NC
10	5340510LL (stainless steel)
	5340542 (black)
	5340543 (white)
	5340544 (red)
11	5492022
12	5221826CM
13	5968137.01 (stainless steel)
	5968138.01 (black)
	5968139.01 (white)
	5968140.01 (red)
14	5073645LL (mirror)
	5053601LL (matt black)
	5053601LL1 (wood)
15	7373009.01
16	5522520.01
17	5071738LL (mirror)
	5051712LL (matt black)
	5051712LL1 (white)
	5051712LL2 (red)
17A	5051715LL (matt black)
	5051715LL1 (white)
	5051715LL2 (red)
18	7474221
19	5964729
19	5964755.01
20	7474218VN
21	5053053LW (rotary pump frame)
21	5053053VN (vibration pump frame)
22	5373602.01
23	5038456LW
24	7819909

#	SKU
1	7400909
2	5194690
3	7304538TR
4	7304545TR
5	7702322.01 (OLAB 220/230V)
	7702415.01 (240V)
	7701123.01 (110V)
6	5301504AL
7	5965212.01AL
8	5223003
9	5162502LL
10	5162501LL
11	7432524.02
12	5194591

#	SKU
1	7400909
2	5194639
3	7304539TR
4	7304545TR
5	7702322.01 (OLAB 220/230V)
	7702415.01 (240V)
	7701123.01 (110V)
6	5301504AL
7	5965212.01AL
8	5223003
9	5162502.01LL
10	5162501.01LL
11	7432524.02
12	5194591

#	SKU
1	7372004 (wood)
1	7371511.01 (black)
2	5222823CM
3	5221826CM
4	5225610
5	5260204DL
6	5471513
7	5261801
8	5494004
9	5283066TW
10	5496042
11	5224603AL
12	7814201
13	7496052
14	5225416.01AL
15	5471532.01
16	5190501
17	5966576
18	5226601TW
19	5966575
20	5964111 (steam lever tap 45° wood)
20	5964110 (lever tap + steam pipe)
21	5964112 (water lever tap 45° wood)
21	5964109 (lever tap + water pipe)

#	SKU
1	7479952
2	7479953
3	7479954
4	7479955.01
5	7479956.01
6	7479933.01
7	7479934
8	7479935
9	7479936
10	7479937
11	7479939
12	7479938
13	7479940AL
14	7479941
15	5471022
16	5493039
17	7479946
18	7479942
19	7479957
20	7479943
21	7479944
22	7479945
23	7479960
24	7479961
25	7479951
26	7479950
27	7479967
28	7479968
29	7479969
30	7479970
31	7479971
32	7479949
33	7479931
34	7479947
35	7479948
36	7371511.01 (black)
36	7372004 (wood)
37	5267013
38	7493011
39	7811402
40	5963545.02AL (black)
40	5963576.01AL (wood)

#	SKU
1	7742405 (220/240V)
1	7741007 (110-115V 50/60HZ)
2	7730514
3	7812601
4	7814001
5	5058508LW
6	7816017
7	7374015
8	5194690
9	5194585
10	7303068
11	7303069
12	7730514
13	7819921
14	7470604
15	5058507LW

#	SKU
1	5055763LL
2	7731023.01 (230V)
	7731024.01 (120V)
	7731027.01 (240V)
3	7816009
4	7470602
5	7634816
6	7303056
7	7496023
8	5194639
9	7303006
10	5194585
11	7374015

#	SKU
1	5329029DC
2	5494024
3	7816021
4	5302006AL
5	5192320
6	5130501
7	5223025AL
8	5225201AL
9	5164094LL
10	5265804
11	5192001
12	5225205
13	5225209AL
14	7400909
15	7433013
16	5492028
17	5162504LL
18	5162500LL
19	5192301
20	5302075AL
21	7663573.01
22	7814001
23	7816409
24	7451506
25	5492019
26	5221835
27	7816422
28	5058709LL
29	7816409
30	7822603
31	7814001
32	7634819.01
33	5722263AL (120V-1200W)
33	5722261AL (220/240V-1100/1300W)
34	7826402
35	7496040
36	7452511.01
37	5164093LL
38	5302078AL
39	7496102
40	5162499LL
41	5225423AL
42	7452509.02
43	5302075AL
44	7304505TR
45	5221844
46	9991028

#	SKU
1	7816002
2	7819404
3	5058708LW
4	7635426
5	7661007R (220/240V)
5	7661006R (100/120V)
6	7812401
7	5058707LL
8	7613014
9	7666011
10	7812402
11	5191510
12	7822603
13	7814001
14	7826402
15	7555001 (Shuko)
	7555003 (Switzerland)
	7554001 (UK)
	7552001 (Australia)
	7551001(US)
16	7614006
17	7614007
18	7633355SG (110V)
18	7633354SG (230V)
19	7633628
20	7633906

#	SKU
1	7635426
2	7816002
3	7812401
4	7663007
5	7822602
6	7809809
7	5058707.01LL
8	5058710
9	7665541 (220/240V)
9	7665540 (100/120V)
10	7819404
11	7819901
12	7665545
13	5191513
14	7639915
15	5053061LW
16	7816016
17	5058513LL
18	7663640
19	7434027.01 (230/240V)
19	7434026.01 (110V)
20	5343104
21	7663641
22	7374016
23	5053063LW
24	5191518
25	7665544
26	7666011
27	7812402
28	5191510
29	7822603
30	7814001
31	7826402
32	7551001 (US)
	7555001 (Shuko)
	7555003 (Switzerland)
	7554001 (UK)
	7552001 (Australian)
33	7614006
34	7614007
35	7633354SG (230V)
35	7633355SG (110V)
36	7633628
37	7633906
38	5962631
39	5962636 (110V)
39	5962637 (230/240V)

#	SKU
1	5302077AL
2	7496052
3	5471539
4	5224620AL
5	5493042
6	5471019
7	5283053TP
8	7496018
9	5224615AL
10	5471505
11	5302017AL
12	5965212.01AL

#	SKU
1	5965611R (black)
1	5965629R (wood)
2	5373915CM
3	7371502 (black)
3	7371520 (wood)
4	7305007TW
5	7479972.01TW
6	5471527
7	7305006TW
8	5965630R (wood)
8	5965610R (black)
9	5471035
10	5471031.01
11	5471038
12	5372101
13	7990603
14	5963289AN
