Overview
Mazzer Mini Timer Doser Espresso Coffee Grinder
The best-built, commercial espresso coffee grinder for home use and an exceptional choice for commercial use. The Mazzer Mini Timer version has a switch on the side so that the grinder will automatically stop grinding. Mazzer no longer produces a manual on/off switch version because they fear grinders may accidentally be left on all day. The built-in timer allows the unit to auto-shut off after the right amount of time. In other words, you can have the Mazzer Mini grind just the right amount of coffee based on time. However, if you keep the time the same and change the grind setting, the yield will be different.
Videos


Features
Controls

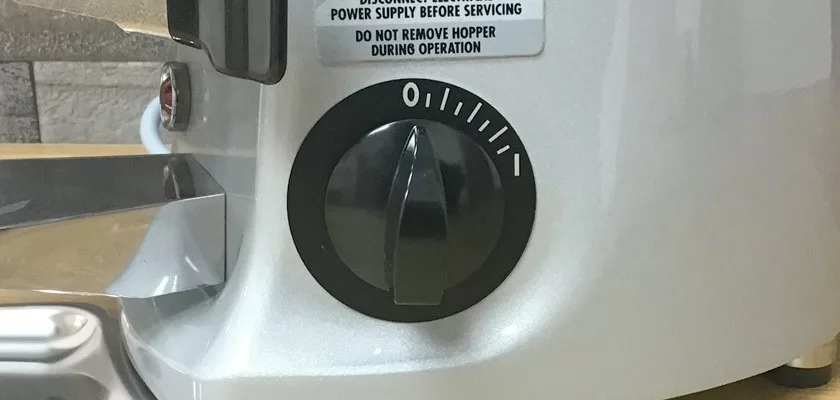

- Timer: Located on the right side of the grinder. Turning the dial all the way will start the grinding process and will stop after 1 minute. To manually stop the grinding process, turn the dial back counter clockwise. The timer acts as a safety feature to prevent users from walking away and overflowing the doser.
Grinding Adjustment
- Stepless: Infinite number of grind settings which allows you really fine tune your grind. Adjustment dial is located underneath the hopper. The entire dial is numbered so you can remember your current grind setting easier. Turn clockwise for a coarser grind and counterclockwise for a finer grind.
- Adjustment lever: This lever screws into the adjustment dial and helps you easily change your grind settings. There are 5 positions where you can install this lever. Once you find your correct grind setting, you can move the lever to another position that won’t stick out the sides.
Grinding Burrs
- Flat burrs: Large size at 58 mm. The larger the size, the more of a grinding surface, resulting in faster production.
- High rpm: Faster spinning rate at 1600 rpm. The higher the speed, the faster the production, which can increase efficiency and reduce wait times.
- Easy access: Remove the bean hopper. Turn the grinding adjust to the coarser direction until the top assembly comes off. This will give you access to the burrs and the grinding chamber. You can remove the burrs with a Flathead or Philips head screwdriver.
Bean Hopper
- Low profile: The total height of the grinder without the hopper is a little under 12″. The bean hopper adds another 5″ bringing the total height to approximately 17″. The total capacity is approximately 1.3 pounds of whole coffee beans, a little over half the size of a standard kilo bag.
- Set screw: Secures the hopper to the grinder. Serves as a reminder for users from quickly removing the hopper if it is full of beans.
- Finger guard: Prevents users from “accidentally” putting their fingers in the grinding burrs.
- Stopper: A door near the bottom of the hopper slides inward to close the opening. This allows you to remove the hopper with beans inside so you can easily change the beans. There will be some beans already passed in the burrs which will have to be ground out first before removing the hopper.
Doser
- Adjustable dosing: Allows you to change the amount of ground coffee dispensed into your portafilter.
- Finger guard: Located in dosing chamber.
- Portafilter fork: Solid, chrome plated. Directs your portafilter right underneath the doser chute.
- Built-in tamper: For those that want one. You can easily uninstall if you do not want to use.
ETL Certified
Effective July 17, 2006, all of our Mazzer Mini Timer grinders have an ETL certification. ETL certification insures that a manufacturer is utilizing quality components for product safety, and ongoing inspections and site visits by ETL insure that manufacturers do not deviate from those standards of product safety. Ultimately, this insures you that internal components are the same (no cost cutting) without the approval of ETL.
Specifications
| Brand | Mazzer |
|---|---|
| Height (inches) | 17, approximate |
| Width (inches) | 6.5, approximate |
| Depth (inches) | 13.5, approximate |
| Weight (pounds) | 23 |
| Wattage (watts) | 250 |
| Voltage (volts) | 110 – 120 |
| Burr size (mm), Type | 58, flat |
| Grinding speed (RPM) | 1600 |
| Hopper capacity (grams) | 600 |
| Doser/Container capacity (grams) | 200 |
| Country of manufacture | Venice, Italy |
Notes
Espresso Coffee Grinder Warnings:
- Roast Profiles: Espresso grinders sold by 1st-line Equipment, unless specifically indicated on the grinder page, are manufactured for coffee beans that have Italian or espresso roast profiles. Lighter roasted coffee beans may clog the grinder or not grind fine enough. Darker roasted coffee beans, such as French roasted or oily coffee beans, may clog the grinding chamber and/or the grinder chute where the ground coffee exits.
- Changing grind settings: It is very important to only change grind settings when the unit is powered on and the burrs are in motion. If you do not do this, the burrs will ‘gunk’ up and render the grinder to only produce very coarse grinds or no grinds at all. To remedy this, you will have to open up the grinder to get access to the grinding burrs. This issue will be considered operator error for lack of following directions, and not be classified as a defective grinder.
- Electrical cord: For most grinders, the cord is placed between the packaging (foam or cardboard) and the underside body of the grinder. During shipping, it is normal for a bend or insignificant blemish/slice to damage the cord.
- Finding coffee grinds in a new grinder: Most manufacturers test their grinders with coffee beans before they leave their facility. Unfortunately, they are not always able to get every trace of coffee out of the grinders after testing. As a result, you may find coffee beans or grinds inside your grinder, or there may be grinds in the packaging.
- Static issues: There are static issues with all grinders, even the highest-quality models. We firmly believe that the static comes from the coffee beans. If you are having static problems with your coffee grinder, try using a different blend of beans.
- Electrical: To avoid electrical damage (which is not considered a manufacturer's defect), please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. A surge without protection can damage a grinder at the power switch, the capacitor, the motor, or the wiring.
- Burr cleaning: For routine maintenance of the grinding burrs, we recommend using grinder cleaning agents. We do not recommend any removal of the burrs or the burr carrier for cleaning (unless necessary) as re-assembly can cause damage. If the grinder chamber is dis-assembled, the warranty is voided for any damages that result. It is important to always remove all coffee grinds from the threads of the burr carrier and the grinding chamber.
- Replacing burrs: NEVER use a flat head screwdriver and hammer to wedge UNDER the burrs for removal. This could badly damage your grinder.
Support
Parts Diagram
- Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website.
Note: These parts diagrams are provided by the manufacturers. We list them on our site for informational purposes only. We do not stock every single part listed nor can we guarantee that every part is available to order. - If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
- Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
- Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
- Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
- Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
- Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.
Diagram
| # | SKU |
| 1A | SMISCAE03/QQQ (hopper) |
| 1B | SMISCAEU3/QQQ (hopper+label) |
| 2 | SMI0COD01/QQQ |
| 3 | SMI0SEB01/QQQ |
| 4 | S000ETA15/AQQ |
| 5 | SSJ0GHA02/QQQ |
| 6 | S000ETA03/AQQ |
| 7 | S00SPEA00/QQQ |
| 8 | SMI0POA04/AQQ |
| 9 | FMA00182D/QQQ |
| 10 | SMI0POA01/QQQ |
| 11 | SSJ0COA01/BQQ |
| 12 | S000CUA07/AQQ |
| 13 | S000MOB14/QQQ |
| 14 | S000ETA00/QQQ |
| 15 | S000GUA01/QQQ |
| 16A | SMISGRA02/BQQ (manual/timer) |
| 16B | SMISGRL04/BQQ (automatic) |
| 16C | SMISGRA06/BQQ (manual/timer) |
| 16D | SMISGRE02/QQQ (ETL manual/timer) |
| 16E | SMISGRU04/BQQ (ETL automatic) |
| 16F | SMISGRE02/QQQ (ETL manual/timer) |
| 17 | S000PIA10/AQQ |
| 18 | S000TAA02/QQQ |
| 19 | SMI0CAAA2/AQQ |
| 20 | S000TAA20/QQQ |
| 21 | S000TIA02/QQQ |
| 22 | S000TAA03/QQQ |
| 23 | S000MAB01/QQQ |
| 24 | S000INA09/QQQ |
| 25 | S000TAA07/QQQ |
| 26 | S000MAB05/QQQ |
| 27 | S000INA12/AQQ |
| 28 | S000FOB02/CQQ |
| 29A | S000LAA06/QQQ (230/240V,green) |
| 29B | S000LAA07/QQQ (110V UL,red) |
| 30A | SMI0PIB03/QQQ (stainless steel) |
| 30B | SMI0PIB02/QQQ (plastic) |
| 31 | SMI0ROA00/QQQ |
| 32A | SMISPAE02/QQQ (220-240V 50Hz) |
| 32B | SMISPAU02/QQQ (110V 60Hz) |
| 32C | SMISPAS02/QQQ (220V 60Hz) |
| 32D | SMISPAJ02/QQQ (100V 50-60Hz) |
| 33 | SMI0CAB03/BQQ |
| 34A | S000GRB03/QQQ (220-240V 50-60Hz) |
| 34B | S000GRB05/QQQ (110V 60Hz) |
| 35A | S000COE17/QQQ (220-240V 50-60Hz) |
| 35B | S000COE13/QQQ (110V 60Hz) |
| 36A | SMI0PINM1/QQQ (manual/timer) |
| 36B | SMI0PINA1/QQQ (automatic) |
| 37A | S000COC02/QQQ (MC 9.10 - 230V 50Hz) |
| 37B | S000COC20/QQQ (BG 9.10 - 110V 60Hz) |
| 37C | S000COC28/QQQ (BG 9.10 - 220V 60Hz) |
| 37D | S000COC24/QQQ (BG 9.10 - 100V 50-60Hz) |
| 37E | S000COC18/QQQ (BG 9.10 - 230V 50Hz) |
| 38 | S000DAA02/QQQ |
| 39 | S000MOA04/QQQ |
| 40 | S000SOT02/QQQ |
| 41 | S000TAA18/QQQ |
| 42 | S00SPIA01/QQQ |
| 43A | S000CAD01/BQQ (Italy) |
| 43B | S000CAD04/BQQ (Europe) |
| 43C | S000CAD05/BQQ (U.S.A.) |
| 43D | S000CAD07/BQQ (Australia) |
| 43E | S000CAD08/BQQ (Great Britain) |
| 43F | S000CAD10/BQQ (Israel) |
| 43G | S000CAD06/BQQ (Switzerland) |
| 43H | S000CAD16/QQQ (China) |
| 43I | S000CAD18/QQQ (Argentina) |
| 43J | S000CAD19/QQQ (Korea) |
| 44 | S000PAB15/QQQ |
| 45 | S000ETA14/AQQ |
| 46 | S000TAA19/QQQ |
| 47 | SMI0LAM01/AQQ |
| 48 | MOTOR LABEL |
| # | SKU |
| 1 | S000COD02/QQQ |
| 2 | S000CIA02/QQQ |
| 3 | S000MAB02/AQQ |
| 4 | SMISSTA04/QQQ |
| 5 | S000SEA01/QQQ |
| 6 | S000STA03/BQQ |
| 7 | S000MOB05/QQQ |
| 8 | S000STA02/BQQ |
| 9 | S000ROA02/BQQ |
| 10 | S00SMIA07/QQQ |
| 11 | SMI0PRB01/QQQ |
| 12A | SMI0TUA04/BQQ (automatic) |
| 12B | SMI0TUA02/CQQ (manual) |
| 13 | S000ETA14/AQQ |
| 14A | S000PRA02/QAQ (53mm) |
| 14B | S000PRA02/QQQ (54.5mm) |
| 14C | S000PRA02/QCQ (57.5mm) |
| 15 | S000VIA04/QQQ |
| 16 | S000ANA01/AQQ |
| 17 | S000CRA02/AQQ |
| 18 | S000VIA01/QQQ |
| 19 | S00SCOB02/QQQ |
| 20 | S000DIA01/AQQ |
| 21 | S000MOB06/QQQ |
| 22 | S000STA05/QQQ |
| 23 | S00SMIA11/QQQ |
| 24 | S00SFOA01/QQQ |
| 25 | S000NAA01/AQQ |
| 26 | S00SLEA02/QQQ |
| 27 | S000MOB03/QQQ |
| 28 | S000FOA03/QQQ |
| 29 | S000MOB04/QQQ |
| 30 | S000ETA14/AQQ |
| 31 | S000STA06/AQQ |
| 32 | S000SEA02/QQQ |
| 33 | S000MAB03/AQQ |
| 34 | S00SGRA08/AQQ |
Reviews
Q & A
Ask a question
Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.
-
Do you have parts (OEM preferred) to convert my mazzer mini doser to doserless? Please advise availability & price(s
-
Q Do you have parts (OEM preferred) to convert my mazzer mini doser to doserless? Please advise ava...... Read more answer nowAsked by on April 22, 2020 4:07 pmAnswered by the admin
We do sell Mazzer OEM parts, but we do not get involved with conversions nor do we provide any answers nor guarantees of fitment with conversions. You may find others online who have performed these conversions.
There appear to be 320 g, 600 g, and 1000 g hopper options for the Mazzer Mini per https://www.mazzer.com/wp-content/uploads/2014/12/Mini.pdf, which lists the 600 g (1.3 pounds) hopper as standard and appears to shows the height of the Mazzer Mini with this hopper as 18.5". However, your website lists the height as ~ 17" but with a capacity of 1.3 pounds. Are you shipping the Mazzer Mini with a redesigned standard hopper that is ~ 5" in height but still with a capacity of 1.3 pounds? Or perhaps you are shipping the 320 g hopper?
-
Q There appear to be 320 g, 600 g, and 1000 g hopper options for the Mazzer Mini per https://www.ma...... Read more answer nowAsked by on January 19, 2019 4:38 amAnswered by the admin
Sorry, this will require a bit of research as Mazzer does change their height sizes quite often, and they do change their bean hoppers less often without any notification to us.
What is the body material on the Mazzer Mini Grinder, metal or plastic body?
-
Q What is the body material on the Mazzer Mini Grinder, metal or plastic body? answer nowAsked by on December 10, 2018 9:15 pmAnswered by the admin
The body is made of Aluminum.
