Mazzer Mini Timer “Converted-to-Doserless” Espresso Coffee Grinder

From: $695.00


Earn 695-795 EspressoPoints worth $13.90-$15.90! (Learn about EspressoPoints)

Earn 695-795 EspressoPoints worth $13.90-$15.90! (Learn about EspressoPoints)

Modified and Converted To Doserless Mazzer Mini Timer Espresso Coffee Grinder

We had a bunch of ‘doser’ version Mazzer Mini espresso coffee grinders sitting in stock for a few years. As we all know, no one wants doser grinders. Therefore, we converted these grinders to doserless with a new funnel, new gasket, new screen, new faceplate, and new screws. This is a rare occasion we will do this because we are shying away from doser grinders for the future.

C-MazzerTimer-02-min

Doserless

  • Funnel – We replaced the doser assembly with the same funnel you will see on the Mini Electronic models.
  • Portafilter fork – We replaced the original fork with the new hands free version.
MazzerTimer-grinding-burrs

Grinding burrs

  • Flat burrs – Large size at 58 mm. The larger the size, the more of a grinding surface, resulting in faster production.
  • High rpm – Faster spinning rate at 1600 rpm. The higher the speed, the faster the production, which can increase efficiency and reduce wait times.
  • Easy access – Remove the bean hopper. Turn the grinding adjust to the coarser direction until the top assembly comes off. This will give you access to the burrs and the grinding chamber. You can remove the burrs with a Flathead or Philips head screwdriver.
MazzerTimer-grinding-adjustment

Grinding adjustment

  • Stepless – Infinite number of grind settings which allows you really fine tune your grind. Adjustment dial is located underneath the hopper. The entire dial is numbered so you can remember your current grind setting easier. Turn clockwise for a coarser grind and counterclockwise for a finer grind.
  • Adjustment lever – This lever screws into the adjustment dial and helps you easily change your grind settings. There are 5 positions where you can install this lever. Once you find your correct grind setting, you can move the lever to another position that won’t stick out the sides.
MazzerTimer-bean-hopper

Bean hopper

  • Low profile – The total height of the grinder without the hopper is a little under 12″. The bean hopper adds another 5″ bringing the total height to approximately 17″. The total capacity is approximately 1.3 pounds of whole coffee beans, a little over half the size of a standard kilo bag.
  • Set screw – Secures the hopper to the grinder. Serves as a reminder for users from quickly removing the hopper if it is full of beans.
  • Finger guard – Prevents users from “accidentally” putting their fingers in the grinding burrs.
  • Stopper – A door near the bottom of the hopper slides inward to close the opening. This allows you to remove the hopper with beans inside so you can easily change the beans. There will be some beans already passed in the burrs which will have to be ground out first before removing the hopper.
C-MazzerTimer-01-min (1)

Controls

  • Timer – Located on the right side of the grinder. Turning the dial all the way will start the grinding process and will stop after 1 minute. To manually stop the grinding process, turn the dial back counterclockwise. The timer acts as a safety feature to prevent users from walking away and overflowing the doser (when it was originally installed).
C-MazzerTimer-03-min

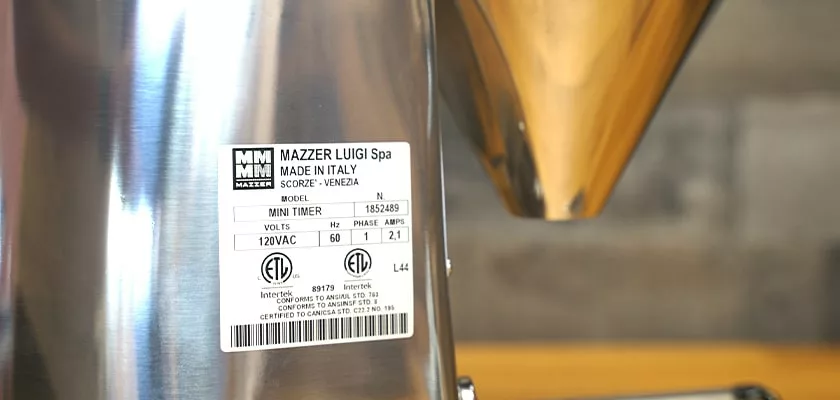

ETL Certified

Effective July 17, 2006, all of our Mazzer Mini Timer grinders have an ETL certification. ETL certification insures that a manufacturer is utilizing quality components for product safety, and ongoing inspections and site visits by ETL insure that manufacturers do not deviate from those standards of product safety. Ultimately, this insures you that internal components are the same (no cost cutting) without the approval of ETL.


For more Mazzer equipment, please visit our Mazzer brands page. If you have any questions, please reference the Q&A tab on each product page.


Brand

Mazzer

Height (inches)

17, approximate

Width (inches)

6.5, approximate

Depth (inches)

13.5, approximate

Weight (pounds)

23

Wattage (watts)

250

Voltage (volts)

110 – 120

Burr size (mm), Type

58, flat

Grinding speed (RPM)

1600

Hopper capacity (grams)

600

Doser/Container capacity (grams)

200

Country of manufacture

Venice, Italy

  1. Changing grind settings: As with all coffee grinders, it is very important to only change grind settings when the unit is powered ‘on’ and the burrs are in motion. If you do not do this, the burrs will ‘gunk’ up and require cleaning by you every time this occurs. Changing the grind settings when the burrs are not in motion will render the grinder to only produce very coarse grinds or no grinds at all. If this result occurs, this will be considered operator error for lack of following directions, and not be classified as a defective grinder.
  2. Finding coffee grinds in a new grinder: We have confirmed that the manufacturer tests EVERY grinder with coffee beans before it leaves their facility, but they are not always able to get every trace of coffee out of the grinders after testing. As a result, you may find coffee beans or grinds inside your grinder, or there may be grinds in the packaging when you unwrap it.
  3. Static issues: There are static issues with all grinders, even the highest quality models. We firmly believe that the static comes from the coffee beans. If you are having static problems with your coffee grinder, trying using a different blend of beans.
  4. Replacing burrs: NEVER use a flat head screwdriver and hammer to wedge under the burrs for removal. This could badly damage your grinder.
  5. Electrical cord: Please note that the electrical cord is placed between the packaging (foam or cardboard) and the underside body of the grinder. During shipping, it is normal for a bend or insignificant blemish / slice to damage the cord.

  1. Manual switch models: These models are no longer being produced by the factory.

Espresso Grinder Warning

  • CLEANING WARNING: We recommend using grinder cleaning agents. We do not recommend any removal of the burrs or burr carrier for cleaning as re-assembly can cause damage.
  • ELECTRICAL WARNING: To avoid electrical damage to this espresso grinder which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. The lack of the recommended surge suppressor, the espresso grinder can be damaged at the power switch, the capacitor, the motor, or the wiring.

Please use the diagrams below to help find the exact part you are looking for. After you find the part, copy the SKU #. Then use the search bar at the top of our website. If there are no results in the search, we most likely do not have the part. We only special order parts if the specific model was purchased through 1st-line Equipment. For general questions, please use our parts inquiry page.

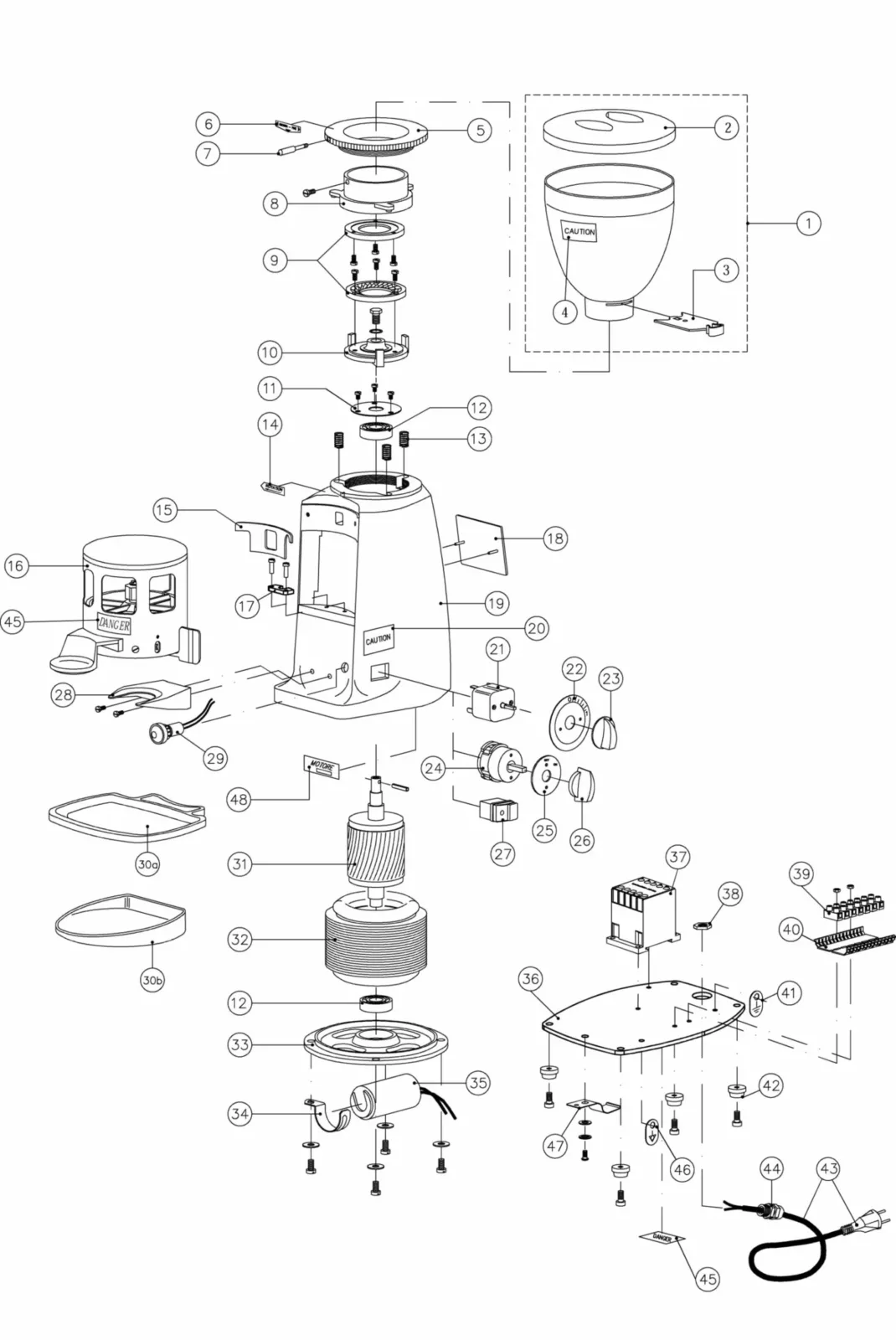

Mazzer-Mini-Doser-parts-diagram-01
# SKU
1A SMISCAE03/QQQ (hopper)
1B SMISCAEU3/QQQ (hopper+label)
2 SMI0COD01/QQQ
3 SMI0SEB01/QQQ
4 S000ETA15/AQQ
5 SSJ0GHA02/QQQ
6 S000ETA03/AQQ
7 S00SPEA00/QQQ
8 SMI0POA04/AQQ
9 FMA00182D/QQQ
10 SMI0POA01/QQQ
11 SSJ0COA01/BQQ
12 S000CUA07/AQQ
13 S000MOB14/QQQ
14 S000ETA00/QQQ
15 S000GUA01/QQQ
16A SMISGRA02/BQQ (manual/timer)
16B SMISGRL04/BQQ (automatic)
16C SMISGRA06/BQQ (manual/timer)
16D SMISGRE02/QQQ (ETL manual/timer)
16E SMISGRU04/BQQ (ETL automatic)
16F SMISGRE02/QQQ (ETL manual/timer)
17 S000PIA10/AQQ
18 S000TAA02/QQQ
19 SMI0CAAA2/AQQ
20 S000TAA20/QQQ
21 S000TIA02/QQQ
22 S000TAA03/QQQ
23 S000MAB01/QQQ
24 S000INA09/QQQ
25 S000TAA07/QQQ
26 S000MAB05/QQQ
27 S000INA12/AQQ
28 S000FOB02/CQQ
29A S000LAA06/QQQ (230/240V,green)
29B S000LAA07/QQQ (110V UL,red)
30A SMI0PIB03/QQQ (stainless steel)
30B SMI0PIB02/QQQ (plastic)
31 SMI0ROA00/QQQ
32A SMISPAE02/QQQ (220-240V 50Hz)
32B SMISPAU02/QQQ (110V 60Hz)
32C SMISPAS02/QQQ (220V 60Hz)
32D SMISPAJ02/QQQ (100V 50-60Hz)
33 SMI0CAB03/BQQ
34A S000GRB03/QQQ (220-240V 50-60Hz)
34B S000GRB05/QQQ (110V 60Hz)
35A S000COE17/QQQ (220-240V 50-60Hz)
35B S000COE13/QQQ (110V 60Hz)
36A SMI0PINM1/QQQ (manual/timer)
36B SMI0PINA1/QQQ (automatic)
37A S000COC02/QQQ (MC 9.10 – 230V 50Hz)
37B S000COC20/QQQ (BG 9.10 – 110V 60Hz)
37C S000COC28/QQQ (BG 9.10 – 220V 60Hz)
37D S000COC24/QQQ (BG 9.10 – 100V 50-60Hz)
37E S000COC18/QQQ (BG 9.10 – 230V 50Hz)
38 S000DAA02/QQQ
39 S000MOA04/QQQ
40 S000SOT02/QQQ
41 S000TAA18/QQQ
42 S00SPIA01/QQQ
43A S000CAD01/BQQ (Italy)
43B S000CAD04/BQQ (Europe)
43C S000CAD05/BQQ (U.S.A.)
43D S000CAD07/BQQ (Australia)
43E S000CAD08/BQQ (Great Britain)
43F S000CAD10/BQQ (Israel)
43G S000CAD06/BQQ (Switzerland)
43H S000CAD16/QQQ (China)
43I S000CAD18/QQQ (Argentina)
43J S000CAD19/QQQ (Korea)
44 S000PAB15/QQQ
45 S000ETA14/AQQ
46 S000TAA19/QQQ
47 SMI0LAM01/AQQ
48 MOTOR LABEL

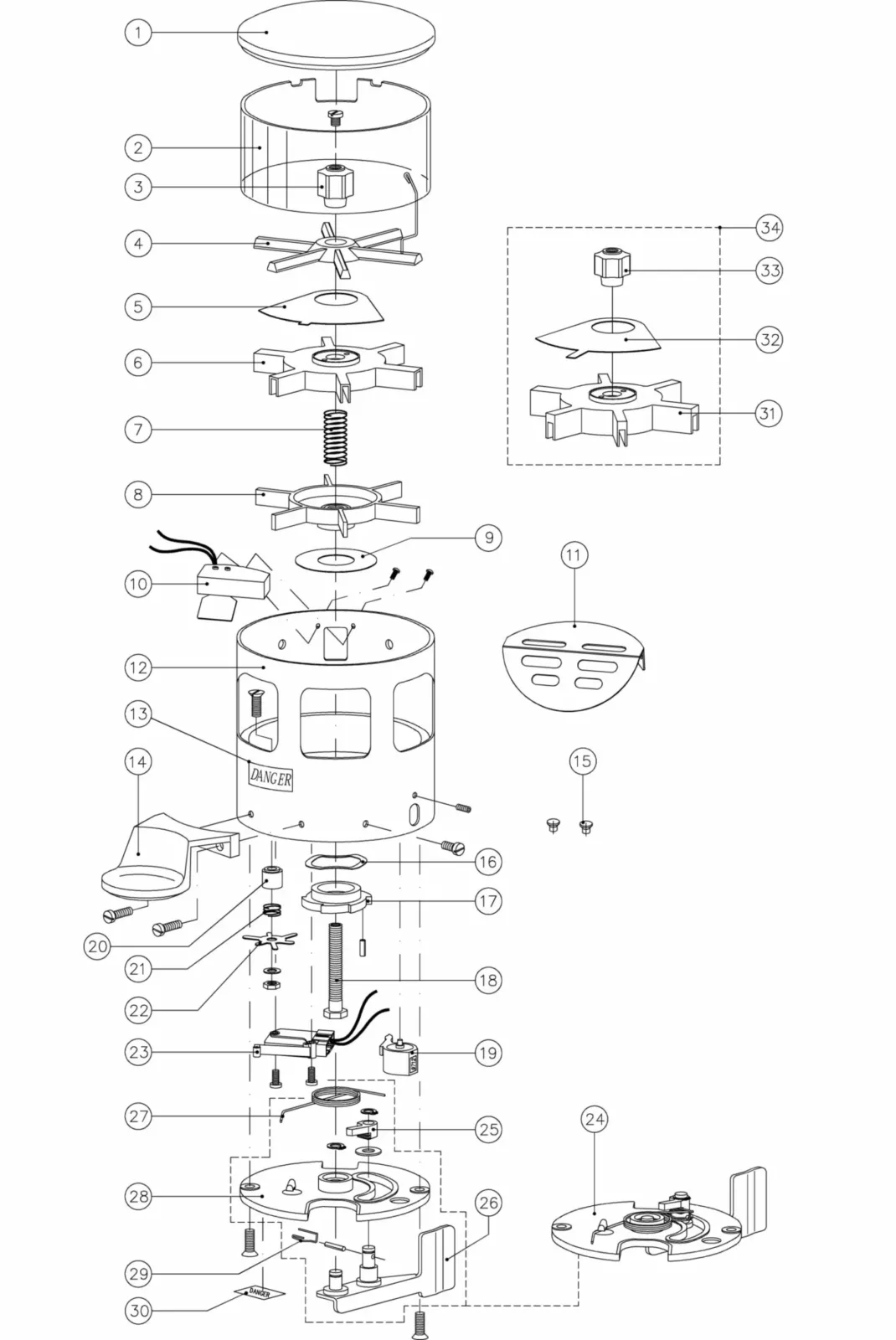

Mazzer-Mini-Doser-parts-diagram-02
# SKU
1 S000COD02/QQQ
2 S000CIA02/QQQ
3 S000MAB02/AQQ
4 SMISSTA04/QQQ
5 S000SEA01/QQQ
6 S000STA03/BQQ
7 S000MOB05/QQQ
8 S000STA02/BQQ
9 S000ROA02/BQQ
10 S00SMIA07/QQQ
11 SMI0PRB01/QQQ
12A SMI0TUA04/BQQ (automatic)
12B SMI0TUA02/CQQ (manual)
13 S000ETA14/AQQ
14A S000PRA02/QAQ (53mm)
14B S000PRA02/QQQ (54.5mm)
14C S000PRA02/QCQ (57.5mm)
15 S000VIA04/QQQ
16 S000ANA01/AQQ
17 S000CRA02/AQQ
18 S000VIA01/QQQ
19 S00SCOB02/QQQ
20 S000DIA01/AQQ
21 S000MOB06/QQQ
22 S000STA05/QQQ
23 S00SMIA11/QQQ
24 S00SFOA01/QQQ
25 S000NAA01/AQQ
26 S00SLEA02/QQQ
27 S000MOB03/QQQ
28 S000FOA03/QQQ
29 S000MOB04/QQQ
30 S000ETA14/AQQ
31 S000STA06/AQQ
32 S000SEA02/QQQ
33 S000MAB03/AQQ
34 S00SGRA08/AQQ

Customer reviews

Reviews

There are no reviews yet.

Be the first to review “Mazzer Mini Timer “Converted-to-Doserless” Espresso Coffee Grinder”

Use one of the allowed file type: jpg,png. The max size allowed is : 3 MB.

    This site uses Akismet to reduce spam. Learn how your comment data is processed.

    Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

      Hi, I don't understand why this Mazzer Mini Converted to Doserless has 58mm burrs instead of 64mm burrs?
    1. 0 votes
      Q Hi, I don't understand why this Mazzer Mini Converted to Doserless has 58mm burrs instead of 64mm...... Read more answer now
      Asked by Paul on October 27, 2022 11:45 am
      Answered by the admin

      The reason is that the Mazzer Mini Doser version with the smaller burrs was converted to doserless by removing the doser. If the larger burrs are preferred, then the standard Mazzer Mini Electronic version should be purchased.

    2. I purchased a Mazzer Mini from you ages ago. I need to clean it, replace the hopper and possibly install new burr grinders. Is there anything I need to clean and reassemble the the grinder? Videos you might recommend?
    3. 0 votes
      Q I purchased a Mazzer Mini from you ages ago. I need to clean it, replace the hopper and possibly ...... Read more answer now
      Asked by Roddy on August 19, 2022 12:57 pm
      Answered by the admin

      We suggest PulyGrind. Sorry, we do not have any videos at this time. You can do a search and there are most likely many listed in the search engines.
