ECM Technika V Profi Espresso Machine – PID, HX, Rotary Pump, 115V

5 out of 5 based on 2 customer ratings
(2 customer reviews)

$2,549.00

Found a better offer? Let us meet or beat it!

Earn 2549 EspressoPoints worth $50.98! (Learn about EspressoPoints)

Earn 2549 EspressoPoints worth $50.98! (Learn about EspressoPoints)
Clear
Featured Videos
ECM Technika PID: How to Remove the Body - An Inside Look
Intro & Hints: ECM Technika PID Heat Exchanger Espresso Machines
Steam & Hot Water Valves: Rotary vs. Joysticks

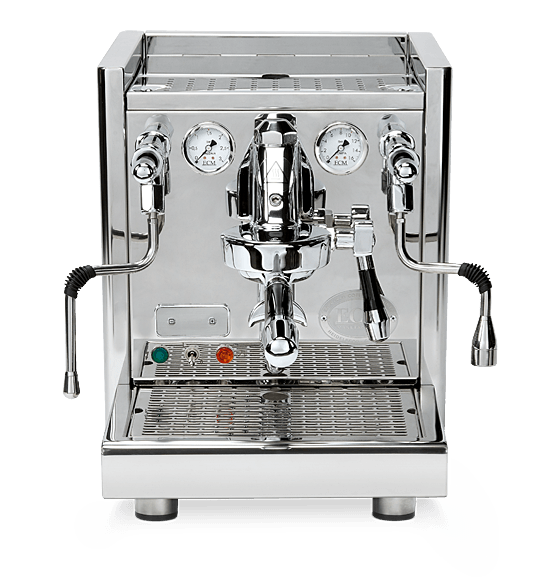

ECM Technika V Profi Espresso Machine – PID, HX

Overview:
The Technika Profi V PID is yet another example of ECM Germany’s reputation for creating commercial espresso machines of excellent build quality and prosumer performance. This is the “Profi” or professional, version of the Mechanika. What do you get with this title? A heftier stainless steel E61 grouphead for temperature stability, a rotary vane pump for quieter operation, and the ability to direct plumb the machine if desired. With the Technika PID Profi, ECM allows the home barista to feel like their kitchen is a professional coffee shop!
Now included, a PID Display for individual adjustment of the temperature of the boiler and to indicate the coffee extraction time (shot clock).
Heat exchange system:
  • Stainless steel, insulated – The boiler is made of stainless steel which is less susceptible to limescale. Typically stainless steel boilers do not retain their heat as well as copper or brass boilers. This machine compensates for that by being wrapped with insulation.
  • Pull a shot & steam milk at the same time – Steam is always readily available. Therefore there is no wait time going from coffee to steam mode. Works well if entertaining a small group of people.
LARGER Separate pressure gauges (compared to the previous non-PID version):
  • Steam pressure gauge – Located on the left. Measures from 0 to 3 bar. Optimal pressure is between 0.8 and 1.1.
  • Brew pressure gauge – Located on the right. Measures from 0 to 16 bar. Optimal pressure is between 8 and 10.
E-61 grouphead:
  • Constantly heated – Hot water circulates from the heat exchanger through the grouphead and back to keep the grouphead and your portafilter nice and hot. This keeps the grouphead at a constant, stable temperature compared to other groupheads that have a built-in heating element.
  • Pre-infusion – The lever next to the grouphead activates a microswitch which turns on the pump to pump water through the coffee grinds. When you pull the lever halfway up, it will open the valve to allow water into the grouphead without activating the pump. Please note that true pre-infusion requires the direct water connection whereby the water pressure from the waterline creates true pre-infusion.
Rotary vane pump:
  • Quiet operationRotary pumps are necessary for direct connect capable machines since vibration pumps cannot handle the incoming water pressure. The main benefit that you will experience is that they are a lot quieter.
  • Adjustable Rotary Pump Pressure – No need to remove the body panel to access. The adjustment screw is accessible underneath the machine.
Switchable from the water tank to direct water connection:
  • Easy transition – After hooking up the water line (included) to your machine, all you need to do is activate the switch located behind the drip tray on the left side. Turn to the “1” position.
Steam & hot water wands:
  • Joystick lever handles – Easily pull in any direction for quick activation. Both joysticks will lock in any position for hands-free operation.
  • Multi-directional – Allows for more movement and flexibility.
  • “No burn” – Both wands are insulated to allow you to touch anywhere on the arm. Please note that after very long periods of steaming or pouring hot water, the arm will be too hot to touch. We recommend to only touch the rubber grips on each wand.
  • 2-hole steam tip – Allows for a slow gradual build-up of microfoam.
Accessories included with the ECM Technika PID Profi V Espresso Machine:
  • Portafilters – Single spout portafilter and a dual spout portafilter. Both handles match the style of the grouphead lever and are ergonomically designed with an angle for an easier operation to lock into the grouphead.
  • Filter baskets – 1-cup filter basket which holds approximately 7 grams. 2-cup filter basket which holds approximately 14 grams. Blind filter basket which you can use for backflushing. All basket is 58 mm in diameter.
  • Tamper – A cheap plastic tamper, common for most espresso machines to keep the overall selling price of the machine low. We recommend upgrading to a better tamper.
  • Cleaning brush – Used for cleaning the grouphead. Ergonomically designed with an angle for easier usage. The neck has special ridges to keep hot water from dripping to your hand.
  • Hose – Stainless steel braided. For connecting to a water line.
  • Instruction manual – Written in both German and English. The instructions also work for the Technika.

For more ECM Manufacture products, please visit our ECM Manufacture brands page. If you have any questions, please reference the Q&A tab on each product page.

ECM Technika PID V Profi HX Espresso Machine

Brand

ECM Manufacture

Height (inches)

16, approximate

Width (inches)

12, approximate

Depth (inches)

18, approximate

Weight (pounds)

50

Wattage (watts)

1400

Voltage (volts)

110 – 120

Boiler capacity (liters)

2.1

Portafilter size (mm)

58

Tank capacity (liters)

3

Country of manufacture

Assembled in Milan, Italy, Designed in Germany

Approvals

CE

Espresso Machine Warning:

  • ELECTRICAL WARNING: To avoid electrical damage to this espresso machine which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. the lack of the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat or the wiring inside.
  • WATER WARNING: To increase the useful life of and not damage your espresso machine, please use softened water. Softened water is water without calcium and without magnesium, but still has other minerals for espresso extraction. Do not use distilled water, purified water, nor reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale.
  • DESCALING WARNING: We do not recommend descaling unless there is an issue with the espresso machine. The reason is that too much descaling can eat away at the metals and gaskets inside an espresso machine.

Please use the diagrams below to help find the exact part you are looking for. After you find the part, copy the SKU #. Then use the search bar at the top of our website. If there are no results in the search, we most likely do not have the part. We only special order parts if the specific model was purchased through 1st-line Equipment. For general questions, please use our parts inquiry page.

Housing – Technika

ECM-Technika-V-Prof-PID-Mechanika-IV-Profi-parts-diagram-01
# SKU
1 B7474217
2 B7819911
3 B7826212
4 C309900164
5 E81100
6 ER8285
7 M3006.5
8 M3023.4
9 M3024.4
10 M3024.4A
11 P2006
12 P2009
13 P2022
14 P2043
15 P2051
16 P2505
17 P2505.K
18 P3001.5
19 P3001.6
20 P3003.1
21 P3005
22 P3005.2
23 P3008
24 P3009
25 P3010
26 P3011.4
27 P3012
28 P6102
29 P7025
30 P3033.1
31 P3033
32 P1999
33 P3001.1

Water Cycle

ECM-Technika-V-Prof-PID-Mechanika-IV-Profi-parts-diagram-03
# SKU
1 B5471509
2 B7496076
3 C199900275 (230V 50Hz)
3 US1005 (110V 60Hz)
4 C227700898
5 C229900519
6 C229900548
7 C229900579
8 C229900644
9 C449900709
10 C499900769
11 C519900369
12 E2113001
13 P1904
14 P1905
15 P2019
16 P2030
17 P2051
18 P2052
19 P2057
20 P2064
21 P2504
22 B7432517
23 P3015
24 P3023
25 P3024
26 P3025
27 P3026 (220V 50HZ 120W)
27 US1016 (110V 60Hz 120W)
28 P3527
29 P3528
30 P6014
31 P6014.K
32 P6016
33 P6020.3
34 P6020.K3
35 P6020.K4
36 P6020.NK
37 P6021
38 P6022
39 P6023
40 P6025
41 P6026
42 P6051
43 P6057
44 P6058
45 P6103
46 P7000
47 P8012
48 P9014
49 P6020
50 P6017

Boiler

ECM-Technika-V-Prof-PID-Mechanika-IV-Profi-parts-diagram-04
# SKU
1 B7400902
2 B7432516
3 C199900294
4 P7012
5 C199900839
6 C199901550.1
7 C229900393
8 C229900519
9 C229900520
10 C229900559
11 C229900740
12 C229901576
13 C309900127.2
14 C309900127
15 C219900561
16 P1901
17 P1902
18 P1903
19 P1900
20 P1910
21 P1910.1
22 P1931
23 P2010
24 P2011
25 P2040
26 P2045
27 P2503
28 P6104
29 P7014.1 (230V)
29 US1000 (110V)
30 P7014.2
31 P7050
32 P9013
33 P6037

Brew Group

ECM-Technika-V-Prof-PID-Mechanika-IV-Profi-parts-diagram-05
# SKU
1 B7479942
2 B7479947
3 C219900423
4 C219900424
5 C219900425
6 C219900426
7 C219900427
8 C219900430
9 C219900431
10 C219903081
11 C229900549
12 C229901128
13 C229901165
14 C309900127
15 C309900131
16 C309900164
17 C449900229
18 P1030
19 C449900767
20 C469900421
21 C469900422
22 C469900783
23 C469901132
24 C519900103
25 C619900554
26 P1000.1
27 P1000.2
28 P1000.3
29 P1000.4
30 P1000.5
31 P1002
32 P1004
33 P2010
34 P2011
35 R000002142
36 R000002144
37 R000002146
38 R000002148
39 P1016

V Series Valves

ECM-Technika-V-Prof-PID-Mechanika-IV-Profi-parts-diagram-06
# SKU
1 C329900682
2 P6002.1
3 P6002.4 (2-hole)
3 P6002.7 (3-hole)
3 P6002.6 (4-hole)
3 P6002.3 (5-hole)
4 P6003.2
5 P6003.3
6 P6003.4
7 P6003.5
8 P6003.6
9 P6003.7
10 P6003.9
11 P6005
12 P6005.5
13 P6005.6
14 P6006
15 P6010
16 P6011
17 P6012
18 P6015
19 P6070
20 P6070.1
21 P6070.2
22 P6070.3
23 P6070.4
24 P6002.2
25 P6001.1
26 P6001.2
27 P7000.6
28 P1019
29 P6001.3
30 C439900840

IV Series Valves

ECM-Technika-V-Prof-PID-Mechanika-IV-Profi-parts-diagram-07
# SKU
1 C329900682
2 C439900840
3 P6002.1
4 P6002.4
4 P6002.7
4 P6002.6
4 P6002.3
6 P6003
7 P6003.1
8 P6003.10
9 P6003.11
10 P6003.12
11 P6003.13
12 P6003.14
13 P6003.15
14 P6003.2
15 P6003.3
16 P6003.4
17 P6003.5
18 P6003.6
19 P6003.7
20 P6003.8
21 P6003.9
22 P6005
23 P6005.5
24 P6005.6
25 P6006
26 P6015
27 P6001.1
28 P6001.2
29 P6002.2
30 P6001.3

Electrics / Parts&Accessories

ECM-Technika-V-Prof-PID-Mechanika-IV-Profi-parts-diagram-08
# SKU
1 89424
2 89425
3 B5221875CM
4 B7633617
5 B7633618
6 C199900087
7 C199900306
8 C199900957
8 P2034 (US)
8 P2035 (UK)
8 P2036 (AU)
8 P2037 (CH)
10 C619900098
11 C619900104
12 C619900105
13 C619900106
14 M2004 (240V)
14 US1004 (115V)
15 P1994
16 P2007
17 P2012.1 (Mater)
17 US1030 (115V Mater)
17 US1030.1 (115V Sirai)
19 P2070
20 P3020
21 P6029
22 P9114
23 R210
24 P2012.5
25 P6063 (230V)
25 US1043 (115V)

Customer reviews

Rated 5 out of 5 stars
2 reviews
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

2 reviews for ECM Technika V Profi Espresso Machine – PID, HX, Rotary Pump, 115V

Add a review

Use one of the allowed file type: jpg,png. The max size allowed is : 3 MB.

    This site uses Akismet to reduce spam. Learn how your comment data is processed.

    Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

      Do you all have an idea of when you'll have the Technika back in stock? I was hoping to get one around the end of May.
    1. 0 votes
      Q Do you all have an idea of when you'll have the Technika back in stock? I was hoping to get one a...... Read more answer now
      Asked by colin on April 13, 2021 2:13 pm
      Answered by the admin

      Sorry, we do not have an ETA at this time.

    2. Hi guys. Just wondering if you guys offer an e61 rebuild kit (gaskets and such) for the ECM Technika IV Profi. I tried buying a generic e61 kit from (competitor ECM dealer name removed), but, some of the o-rings didn't seem to fit correctly. If you don't have a kit, would it be possible for you to tell me which specific o-rings I need to buy? I have to order a new PStat for my machine as well, since mine is on the fritz. Would like to order everything in one shot if possible.
    3. 0 votes
      Q Hi guys. Just wondering if you guys offer an e61 rebuild kit (gaskets and such) for the ECM Techn...... Read more answer now
      Asked by Mat on April 8, 2021 1:18 pm
      Answered by the admin

      Sorry, we currently do not have a rebuild kit at this time of writing. You will need to order the parts based off the ECM diagrams on our web site.

    4. I bought an ECM Technica Profi from 1st line several years ago and now the water tank assembly has developed a leak. I imagine this may be the O-rings, but do you have an assembled water tank that I can purchase? I have seen that with other ECM water tanks, but didn't quite see it for the ECM P6014 (which I think is the Technica Profi's tank). Any info or help would be greatly appreciated.
    5. 0 votes
      Q I bought an ECM Technica Profi from 1st line several years ago and now the water tank assembly ha...... Read more answer now
      Asked by Ron on February 10, 2021 6:36 pm
      Answered by the admin

      Sorry, we need to always refer you to the diagrams. The reason is there more than one version of this machine, and giving you a recommendation may make us liable for an error on the same model sold by others.

    6. Hi I want to install in line a WBT water filter premium for my ECM Technica IV that I bought several years ago form you (still running well so far). What parts and filter size would you recommend to hook into the water line of a faucet. I am planning to use a T-type 3/8 connector on the cold water line to feet water into the filter and from there to the espresso machine. Thank you for any help with this and getting all the necessary parts,
    7. 0 votes
      Q Hi I want to install in line a WBT water filter premium for my ECM Technica IV that I bought seve...... Read more answer now
      Asked by Gunther on January 19, 2021 5:19 pm
      Answered by the admin

      It is best to look at the BWT kit we sell. Unfortunately, there are so many variables, it is best to wait until everything is ordered and our installation requirements are reviewed.

    8. Hi. My ECM Technica, probably around five years ago, developed a problem last week wherein the little chrome nozzle on the machine below the group head started spewing water while I'm drawing a shot. I'm told this is a 3-way solenoid? Any thoughts? Thanks...
    9. 0 votes
      Q Hi. My ECM Technica, probably around five years ago, developed a problem last week wherein the li...... Read more answer now
      Asked by Stephen Shaner on January 4, 2021 8:58 pm
      Answered by the admin

      Considering the age of the machine, it should be evaluated by a professional. This leak can occur from a defective OPV, a boiler refill probe that needs cleaning, or purified water. Defective solenoid valves usually do not allow any water out when they fail.

    10. Hi. I am doing periodic maintenance on my Profi V and need to replace the group gasket and the shower screen (Group gasket (item no. C449900229) and shower screen (item no. C519900103) as shown in the owners' manual. I searched for these parts on your site but cannot find an exact match to add to the cart. Please advise next steps. Thanks!
    11. 0 votes
      Q Hi. I am doing periodic maintenance on my Profi V and need to replace the group gasket and the sh...... Read more answer now
      Asked by Francine Lebel on December 22, 2020 10:02 pm
      Answered by the admin

      Here are links to the parts:

    12. I have used my meter on both thermostats and I get a result that both thermostats complete a circuit when the wires were removed. Please advise of next steps.
    13. 0 votes
      Q I have used my meter on both thermostats and I get a result that both thermostats complete a circ...... Read more answer now
      Asked by Robert Gladu on August 30, 2020 5:31 pm
      Answered by the admin

      These safety thermostats are very finicky. Next step is to test after machine cuts off heating element. As soon as machine heats up, unplug machine electrical cord from electrical outlet, disconnect one of set of wires from safety, and test for continuity. Perform on second thermostat after reconnecting wires on first thermostat.

      If the thermostats are ok at this point, then allow machine to cool. Check voltage to thermostats. If you are unsure, please email us.

    14. Hi There, I have completed the steps in the previous message. The magnetic float in the machine has been confirmed to be freely moving. I have also plugged the machine into a GFI, for operation, and it was not tripped. Here is a rundown of the last three start ups of the machine: Turned on Machine from a Cold Start (i.e. off for 8+ hours): Machine began to warm up, and ran for about 1 min before the heater stopped warming the tank. It rose to approx. 150 degrees. Shut Machine Down for quick of/on cycle. Upon starting up, machine came to operating temp of 248; was able to use. Machine held temperature for approx. 20 mins with the intermittent on/off cycles needed to hold temp. Then stopped holding temperature. Cycled machine quickly on/off, did not return to normal operations. Turned Machine off for > 1 min, and on second restart the heater turned on and machine returned to 248. Turned Machine on from Cold Start. Initial power on raised water temp from 74 to 149 before the heater stoped. Turned machine off for 30 seconds, turned back on and heater did not turn on. Turned machine off for 10 seconds, turned back on and heater did not turn on. Turned machine off for 20 seconds, turned back on and heater turned on and machine got to operating temperature of 248. Machine held temperature for approx. 20 mins with the intermittent on/off cycles needed to hold temp. Then stopped holding temperature. Turned Machine off/on quickly and machine returned to normal operating temperature. Turned on machine from a cold start. Heater ran for about 90 seconds, brining water to 115. Heater shut off. Quick Restart, Heater did not turn on. Quick Restart, Heater did not turn on. Long Restart, Heater did not turn on. Short Restart, Heater ran for 10 seconds. Quick Restart, Ran Water brew head, and heater for 5 seconds. Ran the brew head for 10 seconds before next restart. Heater turned on for 10 seconds after restart, water Temp is now 147. Long on/off cycle > 1 min, heater came on and machine came to temperature. Machine held temperature for approx. 20 mins with the intermittent on/off cycles needed to hold temp. Then stopped holding temperature. Tried 6 (six) on and off cycles to get the heater to kick back on, would not work. Cycles ranged from quick to 30 seconds off at a time. Would not turn on. Left Machine off for 10 mins, restarted the machine and heater ran for 30 seconds. On/Off Cycle one more time and machine returned to operating temperature of 248. I hope this helps with the diagnosis so the machine can be diagnosed/repaired under warranty. Please let me know what else is needed.
    15. 0 votes
      Q Hi There, I have completed the steps in the previous message. The magnetic float in the machine h...... Read more answer now
      Asked by Robert G on August 28, 2020 3:40 pm
      Answered by the admin

      This points to the safety thermostats. We have experience the ECM line with the ECM safety thermostats haphazardly working and not working. To confirm, the safety thermostats will need to be tested with a multi-meter or continuity tester after the machine is unplugged from the electrical outlet, cooled down, and wires removed one set at a time from each thermostat. These thermostats are under the top cover and on top of the boiler..

      This scenario usually occurs when voltage changes in the outlet occur. We strongly suggest getting a surge suppressor 1080 joules or higher for machine protection.



    16. I have had my machine since November 2019, and in the last 3 days it has experienced problems coming to full operational temperature. When the problem started it came to temperature for a few minutes but then it would not maintain temperature. Today, the machine will heat for about 30 seconds and then stop, not fully coming to temperature. Both the green and orange lights are illuminated. When you lift the brew lever, the pump will activate, and the machine will dispense warm water.
    17. 0 votes
      Q I have had my machine since November 2019, and in the last 3 days it has experienced problems com...... Read more answer now
      Asked by Robert G on August 21, 2020 4:23 pm
      Answered by the admin

      There could be several areas that cause this issue.

      First, please check the magnetic float in the reservoir. Make sure it floats upwards when the water tank is full.

      Second, plug the unit into a GFIC outlet that has a test and reset button. If it trips this outlet, it may be a heating element that burned up due to lack of water inside the boiler.

      Third, please tabulate how many minutes after start up after the machine stops heating. If not consistent, then the safety thermostats may have been hit with an electrical surge and need replacement, If consistent in timing, it may be a brain unit hit with an electrical surge. We say electrical surges because this is what usually happens to electrical parts,

    18. Good afternoon 1st-Line Team! The Spec height is 16." My kitchen cabinet is 15-15/16 inches above the counter top. Can I find a shorter foot or adjust the height lower?
    19. 0 votes
      Q Good afternoon 1st-Line Team! The Spec height is 16." My kitchen cabinet is 15-15/16 inches above...... Read more answer now
      Asked by Rick Ross on May 14, 2020 6:58 pm
      A My machine is 15 1/4" with the feet totally screwed in. There is no cabinet above the unit. You would not be able to put cups on the top nor raise the reservoir flap if under a 16" cabinet. Not sure about clearance if you plumb it. BTW I love this machine. Its a brute and always perfect pulls.
    20. How accurate is the brew temperature on this machine? If understand the heat exchange machines correctly the PID is controlling the steam boiler not the brewing temperature. How does it maintain a consistent brew temperature? I make 4 cappuccinos a day 2 in the morning and 2 in the evening so I need to have a decent steam power. Is this machine good for my needs?
    21. 0 votes
      Q How accurate is the brew temperature on this machine? If understand the heat exchange machines co...... Read more answer now
      Asked by Ylli on October 10, 2019 7:04 pm
      Answered by the admin

      The PID usually works better in temperature management than a pressurstat which has a slightly wider variation or delay before kicking the heating element on.

      Some people question if it is worth it to have the PID. We believe it does offer a better temperature control, but not as good as a dual boiler. The heat exchanger espresso machines, like the ECM Profi Techika PID espresso machines do offer quicker warm up times over double boilers and more efficiency in the steaming/frothing function. Please call us,during business hours, to discuss your best options for your needs.

    22. Is it possible to acquire a replacement boiler? Part # P7014.2 Kessel Inox ( Wärmetauscher) Boiler Inox
    23. 0 votes
      Q Is it possible to acquire a replacement boiler? Part # P7014.2 Kessel Inox ( Wärmetauscher) Boile...... Read more answer now
      Asked by Trey on August 4, 2019 11:30 pm
      Answered by the admin

      This would be a special order. Please use the contact us link at the top to start the process.

    24. Are ECM espresso machine manufacturer's warranty transferable to new owners if i sell it to another party, provided it was still in the warranty period of 3 year?
    25. 0 votes
      Q Are ECM espresso machine manufacturer's warranty transferable to new owners if i sell it to anoth...... Read more answer now
      Asked by Ken on July 15, 2019 10:08 pm
      Answered by the admin

      For 1st-line Equipment, we do allow the balance of the limited warranty period to the new owner as long as the new owner has your purchase information and original receipt. Please note other dealers may have different policies and/or costs associated with the transfer, if they allow it.

    Send me a notification for each new answer.

    You may also like…
