ECM Classika PID Espresso Machine

5 out of 5 based on 2 customer ratings
(2 customer reviews)

$1,599.00

Machine/Grinder Package Deal
Freebies + BIG accessory discounts!

Get This Deal


Earn 1599 EspressoPoints worth $31.98! (Learn about EspressoPoints)

Earn 1599 EspressoPoints worth $31.98! (Learn about EspressoPoints)
Featured Videos

ECM Classika PID Espresso Machine

Overview:

The atmosphere of an Italian espresso bar at homemade for the smallest of kitchens. The ECM Classika PID is perfect for small spaces considering it is a single-boiler machine. It satisfies the highest demands, perfect espresso preparation, and absolute espresso pleasure. Further review this timeless, elegant classic in clear, stainless steel design.

Single boiler system:

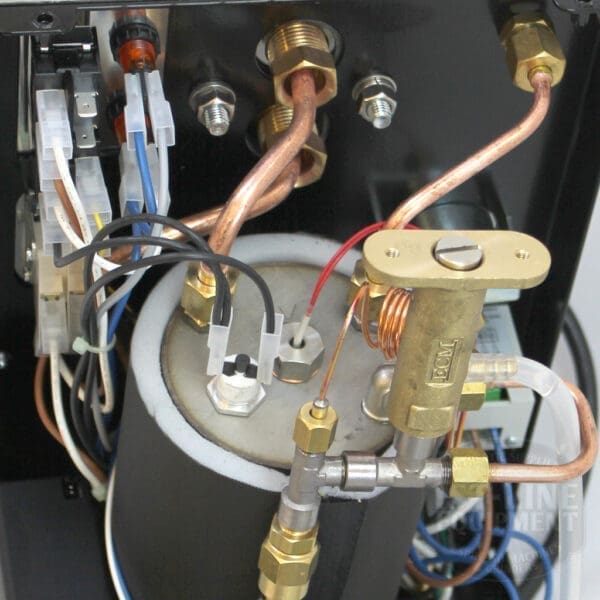

  • Stainless steel boiler – The boiler is made of stainless steel which is less susceptible to limescale. Typically stainless steel boilers do not retain their heat as well as copper or brass boilers. This machine compensates that by being wrapped with insulation.
  • Short heat-up time – Approximately 20 minutes which is faster when comparing to a heat exchange system.
E-61 grouphead:
  • Constantly heated – Hot water circulates from the heat exchanger through the grouphead and back to keep the grouphead and your portafilter nice and hot. This keeps the grouphead at a constant, stable temperature compared to other groupheads that have a built-in heating element.
  • Pre-infusion – The lever next to the grouphead activates a microswitch which turns on the pump to pump water through the coffee grinds. When you pull the lever half way up, it will open the valve to allow water into the grouphead without activating the pump.
PID controls / pressure gauge:
  • PID temperature programming – Allows you to program the boiler temperature for different coffee blends.

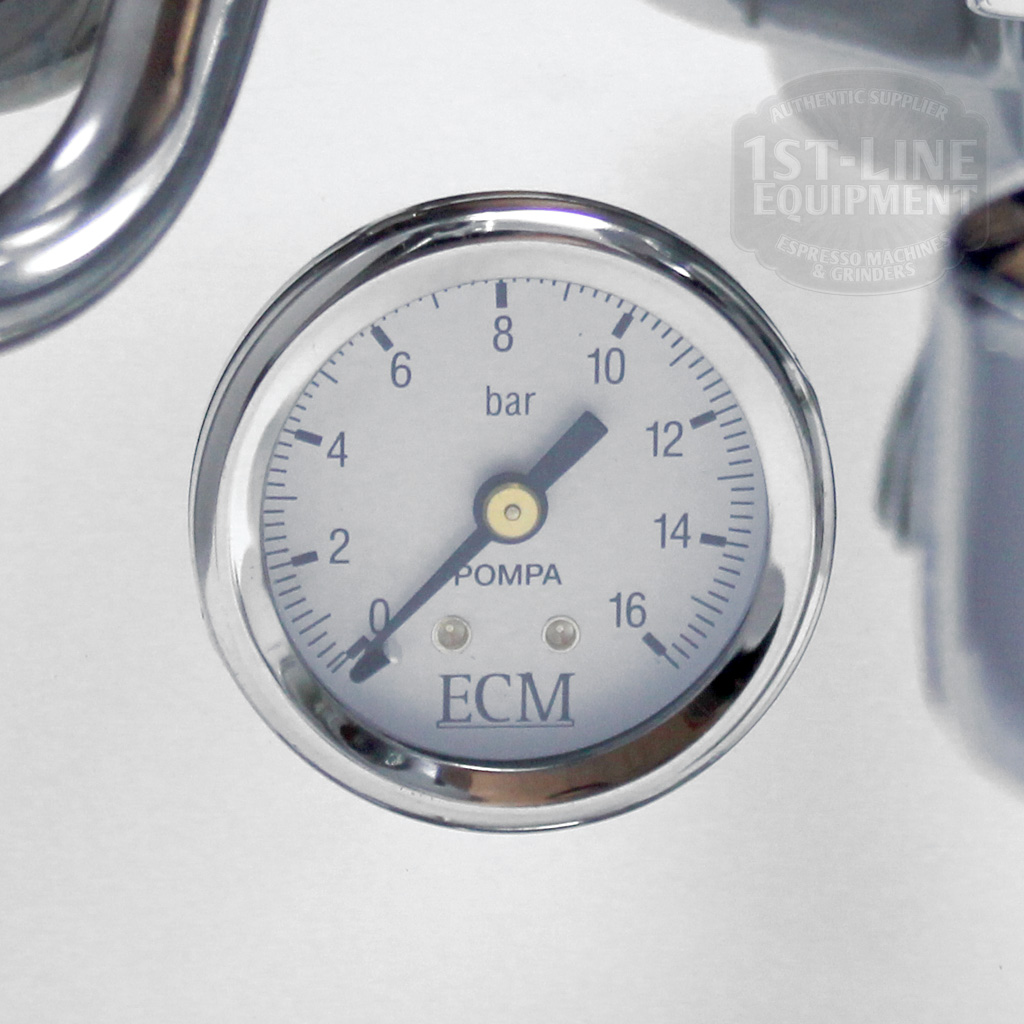

  • Pressure gauge – Measures pump/brew pressure (0 – 16 bar) and should only be looked at while extracting espresso or adjusting the OPV with a blind filter in the portafilter inserted into the grouphead. This gauge has no meaning at any other time.
Vibratory pump:
  • Efficient – 41 watts, rated up to 15 bar with air valve bypass. You only need 9 bar to extract perfect espresso, and wattage has no correlation to longevity.
  • Cost-effective – Pumps will degrade in performance over time. Replacing a vibration pump will cost less than a rotary vane pump.
Steam / hot water wand:
  • Rotational knob – Allows for easier control of the intensity.
  • Multi-directional – Allows for more movement and flexibility
  • 2-hole steam tip – Allows for a slow gradual build-up of microfoam.
  • The grip on the wand protects your fingers from heat while the full-size steam wand allows greater steam power over a no-burn wand.
Construction:
  • Stainless steel body: Polished to a mirror finish. Black enamel-painted steel frame.
  • Passive cup warmer on the top: Heat from the boiler rises and heats the top panel. Just like other espresso machines, it can take up to two hours to preheat your cups. Therefore, it is better to flash heat the cups from hot water from the grouphead or steam/water wand.
  • Three-way solenoid valve: Allows quick removal of portafilter after the espresso extraction and immediately prepare for the next extraction.
  • OPV (over pressure valve): Easily adjustable. Located underneath the cup warmer tray (8.5 – 12 bar).
  • Rocker switches and indicator lights: For the “On/Off” function and for steam and hot water.

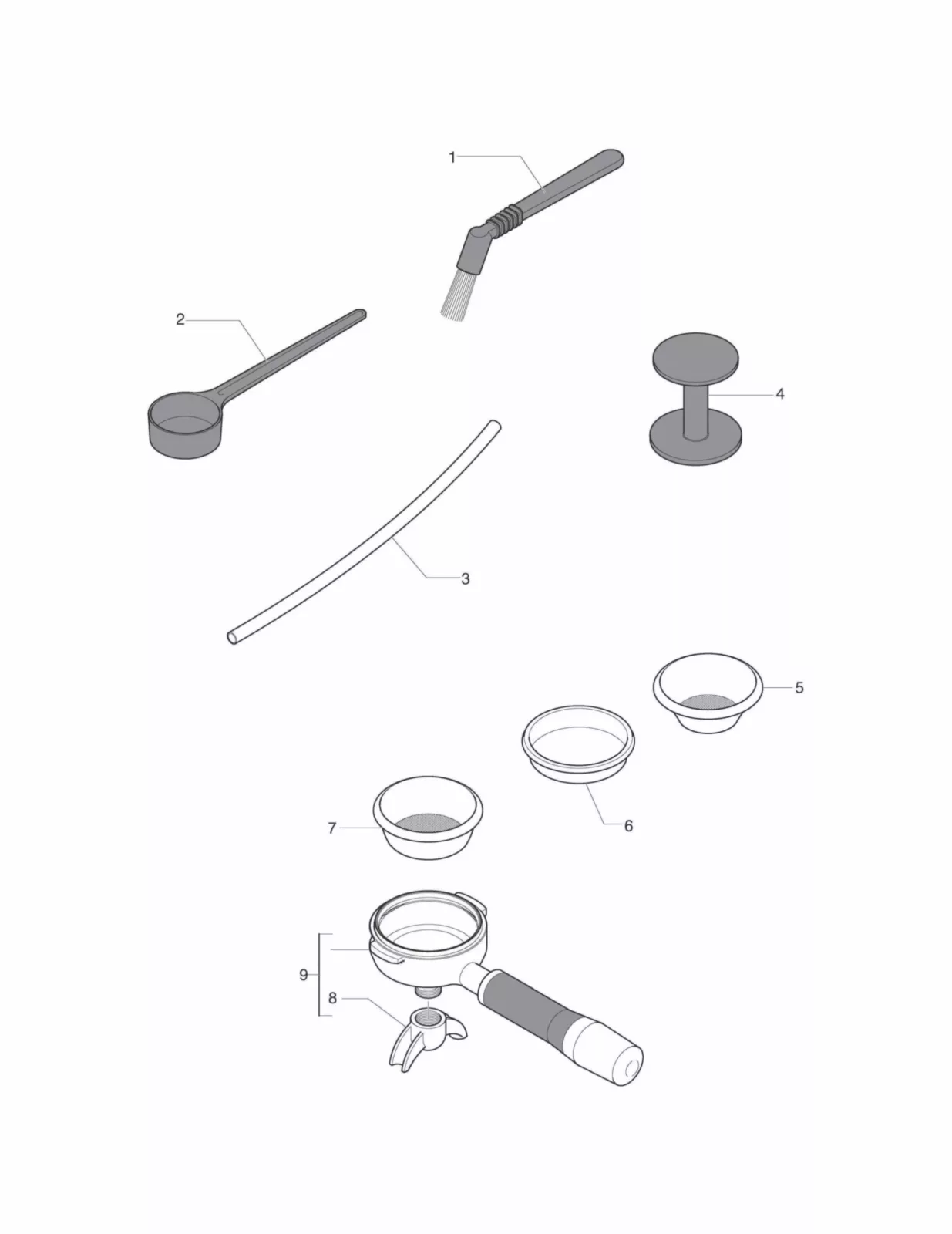

Accessories included with the ECM Classika PID:
  • Portafilters – Dual spout portafilter. The filter head is solid brass and 58mm diameter. It now has an angled handle.
  • Filter baskets – 1-cup filter basket which holds approximately 7 grams. 2-cup filter basket which holds approximately 14 grams. Blind filter basket which you can use for backflushing. All baskets are 58 mm in diameter.

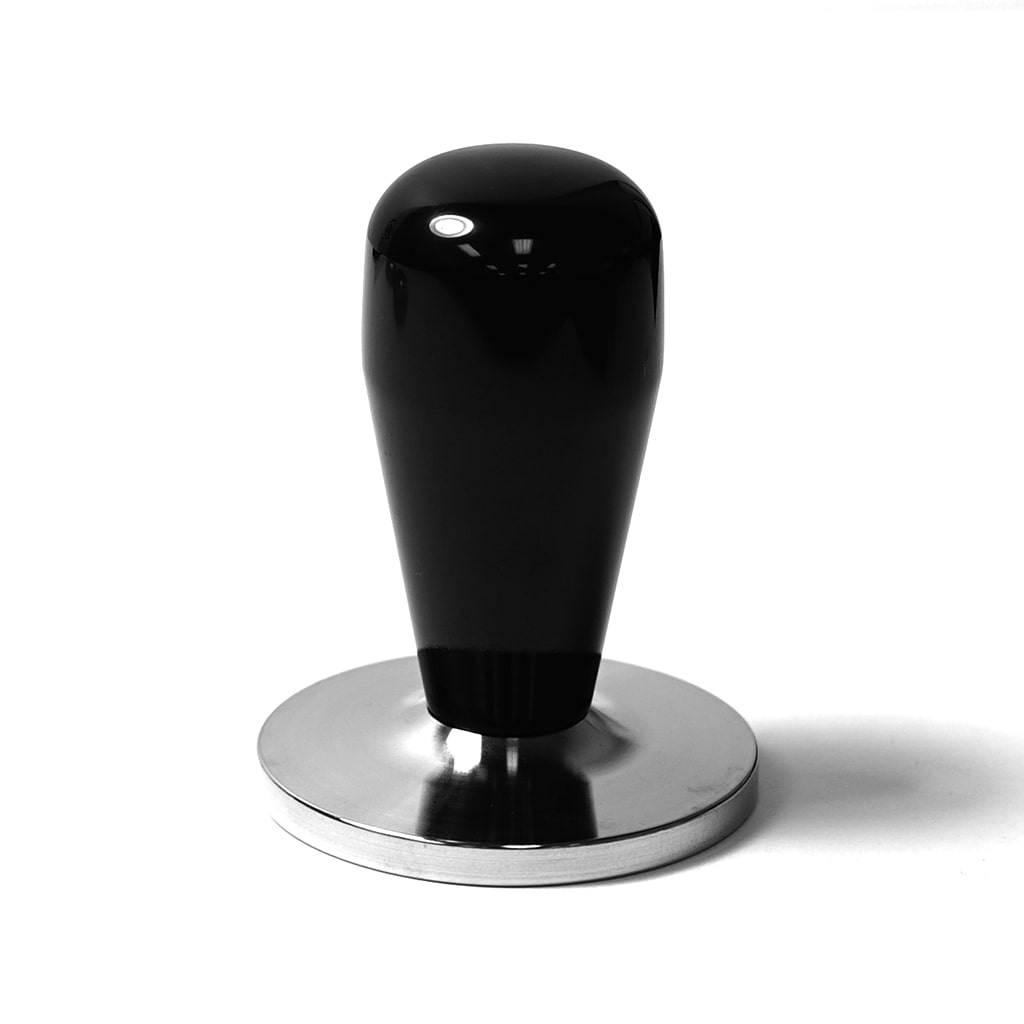

  • Tamper – It now has an upgraded tamper. The tamper has a stainless steel bottom with a plastic handle.
  • Cleaning brush – Used for cleaning the grouphead. Ergonomically designed with an angle for easier usage. The neck has special ridges to keep hot water from dripping to your hand.
  • Water tank hose – Water feeds through a hole at the bottom of the water tank. You can connect this hose and fit a particle filter or a water softener on the other end.
  • Instruction manual – Written in both German and English.

For more ECM Manufacture products, please visit our ECM Manufacture brands page. If you have any questions, please reference the Q&A tab on each product page.

Brand

ECM Manufacture

Height (inches)

16, approximate

Width (inches)

10, approximate

Depth (inches)

18, approximate

Weight (pounds)

41

Wattage (watts)

1200

Voltage (volts)

115

Boiler capacity (liters)

0.75

Portafilter size (mm)

58

Tank capacity (liters)

2.8

Country of manufacture

Assembled in Milan, Italy, Designed in Germany

Approvals

CE

Espresso Machine Warning:

  • ELECTRICAL WARNING: To avoid electrical damage to this espresso machine which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. the lack of the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat or the wiring inside.
  • WATER WARNING: To increase the useful life of and not damage your espresso machine, please use softened water. Softened water is water without calcium and without magnesium, but still has other minerals for espresso extraction. Do not use distilled water, purified water, nor reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale.
  • DESCALING WARNING: We do not recommend descaling unless there is an issue with the espresso machine. The reason is that too much descaling can eat away at the metals and gaskets inside an espresso machine.

  1. Direct water connection: This machine can only operate as a tank model. It cannot be hooked up to a water line.

Please use the diagrams below to help find the exact part you are looking for. After you find the part, copy the SKU #. Then use the search bar at the top of our website. If there are no results in the search, we most likely do not have the part. We only special order parts if the specific model was purchased through 1st-line Equipment. For general questions, please use our parts inquiry page.

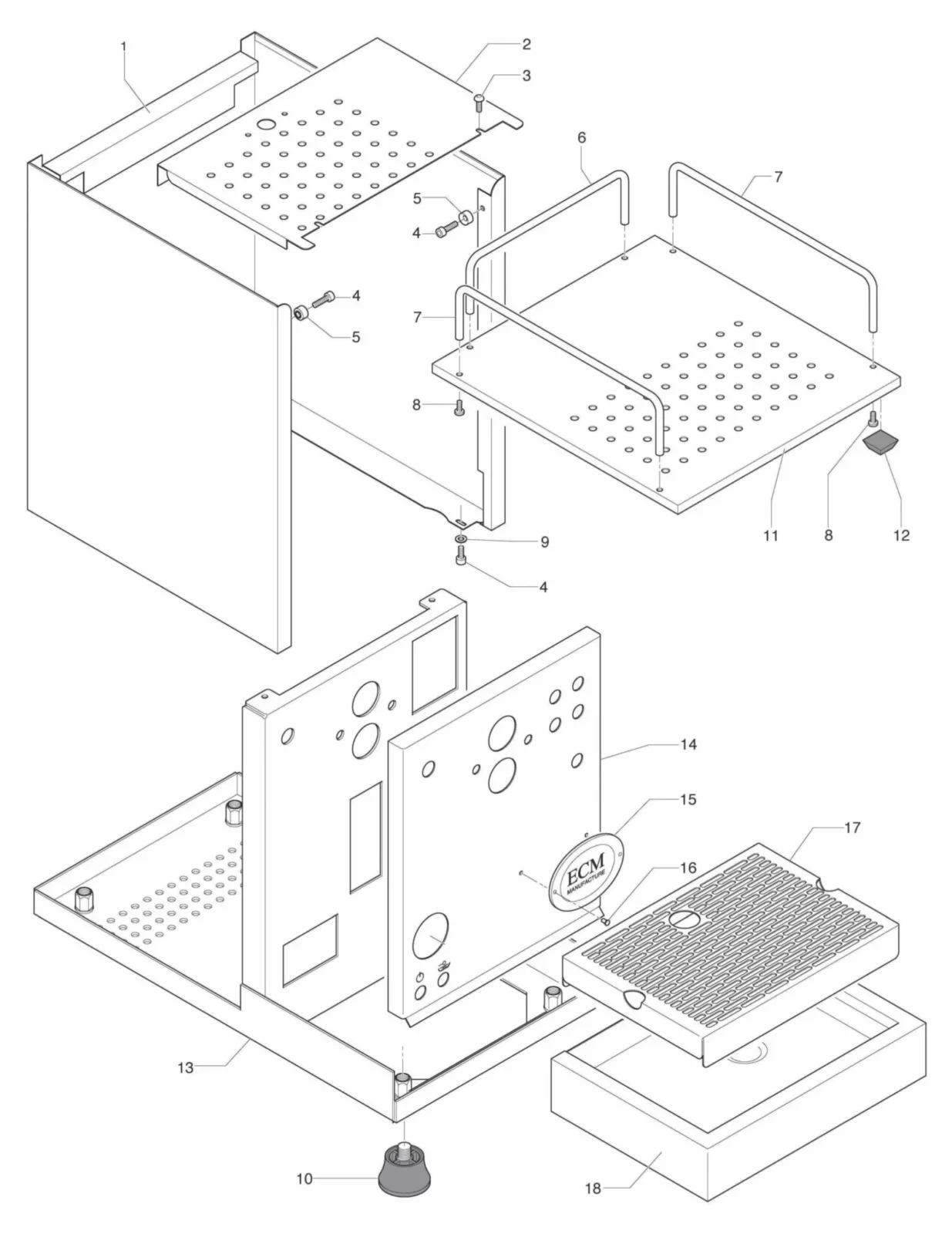

1

ECM-Classika-parts-diagram-01
# SKU
1 P9002
2 P9008
3 P2022
4 P2006
5 B5220818
6 P9028
7 P3002
8 B7826212
9 P2009
10 B7474216
11 P9001
12 B7474212
13 P9005
14 P9006
15 E81100
16 P1999
17 P9004
18 P9003

2

ECM-Classika-parts-diagram-02
# SKU
1 P6016
2 P6021
3 P9010
4 B7432517
5 P6020.N
6a P6020.3
o.Nr. P6025
6b B7496076
7 P6017.N
8 P2006
9 P6023
10 B5471509
11 P9010.K1
12 P7000
13 P2007
14
15 P7000.3
16 P7000.4
17
18 P7000.6
19 P6052
20 P6051
21 C499900769
22 C229900644
23 C229900548
24 P8012
25 P9026
26 E2113001
27 P6020.K3
28 P9007
29 P2021
30 P6022
31 P2006
32 P9118
33 P9027
34 P6020.K4
35 C199900280
35 US1001
36 P3004

3

ECM-Classika-parts-diagram-03
# SKU
1 P2040
2 C100001816
3 C199901549
4 P9022
5 C229900520
6 P9020
7 P9012
o.Nr. P7051
8 P9021
9 P2047
10 P9015
11 P9013
12 P9011 (230V)
12 US1008 (110V)
13 P2011
14 C309900127
15 P2009
16 P2006
17 P9009
18 C100001815

4

ECM-Classika-parts-diagram-04
# SKU
1
2 P6000.2
3 P6000.3
4 P6000.4
5 P6000.5
6 P6000
7 B7371509
8 B5522057
9 P6015
10 P6011
11 P6010
12 B7496073
13 P6002.5
14 P6000.6
15 P6002.2
16 P6002.1
17 P6002.4
18 P6002
19
20 C469900421
21 C619900554
22 C229900549
23
24 C469900422
25 P1000.1
26 C449900767
27 C219900423
28 C219900424
29 C309900127
30 P2011
31 P2010
32 C309900131
33 C329900682
34 C519900103
35 C449900229
36 C309900164
37 C469901132
38 C219900425
39 P1009
40 R000002142
41 C219900426
42 P1004
43 B7479947
44 R000002146
45 C219900427
46 R000002144
47 P1000.2
48 P1002
49 C469900783
50 C219903081
51 P1000.5
52 B7479942
53 C229901128
54 C229901165
55 C219900430
56 C219900431
57 R000002148

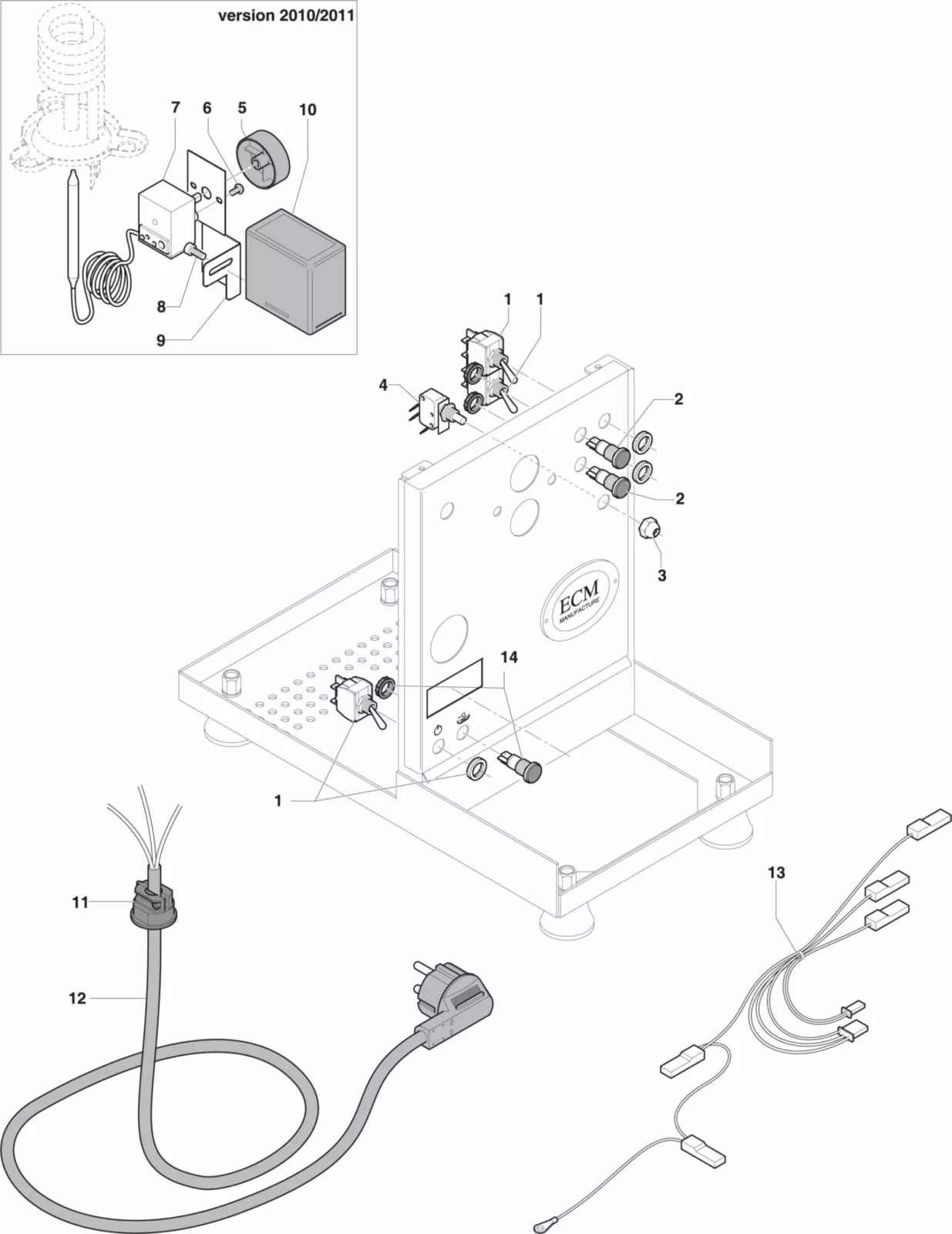

5

ECM-Classika-parts-diagram-05
# SKU
1 C199900087
2 B7633617
3 B5221875CM
4 C199900306
5 B7434012
6 P2055
7 B7434011
8 P2007
9 P9023
10 P9025
10 US1009
11 P2070
12 C199900957 (DE)
12 P2034 (US)
12 P2035 (UK)
12 P2036 (AU)
13 P9024
14 B7633618

6

ECM-Classika-parts-diagram-06
# SKU
1 R210
2 C639900710
3 C499900769
4 C639900764
5 C619900104
6 C619900106
7 C619900105
8 P9120
9 89423

7

ECM-Classika-parts-diagram-07
# SKU
1 P2080
2 P6037
3 P9023
4 P6031
5 P2026
6 P2006
7 P6039 (230V)
7 US1040 (110V)
8 P3001.6
9 P2583
10 P7025
11 P2508
o.Nr. P7051
12 P9006.1

Customer reviews

Rated 5 out of 5 stars
2 reviews
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

2 reviews for ECM Classika PID Espresso Machine

Add a review

Use one of the allowed file type: jpg,png. The max size allowed is : 3 MB.

    This site uses Akismet to reduce spam. Learn how your comment data is processed.

    Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

      What replacement pump should I buy for the ECM Classic PID? Thank you.
    1. 0 votes
      Q What replacement pump should I buy for the ECM Classic PID? Thank you. answer now
      Asked by Al on May 9, 2022 5:38 pm
      Answered by the admin

      Please check the one that is inside your machine to confirm which one you need.

    2. I'm having trouble with wet steam out of the machine. I'm maxing out the steam boiler temp and doing an extended purge. When steaming 100g milk i'm still getting between 20-35% water gain. Is this normal? Bonus points if you can tell me how much water gain you're getting out of the same amount of milk.
    3. 0 votes
      Q I'm having trouble with wet steam out of the machine. I'm maxing out the steam boiler temp and do...... Read more answer now
      Asked by Chad on February 4, 2022 12:32 pm
      Answered by the admin

      Remove water as soon as you depress the steam switch. You need to make some air space for the steam to build up.

    4. I have a 6-year old Classika (non-PID model). It has developed a leak (a fairly consistent drip/seep...a drip/run every 3-5 seconds) from the area where the Group Head attaches to the front of the machine. I have accessed the interior and tightened up the bolts that hold the group head onto the front..as well as tightened up the 2 water supply lines...no change. The drip occurs just before and during drawing a shot. The group head is cleaned regularly and the machine is descaled regularly.
    5. 0 votes
      Q I have a 6-year old Classika (non-PID model). It has developed a leak (a fairly consistent drip/s...... Read more answer now
      Asked by pat gwin on January 20, 2022 2:54 pm
      Answered by the admin

      Sorry, this would probably need to be looked at by a professional as this is the first we heard of this on the ECM line.

    6. What is the best bottled water to use for this machine?
    7. 0 votes
      Q What is the best bottled water to use for this machine? answer now
      Asked by Mary on December 16, 2021 3:31 pm
      Answered by the admin Unfortunately, we do not have any particular bottled water that we can recommend. You can use filtered water with a water softener. The most important thing is to use softened water. Do not use water that has calcium or magnesium because that can lead to limescale buildup.
    8. What flow control fits this machine?
    9. 0 votes
      Q What flow control fits this machine? answer now
      Asked by ILYA KIBLITSKY on July 8, 2021 2:37 pm
      Answered by the admin

      This is the best fitting flow control for ECM espresso machines.

    10. I am trying to purchase part # P9022. It is the copper tube that connects the boiler to the steam/water line. I accidently broke mine while replacing the boiler (which had cracked). Ifyou do not have it in stock, can it be ordered and how long will it approxately take? Ty.
    11. 0 votes
      Q I am trying to purchase part # P9022. It is the copper tube that connects the boiler to the steam...... Read more answer now
      Asked by John Coletti on June 29, 2021 2:22 pm
      Answered by the admin

      Sorry, this is not a part that is normally stocked. Unfortunately, at this time during shortages of people to work, we are very sorry that we only special order parts for customers who purchased their machine from us.

    12. When do you expect to have the ecm classika pid espresso machine back in stock?
    13. 0 votes
      Q When do you expect to have the ecm classika pid espresso machine back in stock? answer now
      Asked by Martin on June 29, 2021 1:21 pm
      Answered by the admin

      By end of third quarter 2021.

    14. What's your ETA for more machines?
    15. 0 votes
      Q What's your ETA for more machines? answer now
      Asked by Roger on August 17, 2020 4:56 pm
      Answered by the admin Early September, 2020 for next batch.
    16. Does this model include a shot timer along with the PID?
    17. 0 votes
      Q Does this model include a shot timer along with the PID? answer now
      Asked by Adam on September 1, 2019 9:00 pm
      Answered by the admin

      Yes, it currently does have a shot timer on the PID display when extracting.

    18. The steam thermostat in the center on top of the boiler started leaking and when I tried to remove it to see what was going on, I only noticed one metal gasket, while the parts picture shows two gaskets. Probably the rubber one is gone or melted down somehow. As a result of the small leak, the water sitting on top of the boiler managed to ruin the safety thermostat (it broke in half). I also have a question about the steam thermostat, because even though the parts picture from this document: https://www.1st-line.com/wp-content/uploads/2017/06/Classika-II-Parts.pdf shows a small center hole where the thermostat is screwed in, in my ClassiKa II PID model I have instead a larger hole (at least 5 mm) which opens inside the boiler with a one inch metal probe attached to the part, which appears to be more a steam valve than a thermostat. So I'm not sure if the listed part C100001816 is the right replacement part for my machine. Do you have these parts in stock and if not can they be ordered? Thank you in advance.
    19. 0 votes
      Q The steam thermostat in the center on top of the boiler started leaking and when I tried to remov...... Read more answer now
      Asked by Danilo Giulianelli on August 13, 2019 4:09 pm
      Answered by the admin

      The two gaskets are probably copper or metal washers as there is no need for rubber gaskets for these thermostats. The reason is no water comes from the threaded section of these thermostats. On non-PID models, there is a thermostat for steam, one for coffee, and one fore safety. On PID models, there is one for safety and one for steam.

      The metal probe, as referenced, is the PID sensor problem to monitor the boiler temperature.

      C100001816 is the steam thermostat part.

    20. What water filter treatment you recommend to prevent scale?
    21. 0 votes
      Q What water filter treatment you recommend to prevent scale? answer now
      Asked by Ken on March 18, 2019 7:06 pm
      Answered by the admin

      The Oscar150 is a very good solution.

    22. It looks like I need a new steam wand for the ECM Classika PID I purchased from you. Can you help me purchase one of those? Thanks.
    23. 0 votes
      Q It looks like I need a new steam wand for the ECM Classika PID I purchased from you. Can you help...... Read more answer now
      Asked by K on January 4, 2019 5:58 pm
      Answered by the admin

      It is rare that a steam wand needs replacement. If the machine was purchased through 1st-line Equipment, please use the contact link at the top of our web site, and submit a more detailed problem that your machine is experiencing. Please include your 1st-line invoice or order number in the submission.

    24. My ECM Classika is 4 years old and for the first time I'm seeing metallic flakes discharged from the steam wand after descaling the machine. My understanding is this unit has an uncoated stainless steel boiler. Where would the chrome flakes be coming from? Can anyone say what may be going on and how to resolve this?
    25. 0 votes
      Q My ECM Classika is 4 years old and for the first time I'm seeing metallic flakes discharged from ...... Read more answer now
      Asked by K on November 3, 2018 4:09 pm
      Answered by the admin

      We are sorry to hear about this. We have never heard of flaking from the stainless steel boiler. It may be from the heating element or the chrome plated steam valve. Parts will need to be removed and inspected to find the fault. Once the part is identified, it will need to be cleaned or replaced.

    26. What is it about the heating element that can cause electrical shorting?
    27. 0 votes
      Q What is it about the heating element that can cause electrical shorting? answer now
      Asked by K on August 23, 2018 5:04 pm
      Answered by the admin

      Lack of water in the boiler, electrical surges, burned wiring, etc.

    28. Hello, what are the common reasons and fixes for the ECM Classika PID to short out and blow the GFCI outlet? My machine is 4.5 years old. I replaced the heating element last year which seemed to resolve the short circuiting problem for 12 months. And now it's happening again.
    29. 0 votes
      Q Hello, what are the common reasons and fixes for the ECM Classika PID to short out and blow the G...... Read more answer now
      Asked by K on August 23, 2018 3:32 pm
      Answered by the admin

      In most cases, it is the heating element. However, a visual inspection and checking with a mulitmeter is usually best. Then, the hardest part is finding the cause. Just replacing a part does not always correct the cause.

    30. Do you sell a reservoir for this machine
    31. 0 votes
      Q Do you sell a reservoir for this machine answer now
      Asked by Max on December 20, 2017 5:38 pm
      Answered by the admin

      At the time of this writing, the part number is P9010K1. For the future, the diagrams can be reviewed.

      Sorry, at the time of this writing, we are currently out of stock on this item.
