DISCONTINUED ECM Barista Espresso Machine with Rotary Vane Pump & Switchable Tank/Plumbed

5 out of 5 based on 2 customer ratings
(2 customer reviews )


This product has been discontinued at 1st-line. Please visit one of the categories below for more comparable products.


ECM Barista Espresso Machine
with Rotary Vane Pump & Switchable between Reservoir and Plumbed In


The extraordinary and extravagant design found in this octagonal stainless steel body – this style icon will be an eye-catcher in any kitchen. This hand-crafted professional model is for those who wish for the highest demands and absolute espresso pleasure. The ECM Barista is the lowest priced ECM Manufacture model. It differs from the higher-priced Technika in that the Technika has wider and refined body panels, upgraded portafilters, and joystick controls for the steam/hot water valves – all of which ultimately cost more to produce. However, this is still one fine model to review before purchasing.

Heat exchange system:
  • Stainless steel, insulated – The boiler is made of stainless steel which is less susceptible to limescale. Typically stainless steel boilers do not retain their heat as well as copper or brass boilers. This machine compensates that by being wrapped with insulation. The end flanges are also stainless steel.
  • Safety valve – Located on top of boiler. This opens if the boiler goes into overpressure, usually due to calcification of the pressurestat pipe.
  • Pull a shot & steam milk at the same time – Steam is always readily available. Therefore there is no wait time going from coffee to steam mode. Works well if entertaining a small group of people.
Separate pressure gauges:
  • Steam pressure gauge – Located on the top left. Better visibility near the top rather than near the bottom. Measures from 0 to 3 bar. Optimal pressure is between 0.8 and 1.1.
  • Brew pressure gauge – Located on the top right. Better visibility near the top rather than near the bottom. Measures from 0 to 16 bar. Optimal pressure is between 8 and 10.
E-61 grouphead:
  • Constantly heated – Hot water circulates from the heat exchanger through the grouphead and back to keep the grouphead and your portafilter nice and hot. This keeps the grouphead at a constant, stable temperature compared to other groupheads that have a built-in heating element. With the heat exchanger/thermosyphon system, only fresh water from the water tank is used for the espresso extraction. The water in the heat exchanger flows to and from the grouphead.
  • Pre-infusion – The lever next to the grouphead activates a microswitch which turns on the pump to pump water through the coffee grinds. When you pull the lever half way up, it will open the valve to allow water into the grouphead without activating the pump. Please note that true pre-infusion requires the direct water connection whereby the water pressure from the water line creates true pre-infusion.
Rotary vane pump:
  • Quiet operation – Rotary pumps are necessary for direct connect capable machines since vibration pumps cannot handle the incoming water pressure. The main benefit that you will experience is that they are a lot quieter.
  • Adjustable – No need to remove the body panel to access. The adjustment screw is accessible underneath the machine.
Water tank / direct water connection:
  • Easy transition – After hooking up the water line (included) to your machine, all you need to do is activate the switch located behind the drip tray on the left side. Turn to the “1” position.
  • Magnetic float in water reservoir will power off the heating element when the water level is low. The removable water reservoir should be manually cleaned every two weeks with non-abrasive dishwasher detergent.
Steam & hot water wands:
  • Rotational knobs – Allows for easier control of the intensity.
  • Multi-directional – Allows for more movement and flexibility
  • 2-hole steam tip – Allows for a slow gradual build-up of microfoam.
  • Grips on wands to protect hands from heat while full-size steam wand allows greater steam power over no-burn wands.
  • Body made of polished stainless steel.
  • Removable drip tray and grate made of polished stainless steel.
  • Removable cup warm tray has nice high rails so cups do not slide off when removing. Please remember to tilt back when removing so the cups do not slide forward.
  • Low profile black feet allow lowest height capability.
  • The best in class overpressure valve (OPV) to release excessive brew pressure.
  • Full-size Sirai pressurestat properly configured vertical and away from boiler top.
  • Dual safety thermostats in case one fails during a potential overpressure situation.
  • The highest quality electronic brain unit, Gicar, is situated internally near the bottom of the unit away from heat. It refills water to the boiler after steam or hot water is dispensed.
Accessories included with the ECM Barista:
  • Portafilters – Single spout portafilter and a dual spout portafilter. The filter heads are solid brass.
  • Filter baskets – 1-cup filter basket which holds approximately 7 grams. 2-cup filter basket which holds approximately 14 grams. Blind filter basket which you can use for backflushing. All baskets are 58 mm in diameter.
  • Tamper – A cheap plastic tamper, common for most espresso machines to keep overall selling price of machine low. We recommend upgrading to a better tamper.
  • Scoop – A simple plastic scoop if you are going to use ground coffee.
  • Backflush detergent – A starter packet for cleaning out the oils in the grouphead.
  • Instruction manual – Written in both German and English. The instructions also work for the Technika.

For more ECM Germany products, please visit our ECM Germany brands page. If you have any questions, please reference the Q&A tab on each product page.

Additional information


ECM Germany

Height (inches)

16, approximate

Width (inches)

13, approximate

Depth (inches)


Weight (pounds)


Wattage (watts)


Voltage (volts)


Boiler capacity (liters)


Portafilter size (mm)


Tank capacity (liters)


Country of manufacture

Assembled in Milan, Italy, Designed in Germany

Espresso Machine Warning:

  • ELECTRICAL WARNING: To avoid electrical damage to this espresso machine which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. the lack of the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat or the wiring inside.
  • WATER WARNING: To increase the useful life of and not damage your espresso machine, please use softened water. Softened water is water without calcium and without magnesium, but still has other minerals for espresso extraction. Do not use distilled water, purified water, nor reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale.
  • DESCALING WARNING: We do not recommend descaling unless there is an issue with the espresso machine. The reason is that too much descaling can eat away at the metals and gaskets inside an espresso machine.

  1. Top rails: The rails on the top of the machine can be removed with an Allen key. This will take 1.75" off the overall height of the machine.
  2. Expansion valve access: Please note that due to 1st-line's custom design requests for the rotary vane pump, there is no access to the expansion valve (OPV) underneath the cup warmer like units that may be available in Europe.
  3. Stainless steel boiler: As of this writing, our ECM Germany Barista machines have a stainless steel boiler. This may be different than that listed on ECM Germany's web site which produces machines for other countries that may require or decide to have a copper boiler.
  4. Steam nozzle: As of July 5, 2013, ECM Germany has confirmed the steam nozzle has 1/8" inner thread. Please note that ECM, like most manufacturers, can make changes without prior notification. Therefore, please check your machine before ordering any steam tips.

Customer reviews

Rated 5 out of 5 stars
2 reviews
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

2 reviews for DISCONTINUED ECM Barista Espresso Machine with Rotary Vane Pump & Switchable Tank/Plumbed

    Add a review

    Use one of the allowed file type: jpg,png. The max size allowed is : 3 MB.

      This site uses Akismet to reduce spam. Learn how your comment data is processed.

      Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

      1. 0 votes
        Answered by the admin

        In the grouphead, the side lever needs to be removed. Take pictures. Then the big nut needs to be removed. The cam needs to be removed. Then, the lubrication needs to be inside the grouphead. Reassemble and test.

        A little lubrication can be can be inserted up into the upper section of the wand where it meets the valve. It can be worked in to the ball area with cotton swab to lubricate the gasket that deals that connection.

      2. 0 votes
        Answered by the admin

        The steam and hot water wands are no burn. There is still a protective rubber grip on top.

        The steam and water valves are soft compression. This means turn them until the steam and hot water stop exiting. This occurs before the knob comes to a halt upon closing.

        The feet/legs have rubber and plastic with a stainless steel tube as an overlay. Inside the foot is a hollow space except for the plastic and bolt.

      3. 0 votes
        Answered by the admin

        This gauge is based on the resistance created in the filter basket.

      4. 0 votes
        Answered by the admin

        It is best to check inside your machine first before ordering. It can be one of two versions.

      5. 0 votes
        A I can't find this product on ECM's website. Is this product discontinued? If so, why?
        Answered by the admin

        The grouphead is mostly made of brass.

        Answered by the admin

        ECM is trimming their lineup of espresso machines. Although the ECM Barista espresso machine shares many components with their other heat exchanger espresso machines, the Barista is being phased out to concentrate production on lesser models.

      6. 0 votes
        Answered by the admin

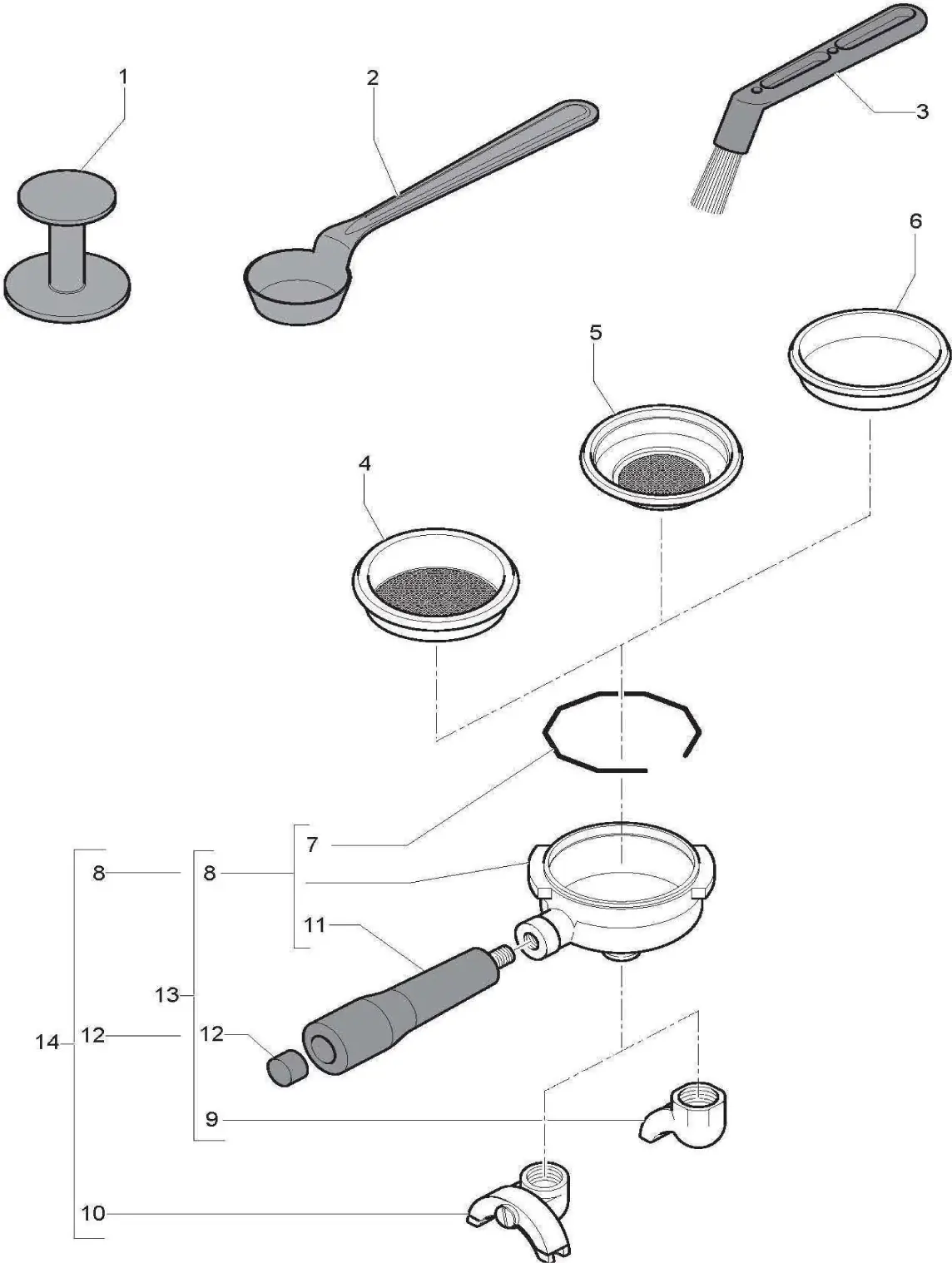

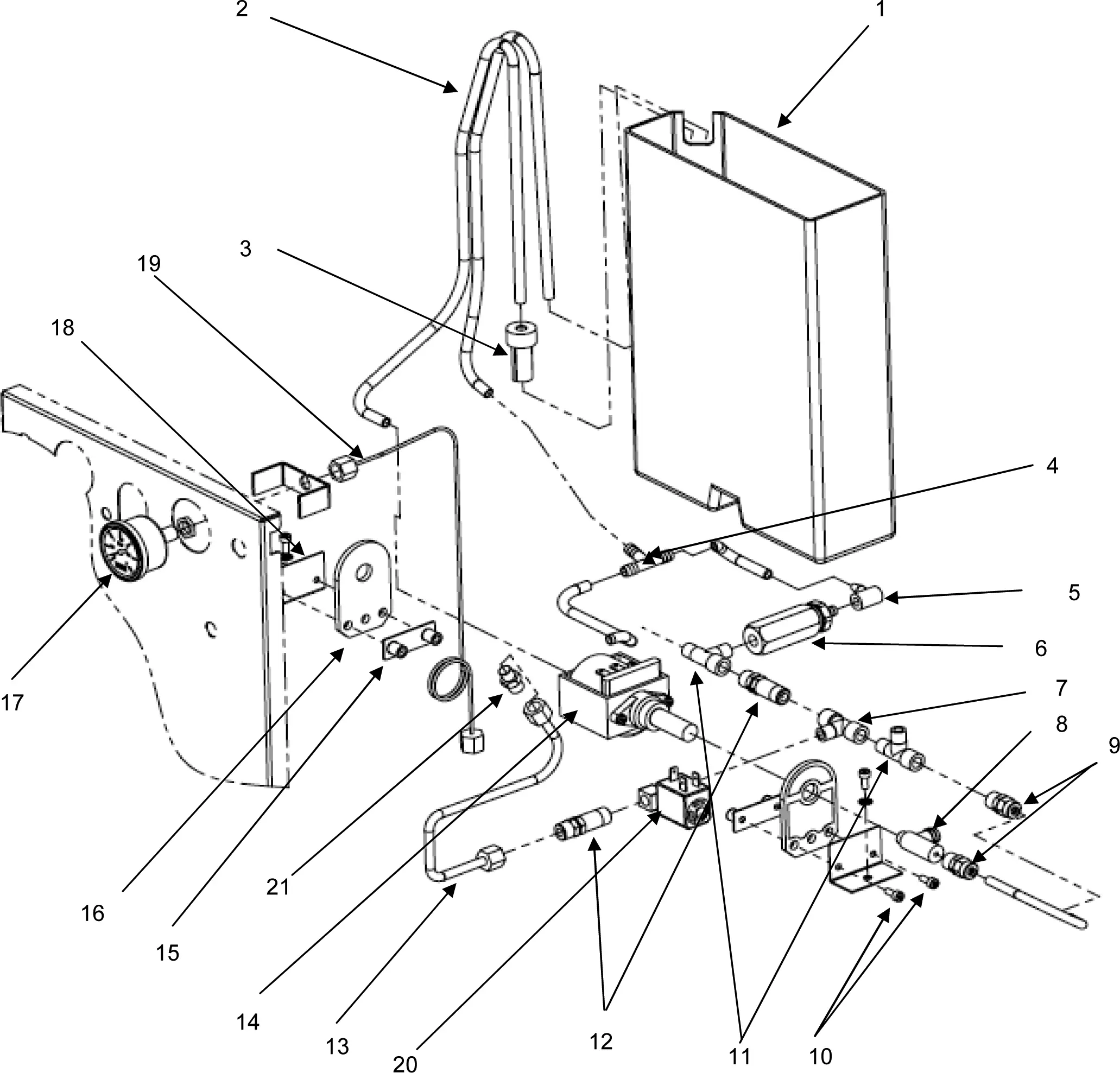

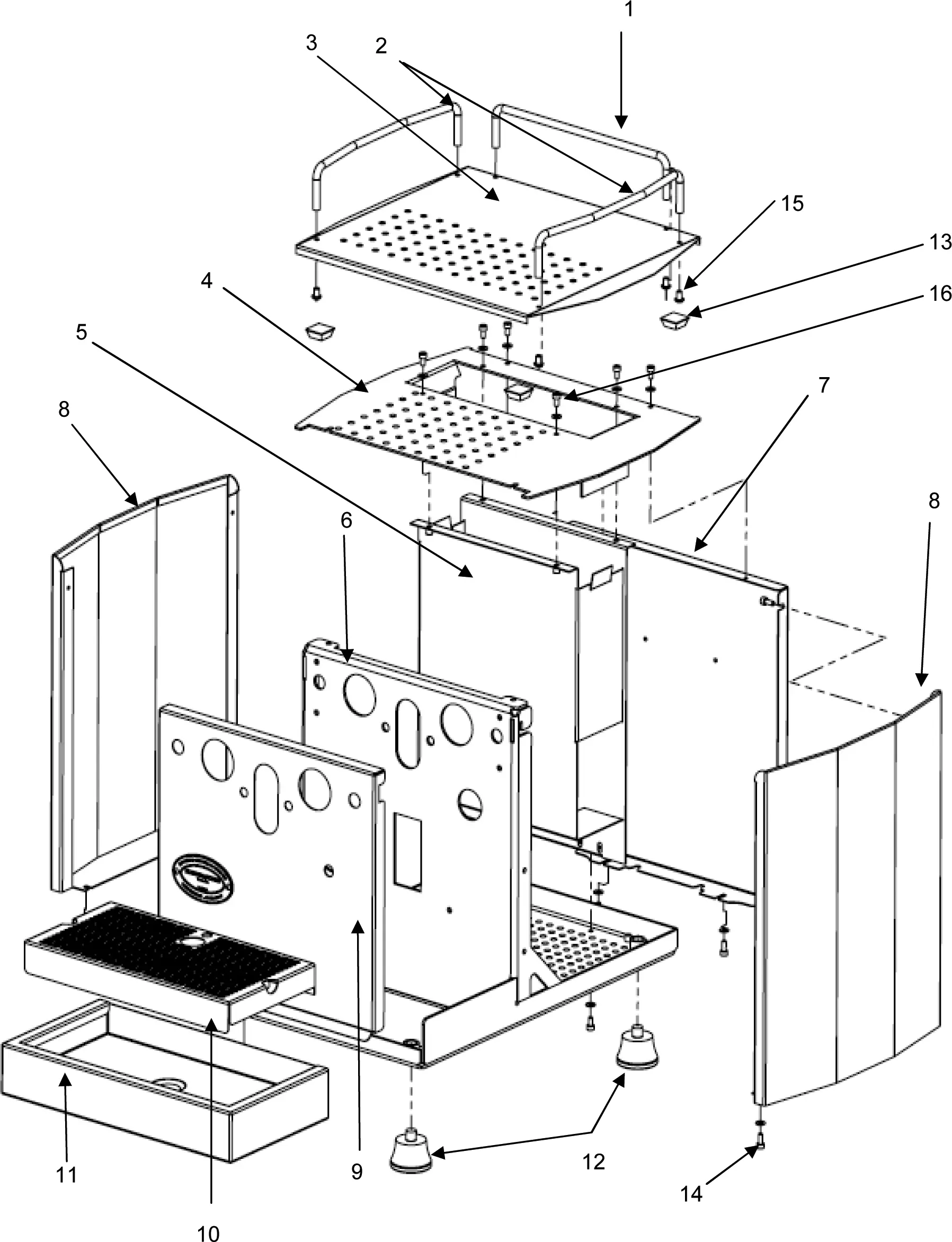

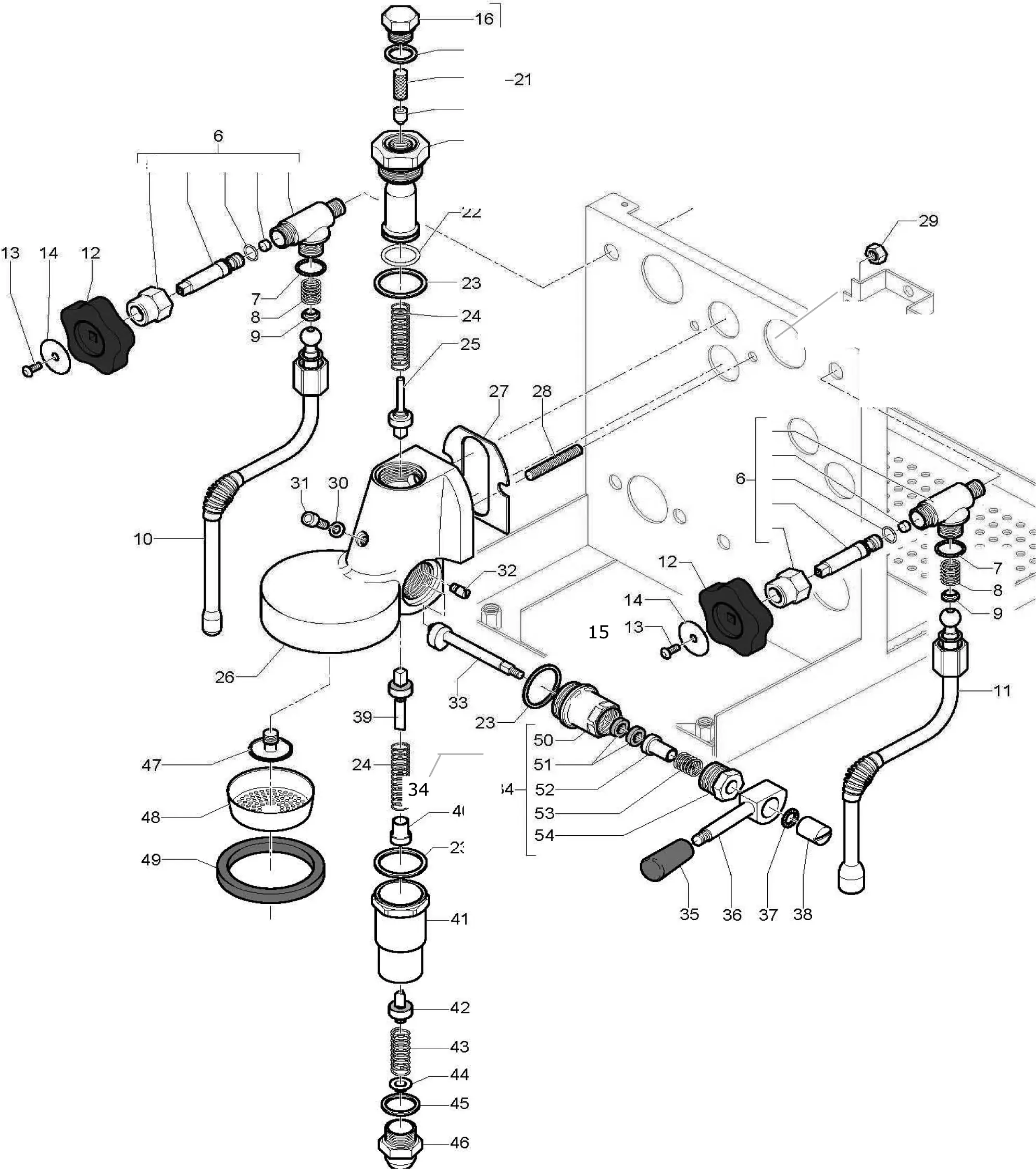

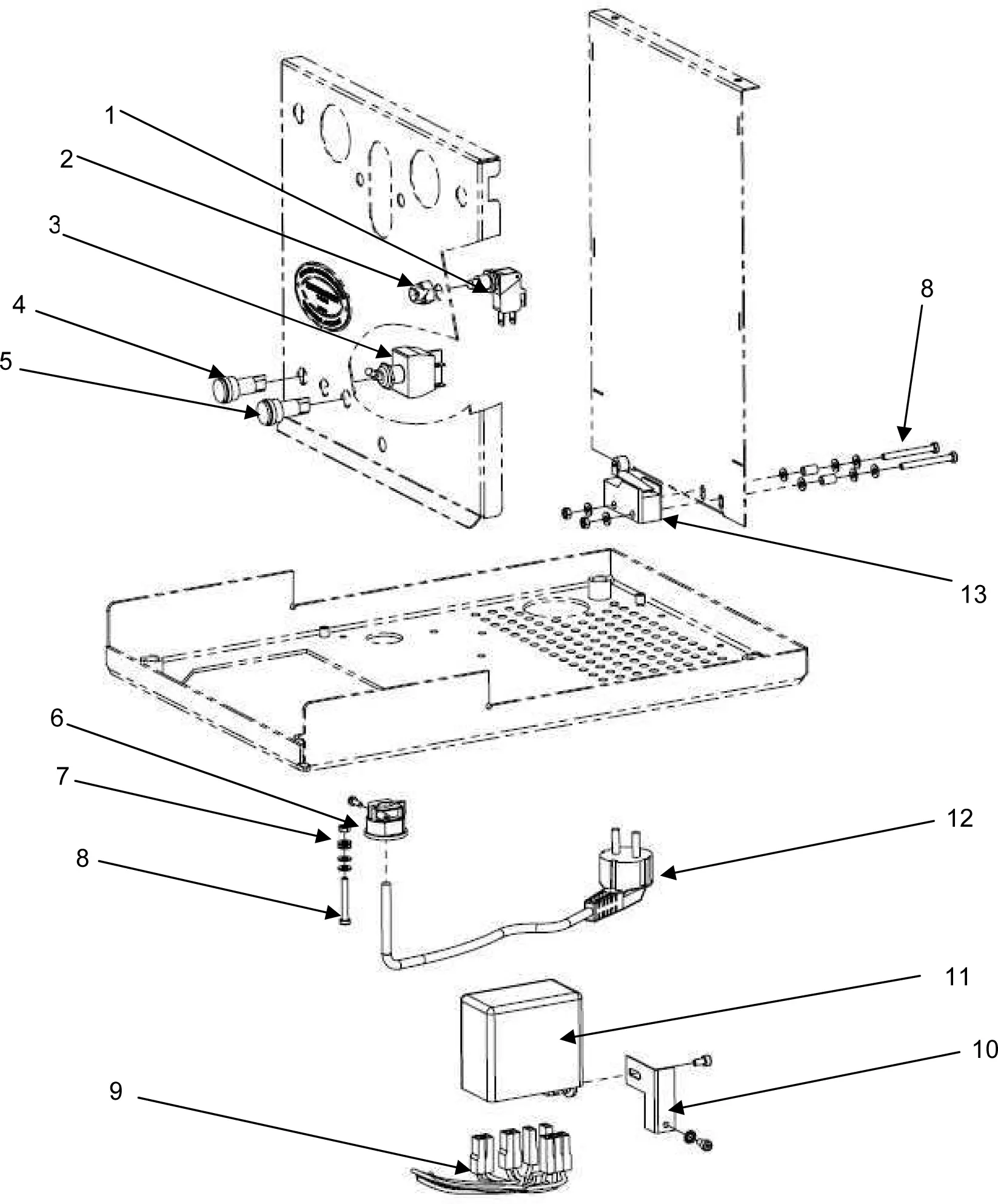

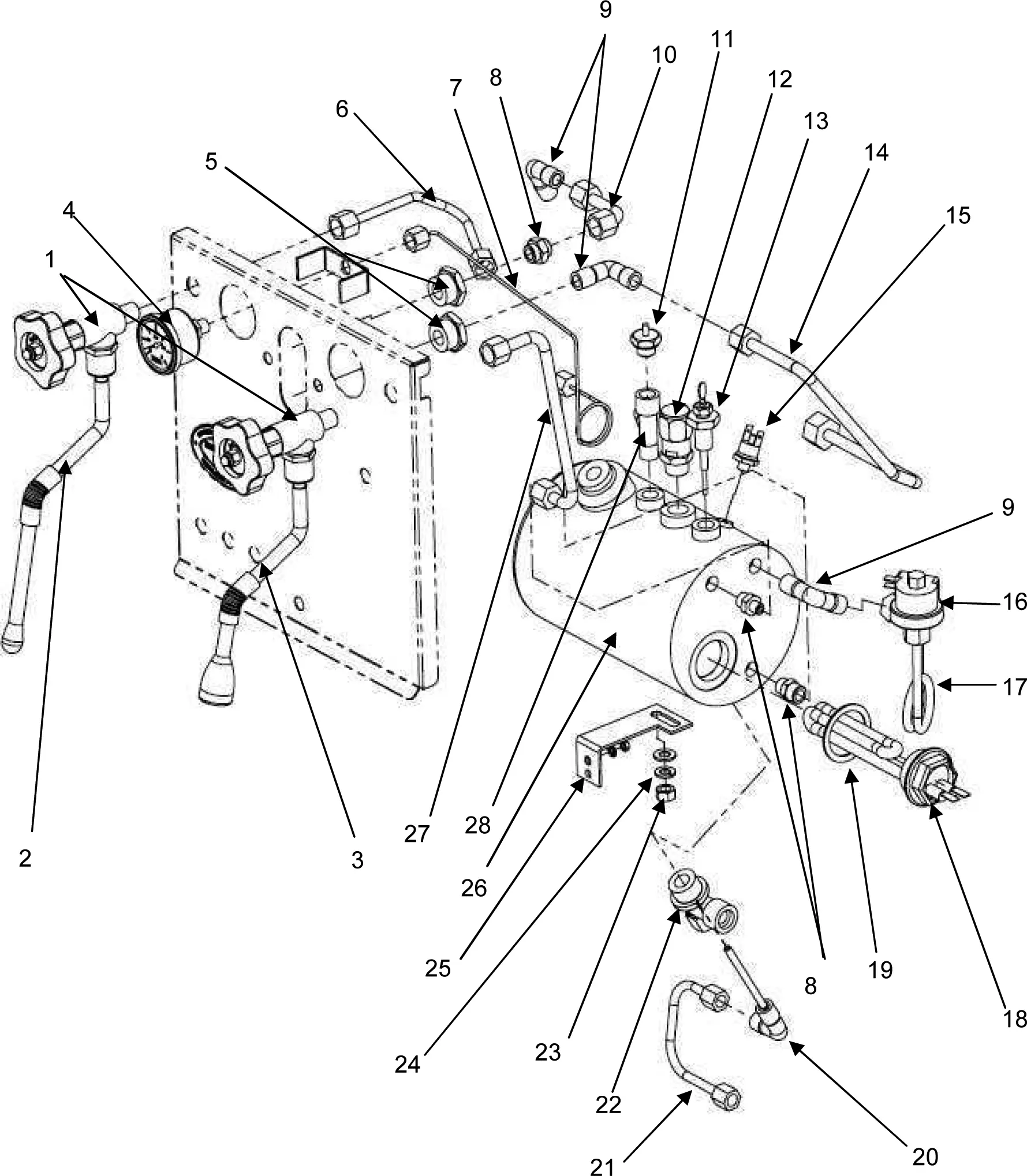

        Sorry about that. We did not realize the Barista diagram was for the tank  only model. The Profi diagram can be reviewed since you have the switchable version.

        We do not always provide exact parts because there can be variations in certain cases, such as yours. Hence, we offer a link to the diagram.

      7. 0 votes
        Answered by the admin

        It really depends if the plastic assembly on the bottom of the reservoir broke, and/or the plastic assembly on the stainless steel platform broke. The diagrams for the ECM Barista espresso machine can be reviewed for the correct part numbers to search on our web site.

      8. 0 votes
        Answered by the admin

        This is your water line pressure and means it is almost 60 psi. Too high as ECM wants 22-24 psi. You will need a pressure regulator. Based on different states with different code requirements, it is best to purchase on from your local plumbing supply house.

      9. 0 votes
        Answered by the admin

        Yes, direct connect means directly connecting to your cold water line.

      10. 0 votes
        Answered by the admin

        The stainless steel braided hoses from Europe usually have a BSPP female connection. A special adapter usually works.

      11. 0 votes
        Answered by the admin

        Sorry to hear about this! Unfortunately, it can be a number of issues. It can be one or more parts causing the issue - brain unit, heating element, either or both safety thermostats, pressure regulator, wiring, magnetic float in the water reservoir, and/or the sensor for the magnetic float.

        Some parts can be checked with a multi-meter for continuity, but other parts need the simple old school replacement to see the situation corrects itself.

      12. 0 votes
        Answered by the admin

        Thank you for the inquiry. The yellow button is only the steam pressure adjustment for temperature. It has no direct relationship to the brew pressure.

        Please insert a blind filter into the portafilter and engage it into the grouphead tightly. Left the lever for 30 or more seconds and see what the maximum brew pressure reading is. If 8 or higher, then the problem relates to your preparation - grind fineness, amount of coffee in the basket, or the tamp pressure. If less than 8, there may be a pump problem or blockage inside the machine.

      13. 0 votes
        Answered by the admin With all the manufacturers using Faema E61 groupheads on their espresso machines and each with the same part, we consolidated the codes: F15 for the grouphead gasket and F277 for the dispersion screen.
      14. 0 votes
        Answered by the admin

        The adapter under the water reservoir is only available in stainless steel as of this response.

        To adjust the boiler pressure (temperature), the top cover needs to be removed and the black box (similar but a little smaller than the Vibiemme version can be adjusted in the same way.
