DISCONTINUED Bezzera BZ16 DE HX Espresso Machine

Overview

Bezzera BZ16 DE HX Electronic Espresso Machine. A heat exchange system with copper boiler. It has an efficient vibratory pump with a tank auto shut-off system.

Are you looking for an espresso grinder? Take a look at the Fiorenzato All Ground Espresso Coffee Grinder

Want to learn more about Bezzera, watch our video on Technical: Safety Design for Most Prosumer Bezzera Espresso Machines on our YouTube Channel!

Features

Heat exchange system:

Copper – The boiler is copper which retains heat better than stainless steel. Typically copper boilers are more susceptible to limescale when you compare to stainless steel boilers. Therefore, we highly recommend using a water softener.
Pull a shot & steam milk at the same time – Steam is always readily available. Hence, there is no wait time going from coffee to steam mode. Works well if entertaining a small group of people.

Close-up of the interior of the DISCONTINUED Bezzera BZ16 DE HX Espresso Machine, highlighting its copper boiler surrounded by pipes, valves, wires, connectors, and electrical components. © 2025 1st-line.com

Electronic controls:

On-demand dosing –
Semi-automatic dosing –

Vibratory pump:

Efficient – 41 watts, rated up to 15 bar with air valve bypass. You only need 9 bar to extract perfect espresso, and wattage has no correlation to longevity.
Cost effective – Pumps will degrade in performance over time. Replacing a vibration pump will cost less than a rotary vane pump.

Close-up of the internal components of a DISCONTINUED Bezzera BZ16 DE HX Espresso Machine, showing electrical wiring, metal pipes, and an HX system with a small pump or motor mounted on a sturdy metal plate. © 2025 1st-line.com

A close-up of the DISCONTINUED Bezzera BZ16 DE HX Espresso Machine, showcasing its stainless steel countertop design with a perforated metal tray and white plastic container inside, partially covered by a hinged metal lid in the background. © 2025 1st-line.com

Tank / reservoir system:

Particle filter – Protects the machine from any unseen particles from entering the boiler. You can remove this filter if you are installing an inline water softener.
Auto-shut off – This prevents the machine from burning out the heating element. The water tank sits on a spring activated plate. Once the water is low, the plate depresses the tank microswitch which turns off the heating element.

Separate wands for steam and hot water:

Multi-directional – This gives it more movement and flexibility. Each wand has a rubber grip which protects your fingers.
2-hole steam tip – A 2 hole permits a slow gradual build-up of microfoam.
Rotational knobs – The benefits 0f having rotational knobs gives it easier control of the intensity.

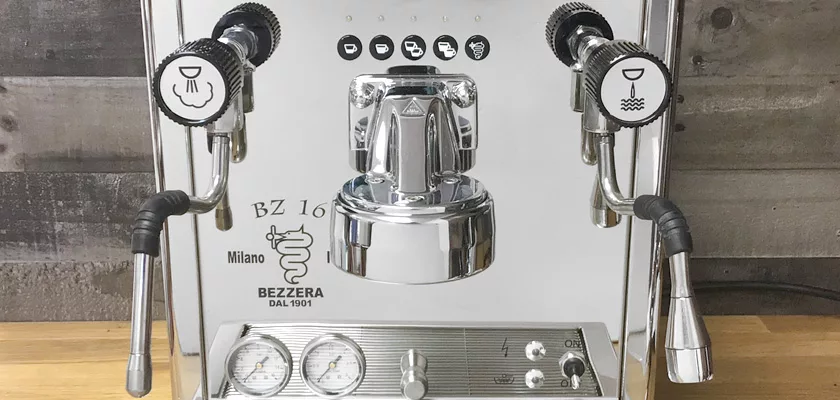

A discontinued Bezzera BZ16 DE HX Espresso Machine with two steam wands, pressure gauges, and control knobs sits on a wooden countertop against a rustic wood wall. © 2025 1st-line.com

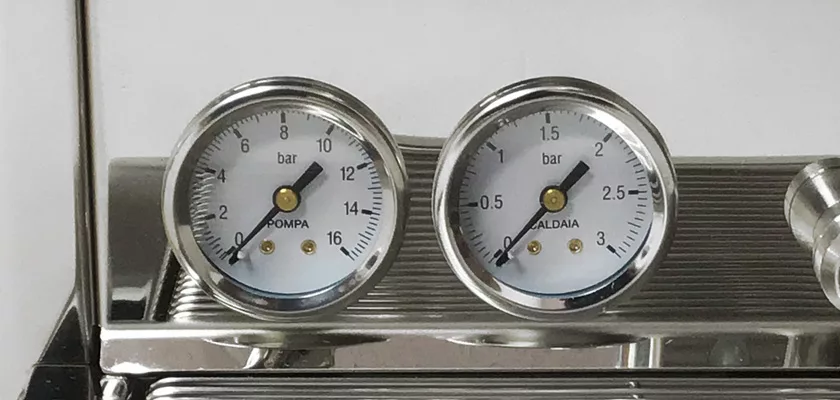

Close-up of two round pressure gauges on the DISCONTINUED Bezzera BZ16 DE HX Espresso Machine: the left POMPA gauge reads up to 16 bar, and the right CALDAIA gauge for the HX boiler goes up to 2.5 bar. © 2025 1st-line.com

Separate pressure gauges:

Brew (pump) pressure gauge – Located on the front lower left. The measurement is from 0 to 16 bar. The optimal pressure is between 8 and 10. You can find the over pressure valve inside left near the vibration pump.
Steam (boiler) pressure gauge – Is on the front lower left, to the right of the brew gauge. Measures from 0 to 3 bar. Optimal pressure is between 0.8 and 1.1. Regulated by a Mater pressurstat.

Separate indicator lights:

Power indicator light – Located on the front lower right. This will indicate when the machine is on.
Low water level light – This is on the front lower right, underneath the power light. Indicates when water level in water tank / reservoir in rear is low.

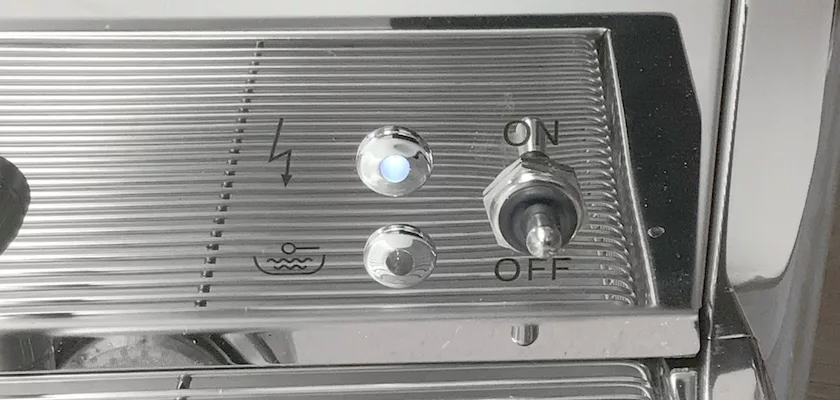

Close-up of the control panel of a DISCONTINUED Bezzera BZ16 DE HX Espresso Machine, showing a power symbol, illuminated button, water symbol, and an ON/OFF toggle switch set to ON. © 2025 1st-line.com

Two portafilters with black handles sit on wood next to the mirrored surface of a DISCONTINUED Bezzera BZ16 DE HX Espresso Machine, their reflections highlighting the classic design of this model’s portafilters. © 2025 1st-line.com

Body panel:

Stainless steel – Polished to a mirror finish.

Accessories included:

Portafilters – Single spout portafilter and a dual spout portafilter.
Filter baskets –
- 1-cup filter basket with a run channel which holds approximately 8 grams.
- 2-cup filter basket which holds approximately 14 grams.
- Blind filter basket which you use for backflushing. 58 mm in diameter.
Tamper – It comes with a cheap plastic tamper. Manufacturers will normally include a tamper like this to keep the overall selling price of the machine low. We recommend upgrading to a better tamper.
Cleaning brush – This also comes with a simple brush for cleaning the grouphead. Ergonomically designed with an angle for easier usage.
Coffee scoop – A coffee plastic scoop if you are using preground coffee.
Instruction manual – The manual is available in 5 different languages: Italian, English, French, German, & Spanish.

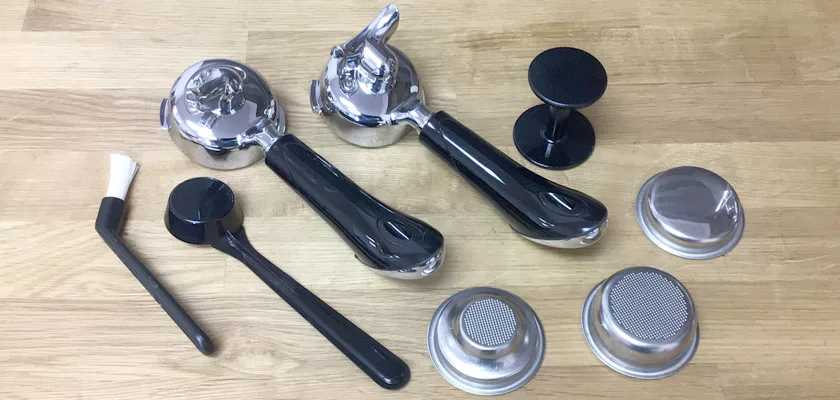

Barista tools on a wooden surface—two portafilters, two black tampers, a coffee grounds brush, and metal filter baskets—perfect accessories for your DISCONTINUED Bezzera BZ16 DE HX Espresso Machine. © 2025 1st-line.com

Specifications

Brand	Bezzera
Height (inches)	16, approximate
Width (inches)	13, approximate
Depth (inches)	18, approximate
Weight (pounds)	63
Wattage (watts)	1350
Voltage (volts)	110
Boiler capacity (liters)	2
Portafilter size (mm)	58
Tank capacity (liters)	4
Country of manufacture	Milan, Italy

Notes

General Espresso Machine Notes/Warnings:

Upon first use (tank/reservoir models): On the initial start-up (or after a long period of non-use), it is important to make sure the pump is removing water from the tank. When the machine is powered on, you will hear the pump running. After 5 seconds, squeeze the in-line hose in the tank (usually the longest hose, has a particle filter attached). if you hear a different sound, this means the pump is working correctly. If not, immediately power down the machine and contact us. For more information, visit this page General Manual Pump Priming.
Electrical: To avoid electrical damage to this espresso machine which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. Without the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat, or the wiring inside. For more information, visit this page Power Protection.
Water: To increase the useful life and not damage your espresso machine, please use softened water. Softened water is water without calcium and magnesium, but still has other minerals for espresso extraction. Do not use distilled, purified, or reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale. For more information, visit this page Water Choice.
Descaling: We do not recommend descaling unless there is an issue with the espresso machine. Too much descaling can eat away at the metals and gaskets inside an espresso machine. As a preventative measure, we recommend using softened water as explained in the bullet point above.
Backflushing: This procedure of cleaning the grouphead will need to be performed from time to time. For more information, visit this page Espresso Machine Backflush – Why 50?

Support

Instruction Manual (9941150.01)

Q & A

Ask a question

Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

Can it be linked to the external water line instead of refilling the tank?

0 votes

Q Can it be linked to the external water line instead of refilling the tank? answer now
Asked by Yihsu Chen on November 3, 2021 10:07 pm

Answered by the admin
Sorry, it can not at this time.

How many boilers does this espresso machine actually have? You and Bezzera.it specifications list it as 2 boilers. AFAIK an HX boiler is 1 or 1 brew boiler inside the steam boiler.

0 votes

Q How many boilers does this espresso machine actually have? You and Bezzera.it specifications list...... Read more answer now
Asked by Matt on April 9, 2021 3:21 pm

Answered by the admin The specifications state: Boiler capacity (liters): 2 The title states HX, which means one boiler with a heat exchanger pipe inside the boiler for extracting espresso through the grouphead.

Hello! Do you also sell BEZZERA BZ16 R-DE - with rotary pump and 1400 wattage. Thank you, Zlatanov

0 votes

Q Hello! Do you also sell BEZZERA BZ16 R-DE - with rotary pump and 1400 wattage. Thank you, Zlatanov answer now
Asked by Tzvetan Zlatanov on January 8, 2021 6:10 am

Answered by the admin
Sorry, we do not.

Parts Diagram

Finding your part

Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website.
Note: These parts diagrams are provided by the manufacturers. We list them on our site for informational purposes only. We do not stock every single part listed nor can we guarantee that every part is available to order.
If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.

COD. 9942064 REV. 04

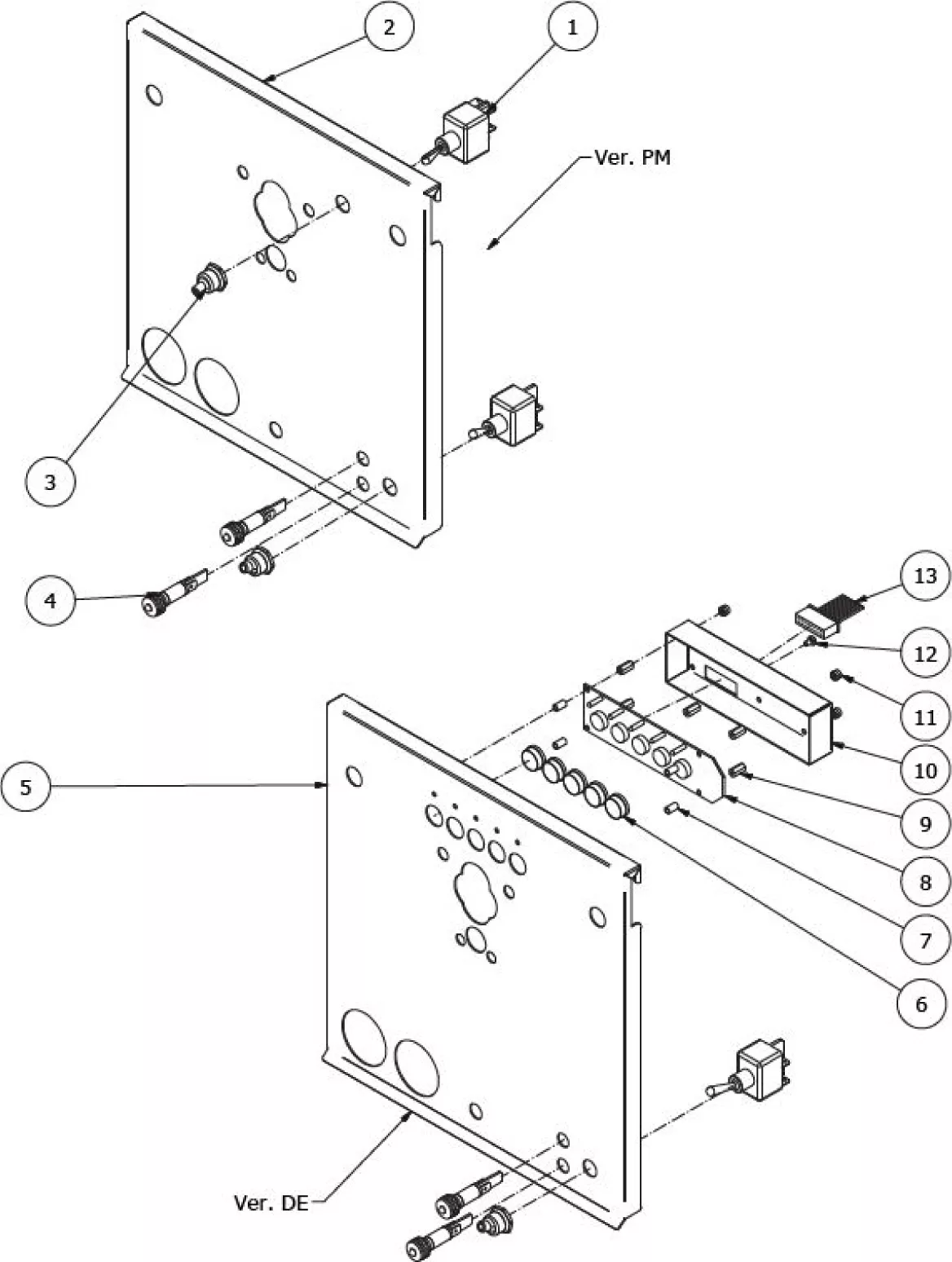

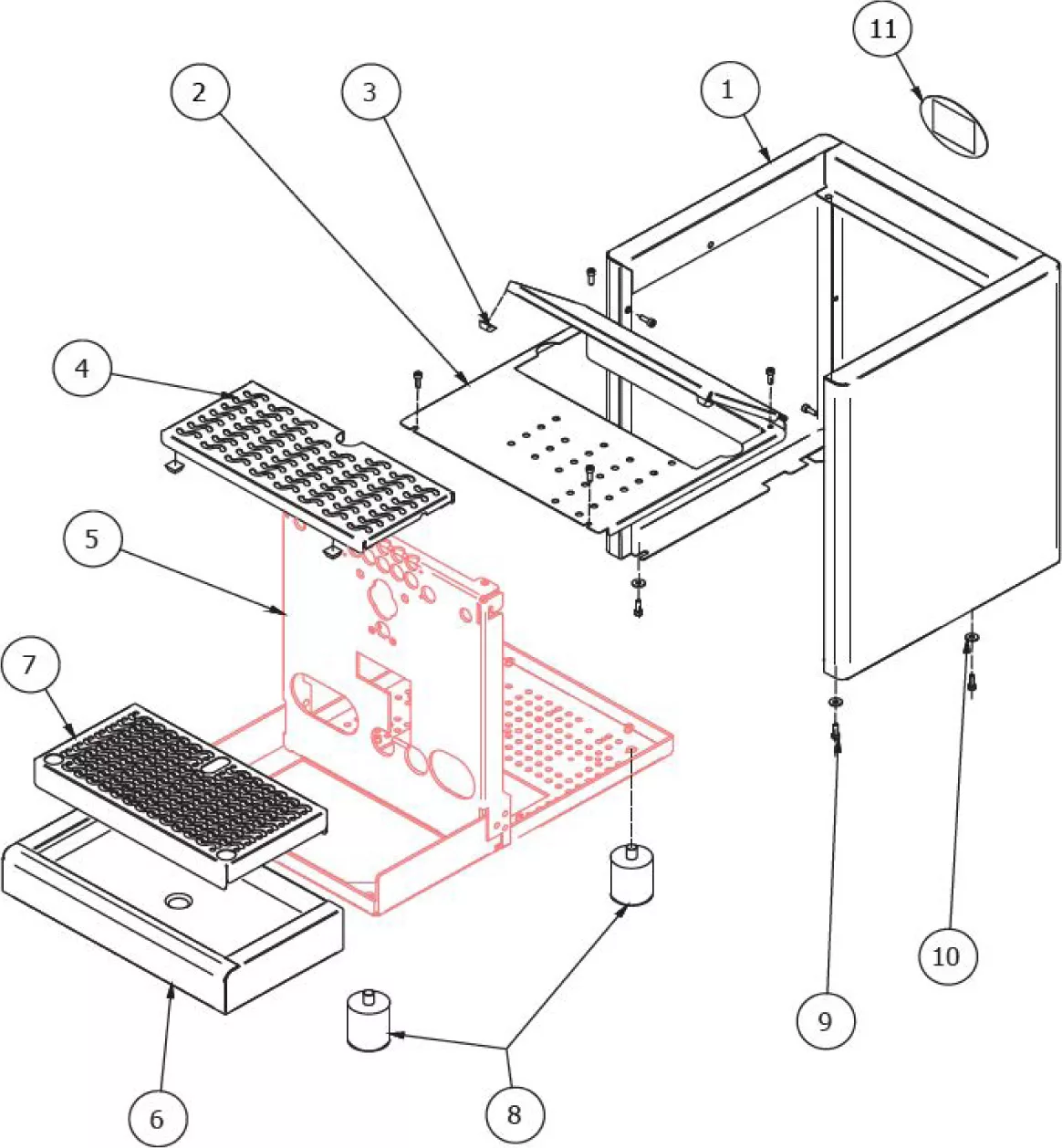

TABLE 1 (BZ16 S)

#	SKU
1	5344025.01
2	5961602.01
3	7474217
4	5074617LW
5	5344016LL (DE)
5	5340015LL (PM)
6	5340503DL
7	5074617LW
8	7474218
9	7816002
10	7809804
11	5521512

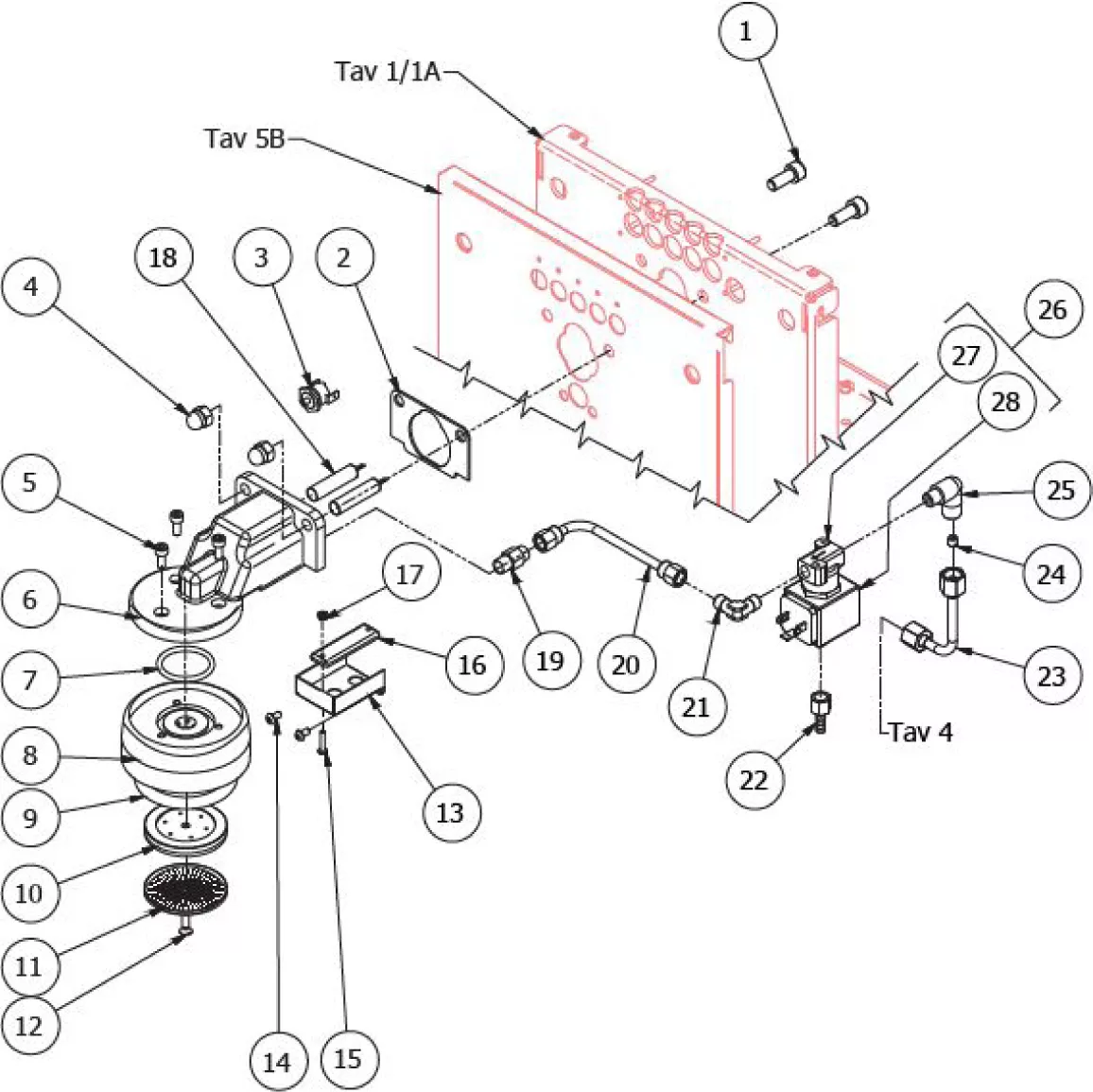

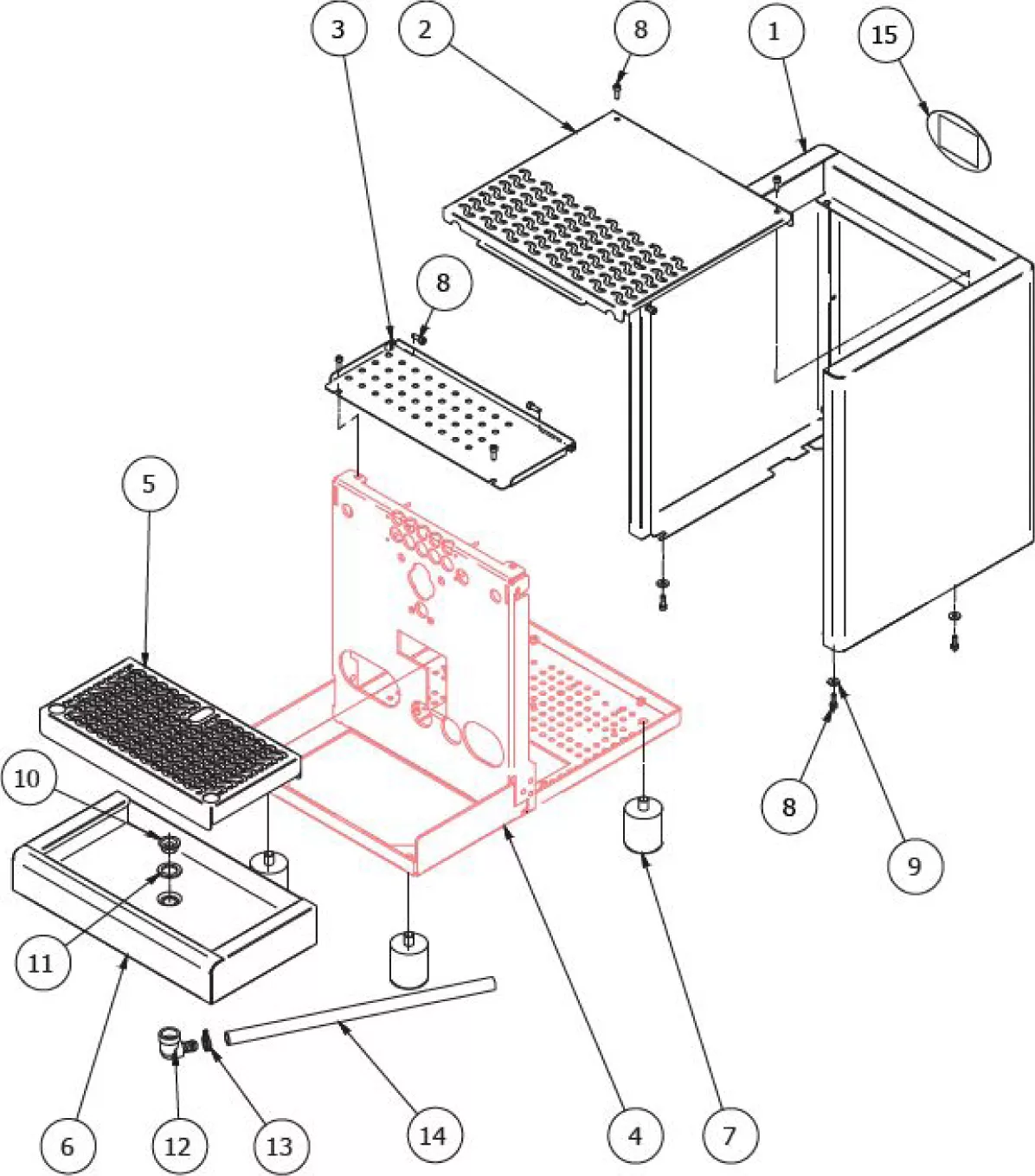

TABLE 1A (BZ16 R)

#	SKU
1	5344025.01
2	5074620LW
3	5056330LW
4	5340017LL (PM)
4	5340018LL (DE)
5	5074617LW
6	5340503LL
7	7474218
8	7816002
9	7809804
10	5225230
11	5492022
12	5224403.01
13	7611502
14	7303502
15	5521512

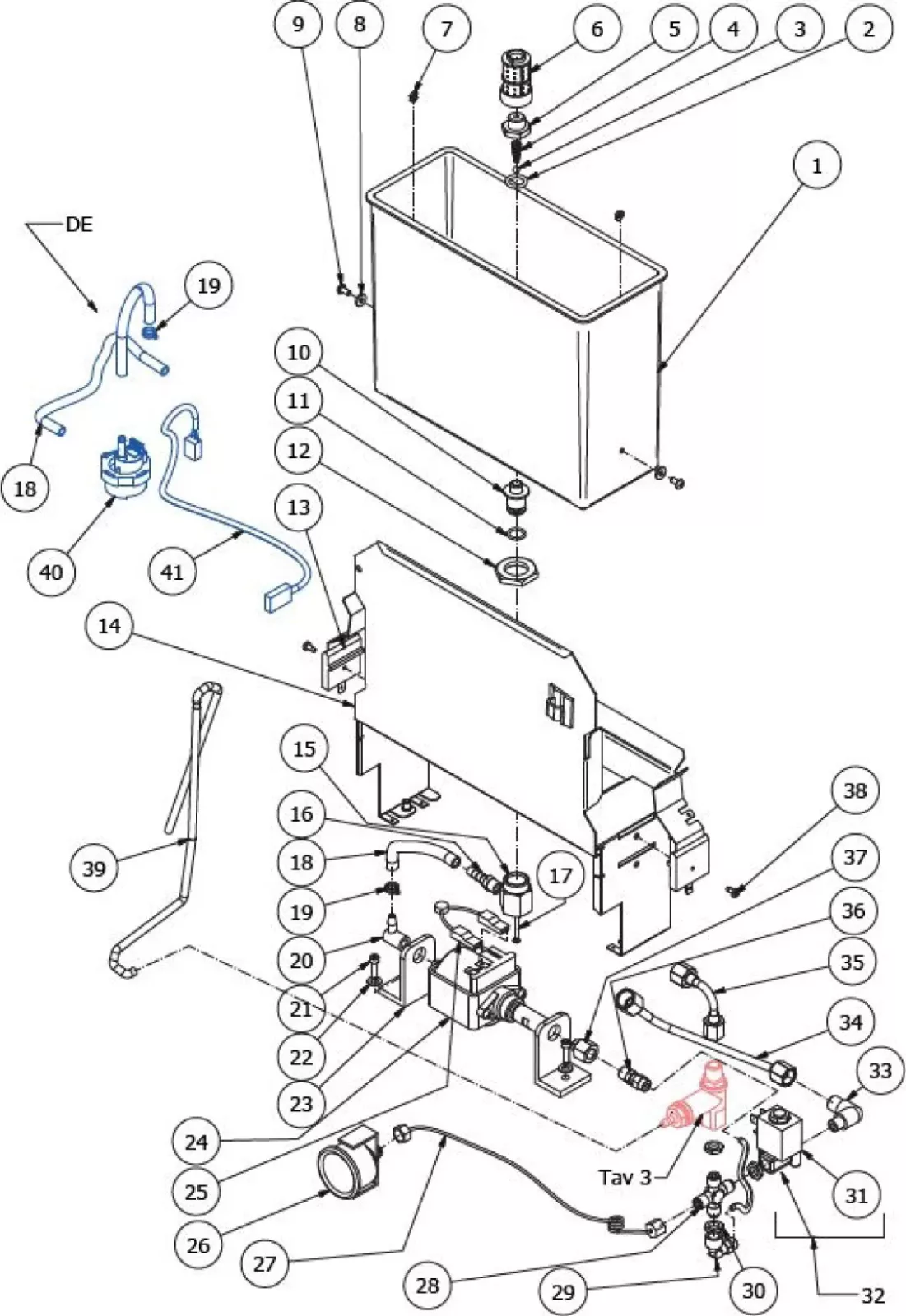

TABLE 2 (BZ16 S)

#	SKU
1	7373006.03
2	7496073.01
3	5471509
4	5471521.01
5	5302065
6	7374002
7	7812601
8	7374004
9	7819908
10	5224617
11	7496076
12	5221830
13	5471535
14	5963009.03
15	5225228
16	5225246
17	7826206
18	5194529 (D6x9 L=150mm)
18	5194632LL (D8x5x1.5, mod.DE)
19	7611512
20	7303006
21	7816004
22	7805009
23	7470602
24	7731018 (100V C/OR)
	7731019 (120V with OR)
	7731022 (220V 60Hz with OR)
	7731020 (230V with OR)
	7731021 (240V with OR)
25	7634816
26	7432523
27	7400902
28	7304001TR
29	7303034TR
30	5221844
31	7630327 (110V)
	7630328 (220/230V)
	7630329 (240V)
32	7702310 (230V)
	7702409 (240V)
	7701111 (115V)
33	5301504TR
34	5162237.01LL
35	5162236.01LL
36	7303036TR
37	5225418TP
38	7809806
39	5194508.01LL
40	7431002
41	7663595

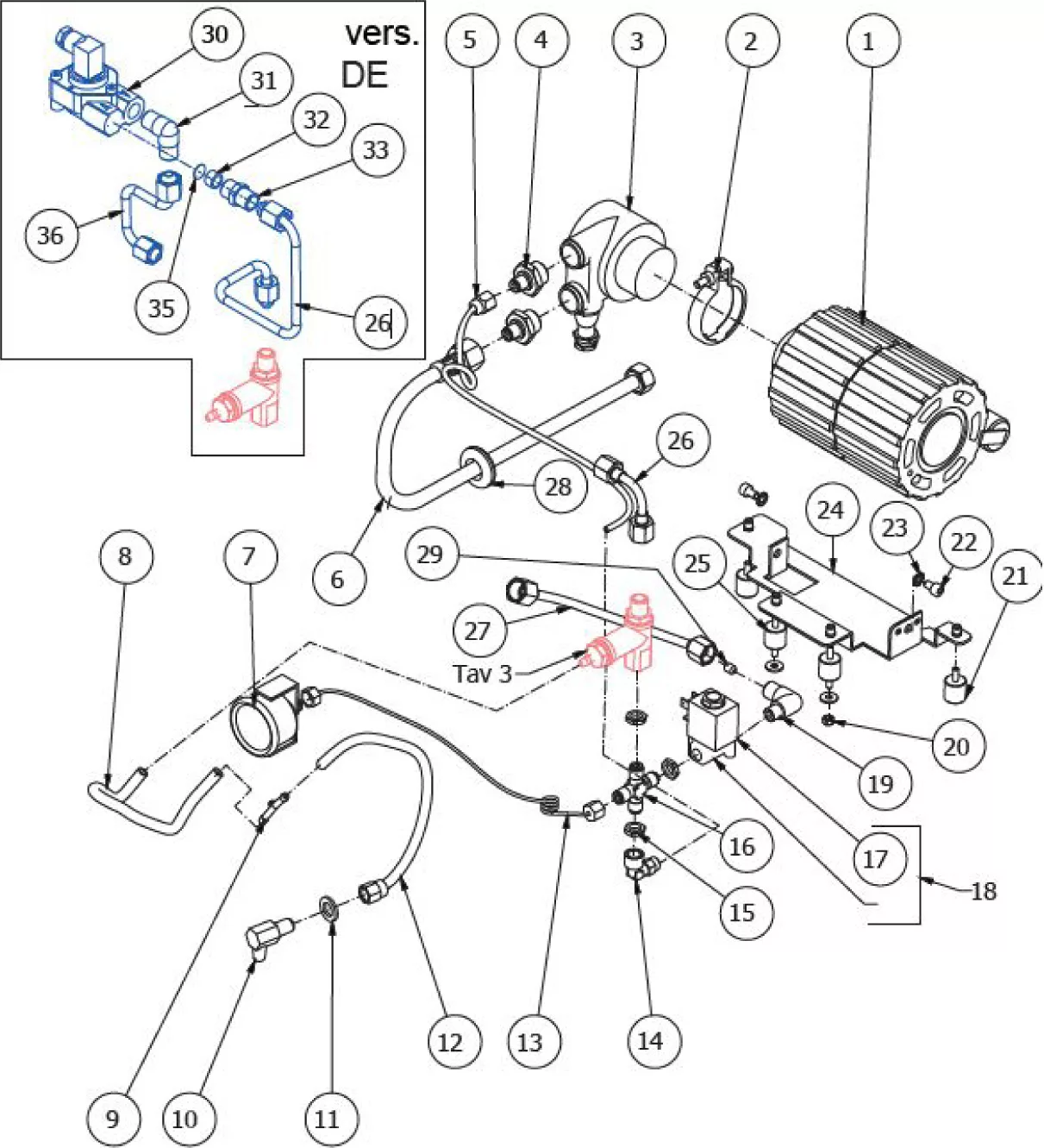

TABLE 2A (BZ16 R)

#	SKU
1	7741005 (110V)
1	7742404 (220/240V 50/60Hz)
2	7611508
3	7730509
4	5302023
5	5194574.01LL
6	7200514
7	7432523
8	5194633
9	7303033
10	5283018CM
11	7815001
12	5194566LL
13	7400902
14	7303034TR
15	5221844
16	7304001TR
17	7630327 (110V)
	7630328 (220/230V)
	7630329 (240V)
18	7701111 (115V)
	7702310 (230V)
	7702409 (240V)
19	5301504TR
20	7822603
21	7474219
22	7816027
23	7814002
24	5037837.01LL
25	7470604
26	5162236.01LL (Suppression Valve - HX Hose)
26	5162404LL (Flow Meter - Valve Hose)
27	5162237.01LL
28	7613004
29	5223003
30	7431001
31	5301506TR
32	5191501
33	5302019
35	5471001
36	5162403LL

TABLE 3 (BZ16)

#	SKU
1	5302017TP
2	5471505
3	5224615TP
4	7496018
5	5283053TP
6	5471019
7	5493042
8	5224620TP
9	5471539
10	7496052
11	5302077TP
12	5965212.01AL

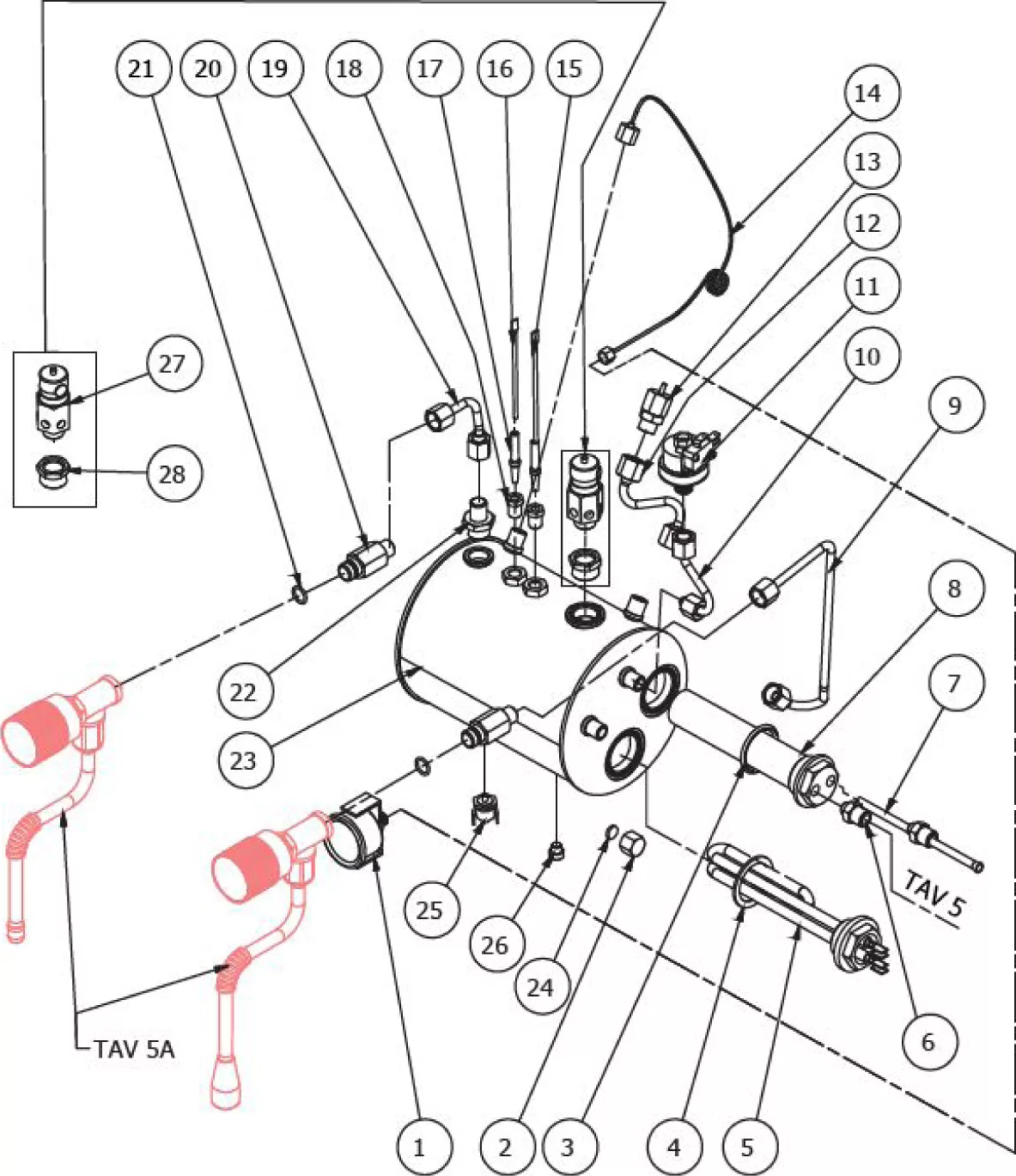

TABLE 4 (BZ16)

#	SKU
1	7432522
2	5221813
3	5495007
4	5492025
5	5722240TP (220/240V, 1250/1450W)
5	5721127TP (1350, 110V)
6	5302006TP
7	5192301
8	5329019DC-AL
9	5162233LL
10	5162402.01LL
11	7433013
12	5162239.01LL
13	7452511
14	7400901
15	5265812
16	5265819
17	5192001
18	5225205
19	5162234LL
20	5225417TP
21	7496052
22	5302005
23	5320501.02BL
24	5492008
25	7634808
26	5227002
27	7452509.02
28	5225413

TABLE 5 (BZ16)

#	SKU
1	7816014
2	7493013
3	7634808
4	5221863CM
5	7816001
6	5283046TW
7	7496004
8	5280502TW
9	7496097
10	5285501TP
11	5470501
12	7817001
13	5073032LW
14	7819908
15	7809811
16	7663623
17	7822602
18	5963097.01 (110V)
18	5963098.01 (220/240V)
19	7304502TR
20	5162397LL1
21	7303001TR
22	5370313
23	5162396LL
24	5223005TP
25	5301504TR
26	7702410 (240V)
	7701112 (115V)
	7702311 (230V)
27	7703014
28	7630331 (230V)
	7630330 (240V)
	7630332 (115V)

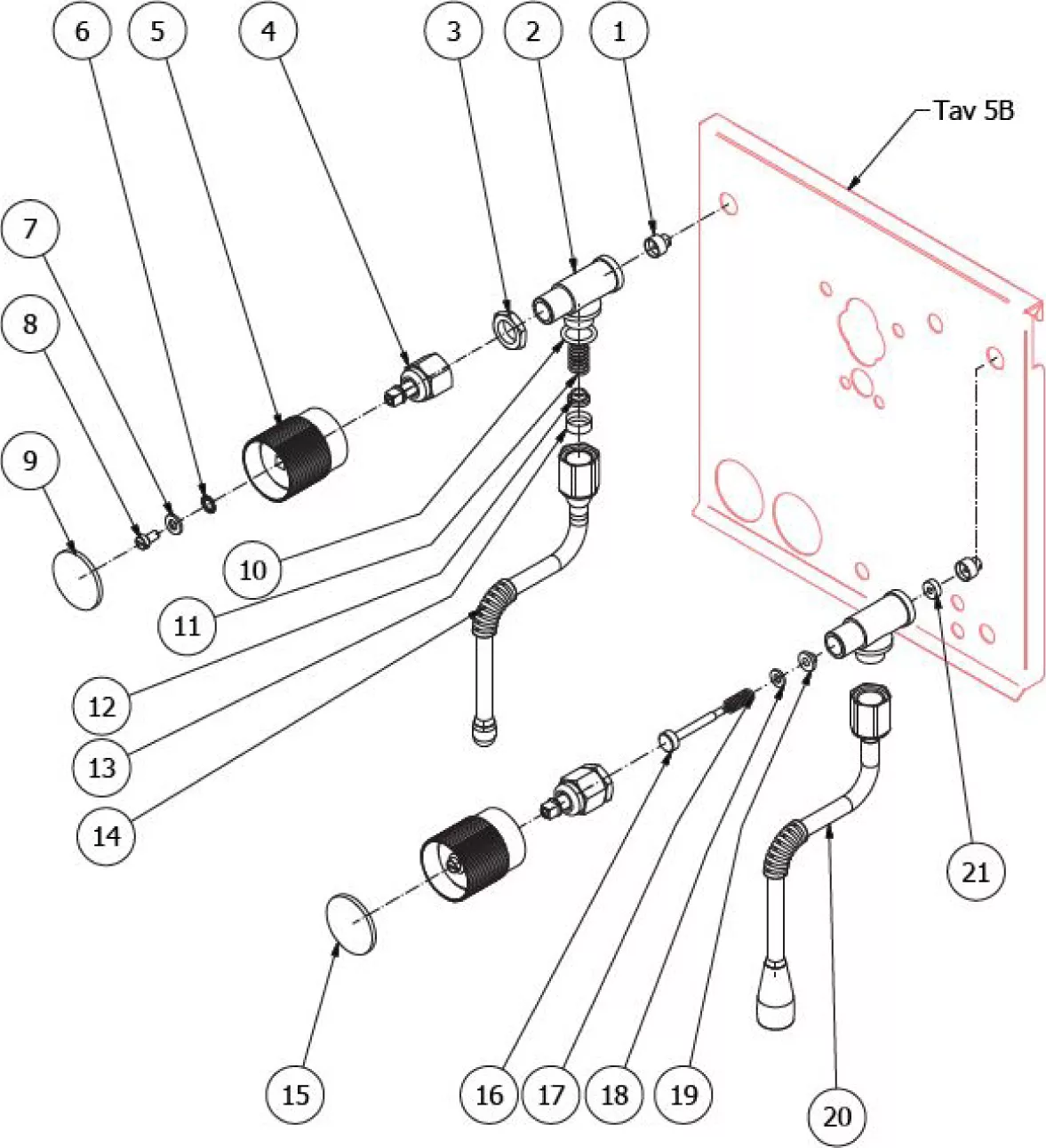

TABLE 5A (BZ16)

#	SKU
1	5224603
2	5283055TW
3	5221826CM
4	5964098
5	5371802
6	7804002
7	7805004
8	7826202
9	5373903CM
10	7496072
11	5471532
12	5190501
13	5494017
14	7479990.02TW
15	5373904CM
16	5260203DL
17	5471513
18	5261801
19	5494004
20	7479985.02TW
21	5496042

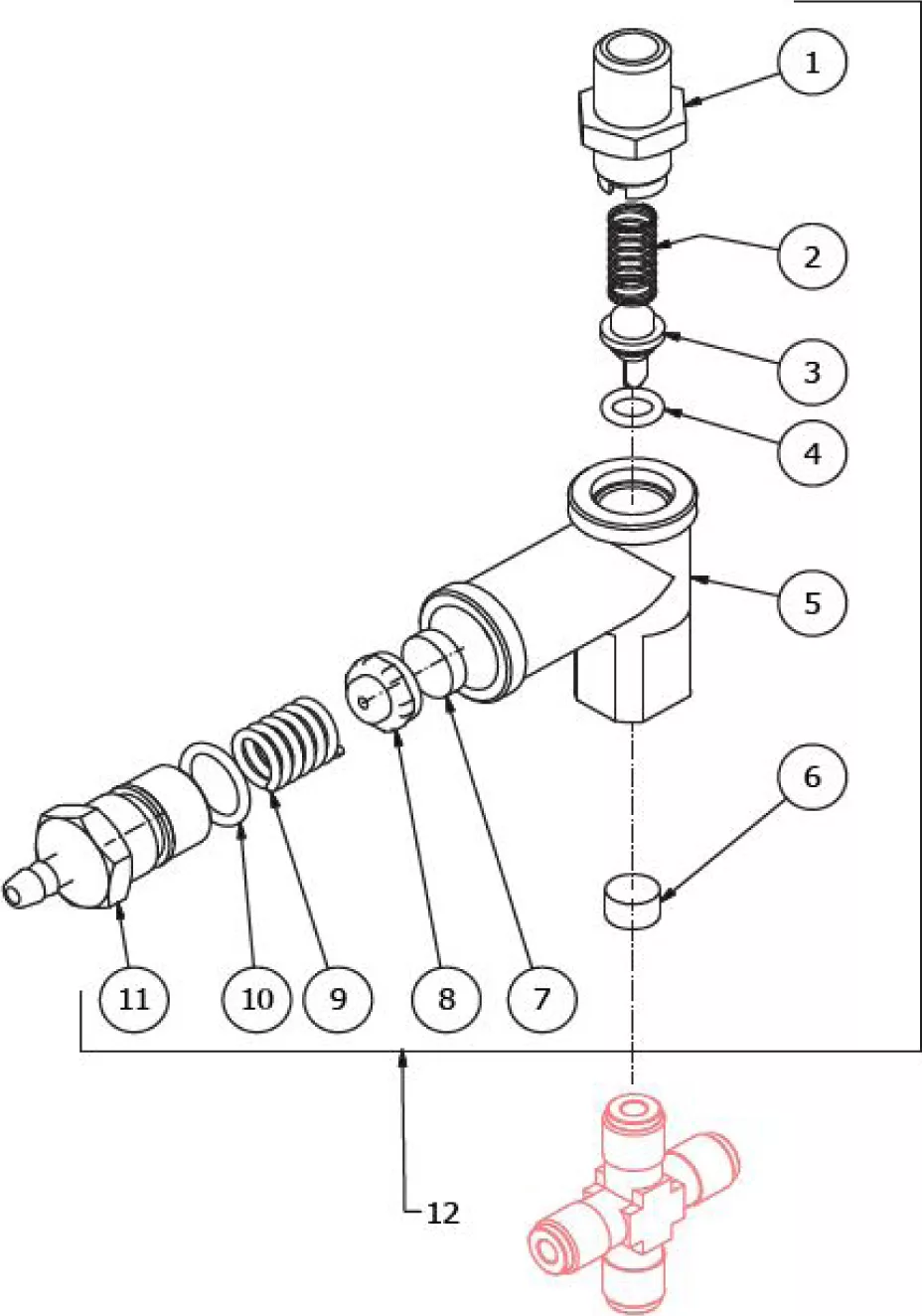

TABLE 5B (BZ16)

#	SKU
1	7633326
2	5074907SG
3	7372507
4	7633628
5	5074906SG
6	5661501
7	5191513
8	7665524PR
9	5191511
10	5053024.01LW
11	7802401
12	7809809
13	7636604

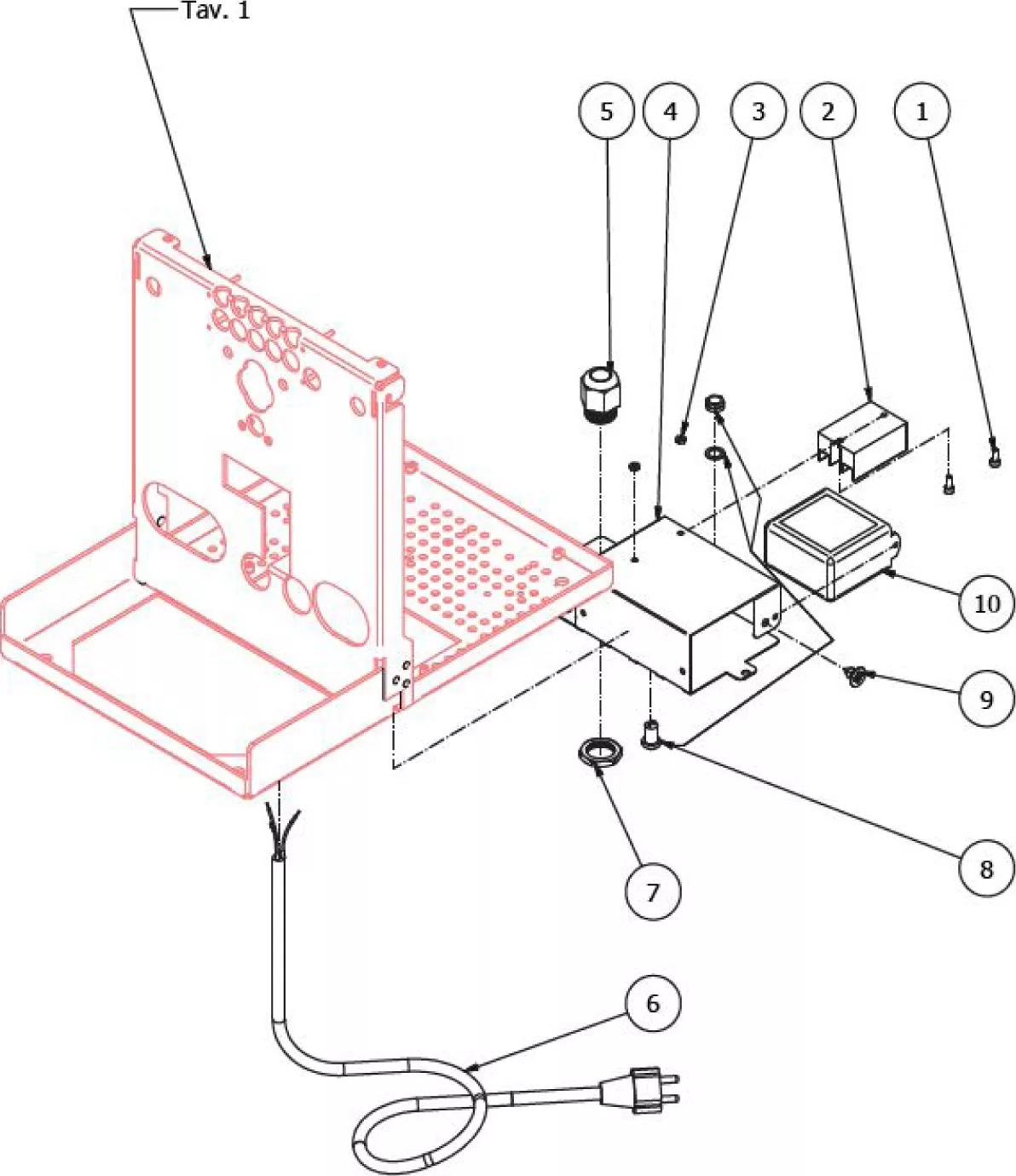

TABLE 6 (BZ16)

#	SKU
1	7816009
2	7635424.01
3	7812601
4	5035709.02LW
5	7614007
6	7551003 (USA 250V 20A)
	7555001 (Schuko)
	7554001 (UK)
	7552001 (Australia)
	7555003 (Switzerland)
	7551001 (USA 125V 15A)
7	7614006
8	7633346
9	7819404
10	7662672.01PR

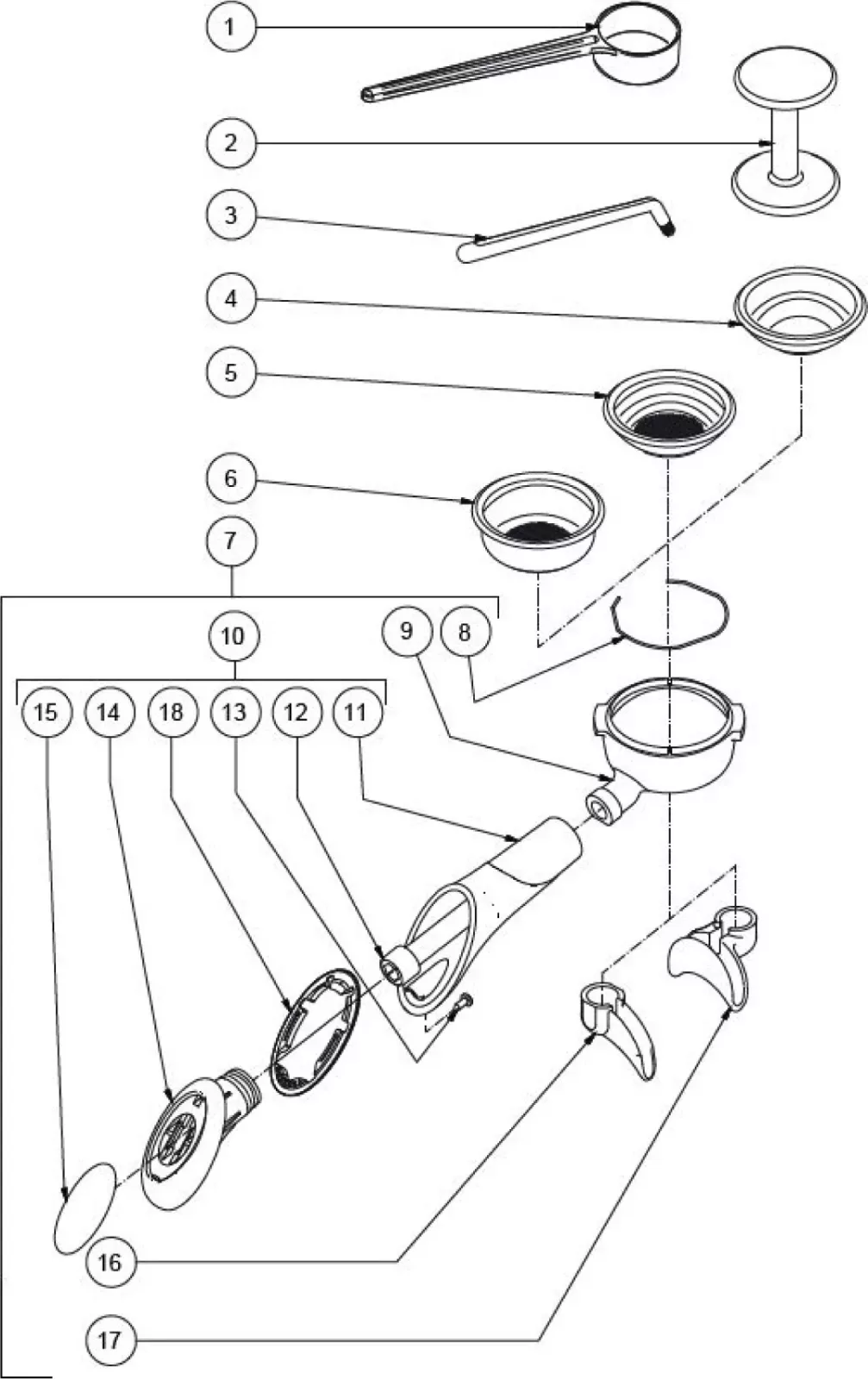

TABLE 7 (BZ16)

#	SKU
1	5372101
2	5373001
3	7990603
4	5471003
5	5471031.01
6	5471035 (16 gram)
6	5471021.01 (12 gram)
7	5965586.01R (1-cup)
7	5965587.01R (2-cup)
8	5471527
9	5286016TW
10	5978508.01
11	5371203
12	7816026
13	7809810
14	5371204
15	5371205
16	7305006TW
17	7305007TW
18	7493021
