Power off your machine and unplug the power cord from the outlet. It is recommended to allow your machine to cool off for at least 1 hour.

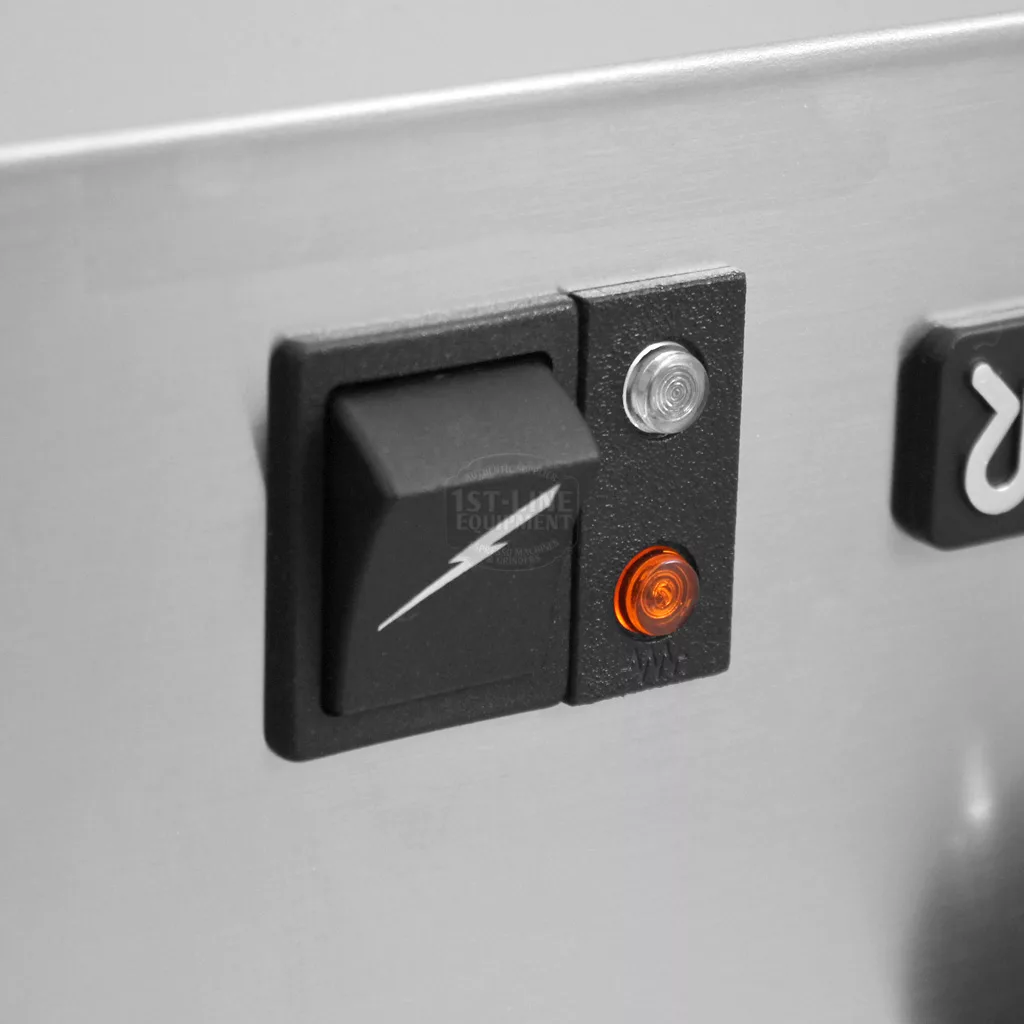

Close-up of a black rocker switch next to a small silver button and an orange indicator light on the metallic surface of a Rancilio Silvia espresso machine. © 2025 1st-line.com

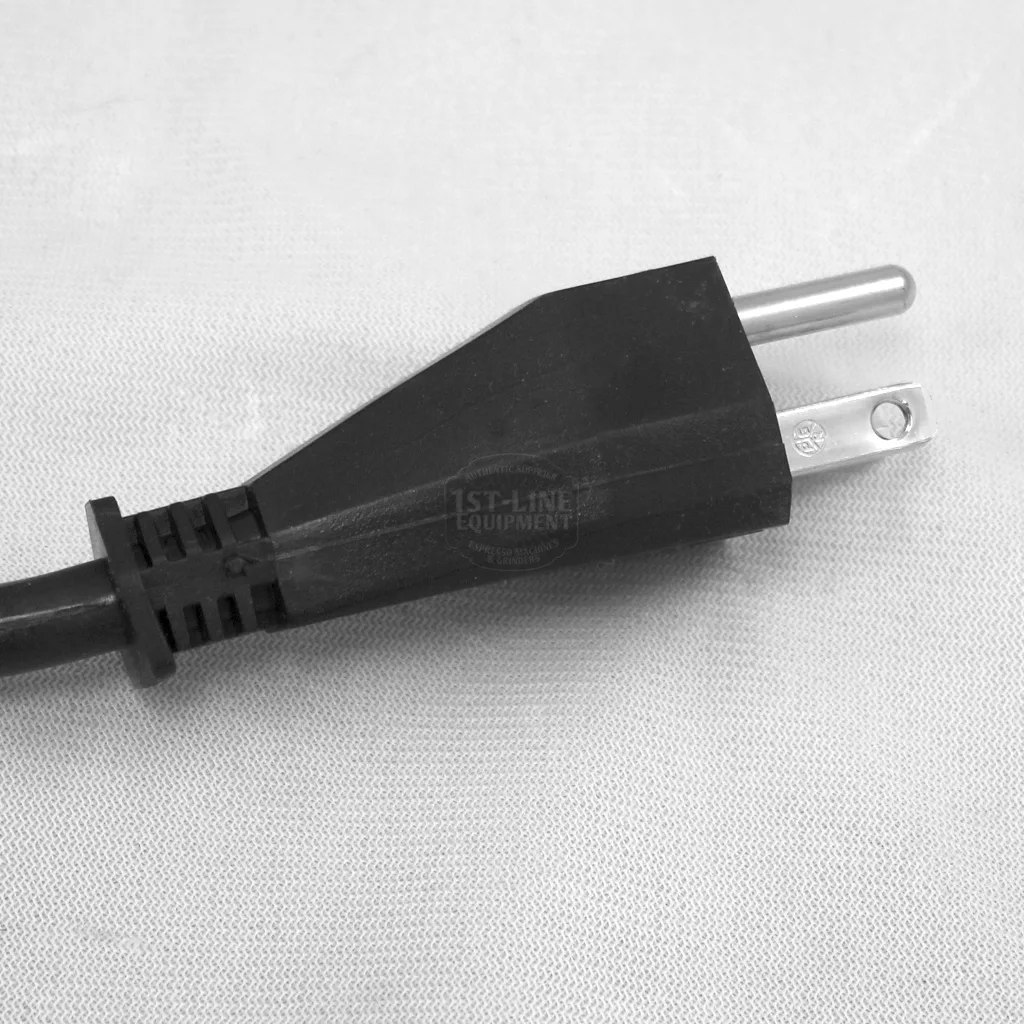

A close-up of a black, two-prong electrical power plug laying on a light-colored fabric surface, often seen while performing Rancilio Silvia maintenance or accessing the inside of your Rancilio Silvia espresso machine. © 2025 1st-line.com

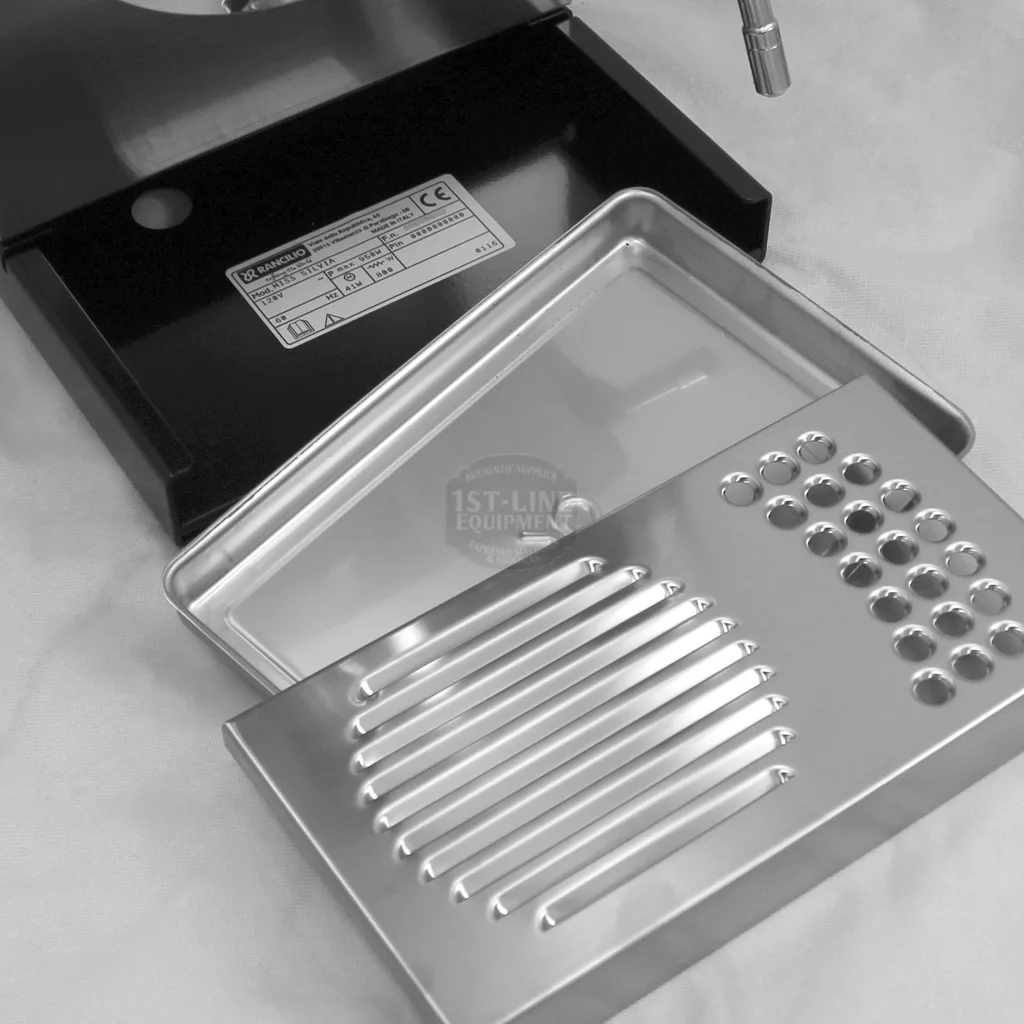

Underneath the drip tray you will find the label for your machine which has the serial number.

A close-up of a disassembled Rancilio Silvia espresso machine drip tray set on a counter, showing both the slotted grate and the perforated tray beside the machine base for accessing inside. © 2025 1st-line.com
A close-up of a Rancilio Silvia product label shows model MISS SILVIA, serial number, voltage, power ratings, and manufacturing details—with Made in Italy highlighted by a red arrow for those accessing inside the machine. © 2025 1st-line.com

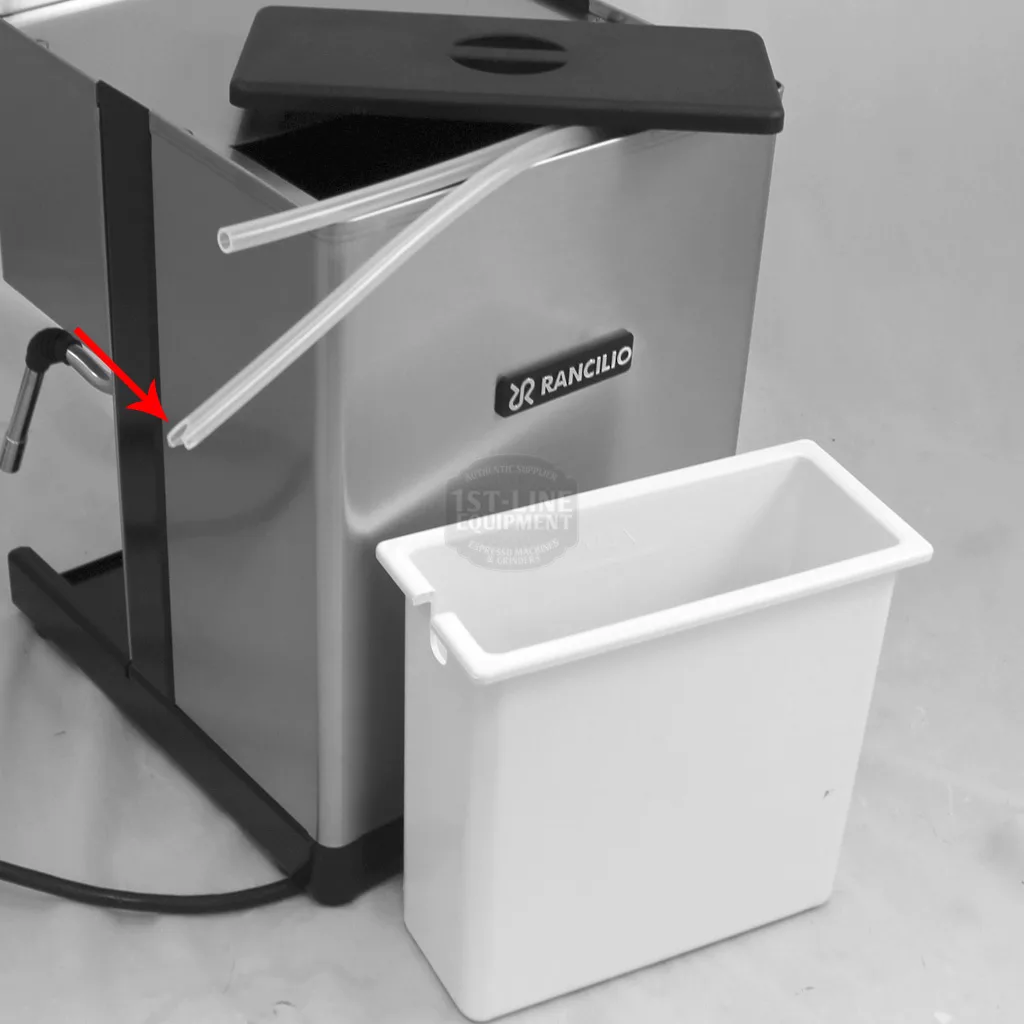

Remove the water tank from your machine. If you have a water softener or need to attach one, note that it attaches to the longer hose.

A stainless steel Rancilio Silvia coffee machine with a black lid, two clear tubes extending from the side, and a white rectangular plastic container placed in front. A red arrow points to one of the tubes for accessing inside. © 2025 1st-line.com

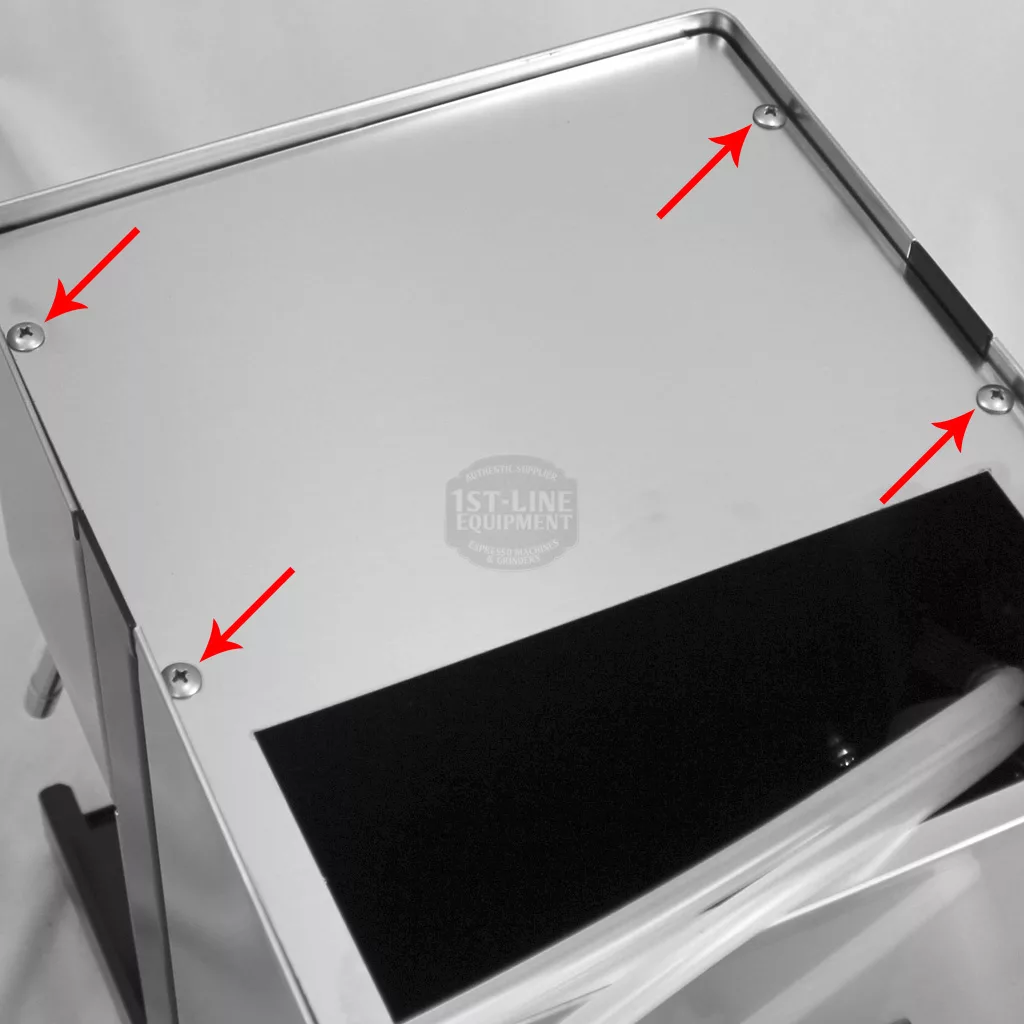

On the top panel, there are 4 screws. Use a Philips head screwdriver to remove them.

This will give you access to:

  • Safety thermostat to reset
  • Over pressure valve (OPV) to adjust brew pressure – see detailed instructions
  • Boiler and heating element
  • Wires for the switches
A close-up of a Rancilio Silvia machine top with four screws at the corners, each marked by a red arrow pointing to it—useful for accessing inside. There’s a black rectangular cutout and some transparent tubes on the right side. © 2025 1st-line.com

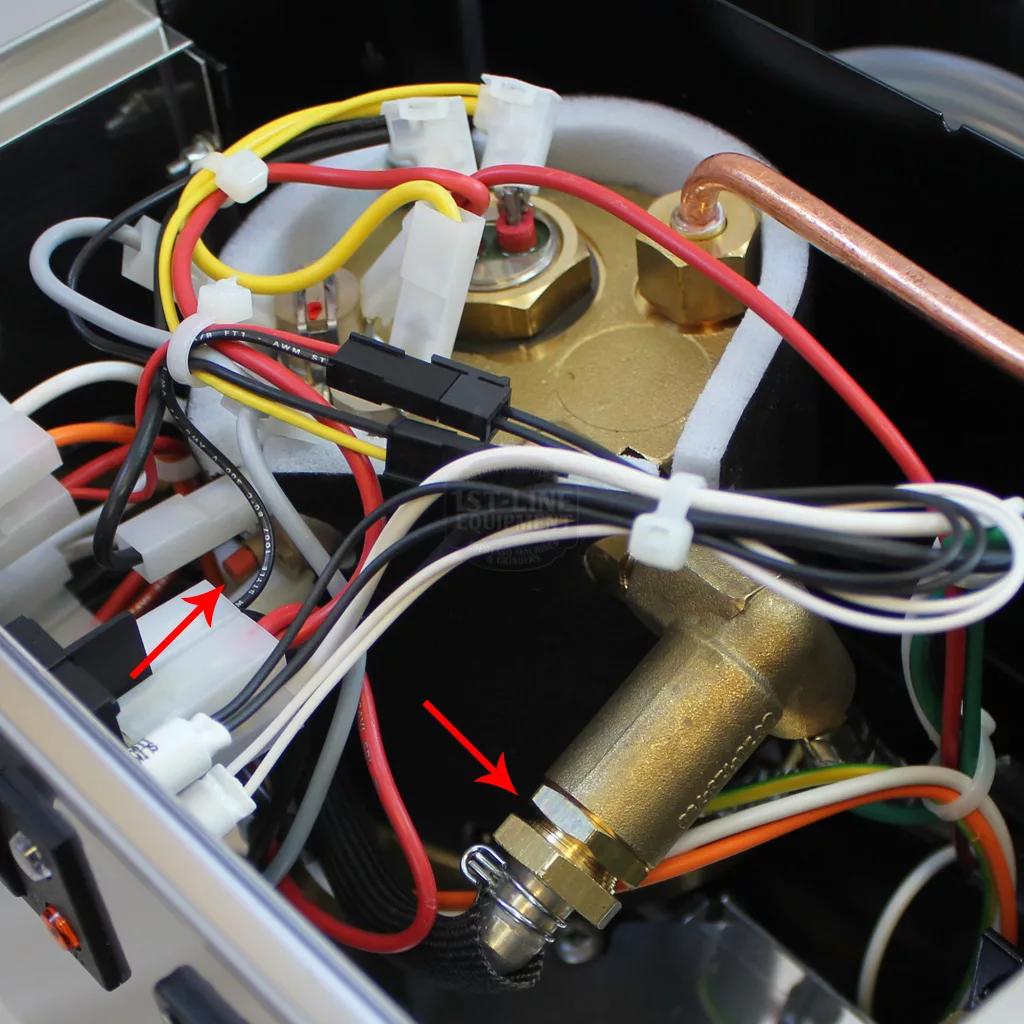

Close-up of the internal components of a Rancilio Silvia, showing wires, connectors, and a brass fitting with red arrows pointing to specific parts for identification or accessing inside during assembly guidance. © 2025 1st-line.com

On the front panel below the grouphead, there are 2 screws. Use a Philips head screwdriver to remove them.

This will give you access to:

Close-up of a Rancilio Silvia stainless steel espresso machine drip tray with two red arrows pointing to screws on either side, indicating where to start when accessing inside. The reflective surface shows the ETL certification label. © 2025 1st-line.com
Close-up of the internal components of a Rancilio Silvia espresso machine, showing wiring, a brass valve, a pressure sensor, and a stainless steel enclosure with certification label while accessing inside. © 2025 1st-line.com

Getting to the pump can be a little tricky. The back panel has to be removed. There are 2 screws near the top. You may need a thin Philips head screwdriver in order to angle it into the screw.

An open Rancilio Silvia espresso machine with visible internal wiring and components; two red arrows point to screws on the top corners for accessing inside the machine’s frame. © 2025 1st-line.com

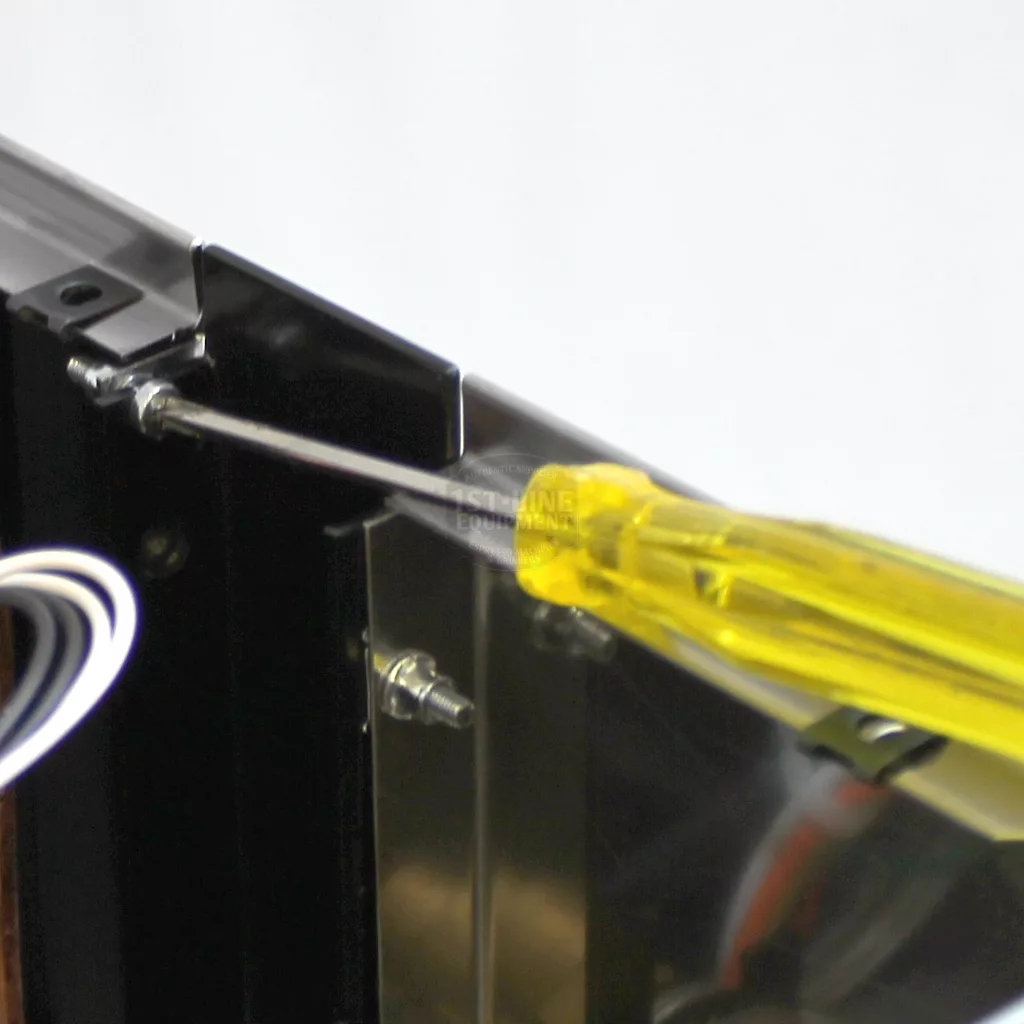

A yellow-handled screwdriver is being used to access a screw inside a black metal frame, likely while accessing the Rancilio Silvia espresso machine, with some white wires visible to the side. © 2025 1st-line.com

There is 1 more screw underneath the plate where the tank sits on.

A close-up of a black metal surface inside a machine, possibly the Rancilio Silvia, with a red arrow pointing to a small black sensor under a horizontal bar. The faint 1st-Line Equipment logo is visible. © 2025 1st-line.com

The pump sits below the plate where the tank sits on. There are 2 support brackets that hold the pump in place. To remove the brackets, use an Allen key wrench to remove the screws underneath your machine.

Close-up view of the internal components after accessing inside a black espresso machine, showing wires, a white plastic tube, a metal valve, and a labeled pump or motor with technical specifications—typical of models like the Rancilio Silvia. © 2025 1st-line.com
Close-up of a black metal surface with two screws, each marked by a red arrow for accessing the inside of the Rancilio Silvia. In the background, a faint, circular logo reads 1st-Line Equipment. © 2025 1st-line.com
