Please follow our instructions on getting access to the inside of the Lelit PL41TEM Anna espresso machine. Once you have access to the inside, follow the instructions below.

Inside view of a Lelit PL41 Anna coffee machine showing electrical wires, metal components, tubes, and a circuit board—perfect for understanding Solenoid Valve Repair and the internal mechanical and electronic parts. 2025 1st-line.com

Locate the green quick connect fittings. By pressing the fitting toward the black box, and pulling away from the brass valve, these will release.

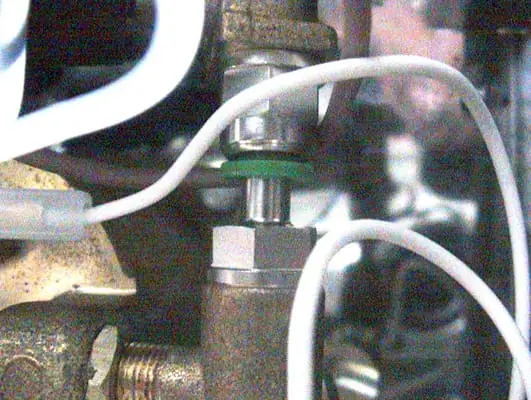

A close-up view of a metal solenoid valve or connector with white wires and tubing attached, likely part of industrial or Lelit PL41 espresso machine equipment. The background is blurred, highlighting the Anna hardware components. 2025 1st-line.com

The green quick connect on the plastic hose also works in the same method.

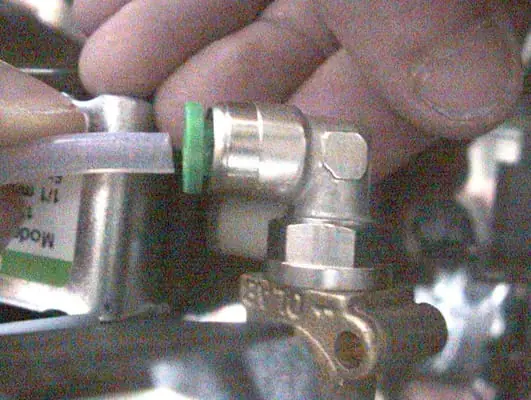

A close-up of a person's hand attaching a clear tube with a green fitting to a metal solenoid valve, possibly as part of plumbing or mechanical assembly. 2025 1st-line.com

You will now be able to lift the black box upward. Remove the rubber hose and loosen the thumb screw below it.

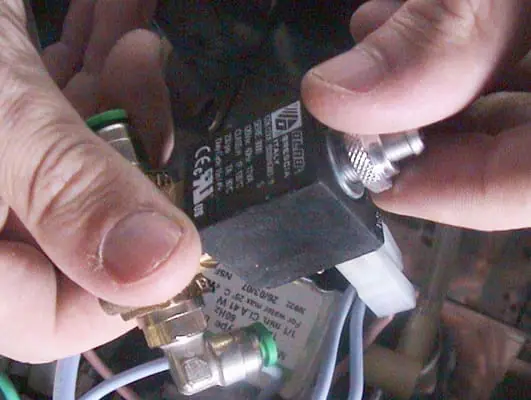

Close-up of hands performing solenoid valve repair, installing or adjusting a small black electrical component with wires and connectors, possibly part of a Lelit Anna or Lelit PL41 espresso machine. 2025 1st-line.com

The fitting will slide out from inside the black box. At this point, replace the black box and reassemble.

If you need further assistance, please reference the Q&A section of the Lelit PL41TEM Anna.

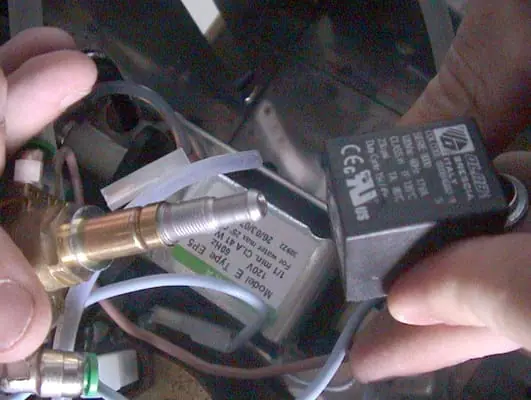

Close-up of hands holding an electrical solenoid valve component, ideal for Solenoid Valve Repair on machines like the Lelit PL41 Anna, with visible wires and hardware in the background. The solenoid shows its specifications and certification markings. 2025 1st-line.com
