Accessing Inside – Lelit PL41TEM Anna

Disclaimer: The technical support below for information purposes only. 1st-line Equipment, LLC is not responsible for any injury or damages resulting from such information. Please note that parts are available for purchase from 1st-line Equipment. These parts do not include any technical support. If you're not familiar with the technical aspects of repairing equipment, please order a diagnosis on our website. By continuing to read further, you agree to abide by all the terms and conditions on this web site. If you do not agree, please stop here.

Instructions

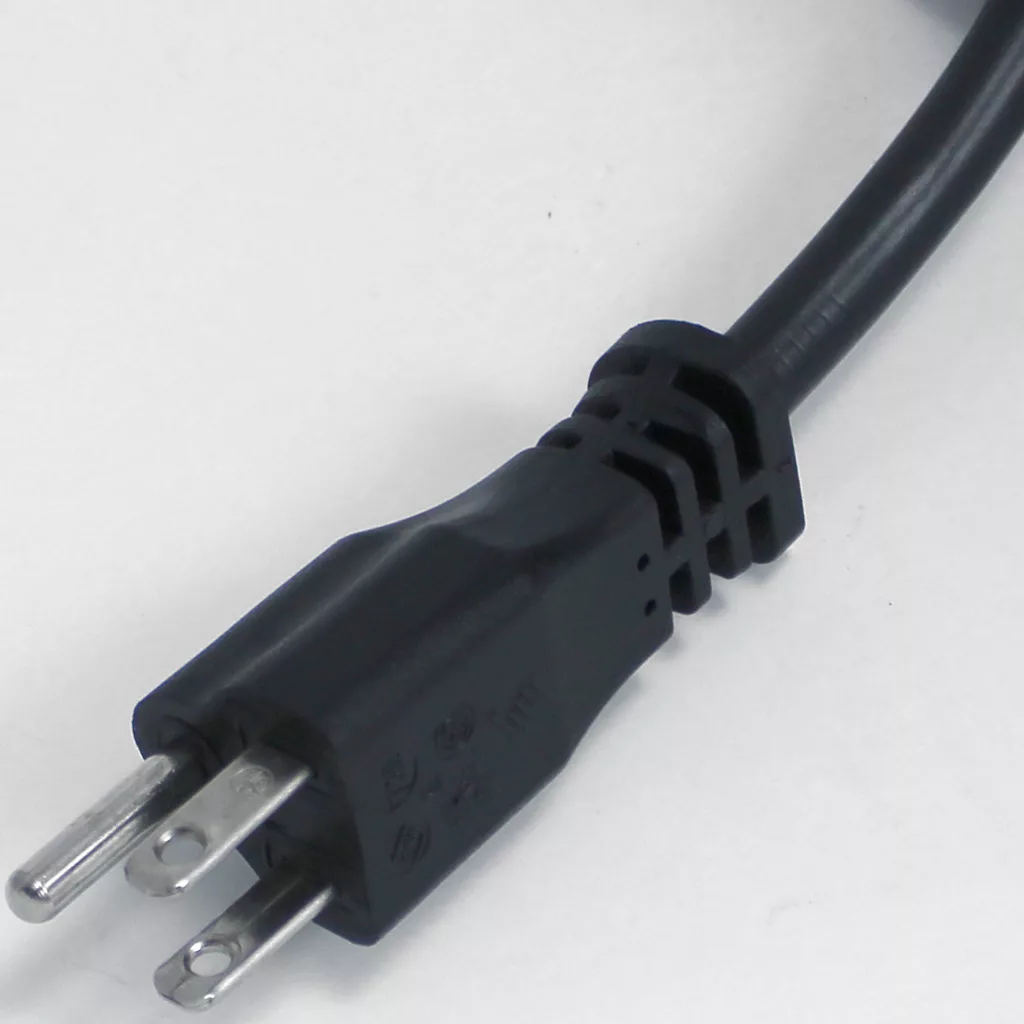

Power off the espresso machine and disconnect the plug from the outlet.

On the back of the machine next to the power switch is the the manufacturer’s label. This contains the serial number, certifications, and other technical information.

power plug

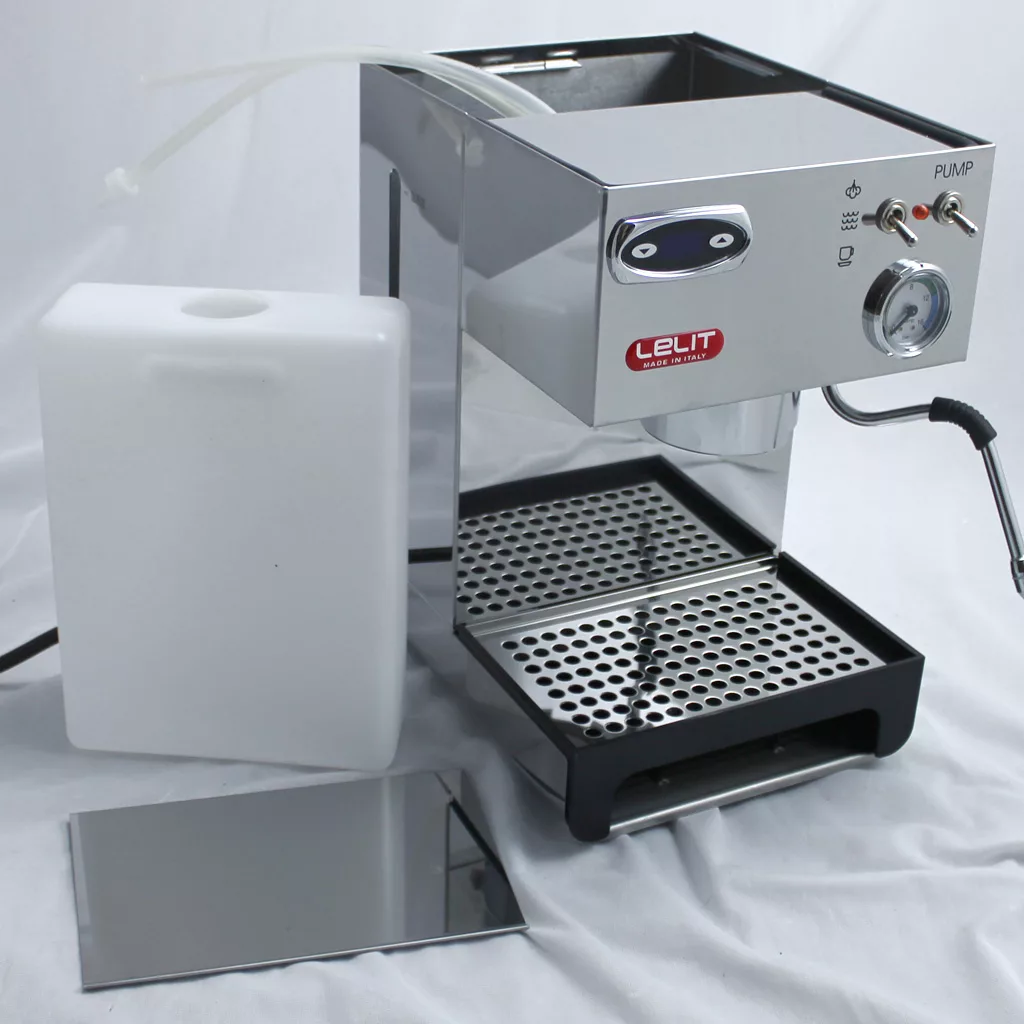

Remove the top cover and the water tank inside.

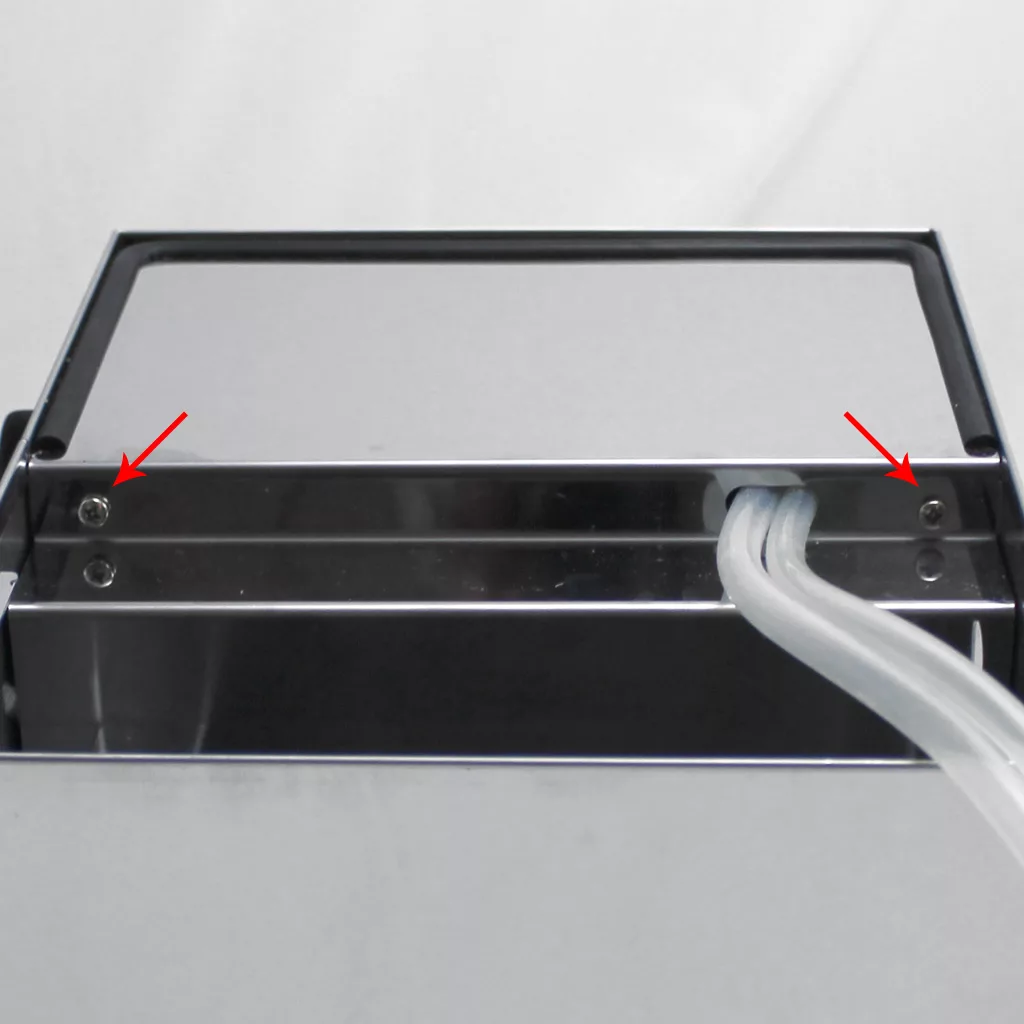

To gain access to the inside, you have to remove the top panel. There are 2 screws you need to remove with a Philips head screwdriver.

tank screws

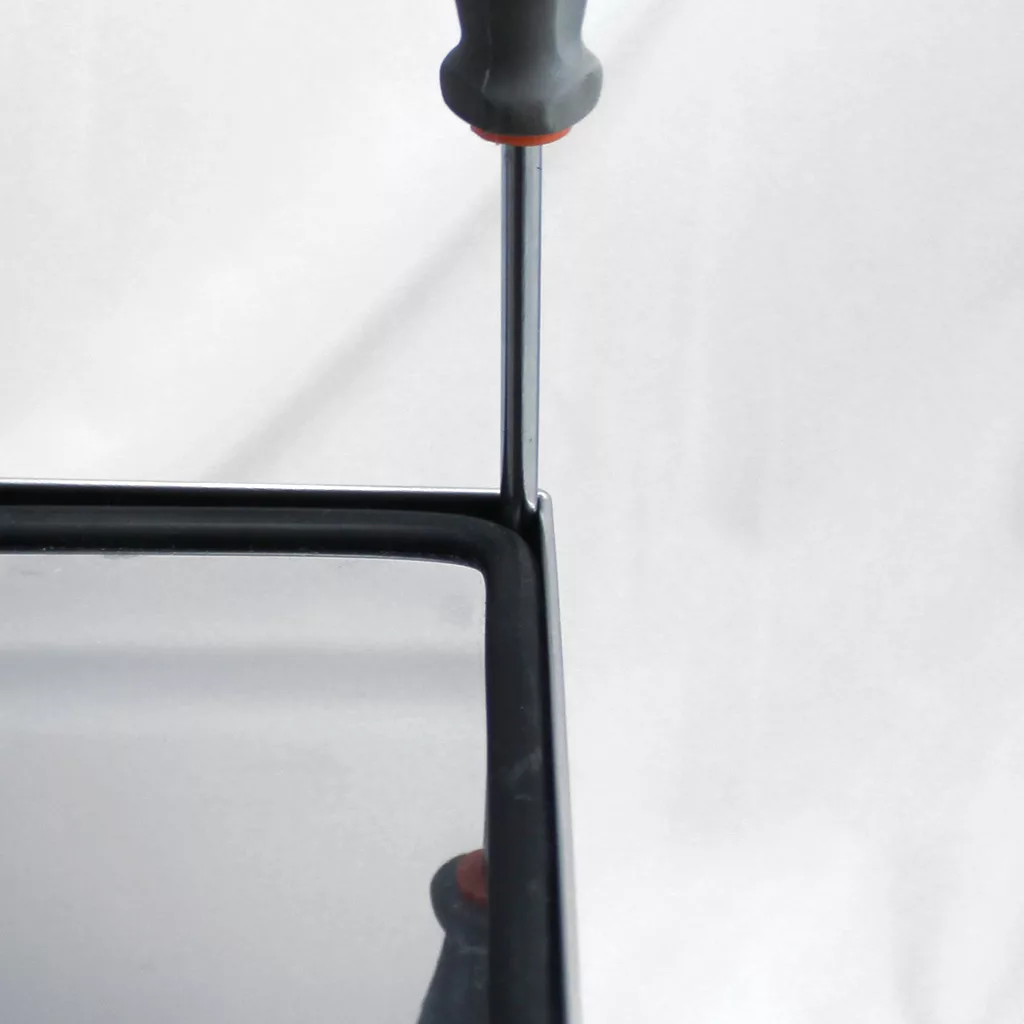

Once you remove the screws, use the screwdriver to help wedge the top panel out.

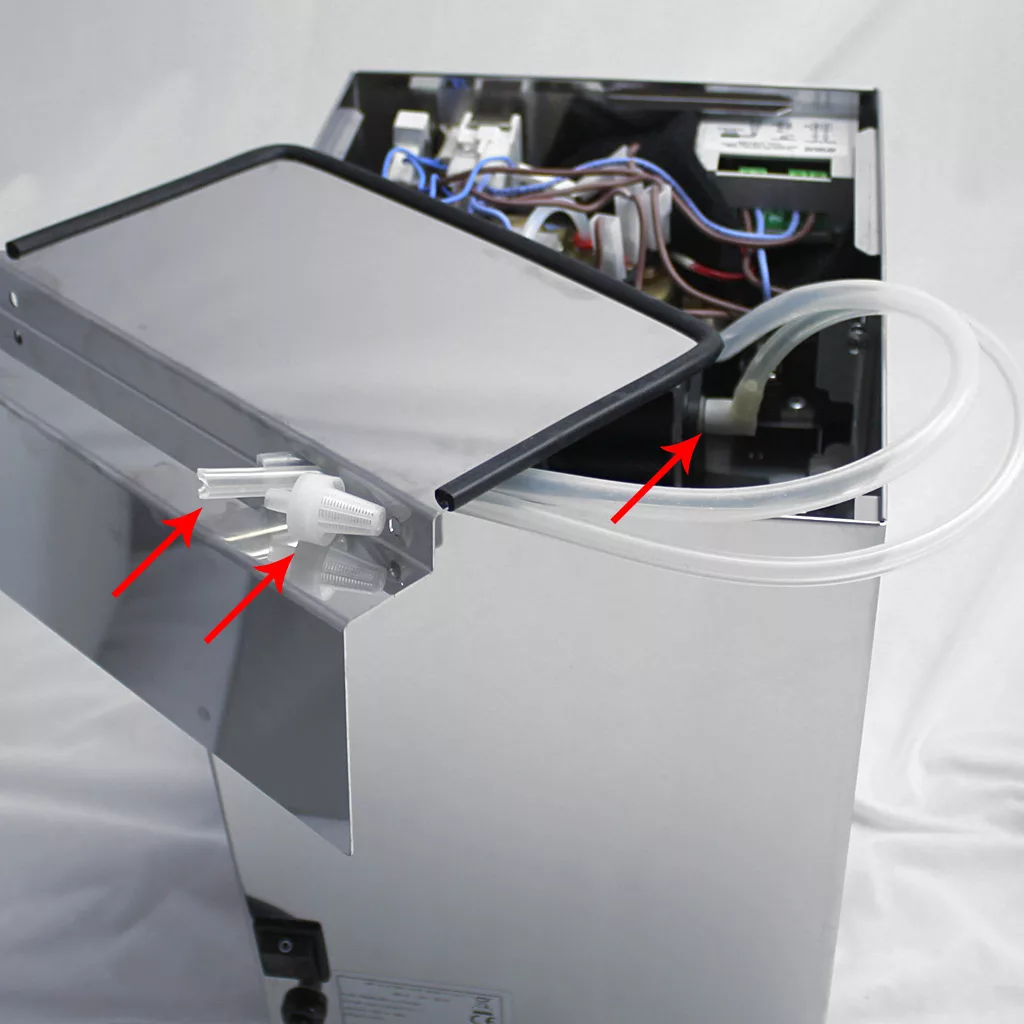

You can sit the panel to the side. However to avoid scratches, it is best to remove the panel completely. There are 2 tubes passing through the opening of the panel. One of them has a filter on the end. You must remove it first. Just remember which tube has the filter attached to it.

wedge panel

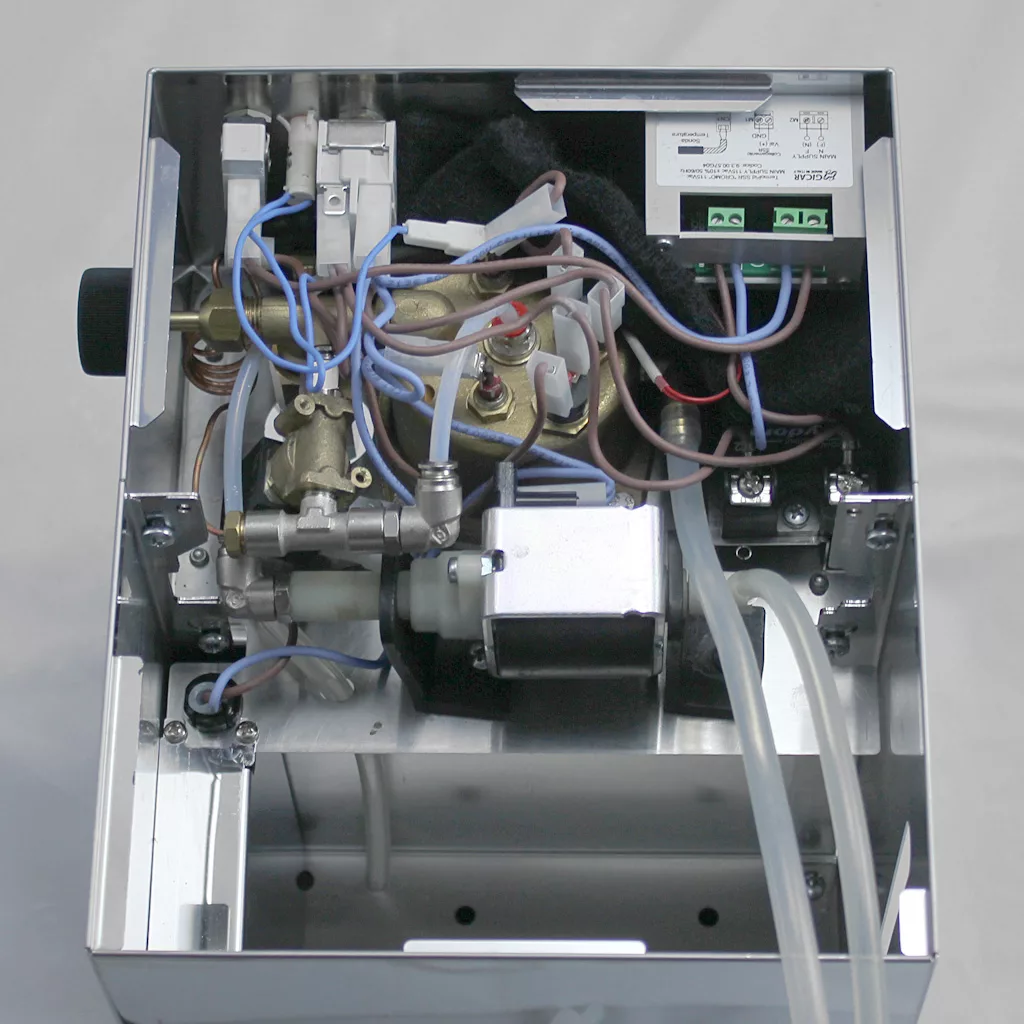

You will now have complete access to the inside to diagnose and replace parts.

If you need further assistance, please reference the Q&A section of the Lelit PL41TEM Anna.

inside
