Parts Diagram – Lelit PL92T Elizabeth

Finding your part
  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website. If no results come up, more than likely we do not stock the part.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
  • Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.

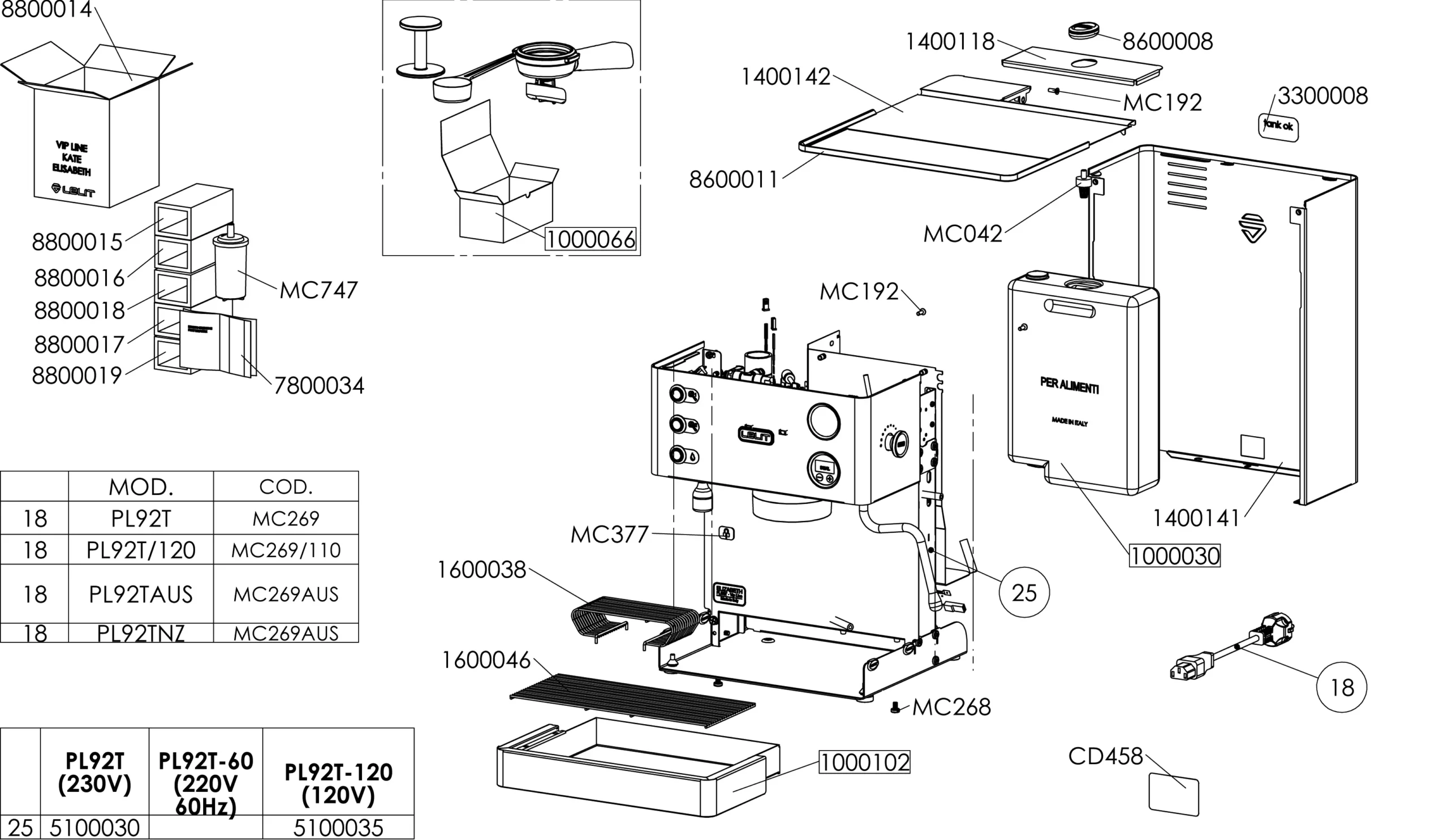

Lelit-PL92T-diagram-REV00-01
1000030 5100035 CD458
1000066 7800034 MC042
1000102 8600008 MC192
1400118 8600011 MC268
1400141 8800014 MC269
1400142 8800015 MC269/110
1600038 8800016 MC269AUS
1600046 8800017 MC377
3300008 8800018 MC747
5100030 8800019

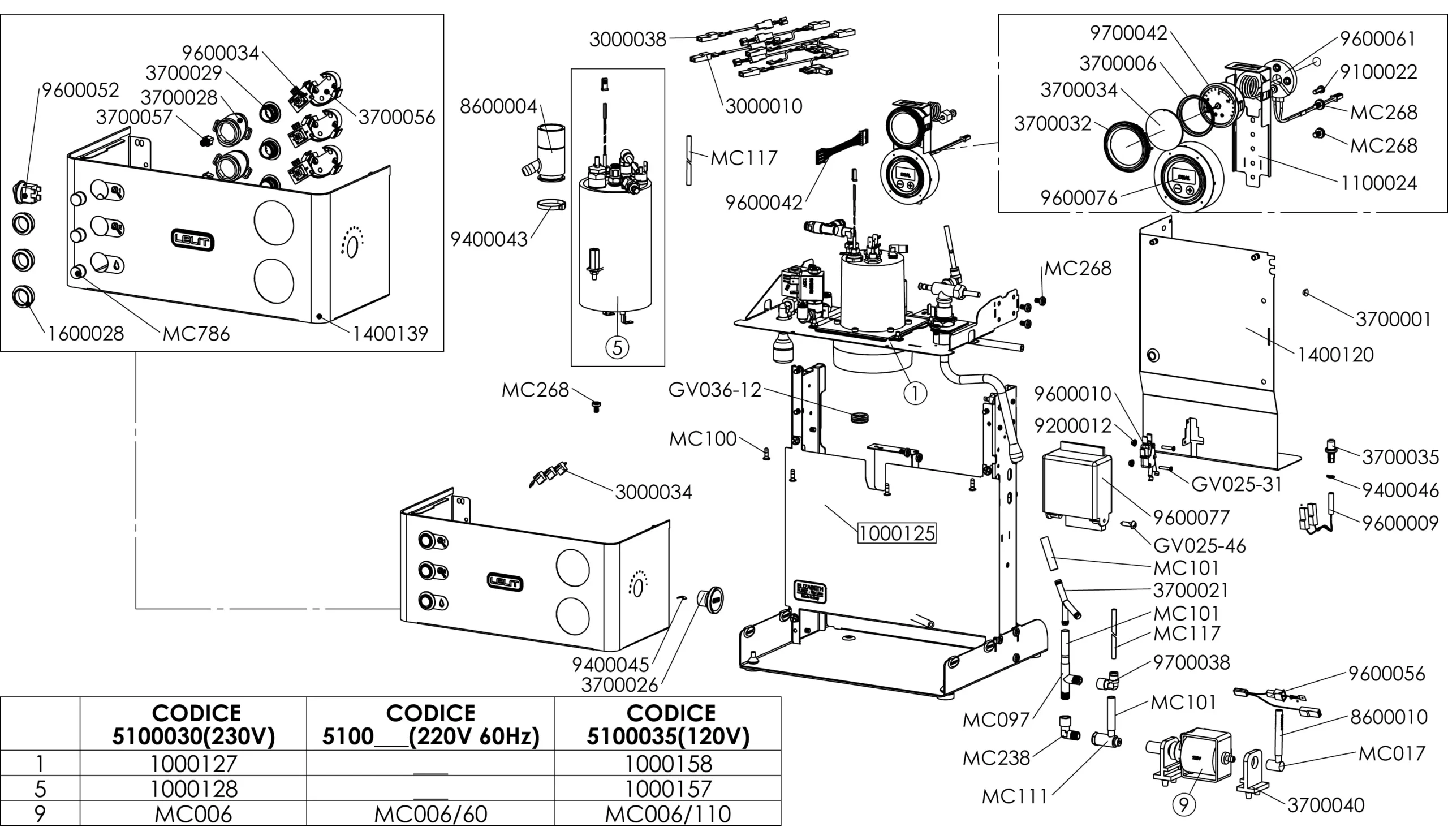

Lelit-PL92T-diagram-REV00-02b
1000125 3700034 9600076
1000127 3700035 9600077
1000128 3700040 9700038
1000157 3700056 9700042
1000158 3700057 GV025-31
1100024 8600004 GV025-46
1400120 8600010 GV036-12
1400139 9100022 MC006
1600028 9200012 MC006/110
3000010 9400043 MC006/60
3000034 9400045 MC017
3000038 9400046 MC097
3700001 9600009 MC100
3700006 9600010 MC101
3700021 9600034 MC111
3700026 9600042 MC117
3700028 9600052 MC238
3700029 9600056 MC268
3700032 9600061 MC786

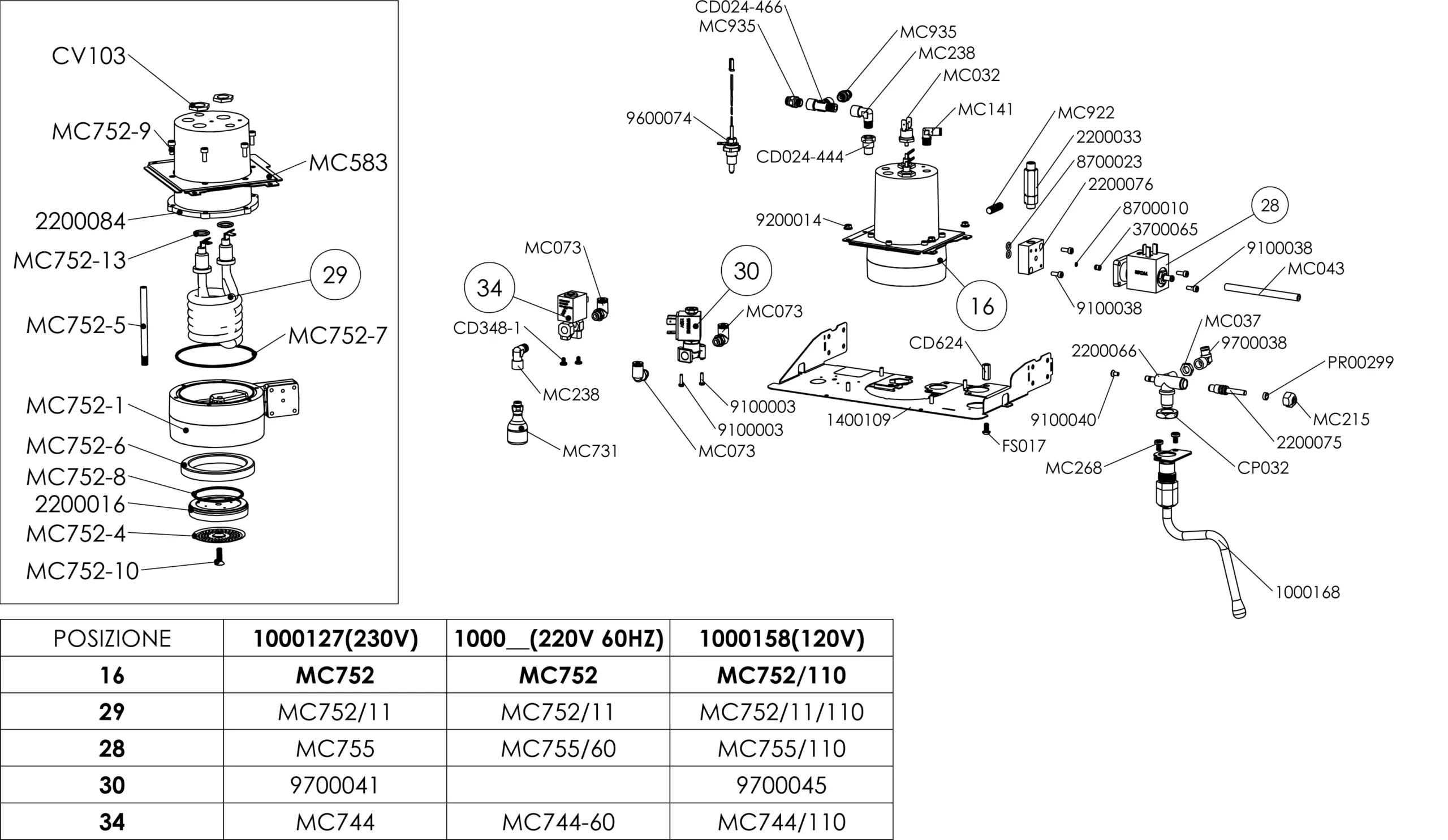

Parts Diagram - Lelit PL92T Elizabeth
1000168 CD024-466 MC752
1400109 CD348-1 MC752-1
2200016 CD624 MC752-4
2200033 CP032 MC752-5
2200066 CV103 MC752-6
2200075 FS017 MC752-7
2200076 MC032 MC752-8
2200084 MC037 MC752-9
3700065 MC043 MC752-10
8700010 MC073 MC752/11
8700023 MC141 MC752-13
9100003 MC215 MC752/110
9100038 MC238 MC752/11/110
9100040 MC268 MC755
9200014 MC583 MC755/60
9600074 MC731 MC755/110
9700038 MC744 MC922
9700041 MC744-60 MC935
9700045 MC744/110 PR00299
CD024-444

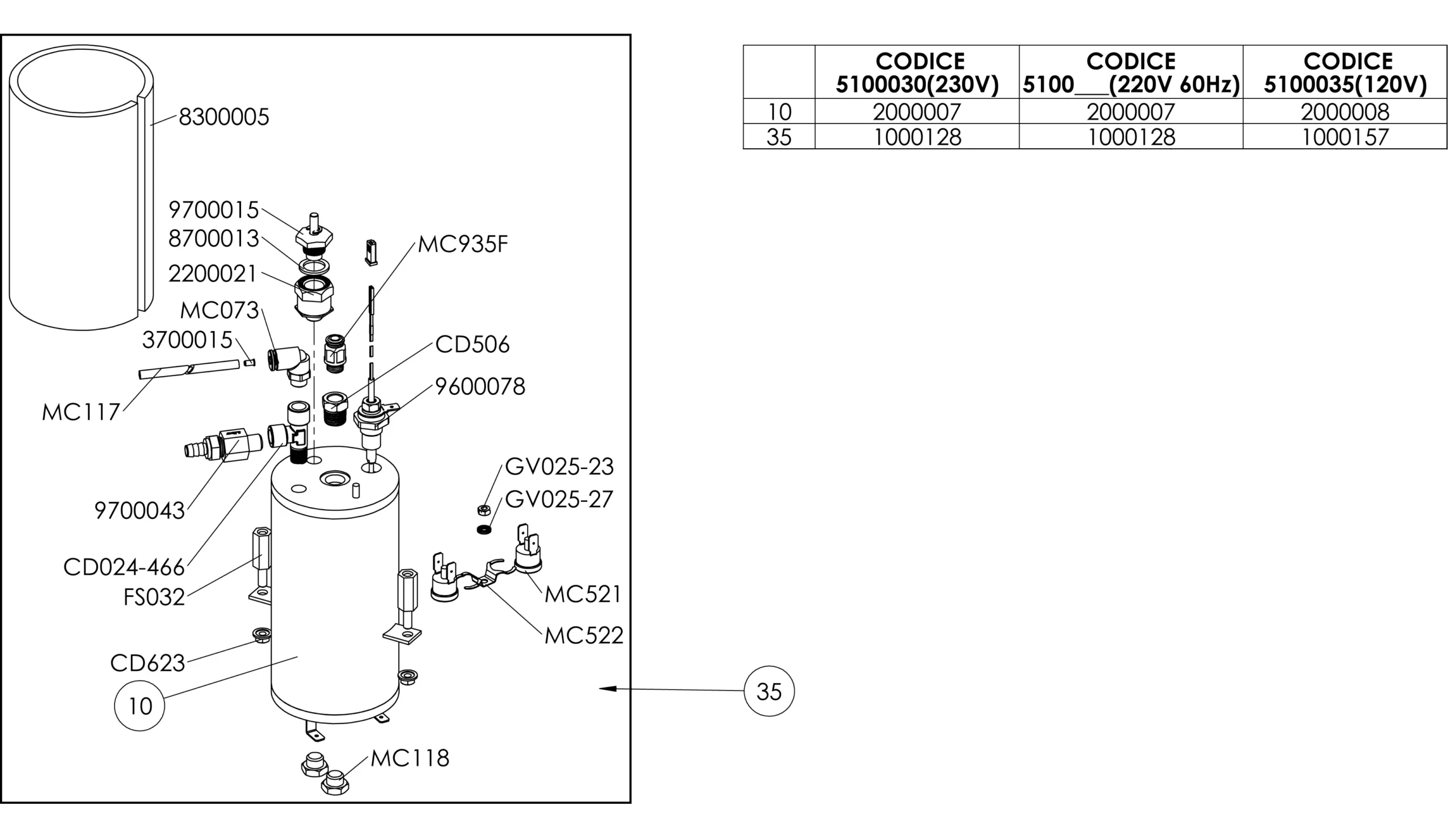

Parts Diagram - Lelit PL92T Elizabeth
1000128 CD506
1000157 CD623
2000007 FS032
2000008 GV025-23
2200021 GV025-27
3700015 MC073
8300005 MC117
8700013 MC118
9600078 MC521
9700015 MC522
9700043 MC935F
CD024-466

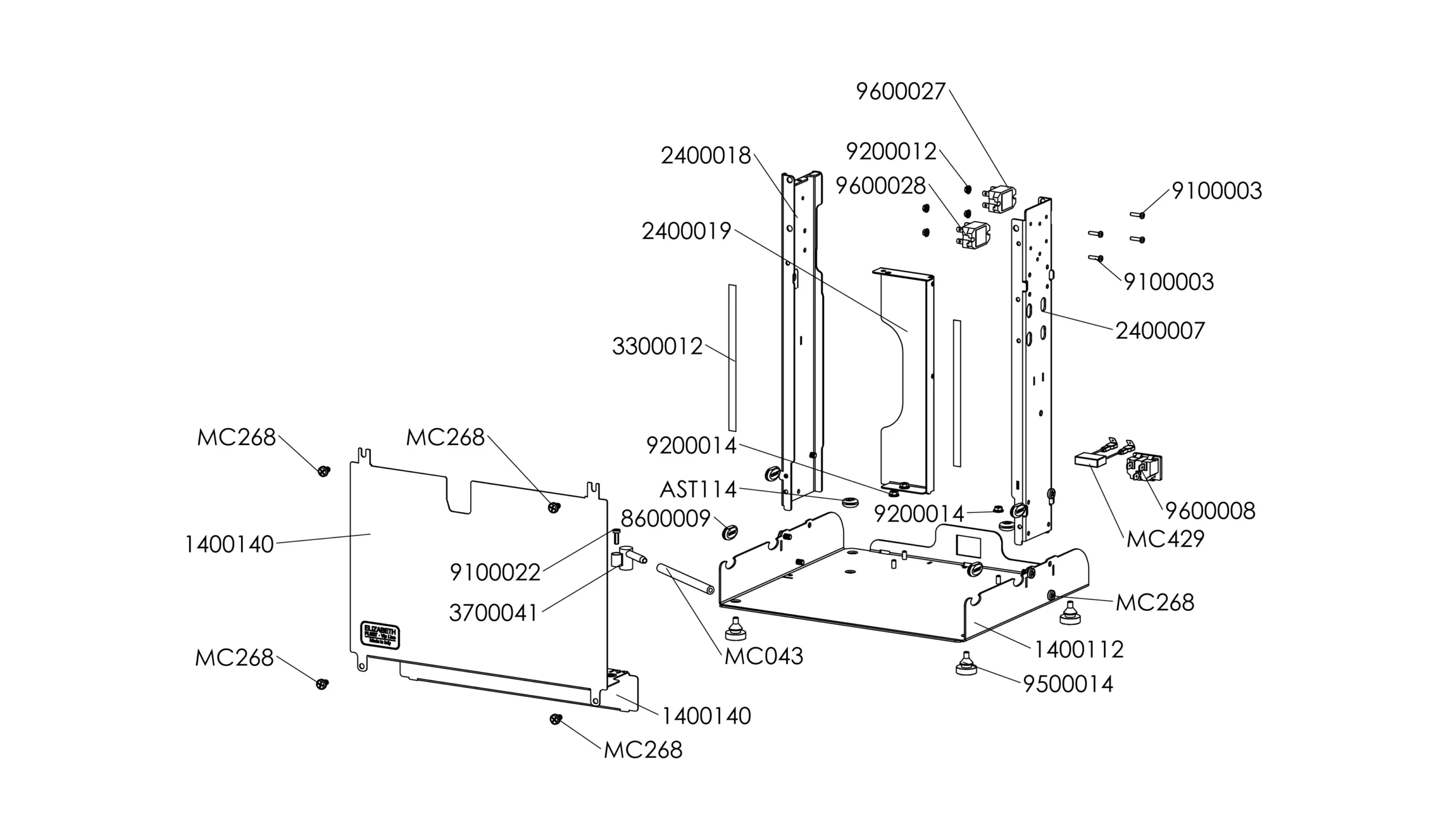

Parts Diagram - Lelit PL92T Elizabeth
1400112 9200012
1400140 9200014
2400007 9500014
2400018 9600008
2400019 9600027
3300012 9600028
3700041 AST114
8600009 MC043
9100003 MC268
9100022 MC429

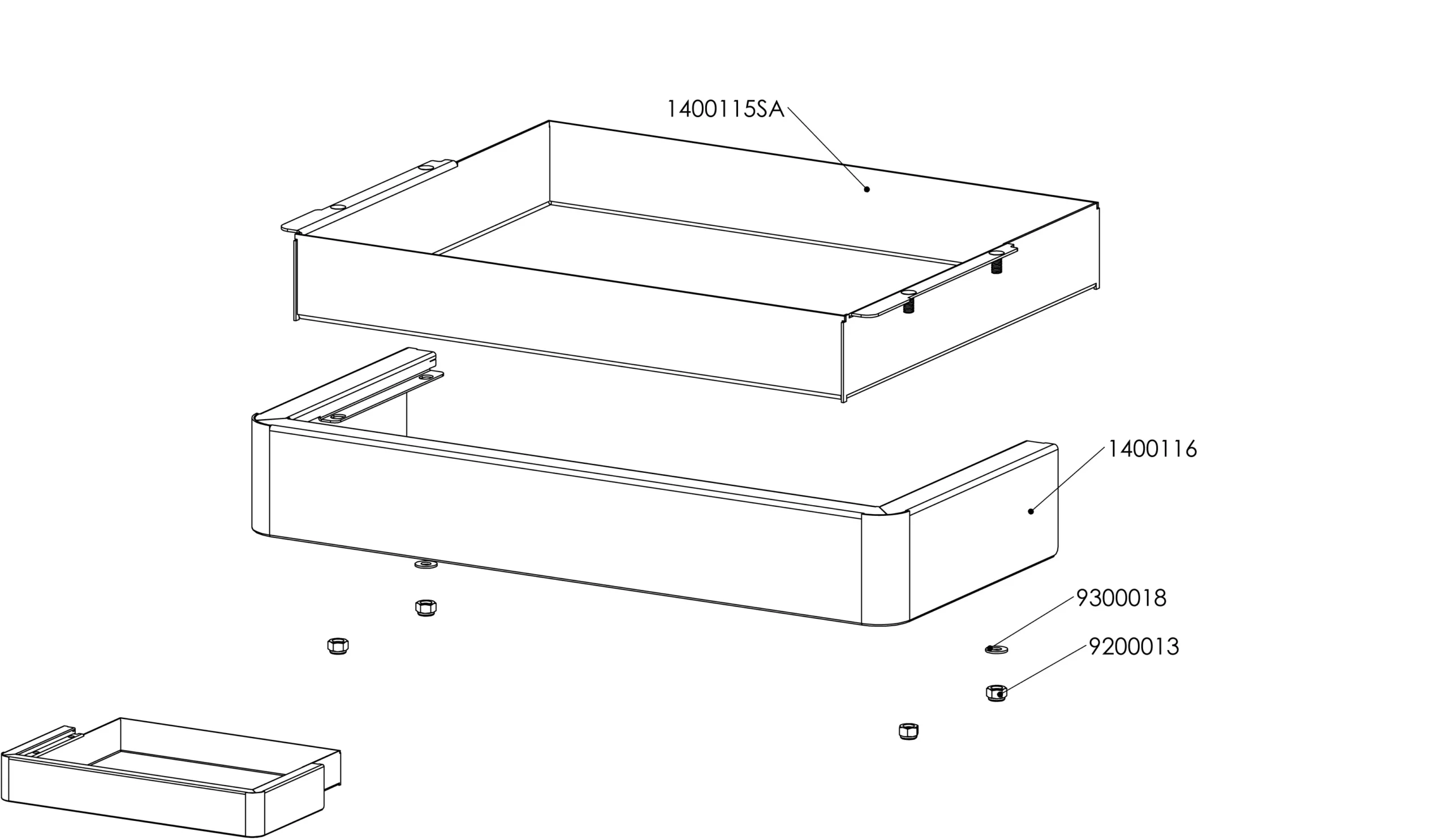

Parts Diagram - Lelit PL92T Elizabeth
1400115SA
1400116
9200013
9300018

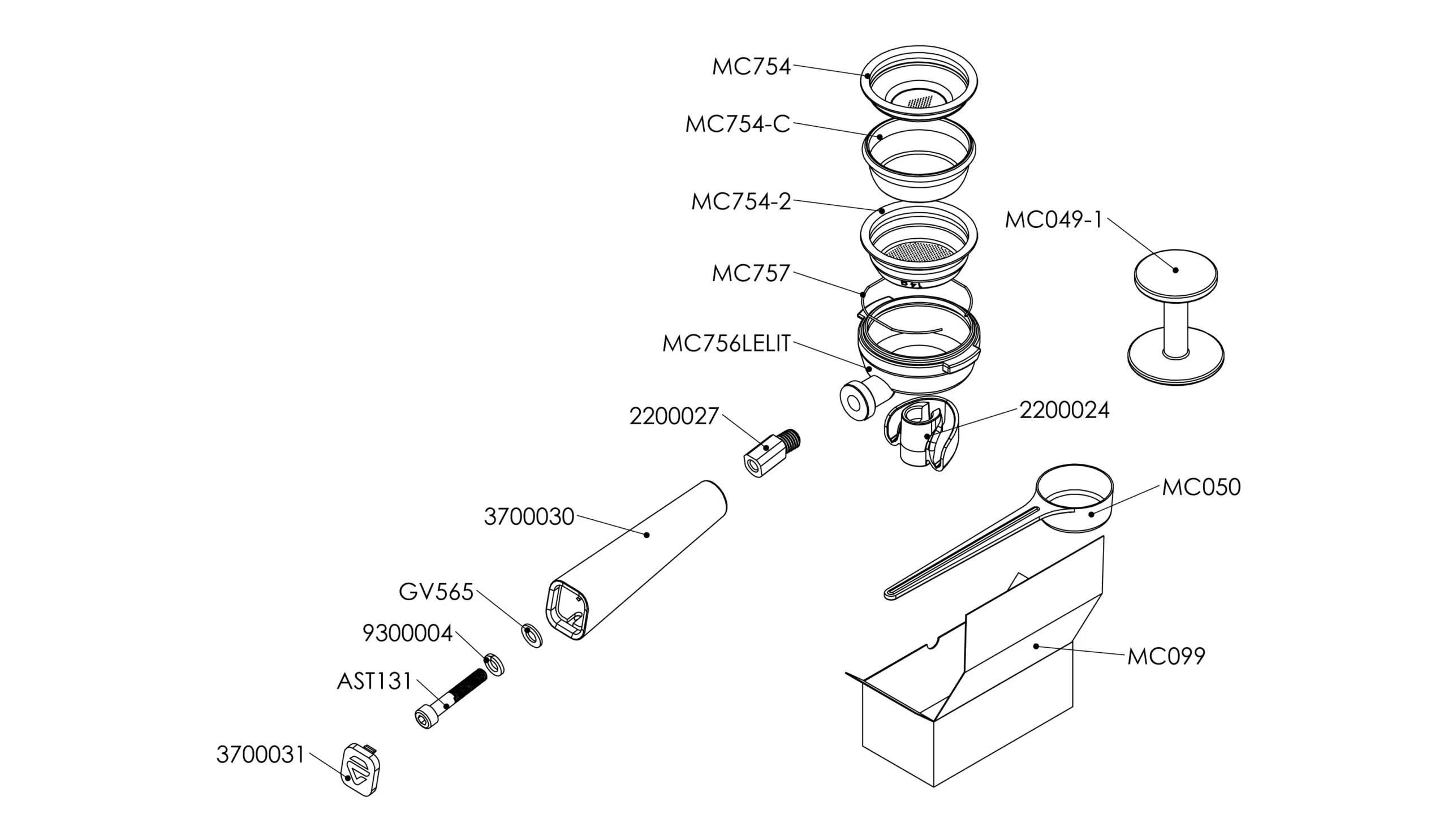

Parts Diagram - Lelit PL92T Elizabeth
2200024 MC050
2200027 MC099
3700030 MC754
3700031 MC754-2
9300004 MC754-C
AST131 MC756LELIT
GV565 MC757
MC049-1
