Leaking Issues – Lelit PL41 Anna

Disclaimer: The technical support below for information purposes only. 1st-line Equipment, LLC is not responsible for any injury or damages resulting from such information. Please note that parts are available for purchase from 1st-line Equipment. These parts do not include any technical support. If you're not familiar with the technical aspects of repairing equipment, please order a diagnosis on our website. By continuing to read further, you agree to abide by all the terms and conditions on this web site. If you do not agree, please stop here.

Instructions:

A leak in the steam wand can mean a leak in one or more of three places:

  • the steam tip hole(s)
  • the valve connection to the knob stem
  • or the valve connection to the wand.

For any of these types of steam wand leaks, it is first better to descale the machine to see if it can be corrected without taking the machine apart.

You can purchase descaling solutions on our website.
Here is a link to the descaling instructions on our website.

Please proceed to the next step below if descaling doesn’t work.

Lelit PL41TEM Anna PID Espresso Machine

PLEASE NOTE THAT THERE ARE 4 DIFFERENT VERSIONS OF THE PL041. THIS ARTICLE DOES NOT COVER ALL VERSIONS AND PARTS MAY BE DIFFERENT ON YOUR PARTICULAR MODEL.

If the leak is coming from the valve to steam wand connection, please order MC044 and remove the nut (connecting the wand to valve) from outside the machine.

If the leak isn’t here, proceed to the next step.

Accessing Inside - Lelit PL41TEM Anna

Please follow our instructions on getting access to the inside of the Lelit PL41TEM Anna espresso machine. Once inside follow the instructions below.

Leaking-Internally-2319

If there is an internal leak, the hose on the OPV ‘T’ will sometimes come off in transport. Just reconnect as shown and it is held with friction.

Leaking-Internally-2320

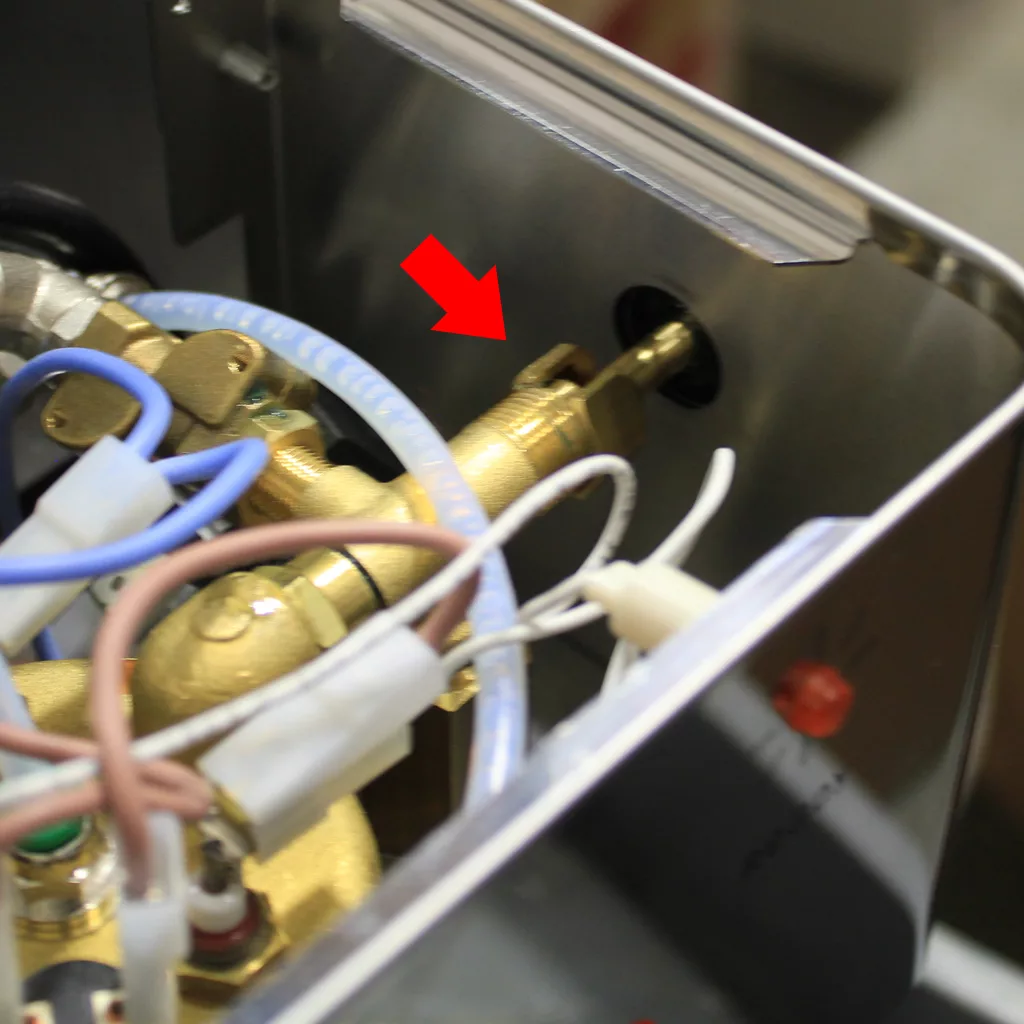

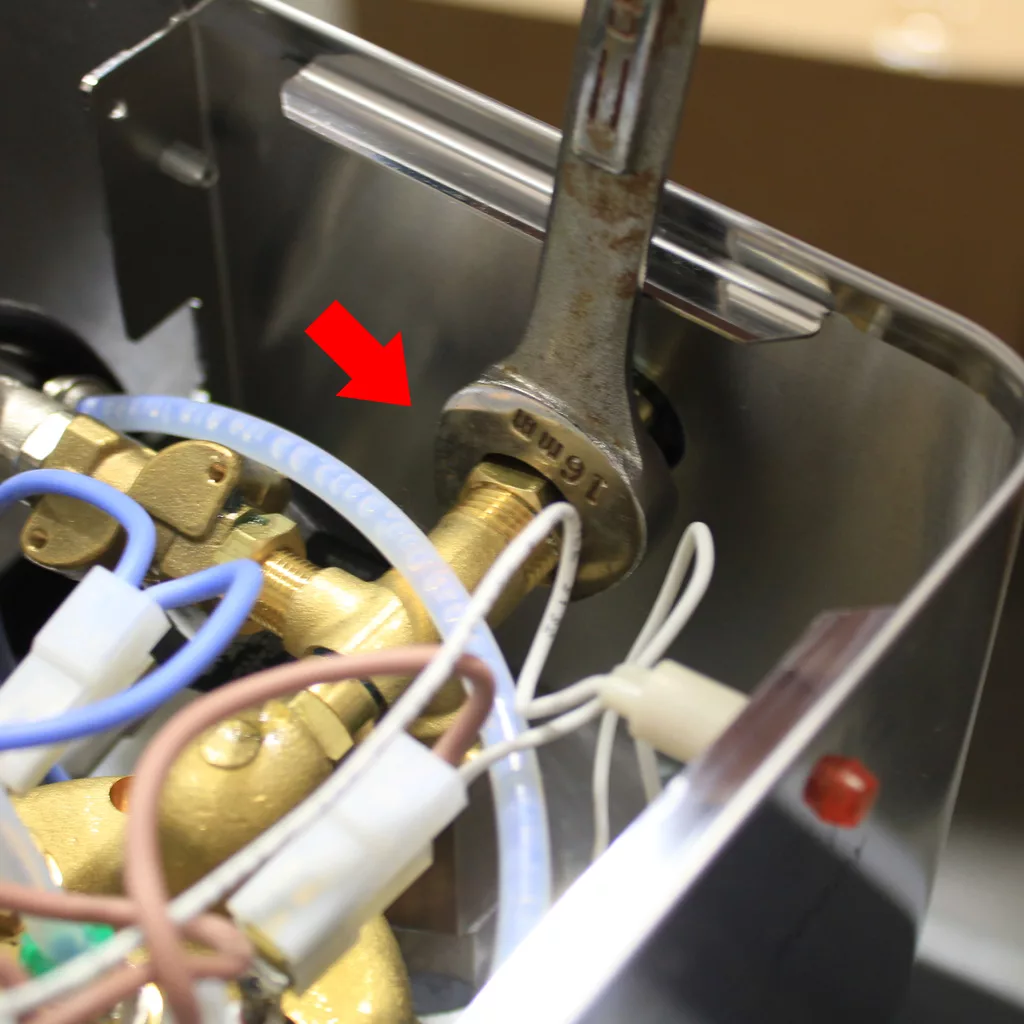

If it is leaking from the stem or steam tip, please loosen the shown nut with a 16mm open-ended/crescent wrench.

Leaking-Internally-2321

After loosening, you can twist off by hand.

Leaking-Internally-2322

There is an open end to the nut which allows you to remove it from the stem.

Leaking-Internally-2323

Back out the stem, by rotating the steam knob and remove.

Leaking-Internally-2326

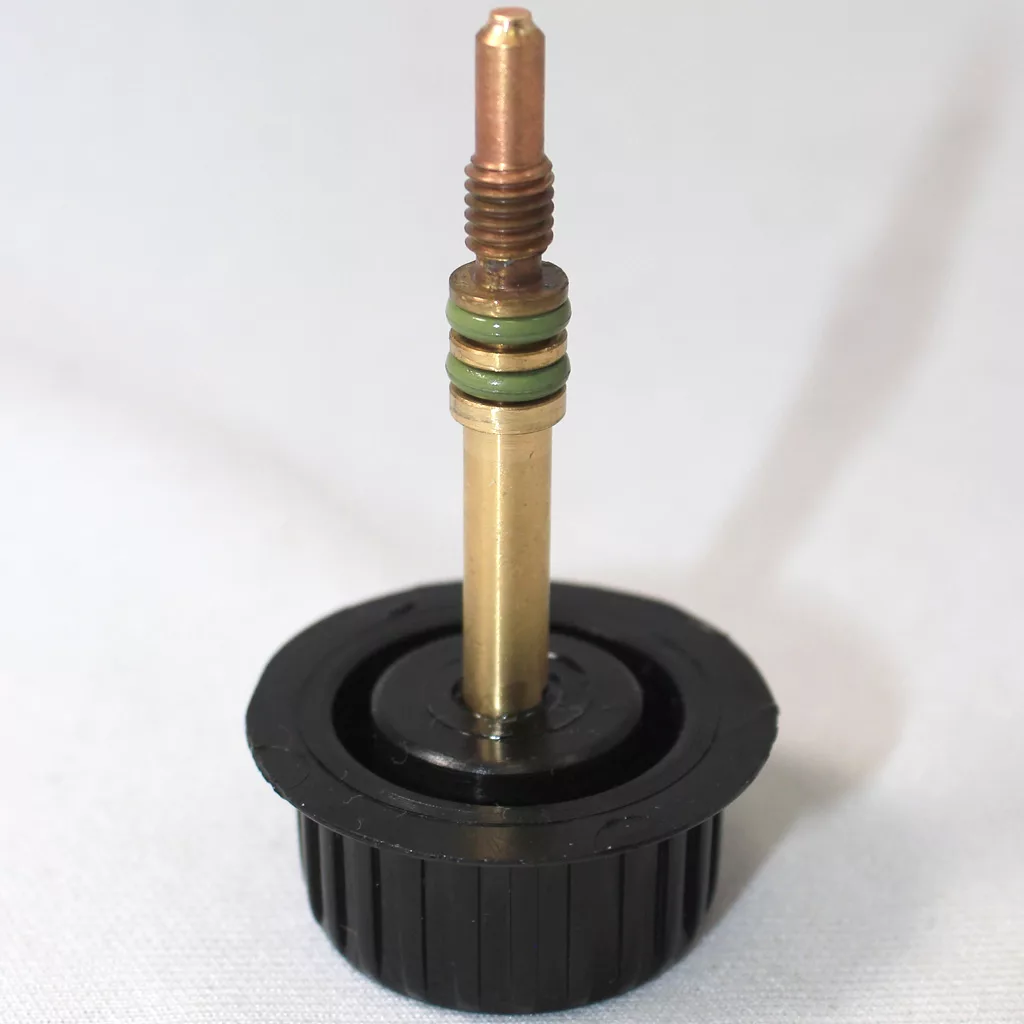

The tip may have residue which you can clean with a wire brush. There is metal to metal contact in the valve for closing the leak to the steam tip. If the valve stem is leaking, you will need to replace the 2 o-rings (better to order extra as they can break on install).

You can also purchase a new stem, either the short or long one.

If you need further assistance, please reference the Q&A section of the Lelit PL41TEM Anna.
