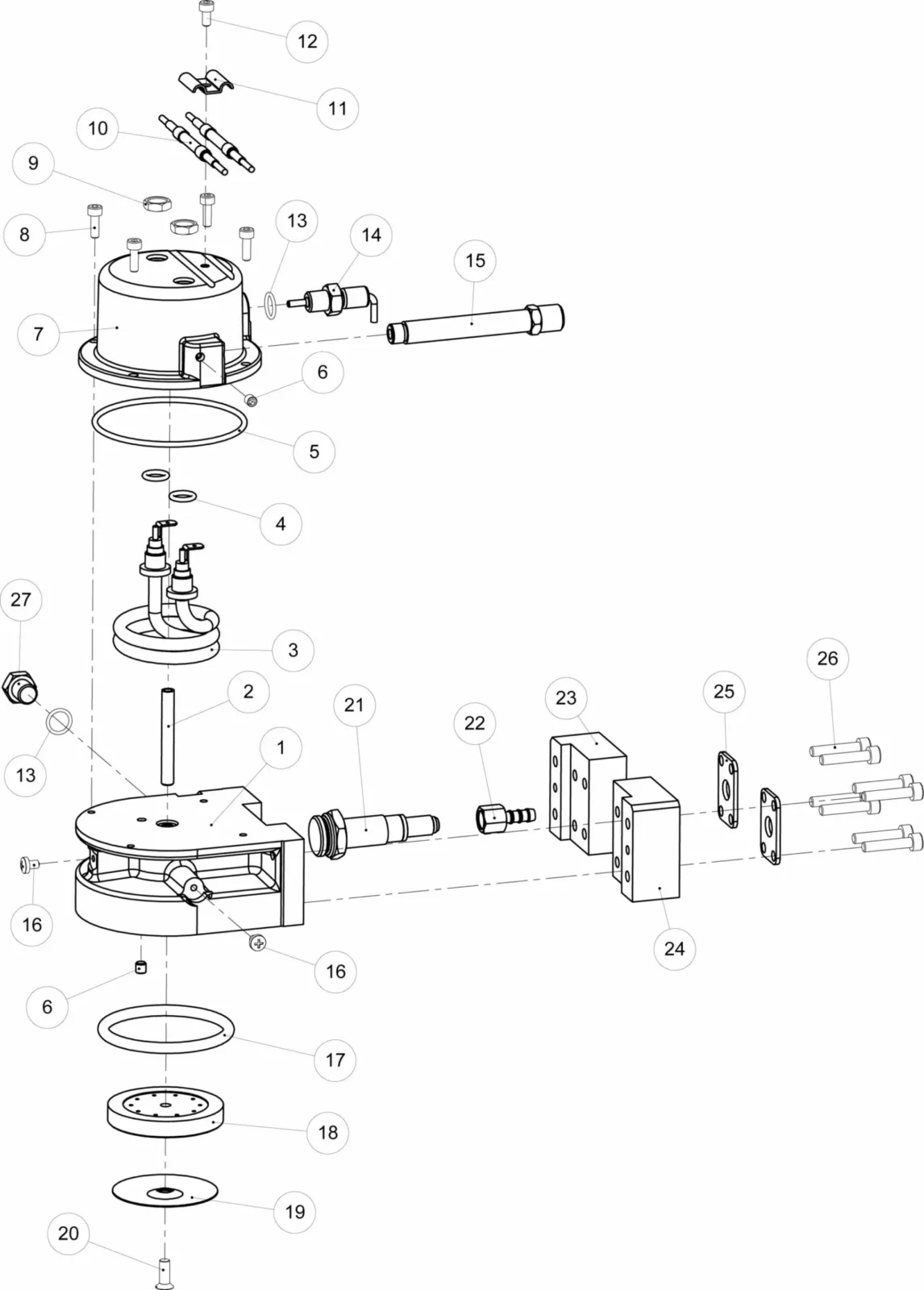

A13 Delivery Group Assembly
| # | SKU |
| 1 | 05906014 |
| 2 | 06504014 |
| 3 | 06502035 (230V) |
| 3 | 06503035 (115V) |
| 4 | 00708035 |
| 5 | 05199035 |
| 6 | 06011035 |
| 7 | 06501014 |
| 8 | 04098035 |
| 9 | 00704035 |
| 10 | 06573035 |
| 11 | 06588007 |
| 12 | 04071035 |
| 13 | 03203035 |
| 14 | 06598059 |
| 15 | 06587014 |
| 16 | 00123035 |
| 17 | 01917035 |
| 18 | 01252014 |
| 19 | 06019035 |
| 20 | 06018035 |
| 21 | 06065035 |
| 22 | 06339035 |
| 23 | 05976014 |
| 24 | 05975014 |
| 25 | 05977003 |
| 26 | 04005035 |
| 27 | 06596014 |
C15 Water Valve Assembly
| # | SKU |
| 1 | 06510014 |
| 2 | 00956035 |
| 3 | 00042014 |
| 4 | 02862035 |
| 5 | 00048014 |
| 6 | 01891021 |
| 7 | 01178035 |
| 8 | 00045014 |
| 9 | 01189035 |
| 10 | 00047014 |
| 11 | 00950015 |
| 12 | 01458014 |
| 13 | 06331015 |
| 14 | 01457015 |
| 15 | 06080035 |
| 16 | 06351034 |
| 17 | 01912035 |
| 18 | 01913014 |
| 19 | 01888035 |
| 20 | 06318015 |
| 21 | 01893035 |
| 22 | 00946021 |
| 23 | 03383035 |
| 24 | 06317015 |
| 25 | 00409035 |
| 26 | 00424014 |
| 27 | 00423014 |
| 28 | 06318039 |
| 03551034 |
C16 Steam Valve Assembly
| # | SKU |
| 1 | 06510014 |
| 2 | 00956035 |
| 3 | 00042014 |
| 4 | 02862035 |
| 5 | 00048014 |
| 6 | 01891021 |
| 7 | 01178035 |
| 8 | 00045014 |
| 9 | 01189035 |
| 10 | 00047014 |
| 11 | 00950015 |
| 12 | 01458014 |
| 13 | 06331015 |
| 14 | 01457015 |
| 15 | 06080035 |
| 16 | 06351034 |
| 17 | 01888035 |
| 18 | 01912035 |
| 19 | 01913014 |
| 20 | 06319015 |
| 21 | 01893035 |
| 22 | 00946021 |
| 23 | 03315057 |
| 24 | 03383035 |
| 25 | 06315015 (1.5 mm) |
| 06316015 (1 mm) | |
| 26 | 06319039 |
| 03551034 |
D16 Boiler Assembly
| # | SKU |
| 1 | 06523054 |
| 2 | 00499035 |
| 3 | 06519035 (230V) |
| 06520035 (115V) | |
| 4 | 01392035 |
| 5 | 04053035 |
| 6 | 05192035 |
| 7 | 01172035 |
| 8 | 01108034 |
| 9 | 03655035 |
| 10 | 03497035 |
| 11 | 01092035 |
| 12 | 00102035 |
| 13 | 00200034 |
| 14 | 05552035 |
| 15 | 03203035 |
| 16 | 06518011 |
| 17 | 06521095 |
| 18 | 01383035 |
| 19 | 00622035 |
| 20 | 06337035 (230V) |
| 06338035 (115V) | |
| 21 | 01248035 |
| 22 | 01289014 |
| 23 | 06522035 |
| 24 | 06514014 |
| 25 | 00330034 |
| 26 | 06526011 |
| 27 | 06527011 |
| 28 | 06334035 |
I9 Cup Heater Tray Assembly
| # | SKU |
| 1 | 06553011 |
| 2 | 06554015 |
| 3 | 06555015 |
| 4 | 06556015 |
| 5 | 06557015 |
| 6 | 01363035 |
K1 Delivery Unit Control Assembly
| # | SKU |
| 1 | 01903035 |
| 2 | 06507021 |
| 3 | 00963014 |
| 4 | 00966014 |
| 5 | 00962021 |
| 6 | 01902092 |
| 7 | 00961021 |
| 8 | 06508014 |
P1 Reservoir Bulkheads
| # | SKU |
| 1 | 06549011 |
| 2 | 06578007 |
| 3 | 05585014 |
| 4 | 01505035 |
| 5 | 00211035 |
| 6 | 03317035 |
| 7 | 00363035 |
| 8 | 02570035 |
| 9 | 03564035 |
| 10 | 05195035 |
| 11 | 03565035 |
S17 Frame / Accessories
| # | SKU |
| 1 | 06546030 |
| 2 | 06542011 |
| 3 | 06540069 |
| 4 | 06538069 |
| 5 | 06541011 |
| 6 | 02245035 |
| 7 | 03854035 |
| 8 | 06579015 |
| 9 | 06591035 |
| 10 | 06547007 |
| 11 | 00637014 |
| 12 | 06580035 |
| 13 | 06612007 |
T21 Body Various
| # | SKU |
| 1 | 06576082 |
| 2 | 02245035 |
| 3 | 05624014 |
| 4 | 06500021 |
| 5 | 05160035 |
| 6 | 06551082 |
| 7 | 06552011 |
| 8 | 00193014 |
U21 Hydraulic Components
| # | SKU |
| C15 | 06511039 |
| C16 | 06512039 |
| B9 | 06087039 |
| 1 | 05635035 |
| 2 | 05636035 |
| 3 | 05637035 |
| 4 | 02806035 |
| 5 | 06034014 |
| 6 | 06585035 |
| 7 | 06513014 |
| 8 | 06589035 |
| 9 | 06590035 |
| 10 | 06528011 |
| 11 | 06530011 |
| 12 | 06529011 |
| 13 | 06525011 |
| 14 | 06594035 |
| 15 | 06595035 |
| 16 | 06342035 |
| 17 | 05194035 |
| 18 | 03843035 |
| 19 | 06583035 |
| 20 | 06601014 |
| 21 | 01024014 |
| 22 | 04017035 |
| 23 | 03854035 |
| 24 | 01290014 |
| 25 | 01291035 |
| 26 | 03666035 |
| 27 | 05978003 |
| 28 | 00031014 |
| 29 | 01277014 |
| 30 | 06341035 |
| 31 | 00618035 |
| 32 | 06613034 |
| 33 | 05184035 |
| 34 | 02806035 |
| 35 | 06611014 |
V21 Electrical Components
| # | SKU |
| 1 | 06582035 (230V) |
| 06584035 (115V) | |
| 2 | 05185035 |
| 3 | 04071035 |
| 4 | 04017035 |
| 5 | 05632035 |
| 6 | 06602059 (230V) |
| 06603059 (115V) | |
| 7 | 05631035 |
| 8 | 05630035 |
| 9 | 03312035 |
| 10 | 03195035 |
| 11 | 05625035 |
| 12 | 06575034 |
| 13 | 01505035 |
| 14 | 01255035 |
| 15 | 00557035 |
| 16 | 03565035 |
| 17 | 06581035 |
| 06625035 (230V EU) | |
| 06626035 (115V US CA) | |
| 06627035 (230V CN) | |
| 06628035 (230V KR) | |
| 06629035 (230V AU NZ) | |
| 06630035 (230V CH) | |
| 06631035 (230V GB) |
