Parts Diagram – Bezzera Matrix MN

Finding your part
  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website.
    Note: These parts diagrams are provided by the manufacturers. We list them on our site for informational purposes only. We do not stock every single part listed nor can we guarantee that every part is available to order.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
  • Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.

Cod. 9942068 REV. 04

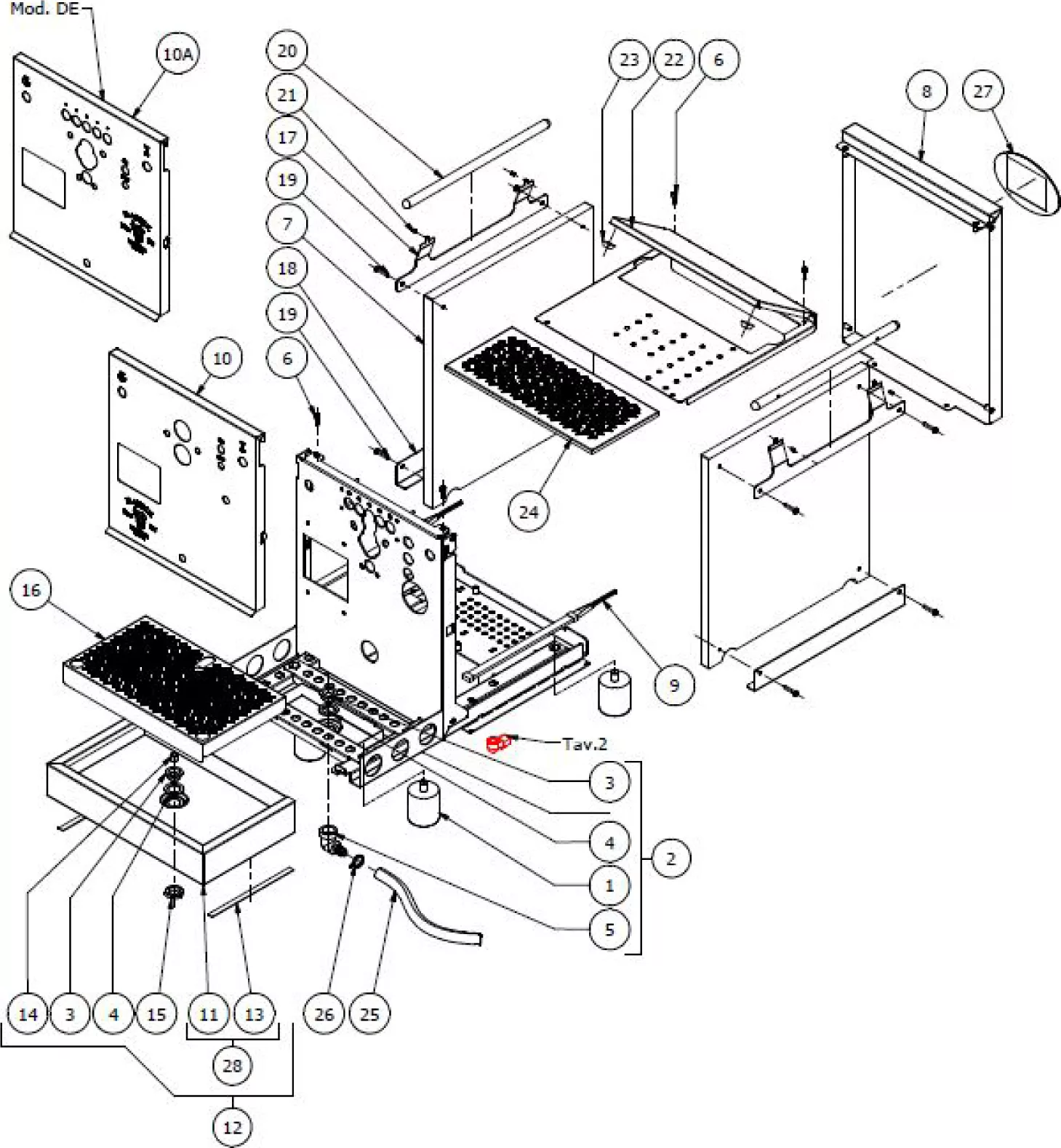

Exploded diagram of an electronic device showing individual components, panels, screws, and wiring, each labeled with numbered indicators for assembly or repair reference. © 2025 1st-line.com
# SKU
1 7474218
2 5964676
3 5225230
4 5492022
5 5224403.01
6 7816002
7 5370920
8 5073642LL
9 7663626.01
10 5074924SG
10A 5074923SG1
11 5340531DL
12 5968124
13 7497009
14 7823001
15 5221826
16 5074672LW
17 5073643LW
18 5073644LW
19 7819902
20 5260206
21 7812805
22 5961602.01
23 7474217
24 5074673LW
25 5194654
26 7611502
27 5521512
28 5968127R

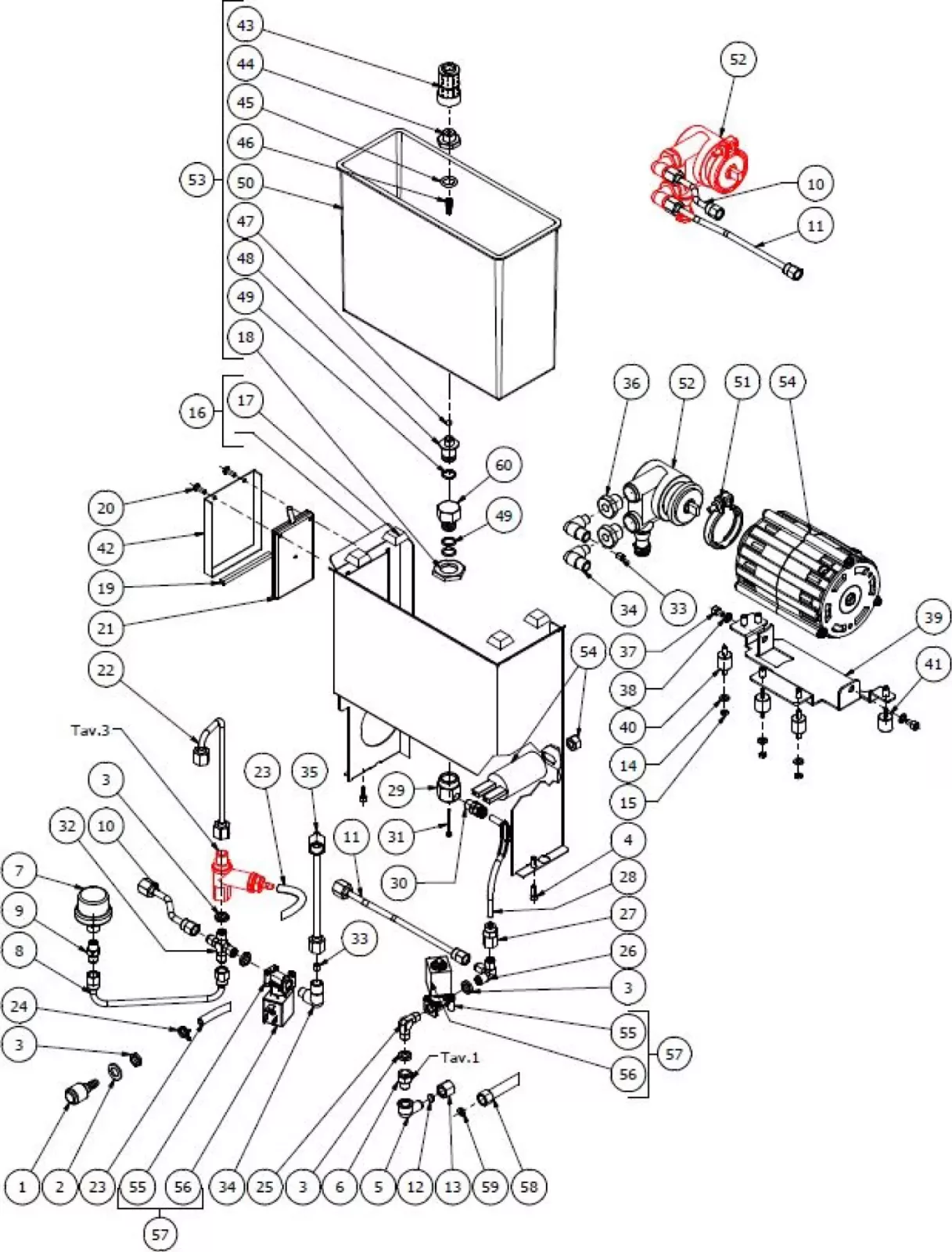

Exploded technical diagram of a mechanical device, showing numbered parts including a motor, tank, pipes, valves, and various connectors, with component lines and labels for assembly reference. © 2025 1st-line.com
# SKU # SKU
1 5283062 34 5301504TR
2 7815001 35 5162412LL
3 5221844 36 5302057AL
4 7816002 37 7816027
5 7304507TR 38 7814002
6 7304517 39 5058411LL
7 7666005 40 7470604
8 5162421LL 41 7474219
9 7304502TR 42 5055752LW
10 5162415LL 43 7374002
11 5162414LL 44 5302065.01AL
12 5492019 45 7496073.01
13 5221835 46 5471521.01
14 7815003 47 5471509
15 7812601 48 5224617
16 5058463LL 49 7496076
17 7474212 50 7373012
18 5221830 51 7611508
19 7633012 52 7730509
20 7819901 53 5963171
21 7666006.01 54 7741005.01 (110V)
22 5162413LL 7742404.01 (220/240V)
23 5194554 55 7703018
24 7611516 56 7630339 (110V)
25 7303001TR 7630341 (220/230V)
26 7304505TR 7630343 (240V)
27 7304538TR 57 7701123 (110V)
28 5194617 7702322 (220/230V)
29 5225228.01 7702415 (240V)
30 7304534TR 58 7200514
31 7826206 59 7492004
32 7304001TR 60 5226416AL
33 5223003

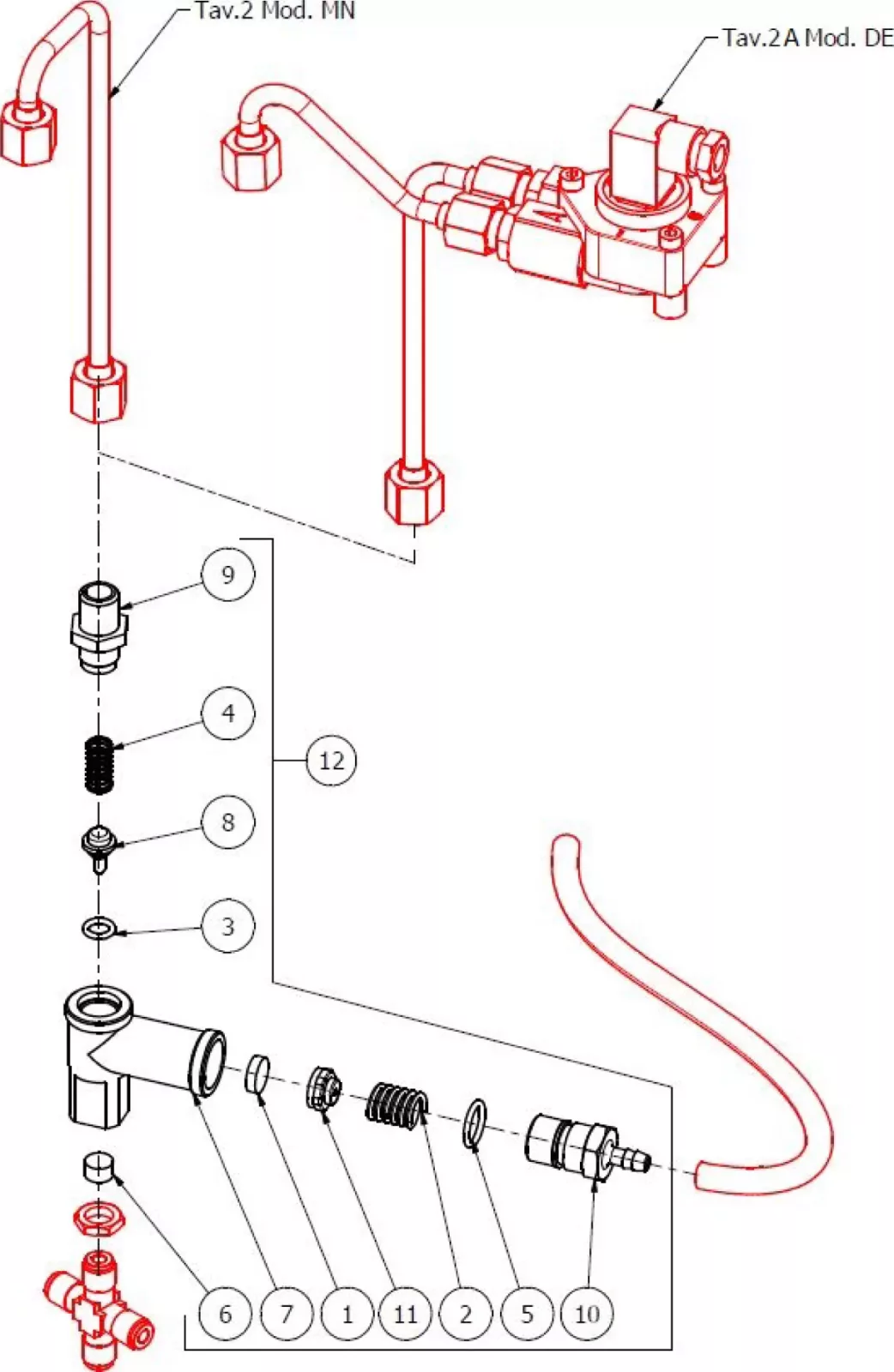

Exploded diagram of a faucet assembly showing individual numbered components, including pipes, valves, washers, springs, and connectors, with some parts highlighted in red and others in black line art. © 2025 1st-line.com
# SKU
1 5493042
2 5471539
3 7496018
4 5471505
5 7496052
6 5471019
7 5283053TP
8 5224615TP
9 5302017TP
10 5302077TP
11 5224620TP
12 5965212.01AL
Exploded diagram of a mechanical assembly with numbered parts, including pipes, connectors, and a central cylindrical component. Some parts and sections are highlighted in red; detailed insets show closer views of specific assemblies. © 2025 1st-line.com
# SKU
1 5163374LL
2 5164092LL
3 5320527BL
4 5494016
5 5302006TP
6 5192320
7 7666008
8 7814001
9 7663573
10 5722312TP (230V)
5722313TP (115V)
11 5301507TR
12 7826212
13 7434009
14 5164091R
15 5302011
16 7303044TR
17 5495008
Exploded diagram of an electronic device showing labeled internal components, wiring, and connectors. Two circuit board panels and a cylindrical assembly are separated, with numbered parts and connecting lines indicating assembly order. © 2025 1st-line.com
# SKU
1 7615002
2 5225416TP
3 7816002
4 7814001
5 5162420LL
6 5162419LL
7 5320528BL
8 5302006TP
9 5302009
10 5225209TP
11 5192321
12 5301506TR
13 7666008
14 7452509.02
15 7452511.01
16 7434009
17 7496040
18 7816422
19 7816017
20 5058125LW
21 5225205
22 5192001
23 5265807
24 5722239.01AL (220/240V 1100/1300W)
5721128.01AL (120V 1200W)

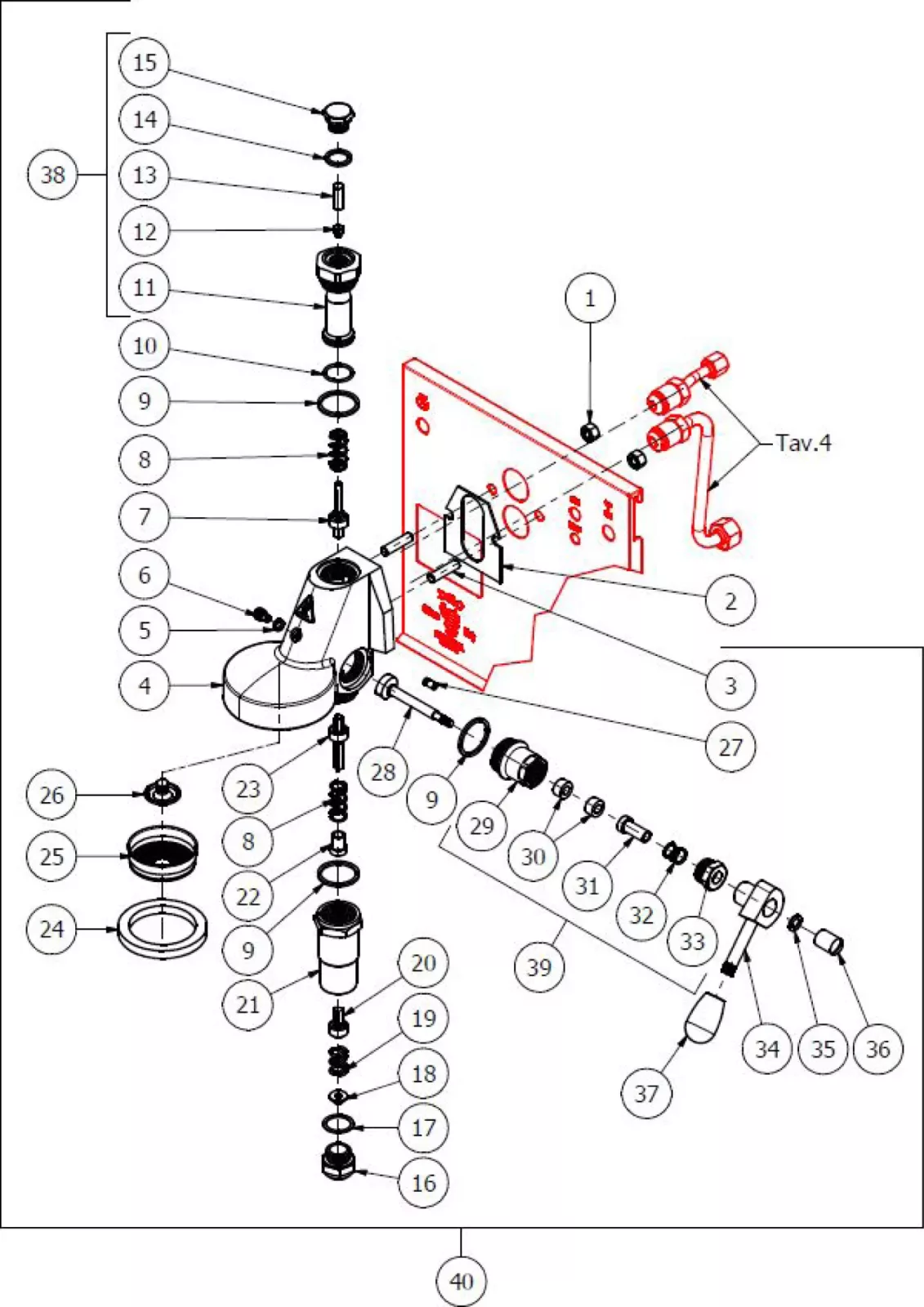

Exploded technical diagram of a mechanical assembly with numbered parts, including screws, washers, valves, a mounting plate, and other components arranged around the central body for identification and assembly reference. © 2025 1st-line.com
# SKU
1 7811402
2 7493011
3 5267013
4 7479940
5 7479938
6 7479939
7 7479937
8 7479936
9 7479935
10 7479934
11 7479956
12 7479955
13 7479954
14 7479953
15 7479952
16 7479961
17 7479960
18 7479945
19 7479944
20 7479943
21 7479957
22 7479942
23 7479946
24 5493039
25 5471022
26 7479941
27 7479951
28 7479950
29 7479967
30 7479968
31 7479969
32 7479970
33 7479971
34 7479931
35 7479947
36 7479948
37 7372004
38 7479933
39 7479949
40 5963576AL

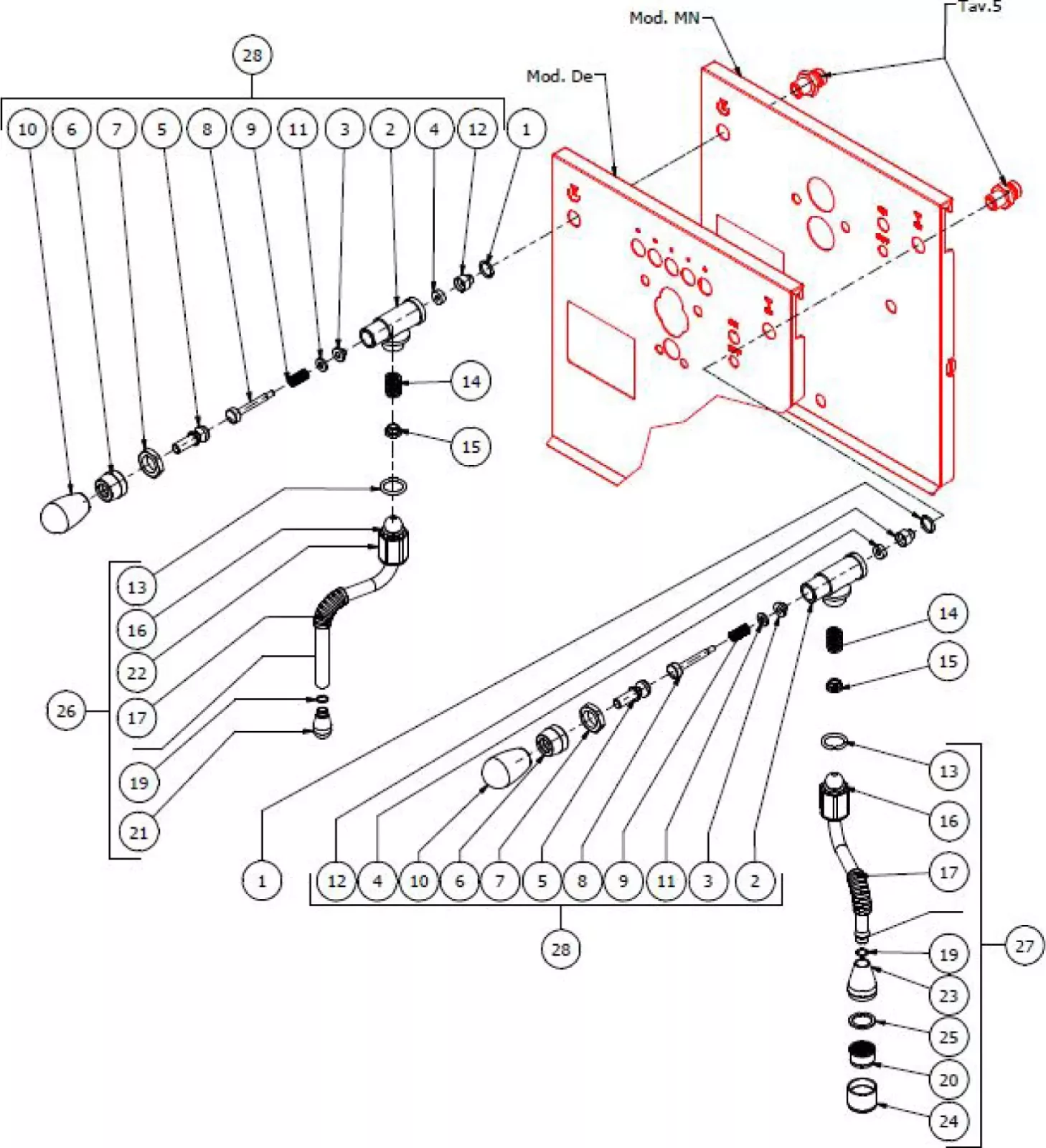

Exploded view diagram of a mechanical assembly, showing multiple numbered parts, connecting components, and a large central panel with holes, with some parts highlighted in red. Lines indicate how components fit together. © 2025 1st-line.com
# SKU
1 7496052
2 5283055TW
3 5494004
4 5496042
5 5225610
6 5222823CM
7 5221826CM
8 5260204DL
9 5471513
10 7372004 (wood)
7371511.01 (black)
11 5261801
12 5224603TP
13 7496072
14 5471532
15 5190501
16 7496073
17 7371004
19 7496095
20 5471037
21 7305019
22 5221872TW
23 5226621DL
24 5226622DL
25 5493046
26 7479990.02TW
27 7479985.02TW
28 5964101 (wood)
5964085.01AL (plastic)

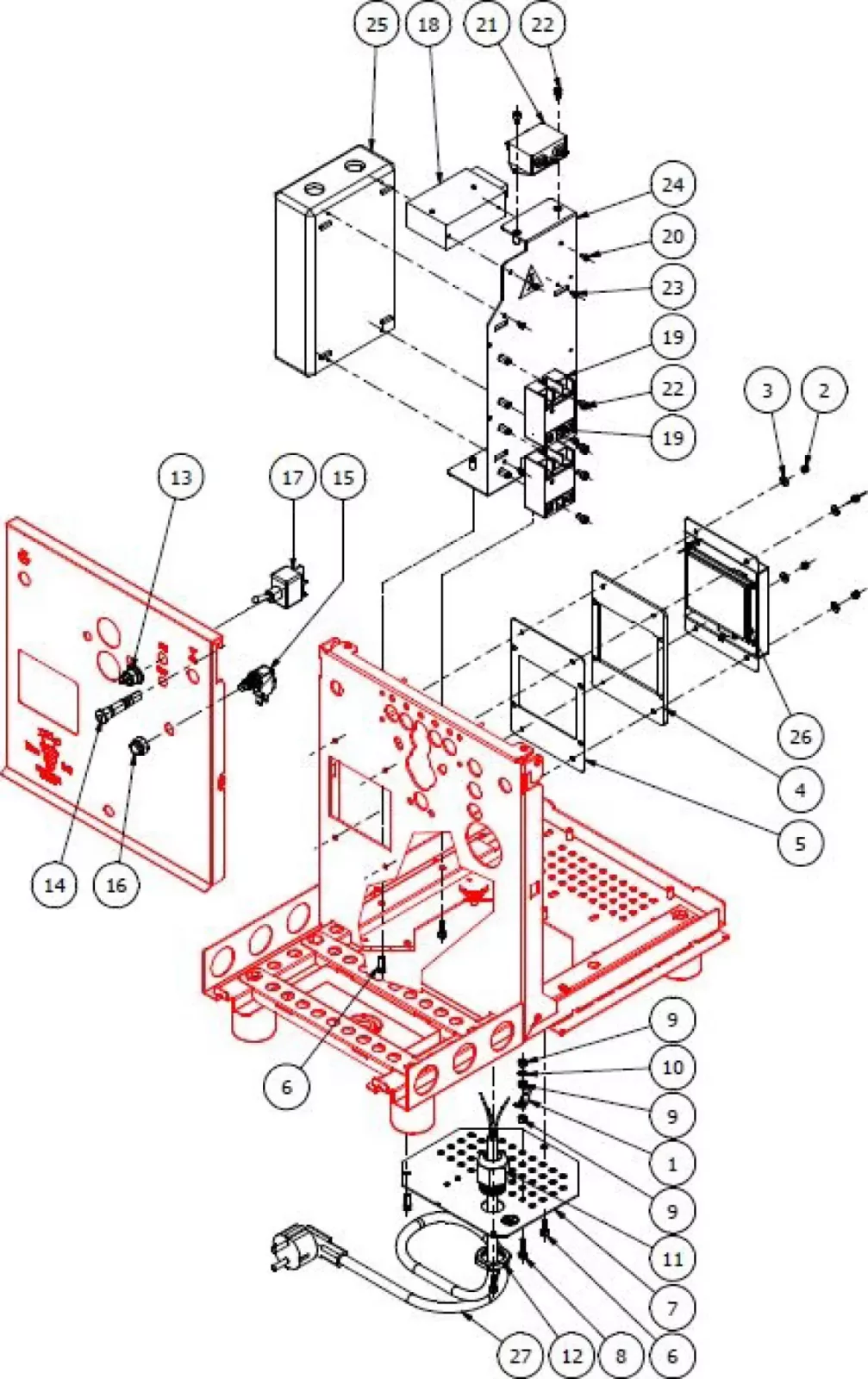

Exploded diagram of an electronic device showing numbered parts, including panels, switches, buttons, mounts, wiring, and connectors, with assembly lines indicating how components fit together. © 2025 1st-line.com
# SKU
1 7615002
2 7812402
3 5057012
4 5493047.01
5 5493049
6 7816002
7 5053044
8 7826402
9 7822603
10 7814001
11 7614007
12 7614006
13 7372507
14 7633628
15 7633906
16 5221875CM
17 7633326
18 7637209
19 7635424.01
20 7816203
21 7663007
22 7816017
23 7818009
24 5058124.01LL
25 7661047.01PR
26 5963187R (SW V1.1)
5963169.03R (SW V2.0)
27 7551001 (USA 125V 15A)
7551003 (USA 250V 20A)
7555001 (SCHUKO)
7554001 (UK)
7552001 (AUS)
7555003 (Switzerland)

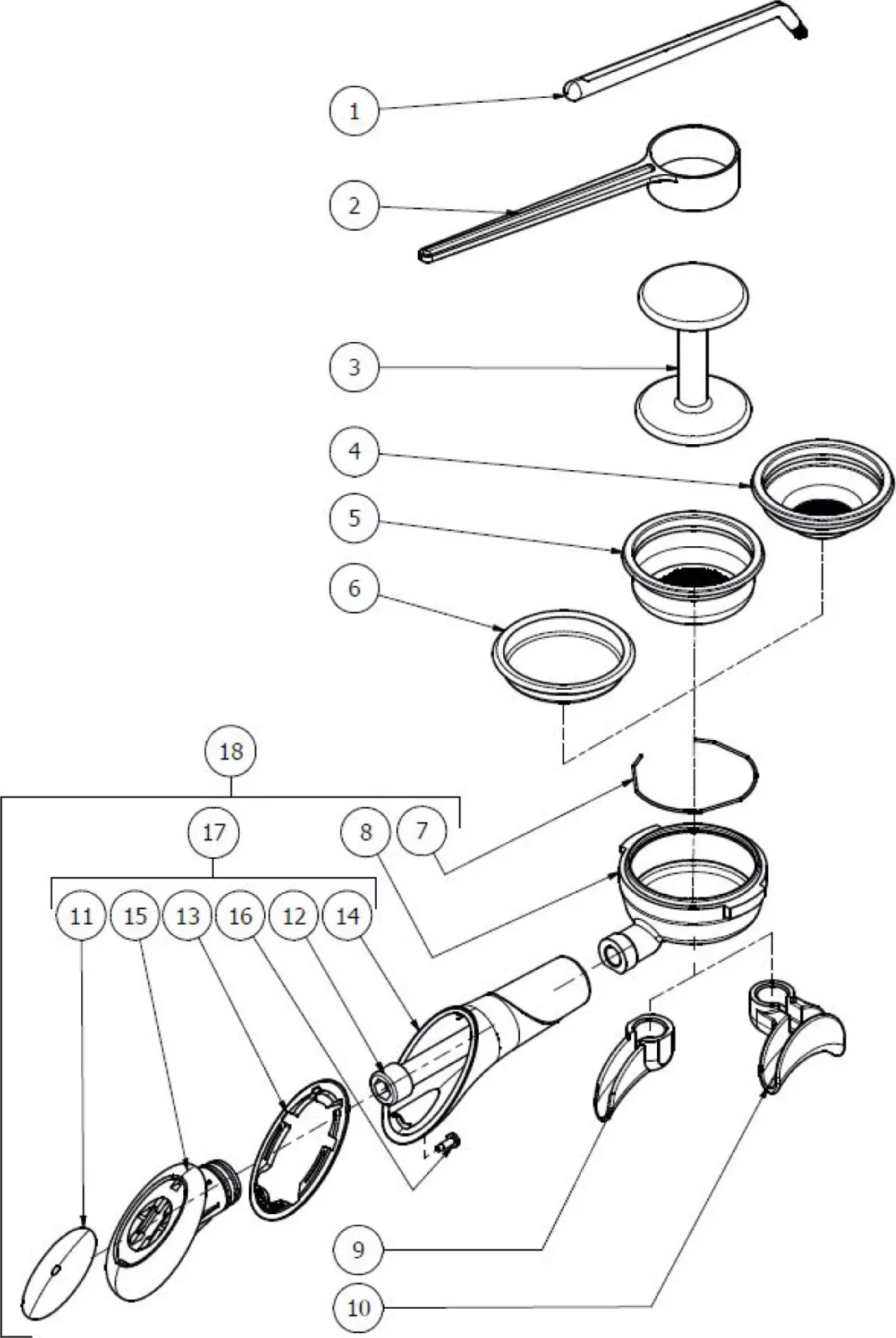

Exploded diagram of a mechanical device showing 18 numbered parts, including handles, rings, a circular component, screw-like pieces, and other mechanical elements, all arranged and labeled for assembly reference. © 2025 1st-line.com
# SKU
1 7990603
2 5372101
3 5373001
4 5471031.01
5 5471035
6 5471003
7 5471527
8 7479972.01TW
9 7305006TW
10 7305007TW
11 5371205
12 7816026
13 7493021
14 5371203
15 5371204.01
16 7809810
17 5978508.02
18 5965588.02R
18 5965590.02R

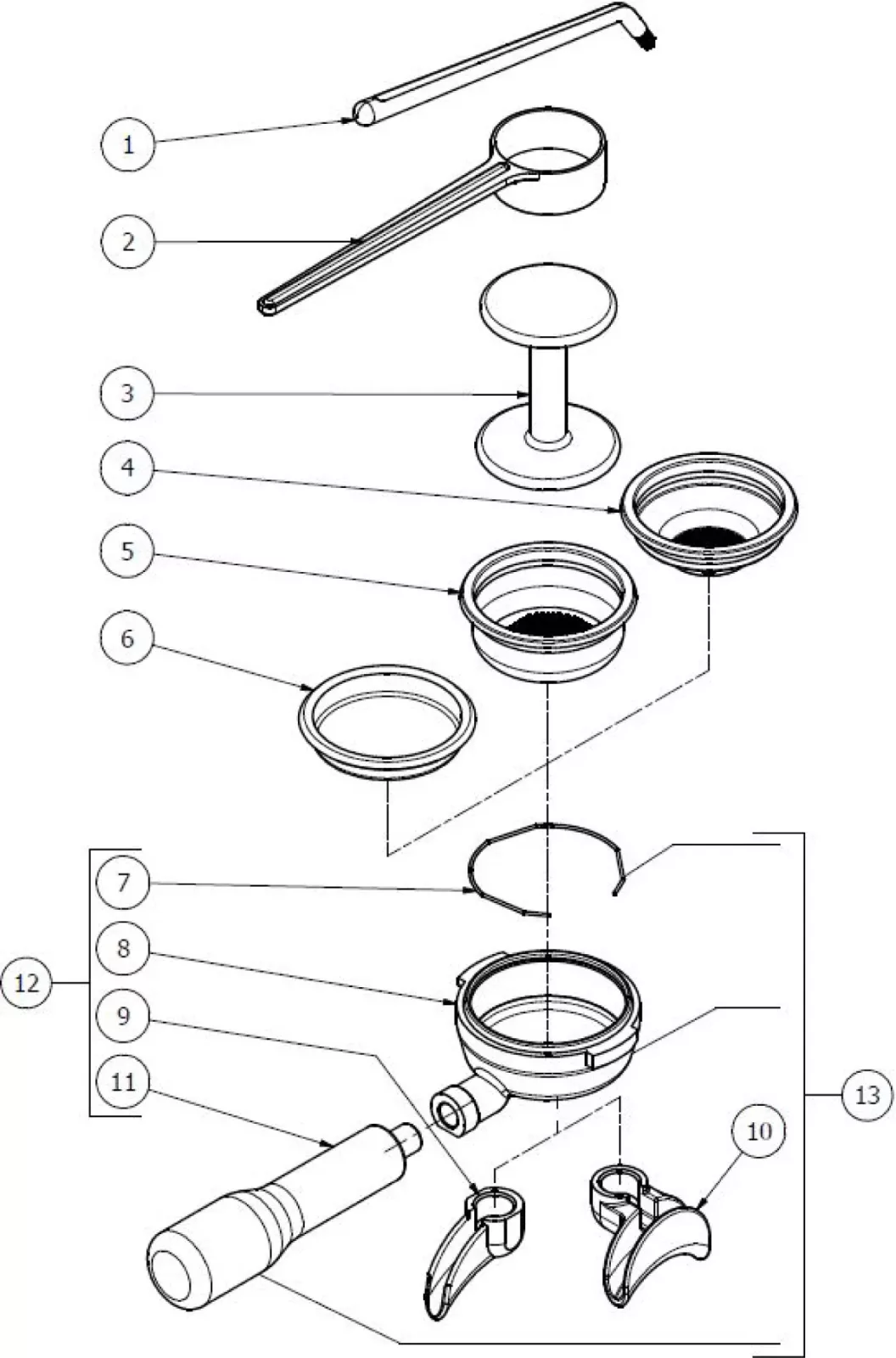

Exploded diagram of a portafilter assembly showing numbered parts, including a handle, basket, spring, spouts, and gauge. Each part is separated and labeled for identification. © 2025 1st-line.com
# SKU
1 7990603
2 5372101
3 5373001
4 5471031.01
5 5471035
6 5471003
7 5471527
8 7479972.01TW
9 7305006TW
10 7305007TW
11 7371520
12 5965630R
13 5965629R

For more information, visit the Bezzera Matrix MN product page.
