COD. 9942075 REV. 01 ed

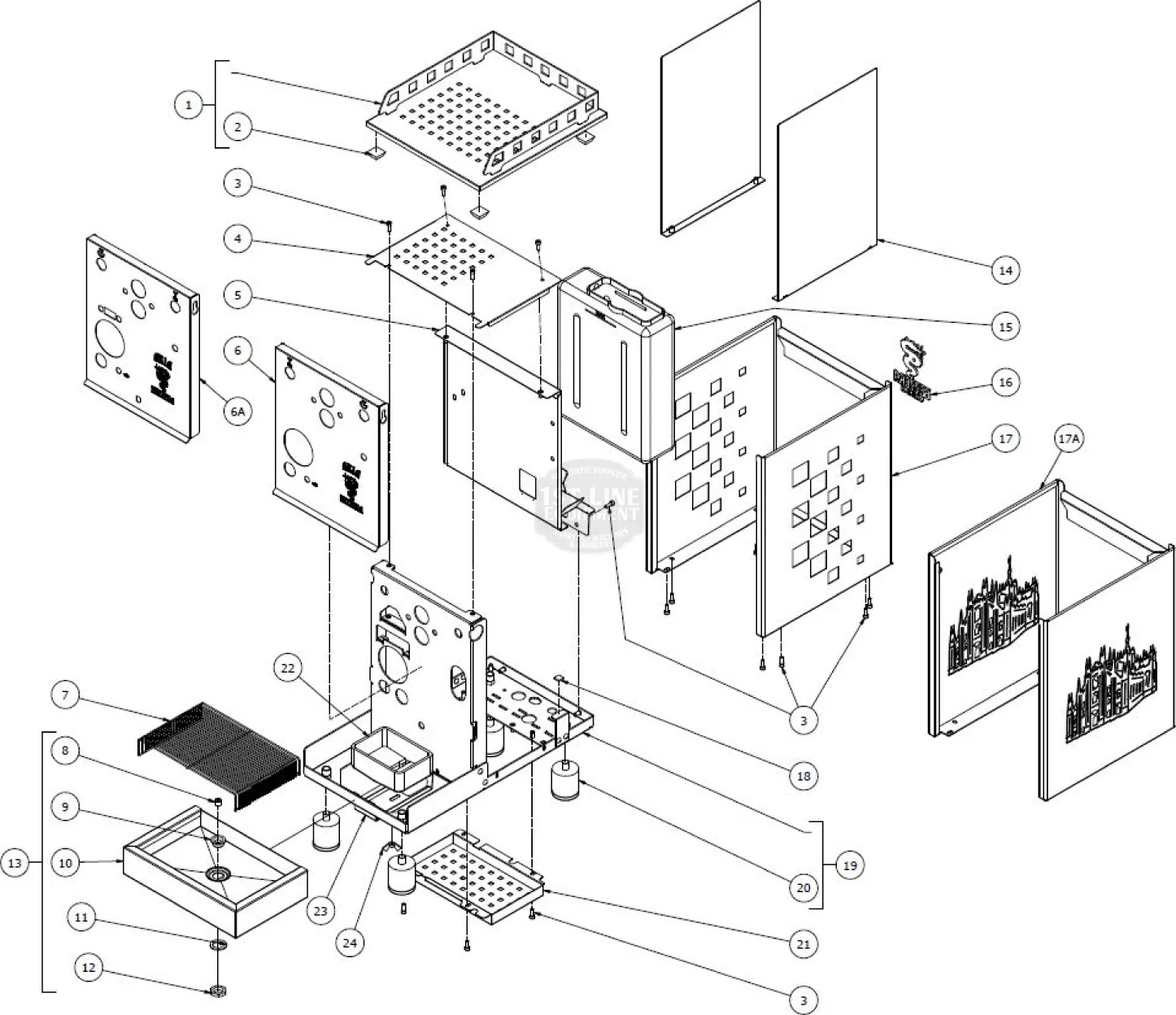

TABLE 1
| # | SKU |
| 1 | 5961841 |
| 2 | 7474212 |
| 3 | 7816002 |
| 4 | 5056357LW |
| 5 | 5058706.01LL |
| 6 | 5074925SG1 (non PID) |
| 6A | 5074926SG (PID |
| 7 | 5261018 |
| 8 | 7823001TP |
| 9 | 5225230NC |
| 10 | 5340510LL (stainless steel) |
| 5340542 (black) | |
| 5340543 (white) | |
| 5340544 (red) | |
| 11 | 5492022 |
| 12 | 5221826CM |
| 13 | 5968137.01 (stainless steel) |
| 5968138.01 (black) | |
| 5968139.01 (white) | |
| 5968140.01 (red) | |
| 14 | 5073645LL (mirror) |
| 5053601LL (matt black) | |
| 5053601LL1 (wood) | |
| 15 | 7373009.01 |
| 16 | 5522520.01 |
| 17 | 5071738LL (mirror) |
| 5051712LL (matt black) | |
| 5051712LL1 (white) | |
| 5051712LL2 (red) | |
| 17A | 5051715LL (matt black) |
| 5051715LL1 (white) | |
| 5051715LL2 (red) | |
| 18 | 7474221 |
| 19 | 5964729 |
| 5964755.01 | |
| 20 | 7474218VN |
| 21 | 5053053LW (rotary pump frame) |
| 5053053VN (vibration pump frame) | |
| 22 | 5373602.01 |
| 23 | 5038456LW |
| 24 | 7819909 |

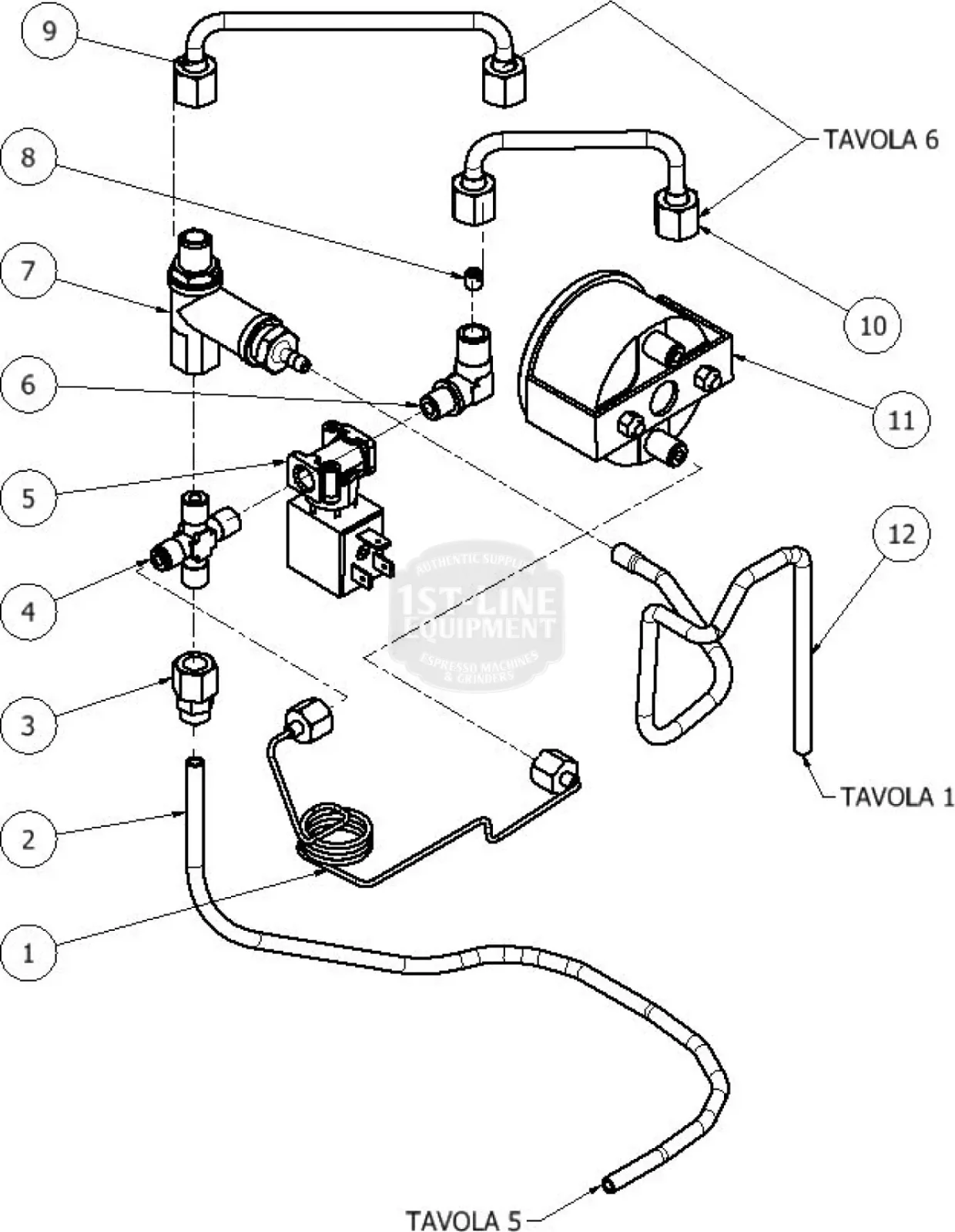

TABLE 2A
| # | SKU |
| 1 | 7400909 |
| 2 | 5194690 |
| 3 | 7304538TR |
| 4 | 7304545TR |
| 5 | 7702322.01 (OLAB 220/230V) |
| 7702415.01 (240V) | |
| 7701123.01 (110V) | |
| 6 | 5301504AL |
| 7 | 5965212.01AL |
| 8 | 5223003 |
| 9 | 5162502LL |
| 10 | 5162501LL |
| 11 | 7432524.02 |
| 12 | 5194591 |

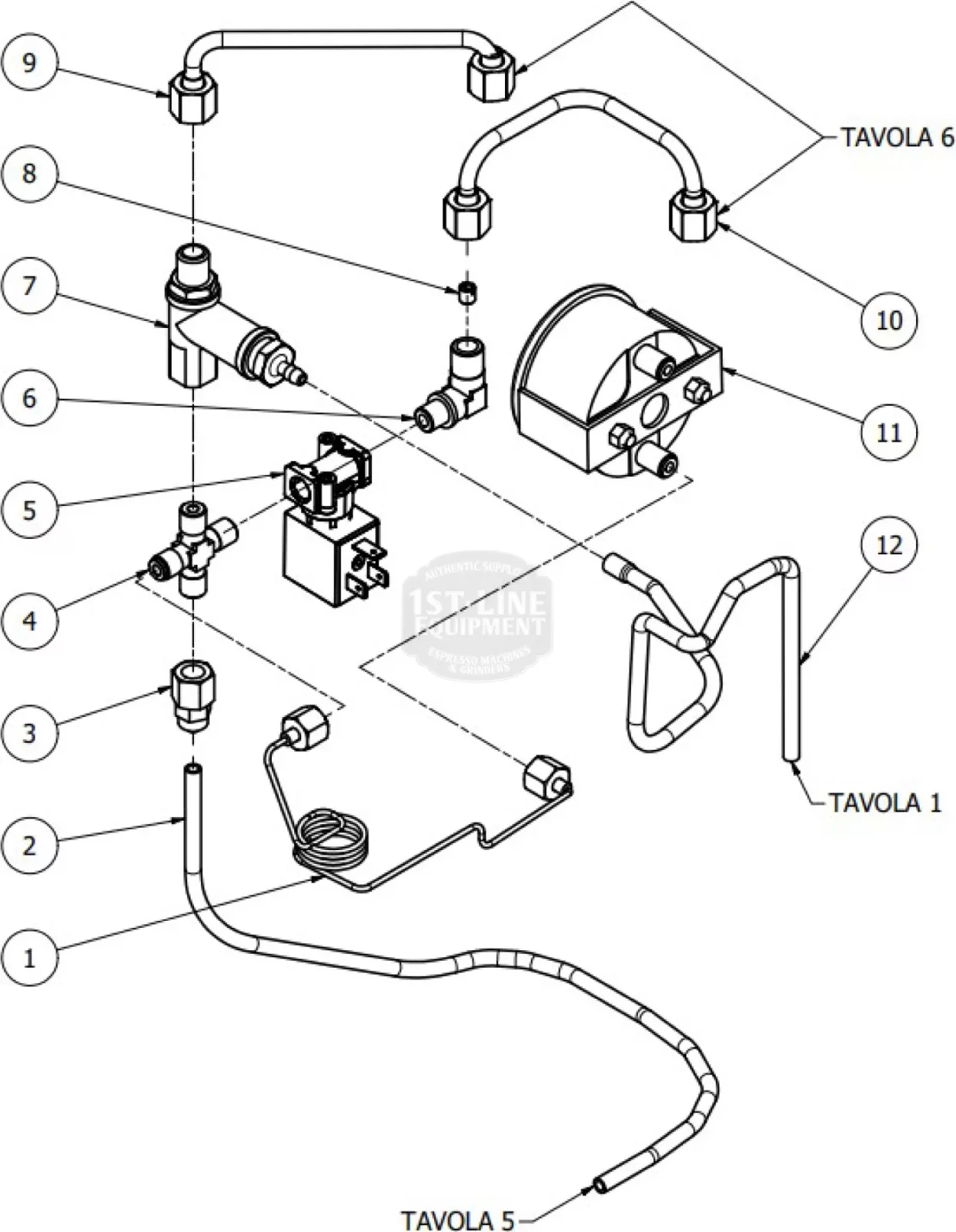

TABLE 2B
| # | SKU |
| 1 | 7400909 |
| 2 | 5194639 |
| 3 | 7304539TR |
| 4 | 7304545TR |
| 5 | 7702322.01 (OLAB 220/230V) |
| 7702415.01 (240V) | |
| 7701123.01 (110V) | |
| 6 | 5301504AL |
| 7 | 5965212.01AL |
| 8 | 5223003 |
| 9 | 5162502.01LL |
| 10 | 5162501.01LL |
| 11 | 7432524.02 |
| 12 | 5194591 |

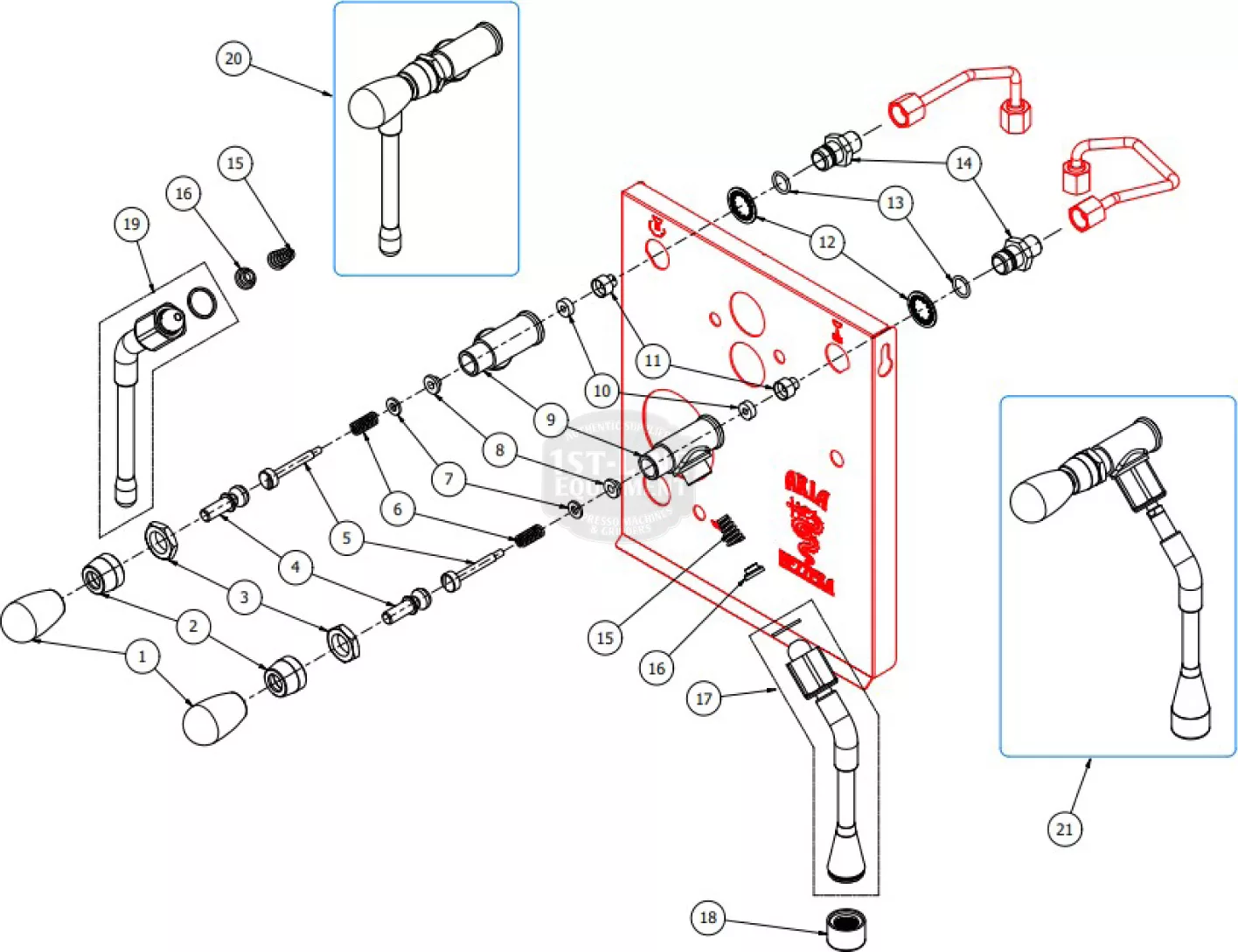

TABLE 3
| # | SKU |
| 1 | 7372004 (wood) |
| 7371511.01 (black) | |
| 2 | 5222823CM |
| 3 | 5221826CM |
| 4 | 5225610 |
| 5 | 5260204DL |
| 6 | 5471513 |
| 7 | 5261801 |
| 8 | 5494004 |
| 9 | 5283066TW |
| 10 | 5496042 |
| 11 | 5224603AL |
| 12 | 7814201 |
| 13 | 7496052 |
| 14 | 5225416.01AL |
| 15 | 5471532.01 |
| 16 | 5190501 |
| 17 | 5966576 |
| 18 | 5226601TW |
| 19 | 5966575 |
| 20 | 5964111 (steam lever tap 45° wood) |
| 5964110 (lever tap + steam pipe) | |
| 21 | 5964112 (water lever tap 45° wood) |
| 5964109 (lever tap + water pipe) |

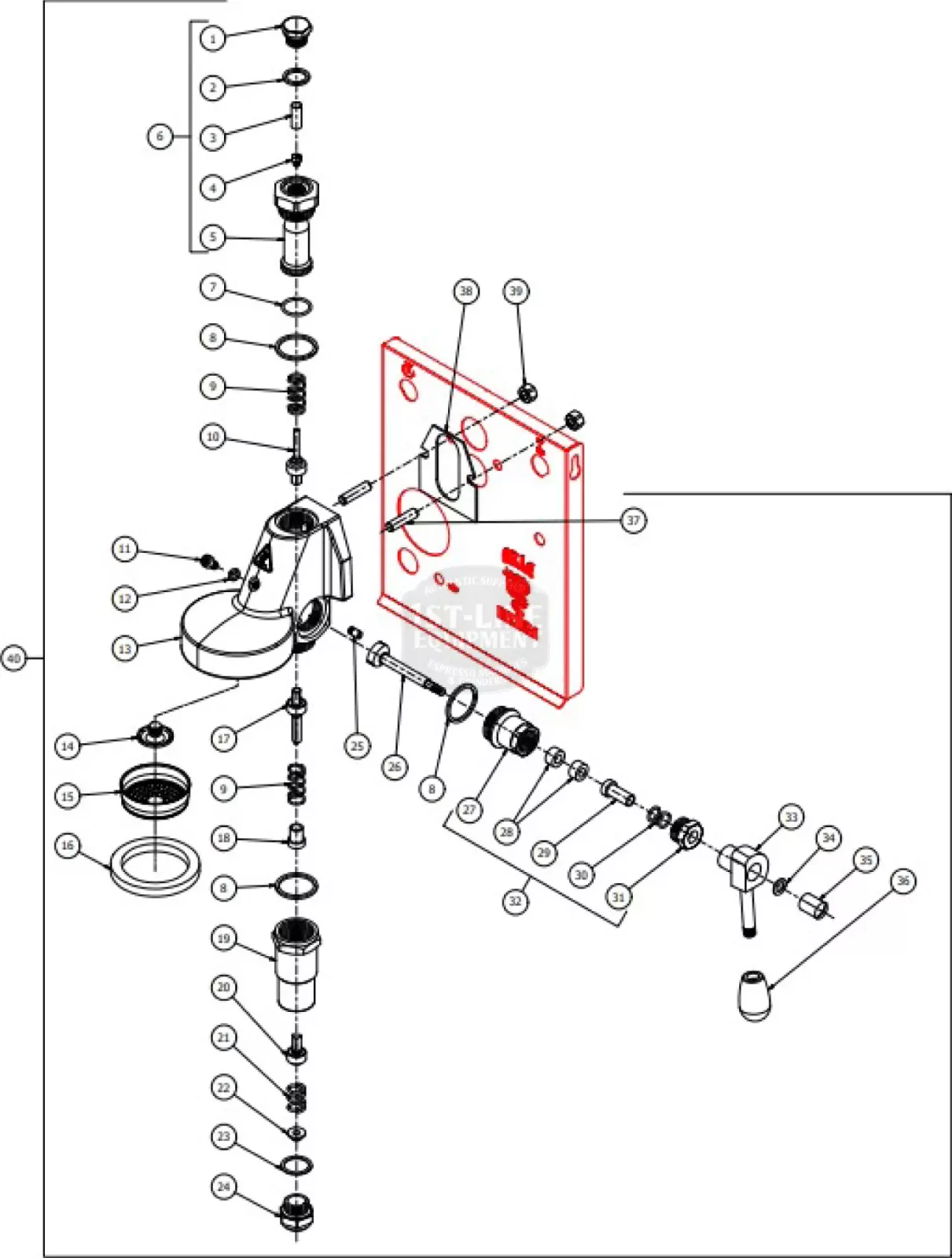

TABLE 4
| # | SKU |
| 1 | 7479952 |
| 2 | 7479953 |
| 3 | 7479954 |
| 4 | 7479955.01 |
| 5 | 7479956.01 |
| 6 | 7479933.01 |
| 7 | 7479934 |
| 8 | 7479935 |
| 9 | 7479936 |
| 10 | 7479937 |
| 11 | 7479939 |
| 12 | 7479938 |
| 13 | 7479940AL |
| 14 | 7479941 |
| 15 | 5471022 |
| 16 | 5493039 |
| 17 | 7479946 |
| 18 | 7479942 |
| 19 | 7479957 |
| 20 | 7479943 |
| 21 | 7479944 |
| 22 | 7479945 |
| 23 | 7479960 |
| 24 | 7479961 |
| 25 | 7479951 |
| 26 | 7479950 |
| 27 | 7479967 |
| 28 | 7479968 |
| 29 | 7479969 |
| 30 | 7479970 |
| 31 | 7479971 |
| 32 | 7479949 |
| 33 | 7479931 |
| 34 | 7479947 |
| 35 | 7479948 |
| 36 | 7371511.01 (black) |
| 7372004 (wood) | |
| 37 | 5267013 |
| 38 | 7493011 |
| 39 | 7811402 |
| 40 | 5963545.02AL (black) |
| 5963576.01AL (wood) |

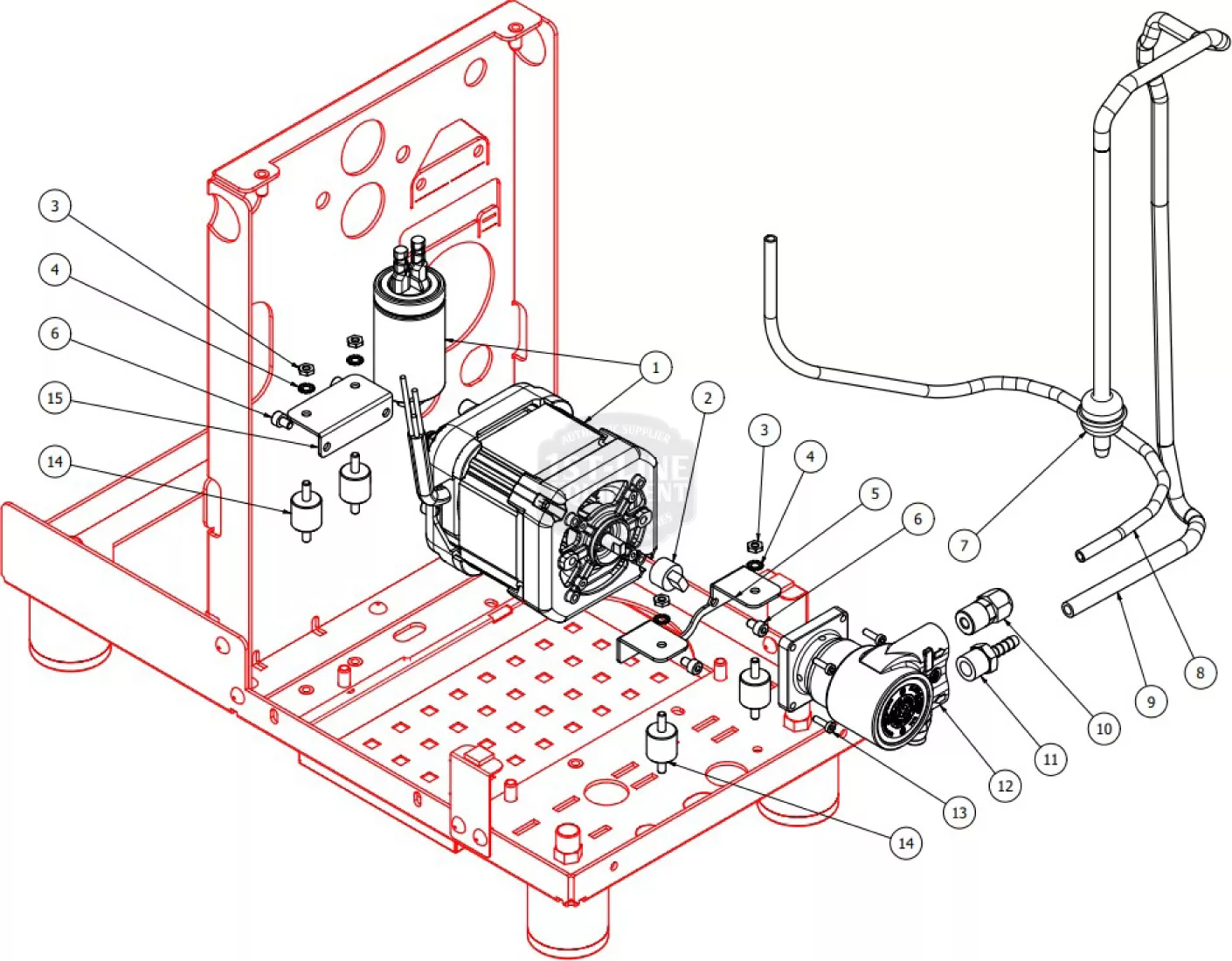

TABLE 5A
| # | SKU |
| 1 | 7742405 (220/240V) |
| 7741007 (110-115V 50/60HZ) | |
| 2 | 7730514 |
| 3 | 7812601 |
| 4 | 7814001 |
| 5 | 5058508LW |
| 6 | 7816017 |
| 7 | 7374015 |
| 8 | 5194690 |
| 9 | 5194585 |
| 10 | 7303068 |
| 11 | 7303069 |
| 12 | 7730514 |
| 13 | 7819921 |
| 14 | 7470604 |
| 15 | 5058507LW |

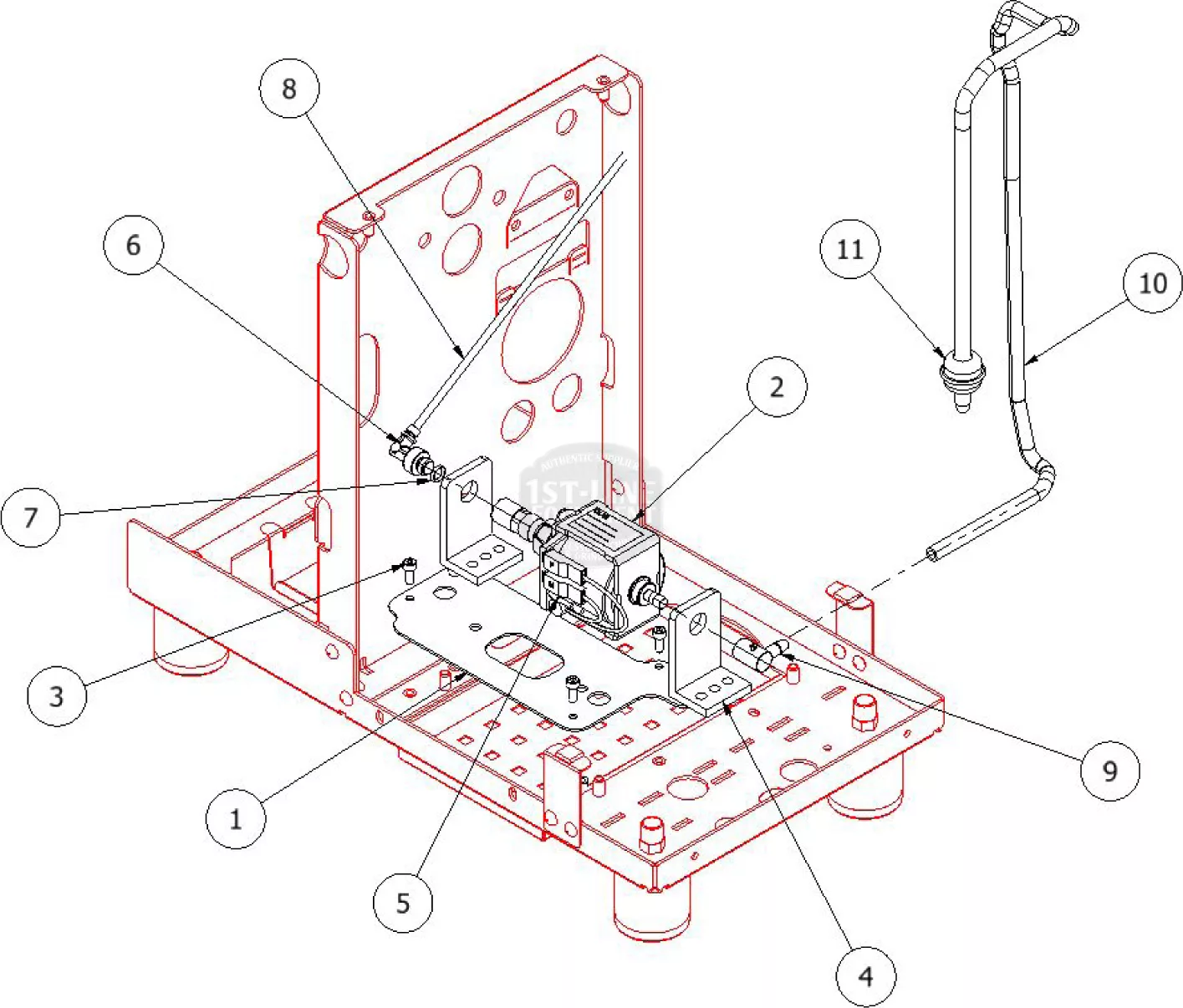

TABLE 5B
| # | SKU |
| 1 | 5055763LL |
| 2 | 7731023.01 (230V) |
| 7731024.01 (120V) | |
| 7731027.01 (240V) | |
| 3 | 7816009 |
| 4 | 7470602 |
| 5 | 7634816 |
| 6 | 7303056 |
| 7 | 7496023 |
| 8 | 5194639 |
| 9 | 7303006 |
| 10 | 5194585 |
| 11 | 7374015 |

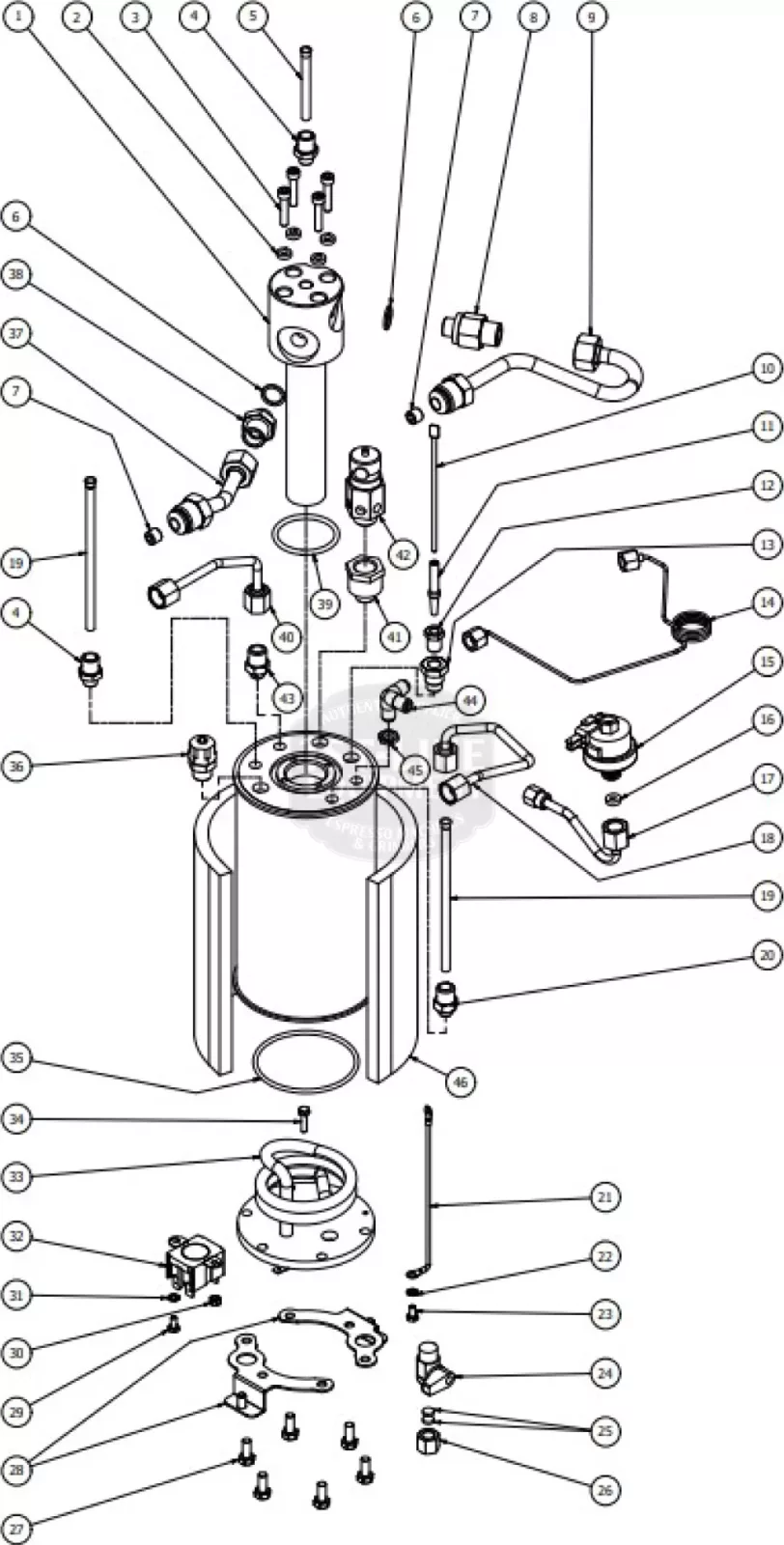

TABLE 6
| # | SKU |
| 1 | 5329029DC |
| 2 | 5494024 |
| 3 | 7816021 |
| 4 | 5302006AL |
| 5 | 5192320 |
| 6 | 5130501 |
| 7 | 5223025AL |
| 8 | 5225201AL |
| 9 | 5164094LL |
| 10 | 5265804 |
| 11 | 5192001 |
| 12 | 5225205 |
| 13 | 5225209AL |
| 14 | 7400909 |
| 15 | 7433013 |
| 16 | 5492028 |
| 17 | 5162504LL |
| 18 | 5162500LL |
| 19 | 5192301 |
| 20 | 5302075AL |
| 21 | 7663573.01 |
| 22 | 7814001 |
| 23 | 7816409 |
| 24 | 7451506 |
| 25 | 5492019 |
| 26 | 5221835 |
| 27 | 7816422 |
| 28 | 5058709LL |
| 29 | 7816409 |
| 30 | 7822603 |
| 31 | 7814001 |
| 32 | 7634819.01 |
| 33 | 5722263AL (120V-1200W) |
| 5722261AL (220/240V-1100/1300W) | |
| 34 | 7826402 |
| 35 | 7496040 |
| 36 | 7452511.01 |
| 37 | 5164093LL |
| 38 | 5302078AL |
| 39 | 7496102 |
| 40 | 5162499LL |
| 41 | 5225423AL |
| 42 | 7452509.02 |
| 43 | 5302075AL |
| 44 | 7304505TR |
| 45 | 5221844 |
| 46 | 9991028 |

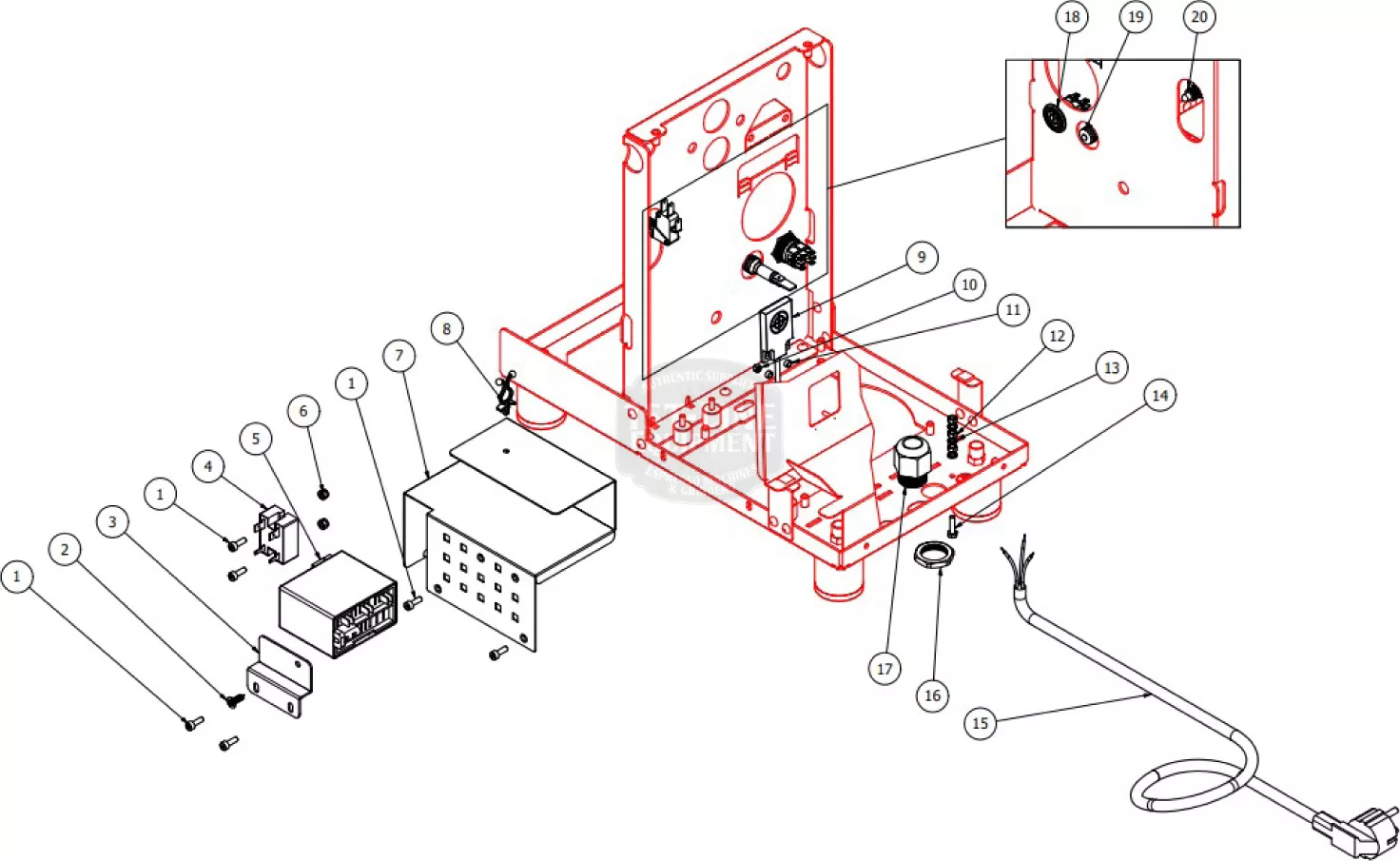

TABLE 7A
| # | SKU |
| 1 | 7816002 |
| 2 | 7819404 |
| 3 | 5058708LW |
| 4 | 7635426 |
| 5 | 7661007R (220/240V) |
| 7661006R (100/120V) | |
| 6 | 7812401 |
| 7 | 5058707LL |
| 8 | 7613014 |
| 9 | 7666011 |
| 10 | 7812402 |
| 11 | 5191510 |
| 12 | 7822603 |
| 13 | 7814001 |
| 14 | 7826402 |
| 15 | 7555001 (Shuko) |
| 7555003 (Switzerland) | |
| 7554001 (UK) | |
| 7552001 (Australia) | |
| 7551001(US) | |
| 16 | 7614006 |
| 17 | 7614007 |
| 18 | 7633355SG (110V) |
| 7633354SG (230V) | |
| 19 | 7633628 |
| 20 | 7633906 |

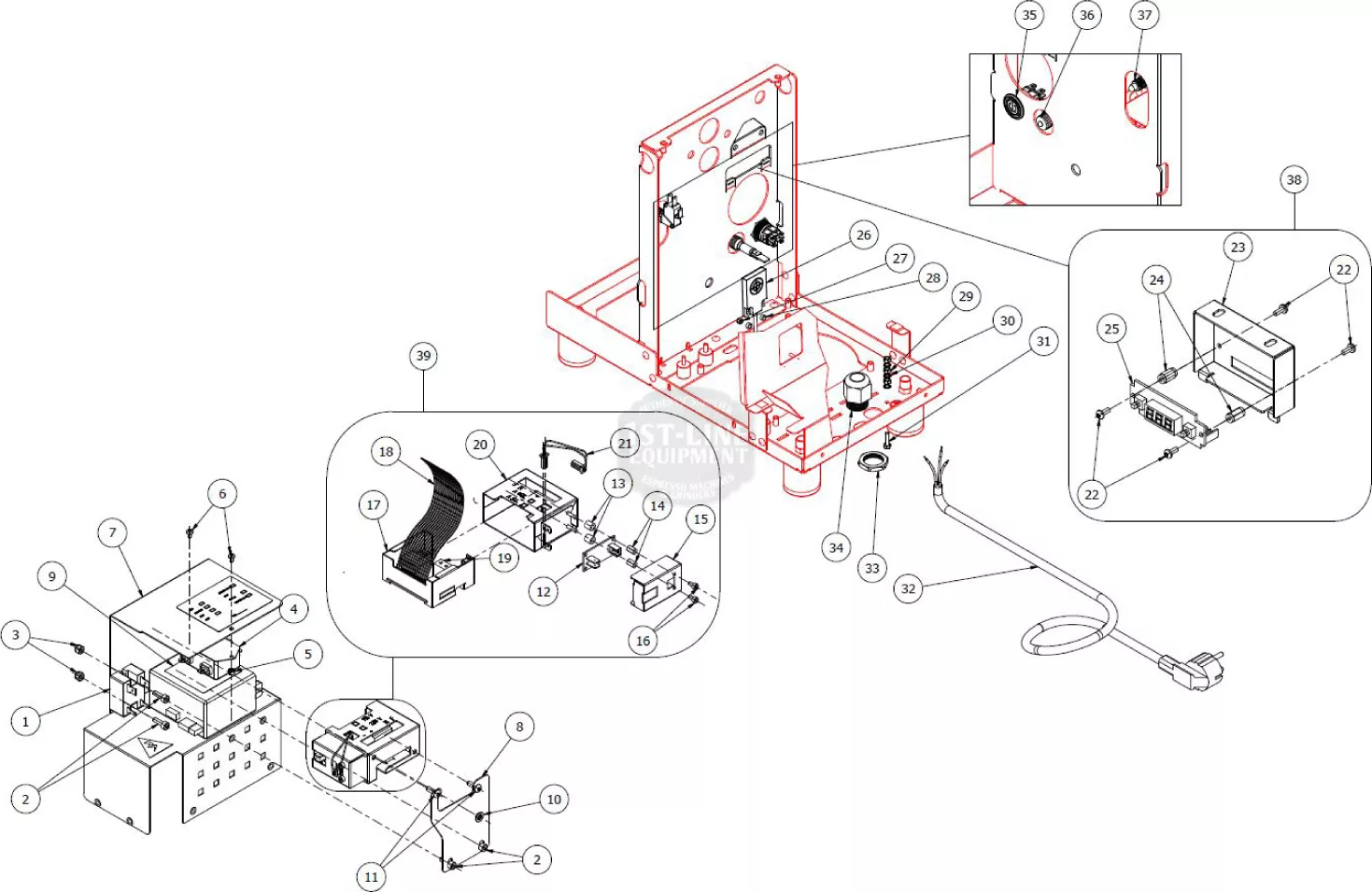

TABLE 7B
| # | SKU |
| 1 | 7635426 |
| 2 | 7816002 |
| 3 | 7812401 |
| 4 | 7663007 |
| 5 | 7822602 |
| 6 | 7809809 |
| 7 | 5058707.01LL |
| 8 | 5058710 |
| 9 | 7665541 (220/240V) |
| 7665540 (100/120V) | |
| 10 | 7819404 |
| 11 | 7819901 |
| 12 | 7665545 |
| 13 | 5191513 |
| 14 | 7639915 |
| 15 | 5053061LW |
| 16 | 7816016 |
| 17 | 5058513LL |
| 18 | 7663640 |
| 19 | 7434027.01 (230/240V) |
| 7434026.01 (110V) | |
| 20 | 5343104 |
| 21 | 7663641 |
| 22 | 7374016 |
| 23 | 5053063LW |
| 24 | 5191518 |
| 25 | 7665544 |
| 26 | 7666011 |
| 27 | 7812402 |
| 28 | 5191510 |
| 29 | 7822603 |
| 30 | 7814001 |
| 31 | 7826402 |
| 32 | 7551001 (US) |
| 7555001 (Shuko) | |
| 7555003 (Switzerland) | |
| 7554001 (UK) | |
| 7552001 (Australian) | |
| 33 | 7614006 |
| 34 | 7614007 |
| 35 | 7633354SG (230V) |
| 7633355SG (110V) | |
| 36 | 7633628 |
| 37 | 7633906 |
| 38 | 5962631 |
| 39 | 5962636 (110V) |
| 5962637 (230/240V) |

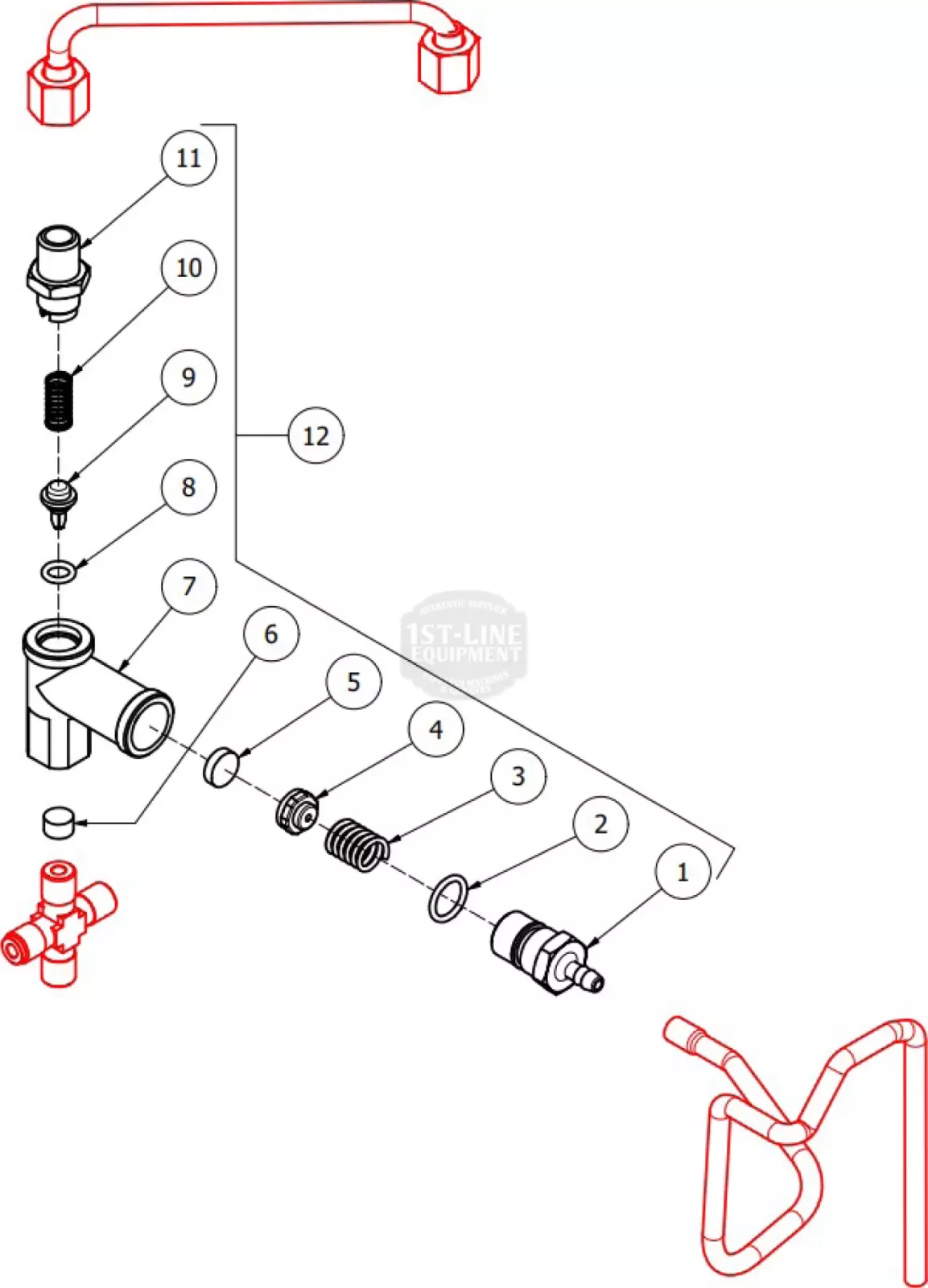

TABLE 8
| # | SKU |
| 1 | 5302077AL |
| 2 | 7496052 |
| 3 | 5471539 |
| 4 | 5224620AL |
| 5 | 5493042 |
| 6 | 5471019 |
| 7 | 5283053TP |
| 8 | 7496018 |
| 9 | 5224615AL |
| 10 | 5471505 |
| 11 | 5302017AL |
| 12 | 5965212.01AL |

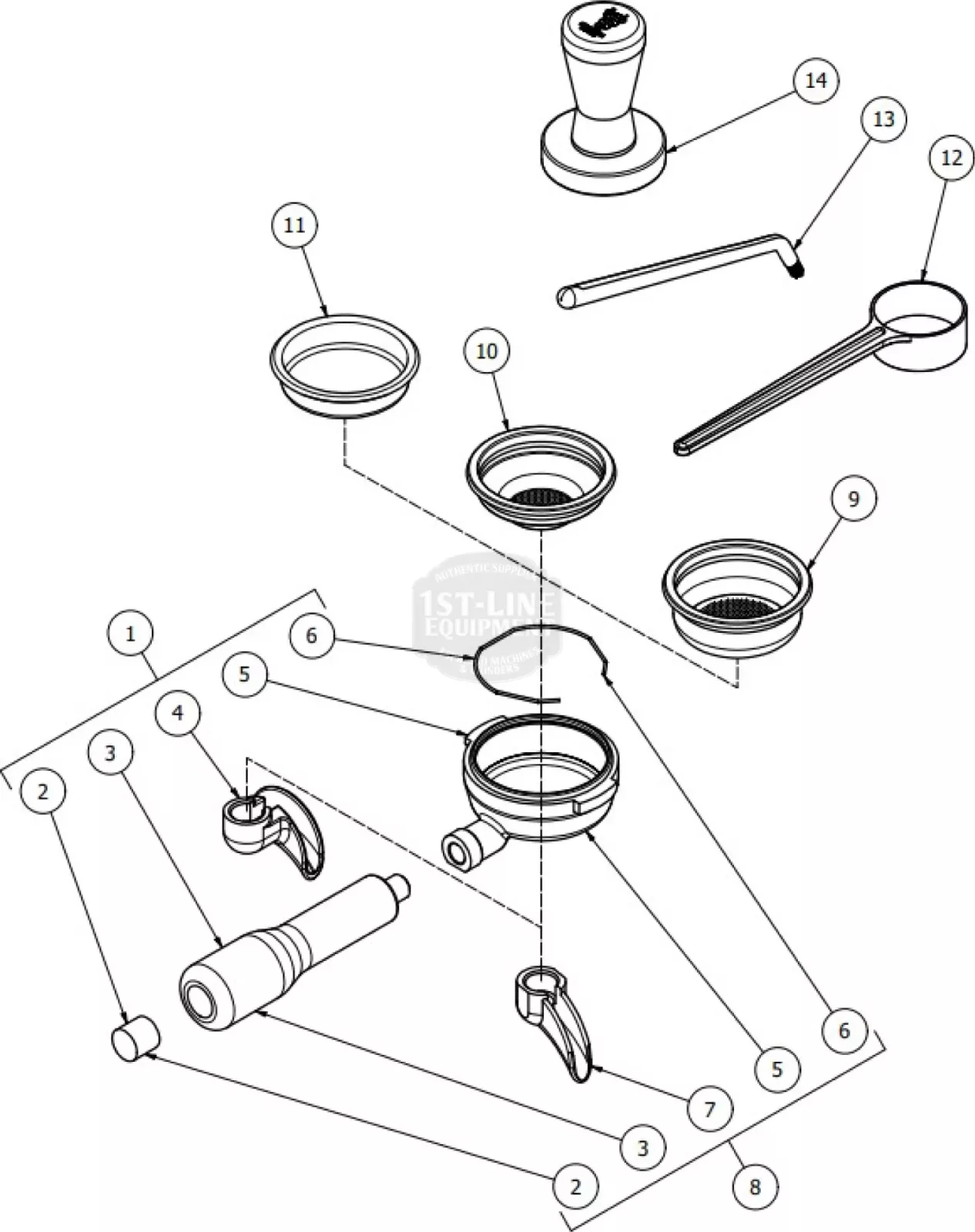

TABLE 9
| # | SKU |
| 1 | 5965611R (black) |
| 5965629R (wood) | |
| 2 | 5373915CM |
| 3 | 7371502 (black) |
| 7371520 (wood) | |
| 4 | 7305007TW |
| 5 | 7479972.01TW |
| 6 | 5471527 |
| 7 | 7305006TW |
| 8 | 5965630R (wood) |
| 5965610R (black) | |
| 9 | 5471035 |
| 10 | 5471031.01 |
| 11 | 5471038 |
| 12 | 5372101 |
| 13 | 7990603 |
| 14 | 5963289AN |
