DISCONTINUED VBM GUAROR113 OR113 Oring for Steam inside Steam and Hot Water Valve

Request a price match.

This product has been discontinued at 1st-line. Please visit one of the categories below for more comparable products. This part can be acquired as a 1st-line part number.

.

SKU: GUAROR113 Categories: , ,

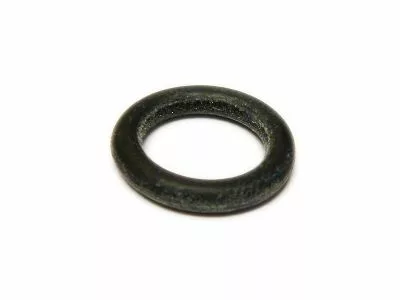

OR113 O-ring for Steam inside Steam and Hot Water Valve – Domobar Super/Junior The below instructions are a courtesy of 1st-line Equipment, LLC specifically for the VBM Super and Junior espresso machines. and to be used at your own risk. 1st-line Equipment, LLC assumes no risk or liability, and you hold 1st-line Equipment, LLC harmless, for all damages or personal injury arising from the use of these instructions. By reading further, you agree to these terms and conditions. If you do not, please stop here.

If your valve is leaking through the stem where the knob is attached to, you need to order two for each valve you are replacing these O-rings. To repair, unplug machine, allow to cool down, remove all steam from boiler by opening steam valve to full open position (even if repairing only the hot water valve). If repairing the hot water valve, turn to full open position once the steam stops exiting the steam valve.

Remove the wraparound body (usually 6 screws). On the inside of the machine, there is a nut holding the valve in place – not the nut on the tube, but the nut on the inner wall. This nut needs to be held with a wrench. On the outside, there is a nut right behind the steam valve. Place a terry cloth over the nut before placing a wrench to turn this loose. Once loosened, the steam valve stem can be further turned to open and come out of the valve. Replace two O-rings, lubricate with PetrolGel, and reverse procedure for installing.

Brand

VBM (Vibiemme)

Customer reviews

Reviews

There are no reviews yet.

Be the first to review “DISCONTINUED VBM GUAROR113 OR113 Oring for Steam inside Steam and Hot Water Valve”

Use one of the allowed file type: jpg,png. The max size allowed is : 3 MB.

    This site uses Akismet to reduce spam. Learn how your comment data is processed.

    Ask a question

    Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

      The hot water tap of my Domobar Super Semi-auto Gen 1 is leaking. I removed the valve, but it does not appear to resemble the technical diagram. The two o-rings (4 - GUAROR113) are not on the right, inside of the valve (3), but left of the threads, under the nut (2). What do you recommend?
    1. 0 votes
      Q The hot water tap of my Domobar Super Semi-auto Gen 1 is leaking. I removed the valve, but it doe...... Read more answer now
      Asked by Curtis Smith on January 9, 2019 10:41 pm
      Answered by the admin

      Two of these orings are for the steam of the valve and prevent leaking at the stem with there nut attaches. Here is our technical bulletin on the steam and hot water valve repairs for the Vibiemme Super and Vibiemme Junior line of espresso machines.
