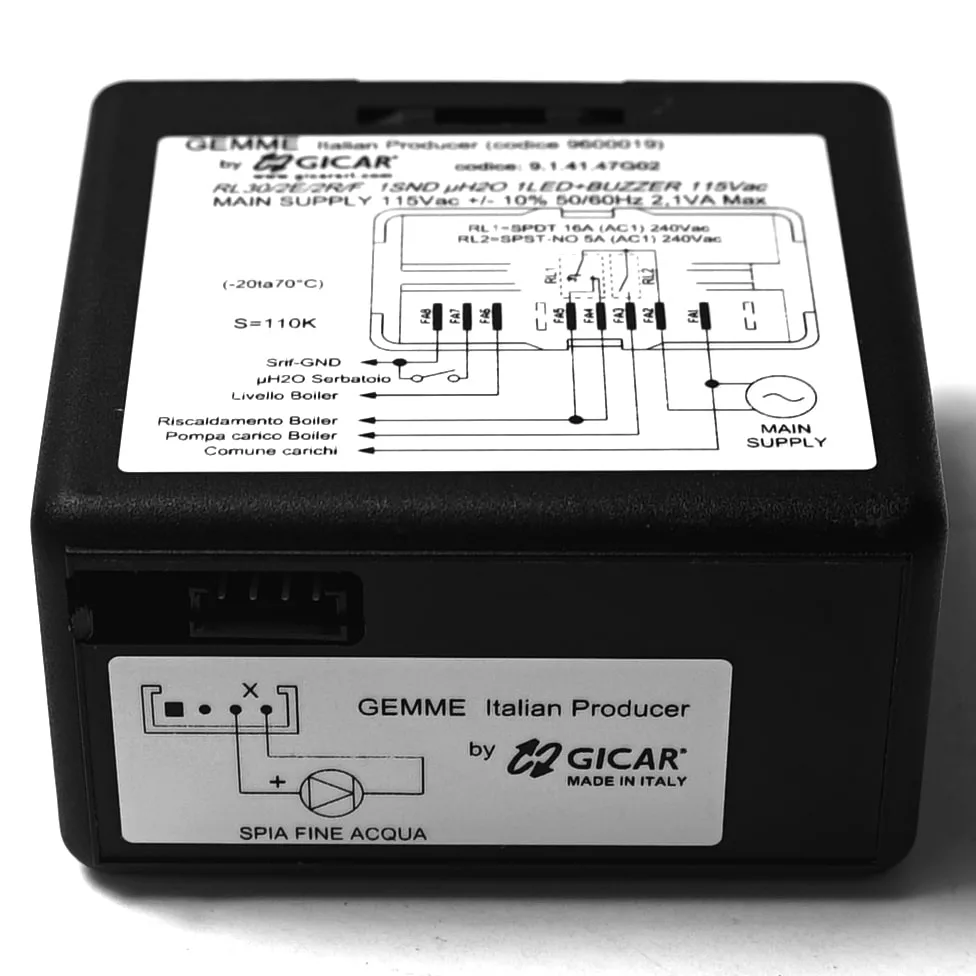

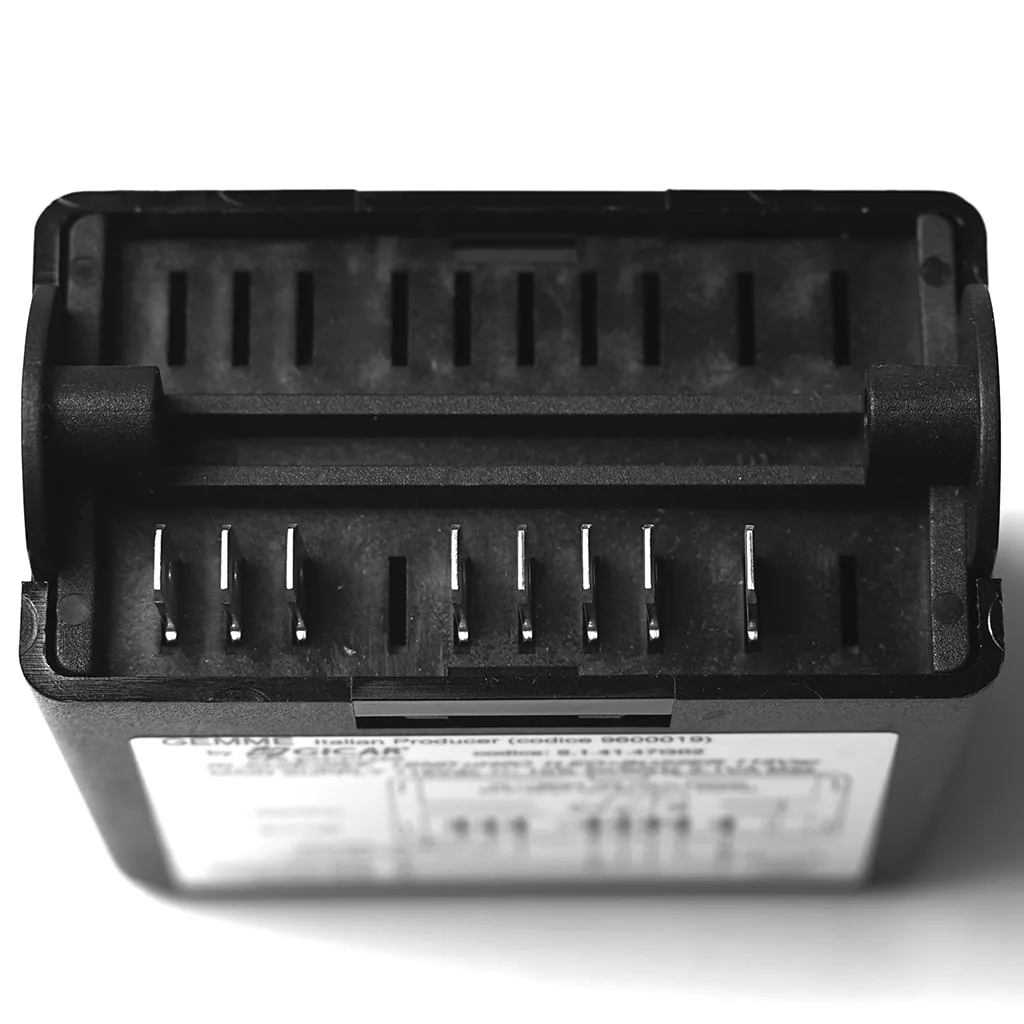

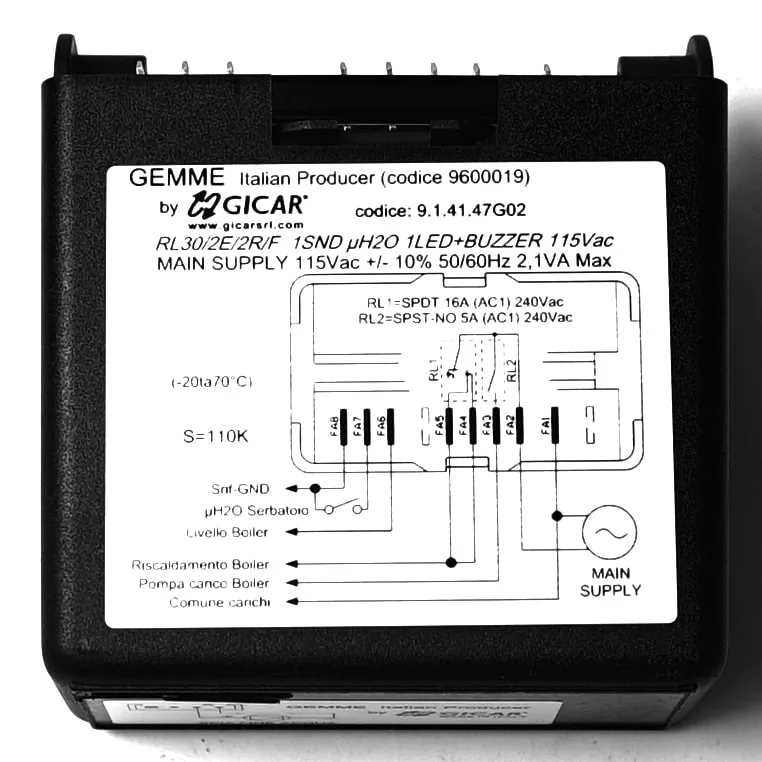

Gicar 9600019 Brain Unit – (Cod. 9.1.41.47G02)
$149.00
- Must be logged into your online account when purchasing to accrue EspressoPoints.
- For more information, please visit EspressoPoints.
- Parts are non-returnable and non-refundable unless damaged in transit.
- Parts do not include any over the phone technical support or instructions other than what is provided on the website.
- Parts do not come with any warranty.
- For more information, please see Terms & Conditions.
Gicar 9600019 Brain Unit – (Cod. 9.1.41.47G02)
This brain unit (Cod. 9.1.41.47G02) is for the Lelit Diana (PL60PLUSTD 120V) & Mara (PL62, PL62S, PL62T) espresso machine models. This brain unit is NOT for PL62X Mara espresso units.

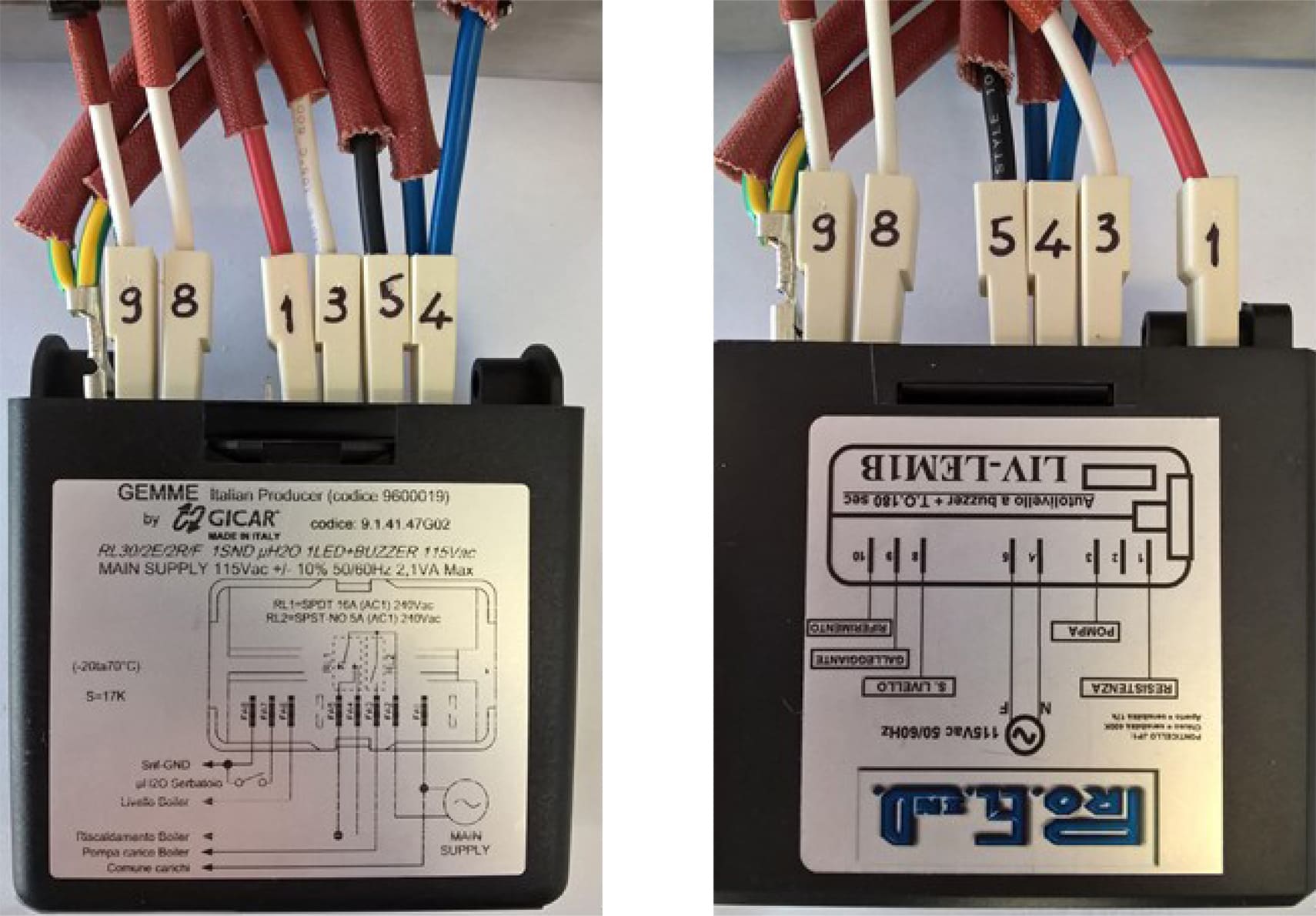

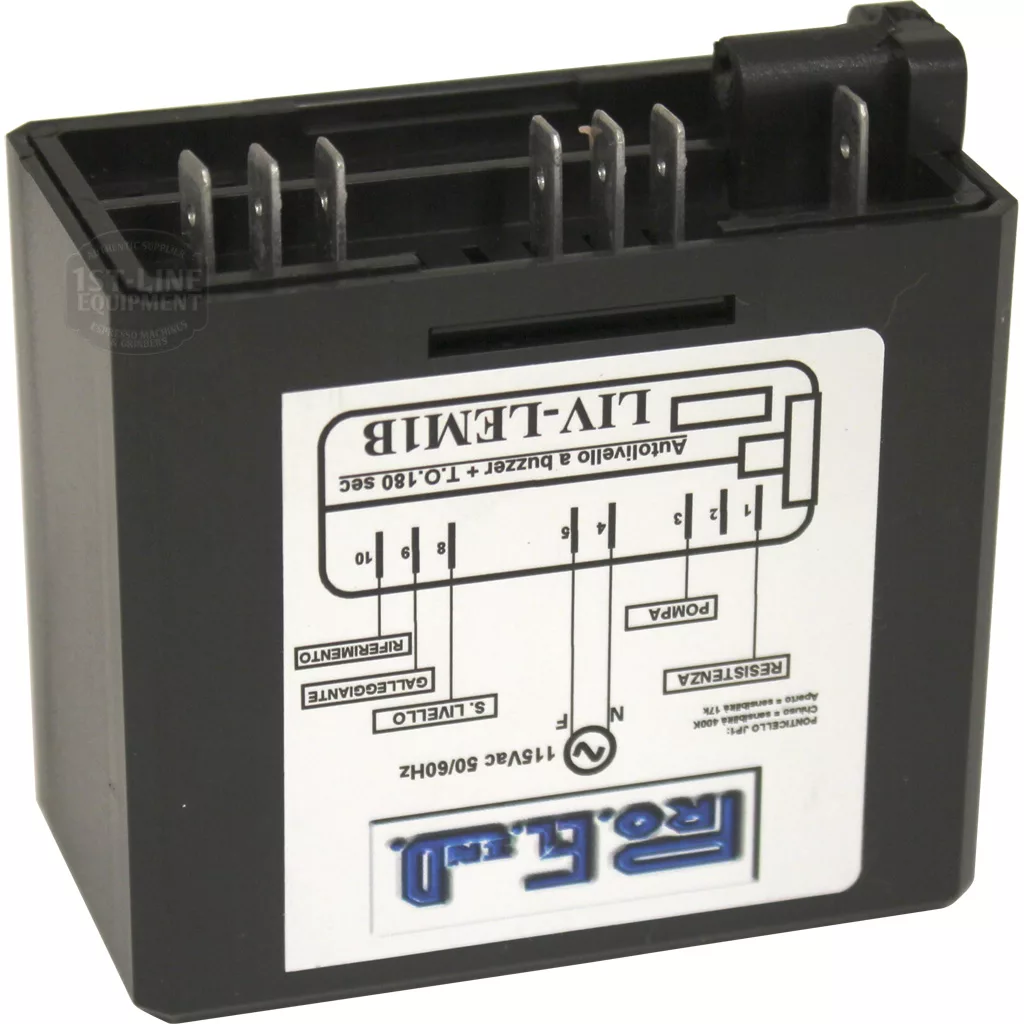

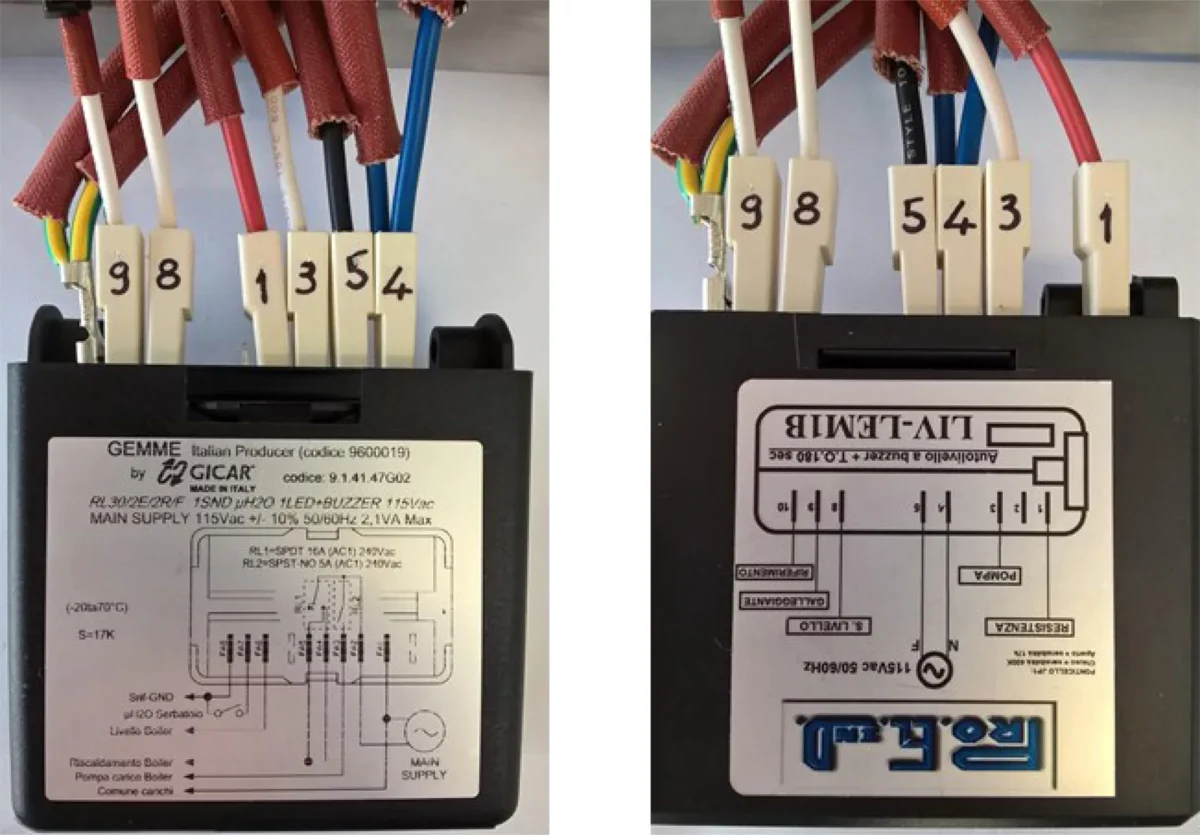

Depending on which brain unit was used by Lelit, your espresso machine may use a Pro.El.Ind (LIV-LEM1B) or the Gicar (RL30/2E/2R/F 1SND μH20 Cod. 9.1.41.47G02). Both are interchangeable. In case of replacement of one of these cards, just pay attention to the wiring connection that must be done as shown in the pictures below. The machine wiring does not undergo ANY modification.
Please check your espresso machine for the correct part number on the brain unit BEFORE ORDERING. No returns or refunds are allowed on this part.
SPP9600019
[ls_content_block id=”24679″]Gicar 9600019 Brain Unit – (Cod. 9.1.41.47G02)
- This part may have some cosmetic scratches or signs of use due to quality assurance testing by the manufacturer.
- Please make sure to get wiring correctly transferred. If it is miswired, it will damage the unit and will no longer have any warranty coverage.
| Brand | Lelit, Pro.El.Ind. |
|---|---|
| Voltage (volts) | 110 – 120 |
Leave your review
Submit Questions Regarding Gicar 9600019 Brain Unit
Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.
-
I am having an issue with my ECM Mechanika slim that I purchased from 1st line in 2019. Symptoms - Machine powers up fine, relay hits, no power to heating element. Pstat is functional (checked with meter). SSR is getting signal but not allowing current to flow. Tried swapping SSR as this machine has burned out SSR's before. Further investigation shows that the SSR is only getting 4.2V from the Gicar. If I put a little more voltage to the SSR (~5V) it opens and works properly. What signal voltage should be coming from the Gicar? I would think 5V. Does this indicate a problem with Gicar controller?
-
Q I am having an issue with my ECM Mechanika slim that I purchased from 1st line in 2019. Symptoms ...... Read more answer nowAsked by on May 7, 2026 11:30 amAnswered by the admin
We are sorry, we do not know how much voltage (min nor max) should come out of the Gicar. It would be best you ask ECM directly for these specifications.
We have a PL62s (Purchased Late 2014) Once the machine warms up constant water tank level alarm. Verified on the bench both the reed switch and micro-switch are operating normally. Probably need to replace the brain unit. Our machine has the Pro.El.Ind brain unit. Do we just order the Gicar on this page?
-
Q We have a PL62s (Purchased Late 2014) Once the machine warms up constant water tank level alarm. ...... Read more answer nowAsked by on November 6, 2022 4:45 pmAnswered by the admin it is important that the codes match: 9.1.41.47G02 on your old one and the new one.
Experiencing a problem with a Lelit Diana that is about five years old. The steam boiler won't fill and the fill controller starts beeping after 5 minutes. (I checked the steam boiler for mineral build up - all clear there.) Upon start-up when the boiler typically fills the voltage across the two wires to the pump reads 12-14V. The voltage from the blue wire reads 120V to ground. So thinking there is a problem with the steam boiler fill controller, maybe a bad relay. Looking for a tech's opinion here before ordering a new fill controller. Thank you in advance.
-
Q Experiencing a problem with a Lelit Diana that is about five years old. The steam boiler won't fi...... Read more answer nowAsked by on September 28, 2020 3:49 pmAnswered by the admin
It could be a relay or the motherboard. It could be bad wiring as well.
