DISCONTINUED Lelit PL82T Kate Espresso Machine with Built-in Burr Grinder

5 out of 5 based on 1 customer rating
(1 customer review)

This product has been discontinued at 1st-line. Please visit one of the categories below for more comparable products.

.

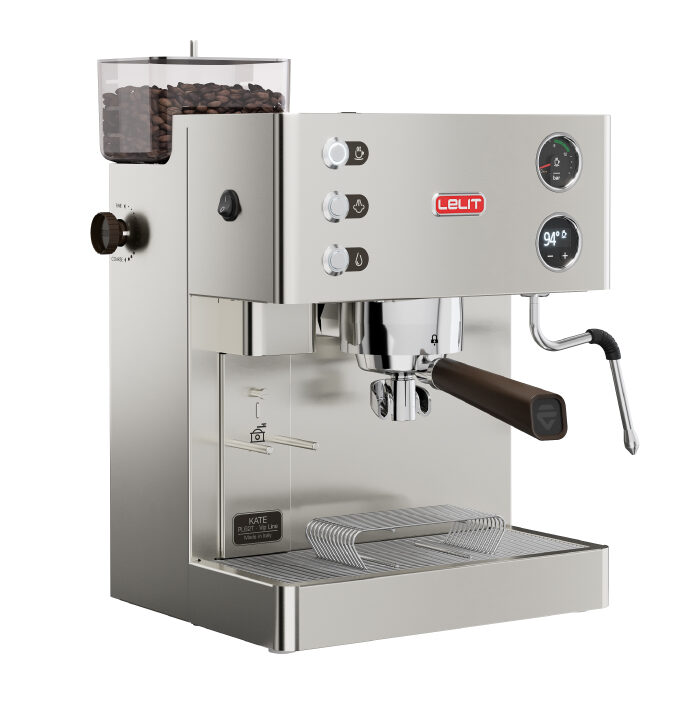

Lelit PL82T Kate Espresso Machine with Built-in Grinder

Overview:

The Lelit PL82T Kate marries aesthetics and functionality into one espresso machine. Its compact body combines an espresso machine of the highest level with a professional grinder. Equipped with the exclusive electronic Lelit Control Center (LCC), the PL82T Kate will astonish you with its performances and sophisticated charm.

Single boiler, dual-purpose system
  • Brass – 300 ml boiler is made brass which retains heat better than stainless steel. Typically brass boilers are more susceptible to limescale compared to stainless steel boilers. We highly recommend utilizing the water softener included with the machine.
  • Quick warm-up time – From a cold start, it takes approximately 2 minutes for the machine to reach its set temperature at 200 °F (93 °C). Before this time, the machine modes will not function. It will take another 5 minutes for the rest of the machine (grouphead & portafilter) to fully heat.
Built-in Grinder & Hands-Free Operation
  • Built-in 38mm conical burr grinder.
  • Stepless Grind Adjustment – Micro-metrical stepless grinding settings allow the user to make finite adjustments to grind size. Providing endless possibilities to make the perfect cup of espresso!
  • Portafilter can attach to notch for hands-free dosing directly into the portafilter!
  • Programmable timed dosing for single or double on LCC.
LCC – New Lelit electronic control system
  • LCC (Lelit Control Center) is the brain of the new Lelit espresso machines. It has an elegant, graphic LED display of the latest generation. Not only does it control all the functions
    of the machine and allows you to adjust the settings, but also gives valuable tips on how to achieve the best results.
  • Temperature adjustment – Ability to program desirable temperature for coffee, hot water, or steam dispensed.
  • Shot timer – Timed based dosing of single and double shots of espresso.
  • Preinfusion -Enable or disable preinfusion of coffee grounds.
  • Grinding times – Time-based dosing of grinding single and double shots.
  • Low Water Levels – LCC alerts when water levels are low in the reservoir.
Construction
  • Wide passive cup warmer.
  • Stainless steel, push-button switches with backlights when engaged.
  • Wide water tray in stainless steel complete with self-cleaning grate.
  • Brushed stainless steel body.
3-way solenoid valve
  • Instantly dries the grounds into a solid puck in the portafilter after brewing–making clean up super easy!
Vibratory pump
  • Efficient – 41 watts, rated up to 15 bar with air valve bypass. Only 9 bar is needed to extract espresso, and wattage has no correlation to longevity.
  • Cost effective – Pumps will degrade in performance over time. Replacing a vibration pump will be less costly than a rotary vane pump.
Tank / reservoir system
  • Particle filter – Protects the machine from any unseen particles from entering the boiler. Can be removed if you are installing an inline water softener.
  • Auto-shut off – In order to prevents burning out the heating element, the water tank sits on a spring activated plate. Once the water is low, the plate depresses the tank microswitch which turns off the heating element.
Steam / hot water wand
  • Multi-directional – Allows for more movement and flexibility. The wand is equipped with a rubber grip which helps you position the wand without burning your fingers.
  • 1-hole steam tip – Allows for maximum steam power.
  • Rotational knobs – Located on the right side of the machine. Allows for easier control of the intensity.
Pressure gauge
  • Backlit Brew (pump) pressure gauge – Located above the LCC. Measures between 0 – 16 bar. The optimal range is between 8 – 12 bar.
Accessories included with the PL82T Kate:
  • Portafilter – 1 dual spout portafilter with Lelit’s distinct Coffee Slide design. Coffee slides towards the front of the portafilter versus the sides, like traditional portafilters.  The handle is designed with an angle that allows it to rest on a flat surface. This eliminates the need for a tamping station. The Lelit logo is imprinted on the portafilter head and handle.
  • Filter baskets – 1-cup filter basket which holds approximately 7 grams. 2-cup filter basket which holds approximately 14 grams. Blind filter basket which is used for backflushing. 58 mm in diameter.
  • Tamper – A cheap plastic tamper, common for most espresso machines to keep overall selling price of machine low. We recommend upgrading to a better tamper.
  • Scoop – Simple plastic scoop if using preground coffee.
  • Water softener – Helps reduce limescale buildup in your machine. Highly recommended to the replace the existing particle filter and install this water softener.
  • Instructional manual – Written in 7 different languages (English, Italian, French, German, Spanish, Romanian, Russian). Instructions also work for the Lelit PL81T Grace.

For more Lelit equipment, please visit our Lelit brands page. If you have any questions, please reference the Q&A tab on each product page.

Brand

Lelit

Height (inches)

17.5, approximate

Width (inches)

11, approximate

Depth (inches)

15, approximate

Weight (pounds)

29, approximate

Wattage (watts)

1200

Voltage (volts)

120

Boiler capacity (liters)

0.3

Portafilter size (mm)

58

Tank capacity (liters)

2.5

Built-in Grinder

Yes

Burr size (mm), Type

38, conical

Country of manufacture

Italy

Espresso Machine Warning:

  • ELECTRICAL WARNING: To avoid electrical damage to this espresso machine which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. the lack of the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat or the wiring inside.
  • WATER WARNING: To increase the useful life of and not damage your espresso machine, please use softened water. Softened water is water without calcium and without magnesium, but still has other minerals for espresso extraction. Do not use distilled water, purified water, nor reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale.
  • DESCALING WARNING: We do not recommend descaling unless there is an issue with the espresso machine. The reason is that too much descaling can eat away at the metals and gaskets inside an espresso machine.

Espresso Grinder Warning:

  • CLEANING WARNING: We recommend using grinder cleaning agents. We do not recommend any removal of the burrs or burr carrier for cleaning as re-assembly can cause damage.
  • ELECTRICAL WARNING: To avoid electrical damage to this espresso grinder which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. The lack of the recommended surge suppressor, the espresso grinder can be damaged at the power switch, the capacitor, the motor, or the wiring.

Info-Notice:

  • Please note that Lelit tests every Kate with coffee. Although they clean the machine, they can not remove all the ground coffee in the grinder and chute. It is guaranteed that coffee grinds will exit the chute in shipping. To make matters worse, we do test every machine with water to make sure the pump does not have an air pocket. Since we can not remove all the water from the machine, we do leave the steam wand open to prevent freezing water from damaging the boiler. The end result may seem like a used machine shows up being wet and with coffee grinds. However, they are new and should not be used for a minimum of 24 hours to allow the machine to air dry.

Finding your part
  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website. If no results come up, more than likely we do not stock the part.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
  • Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.
Lelit-PL82T-diagram-REV00-01
1000030 5100021 8800018
1000066 5100022 8800019
1000102 5100023 9400045
1400001 7800028 CD458-2
1400113 7900009 MC042
1400118 7900086 MC192
1400119 7900100 MC268
1600038 8600008 MC269
1600042 8600011 MC269/110
1600046 8800014 MC377
2200055 8800015 MC426
3300008 8800016 MC747
3700067 8800017

Lelit-PL82T-diagram-REV00-02
1000098 3700035 9600042
1000101 3700040 9600052
1000147 3700046 9600056
1000149 3700056 9600060
1000152 3700057 9600061
1000153 5100021 9600071
1100024 5100022 9700031
1400110 5100023 9700038
1400117 8600010 GV025-31
1400120 8600012 GV025-46
1400123 8700019 MC006
1600028 9100003 MC006/60
3000010 9100017 MC006/120
3000033 9100022 MC017
3000034 9100023 MC097
3700006 9200012 MC100
3700021 9200014 MC101
3700026 9400045 MC111
3700028 9400046 MC117
3700029 9600009 MC238
3700032 9600010 MC268
3700034 9600034 MC786

Lelit-PL82T-diagram-REV00-03
1000101 9500002 MC742
1000123 9600040 MC752-1
1000151 9600074 MC752-4
1000152 9700038 MC752-5
1000153 CD624 MC752-6
1400109 CP032 MC752-7
2200016 CV103 MC752-8
2200033 GV025-31 MC752-9
2200066 MC032 MC752-10
2200075 MC037 MC752-13
2200076 MC043 MC752/11
2200084 MC139 MC752/11/110
3700015 MC141 MC755
8700023 MC215 MC755/60
9100038 MC268 MC755/110
9200012 MC583 MC922
9200014

Lelit-PL82T-diagram-REV00-04
1000147 CVMC246
1000149 CVMC246-1
1400150 GV565
2000011 GV569
3700010 MC221
3700064 MC245
5100021 MC248
5100023 MC249
9100022 MC289
9300001 MC290
AST113 MC293
CD377 MC311
CD553 INOX

Lelit-PL82T-diagram-REV00-05
1300004 9100022
1400111 9200012
1400112 9200014
1400122 9200016
1600041 9500002
1600047 9500014
2200082 9600008
2200085 9600028
2400007 CD348-1
2400018 GV025-27
2400019 GV025-47
3700041 MC043
8600009 MC268
9100003 MC429

Lelit-PL82T-diagram-REV00-06
1400115SA
1400116
9200013
9300018

Lelit-PL82T-diagram-REV00-07
2200024
2200027
3700030
3700031
9300004
AST131
GV565
MC049-1
MC050
MC099
MC754
MC754-2
MC754-C
MC756LELIT
MC757

Customer reviews

Rated 5 out of 5 stars
1 review
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

1 review for DISCONTINUED Lelit PL82T Kate Espresso Machine with Built-in Burr Grinder

Add a review

Use one of the allowed file type: jpg,png. The max size allowed is : 3 MB.

    This site uses Akismet to reduce spam. Learn how your comment data is processed.

    Ask a question

    Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

      I have been using my machine for a year now and would like to give it a good thorough cleaning. What's the best way to clean the grinder since this is a built in?
    1. 0 votes
      Q I have been using my machine for a year now and would like to give it a good thorough cleaning. W...... Read more answer now
      Asked by thsit on November 18, 2021 12:21 pm
      Answered by the admin

      Normally, we do not recommend cleaning the grinder if there are no issues. The reasons are that grinder cleaning tablets can clog the grinder and taking it apart has made it difficult to the grinders back together. Hence, it is operating satisfactory, please leave it alone. The inside of the bean hopper should be wiped weekly with a moist (non-dripping) terry cloth.

    2. Is brew pressure adjustable on the Lelit Kate. If so, could you please give me some tips on how to do that.
    3. 0 votes
      Q Is brew pressure adjustable on the Lelit Kate. If so, could you please give me some tips on how t...... Read more answer now
      Asked by Zaid Ayyash on September 9, 2021 1:54 pm
      Answered by the admin Yes. Sorry, we will not give instructions because it is very difficult and there is a very high likelihood of damaging as other customers have experienced.
    4. We bought our Lelit Kate in January and she made beautiful shots until recently. We have not changed any settings, coffee beans, or tamp. The pressure is not reaching 8 bars and the espresso is flowing through the portafilter very quickly. The shot is very long and bitter. I have been maintaining the regular backflush schedule. I have attempted to change the grind settings, but with no luck. Any tips on how to get the machine to reach pressure?
    5. 0 votes
      Q We bought our Lelit Kate in January and she made beautiful shots until recently. We have not chan...... Read more answer now
      Asked by Stephanie on June 9, 2021 11:12 am
      Answered by the admin

      This usually happens when someone is changing settings when the grinder is NOT running. It can also happen when humidity levels change with a season change or someone sets the grinder way to fine.

      Change settings coarser while grinder is running without beans. This will probably be about 10 full rotations.

      Pour in some beans, and slowly turn adjustment knob ONLY WHEN GRINDER MOTOR IS RUNNING! Bring down to a finer setting and test.

    6. Hi there, we bought a Lelit Kate from you last year and we are now looking for the PL103 and PL104 cleaning sachets - do you stock these or can you advise from where we can source them?
    7. 0 votes
      Q Hi there, we bought a Lelit Kate from you last year and we are now looking for the PL103 and PL10...... Read more answer now
      Asked by Adrian on April 27, 2021 11:38 am
      Answered by the admin

      Please just look up Puly on our web site.

    8. Hello, when I recieved my Kate it came with two steam nozzles, I thought I had placed the second in a safe location but its gone missing. I looked on the parts page and on the diagram as requested but I do not see it listed on either. How can I purchase or order a replacement? In fact I would prefer to purchase a couple that way I can have one while cleaning the other. Thanks
    9. 0 votes
      Q Hello, when I recieved my Kate it came with two steam nozzles, I thought I had placed the second ...... Read more answer now
      Asked by Shawn O'Donnell on March 24, 2021 9:12 pm
      Answered by the admin

      This is probably the second one in the box.

    10. Is the grinder hopper on the Lelit Kate removable? If so, is there a lock to keep the beans from coming out? If not, how does one change the beans to a different variety?
    11. 0 votes
      Q Is the grinder hopper on the Lelit Kate removable? If so, is there a lock to keep the beans from ...... Read more answer now
      Asked by Barry B on May 5, 2020 4:07 pm
      Answered by the admin

      The  bean hopper is secured with 4 screws. Only ways to remove the beans are

      a) Vacuum out the beans, or
      b) Grind all the remaining beans, or
      c) Unplug machine from electrical outlet, remove water reservoir, remove drip tray and cover, and allow machine to cool down. Remove top bean cover and tilt machine to manually remove the beans.

      Please note that most beans hoppers are secured to avoid damage and injury.

    12. My LCC is currently have issues when I’m switching from the steam to extraction mode. The loading bar gets stuck about 2/3rds of the way indefinitely.
    13. 0 votes
      Q My LCC is currently have issues when I’m switching from the steam to extraction mode. The loading...... Read more answer now
      Asked by Alex Aguillon on May 3, 2020 2:56 pm
      Answered by the admin

      After shutting off the steam button, please open the steam valve to run water through the wand after steaming to bring the temperature down. Then allow to heat up.

    14. My grinder jammed up while adjusting the grind setting. My adjustment was made while burrs were in motion. How can I resolve this issue
    15. 0 votes
      Q My grinder jammed up while adjusting the grind setting. My adjustment was made while burrs were i...... Read more answer now
      Asked by Alex Aguillon on May 3, 2020 2:54 pm
      Answered by the admin

      Take to a coarser setting as it is probably set too fine. Some customers will set it too fine to compensate for the lack of enough ground coffee in the filter basket.
