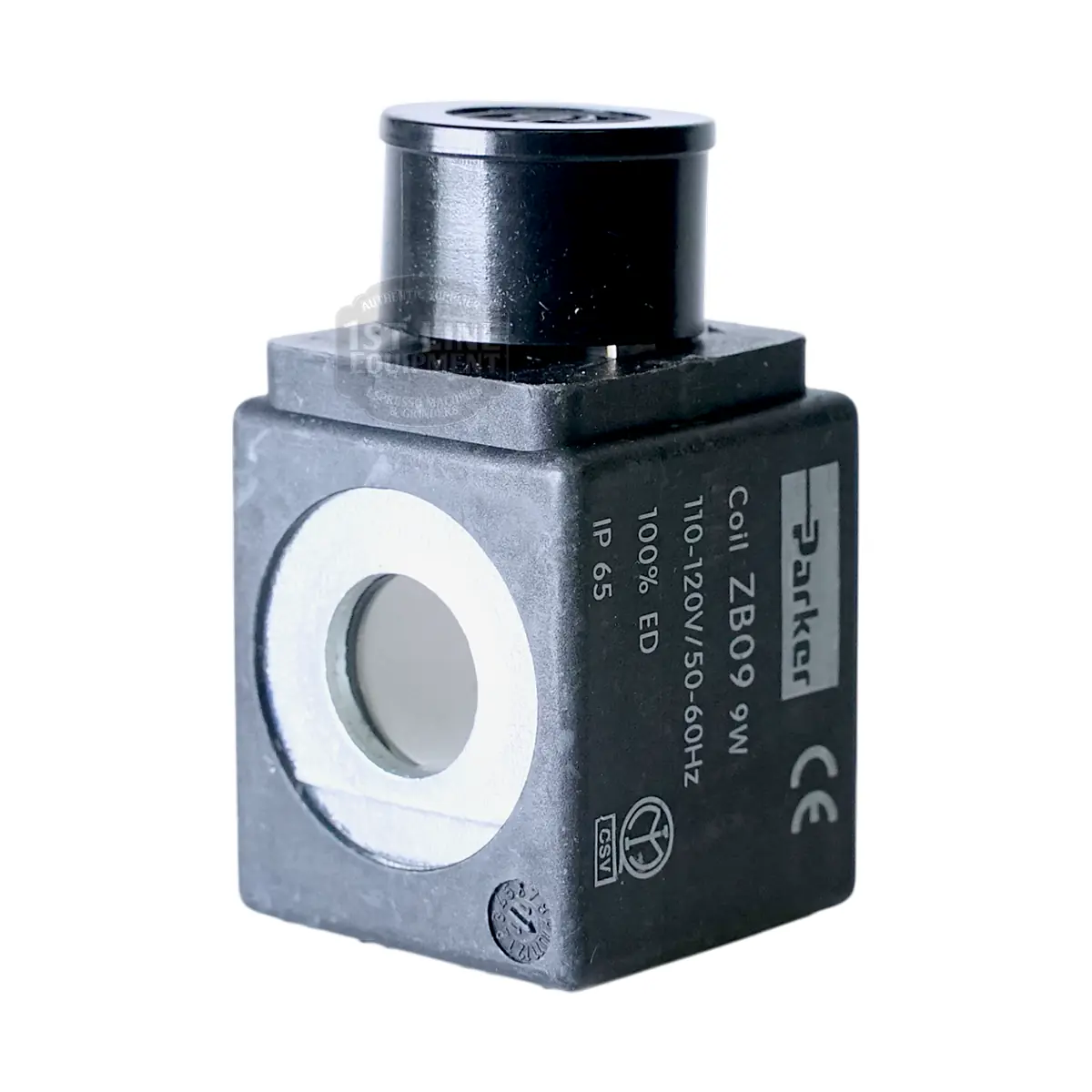

The Parker ZB09 Solenoid Valve Coil, 115V, in black and silver with voltage and certification markings, is compatible with Bezzera BZ02 and BZ07 espresso machines. The Parker brand is clearly displayed on the side.

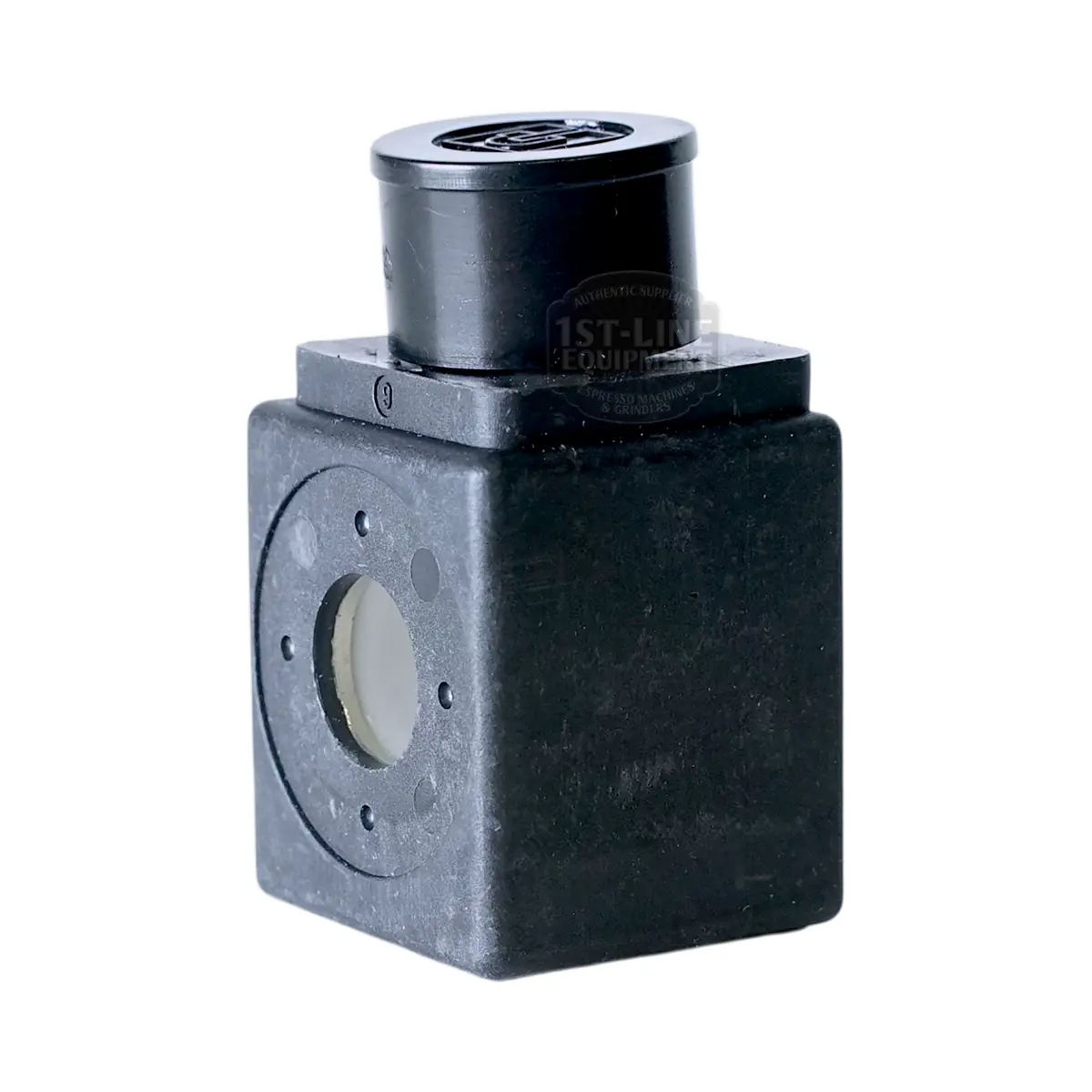

A black, rectangular Parker ZB09 Solenoid Valve Coil (115V) with a circular opening and cylindrical connector, matte finish, for Bezzera BZ02 and BZ07 machines.

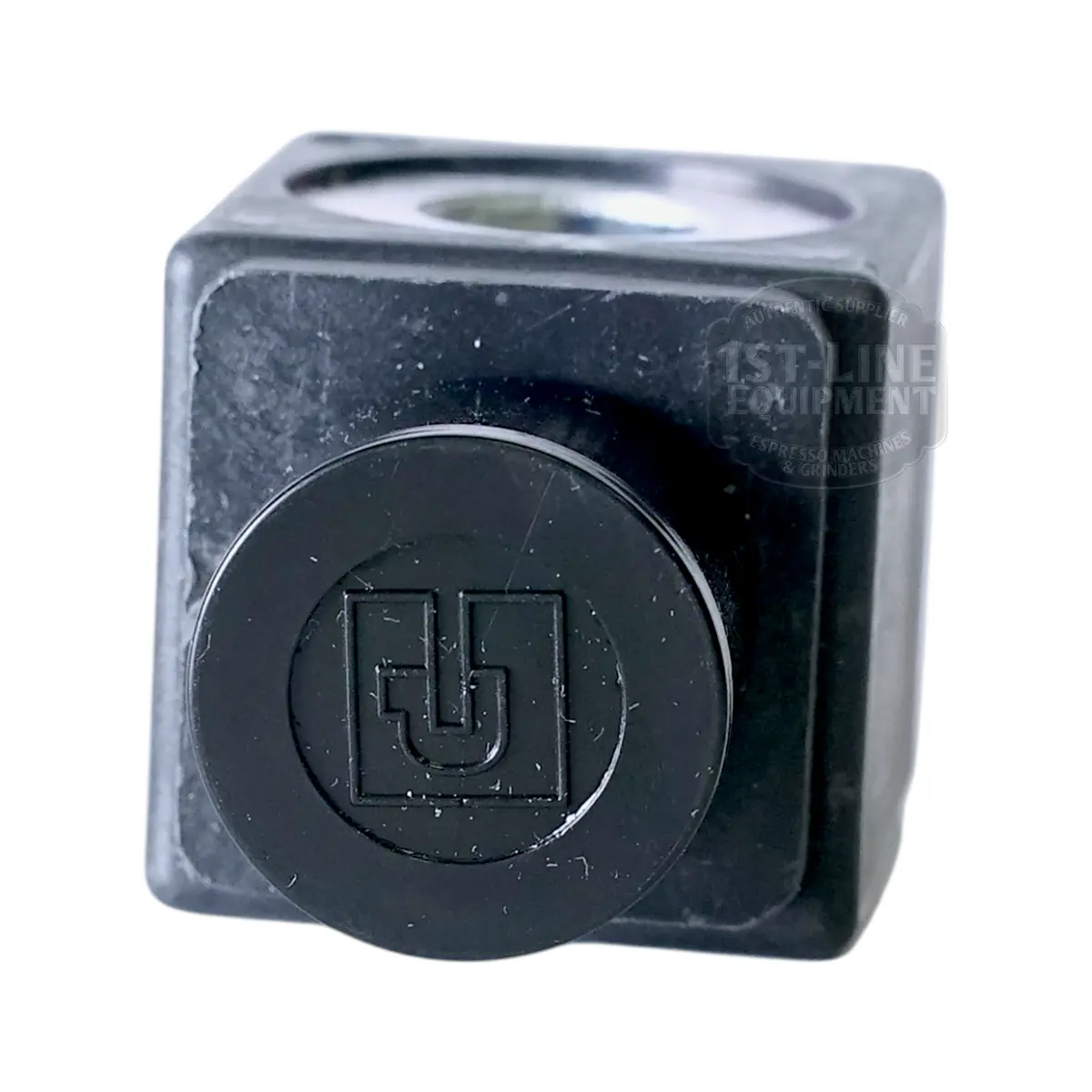

A close-up of a black, square Parker ZB09 Solenoid Valve Coil (115V) with a circular button featuring an embossed logo, compatible with Bezzera BZ02 and BZ07 espresso machines.

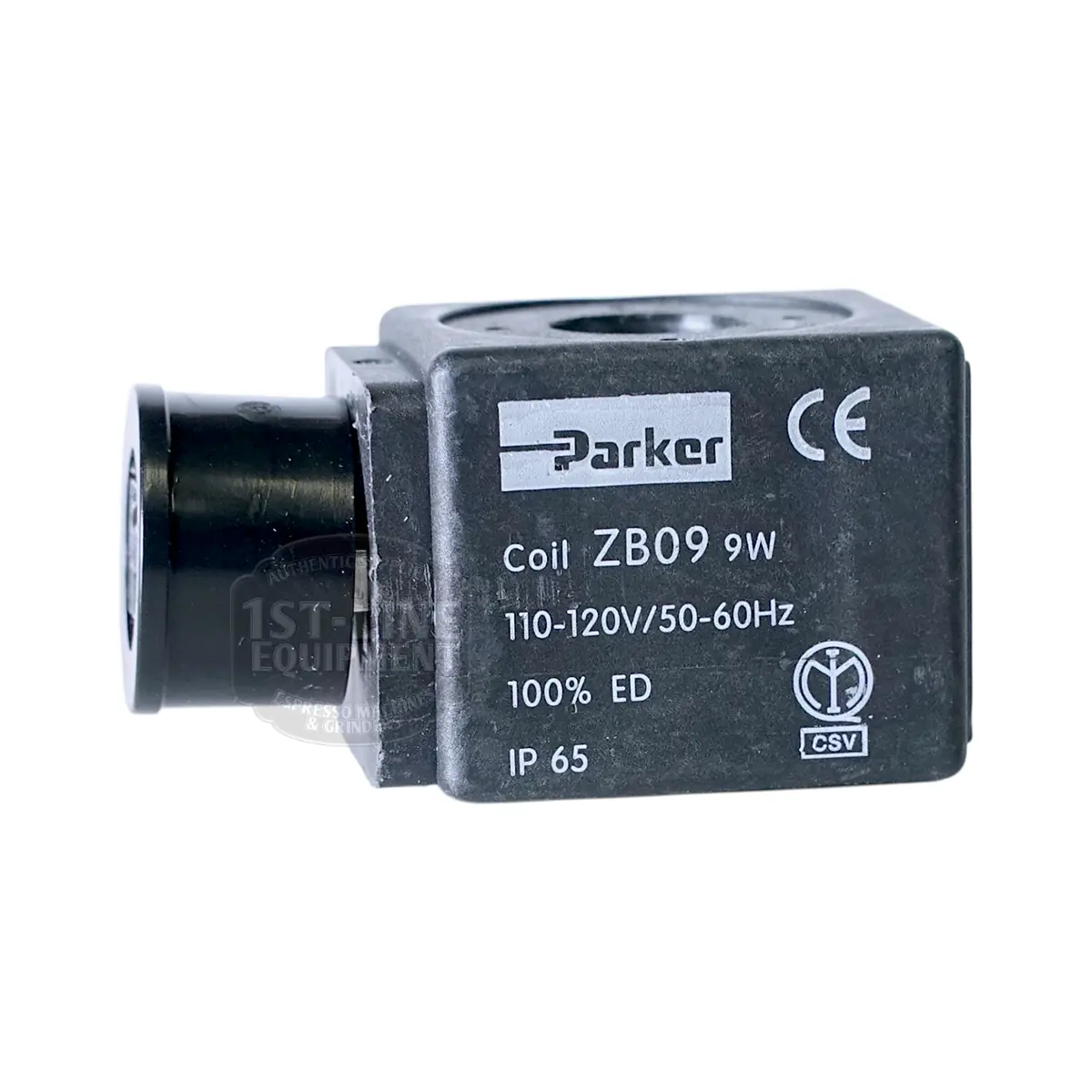

The Parker ZB09 Solenoid Valve Coil, 115V, black, 9W, 100% ED, IP65 rated with certification marks, fits Bezzera BZ02 and BZ07 machines; specs: 110-120V/115V AC, 50-60Hz.

Parker ZB09 Solenoid Valve Coil – 115V – Bezzera BZ02, BZ07

0 reviews

$89.95

  • Standard ground shipping within the contiguous 48 states. Alaska & Hawaii shipping costs extra.
  • Total order must be over $99 after all discounts.
  • For more information, please see Shipping Included.
  • Parts are non-returnable and non-refundable unless damaged in transit.
  • Parts do not include any over the phone technical support or instructions other than what is provided on the website.
  • Parts do not come with any warranty.
  • For more information, please see Terms & Conditions.
Request a Quote for Custom Package Builds


SKU: 7630332 Categories: , , ,
Earn 89 EspressoPoints worth $2.67! (Learn about EspressoPoints)
Earn 89 EspressoPoints worth $2.67! (Learn about EspressoPoints)

Parker ZB09 Solenoid Valve Coil 115V — OEM Replacement for Bezzera BZ02 & BZ07 Espresso Machines

Restore flawless water flow control to your Bezzera espresso machine with the Parker Lucifer ZB09 Series Solenoid Valve Coil (115V / 9W) — the genuine OEM-spec replacement coil trusted by professional technicians and home baristas alike. Whether you’re servicing a Bezzera BZ02, BZ07, B2000, B2006, or Ellisse, this direct drop-in coil eliminates inconsistent brewing extractions caused by a burned-out or degraded solenoid coil.

Why Choose the Parker ZB09 Solenoid Coil?

Precision Magnetic Actuation Engineered to generate a stable, repeatable magnetic field, this coil reliably activates your machine’s group head or inlet valve assembly — maintaining target brewing temperatures and consistent extraction pressures shot after shot.

Commercial-Grade Build Quality Wound with H-class copper wire and encased in a rugged thermoplastic polyester shell reinforced with 30% glass fiber, the ZB09 is built to withstand the thermal and mechanical demands of high-volume café and commercial environments.

Tool-Free Slide-On Installation The 14mm inner diameter slides directly onto existing 2-way or 3-way Parker valve bodies — no special tools required. Designed for rapid in-place machine servicing, minimizing downtime for coffee shops and mobile carts.

North American Voltage Compatible Rated at 110V–120V AC (standard 115V).

Technical Specifications

Specification Detail
Brand / Series Parker Lucifer ZB09
Voltage 110V–120V AC (115V North America)
Power 9 Watts
Dimensions H: 33mm × W: 34mm × L: 43mm
Inner Diameter 14mm (slide-on)
Insulation Class Class F (rated to 155°C)
Protection Rating IP65 (with compatible DIN plug)
Electrical Connection 3-Pin (2 Pin + Earth, EN 175301-803 Form A)

Compatibility

A confirmed drop-in replacement for the following Bezzera espresso machines:

  • Bezzera BZ02
  • Bezzera BZ07
  • Bezzera B2000
  • Bezzera B2006
  • Bezzera Ellisse

Cross-Reference Part Numbers: Bezzera #7630332 / #7702210 | Parker 304010



Brand

Parker
Leave your review
Rating
Publish review

Ask a question

Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

    To Whom It May Concern: I have a Bezzera BZ13 PM from 2022. I do daily backflush at the end of everyday. A few days ago with the blind basket on and on the 1st backflush, when I turned off the brew the pressure remained at 11 bar and the pressure wasn't relieved and nothing came out of the drain. I don't know if this is due to a faulty solenoid valve. I was trying to find the correct solenoid for the BZ13 and found part number 7630332. The SKU looks to be the same but wanted to sure this will work on the BZ13 PM. Thank you, Joe
  1. 0 votes
    Q To Whom It May Concern: I have a Bezzera BZ13 PM from 2022. I do daily backflush at the end of ev...... Read more answer now
    Asked by Joseph Jamilano on December 12, 2025 4:10 pm
    Answered by the admin

    Sorry, we are unable to confirm, under your submitted name, as we do not see the unit purchased through 1st-line. In addition, BZ13 sales stopped in 2021.

    Bezzera, like all other manufacturers, make changes to components, including size changes, electrical connections, etc. And, other importers can also have different parts. We kindly request you check with the dealer who sold the machine.

    Based on this aforementioned information, we have instructions on the process to determine parts and make an educated decision. Please read carefully.
    2. Will this Solenoid fit a Bezzera Strega V1 Espresso Machine?
  2. 0 votes
    Q Will this Solenoid fit a Bezzera Strega V1 Espresso Machine? answer now
    Asked by Rob on June 3, 2020 3:55 pm
    Answered by the admin

    Only if your coil shows ZB09 on it.

Please visit one of the links below for more Bezzera products & information.

Equipment & Accessories

View other products from Bezzera.
Browse Equipment & Accessories

Parts & Diagrams

Find the part you need for your equipment.
Search Parts & Diagrams

Technical Support

Get help for diagnosing your equipment.
Access Technical Support
;

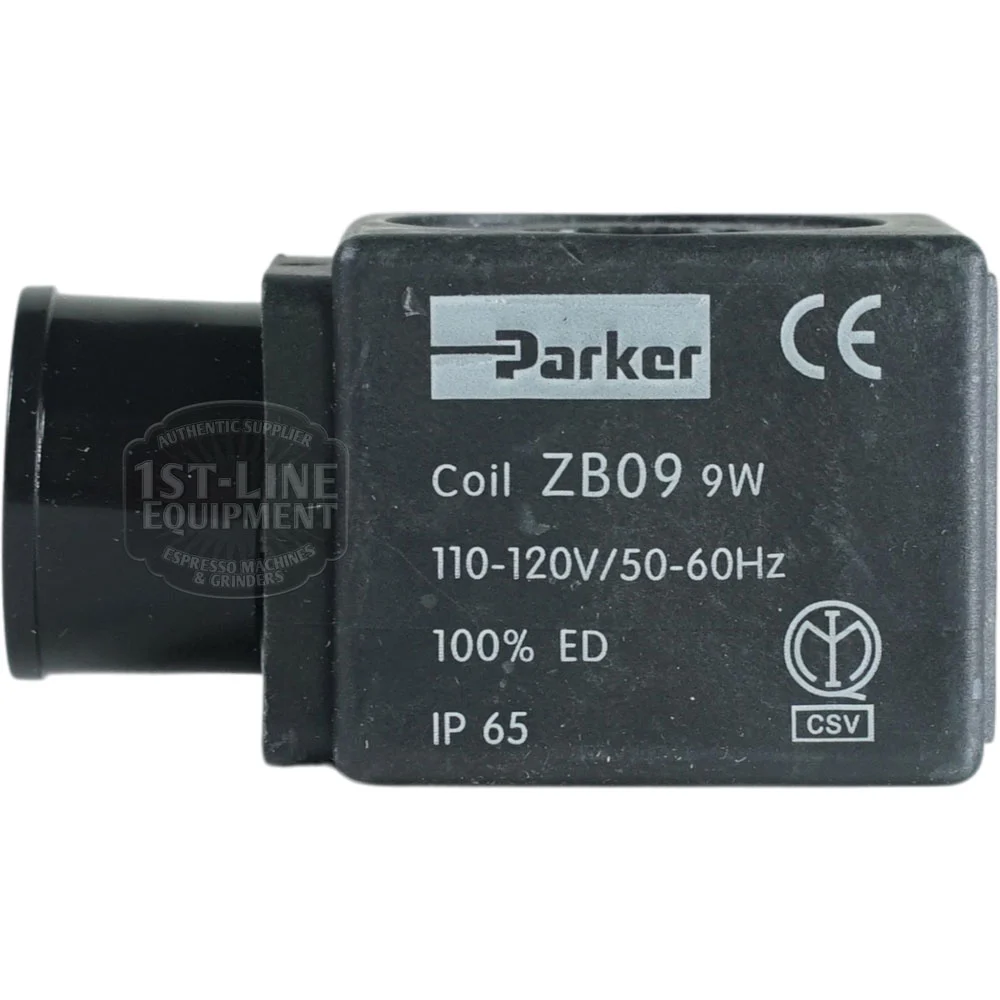

The Parker ZB09 Solenoid Valve Coil, 115V, in black and silver with voltage and certification markings, is compatible with Bezzera BZ02 and BZ07 espresso machines. The Parker brand is clearly displayed on the side.
