DISCONTINUED Lelit MC742 Multi-Directional Steam Wand

This product has been discontinued at 1st-line Equipment.
Please visit one of the links below for more comparable products.

.

Request a Quote for Custom Package Builds
SKU: MC742 Categories: , , Tag:

Overview

Lelit MC742 Multi-Directional Steam Wand

This steam wand (MC742) is for the Lelit Anna (PL41QE, PL41TQE, PL41TEM) espresso machine models.

This assembly of parts has changed from a female-threaded steam tip to a male-threaded steam tip.

Here is a breakdown of the parts:

  • MC742-10: Joint
  • MC742-9: Upper O-ring
  • MC742-8: Spring
  • MC742-7: Guide
  • MC742-6: Lower O-ring
  • MC742-3: Nut
  • MC742-2: Wand Connection
  • MC742-1: Rubber Grip
  • MC742-13: Wand
  • MC742-5: Steam Tip O-ring (female thread version)
  • MC742-4: Steam Tip (female thread)
  • 2200107: Steam Tip (male thread, w/ o-ring)

SPPMC742

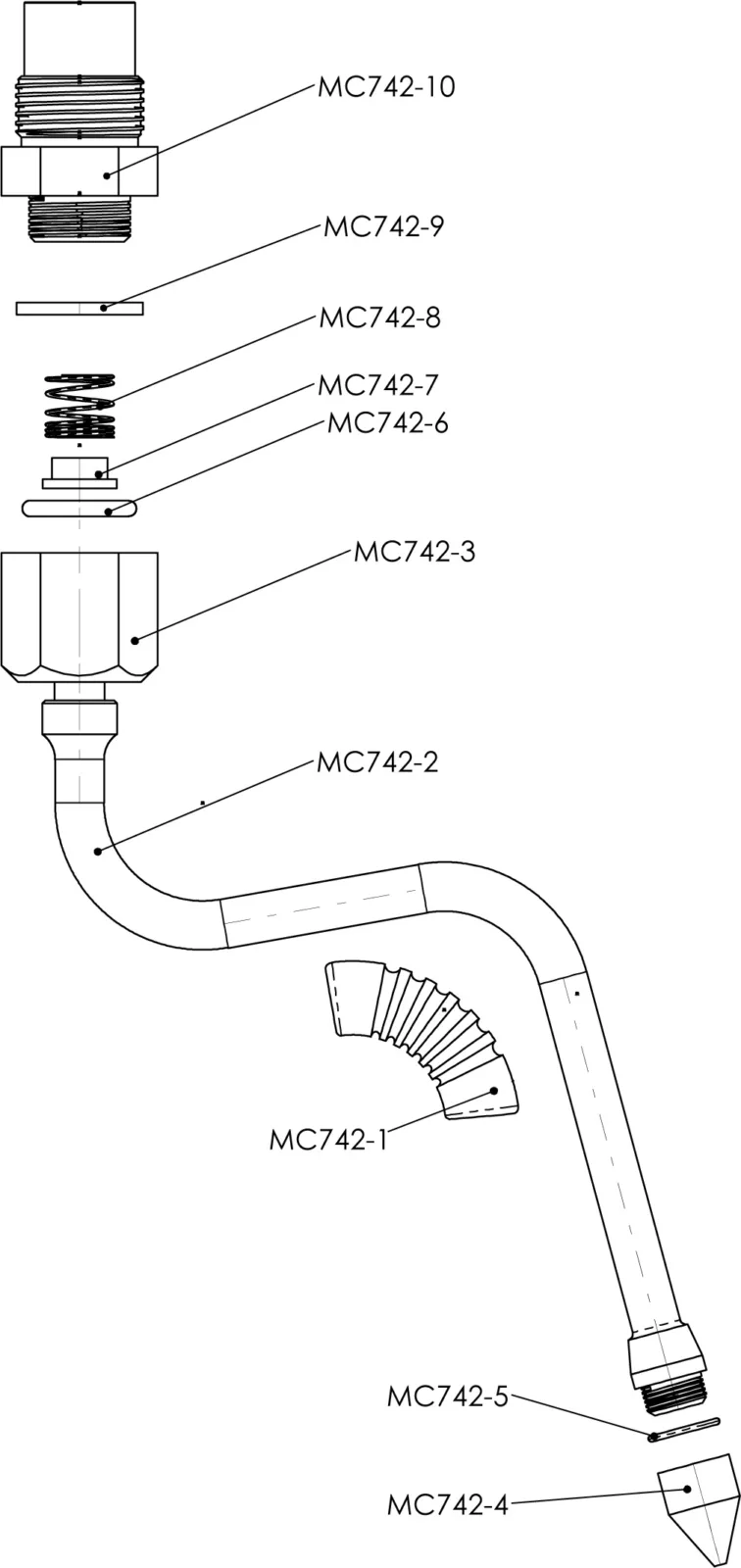

Female Thread Steam Tip

Exploded technical diagram of a faucet assembly with labeled components MC742-1 through MC742-10, showing each part separated and aligned in assembly order. © 2025 1st-line.com

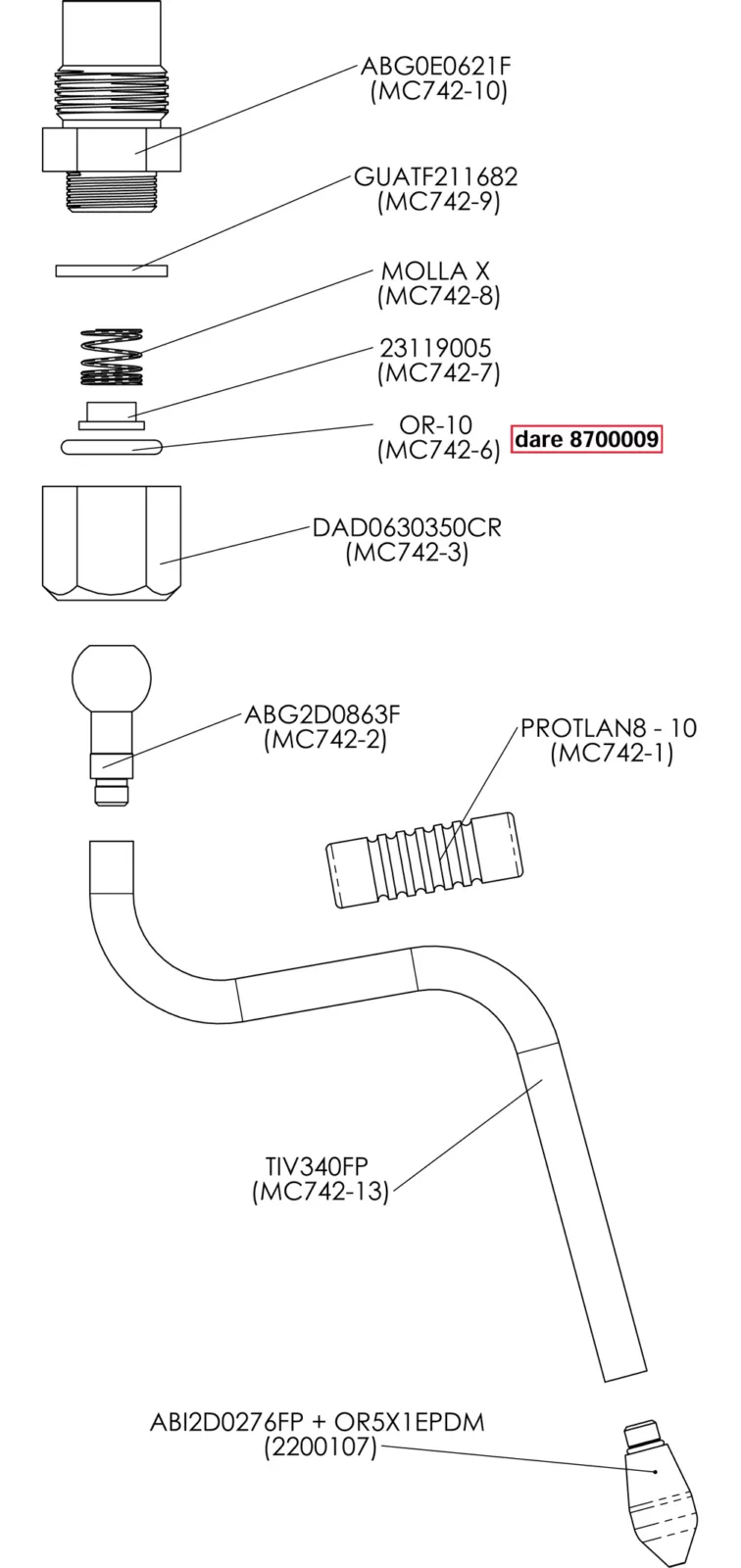

Male Thread Steam Tip

Exploded diagram of a mechanical assembly showing labeled parts, including screws, springs, washers, and valves. One part is highlighted in red with the label “dare 8700009.”. © 2025 1st-line.com

Q & A

Ask a question

Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

    Is it possible to get the gasket MC742-5? That gasket broke and it doesn’t appear an easy to source replacement
  1. 0 votes
    Q Is it possible to get the gasket MC742-5? That gasket broke and it doesn’t appear an easy to sour...... Read more answer now
    Asked by Jason Liebgott on November 13, 2022 10:40 pm
    Answered by the admin

    Hi,

    Here is a link to the gasket: MC742-5.
    2. Does this include the steam wand tip?
  2. 0 votes
    Q Does this include the steam wand tip? answer now
    Asked by basslogic4003 on May 5, 2022 9:19 pm
    Answered by the admin

    Usually, it does not.
    3. Is this suitabel to lelit pl41em
  3. 0 votes
    Q Is this suitabel to lelit pl41em answer now
    Asked by Danny on April 23, 2020 8:42 pm
    Answered by the admin Sorry, the hole is not big enough to insert the nut of this wand.
    4. Is it possible to buy a replacement rubber holder (keeps you from burning your fingers) that you see on the steam wand? Mine has already split along the side. I tried gluing it with some high-heat silicone & it didn't hold. Right now it's taped on. Thanks.
  4. 0 votes
    Q Is it possible to buy a replacement rubber holder (keeps you from burning your fingers) that you ...... Read more answer now
    Asked by deenibeeni on July 5, 2019 10:34 pm
    Answered by the admin

    It is always best to check the diagrams of the machine searching parts for. In this case, it seems like Lelit did not allow the rubber protector to be sold separately. However, working with other manufacturers allows us to create solutions. We do have the following which should fit.
    5. will this fit a pl041tem?
  5. 0 votes
    Q will this fit a pl041tem? answer now
    Asked by federico on December 31, 2018 5:58 am
    Answered by the admin

    Please refer to the parts diagram under the Parts link on the top of every page on our web site to determine correct parts.
    6. Can this steam wand (MC742) be used to replace steam wand MC082/1 which connects to steam coupling part # MC214. Also this photo does not have a steam tip, is that included or bought separately. The Lelit machine product number is PL41QE.
  6. 0 votes
    Q Can this steam wand (MC742) be used to replace steam wand MC082/1 which connects to steam couplin...... Read more answer now
    Asked by Roberto on August 29, 2018 3:57 pm
    Answered by the admin

    According to Lelit, it should fit the QE and TQE models. However, since we do not have a QE here to check, we are unable to guarantee a fitment.

    On the current batch at the time of this writing, a one hole tip is included.
