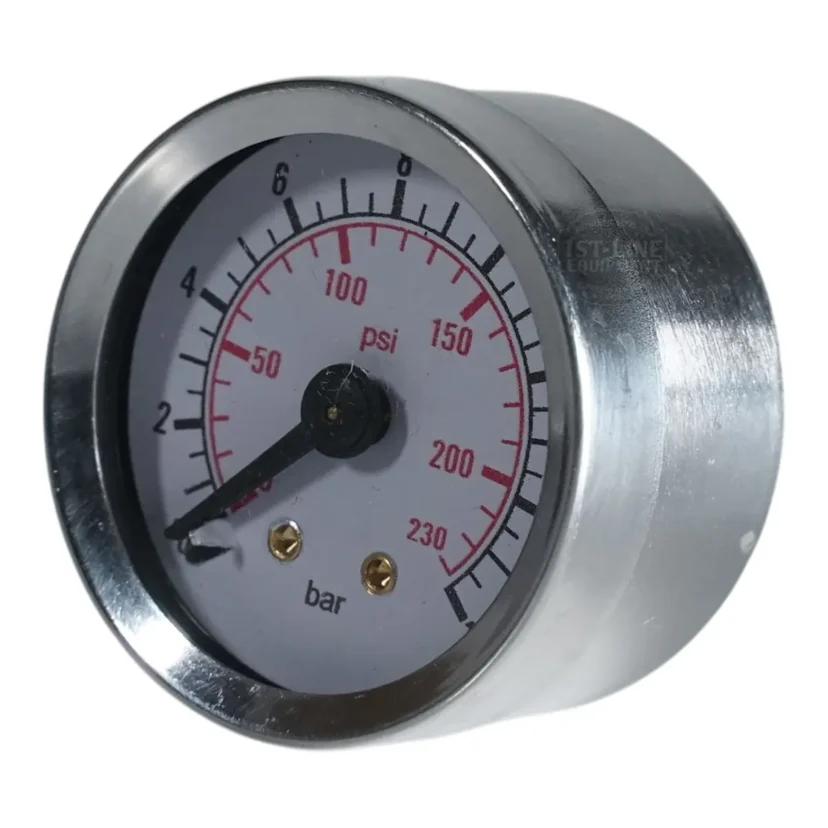

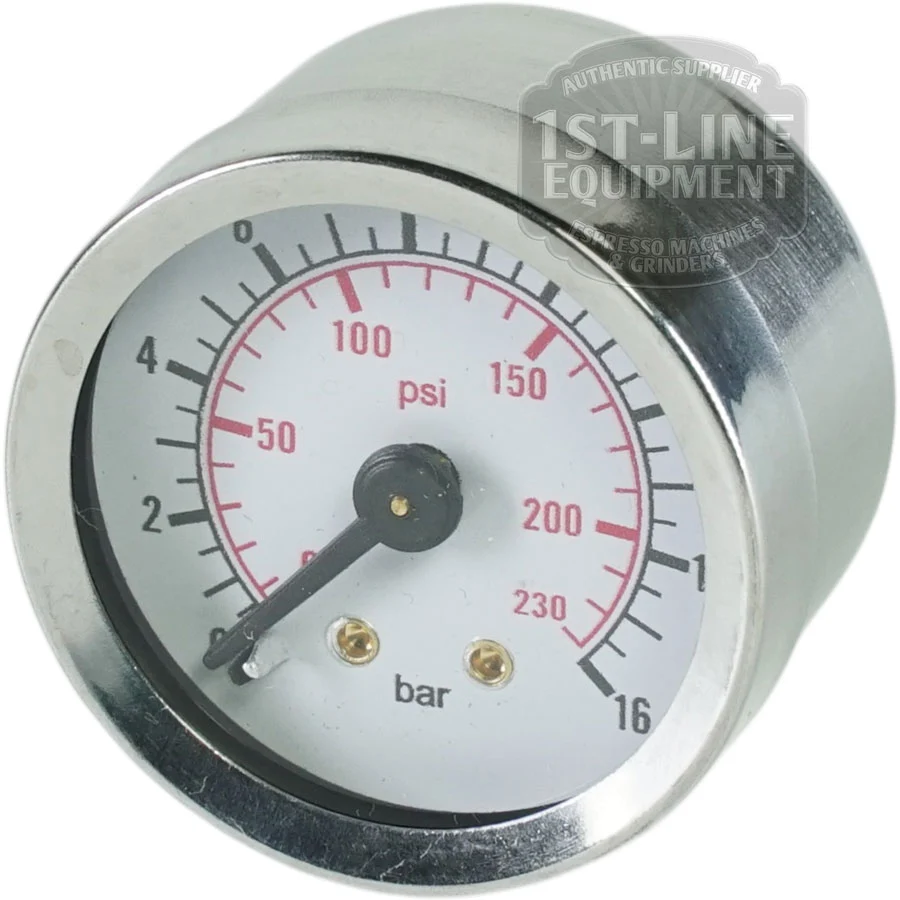

The V111K E61 Grouphead Gauge/Manometer (0-16 BAR) has a round analog face with metal casing, shows both bar and psi (up to 230), “ORMAN” branding, EN 837 standard—perfect for E61 espresso machines. The needle currently points near zero. © 2025 1st-line.com

V111K E61 Grouphead Gauge/Manometer 0-16 BAR

0 reviews

Original price was: $49.95.Current price is: $39.95.

  • Standard ground shipping within the contiguous 48 states. Alaska & Hawaii shipping costs extra.
  • Total order must be over $99 after all discounts.
  • For more information, please see Shipping Included.
  • Parts are non-returnable and non-refundable unless damaged in transit.
  • Parts do not include any over the phone technical support or instructions other than what is provided on the website.
  • Parts do not come with any warranty.
  • For more information, please see Terms & Conditions.

In stock

Request a Quote for Custom Package Builds
SKU: V111K Category: Tag:
Earn 39 EspressoPoints worth $1.17! (Learn about EspressoPoints)

Frequently Bought Together

Buy 2 or more copper gaskets to perfect the fit. Plumber's tape is sometimes needed.

The V111K E61 Grouphead Gauge/Manometer (0-16 BAR) has a round analog face with metal casing, shows both bar and psi (up to 230), “ORMAN” branding, EN 837 standard—perfect for E61 espresso machines. The needle currently points near zero. © 2025 1st-line.com + The Flat Copper Gasket for Manometer is a circular, smooth, flat washer shown on a white background, perfect for sealing or use in manometers. © 2025 1st-line.com
Price for both: $43.94

Our E61 Grouphead Gauge  or E61 Manometer shows 0-16 bar pressure or between 0 and 230 psi.

This is great for E61 grouphead espresso machines that do not have a brew pressure gauge. It can also be used to check for any discrepancies of the brew pressure OR pump pressure gauge that is currently on the machine.

The gauge will not show any pressure if the grouphead is free flowing water. With ground coffee, no pressure or low pressure on the this gauge results from a combination of a coarse grind, too little coffee in the basket, and/or too little tamping pressure. In other words, the gauge shows the resistance or static pressure created by the coffee puck in your basket.

We recommend you purchase two or more of the copper gaskets indicated for easier installation on most E61 groupheads.

Please note that it is very easy to damage the threaded portion of the gauge when installing. We are not responsible for any damages on the install. Every E61 grouphead can be slightly different. Hence, alignment can be made through one or more copper washers and/or plumbers tape.

Leave your review
Rating
Publish review

Ask a question

Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

    Does this use M6 threading?
  1. 0 votes
    Q Does this use M6 threading? answer now
    Asked by David on January 15, 2024 3:19 am
    Answered by the admin

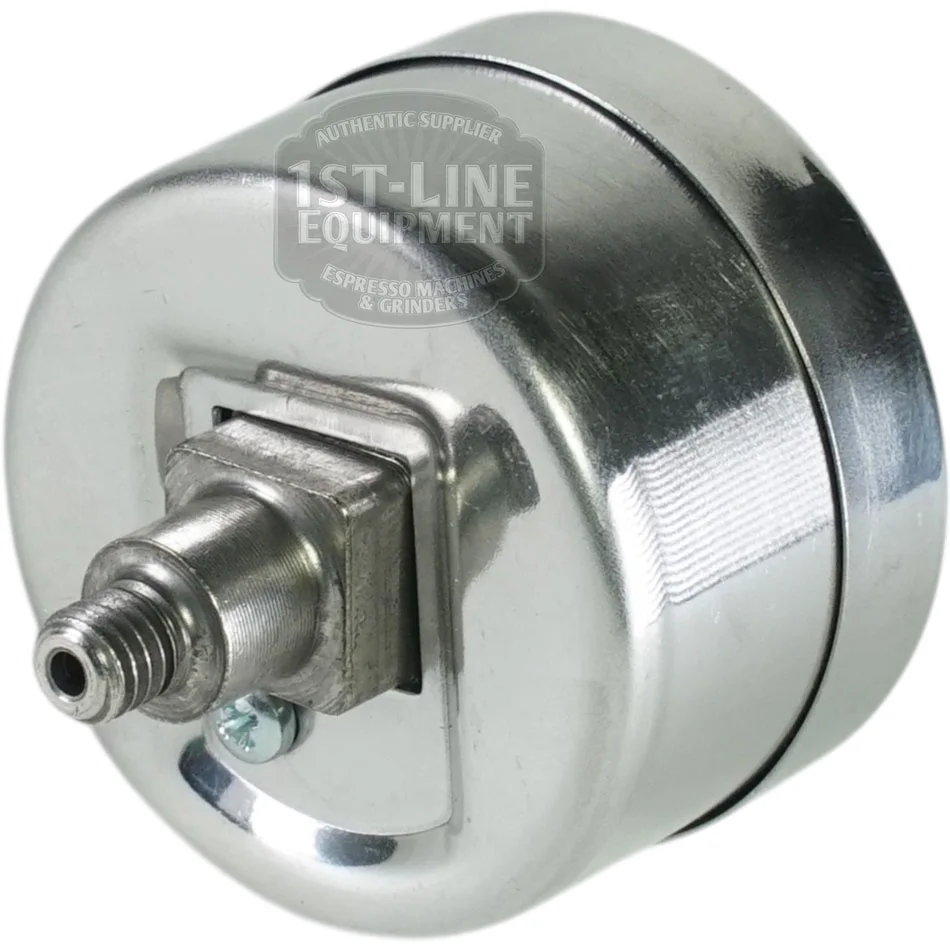

    Yes.  The fitting thread size is M6.
    2. This item is out of stock. Is there an alternative pressure gauge that is offered on your website that will still fit an E61 grouphead?
  2. 0 votes
    Q This item is out of stock. Is there an alternative pressure gauge that is offered on your website...... Read more answer now
    Asked by J H on February 10, 2021 7:50 pm
    Answered by the admin

    At the time of this response, we have the Lelit Brew Pressure Gauge Kit.
    3. but it says I may need copper gaskets "for easier installation" which you are out of stock on. Is it possible to use the manometer without the gaskets? if not, do you know the size of the gaskets? are they something i can buy at a local hardware store?
  3. 0 votes
    Q but it says I may need copper gaskets "for easier installation" which you are out of stock on. Is...... Read more answer now
    Asked by huyzee on November 12, 2020 9:28 pm
    Answered by the admin

    Sorry, we do not have any to measure. Yes, the copper gaskets assist in alignment. however, if you use plumbers tape, it may or may not work, but the fitment will most likely be loose.
    4. Does gauge come fittings to attached to group head. If any what are additional items necessary to install on group head
  4. 0 votes
    Q Does gauge come fittings to attached to group head. If any what are additional items necessary to...... Read more answer now
    Asked by YAMEN SANDERS on May 13, 2020 3:30 pm
    A Per seller's recommendation you need to get several copper gaskets and PTFE tape. Nothing else needed .
    5. V111K E61 Grouphead Gauge/Manometer 0-16 BAR Can you please explain how this gauge is mounted on the E61 group head? I have a GAGGIA Baby . Thank you
  5. 0 votes
    Q V111K E61 Grouphead Gauge/Manometer 0-16 BAR Can you please explain how this gauge is mounted on...... Read more answer now
    Asked by Marino on February 27, 2020 3:57 pm
    Answered by the admin

    The Gaggia Baby does not have an E61 grouphead. So, it will not fit.
