Inside – VBM Super HX Tank Only Espresso Machine

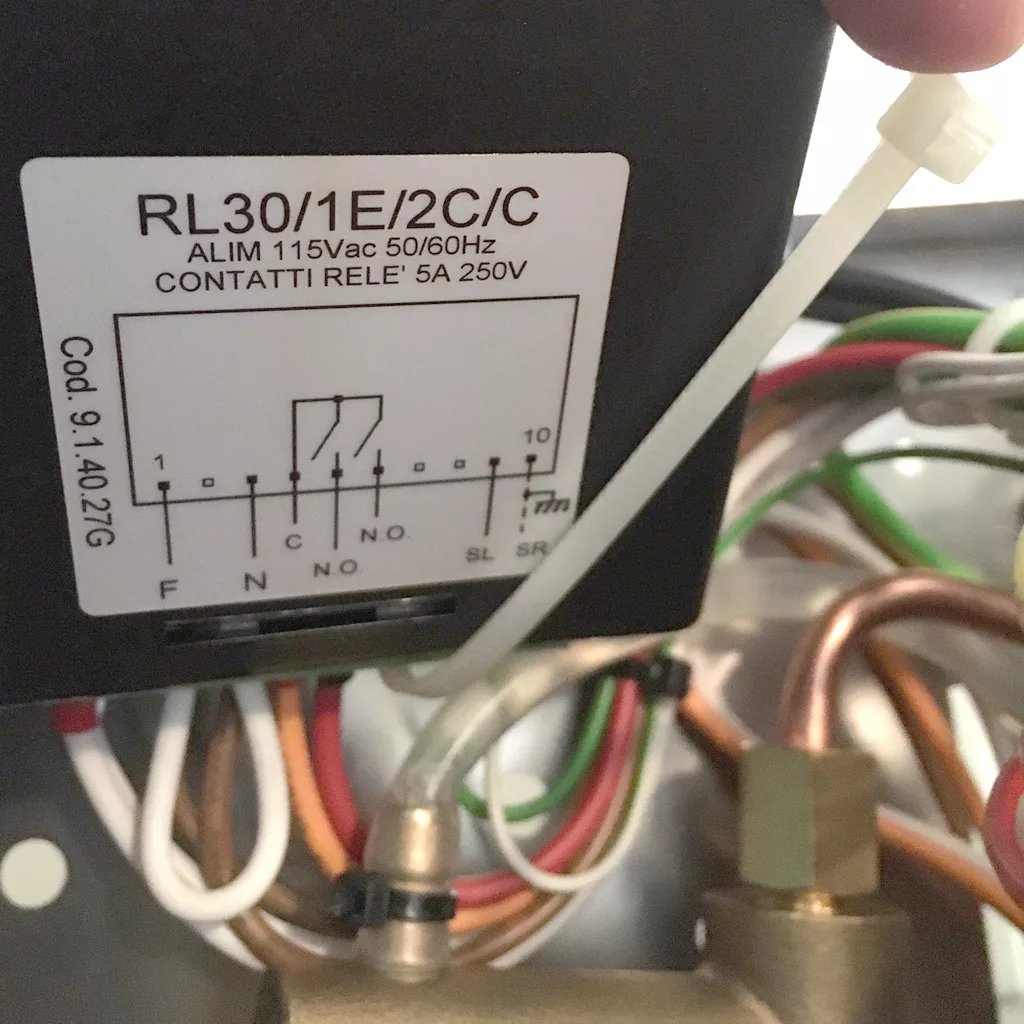

Close-up of an electrical component labeled RL30/1E/2C/C on a VBM Super HX espresso machine, with wiring diagram, specs (115Vac, 50/60Hz, 5A 250V), and multiple colored wires connected to pipes and fittings in the background. © 2025 1st-line.com

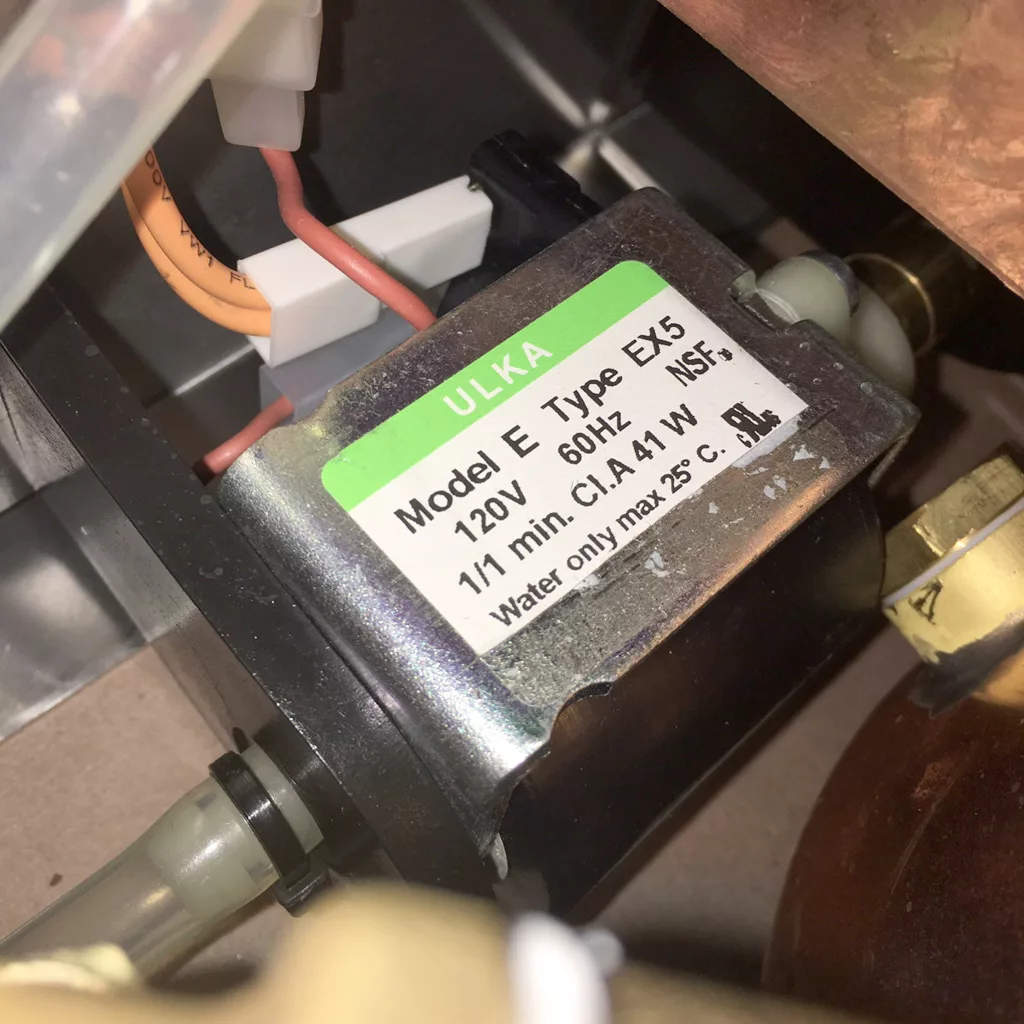

Close-up of an electric pump labeled ULKA Model E Type EX5, 120V, 60Hz, used in a VBM Super HX espresso machine. Various wires and tubes are connected; labeled for water only up to 25°C and intended for tank only setups. © 2025 1st-line.com

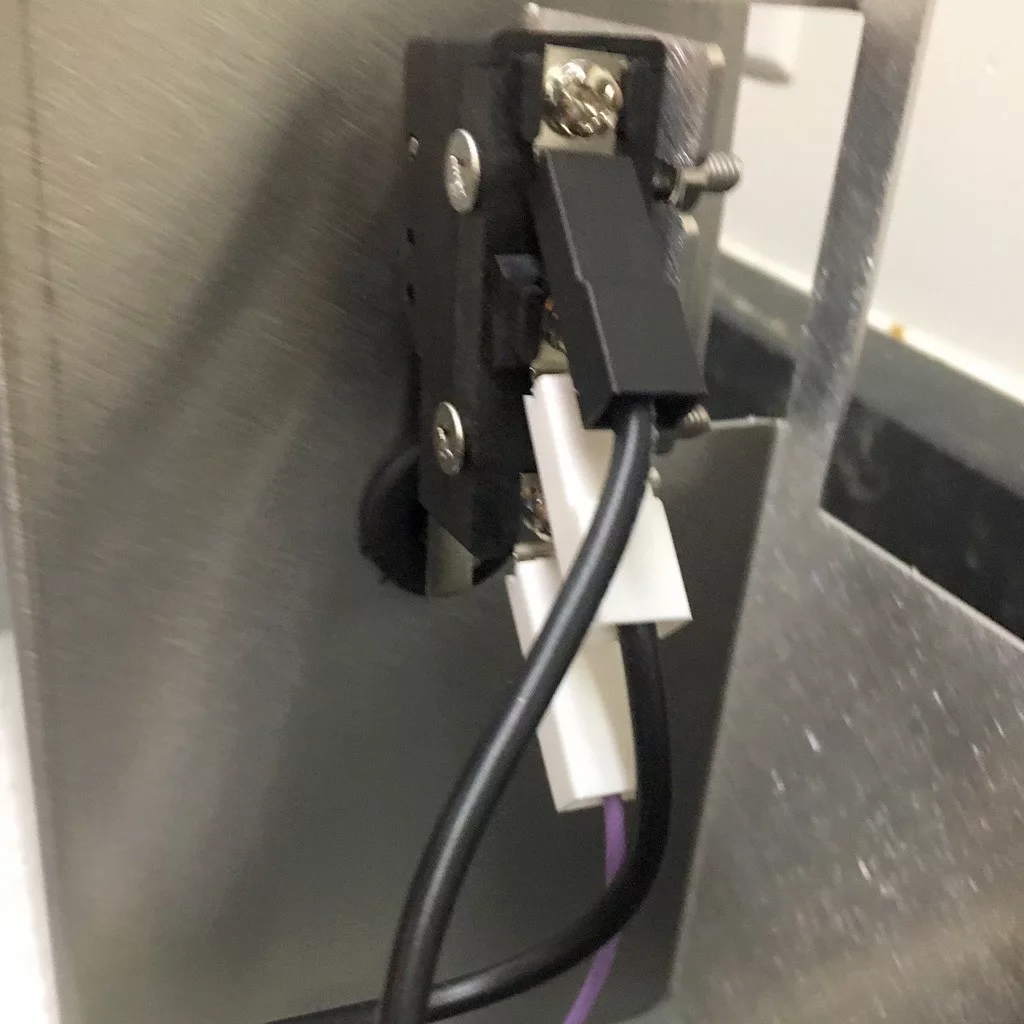

Close-up of an electrical connector mounted on a metal surface inside a VBM Super HX espresso machine, with black and white wires plugged in. The connector is secured with screws, and a purple wire is also visible among the cables. © 2025 1st-line.com

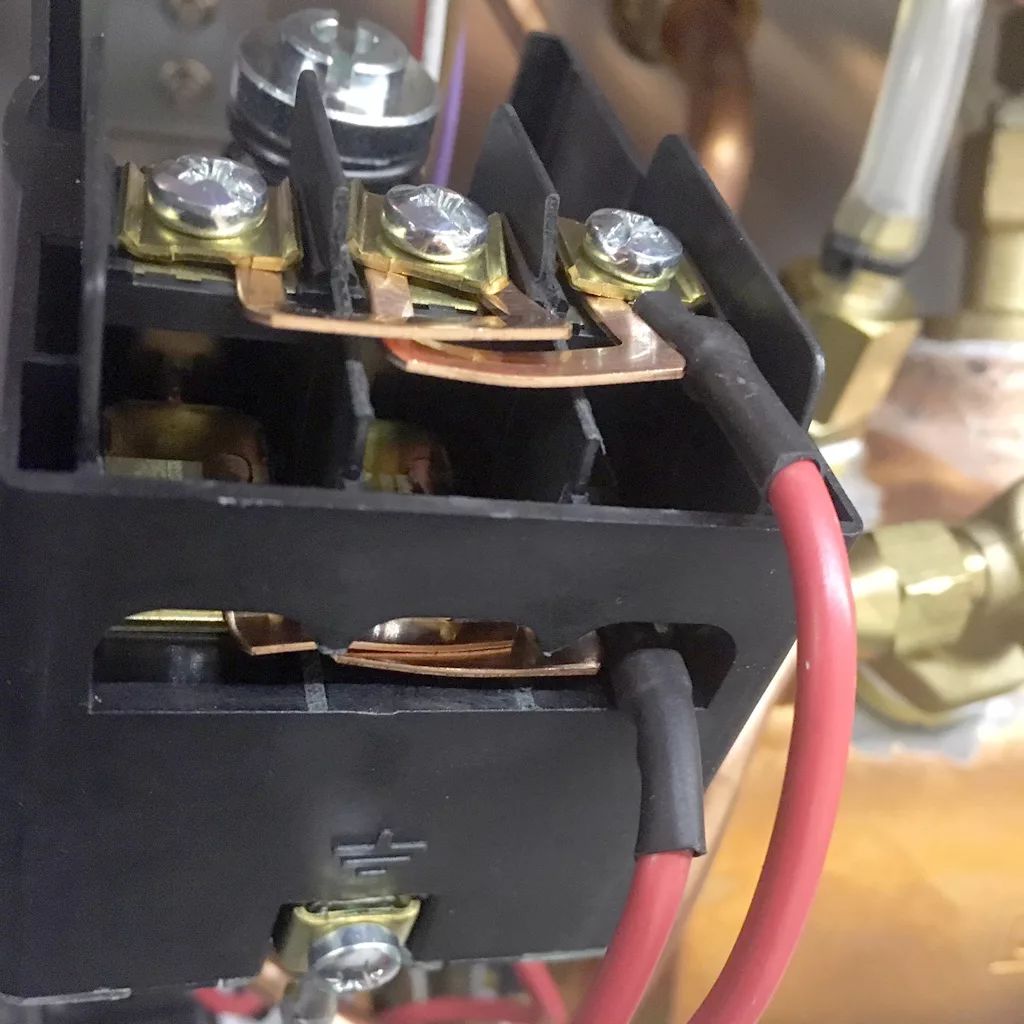

Close-up of an electrical relay with red and black wires connected to terminals, copper contacts, and screws visible, set against a background with brass fittings and tubing inside a VBM Super HX espresso machine. © 2025 1st-line.com

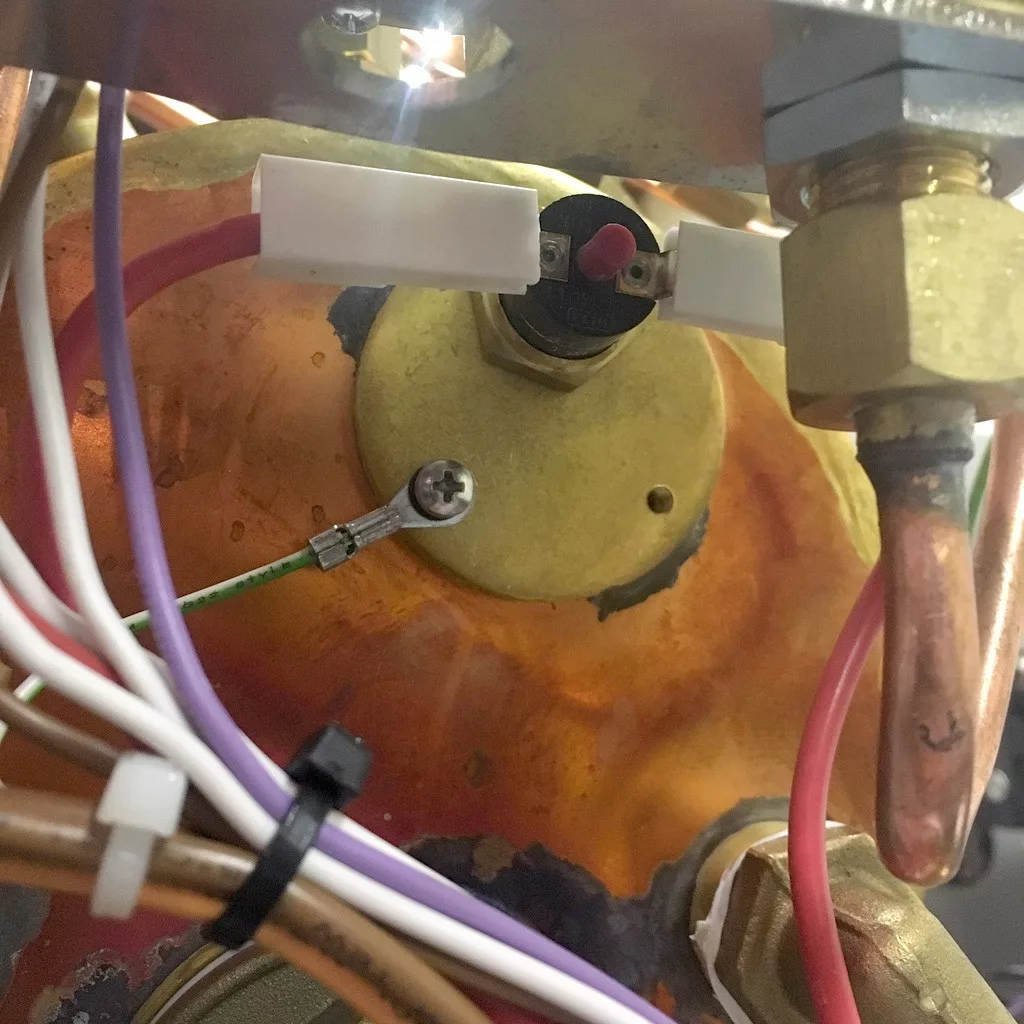

Close-up view of a VBM Super HX espresso machine’s mechanical assembly, featuring wires, a brass fitting, screws, and a copper surface with heat discoloration. White and purple cables are bundled with a zip tie in the foreground. © 2025 1st-line.com

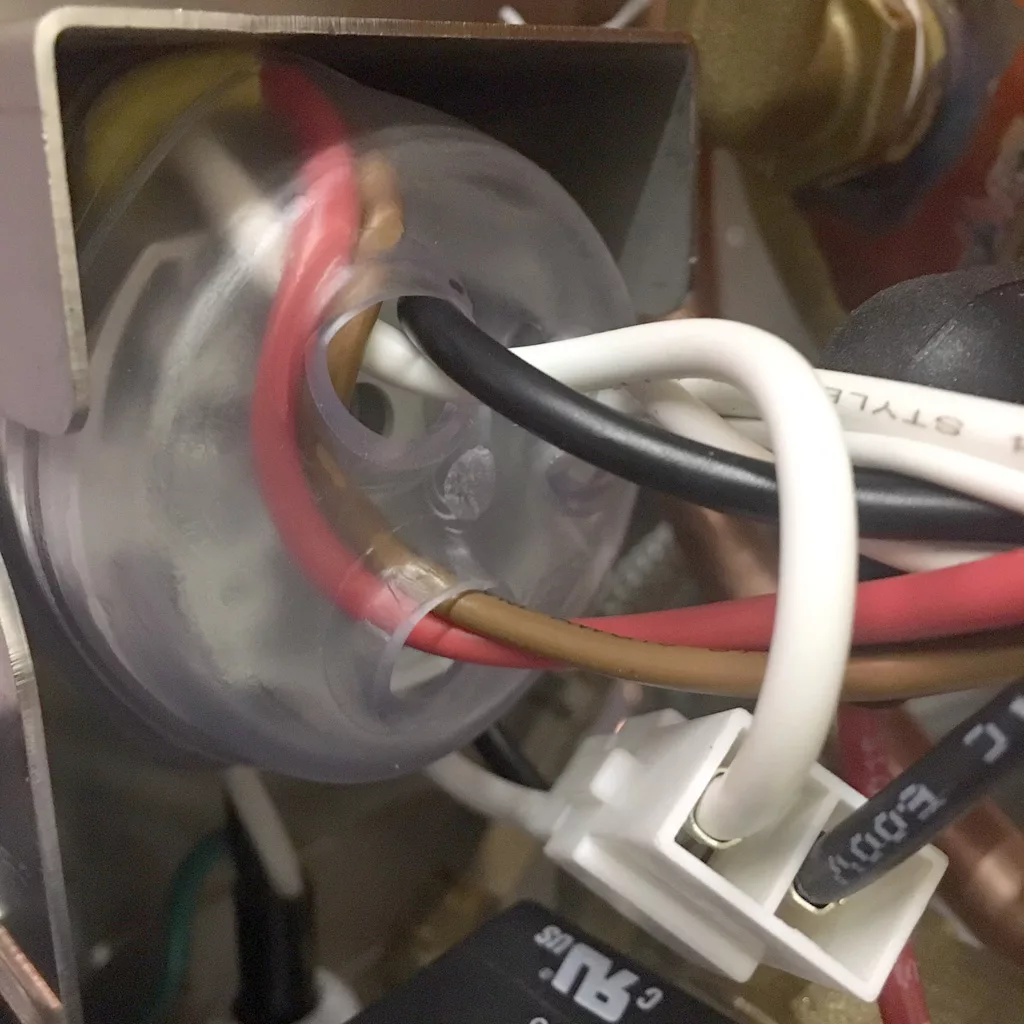

Close-up of electrical wiring inside an espresso machine, connected to a transparent circular component. Red, black, brown, and white wires are visible—typical of internal components found in a VBM Super HX tank only model. © 2025 1st-line.com

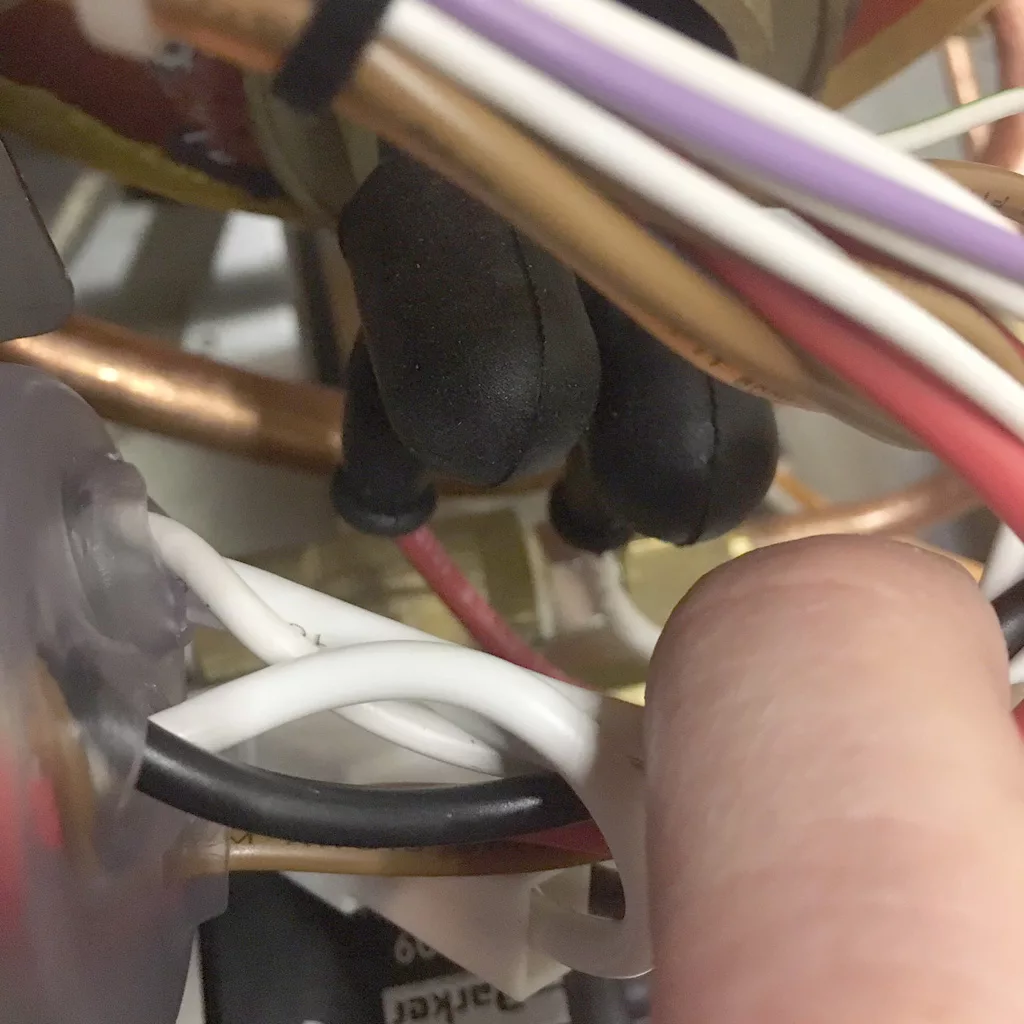

Close-up of a person’s finger touching a bundle of electrical wires—white, red, purple, and black—in a VBM Super HX espresso machine (tank only), with copper pipes and black insulated components in the background. © 2025 1st-line.com

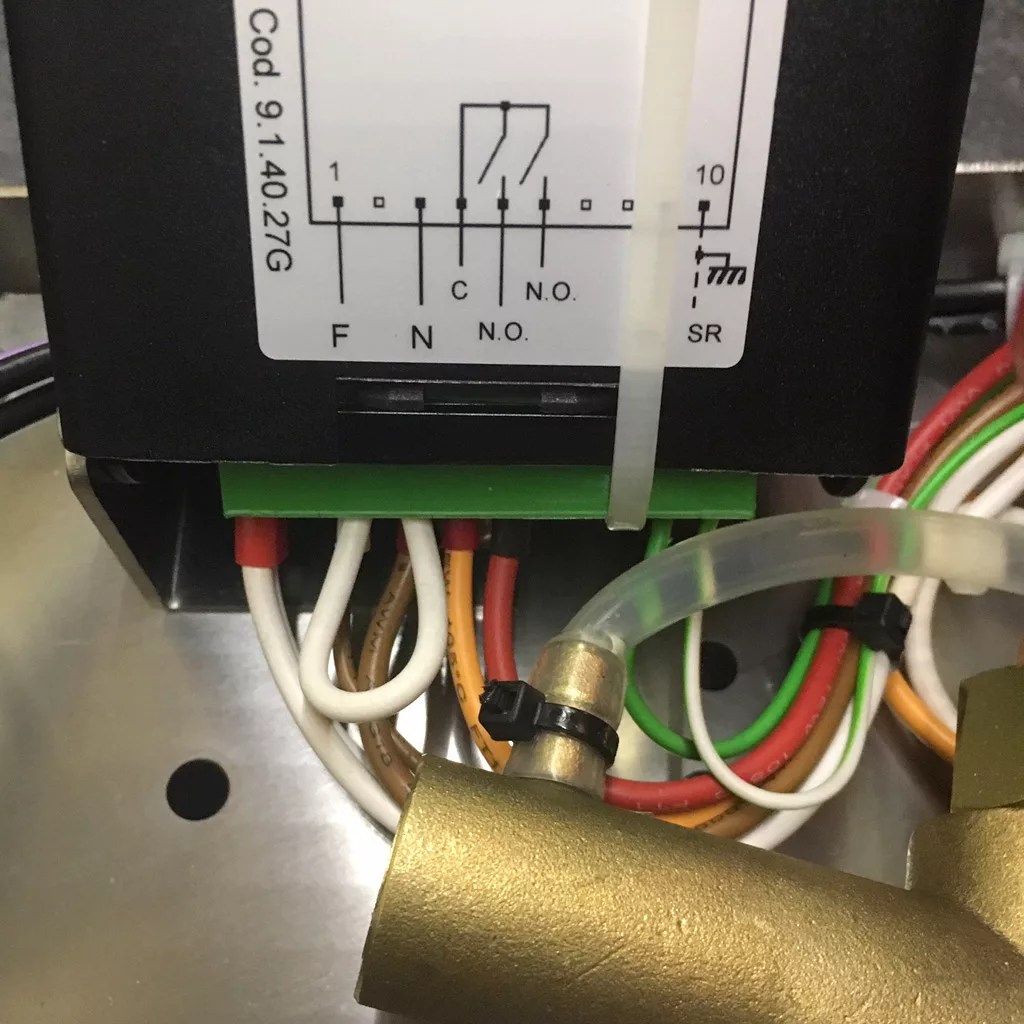

Close-up of electrical wiring connected to a black device with a circuit diagram and label Cod. 91.4027G on top; various colored wires are attached below, next to a brass component and clear tube in a VBM Super HX espresso machine. © 2025 1st-line.com

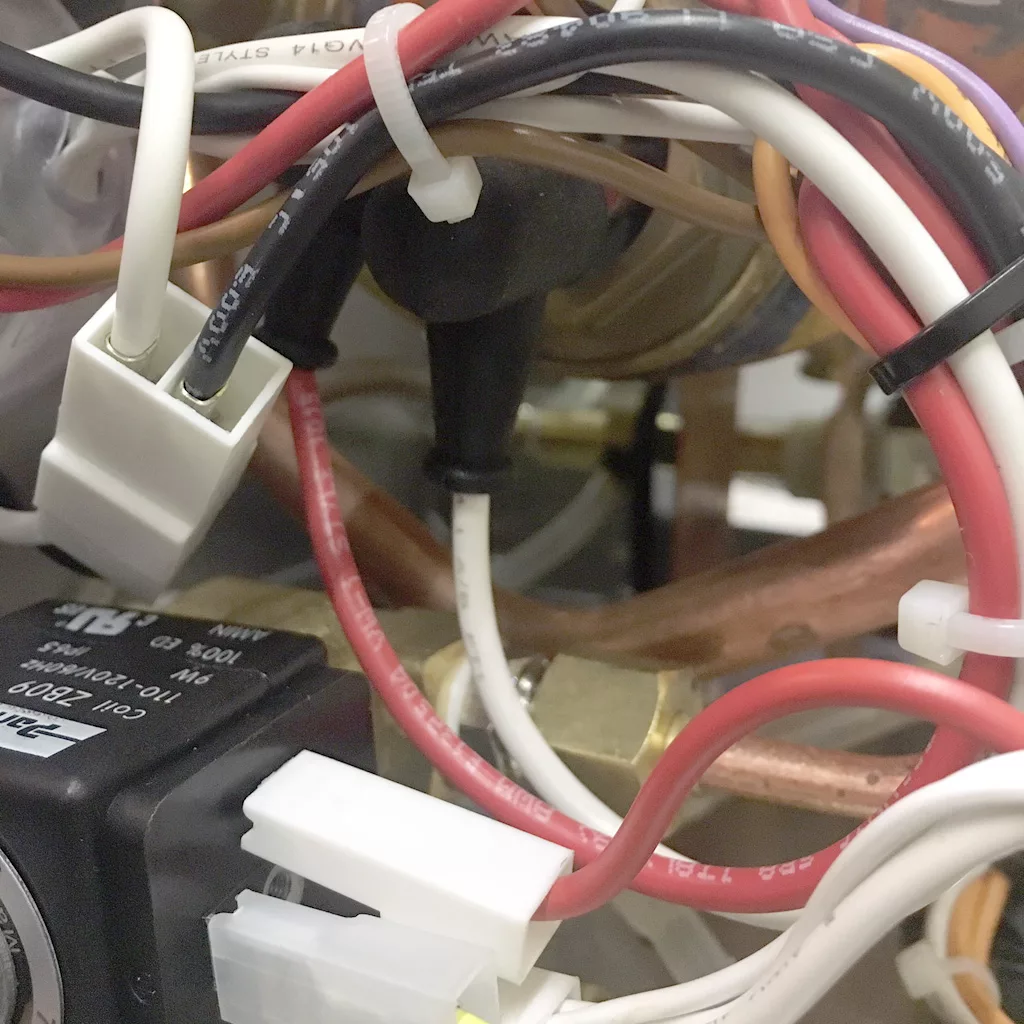

Close-up of various electrical wires, connectors, and cables in different colors secured with zip ties inside a VBM Super HX espresso machine, showing detailed components and copper tubing. © 2025 1st-line.com

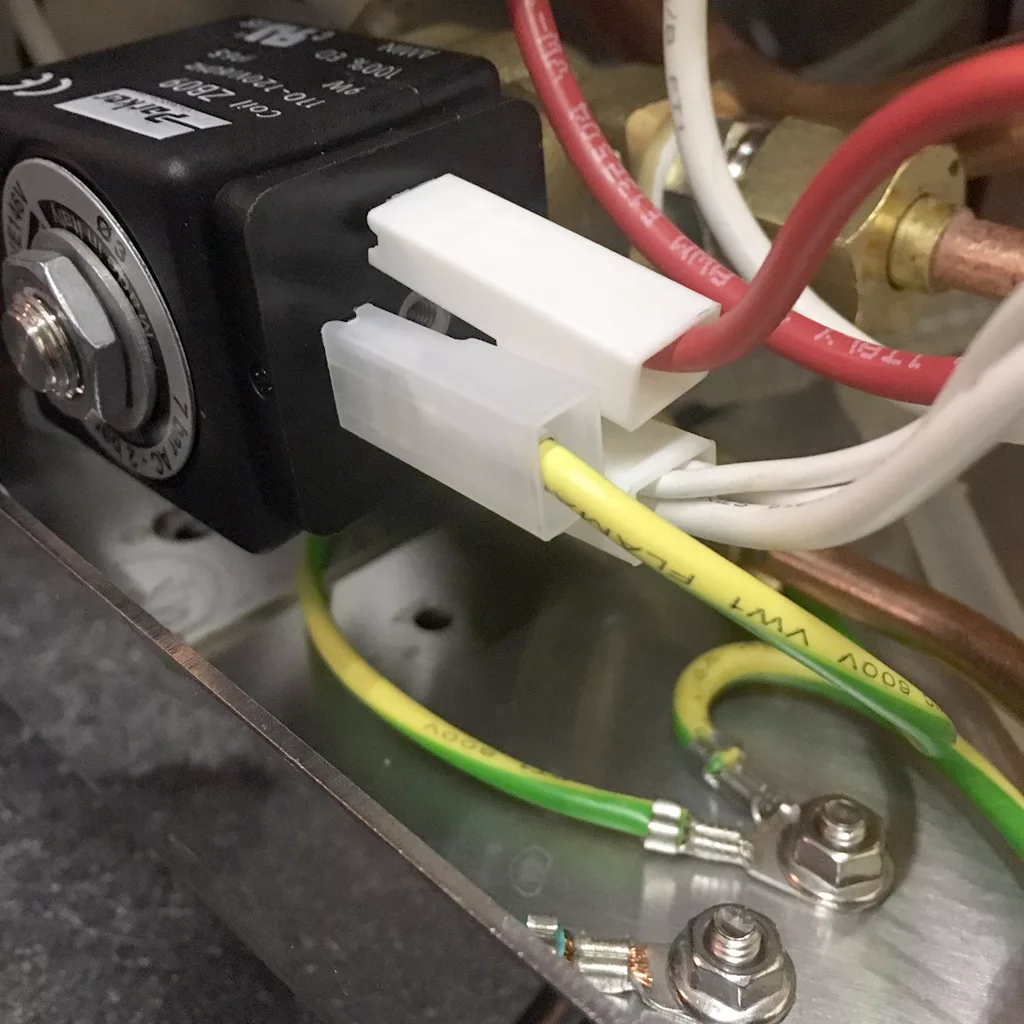

Close-up of electrical wiring connected to a terminal block inside an espresso machine, with red, white, yellow, and green wires attached to a metallic surface. Two screw terminals are visible in this VBM Super HX tank only setup. © 2025 1st-line.com
