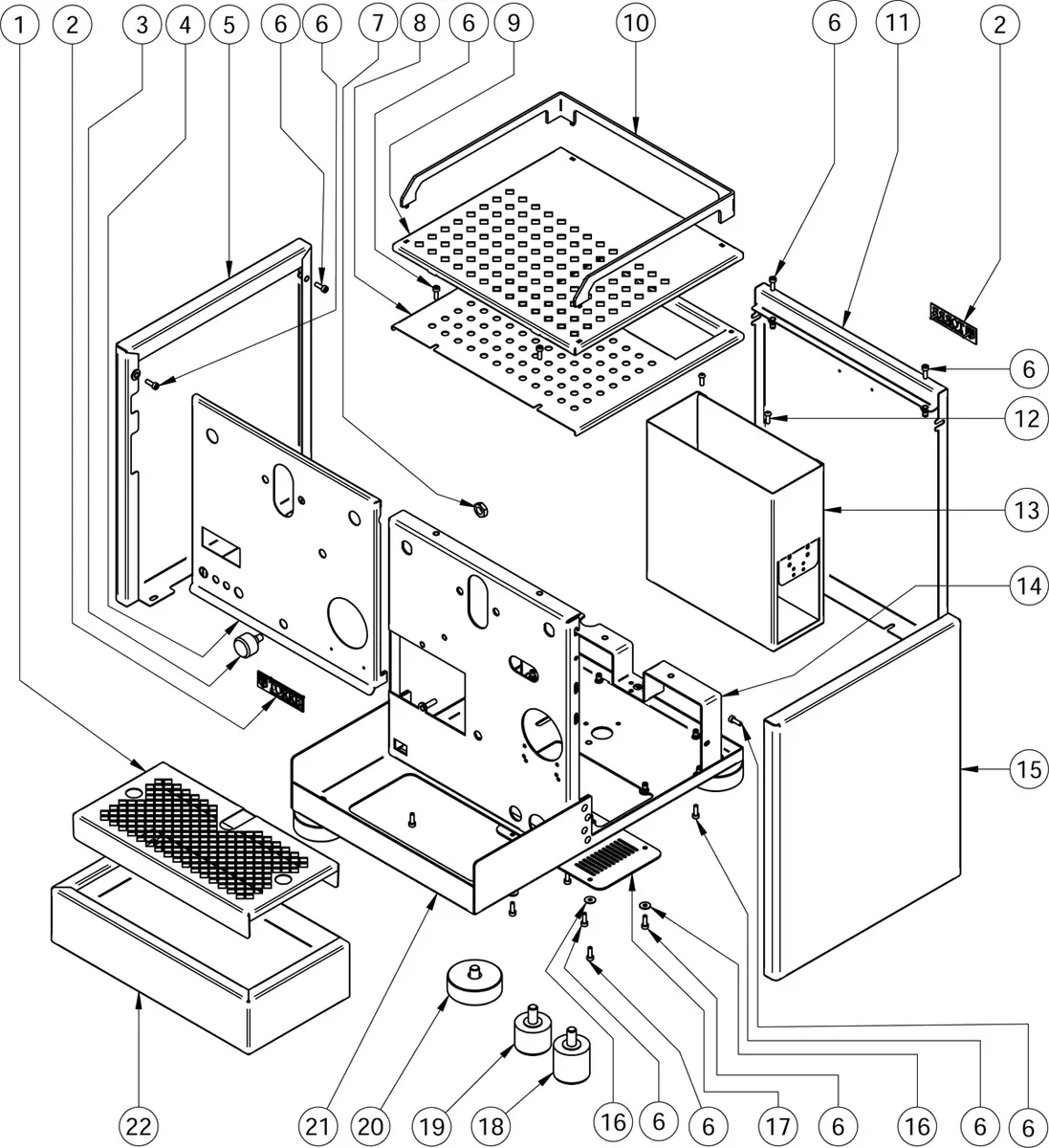

Exploded parts diagram of the Torre Mariuccia electronic device casing, featuring numbered panels, frames, screws, a fan, and a vented component, all shown without visible labels to illustrate assembly and fit. 2025 1st-line.com
# SKU
1 T02APP002
2 TARG0001
3 RACCS005
4 T02FRO005
5 T02FIA002
6 VITE4001
7 DADO1801
8 T02SUP003
9 T02SCA003
10 T02RAI001A
11 T02POS001
12 VITE4003
13 T02POR001
14 T02SUP004
15 T02FIA001
16 RONDP401
17 T02BAS001C
18 PIED0003
19 PIED0002
20 APIED001
21 ABAS0002
22 T02BAC001

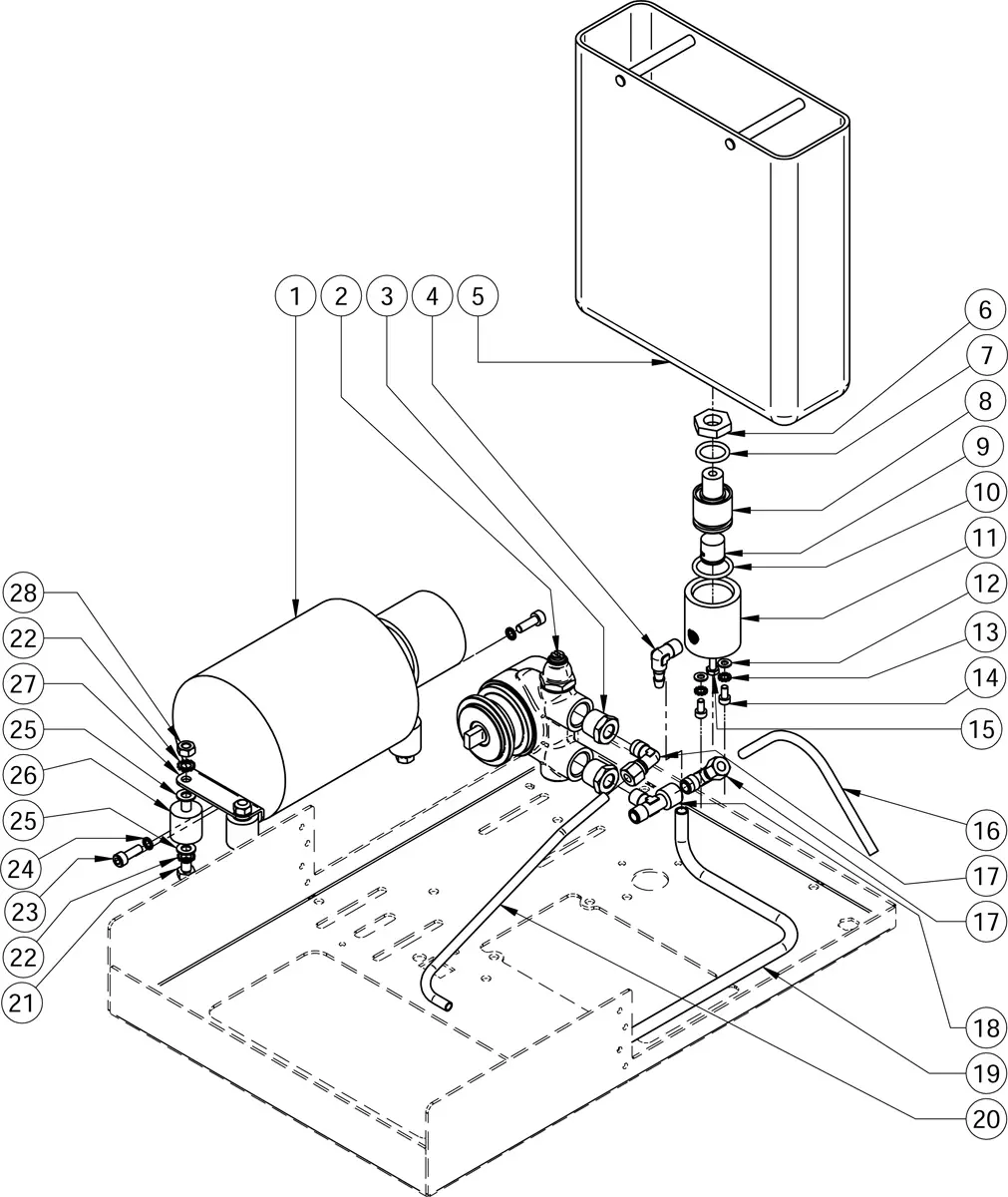

Exploded parts diagram of a mechanical assembly, including a tank, pipes, valves, and various numbered components—each part is labeled and connected by lines to a detailed parts list for Torre Mariuccia. 2025 1st-line.com
# SKU
1 MOTO0001 (220/230-240V)
MOTO0002 (110-120V)
2 POMP0002
3 RACCR001
4 RACCL009
5 TANI0002
6 DADO1401
7 GUAR0010
8 RACCS001
9 VALV0005
10 GUAR0011
11 RACCS004
12 RONDP402
13 RONDP401
14 VITE4008
15 VITE4002
16 TUBT0004
17 RACCL004
18 RACCT004
19 TUBS0011
20 TUBT0005
21 VITE6001
22 RONDD601
23 VITE5001
24 RONDD501
25 RONDP601
26 VIBR0001
27 T02SUP002
28 DADO6001

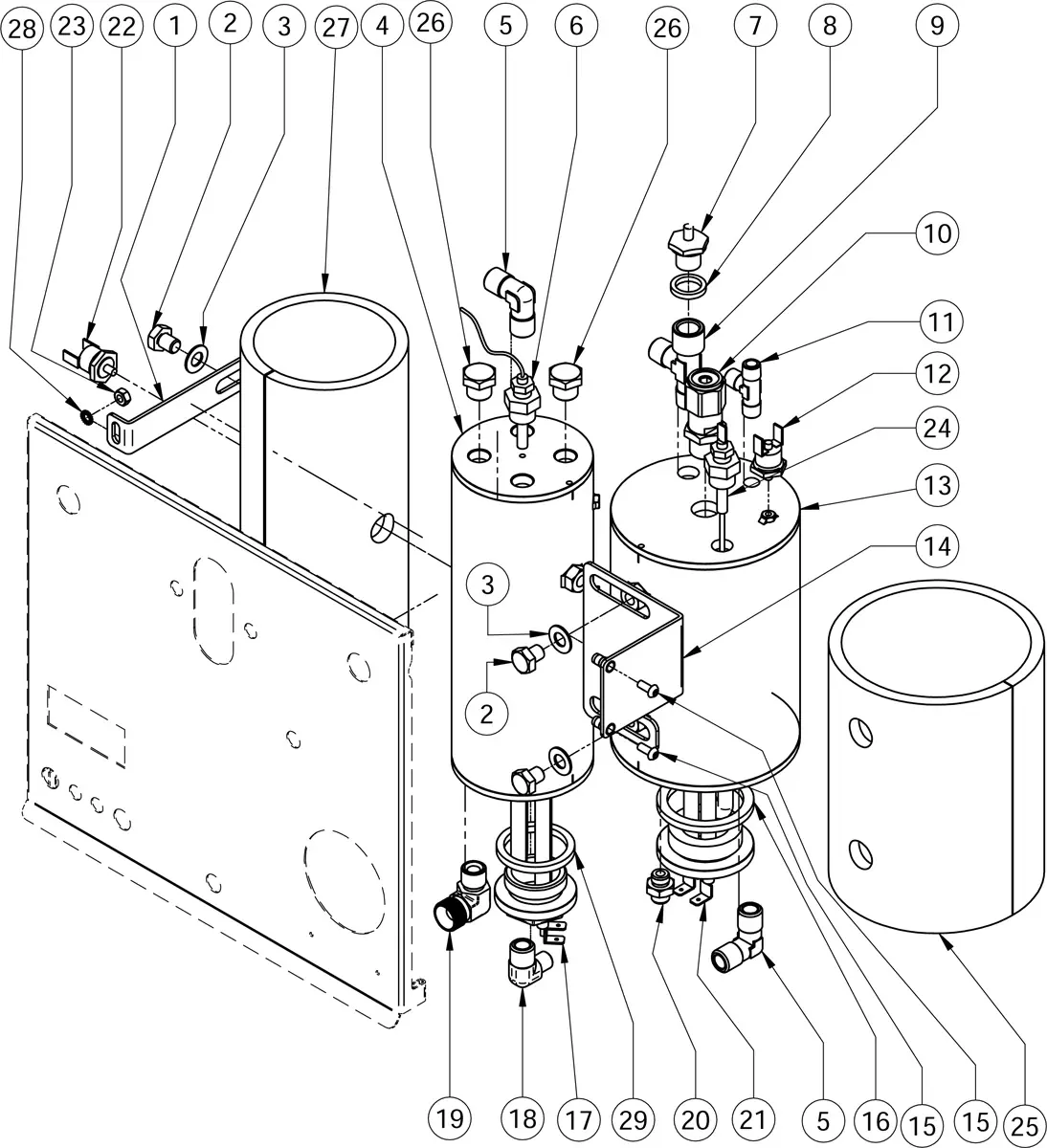

Exploded Parts Diagram of a mechanical device with numbered components, including tanks, pipes, valves, connectors, a control panel, and various fittings arranged in a labeled, technical illustration inspired by Torre Mariuccia. 2025 1st-line.com
# SKU
1 T02SUP008
2 VITE8001
3 RONDP802
4 CALD0005
5 RACCL001
6 SOND0004
7 VALV0004
8 GUAR0004
9 RACCT002
10 VALV0003
11 RACCT001
12 TERM0003
13 CALD0002
14 T02SUP006
15 VITE4003
16 GUAR0005
17 RESI0001 (230-240V)
RESI0005 (110-120V)
18 RACCL007
19 RACCL008
20 RACCD003
21 RESI0003 (230-240V)
RESI0007 (110-120V)
22 TERM0004
23 DADO5001
24 SOND0005
25 ISOL0004
26 RACC0002
27 ISOL0002
28 RONDD501
29 GUAR0002

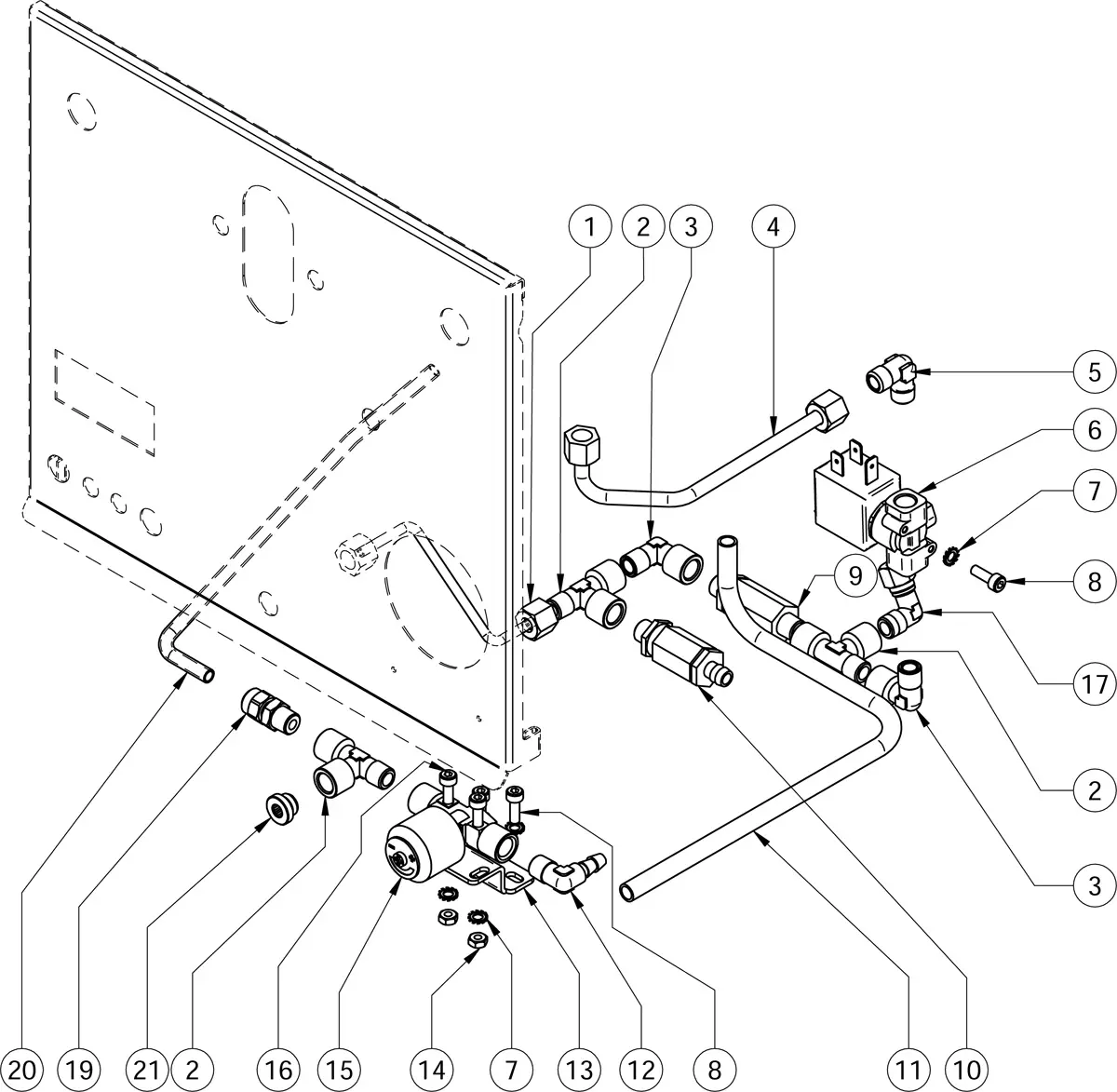

Exploded Parts Diagram of a mechanical assembly with multiple numbered components, pipes, fittings, and a panel. Each part is separated for clarity and labeled with reference numbers—ideal for referencing Torre Mariuccia equipment. 2025 1st-line.com
# SKU
1 T02TU005
2 RACCT005
3 RACCL005
4 T02TU004
5 RACCL002
6 EV223001
7 RONDP401
8 VITE4001
9 VALV0002
10 VALV0001
11 TUBS0011
12 RACCL009
13 T02SUP007
14 DADO4001
15 RUBIR001
16 VITE4004
17 RACCL004
19 RACCD006
20 TUBS0011
21 RACC0003
Exploded Parts Diagram of an electrical device showing labeled components, including wires, switches, a circuit board, connectors, power cord, valves, and mounting plate—each part numbered for easy identification. Inspired by Torre Mariuccia. 2025 1st-line.com
# SKU
1 T02TU003
2 T01TU002
3 PRES0001
4 SOND0002
5 VITE4003
6 VITE4004
7 RELA001
8 LIV23002 (230-240V)
LIV11502 (115V)
9 VITE4007
10 T02SUP010
11 TUBR0001
12 INTE0006
13 TUBR0002
14 T02TU006
15 PASS0001
16 CAVO0001
17 T02TU002
18 T02TU001
19 MANO0001
20 INTE0002
21 LAMP0001
22 LAMP0002
23 TERM23002 (230V)
TERM11002 (110V)

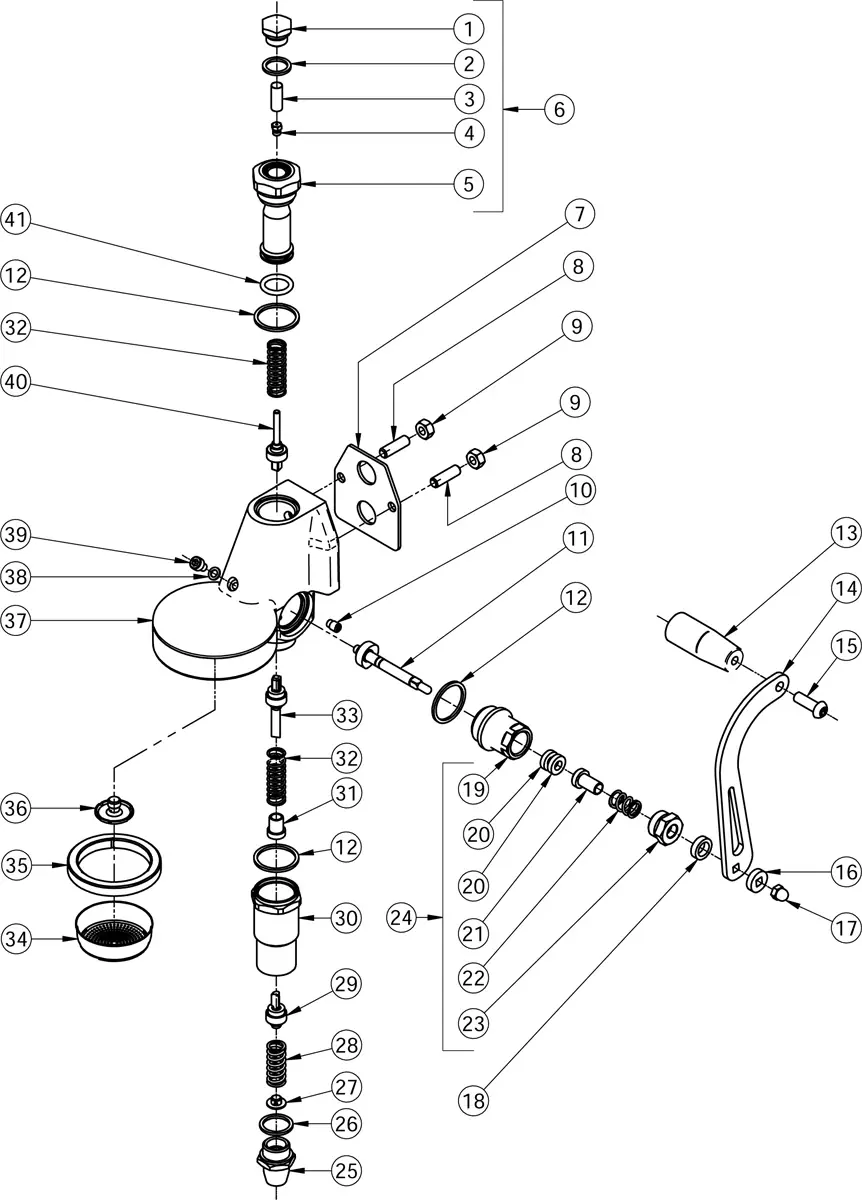

Exploded parts diagram of a mechanical device, showing numbered components like screws, washers, springs, a handle, and mounting hardware—perfect for assembly reference or detailing mechanisms such as those in Torre Mariuccia. 2025 1st-line.com
# SKU
1 RGRU0001
2 RGRU0002
3 RGRU0003
4 RGRU0004
5 RGRU0005
6 RGRU0006
7 GUAR0001
8 RGRU0007
9 DADO8001
10 RGRU0008
11 RGRU0009
12 RGRU0010
13 MANP0001
14 T01LEV001
15 VITE8004
16 T01R0N001
17 DADO6002
18 T01R0N002
19 RGRU0011
20 RGRU0012
21 RGRU0013
22 RGRU0014
23 RGRU0015
24 RGRU0016
25 RGRU0017
26 RGRU0018
27 RGRU0019
28 RGRU0020
29 RGRU0021
30 RGRU0022
31 RGRU0023
32 RGRU0024
33 RGRU0025
34 RGRU0026
35 RGRU0027
36 RGRU0028
37 RGRU0029
38 RGRU0030
39 RGRU0031
40 RGRU0032
41 RGRU0033
Exploded Parts Diagram of a faucet assembly with numbered components, including a handle, spout, connectors, washers, nuts, and other internal parts—all displayed separately for identification. Ideal for Torre Mariuccia fixtures. 2025 1st-line.com
# SKU
1 DADO1401
2 RONDG1401
3 RRUB0019
4 RRUB0020
5 MOLLA-V
6 RRUB0022
7 RRUB0023
8 RRUB0024
9 RRUB0025
10 RRUB0026
11 RRUB0027
12 RRUB0028
13 RRUB0029
14 RRUB0030
15 MANP0007
16 RRUB0031
17 RRUB0013
18 RRUB0012
19 RRUB0032
20 RRUB0033
21 RRUB0034
22 RRUB0035
23 23119005
24 RRUB0037
25 RRUB0038
26 RRUB0039
27 LANCA001
28 LANCV001
29 RUBIL0001

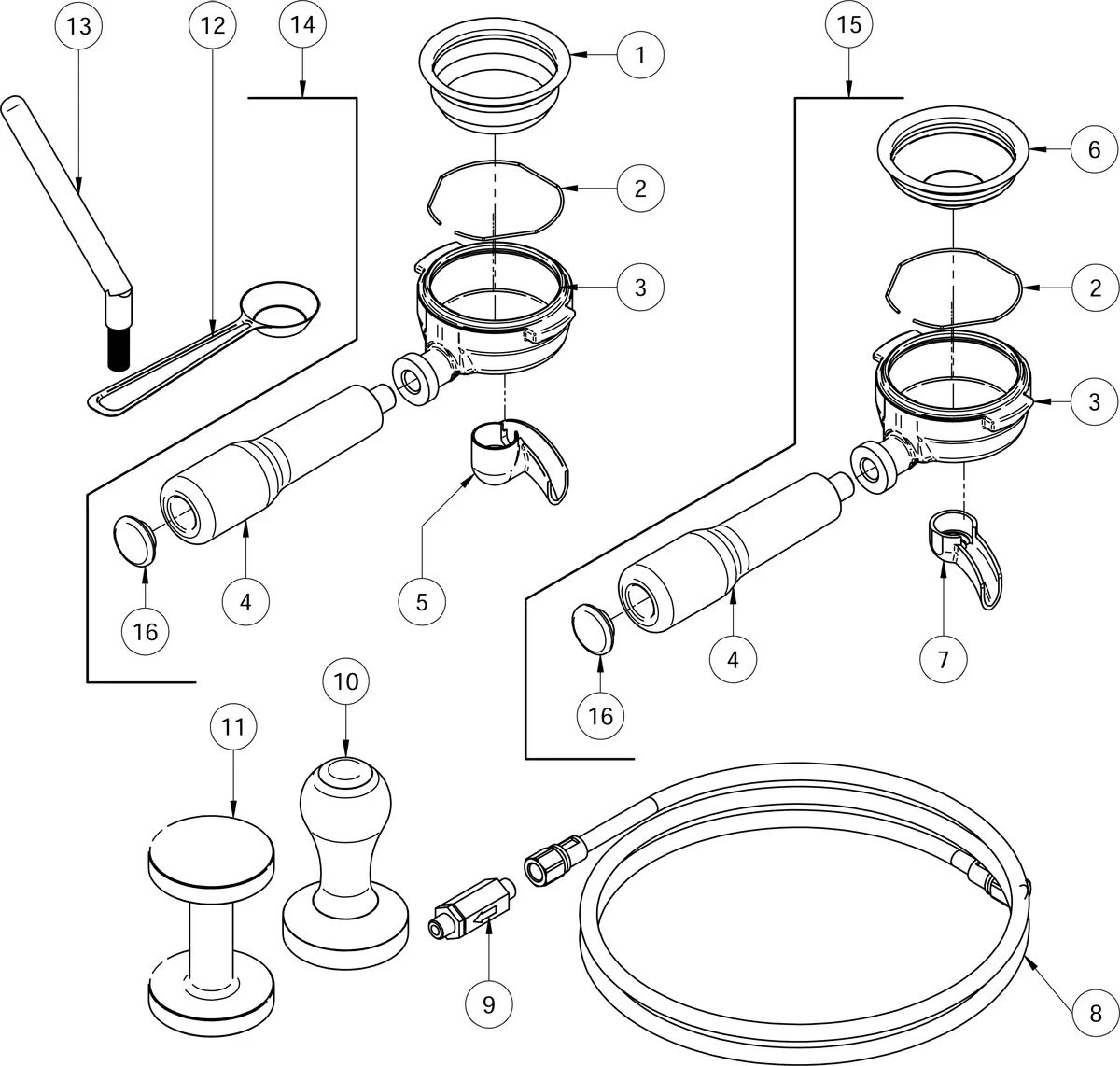

Black and white line drawing Parts Diagram of espresso machine portafilter assembly parts, including handles, baskets, rings, gaskets, filter, tamper, brush, spoon, hose, and small valve from Torre Mariuccia—each with numbered labels. 2025 1st-line.com
# SKU
1 FILT0003
2 ANEL0001
3 PTFL0001
4 MANP0005
5 BECC0002
6 FILT0002
7 BECC0001
8 FLEX0003
9 VALV0002
10 TAMP0002
11 TAMP0001
12 MISU0001
13 SPAZ0001
14 APTF2001
15 APTF1001
16 TAPP0001
