Parts Diagram – Lelit PL72-P William

  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website. If no results come up, more than likely we do not stock the part.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.

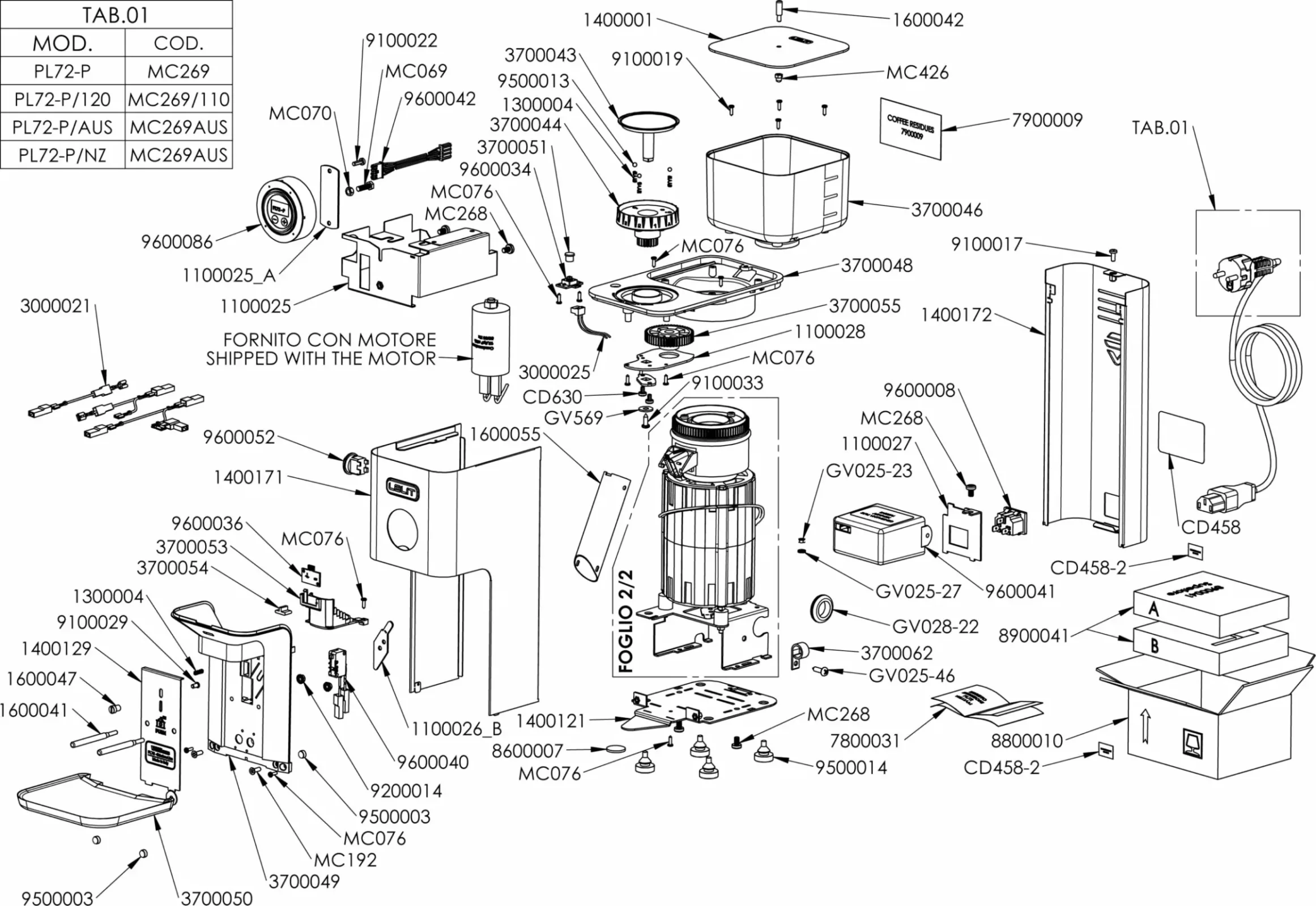

Lelit-PL72-P-parts-diagram--01
1100025 3700054 9600052
1100027 3700055 9600086
1100028 3700062 1100025_A
1300004 7800031 1100026_B
1400001 7900009 CD458
1400121 8600007 CD458-2
1400129 8800010 CD630
1400171 8900041 GV025-23
1400172 9100017 GV025-27
1600041 9100019 GV025-46
1600042 9100022 GV028-22
1600047 9100029 GV569
1600055 9100033 MC069
3000021 9200014 MC070
3000025 9500003 MC076
3700043 9500013 MC076
3700044 9500014 MC192
3700046 9600008 MC268
3700048 9600034 MC269 (230V)
3700049 9600036 MC269/110 (120V)
3700050 9600040 MC269AUS (AUS, NZ)
3700051 9600041 MC426
3700053 9600042

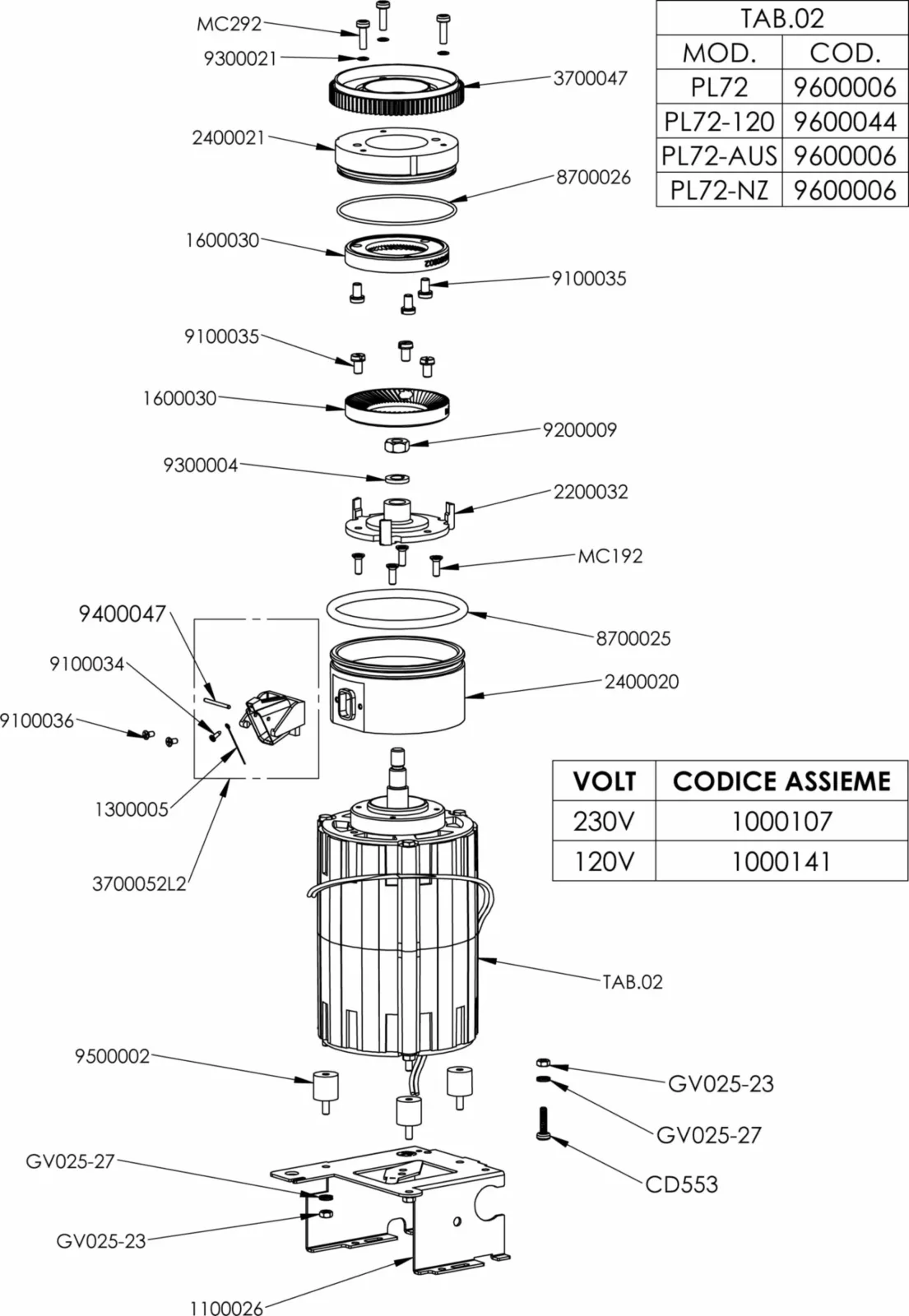

Lelit-PL72-P-parts-diagram--02
1100026
1300005
1600030
2200032
2400020
2400021
3700047
8700025
8700026
9100034
9100035
9100036
9200009
9300004
9300021
9400047
9500002
1000107 (230V)
1000141 (120V)
3700052L2
9600006 (230V)
9600044 (120V)
CD553
GV025-23
GV025-27
MC192
MC292
