Parts Diagram – Lelit PL62T Mara PID

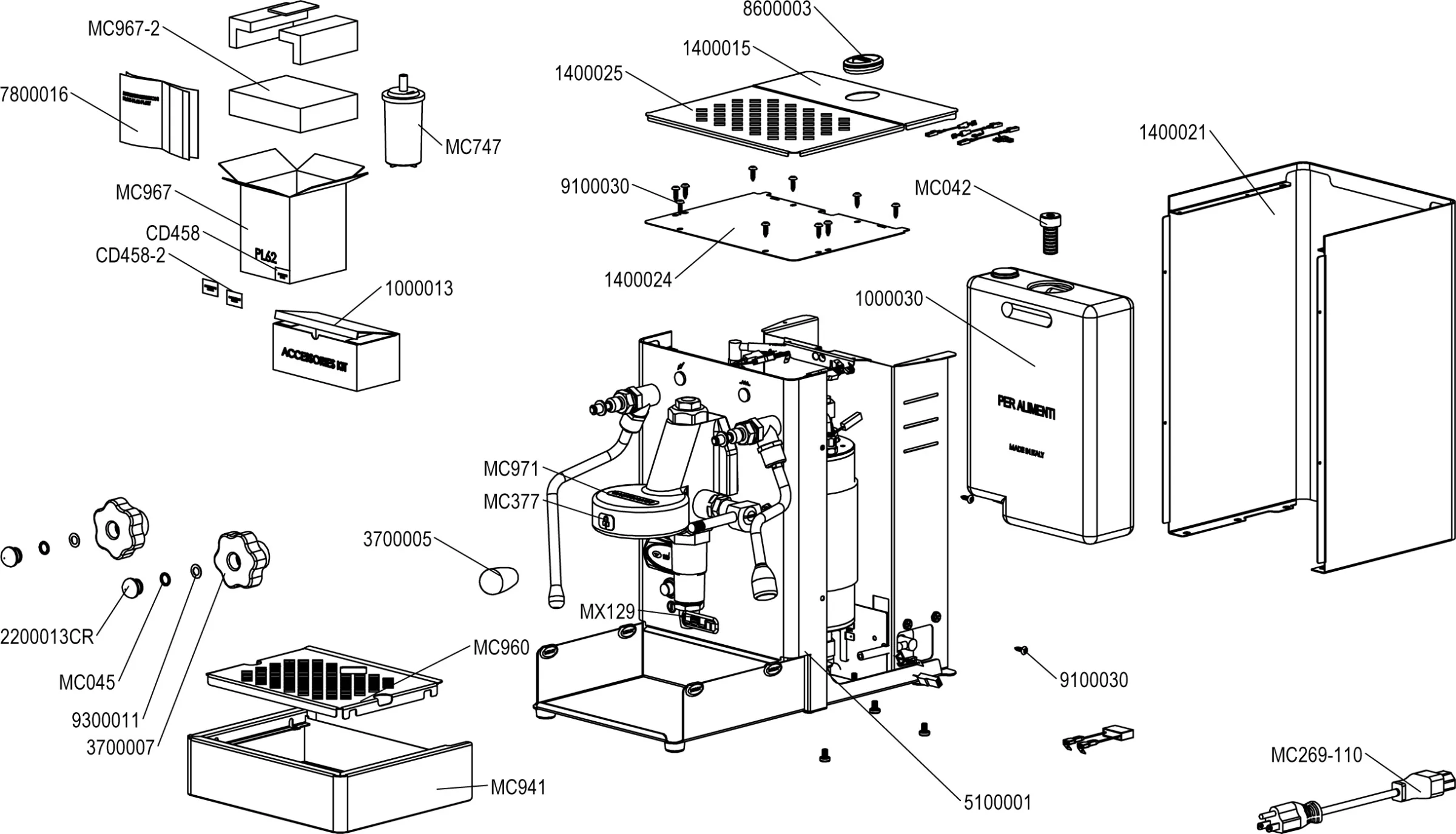

Lelit-PL62T-parts-diagram-01
1000013 CD458
1000030 CD458-2
1400015 MC042
1400021 MC045
1400024 MC269-110
1400025 MC377
2200013CR MC747
3700005 MC941
3700007 MC960
5100001 MC967
7800016 MC967-2
8600003 MC971
9100030 MX129
9300011

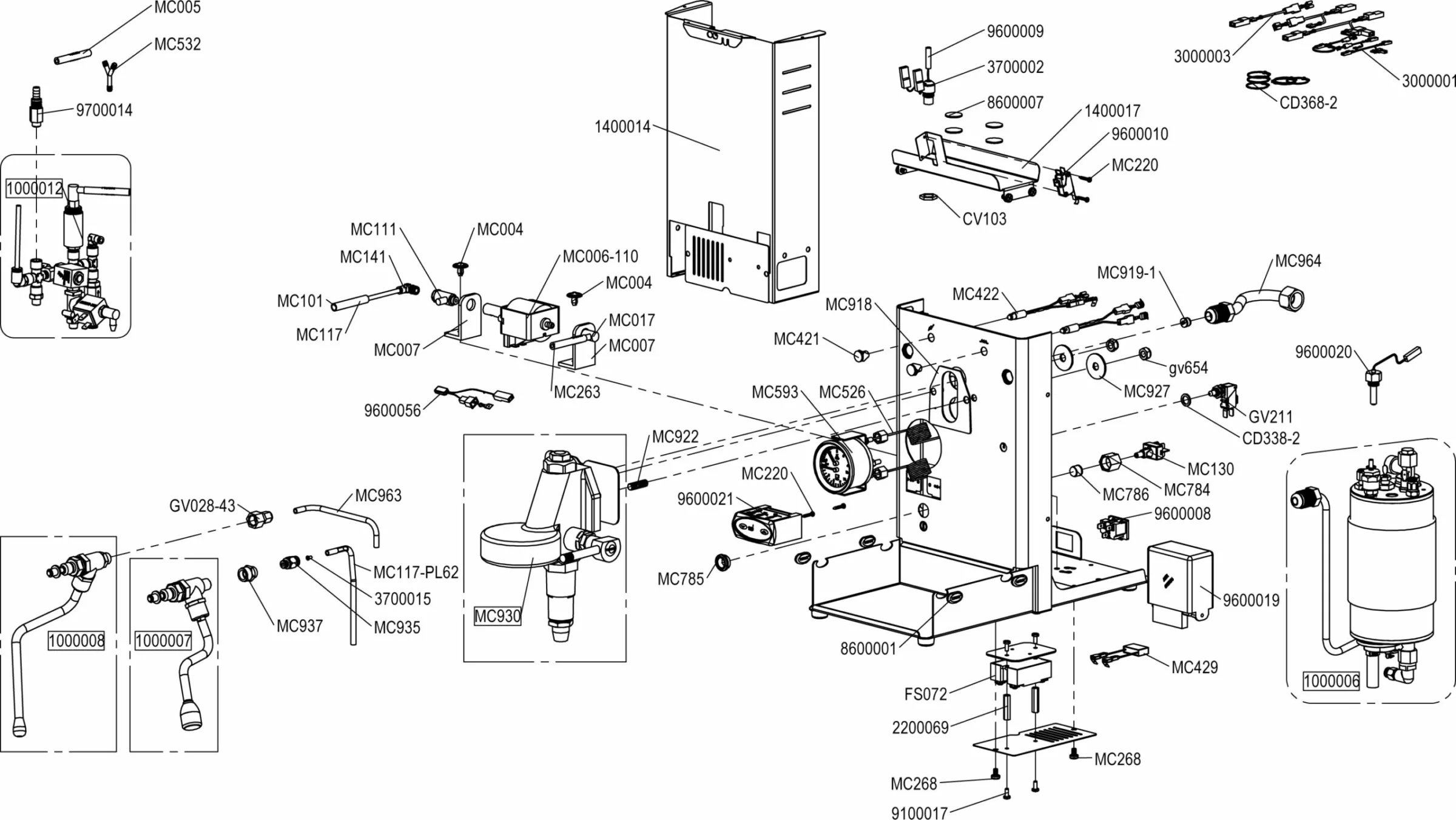

Lelit-PL62T-parts-diagram-02
1000006 9700014 MC263
1000007 CD338-2 MC268
1000008 CD368-2 MC421
1000012 CV103 MC422
1400014 FS072 MC429
1400017 GV028-43 MC526
2200069 GV211 MC532
3000001 GV654 MC593
3000003 MC004 MC784
3700002 MC005 MC785
3700015 MC006-110 MC786
8600001 MC007 MC918
8600007 MC017 MC919-1
9100017 MC101 MC922
9600008 MC111 MC927
9600009 MC117 MC930
9600010 MC117-PL62 MC935
9600019 MC130 MC937
9600020 MC141 MC963
9600021 MC220 MC964
9600056

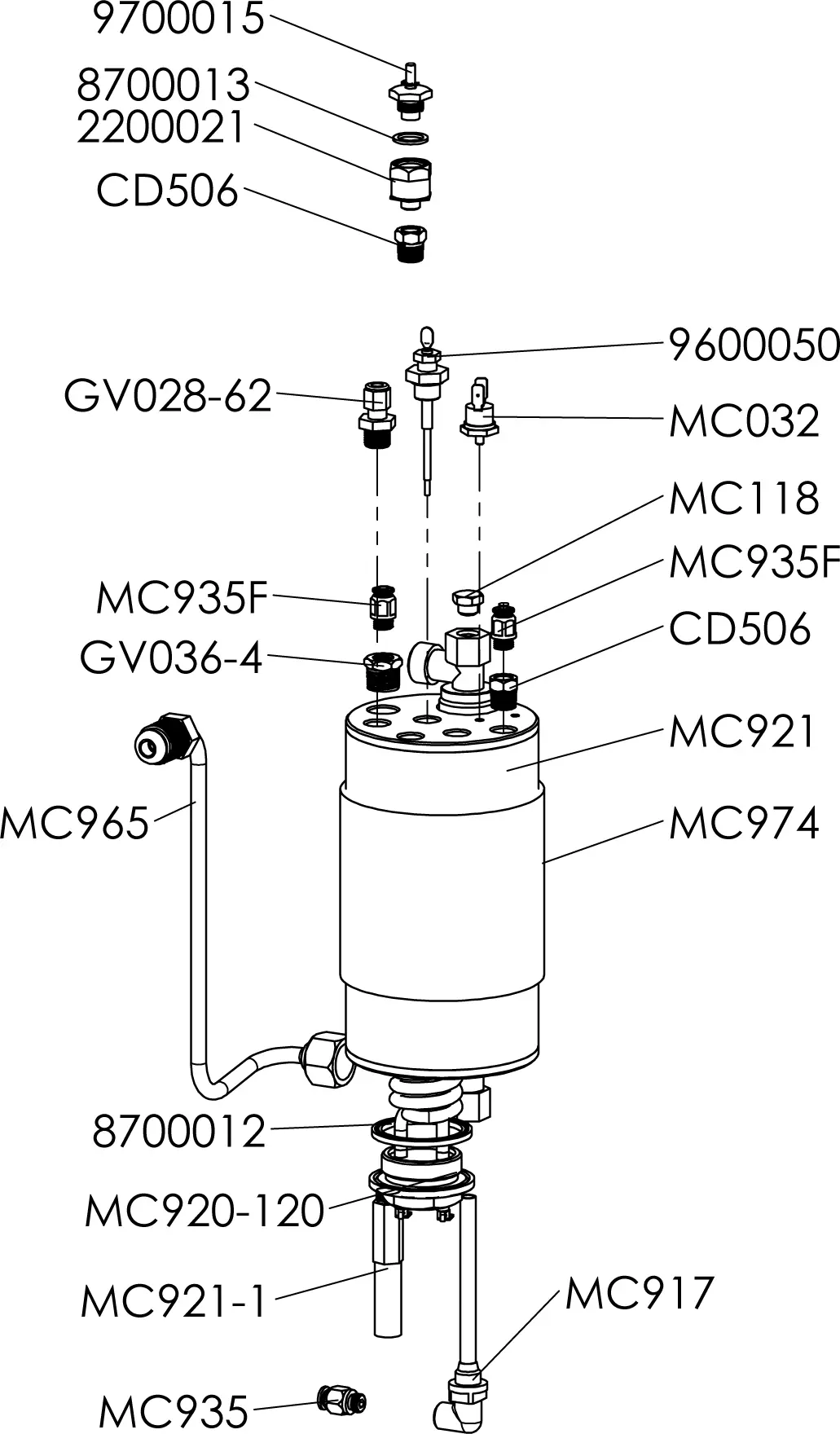

Lelit-PL62T-parts-diagram-03
2200021
8700012
8700013
9600050
9700015
CD506
GV028-62
GV036-4
MC032
MC118
MC917
MC920-120
MC921
MC921-1
MC935
MC935F
MC965
MC974

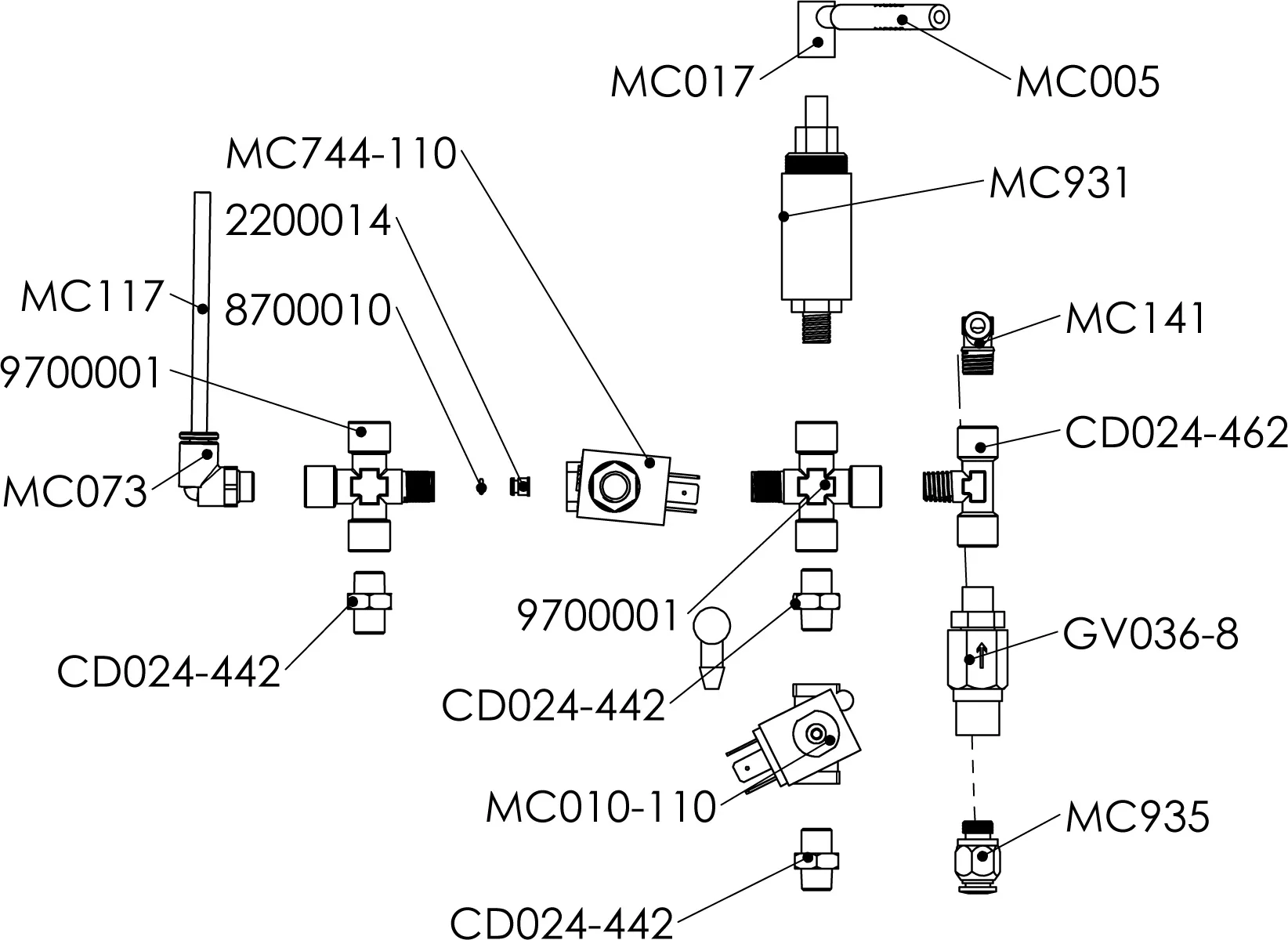

Lelit-PL62T-parts-diagram-04
2200014
8700010
9700001
CD024-442
CD024-462
GV036-8
MC005
MC010-110
MC017
MC073
MC117
MC141
MC744-110
MC931
MC935

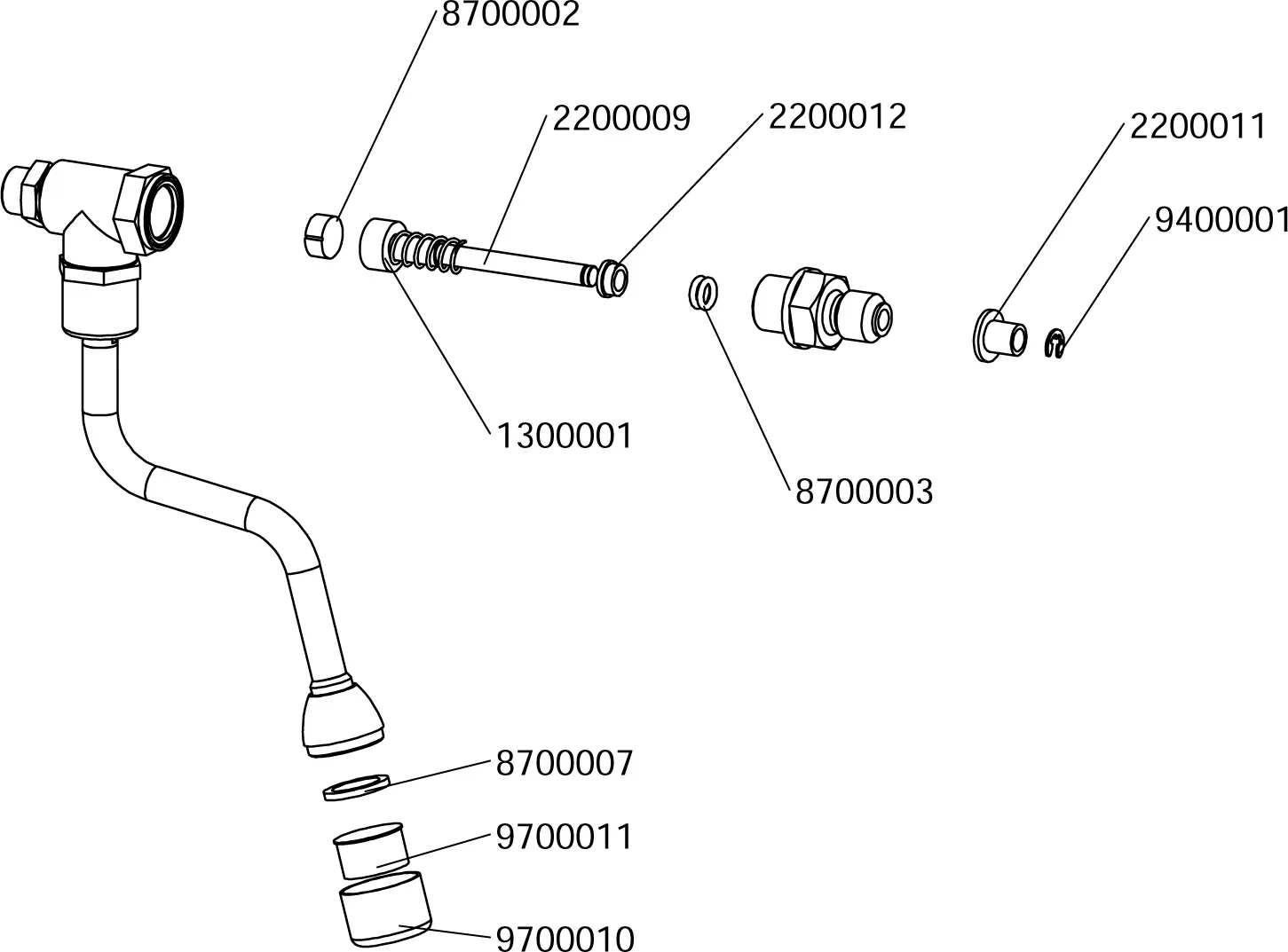

Lelit-PL62T-parts-diagram-05
1300001
2200009
2200011
2200012
8700002
8700003
8700007
9400001
9700010
9700011

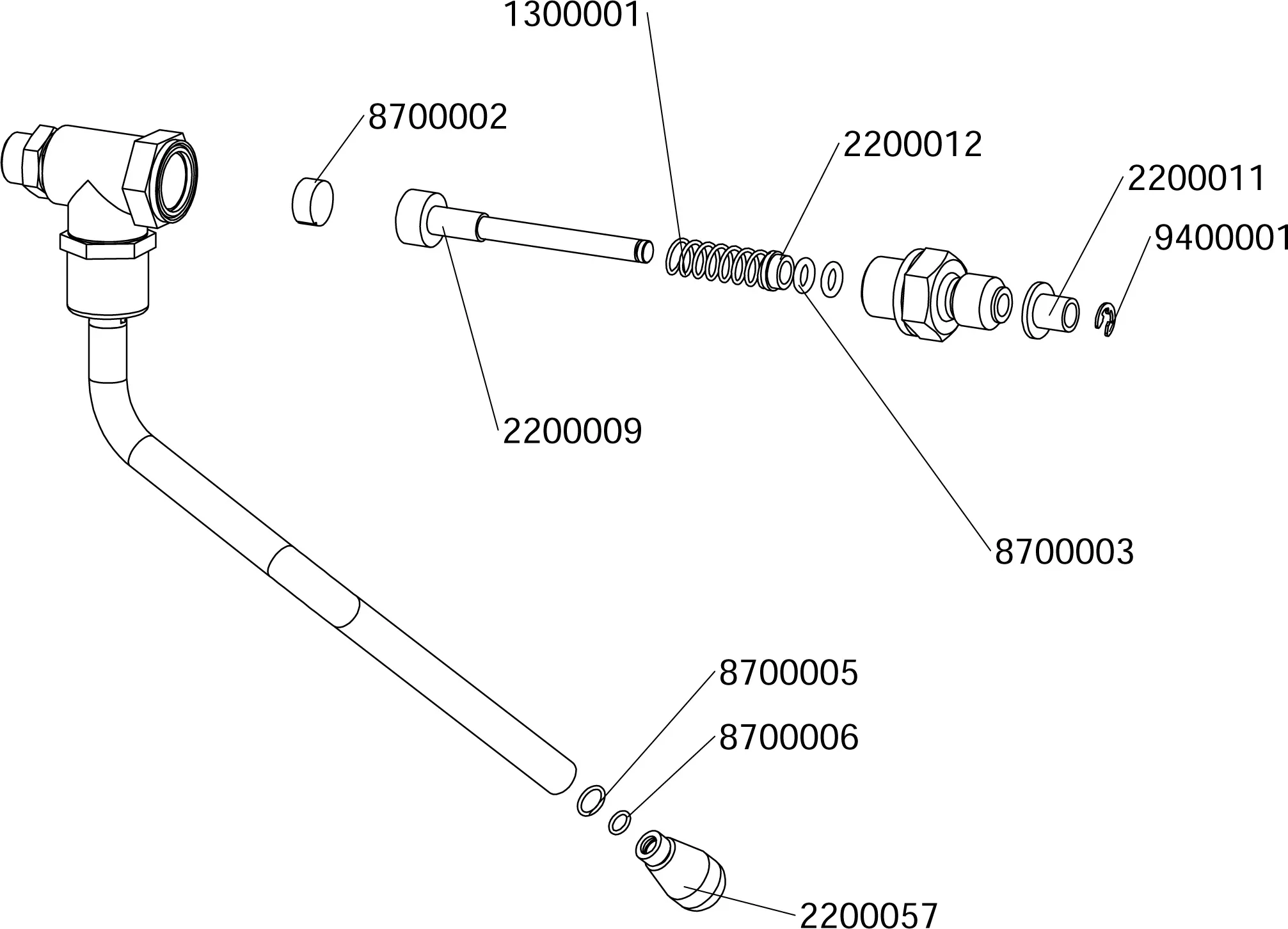

Lelit-PL62T-parts-diagram-06
1300001
2200009
2200011
2200012
2200057
8700002
8700003
8700005
8700006
9400001

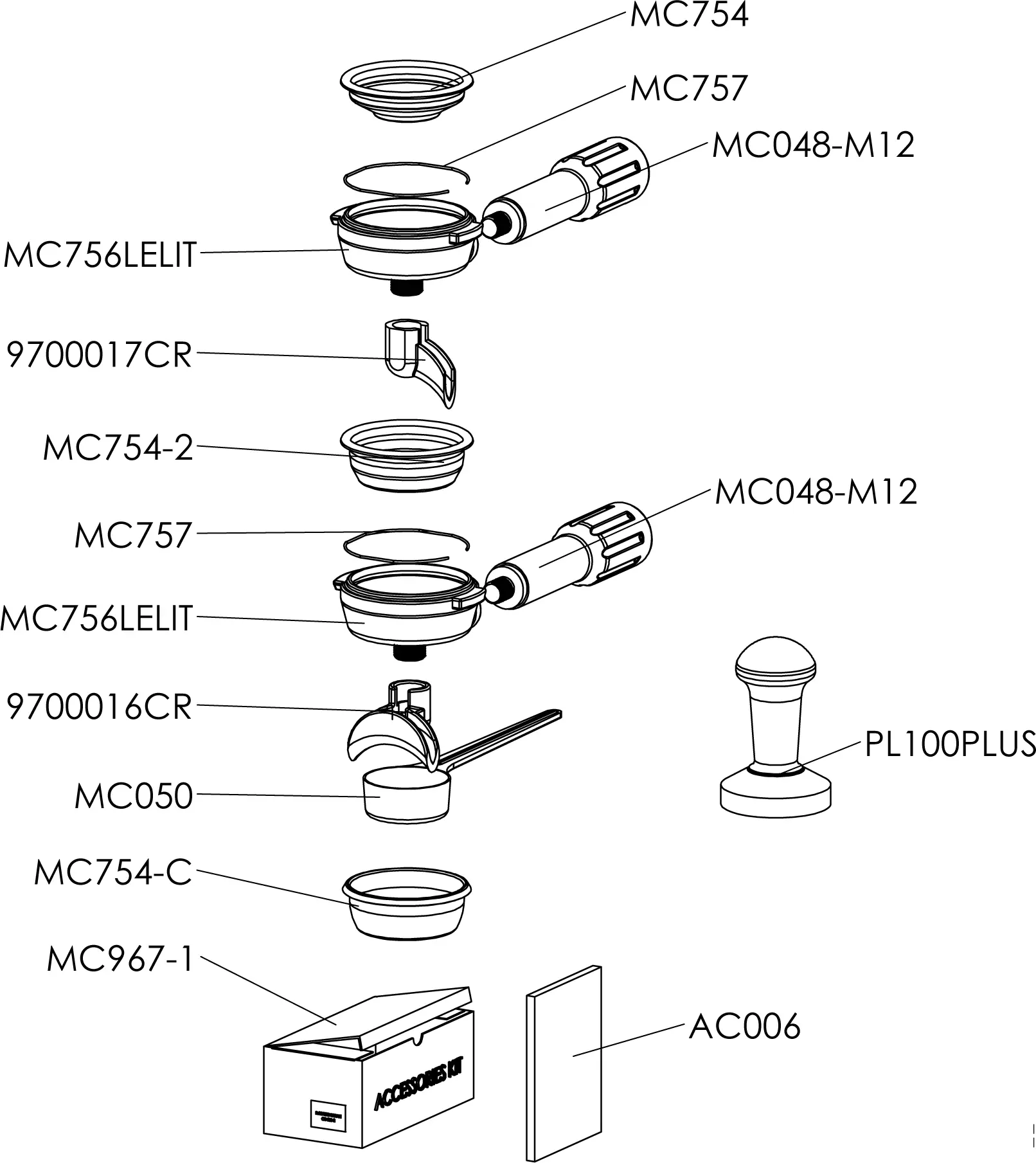

Lelit-PL62T-parts-diagram-07
9700016CR
9700017CR
AC006
MC048-M12
MC050
MC754
MC754-2
MC754-C
MC756LELIT
MC757
MC967-1
PL100PLUS

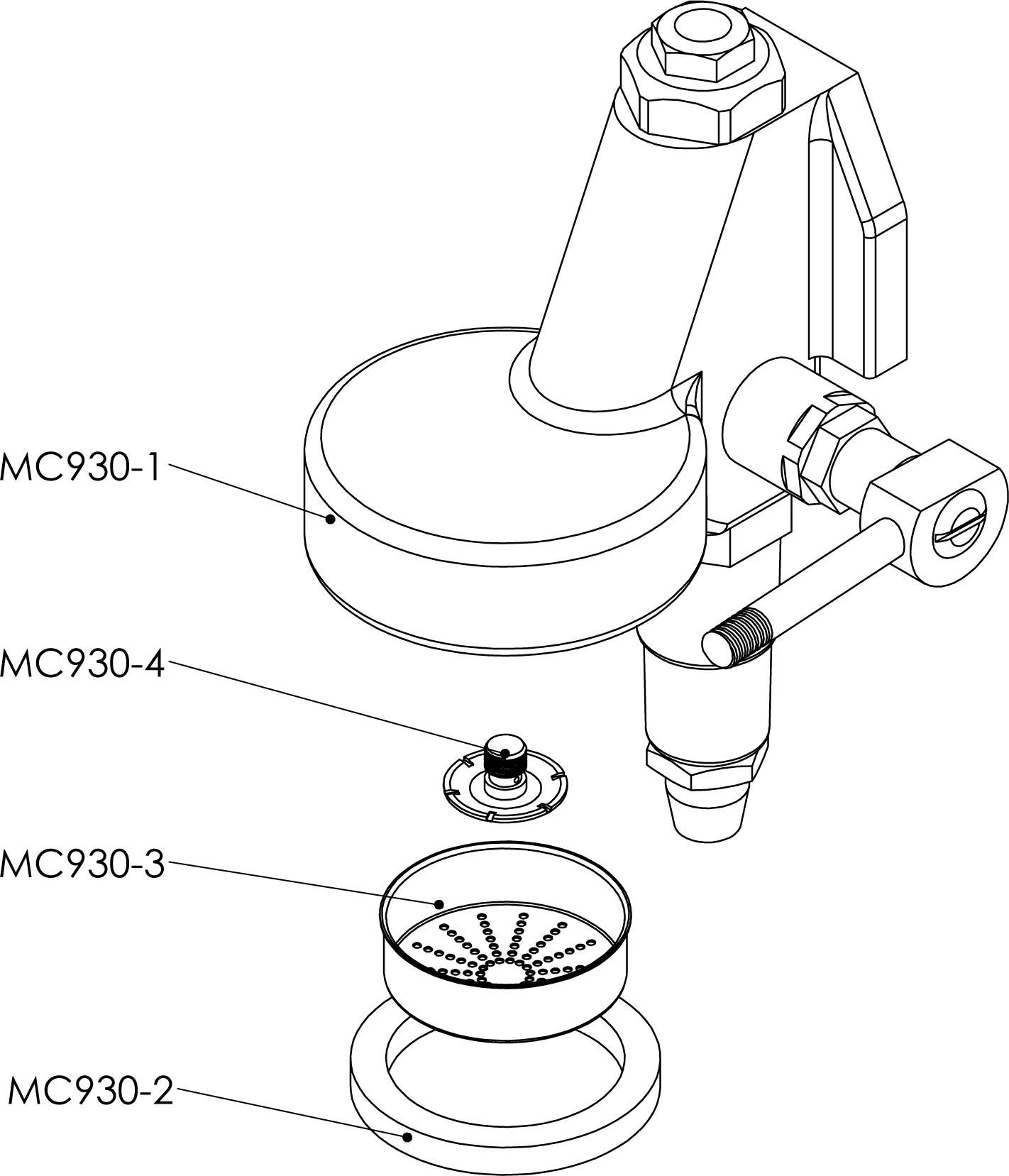

Lelit-PL62T-parts-diagram-08
MC930-1
MC930-2
MC930-3
MC930-4
