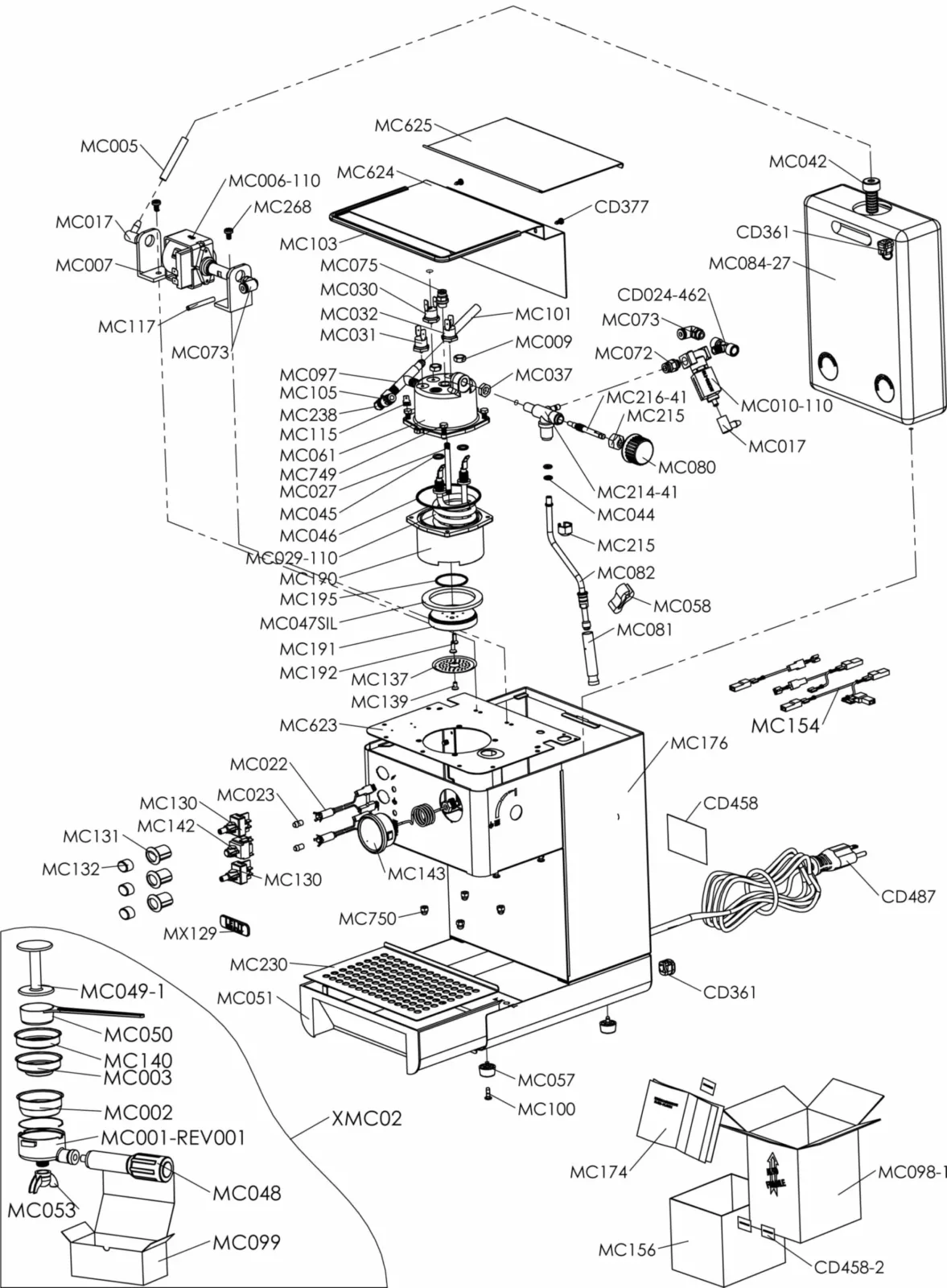

Parts Diagram – Lelit PL41EM Anna

  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website. If no results come up, more than likely we do not stock the part.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
CD024-462 MC047SIL MC132
CD361 MC048 MC137
CD377 MC049-1 MC139
CD458 MC050 MC140
CD458-2 MC051 MC142
CD487 MC053 MC143
MC001-REV001 MC057 MC154
MC002 MC058 MC156
MC003 MC061 MC174
MC005 MC072 MC176
MC006-110 MC073 MC190
MC007 MC075 MC191
MC009 MC080 MC192
MC010-110 MC081 MC195
MC017 MC082 MC214-41
MC022 MC084-27 MC215
MC023 MC097 MC216-41
MC027 MC098-1 MC230
MC029-110 MC099 MC268
MC030 MC100 MC623
MC031 MC101 MC624
MC032 MC103 MC625
MC037 MC105 MC749
MC042 MC115 MC750
MC044 MC117 MX129
MC045 MC130 XMC02
MC046 MC131
