Parts Diagram – Lelit PL043MMI Fred

  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website. If no results come up, more than likely we do not stock the part.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.

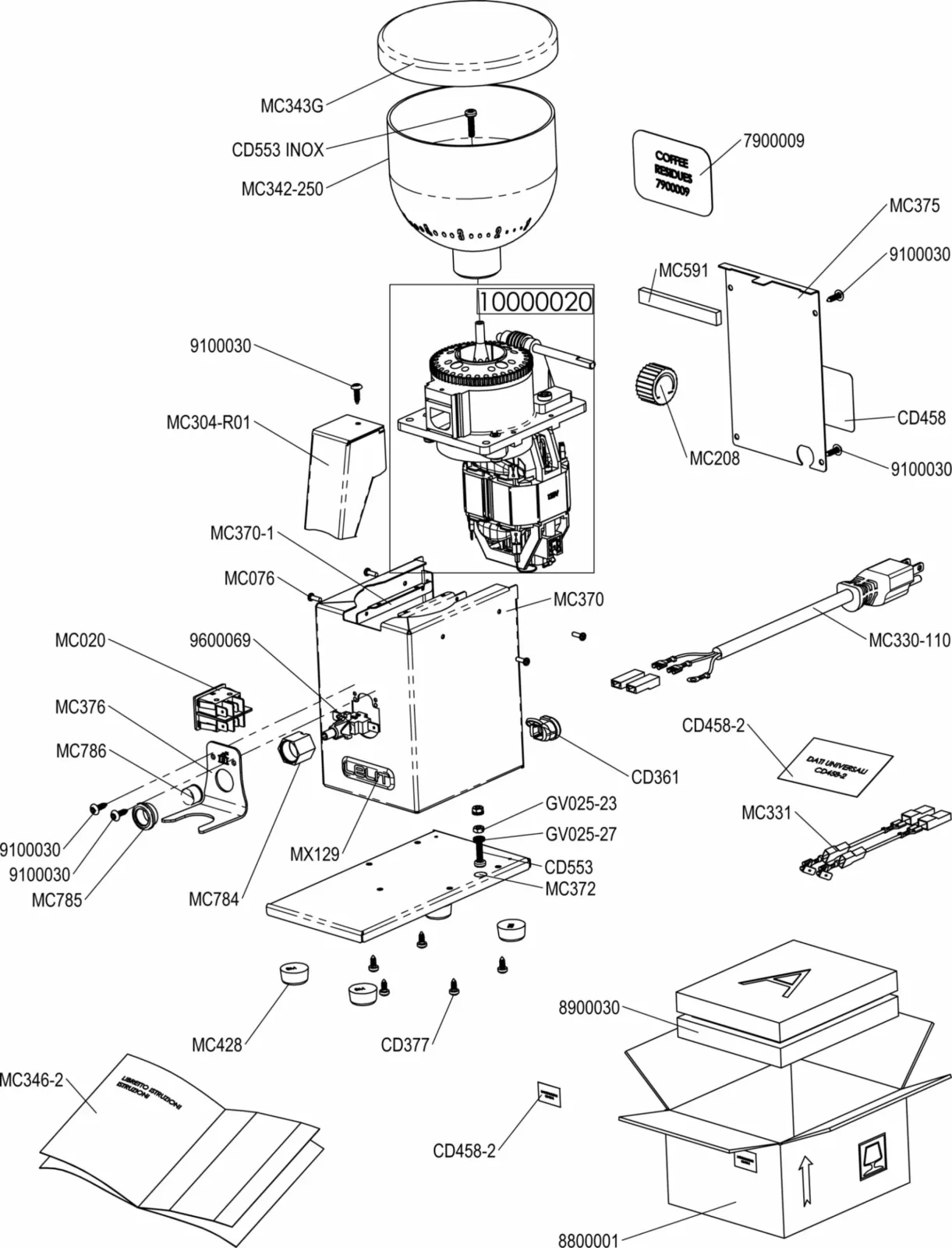

Lelit-PL043MMI-parts-diagram
10000020 MC304-R01
7900009 MC330-110
8800001 MC331
8900030 MC342-250
9100030 MC343G
9600069 MC346-2
CD361 MC370
CD377 MC370-1
CD458 MC372
CD458-2 MC375
CD553 MC376
CD553INOX MC428
GV025-23 MC591
GV025-27 MC784
MC020 MC785
MC076 MC786
MC208 MX129

Lelit-PL044MM-parts-diagram-02
1000011 MC210
1000020 MC217
1400156 MC221
1600001 MC234
3700010 MC245
9100022 MC248
9300001 MC249
AST113 MC288
CD377 MC289
CD553INOX MC290
CVMC246 MC293
CVMC246-1 MC311
GV025/46 MC373
GV565 MC607
