Parts Diagram – Lelit PL042QE Anita

  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website. If no results come up, more than likely we do not stock the part.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.

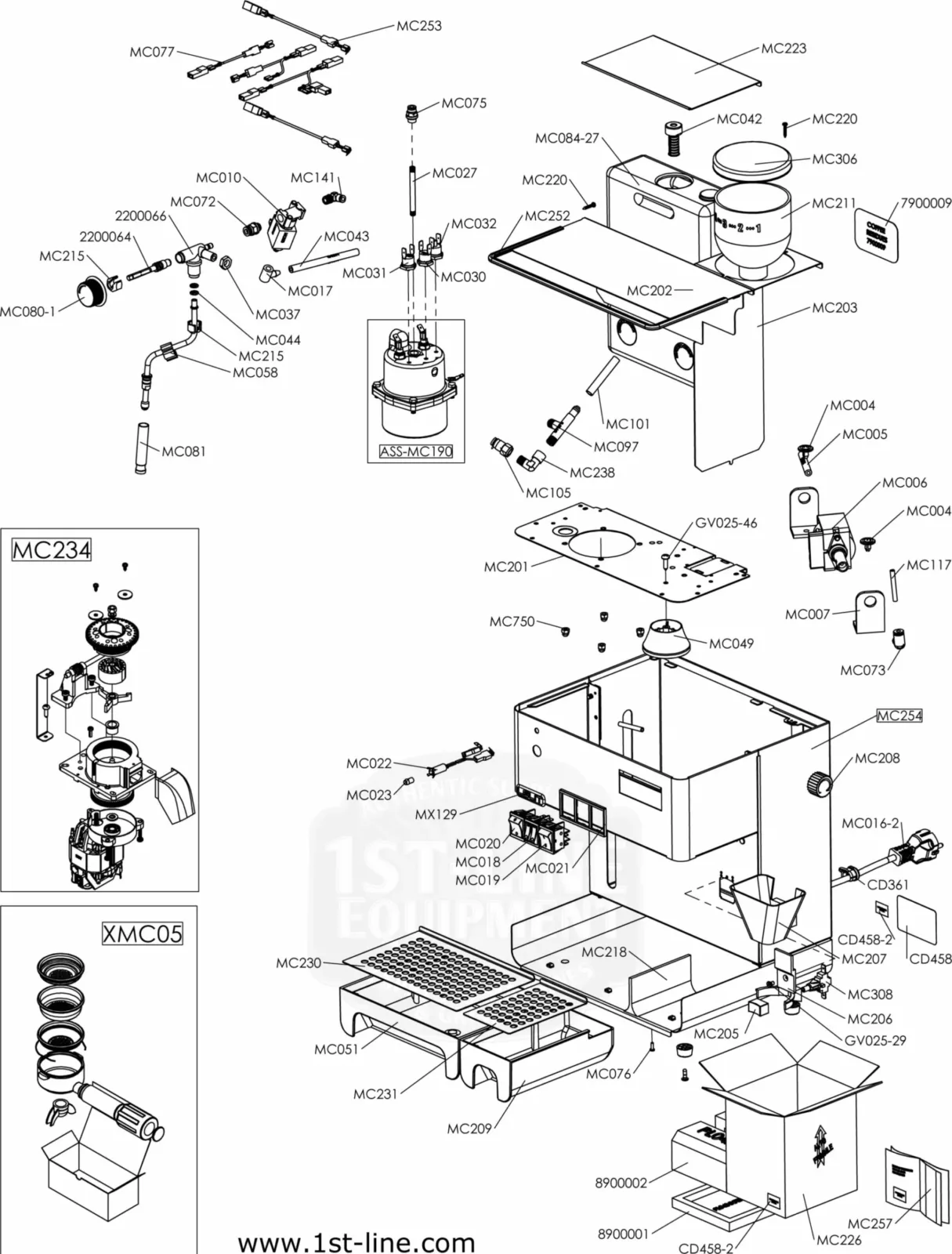

Lelit-PL042QE-parts-diagram-01
2200064 MC075
2200066 MC076
7900009 MC077
8900001 MC080-1
8900002 MC081
ASS-MC190 MC084-27
CD361 MC097
CD458 MC101
CD458-2 MC105
CD458-2 MC117
GV025-29 MC141
GV025-46 MC201
MC004 MC202
MC005 MC203
MC006 MC205
MC007 MC206
MC010 MC207
MC016-2 MC208
MC017 MC209
MC018 MC211
MC019 MC215
MC020 MC218
MC021 MC220
MC022 MC223
MC023 MC226
MC027 MC230
MC030 MC231
MC031 MC234
MC032 MC238
MC037 MC252
MC042 MC253
MC043 MC254
MC044 MC257
MC049 MC306
MC051 MC308
MC058 MC750
MC072 MX129
MC073 XMC05

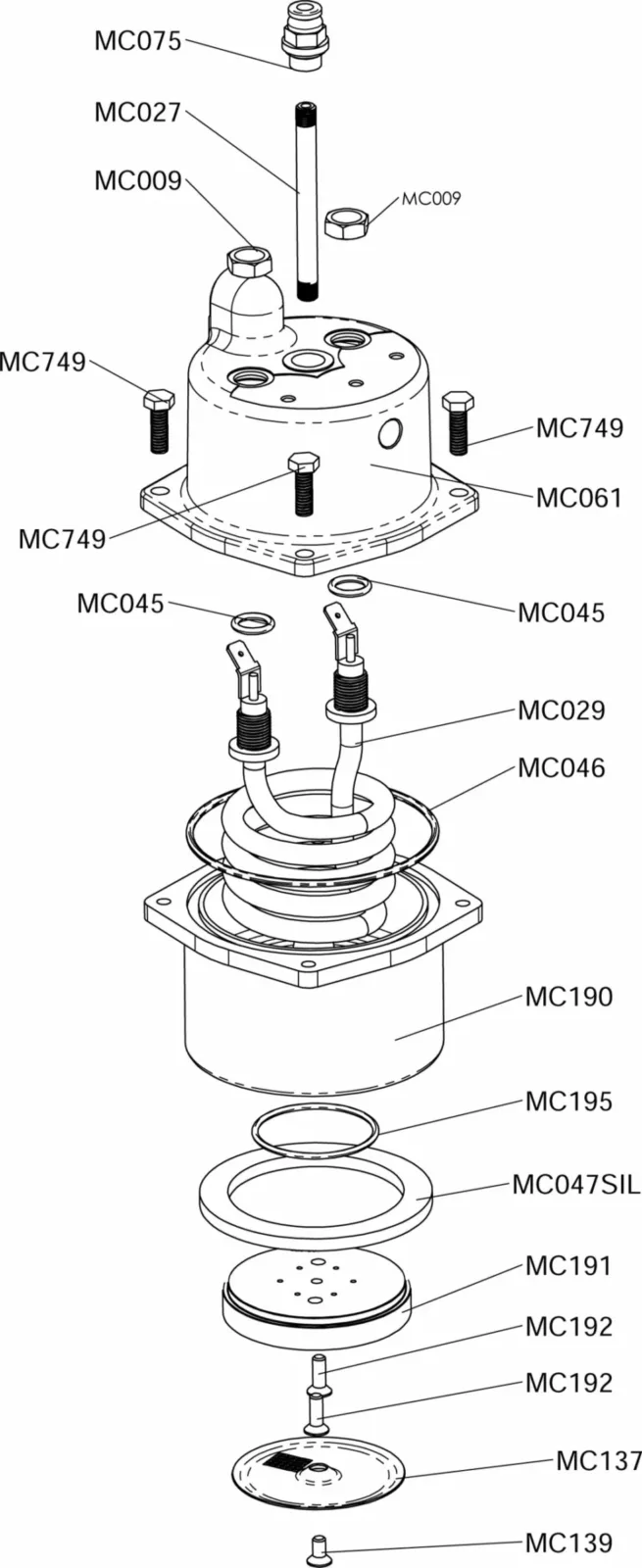

Lelit-PL042TEMD-parts-diagram-02
MC009
MC027
MC029
MC045
MC046
MC047SIL
MC061
MC075
MC137
MC139
MC190
MC191
MC192
MC195
MC749

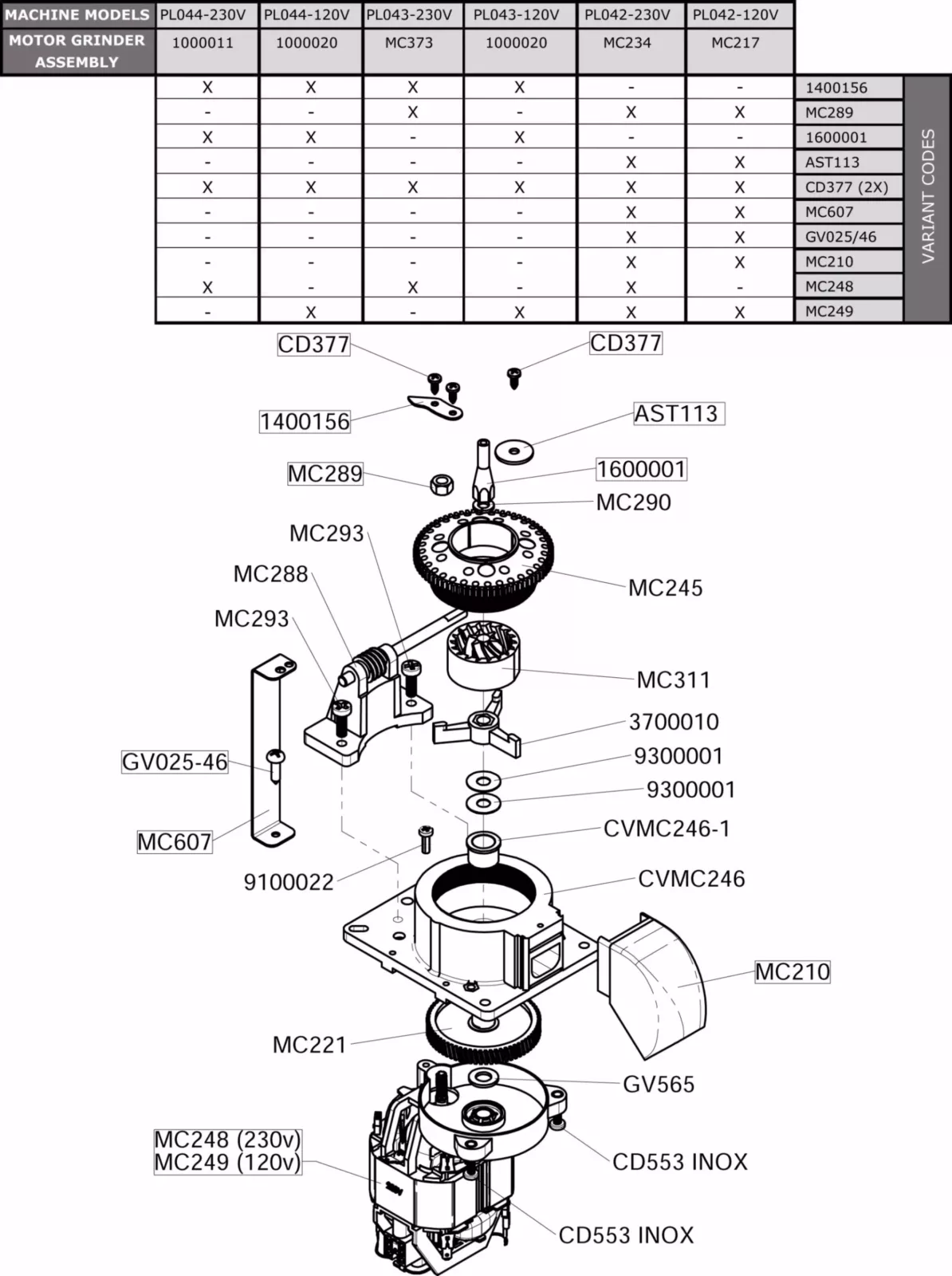

Lelit-PL044MM-parts-diagram-02
1000011
1000020
1400156
1600001
3700010
9100022
9300001
AST113
CD377
CD553INOX
CVMC246
CVMC246-1
GV025/46
GV565
MC210
MC217
MC221
MC234
MC245
MC248
MC249
MC288
MC289
MC290
MC293
MC311
MC373
MC607
