Parts Diagram – Lelit PL041 Anna

  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website. If no results come up, more than likely we do not stock the part.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.

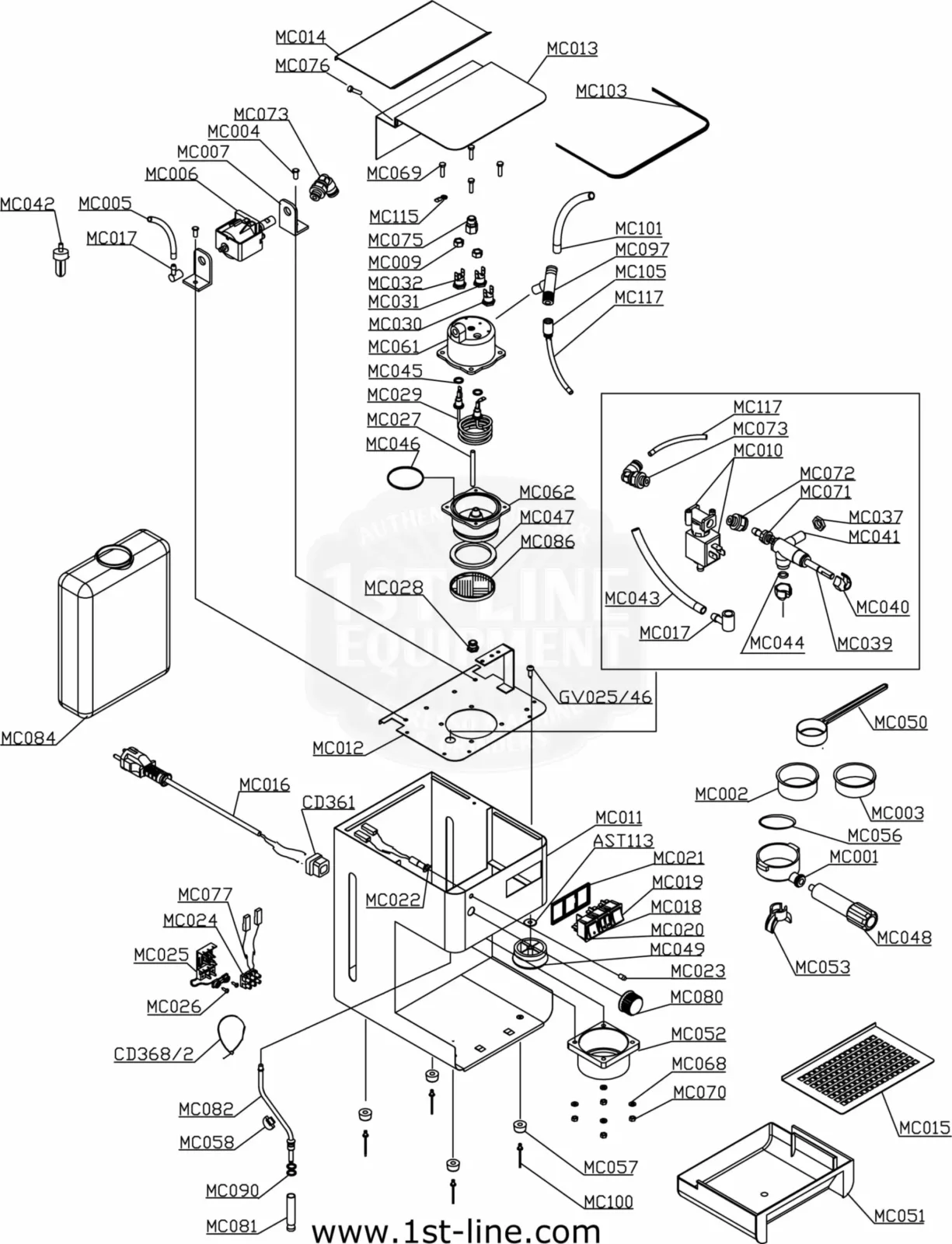

Lelit-PL041-parts-diagram-01
AST113MC042
CD361MC043
CD368/2MC044
GV025/46MC045
MC001MC046
MC002MC047
MC003MC048
MC004MC049
MC005MC050
MC006MC051
MC007MC052
MC009MC053
MC010MC056
MC011MC057
MC012MC058
MC013MC061
MC014MC062
MC015MC068
MC016MC069
MC017MC070
MC018MC071
MC019MC072
MC020MC073
MC021MC075
MC022MC076
MC023MC077
MC024MC080
MC025MC081
MC026MC082
MC027MC084
MC028MC086
MC029MC090
MC030MC097
MC031MC100
MC032MC101
MC037MC103
MC039MC105
MC040MC115
MC041MC117
