Eureka Mignon Silenzio Parts Diagram

Finding your part
  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website. If no results come up, more than likely we do not stock the part.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
  • Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.

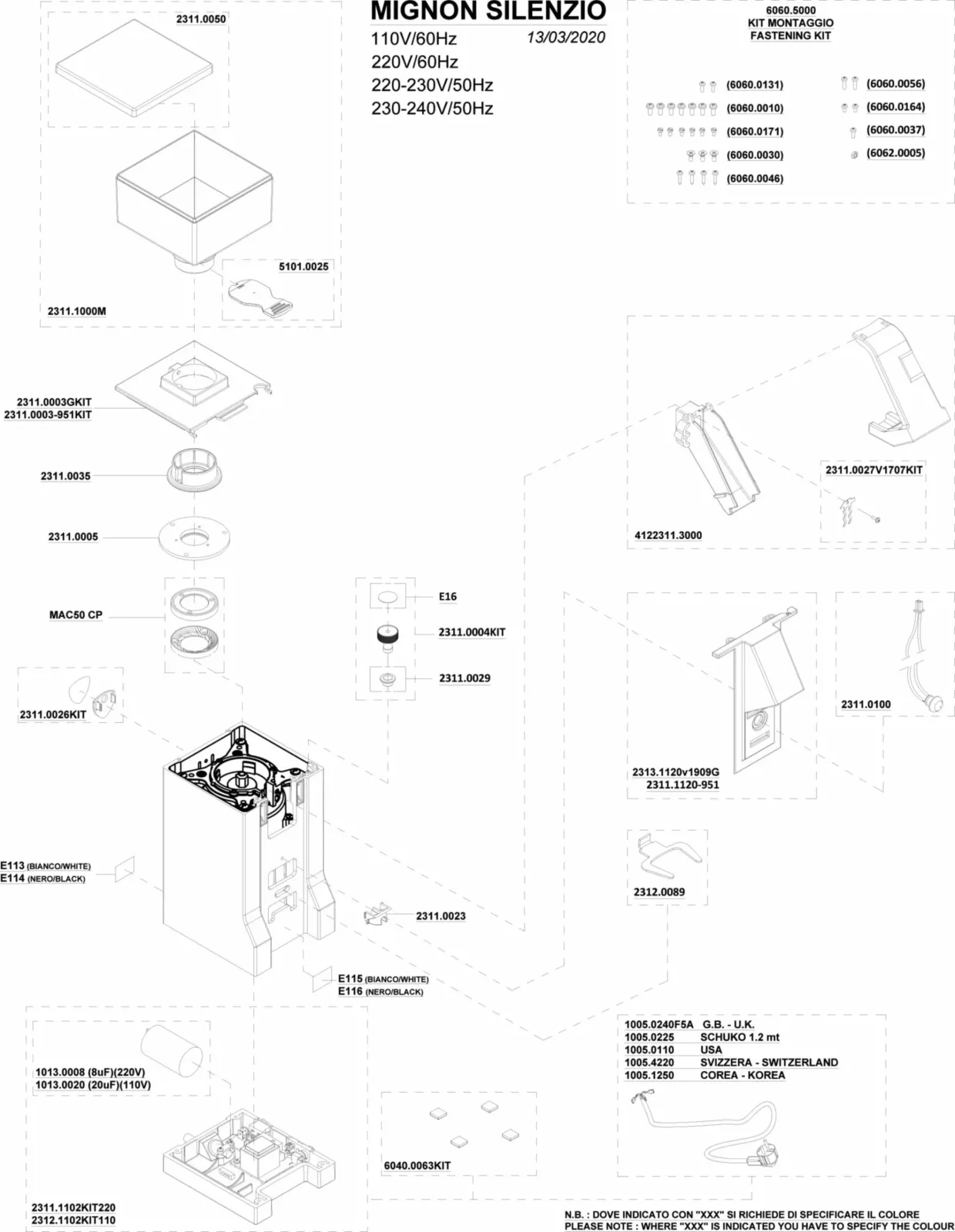

Parts-Diagram-Eureka-Mignon-Silenzio
SKU
1005.0110
1005.0225
1005.0240F5A
1005.1250
1005.4220
1013.0008
1013.1020
2311.0003-951
2311.0003G
2311.0005
2311.0023
2311.0026KIT
2311.0027V1707KIT
2311.0035
2311.0050
2311.0100KIT
2311.1000M
2311.1000MKFN
2311.1102KIT
2311.1102KIT
2313.1120v1909G
2311.1120-951
2312.0089
2311.0029
2311.0004KIT
4122311.3000
6040.0063KIT
6060.5000KIT
E113
E114
E115
E116
E16
MAC50
