Eureka Atom Specialty 75 Parts Diagram

Finding your part
  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website.
    Note: These parts diagrams are provided by the manufacturers. We list them on our site for informational purposes only. We do not stock every single part listed nor can we guarantee that every part is available to order.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
  • Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.

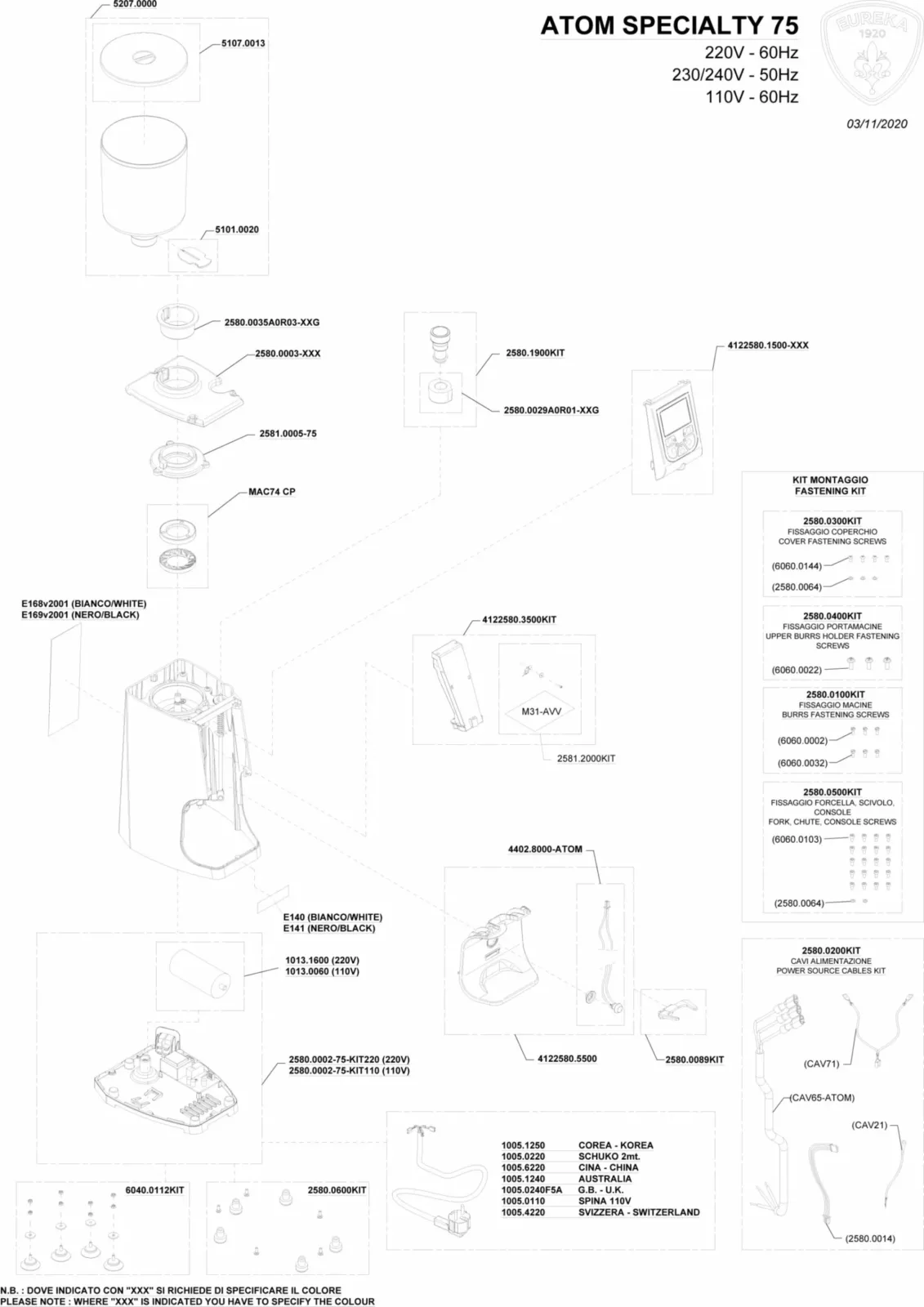

Technical parts diagram for the Atom Specialty 75 coffee grinder, showing labeled components, part numbers, exploded views of internal and external parts, and a legend for part identification. © 2025 1st-line.com
SKUDescription
1005.0110USA/CANADA PLUG V110
1005.0220SCHUKO PLUG 2 mt V220
1005.0240F5AU.K. PLUG V230-240
1005.1240AUSTRALIA PLUG V230-240
1005.1250KOREA PLUG V220
1005.4220SWITZERLAND PLUG V220-230
1005.6220CHINA PLUG V220-230
1013.0060CAPACITOR 60 μF
1013.1600CAPACITOR 16 μF
2580.0002-75-KIT110BASE GROUP V110
2580.0002-75-KIT220BASE GROUP V220
2580.0003-XXXATOM COVER (PAINT)
2580.0029A0R01-XXGPOMMEL SEAL ATOM
2580.0035A0R03-XXGBEAN HOPPER SEAL ATOM
2580.0089KITADJUSTABLE FORK KIT ATOM
2580.0100KITBURRS FASTENING SCREWS
2580.0200KITPOWER SOURCE CABLES KIT
2580.0300KITSCREWS KIT - COVER FASTENING
2580.0400KITUPPER BURRS HOLDER FASTENING SCREWS
2580.0500KITSCREWS KIT FORK, CHUTE AND CONSOLE
2580.0600KITSCREWS KIT - BASE SET FASTENING
2580.1900KITKNOB KIT ATOM
2581.0005-75UPPER BURRS HOLDER 75mm ATOM
2581.2000KIT0,25mm THUNDER (HANDBOOK INCLUDED)
4122580.1500-951CONTROL PANEL SET ATOM 110V / 220-230V (CHROME)
4122580.1500-XXXCONTROL PANEL SET ATOM 110V / 220-230V (PAINT)
4122580.3500KITCOFFEE EXIT SLIDE GROUP
4122580.5500FORK GROUP ATOM
4402.8000-ATOMMICRO-SWITCH
5101.0020HOPPER TAB
5102.0013CYLINDER HOPPER COVER
5207.0000CYLINDER HOPPER
E138WHITE FRONT ATOM 75 LABELS
E139BLACK FRONT ATOM 75 LABELS
E188EUREKA 1920 ATOM LABELS
MAC74 CPATOM FLAT BURR SET 75MM
