Eureka Atom 60 Parts Diagram

Below is the Eureka Atom 60 Parts Diagram from the manufacturer. Use the diagram below to find the SKU of the part you are looking for. Use the SKU in our search box at the top of our page. If no search results are found, use our parts inquiry page for further assistance.

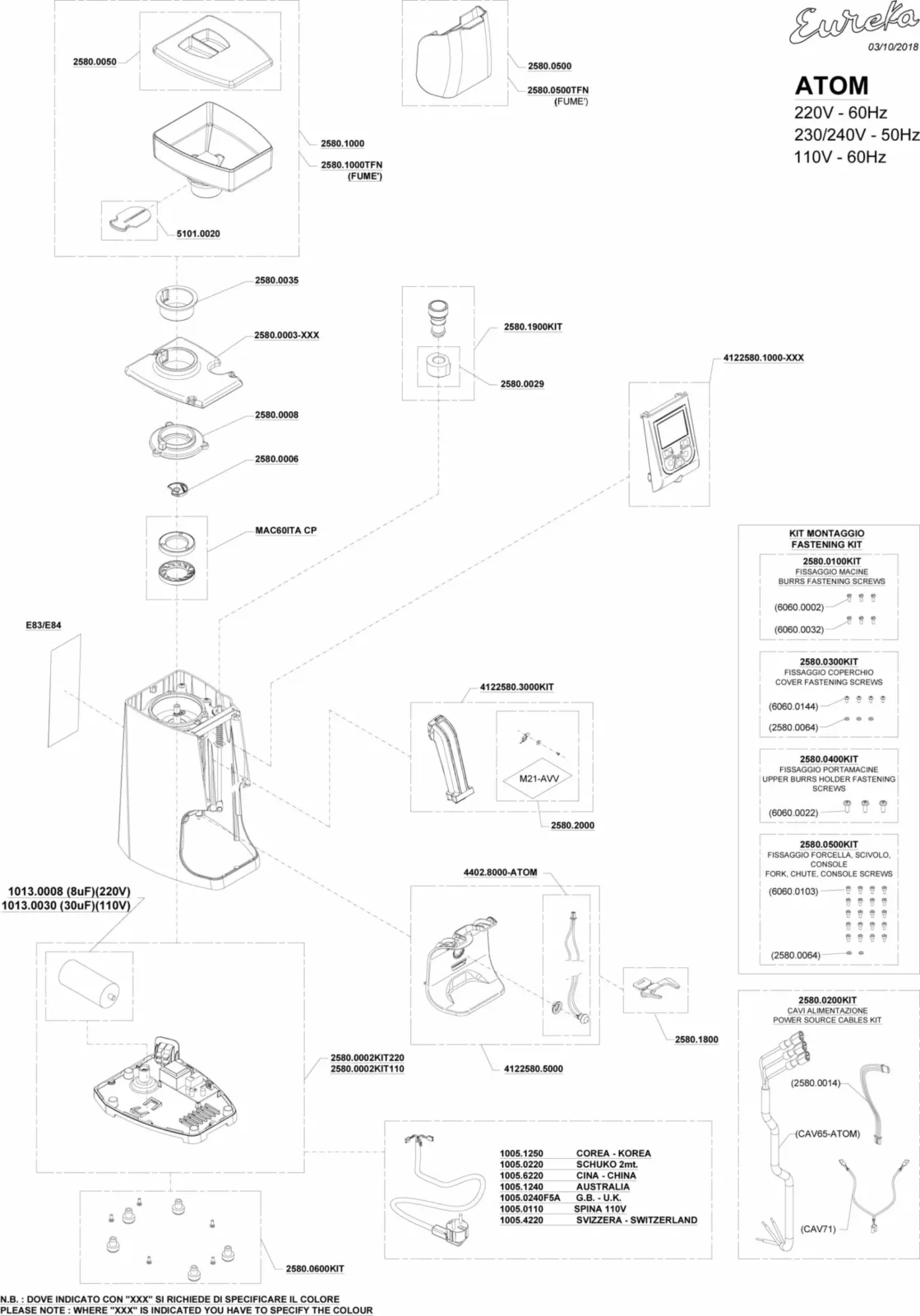

Eureka Atom 60 Parts Diagram

Eureka Atom 60 Parts Diagram
enlarge

SKU DESCRIPTION
1005.0110 USA/CANADA PLUG V110
1005.0220 SCHUKO PLUG 2 mt V220
1005.0240F5A U.K. PLUG V230-240
1005.1240 AUSTRALIA PLUG V230-240
1005.1250 KOREA PLUG V220
1005.4220 SWITZERLAND PLUG V220-230
1005.6220 CHINA PLUG V220-230
1013.0008 CAPACITOR8 / 450I
1013.0030 CAPACITOR 30μF 400-450Vac 50/60Hz (UL)
2580.0200KIT POWER SOURCE CABLES KIT
2580.0002KIT110 BASE GROUP V110
2580.0002KIT220 BASE GROUP V220
2580.0003-951 ATOM COVER + SEALS (CHROME)
2580.0003-XXX ATOM COVER (PAINT)
2580.0006 COFFEE -PUSHING COCHLEA
2580.0008 UPPER BURRS HOLDER ATOM
2580.0029 POMMEL SEAL ATOM
2580.0035 BEAN HOPPER SEALATOM
2580.0050 BEAN HOPPER’S COVER
2580.0100 MICRO-SWITCH
2580.0100KIT BURRS FASTENING SCREWS
2580.0300KIT SCREWS KIT -COVER FASTENING
2580.0400KIT UPPER BURRS HOLDER FASTENING SCREWS
2580.0500 BASKET FOR BREW COFFEE ATOM
2580.0500KIT SCREWS KIT FORK, CHUTE AND CONSOLE
2580.0500TFN BASKET FOR BREW COFFEE ATOM FUME’
2580.0600KIT SCREWS KIT -BASE SET FASTENING
2580.1000 BEAN HOPPER ATOM
2580.1000TFN BEAN HOPPER ATOM FUME’
2580.1800 ADJUSTABLE FORK KIT ATOM
2580.1900KIT KNOB KIT ATOM
2580.2000 0,25mm THUNDER (HANDBOOK INCLUDED)
4122580.1000-951 CONTROL PANEL SET ATOM 110V / 220-230V (CHROME)
4122580.1000-XXX CONTROL PANEL SET ATOM 110V / 220-230 V (PAINT)
4122580.3000KIT COFFEE EXIT SLIDE GROUP
4122580.5000 FORK GROUP ATOM
5101.0020 NYLON BEAN HOPPER’S SMALL DOOR
E83 WHITE ATOM LABELS
E84 BLACK ATOM LABELS
MAC60ITA CP ATOM FLAT BURR SET 60MM
