Replacing Water Tank Manifold

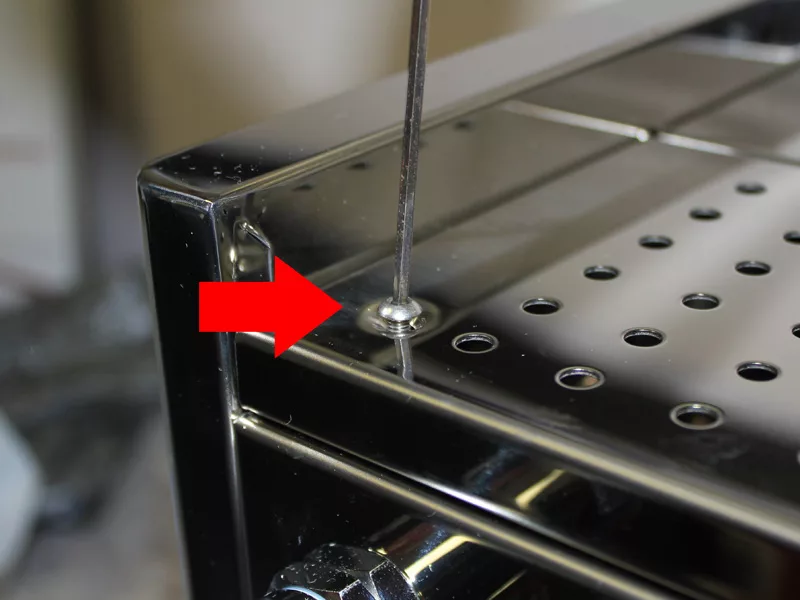

A close-up of a shiny metal appliance shows a red arrow pointing to a screw being tightened or loosened with a tool, an essential step in Water Tank Replacement. The surface features holes and a reflective finish. © 2025 1st-line.com

01

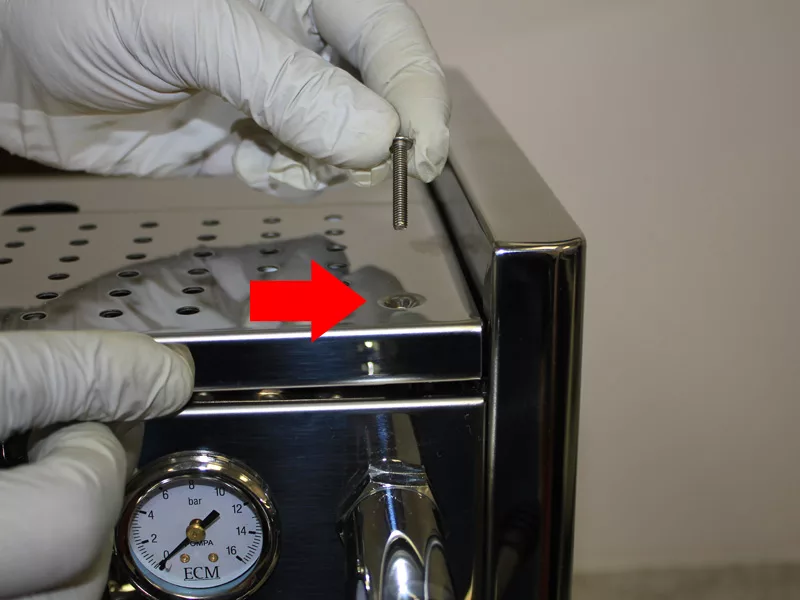

A gloved hand holds a screw above a metal espresso machine, prepping for a water tank replacement. Another hand points to the screw hole on top, highlighted by a large red arrow. A pressure gauge is visible on the front panel. © 2025 1st-line.com

02

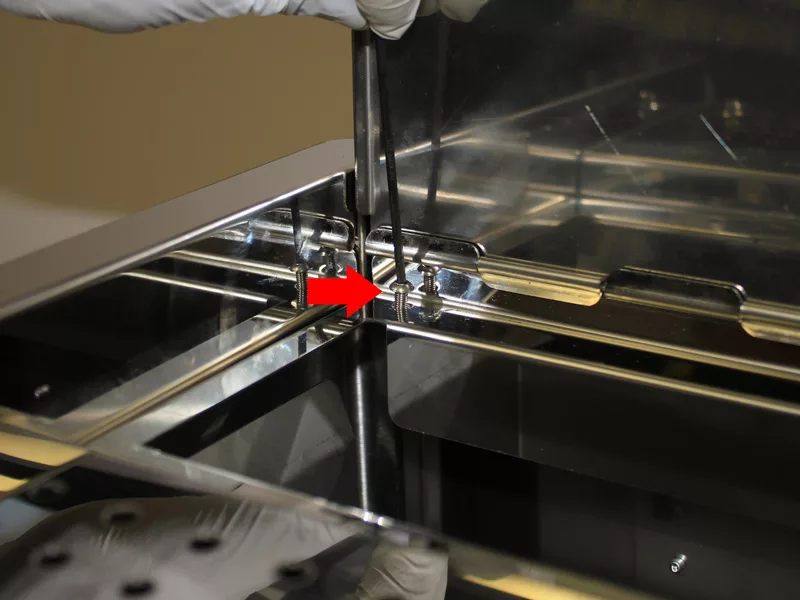

A gloved hand uses tweezers to adjust a small metal component inside a reflective water tank manifold enclosure, possibly during a water tank repair. A red arrow indicates the precise area being worked on. © 2025 1st-line.com

03

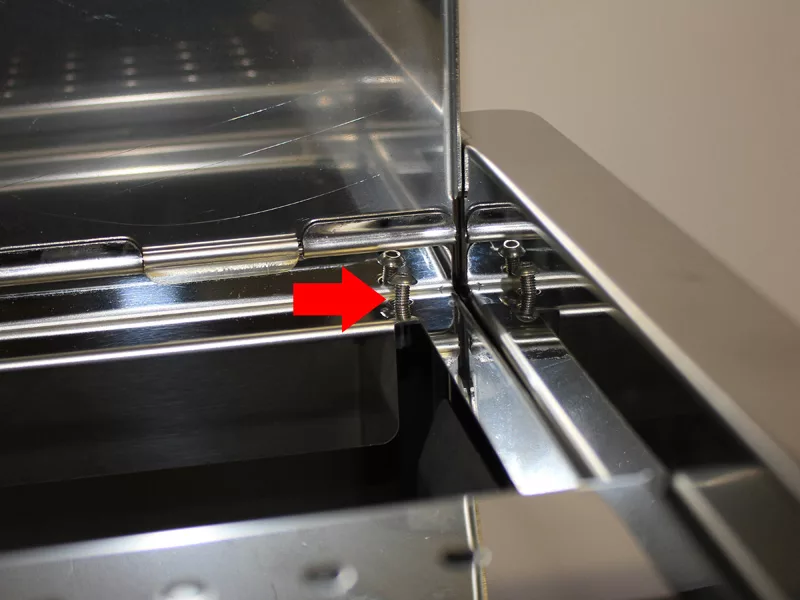

Close-up of a shiny metal surface with a red arrow pointing to two small screws in the corner, indicating the location for Water Tank Repair or adjustment of the water tank manifold during assembly. © 2025 1st-line.com

04

A person wearing white gloves opens the lid of a metal autoclave sterilizer, revealing a perforated metal tray inside—an essential step before water tank replacement. A pressure gauge is visible on the front of the machine. © 2025 1st-line.com

05

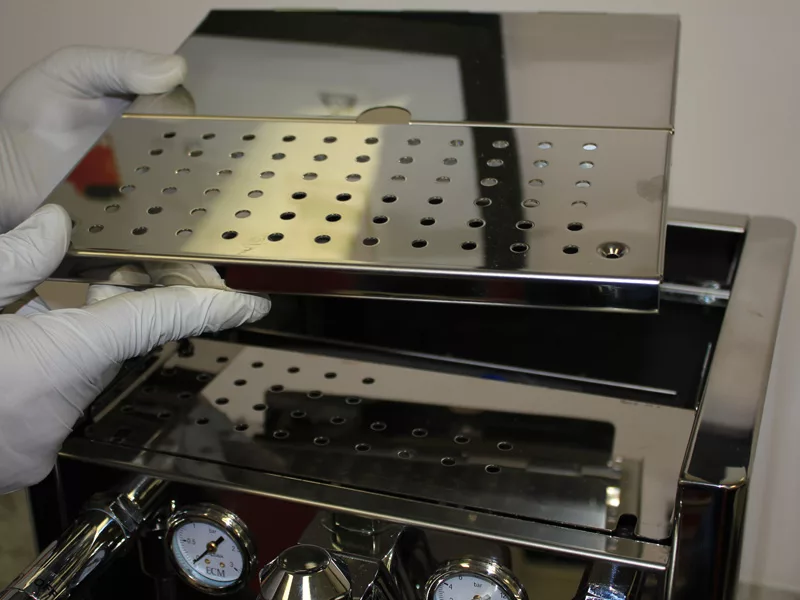

A person wearing white gloves lifts a perforated metal tray from the top of a stainless steel espresso machine, preparing for a water tank repair. Two pressure gauges are visible on the front of the machine. © 2025 1st-line.com

06

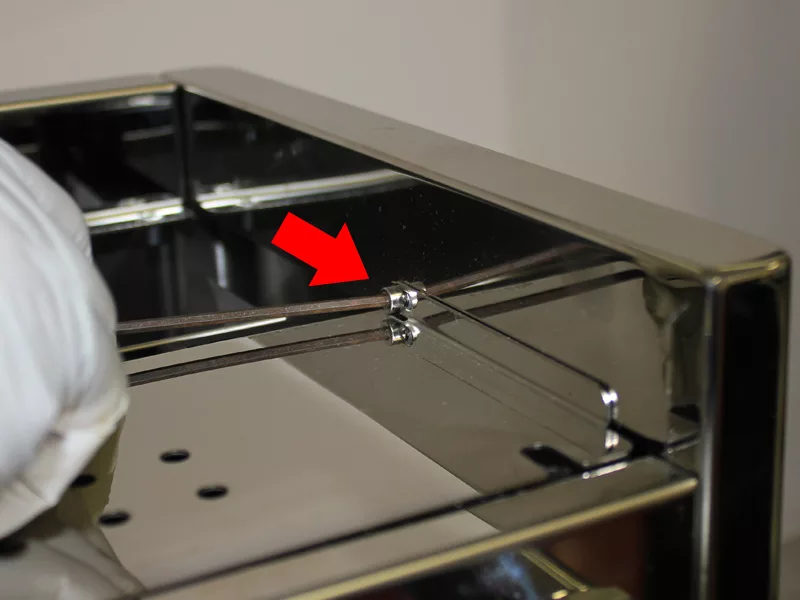

A close-up of a shiny metal appliance with a red arrow pointing to a small screw or connector on the water tank manifold, indicating a specific part for assembly or adjustment. A gloved hand is partially visible on the left side. © 2025 1st-line.com

07

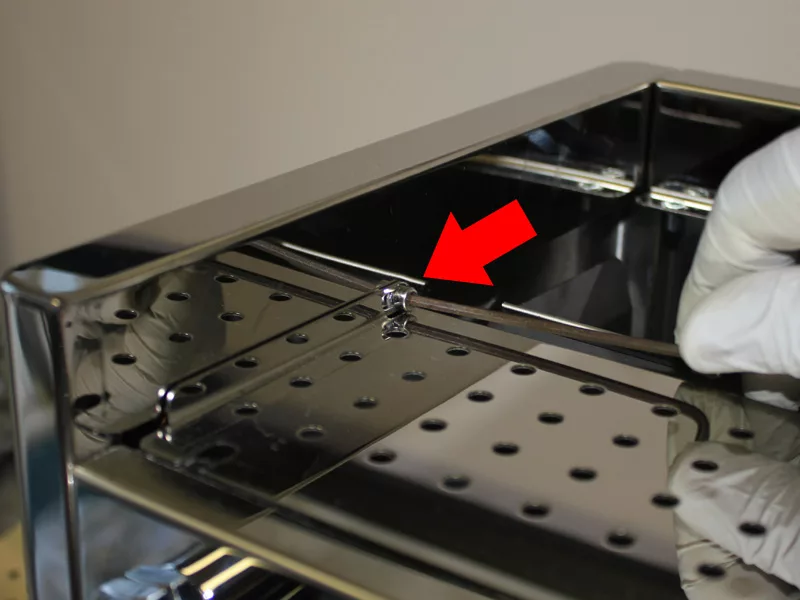

A gloved hand adjusts a shiny metal tray with holes, which is part of the water tank manifold, while a red arrow points to a small latch or tab on the tray’s surface. © 2025 1st-line.com

08

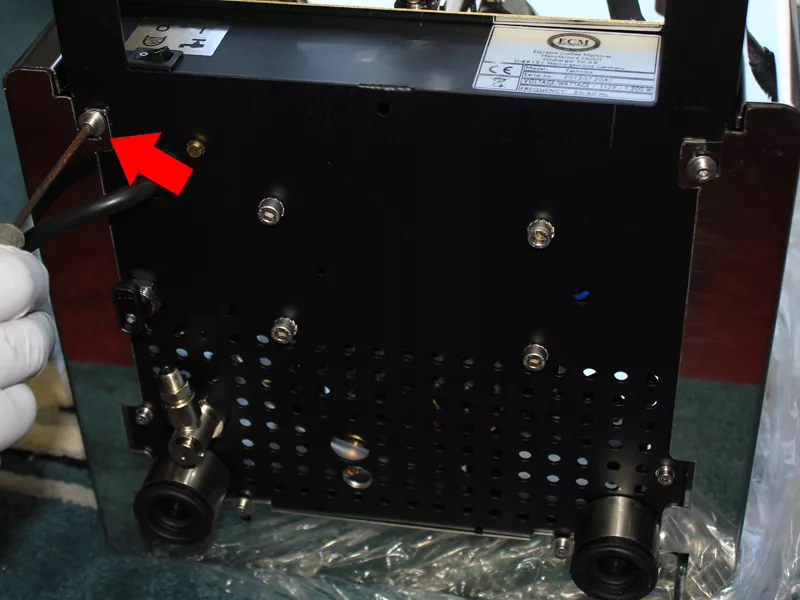

A gloved hand points with a screwdriver at a screw on the back panel of a black machine, indicated by a large red arrow—part of the process for replacing water tank components during water tank repair. © 2025 1st-line.com

09

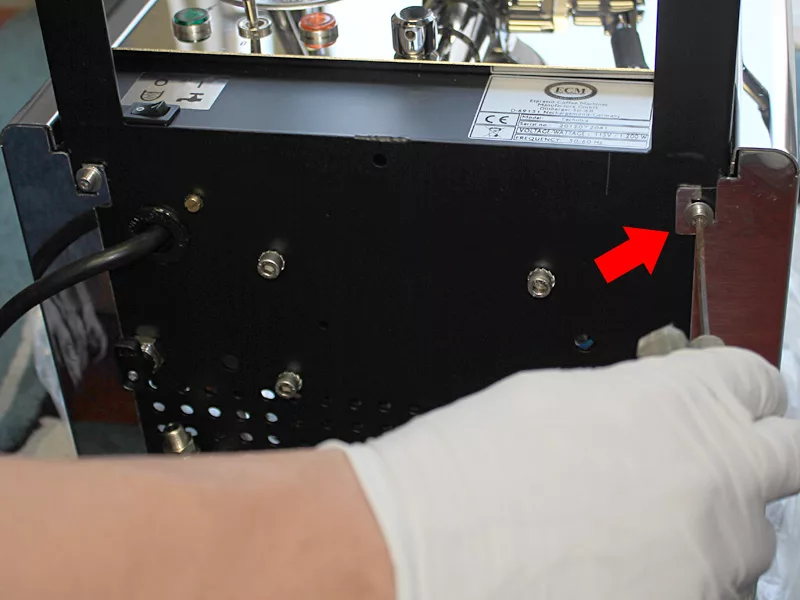

A person wearing a white glove uses a tool to unscrew a bolt on the side of a black electronic device, possibly as part of Water Tank Repair, with a red arrow pointing to the bolt. © 2025 1st-line.com

10

The underside of an espresso machine with a red arrow pointing to a hex key inserted into a screw near one of the legs, highlighting access for Water Tank Repair. © 2025 1st-line.com

11

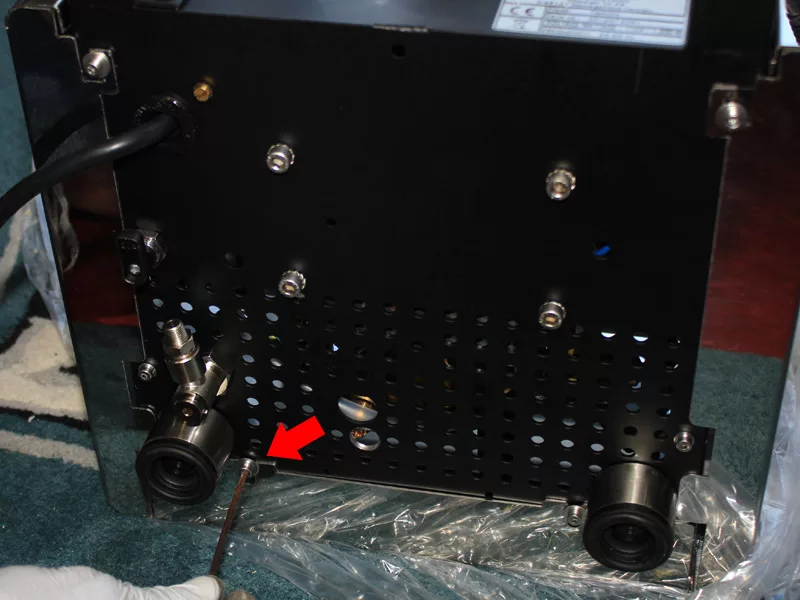

A gloved hand uses a tool on the underside of a machine with two wheels; a red arrow points to an area near the left wheel, highlighting a specific spot for Water Tank Repair. © 2025 1st-line.com

12

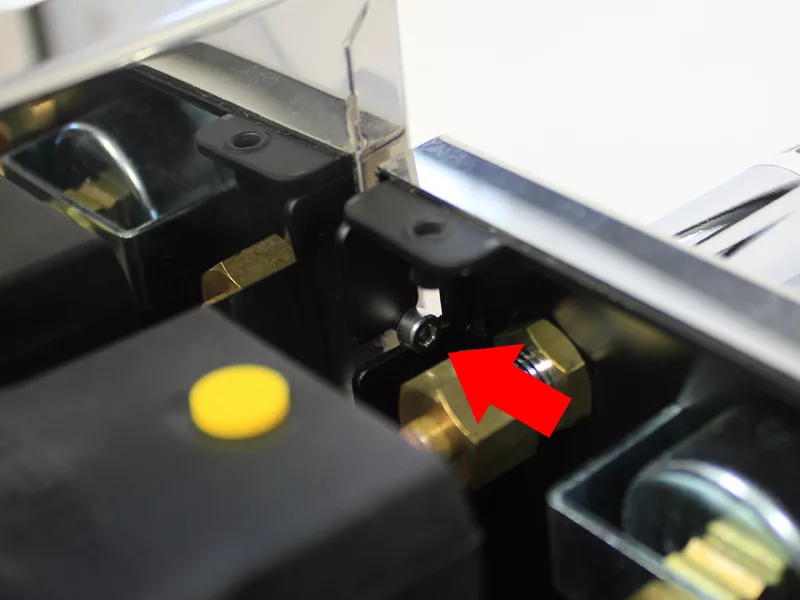

Close-up view of a mechanical component with a red arrow pointing to a screw attached to a black metal bracket—various bolts and connectors for the water tank manifold replacement are visible nearby. © 2025 1st-line.com

13

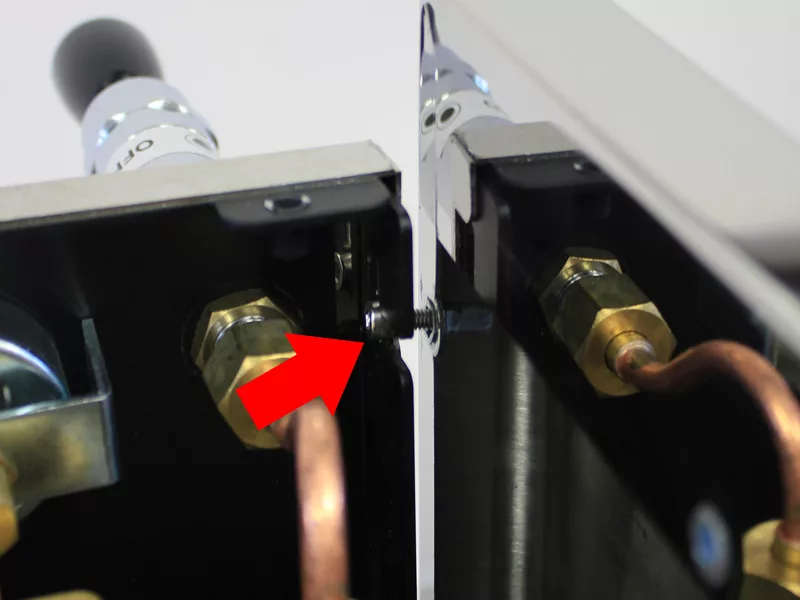

Close-up of a metal device in a water tank manifold, with a red arrow pointing to a small black screw between two brass fittings and copper pipes. These components are mounted on a black and silver frame. © 2025 1st-line.com

14

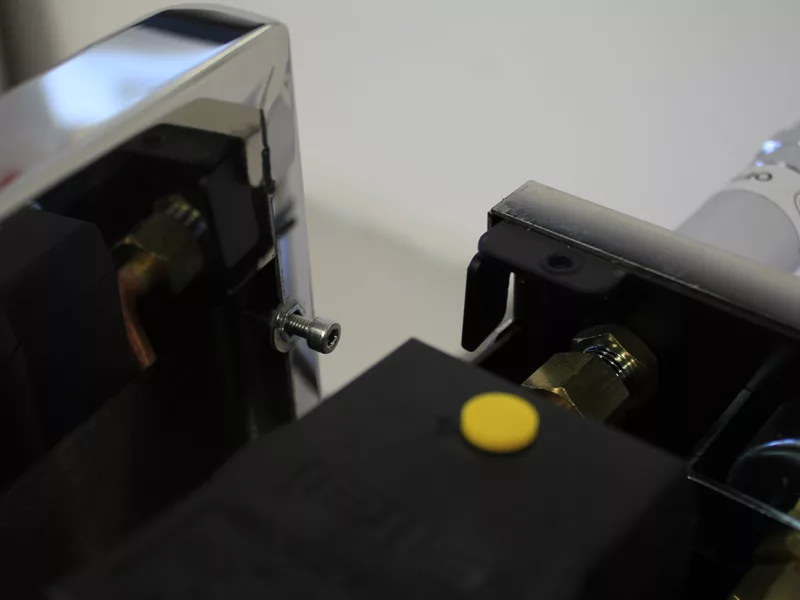

Close-up of a metal screw partially inserted into a hole between two mechanical components, likely part of a Water Tank Manifold, with one chrome finish and the other black plastic casing featuring a yellow button. © 2025 1st-line.com

15

A person wearing white gloves is removing the shiny metal side panel from an espresso machine to access its internal components, including wires, a boiler, and copper pipes, for water tank repair on a marble countertop. © 2025 1st-line.com

16

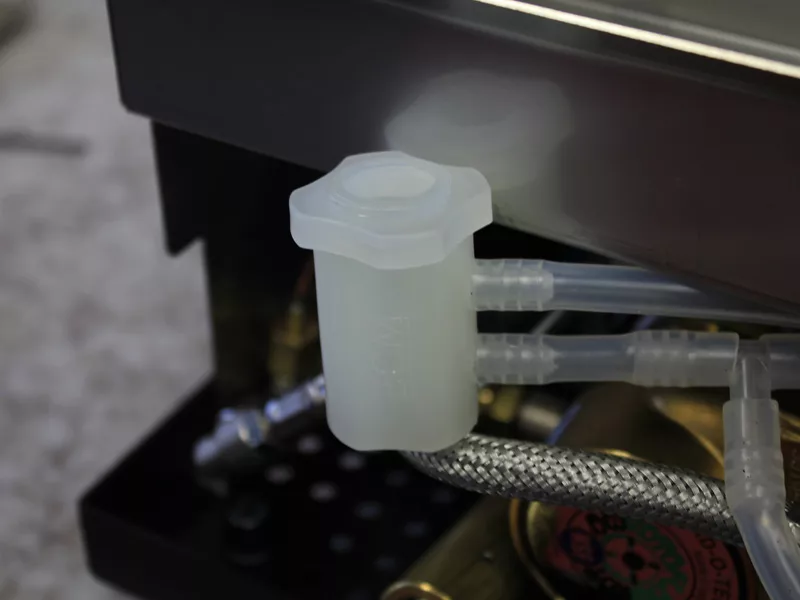

Close-up of a translucent plastic container, likely part of a water tank manifold, with attached tubes connected to metal hoses and equipment. The background is slightly out of focus. © 2025 1st-line.com

17

A person wearing white gloves connects transparent plastic tubing to a translucent container, performing a task involving laboratory or technical equipment, possibly working on a water tank repair or replacing the water tank manifold. © 2025 1st-line.com

18

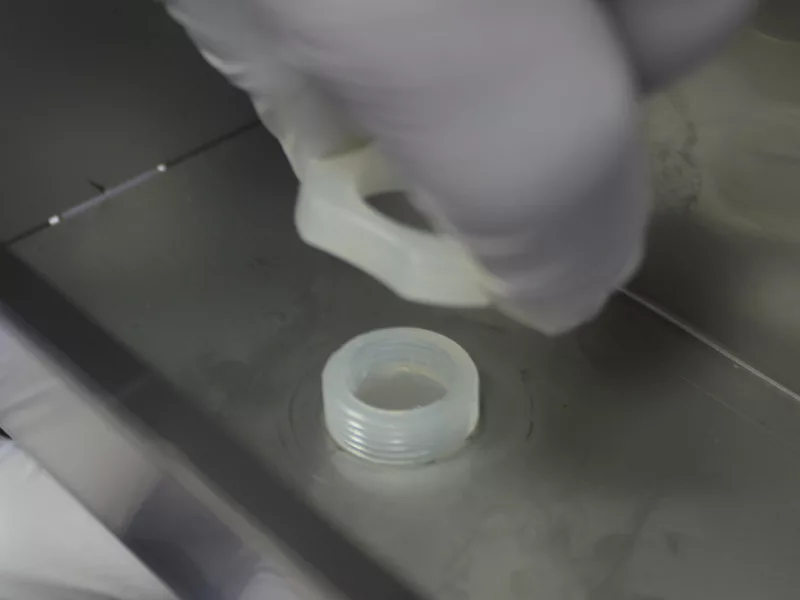

A gloved hand holds a white plastic ring above a matching threaded plastic fitting on a metallic surface, possibly preparing for water tank repair or replacing water tank components by securing the ring onto the fitting. © 2025 1st-line.com

19

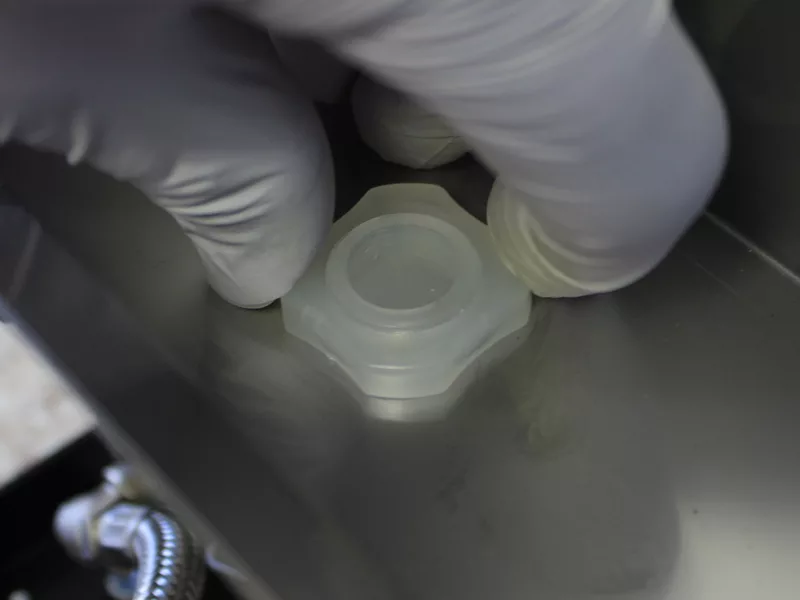

A gloved hand places or adjusts a translucent plastic cap inside a metallic container, suggesting a laboratory setting—possibly during a water tank replacement or while working with a water tank manifold. © 2025 1st-line.com

20

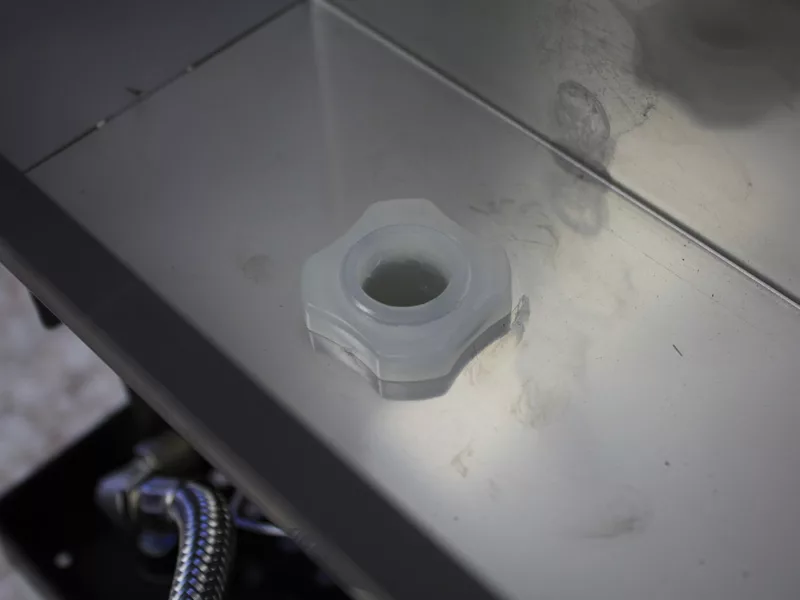

A close-up view of a white plastic hexagonal nut or cap inside a metal enclosure, part of a water tank manifold, with reflective surfaces and cables visible in the bottom left corner. © 2025 1st-line.com

21

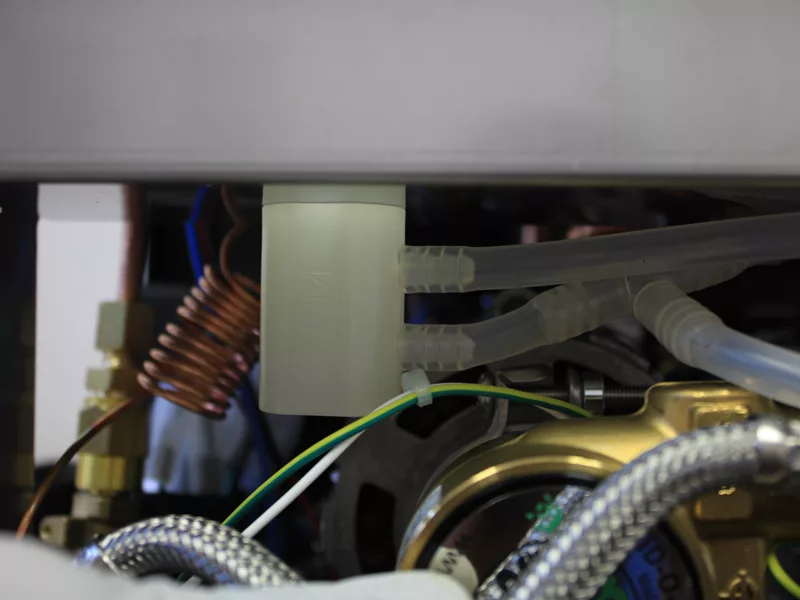

Close-up view of components inside a machine, showing plastic tubes, a coiled copper pipe, wires, and metal parts—likely part of a coffee machine’s internal mechanism related to water tank repair. © 2025 1st-line.com

22

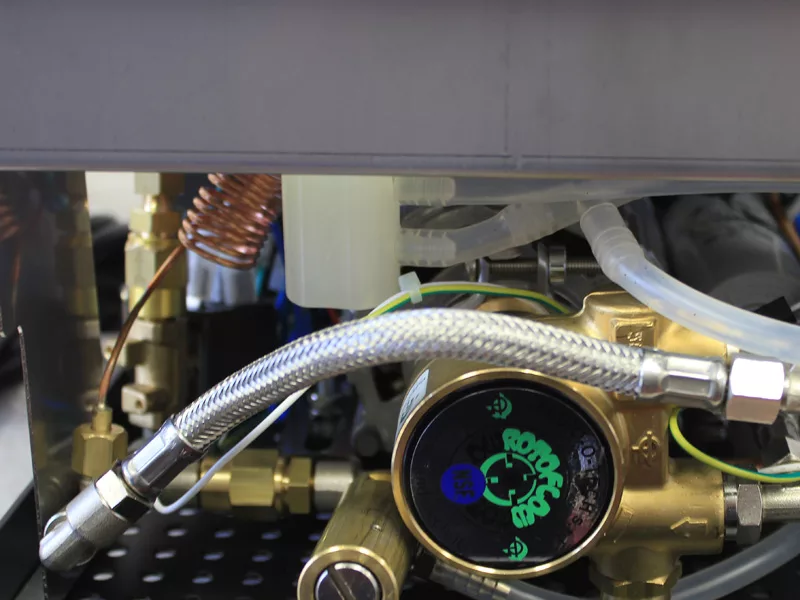

Close-up of internal components of a coffee machine, showing metal pipes, a water tank manifold, a pressure gauge with a green dial, coiled copper tube, and various connectors and wires. © 2025 1st-line.com

23
